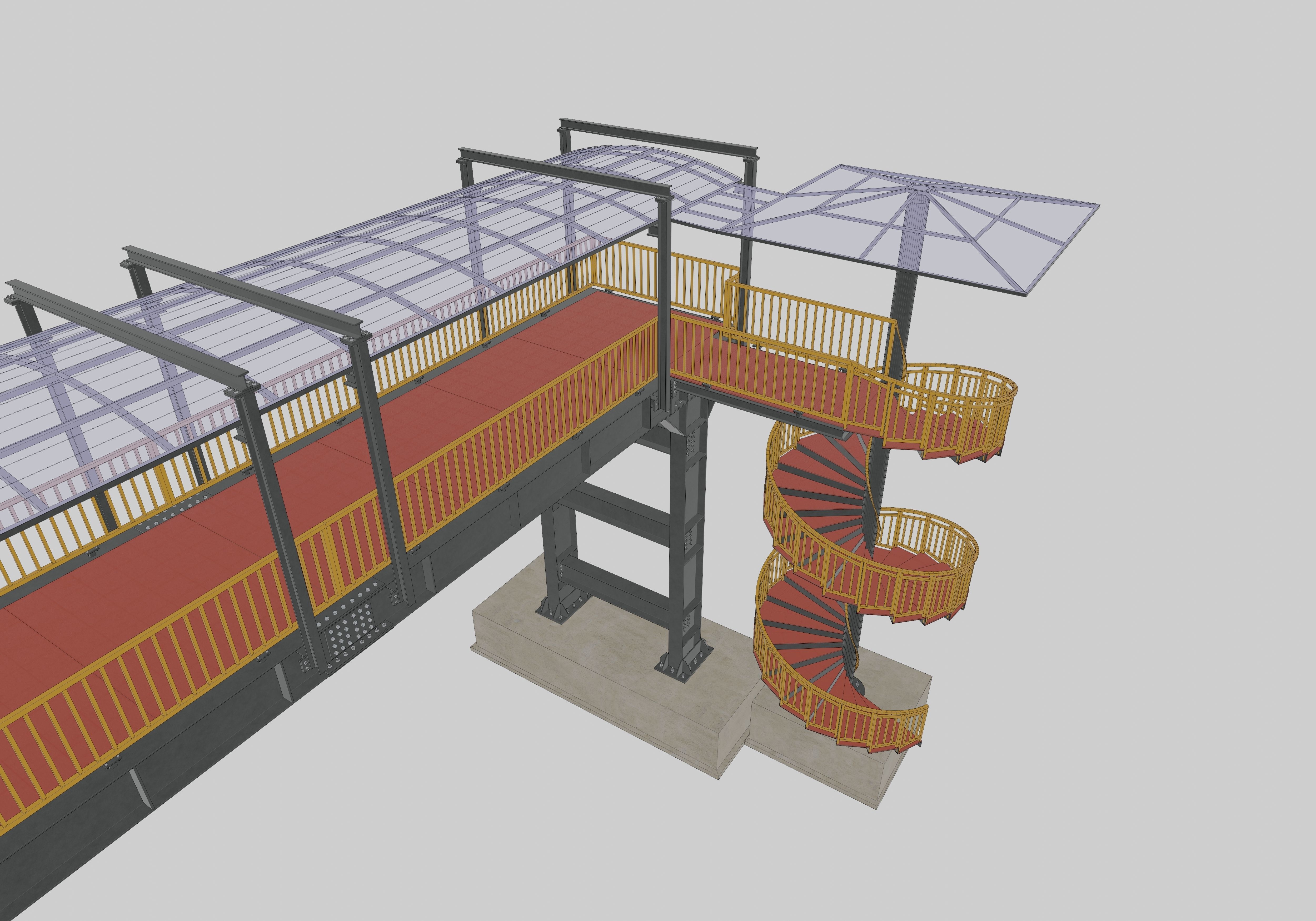

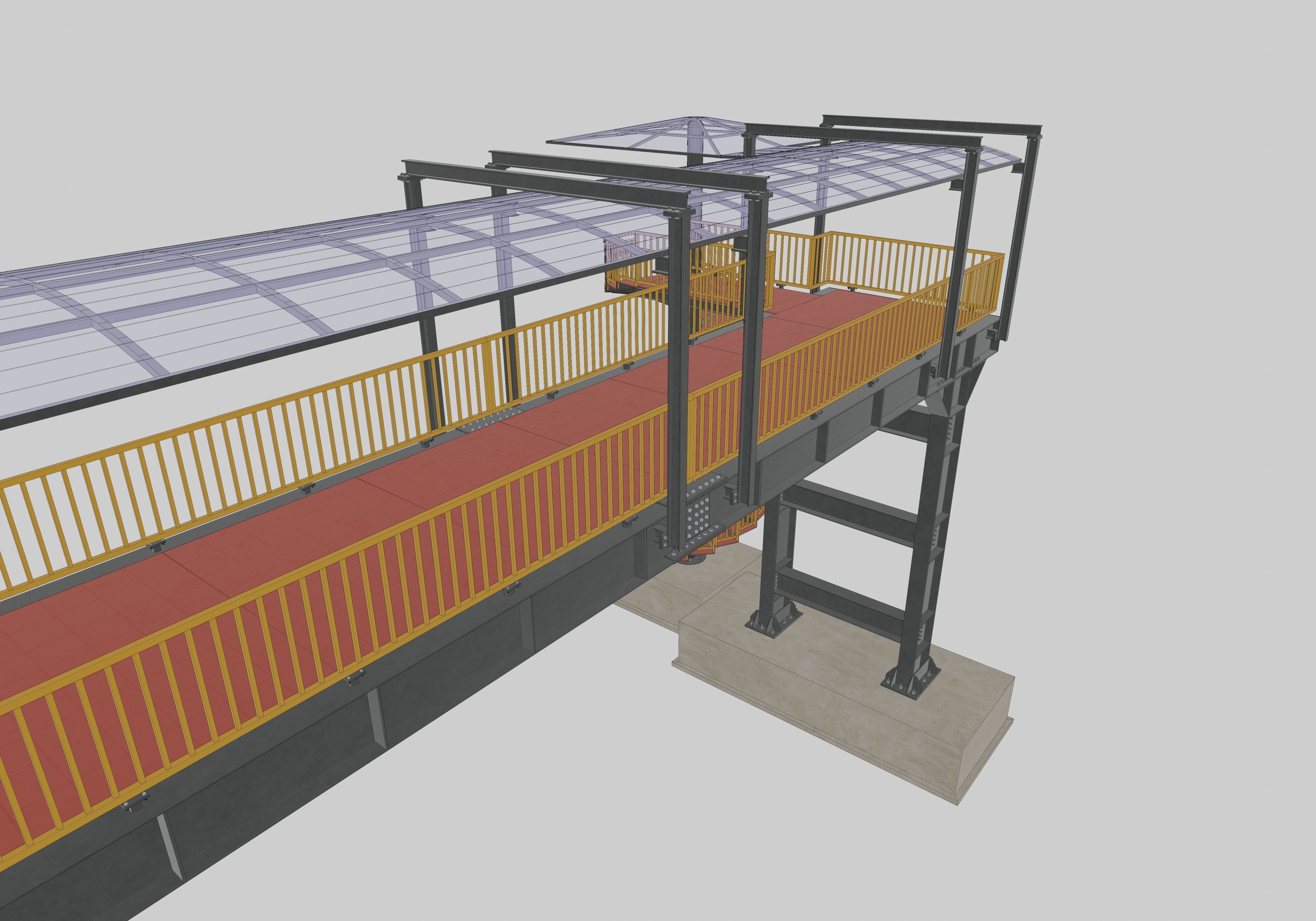

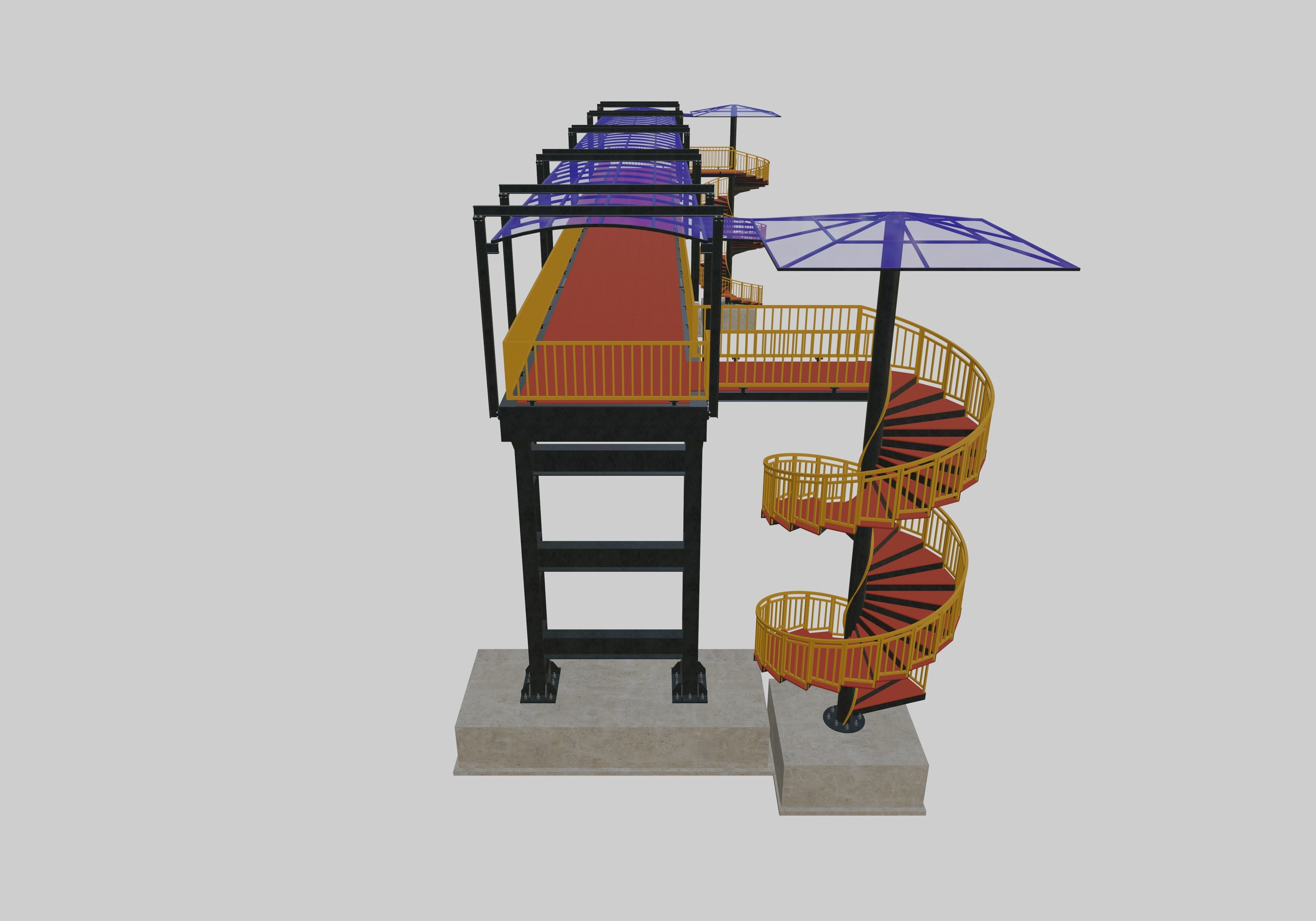

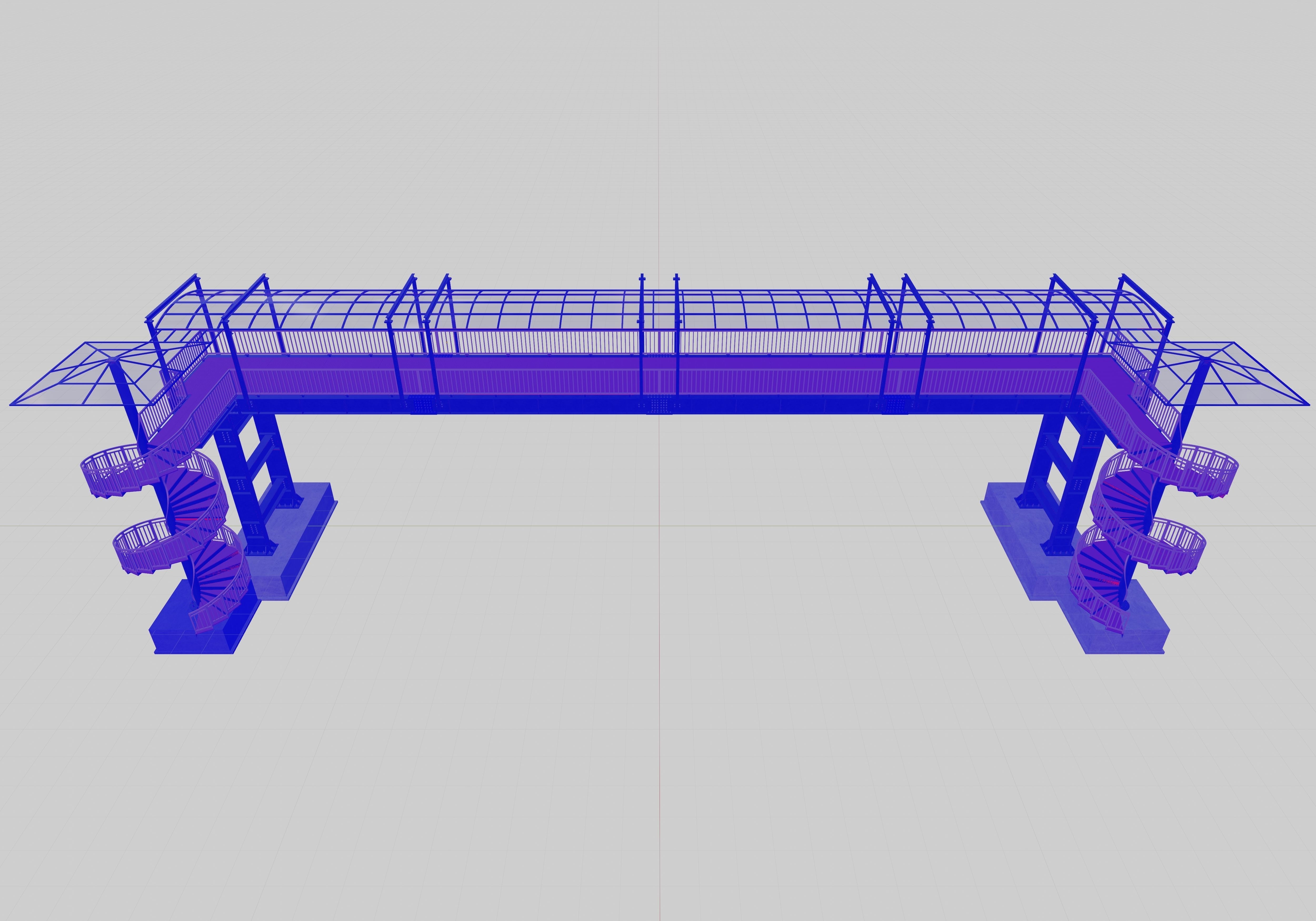

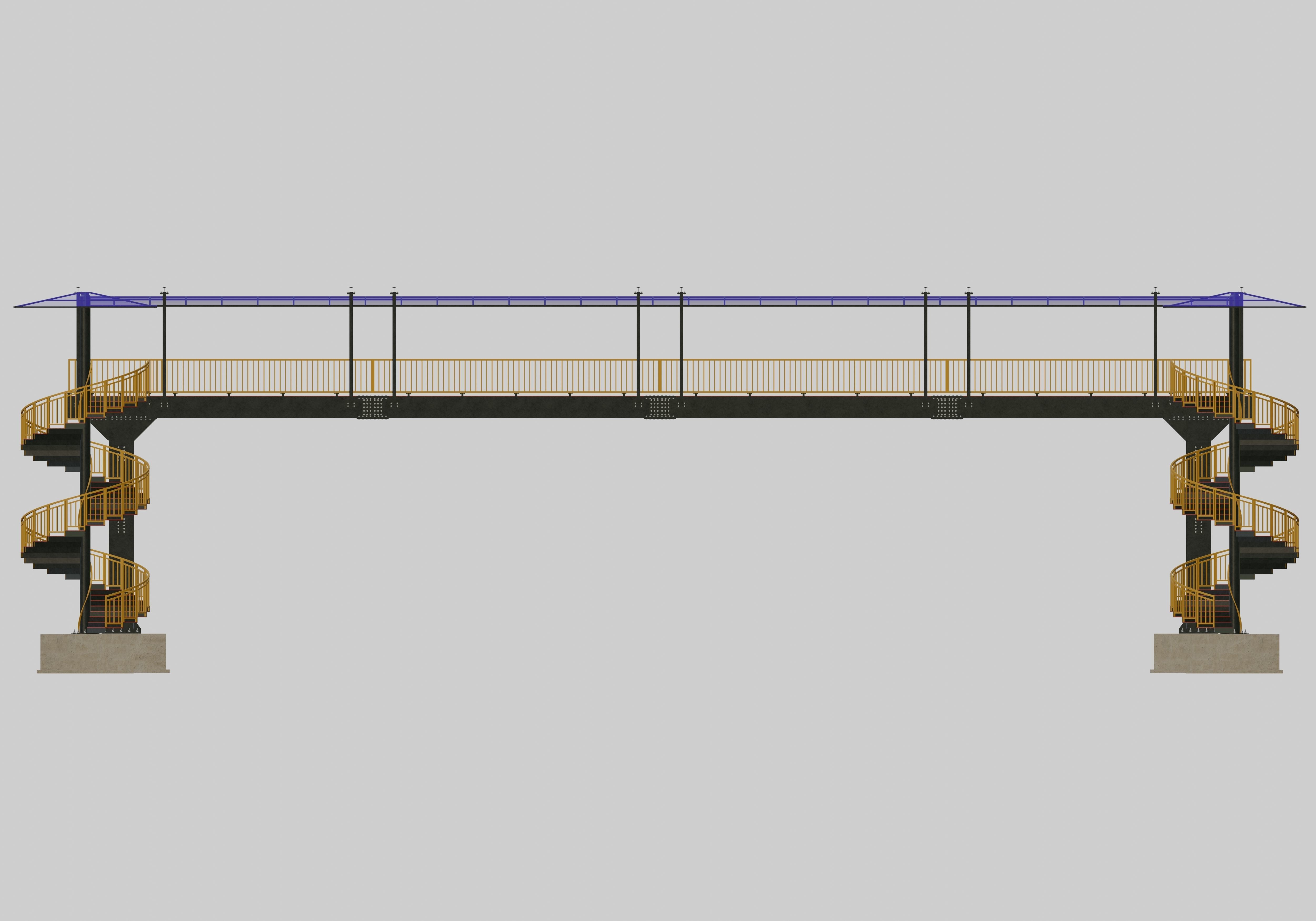

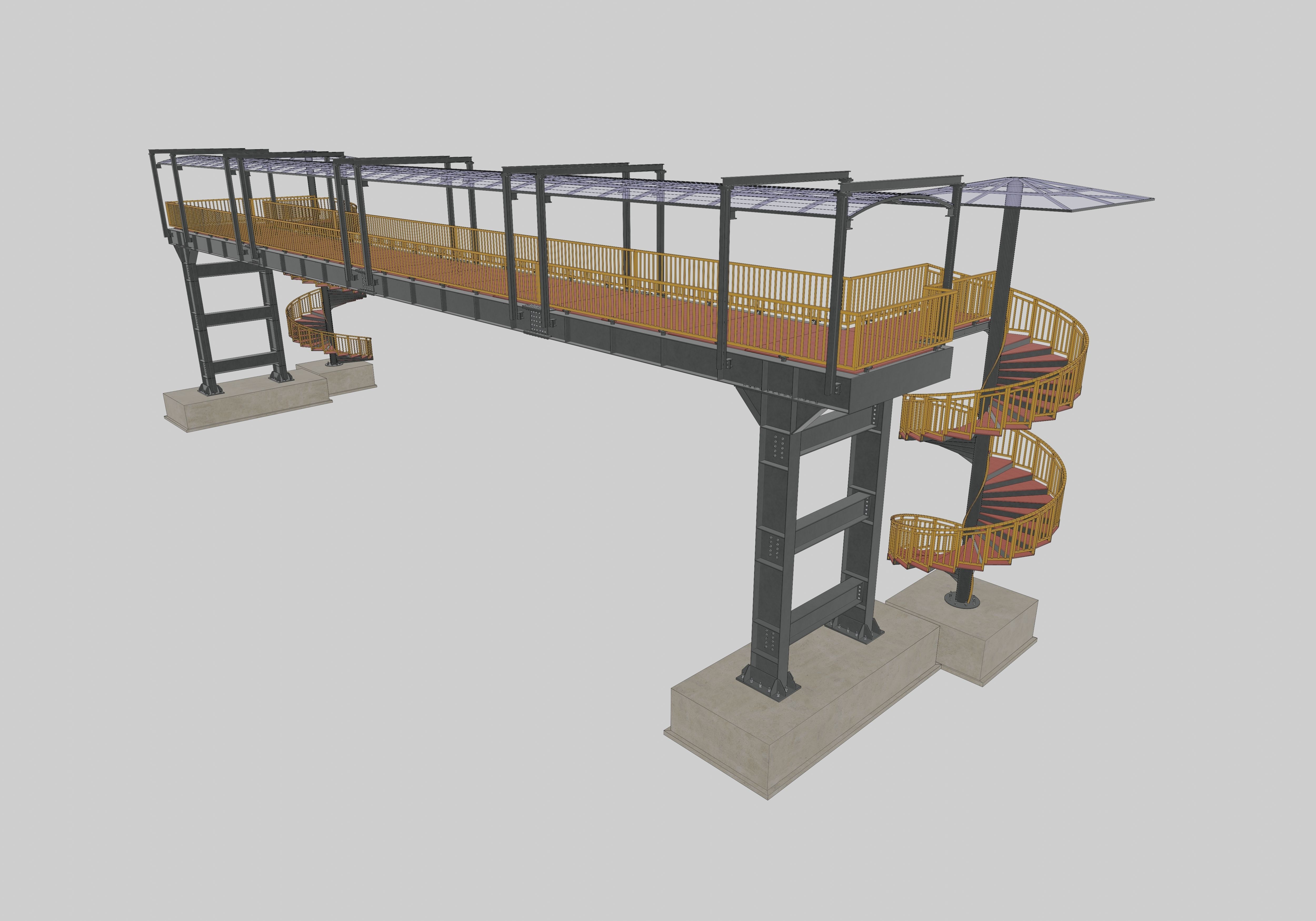

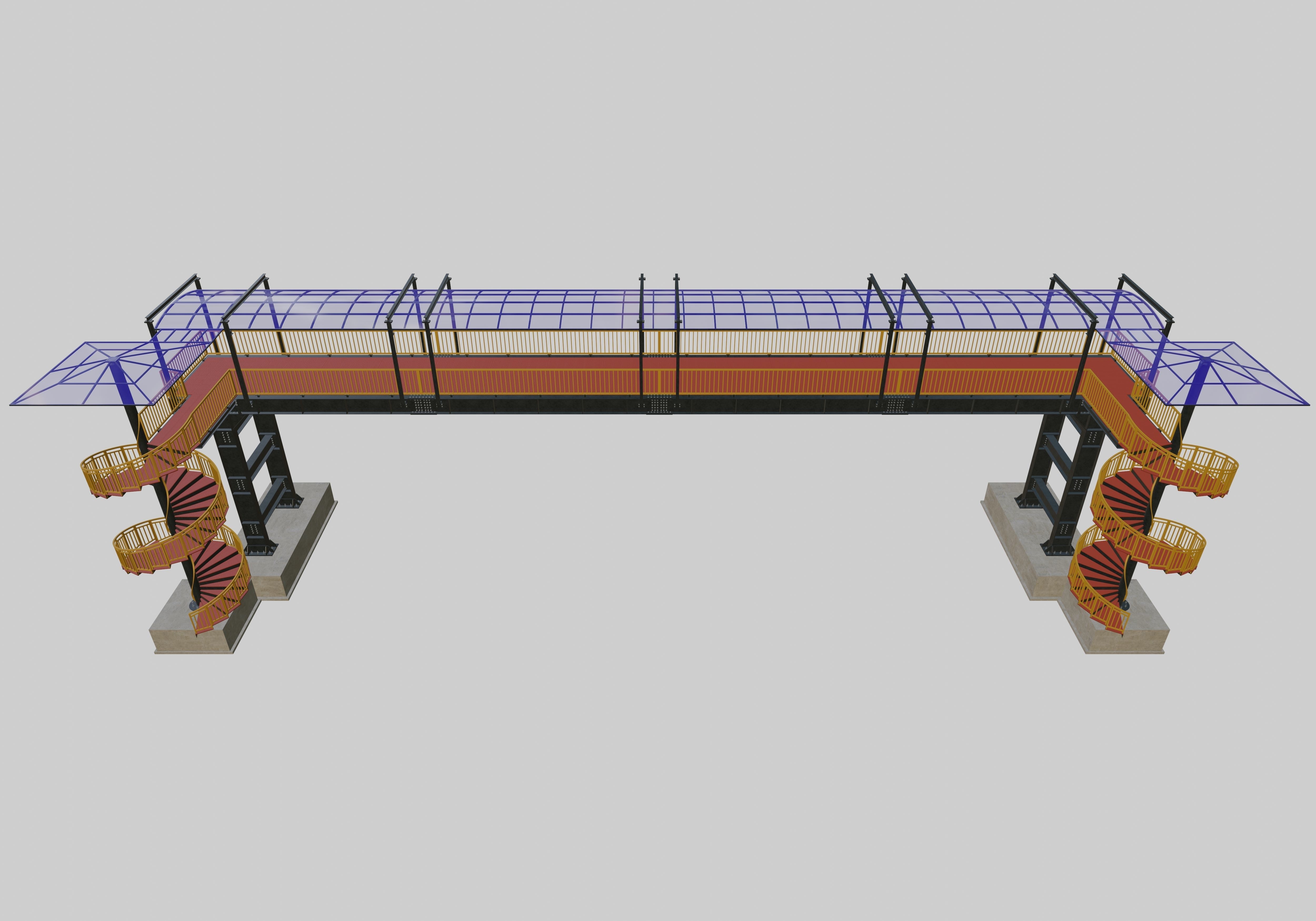

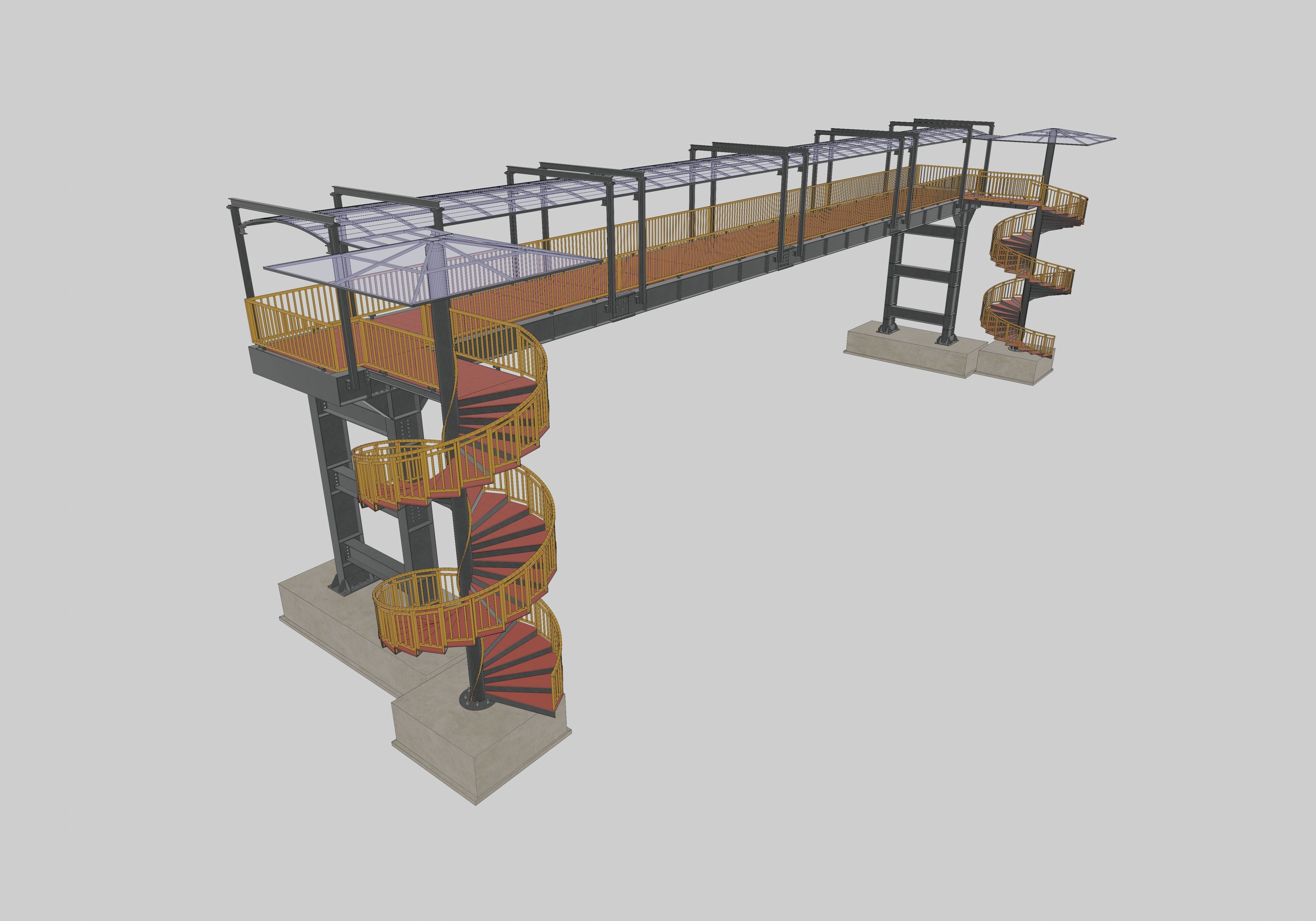

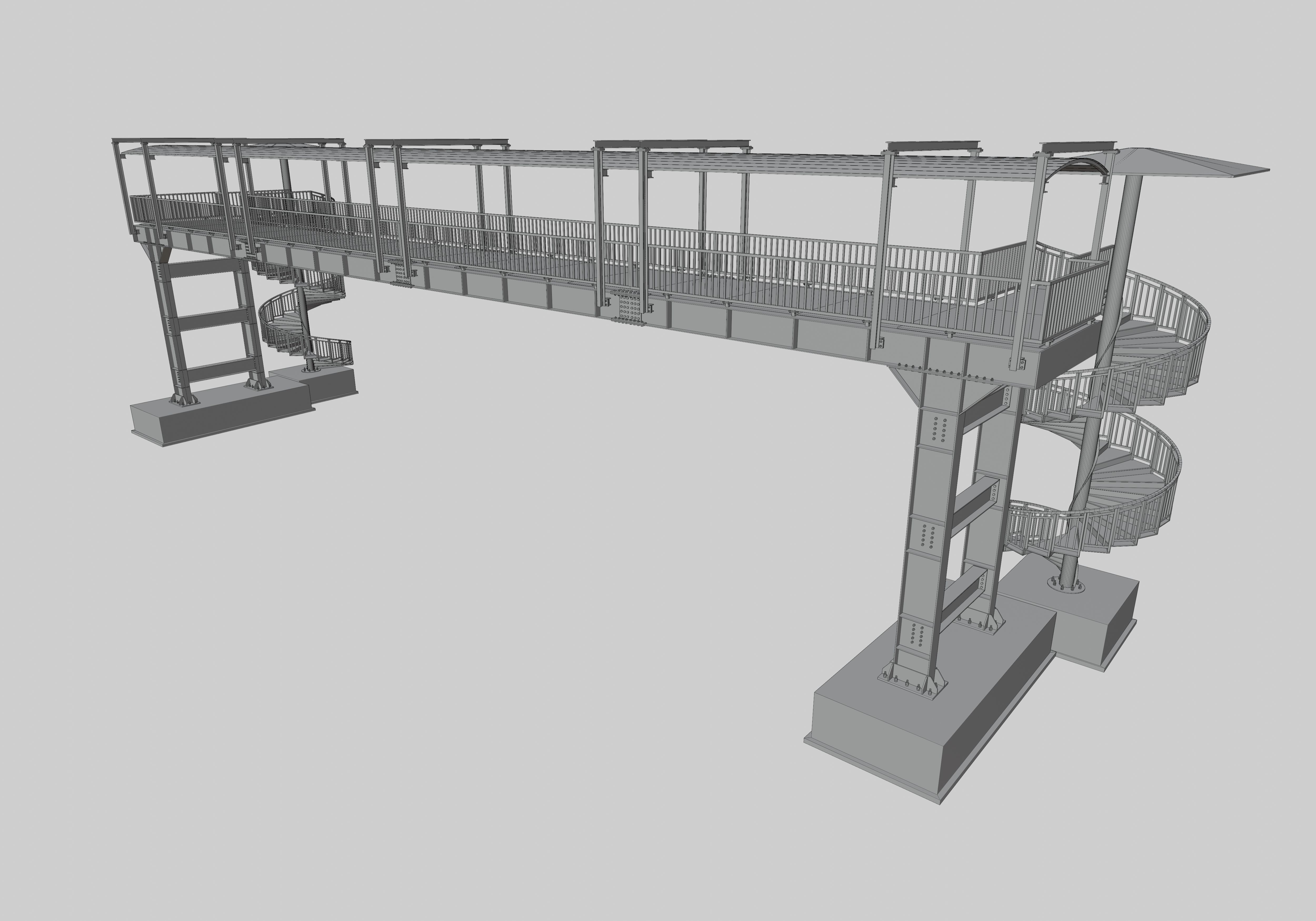

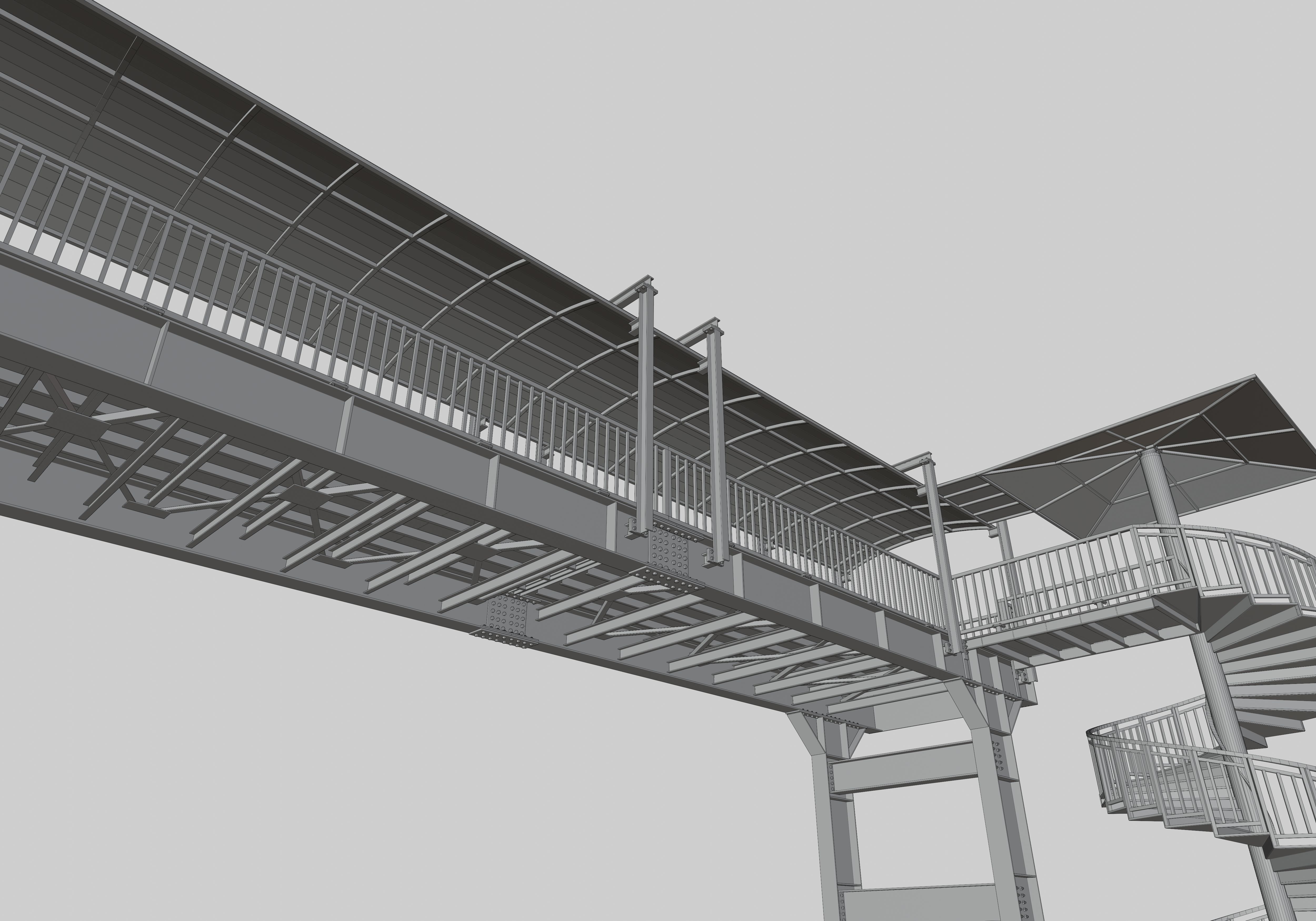

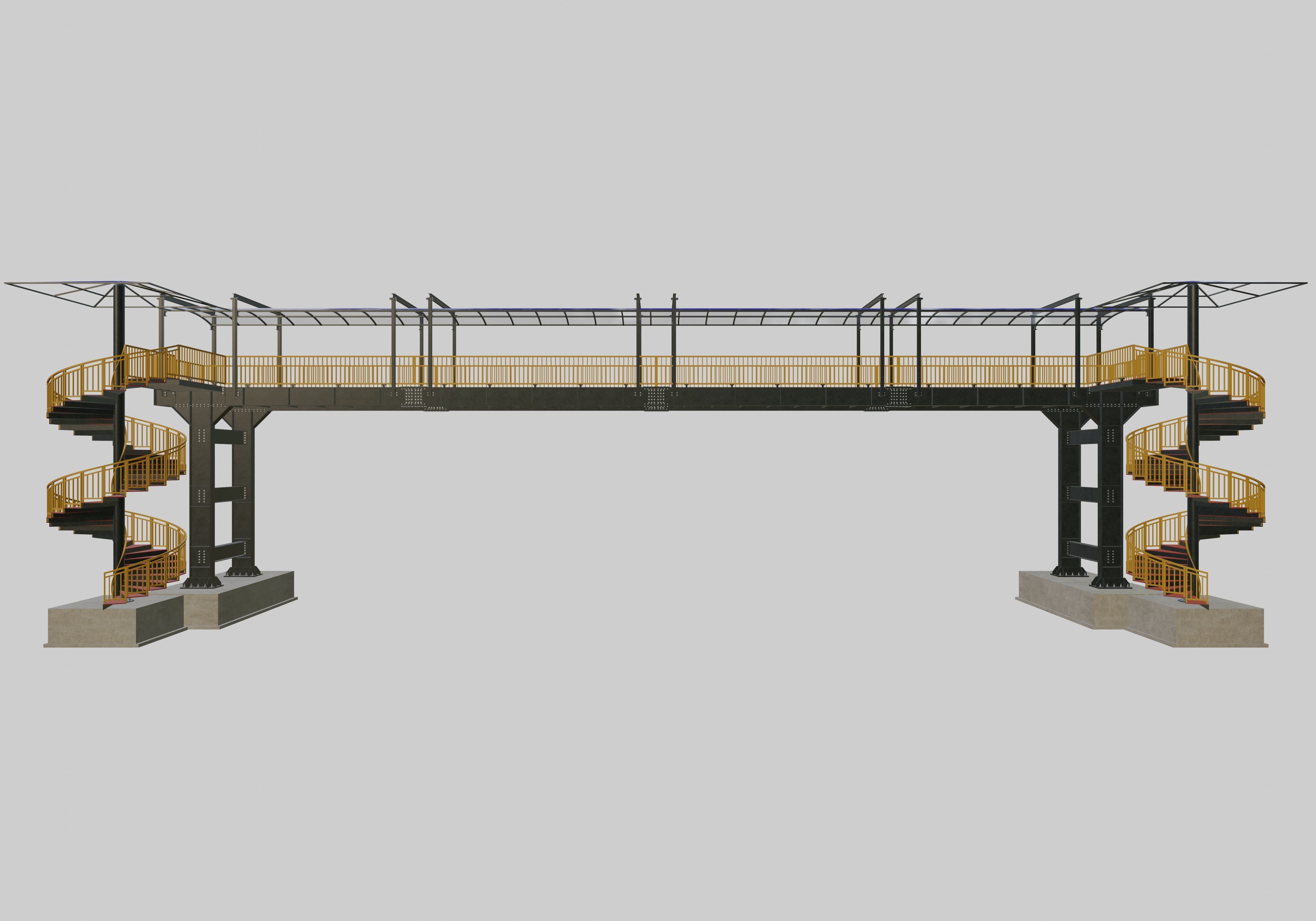

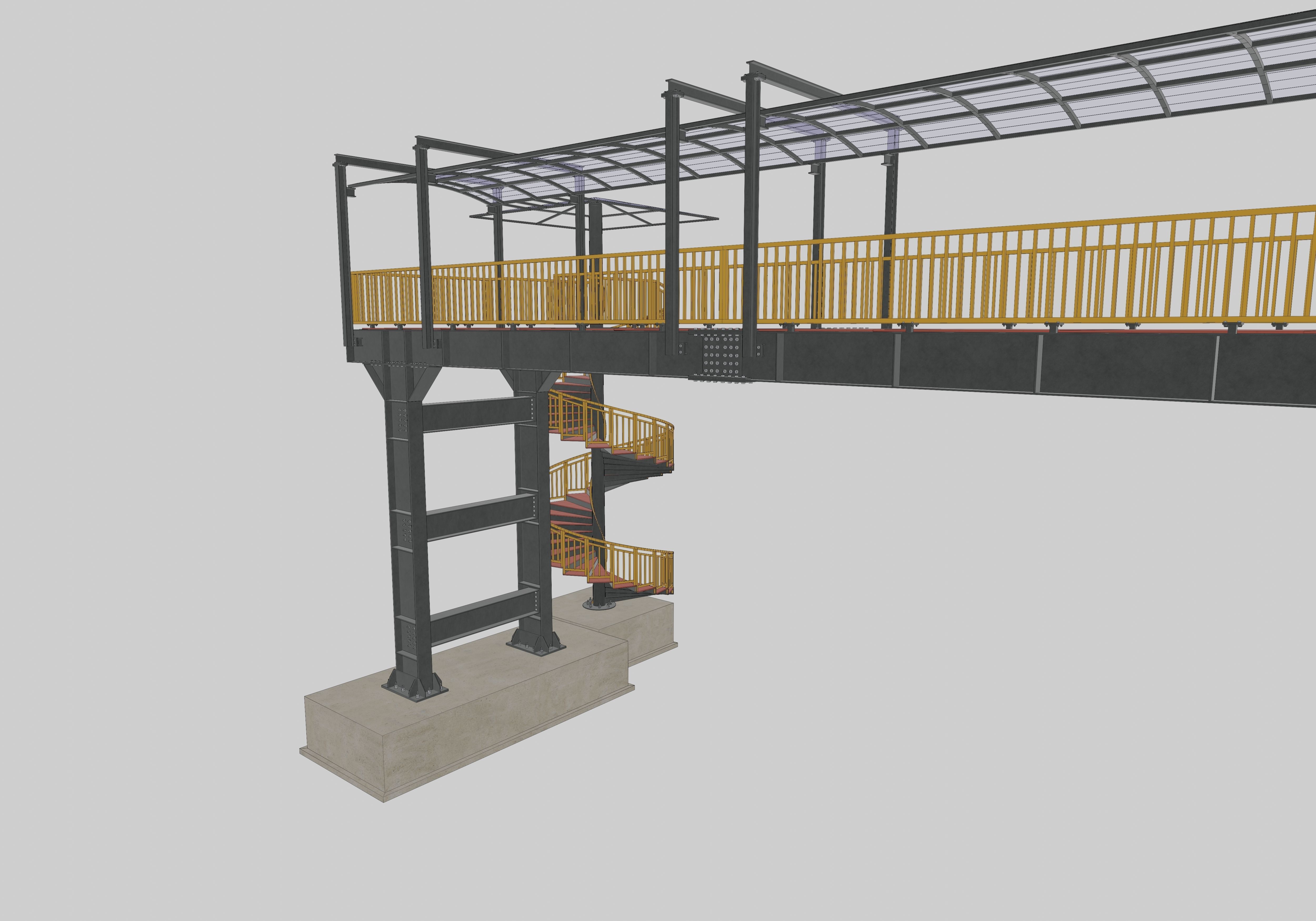

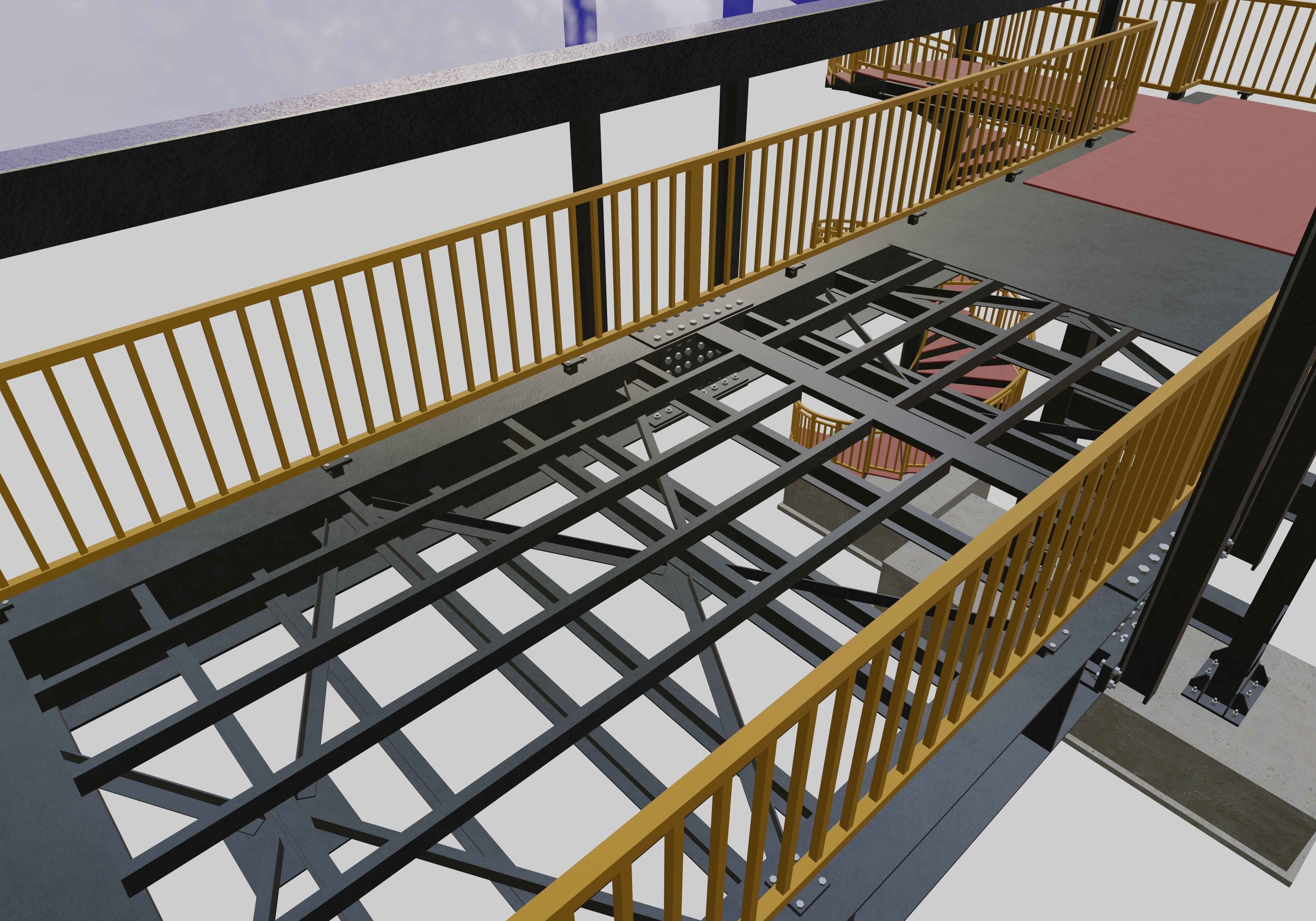

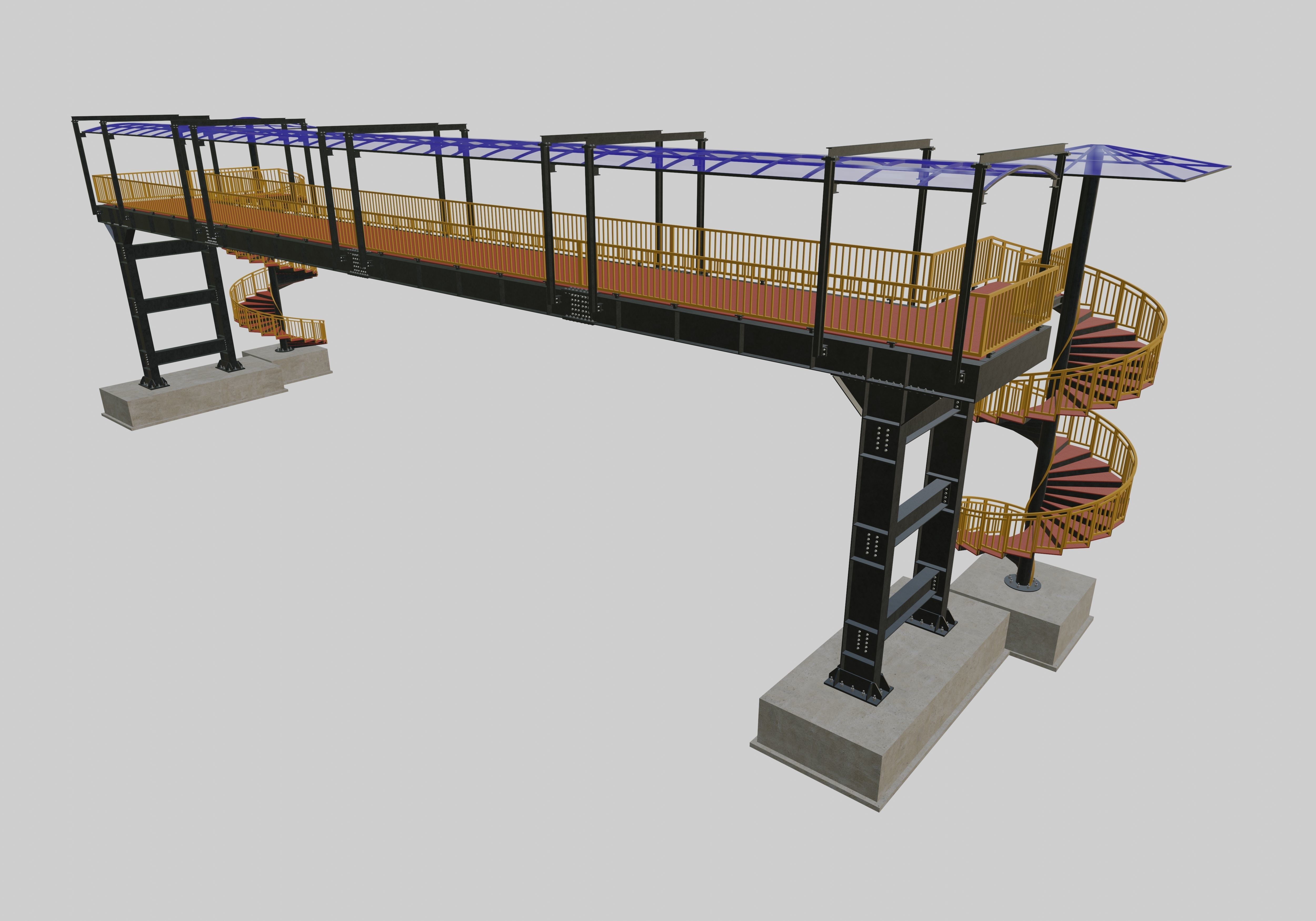

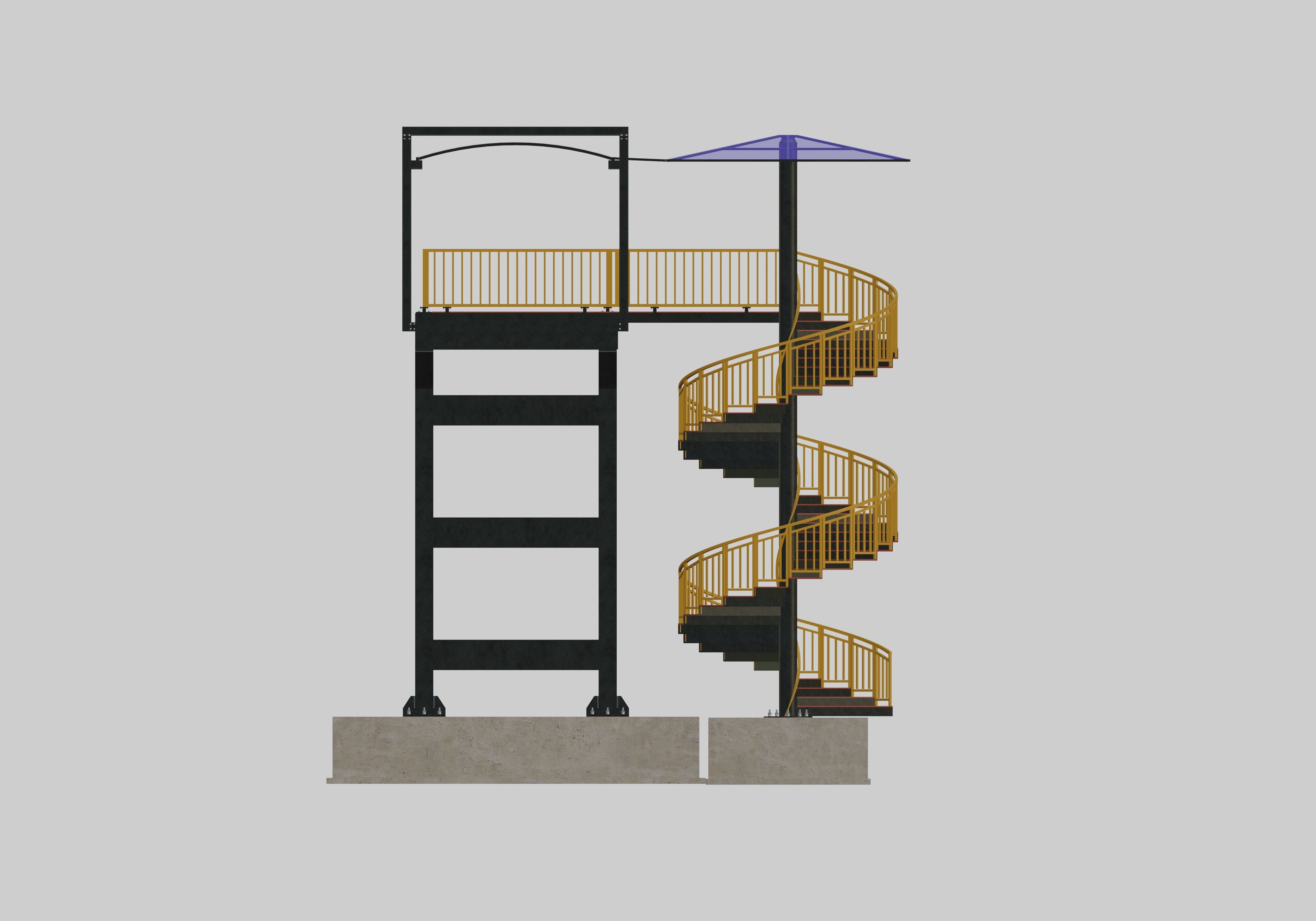

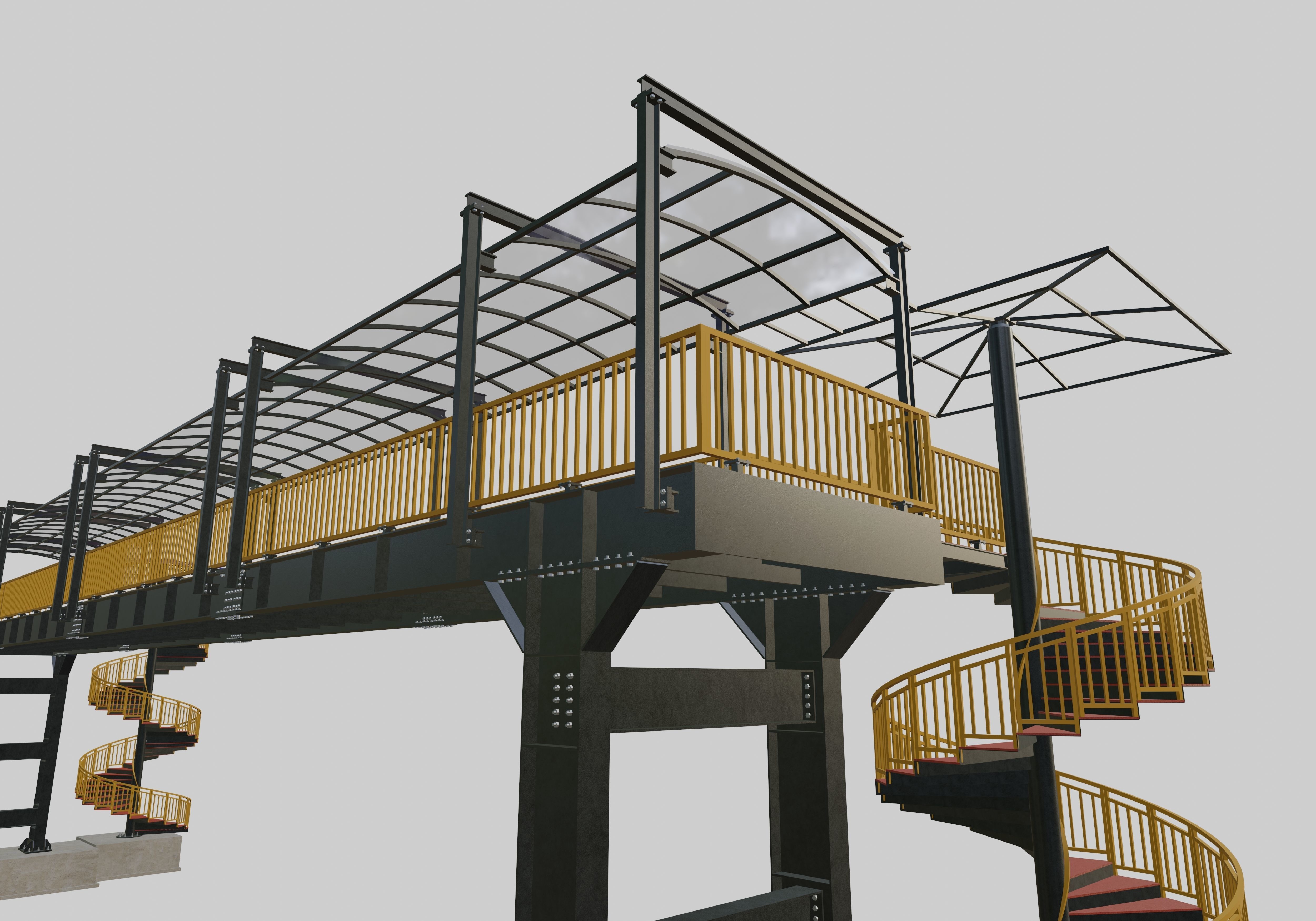

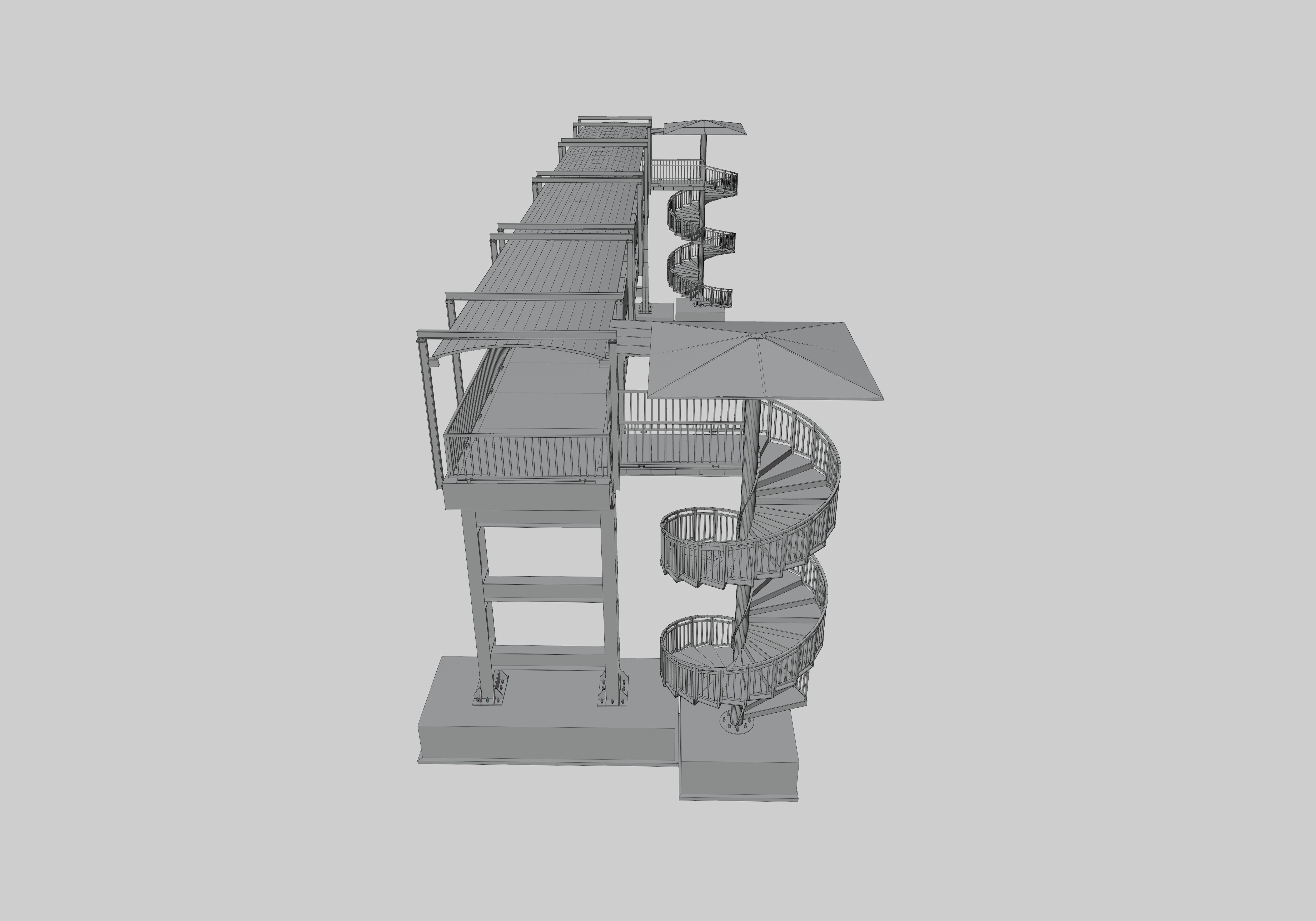

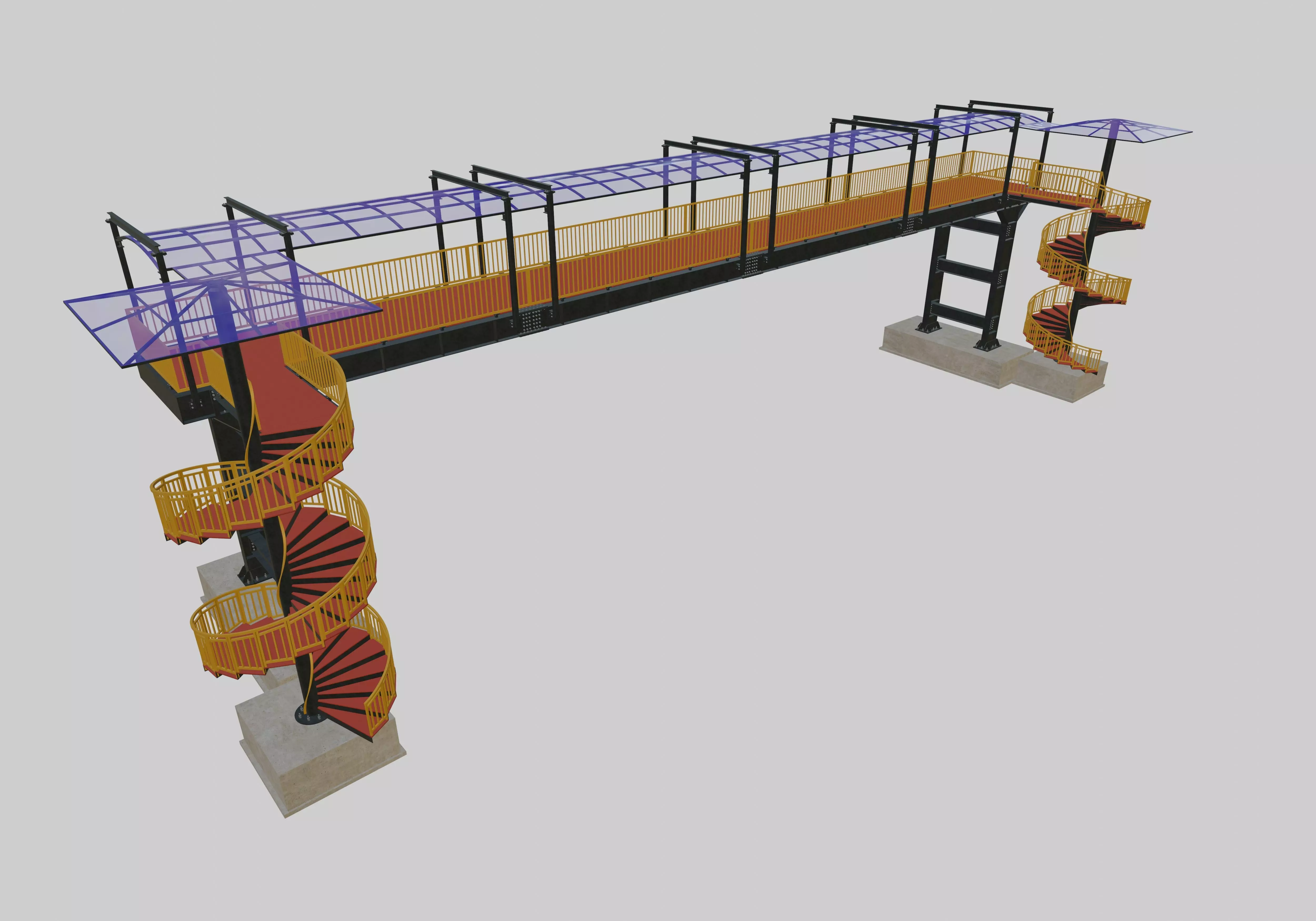

Steel Pedestrian Bridge
Two Column Consruction
Closed Top Construction
Straigth Beam Type
Straight Column Type
Named Objects
Largest Column Span : 30 mt.
Distance Between Two Columns : 30 mt.
Platform Asphalt Height : 6 mt.
Platform Width : 3 mt.

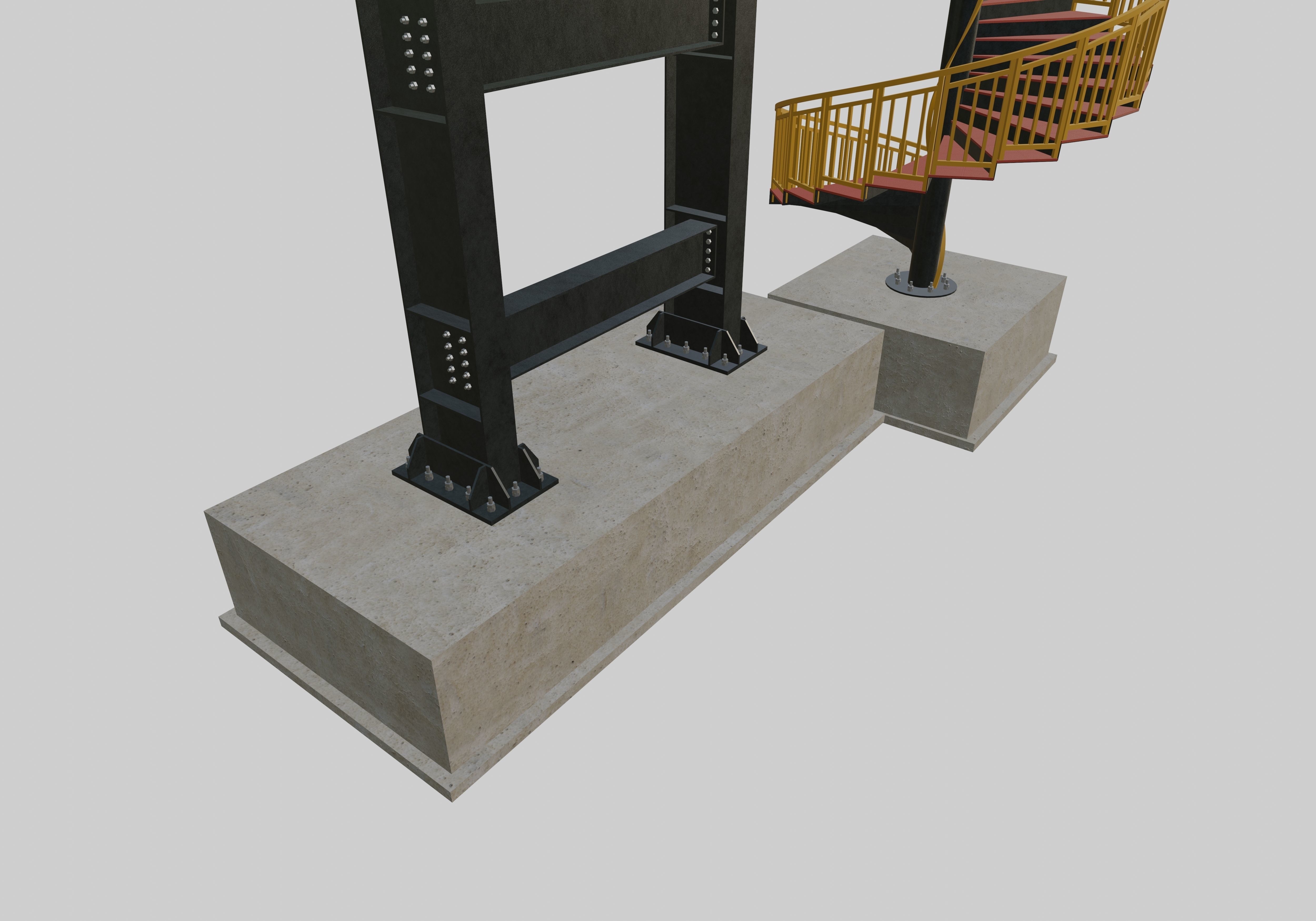

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.
Spiral Stair Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.

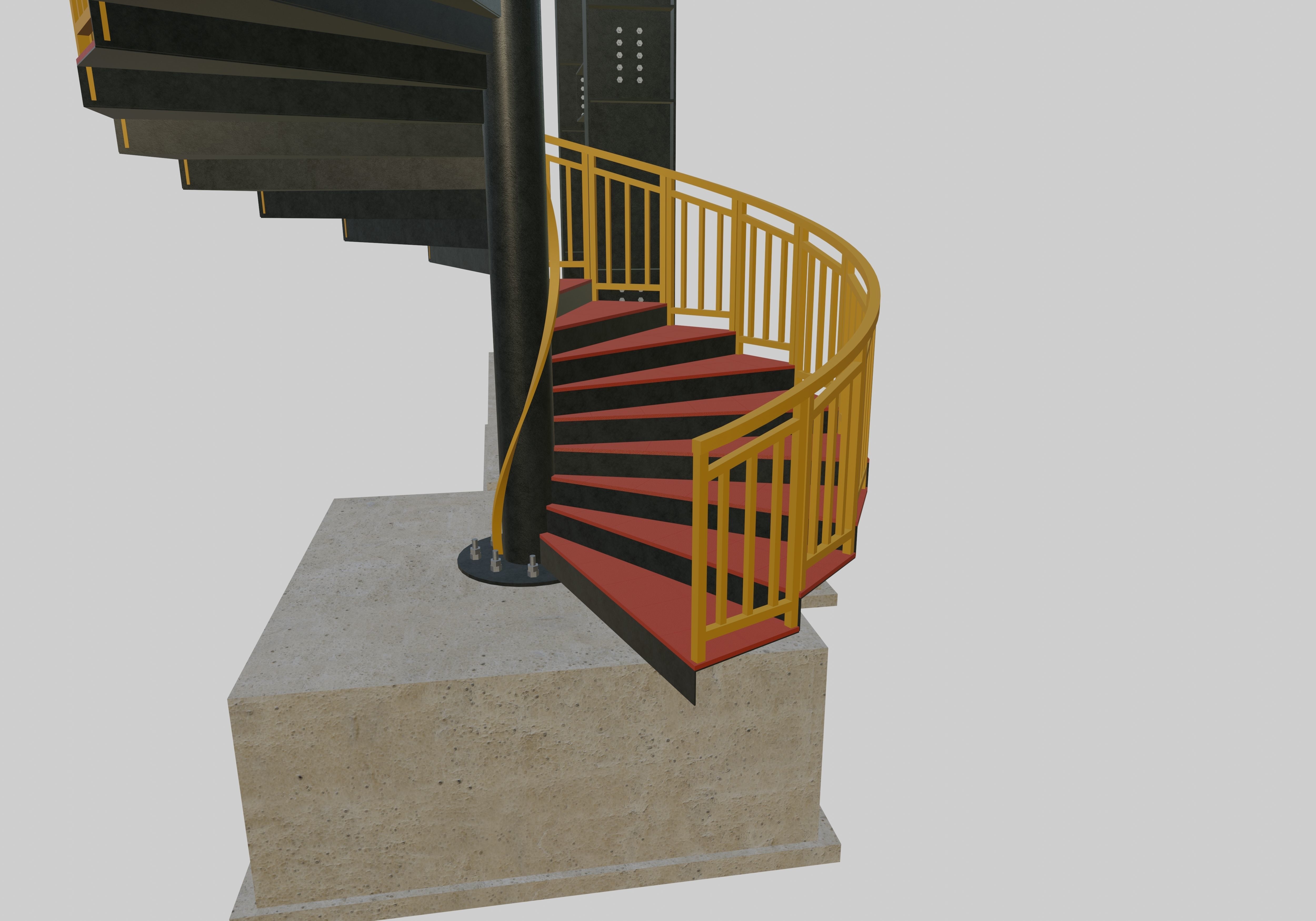

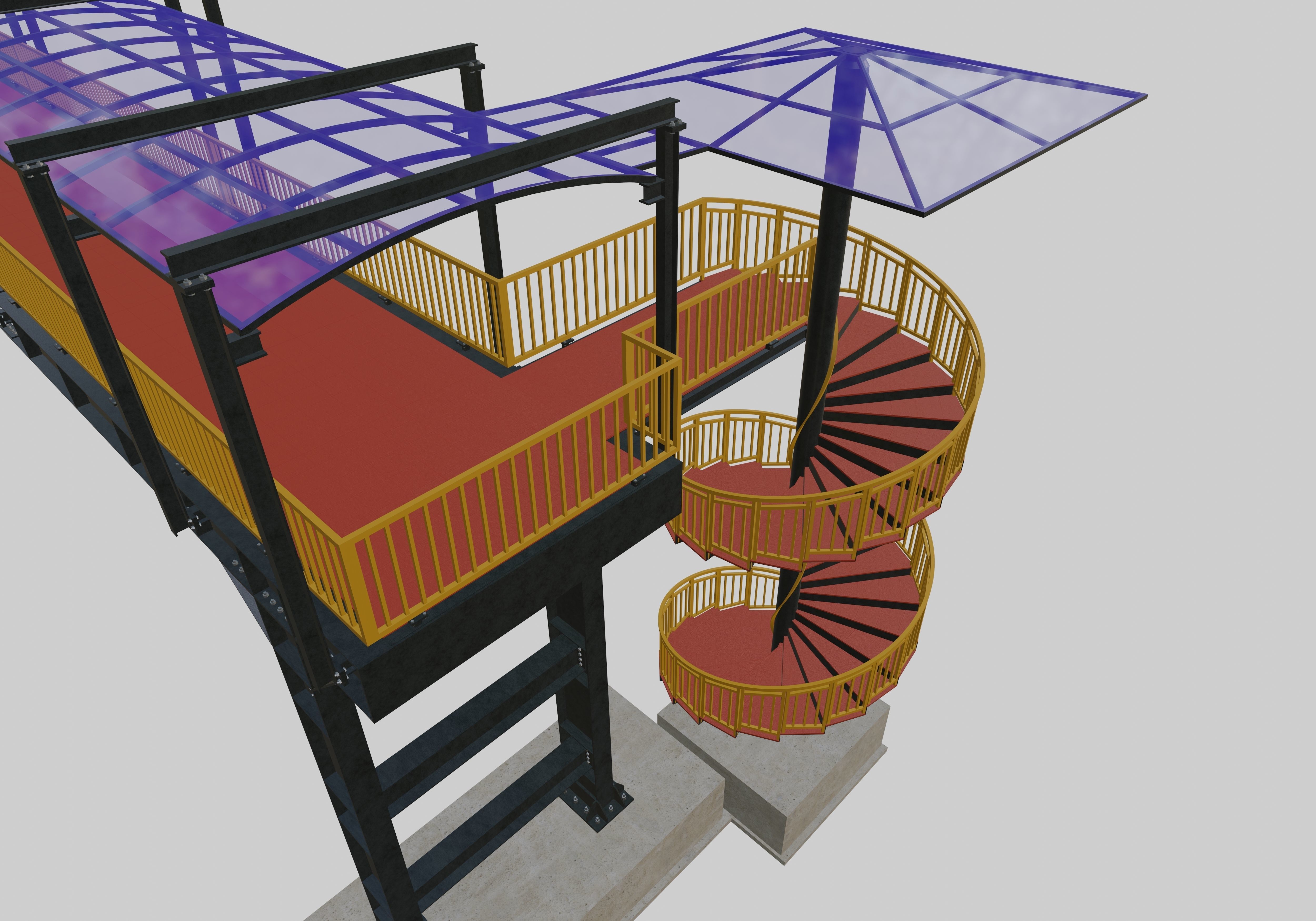

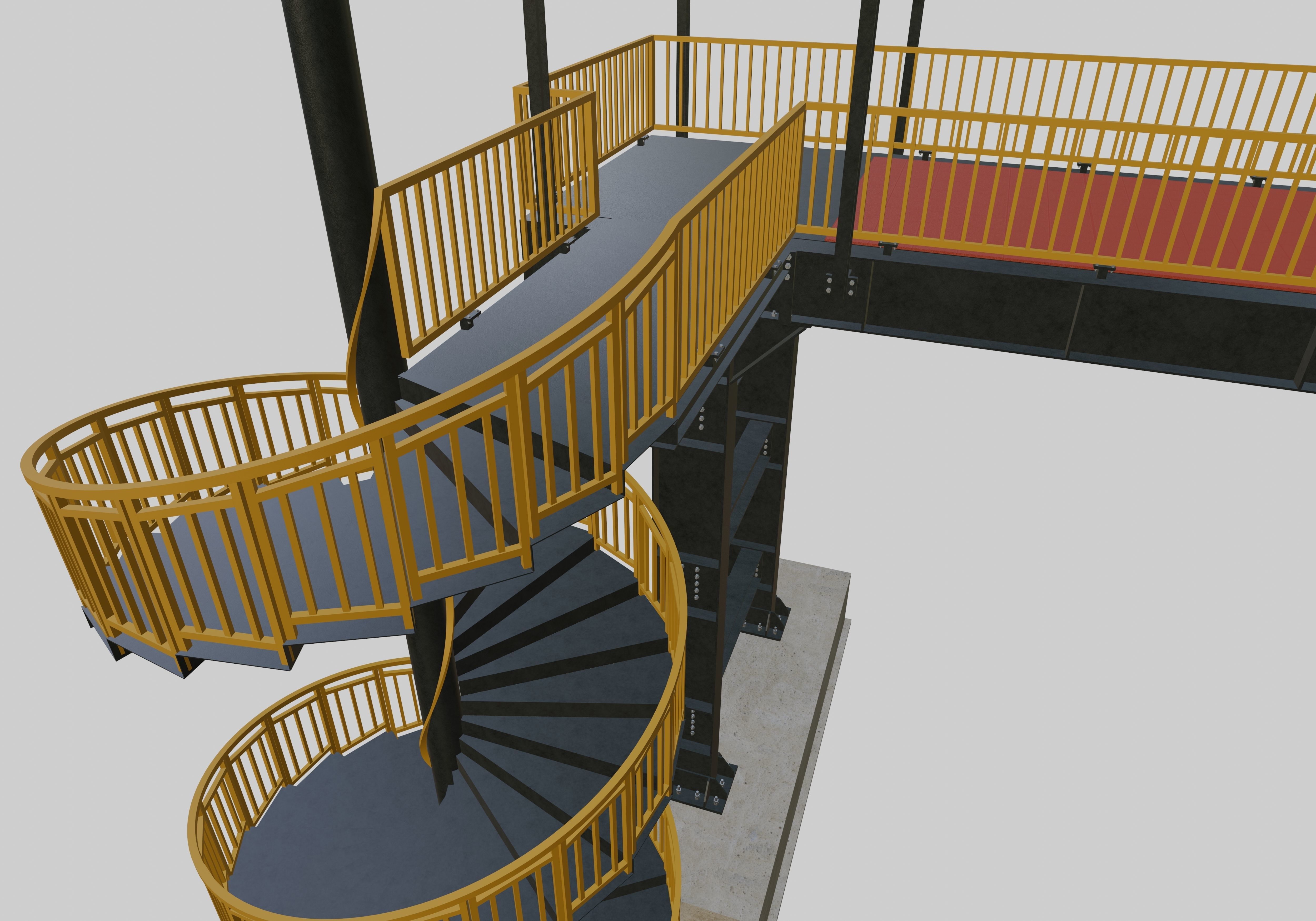

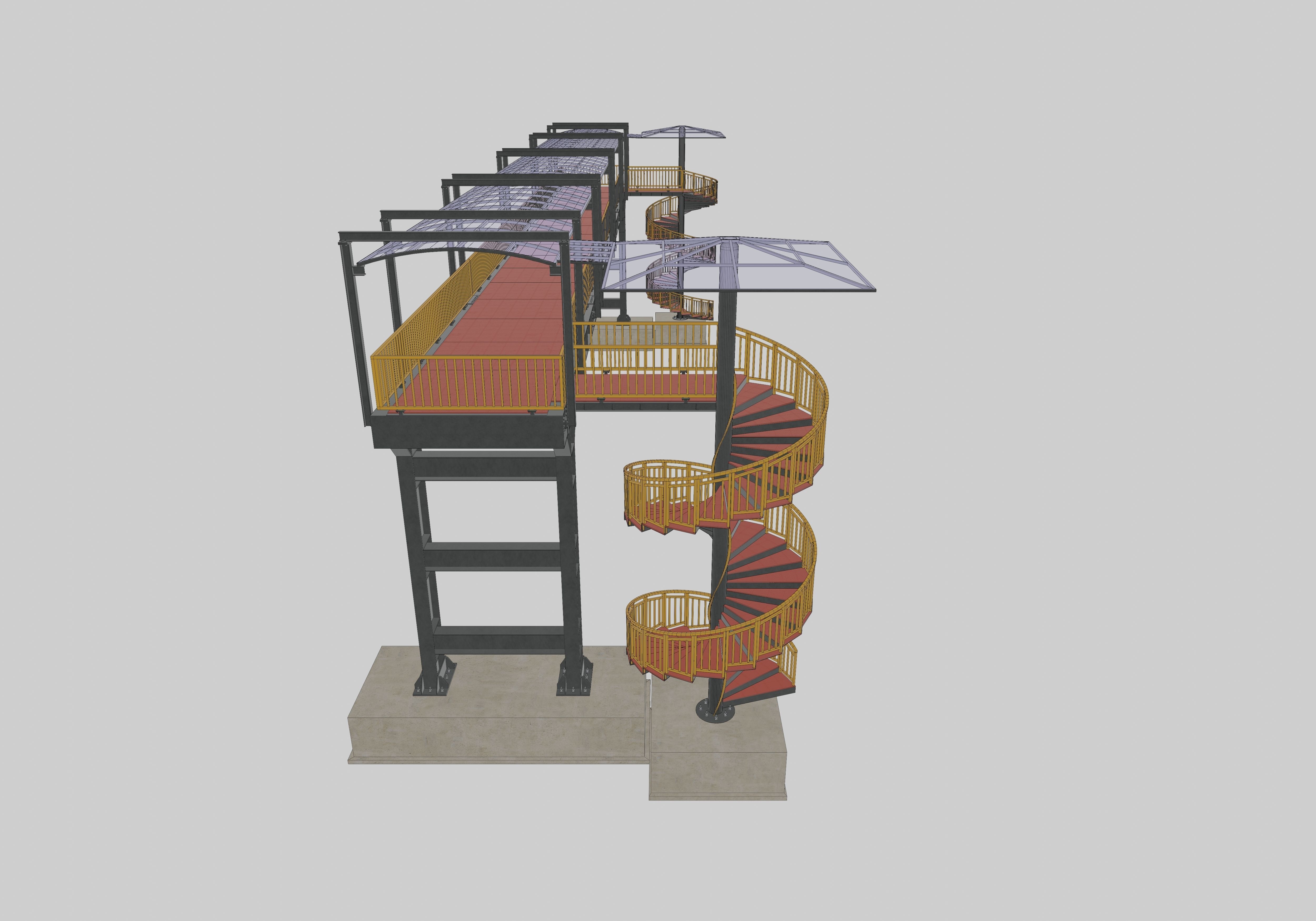

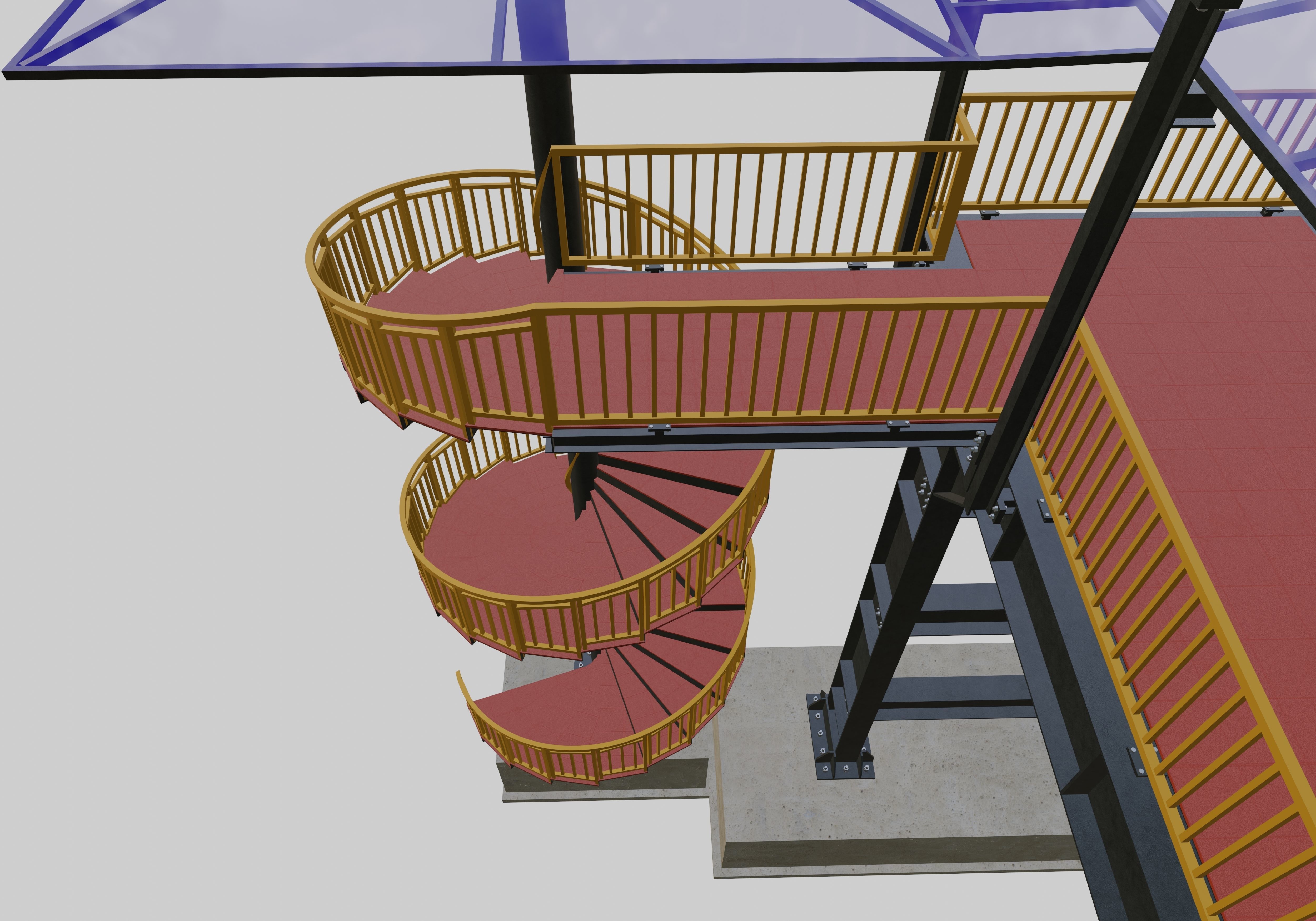

Spiral Stair Type
Stair Step Width : 1,657 mt.
Step Sizes : 50/565 mm. * 150 mm.
Flat Railing Construction
Railings Box Profile

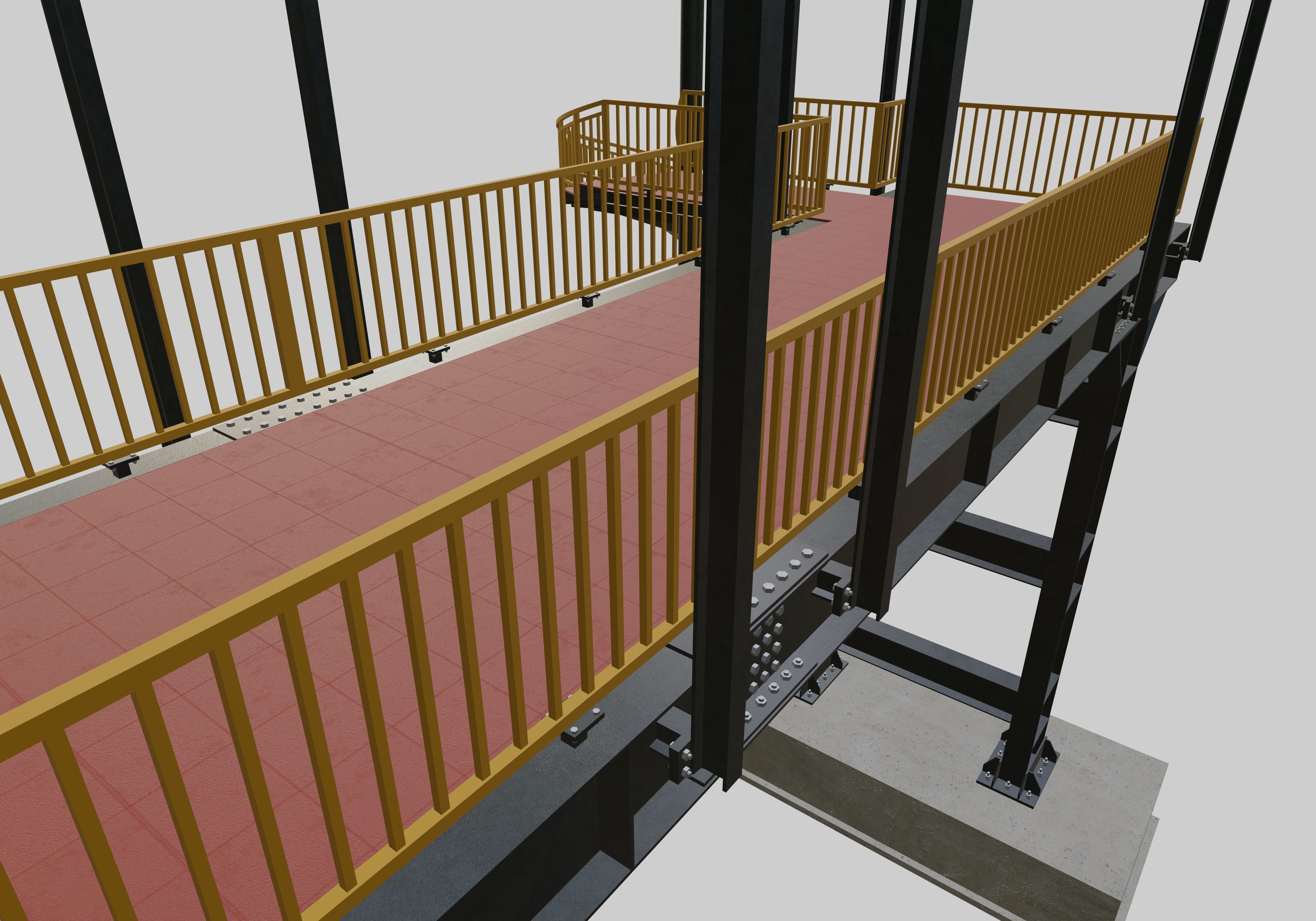

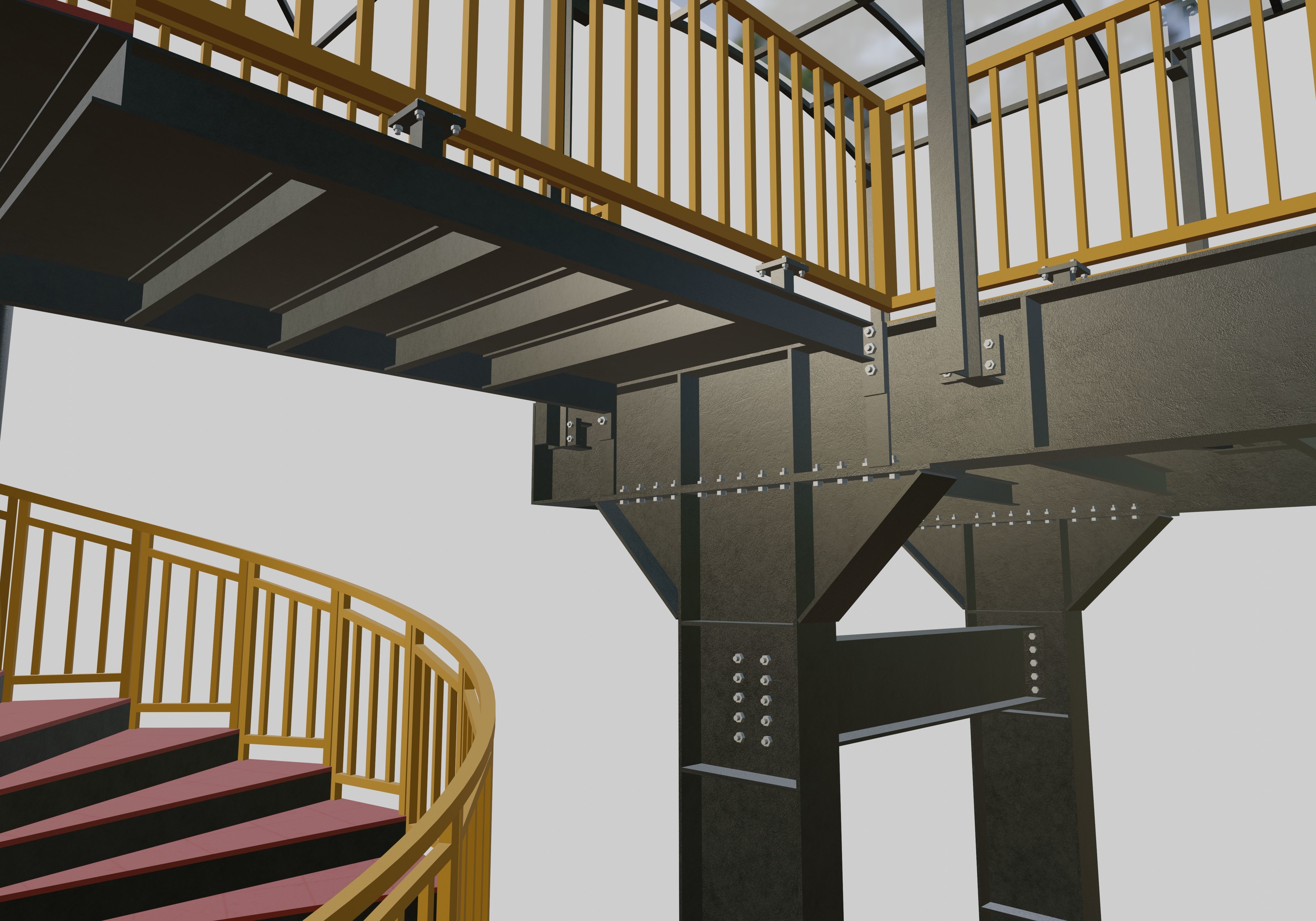

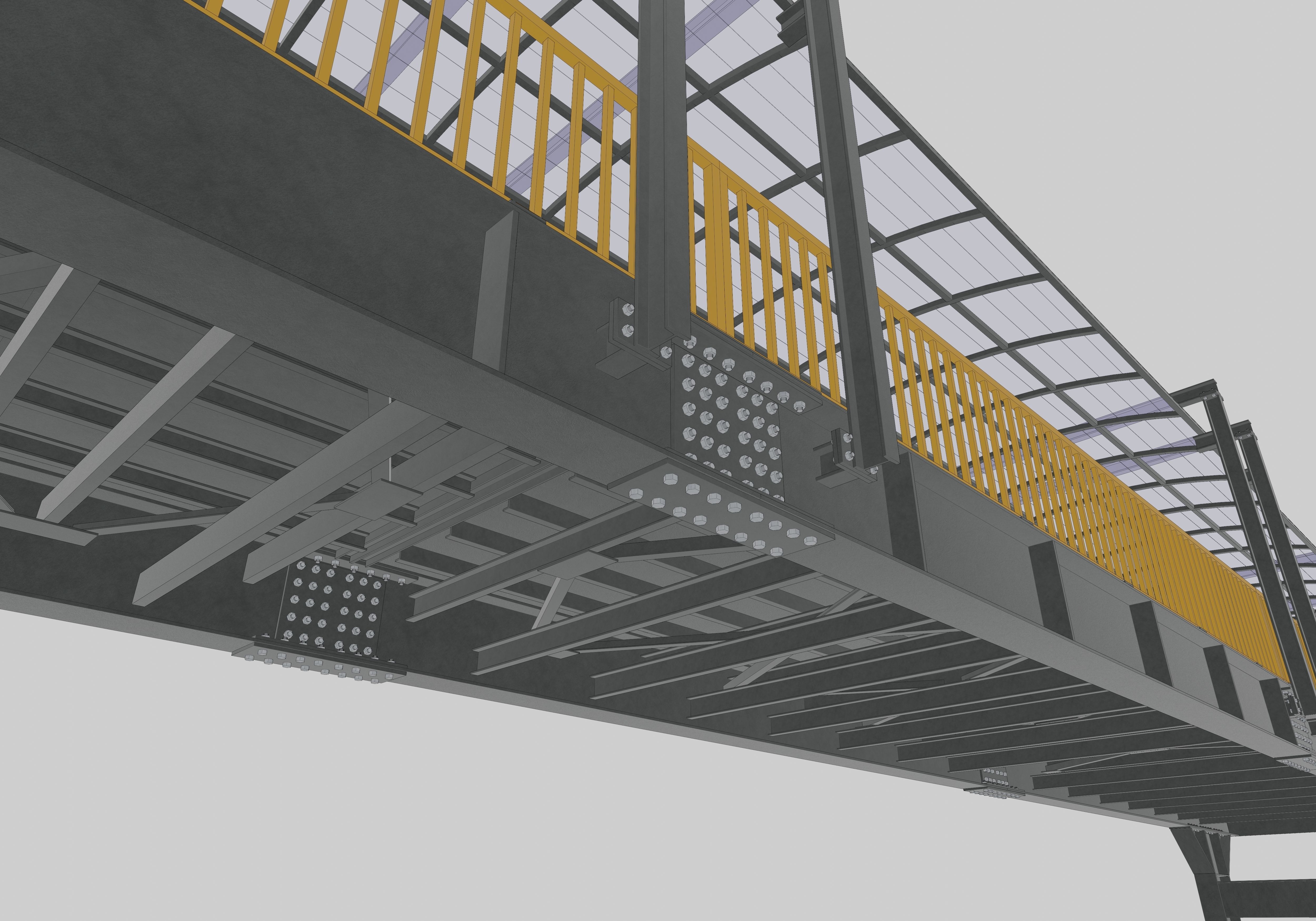

Platform And Columns With Bolted Connection
Walking Surface : 2 cm. Rubber Flooring

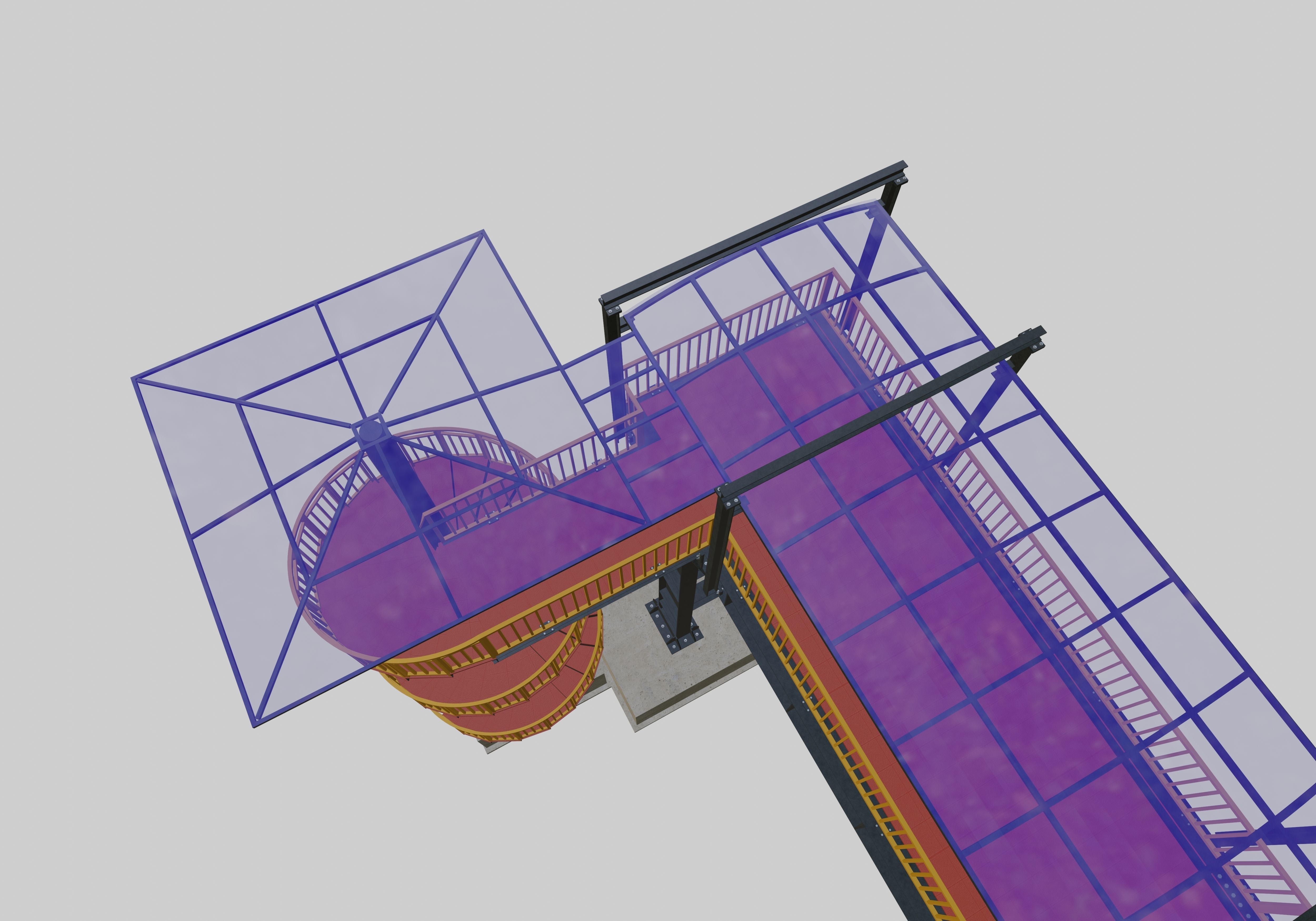

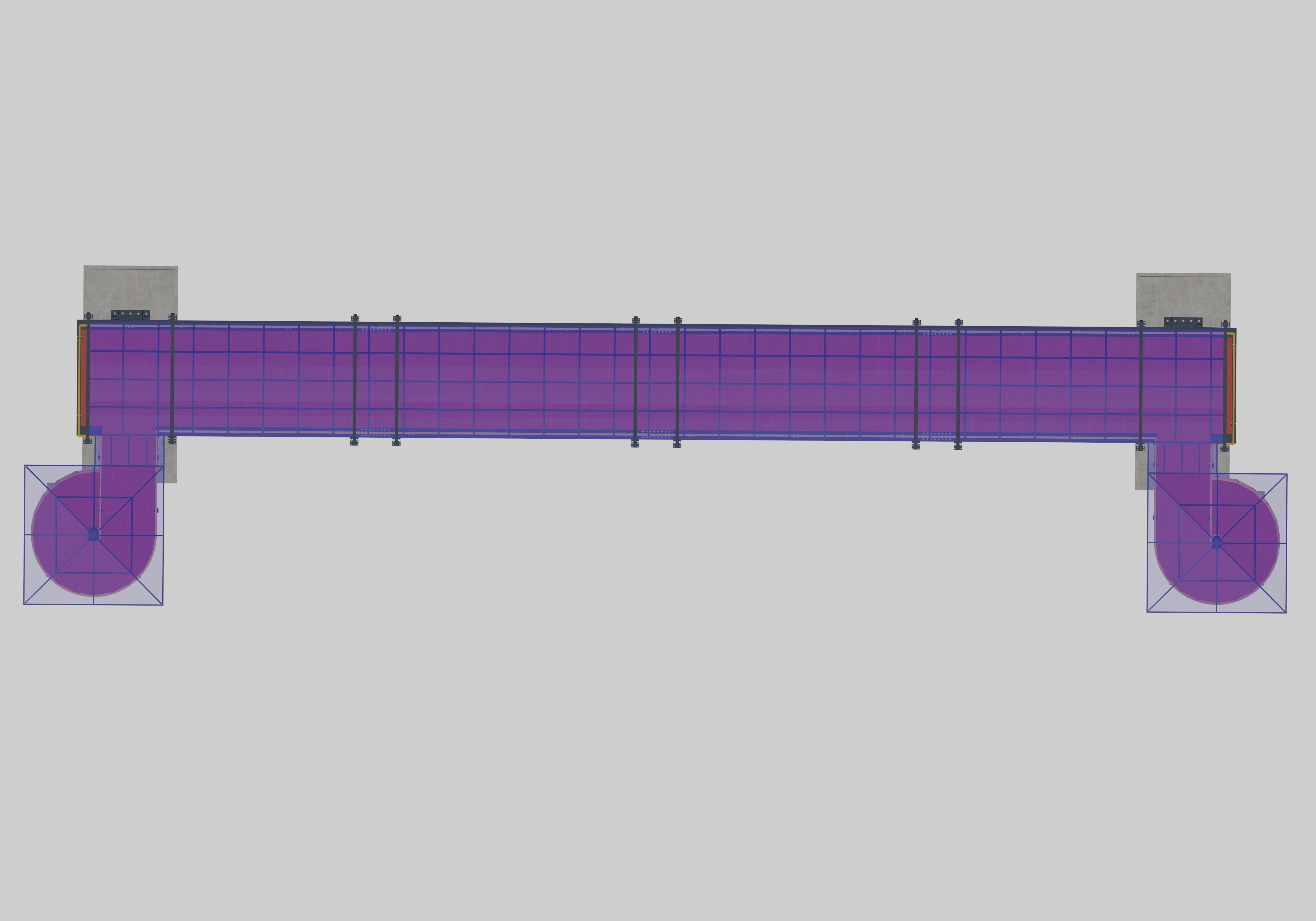

Top Coating Solid Polycarbonate

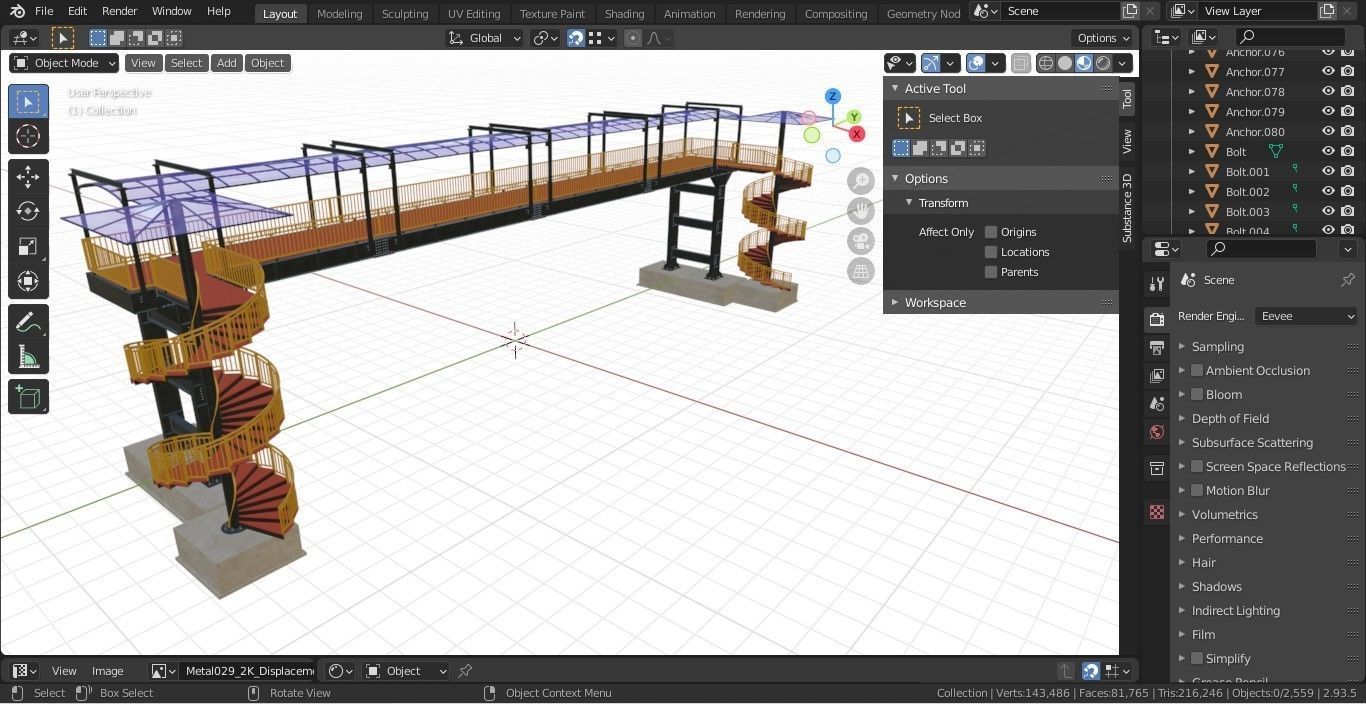

Prepared With BLENDER Version 2.93.5
Polygons : 81765
Vertices : 143486
Objects : 2559
