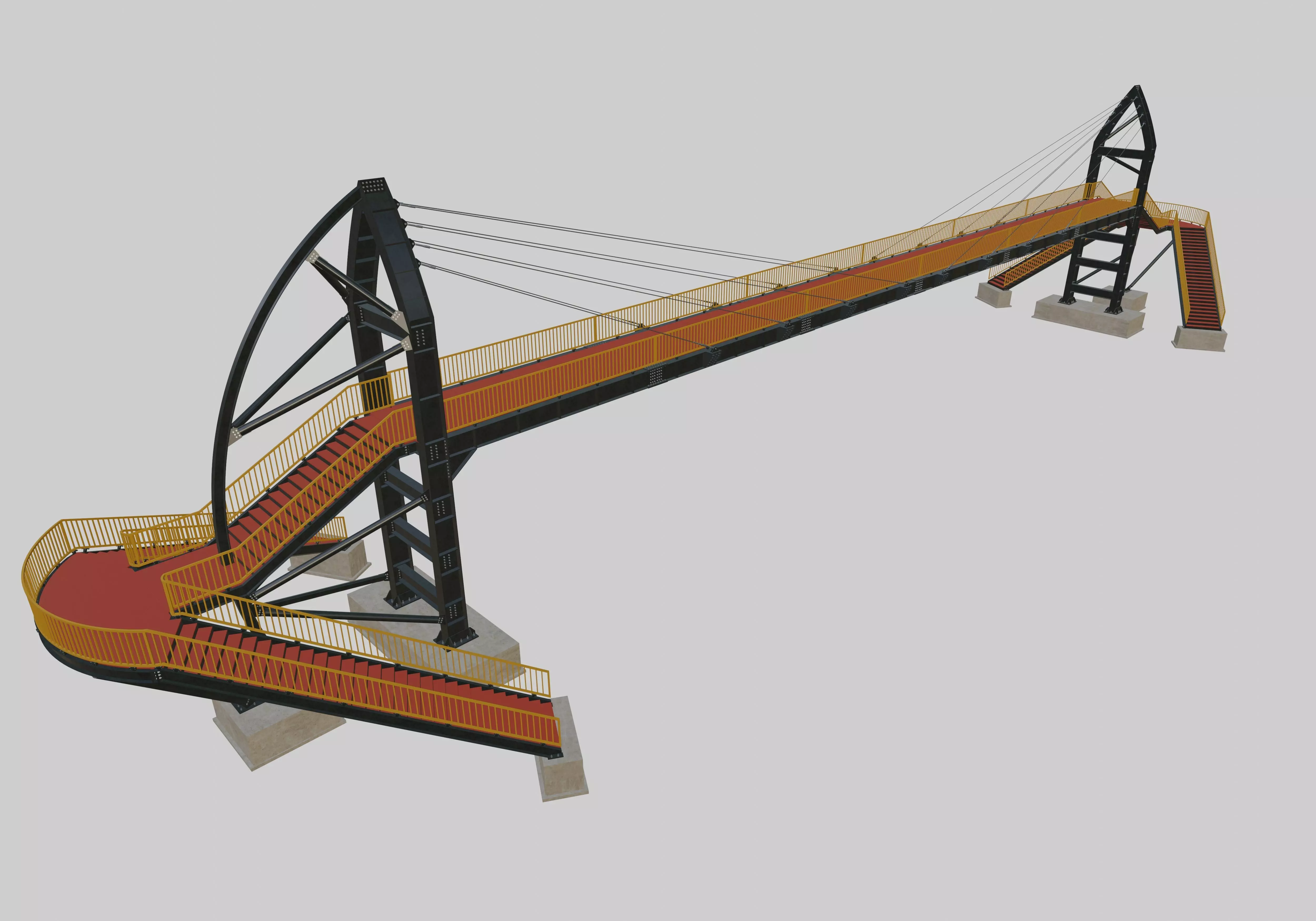

Steel Pedestrian Bridge-Rope Tensioning-Sailing Column Type-11 3D model
Steel Pedestrian Bridge
Sailing Column Type Construction
Two Column Consruction
Open Top Construction
Straigth Beam Type
Curved Column Type
Platfrom With Steel Rope Tensioning System
Named Objects
Largest Column Span : 48,74 mt.
Distance Between Two Columns : 48,74 mt.
Platform Asphalt Height : 6 mt.
Platform Width : 3 mt.
Steel Rope : 16 piece
Rope Fixed Press : 16 piece
Rope Tensioning Press System : 16 Piece
Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.
Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.
Tension Column Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.
Stairs Straight Type
Rigth And Left Double Landing Stairs
Curved Landing
Bottom Stair Step Width : 1,8 mt.
Top Stair Step Width : 2,4 mt.
Step Sizes : 300 mm. * 150 mm.
Flat Railing Construction
Railings Box Profile
Platform And Columns With Bolted Connection
Walking Surface : 2 cm. Rubber Flooring
Prepared With BLENDER Version 2.93.5
Polygons : 171074
Vertices : 278956
Objects : 4206
- Steel Pedestrian Bridge Collection (31 items)$496.0$330.0save 33%
3D Model formats
Format limitations
- Blender 2.93.5 (.blend)46.1 MB
3D Model details
- Publish date2022-04-17
- Model ID#3705502
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 171,074
- Vertices 278,956
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
