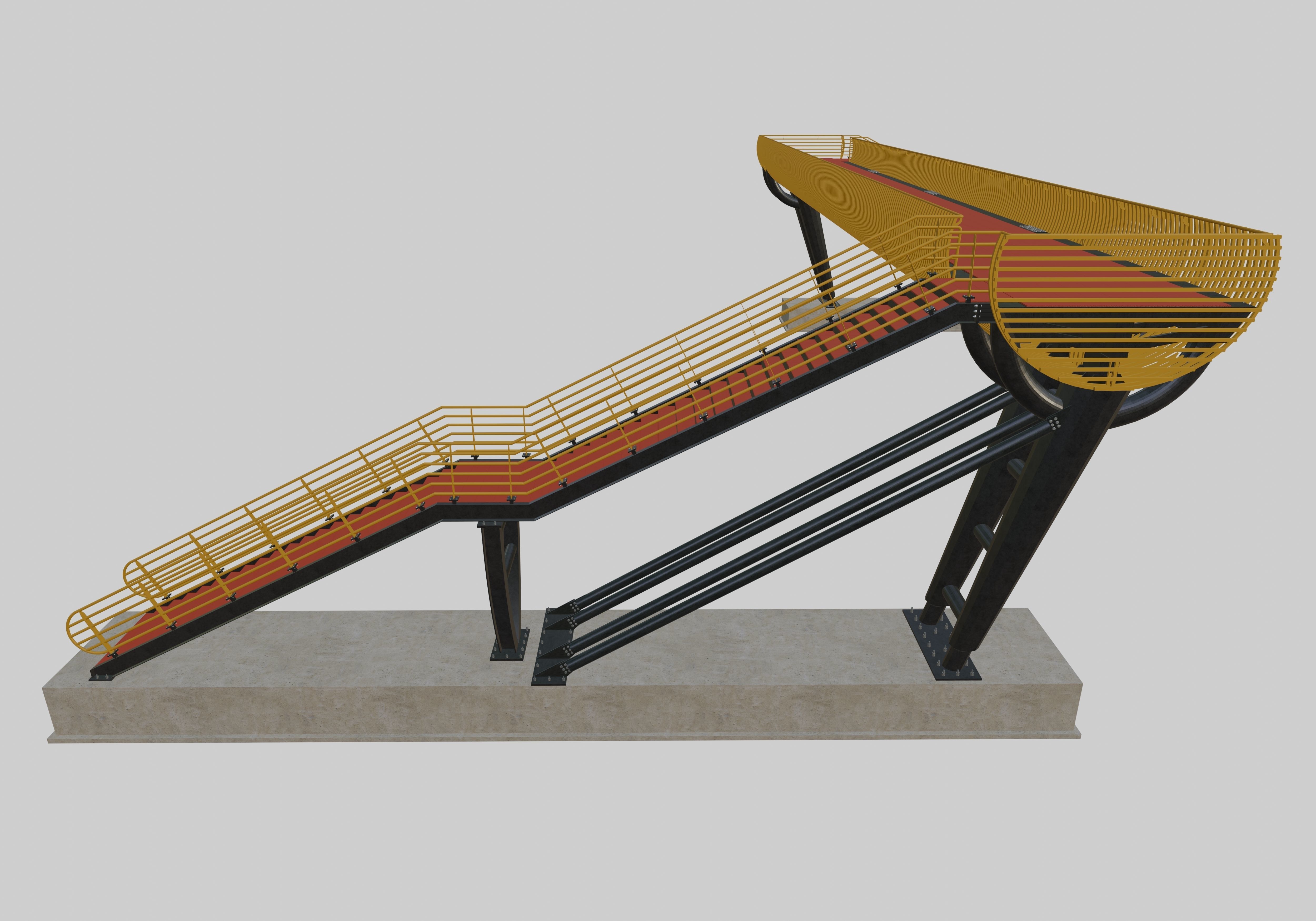

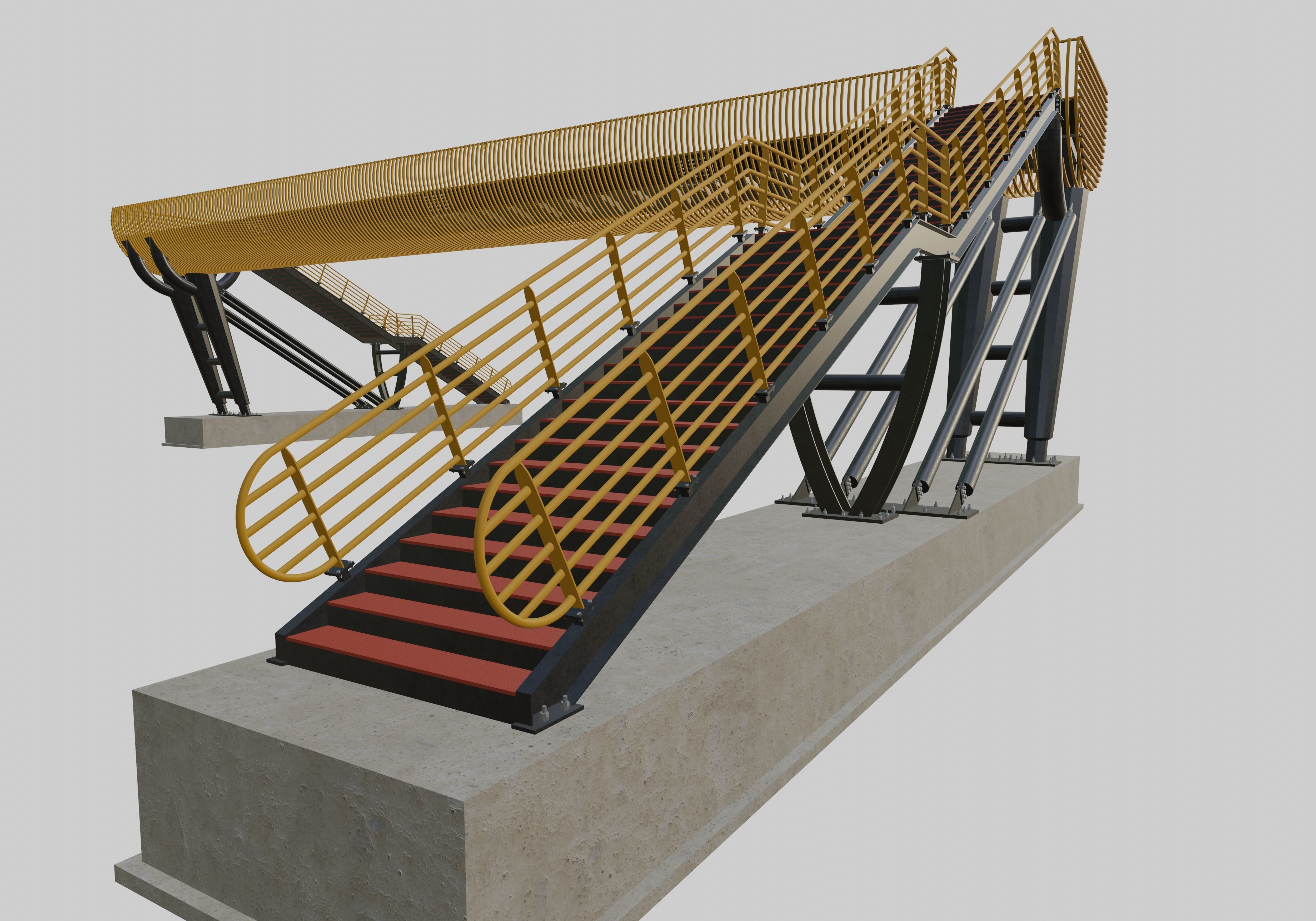

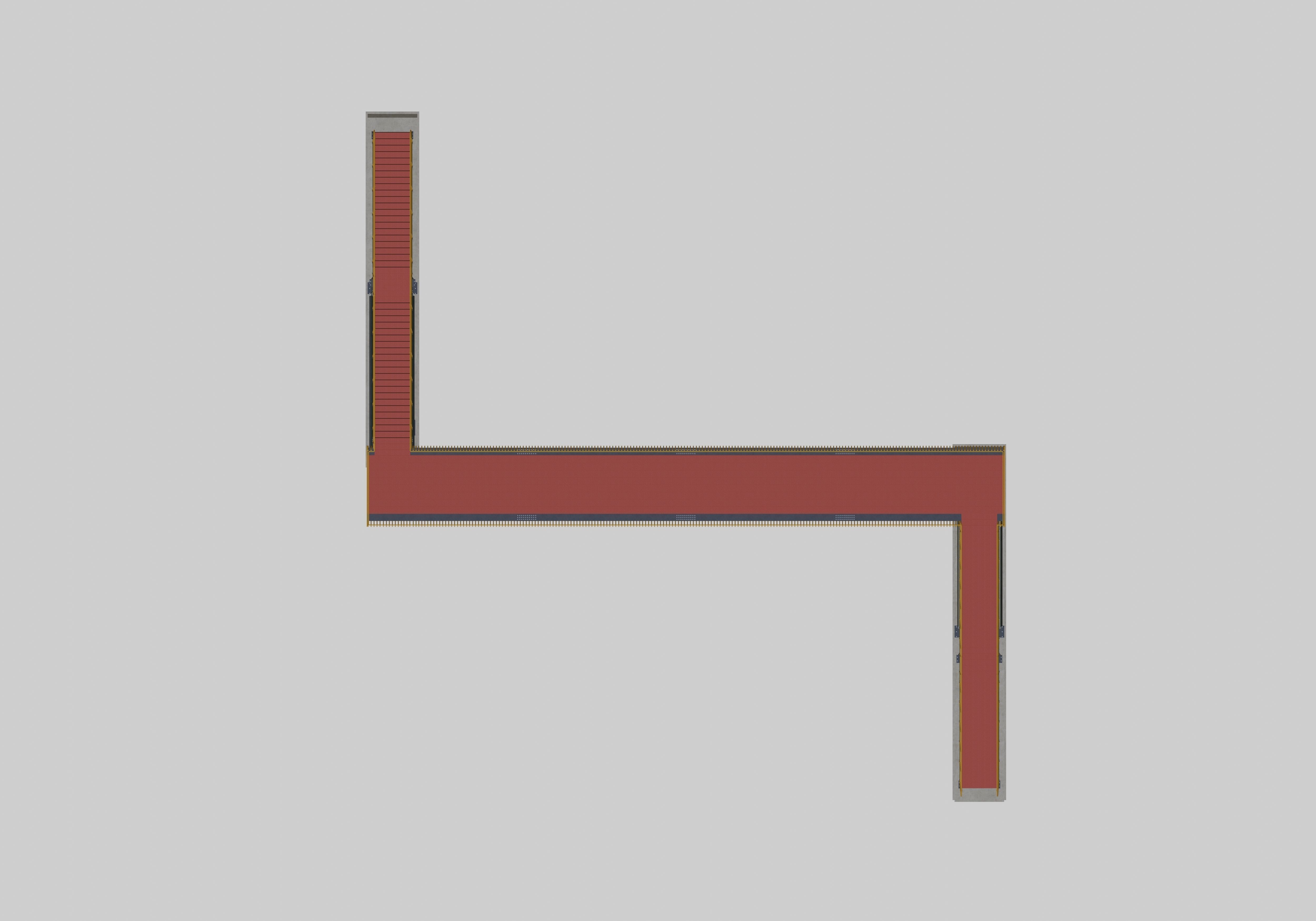

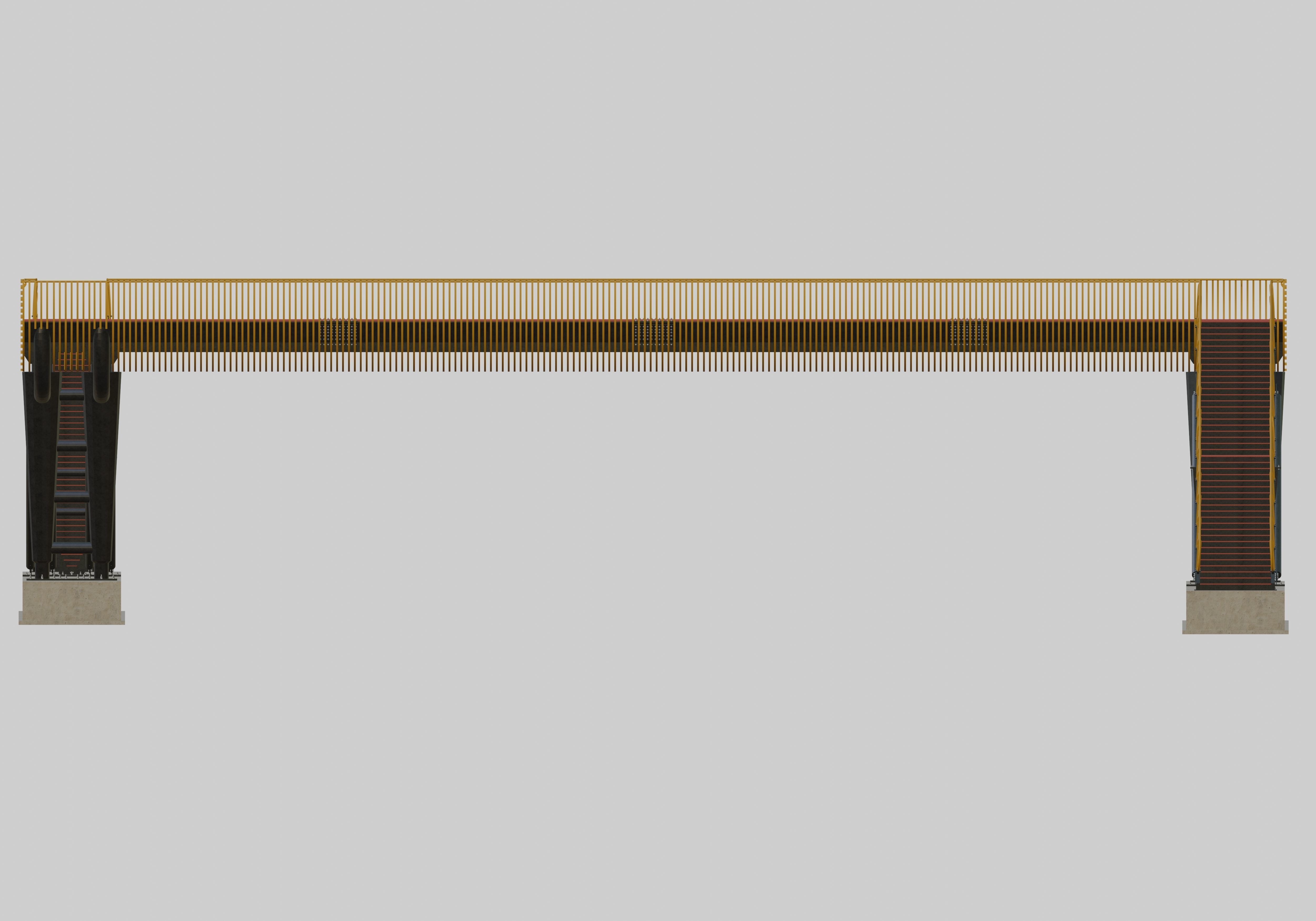

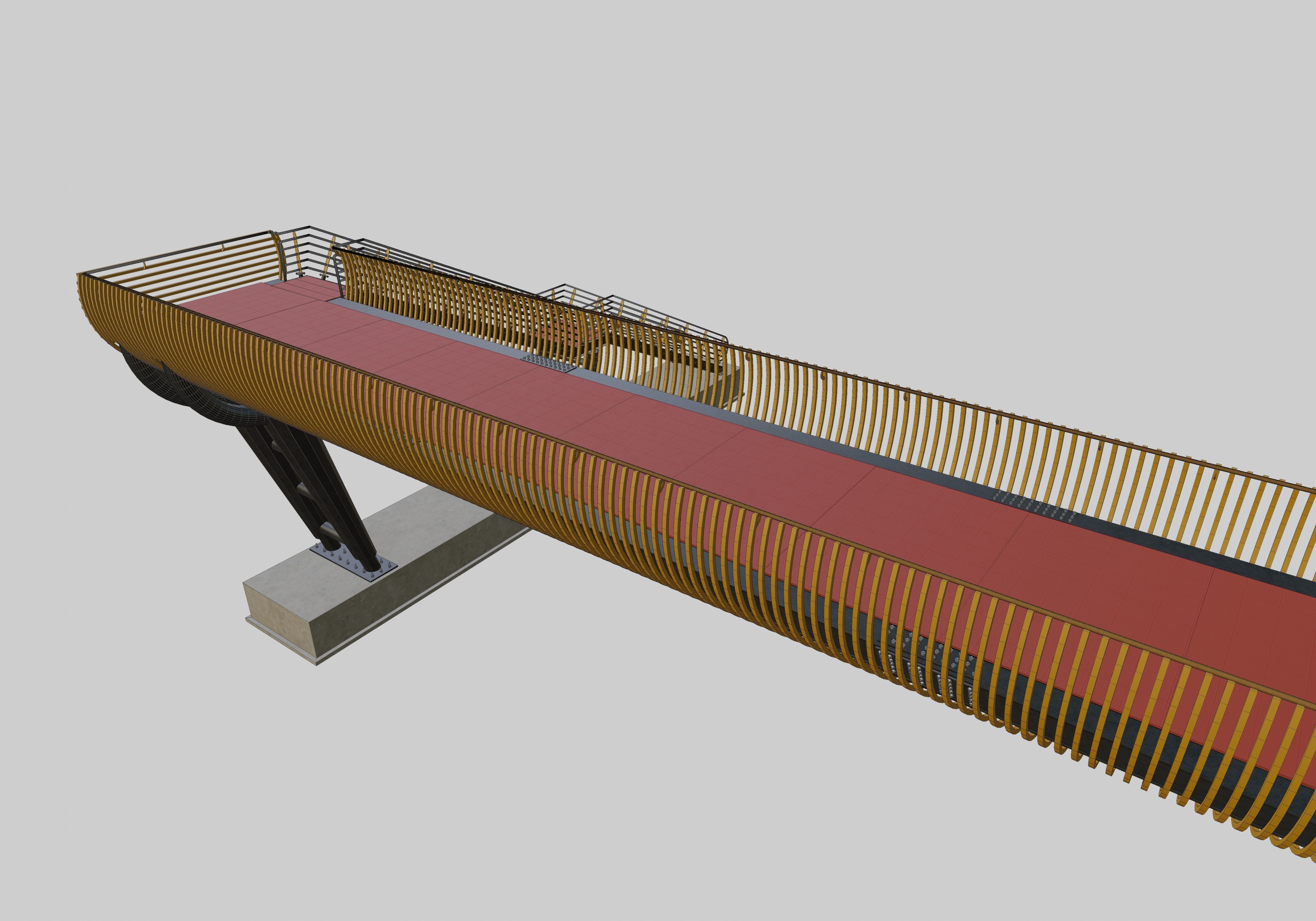

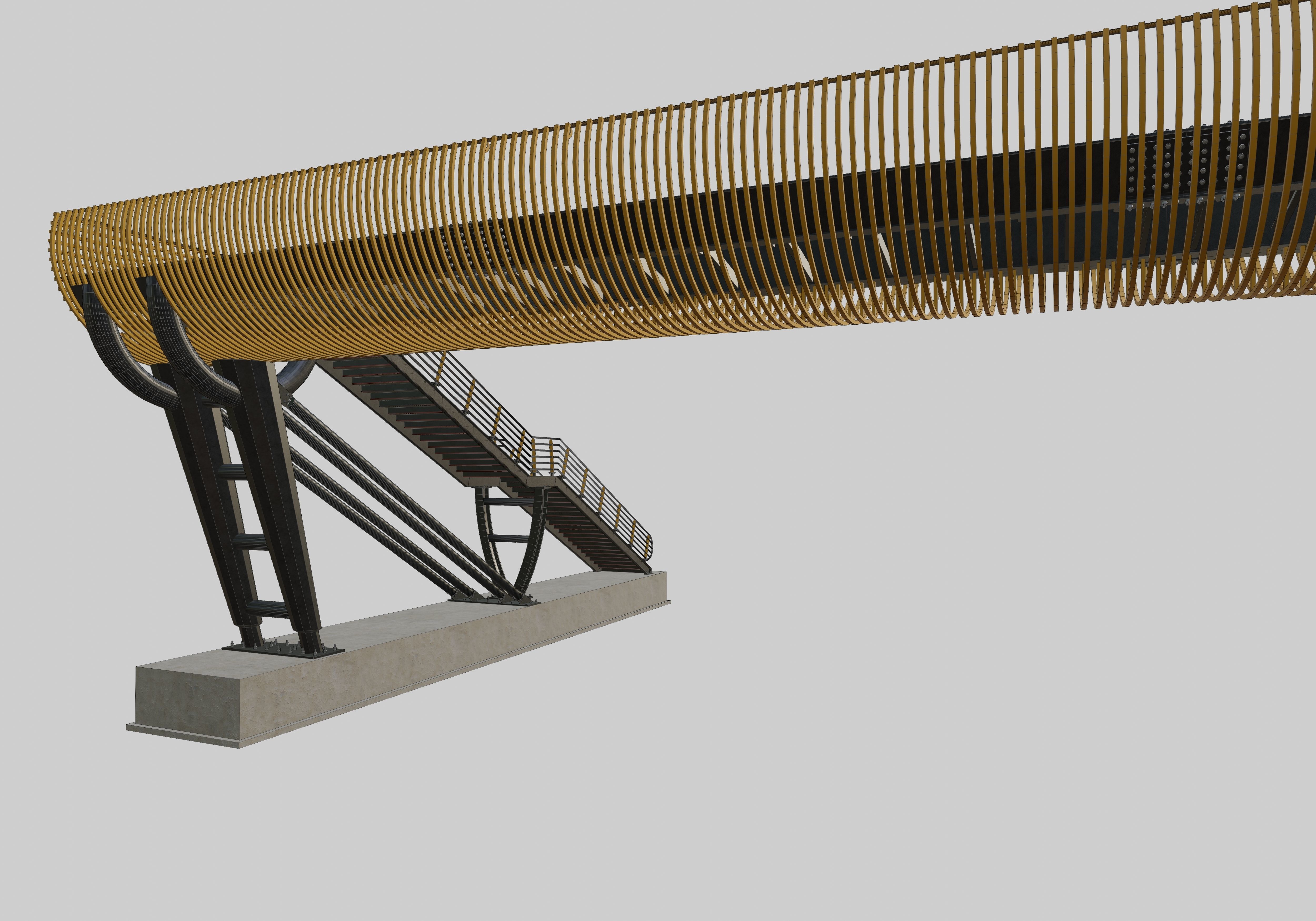

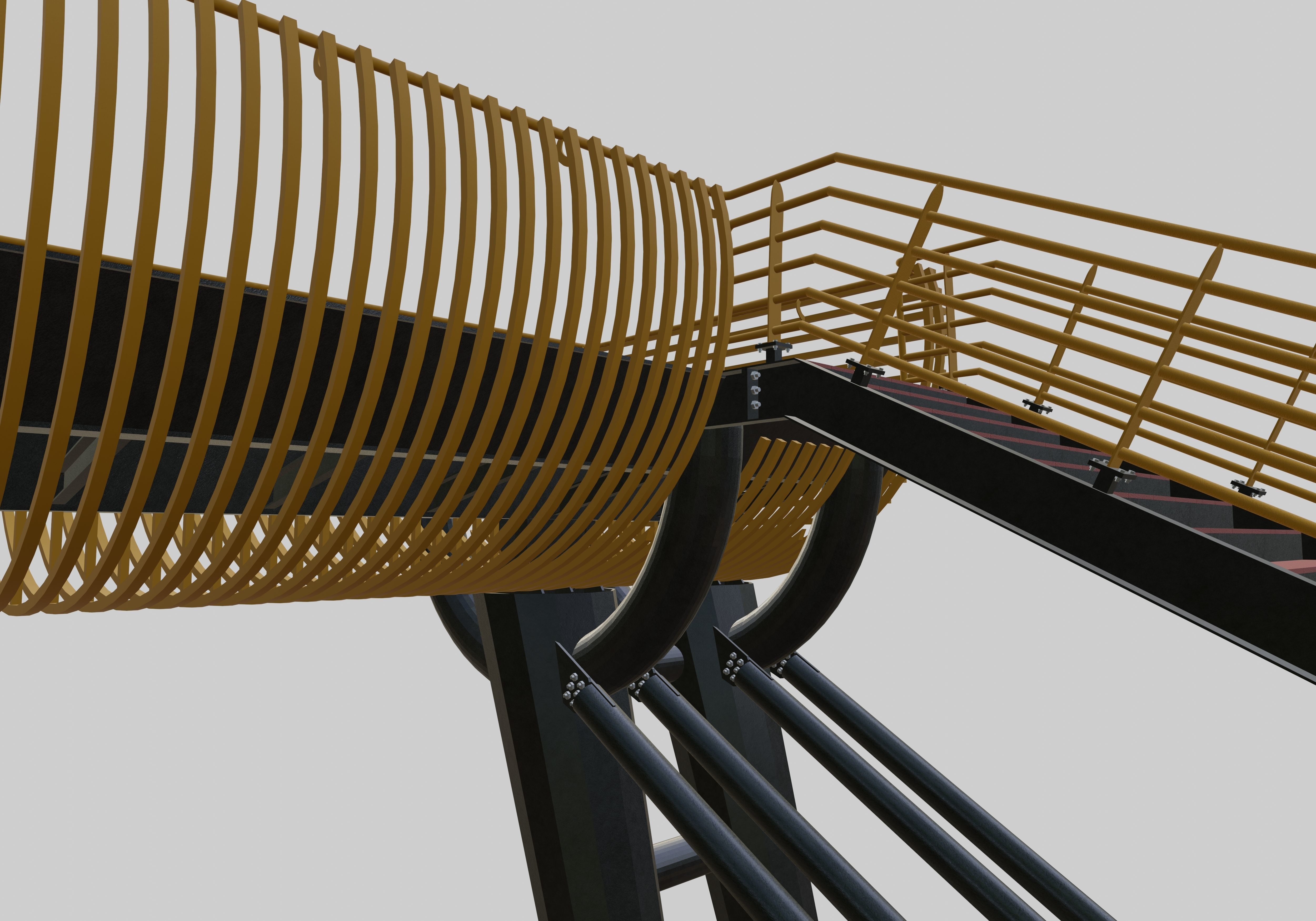

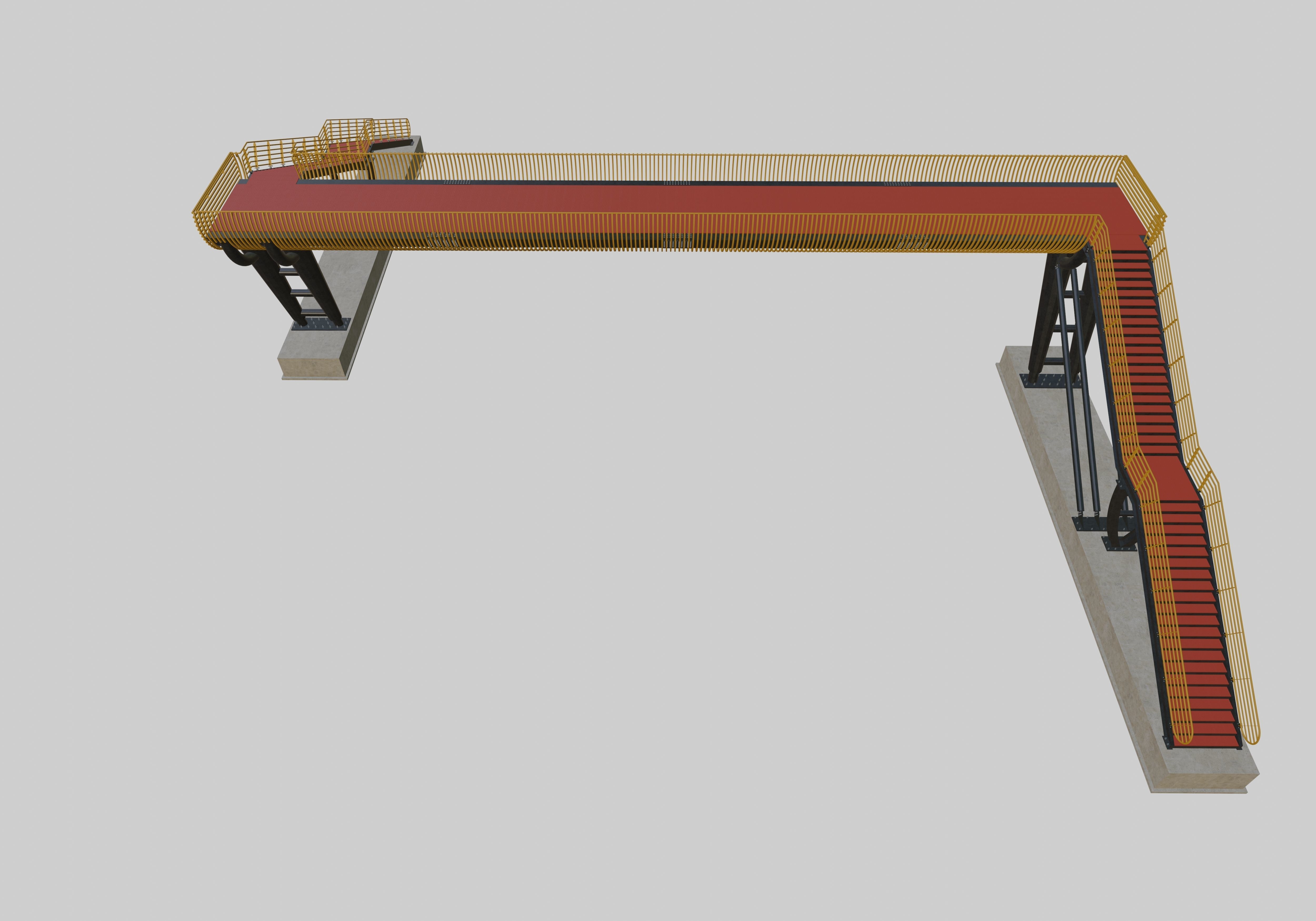

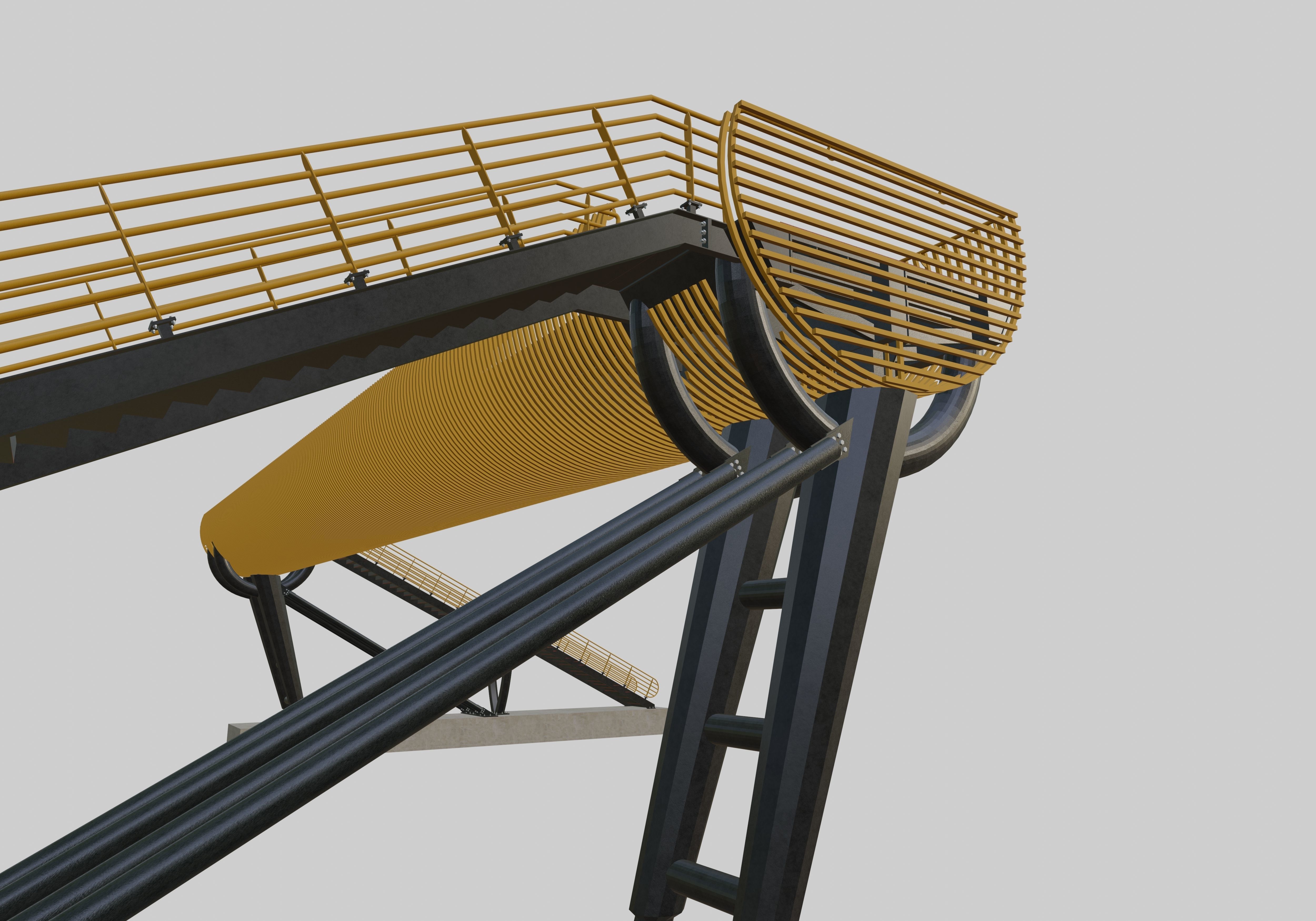

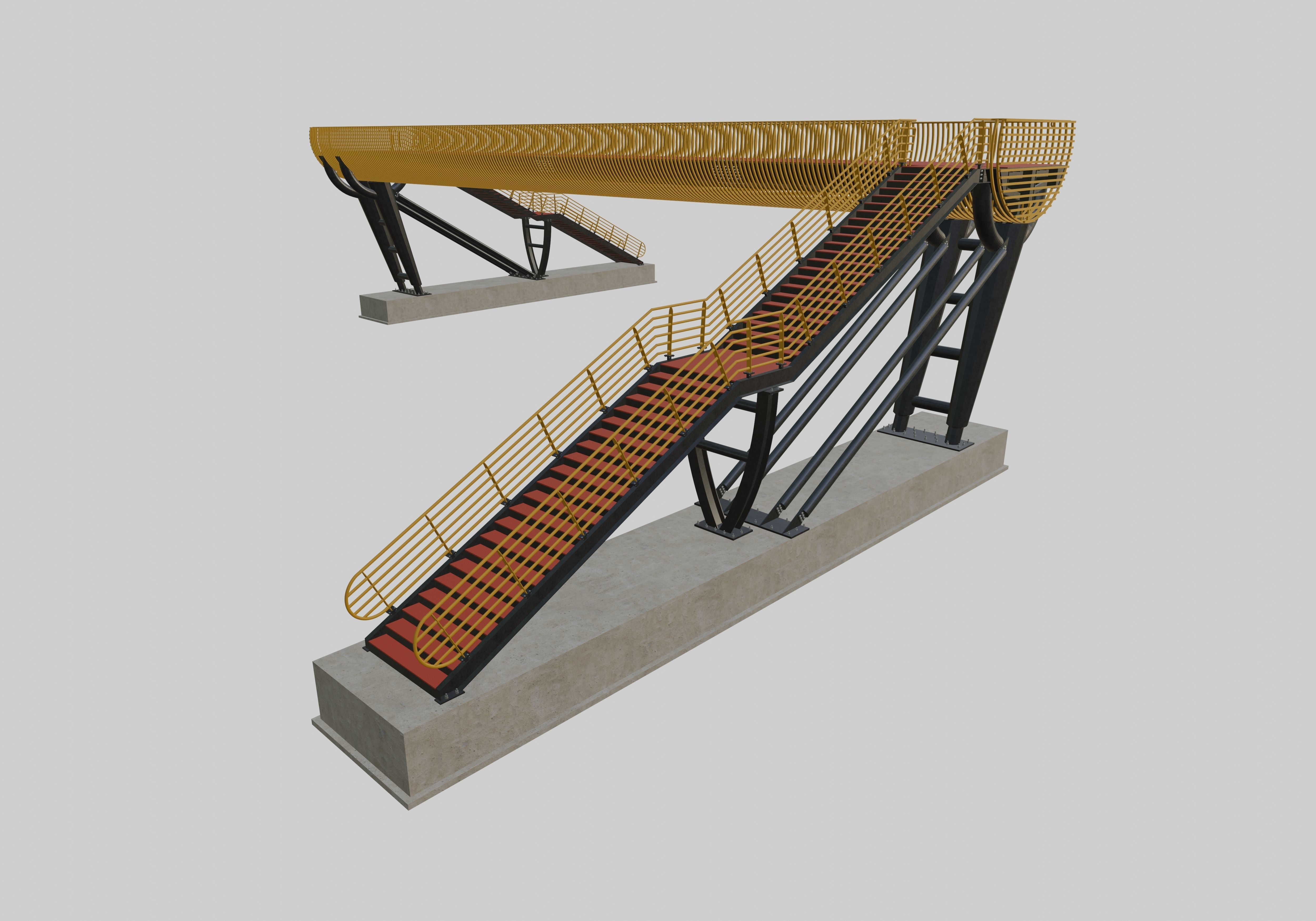

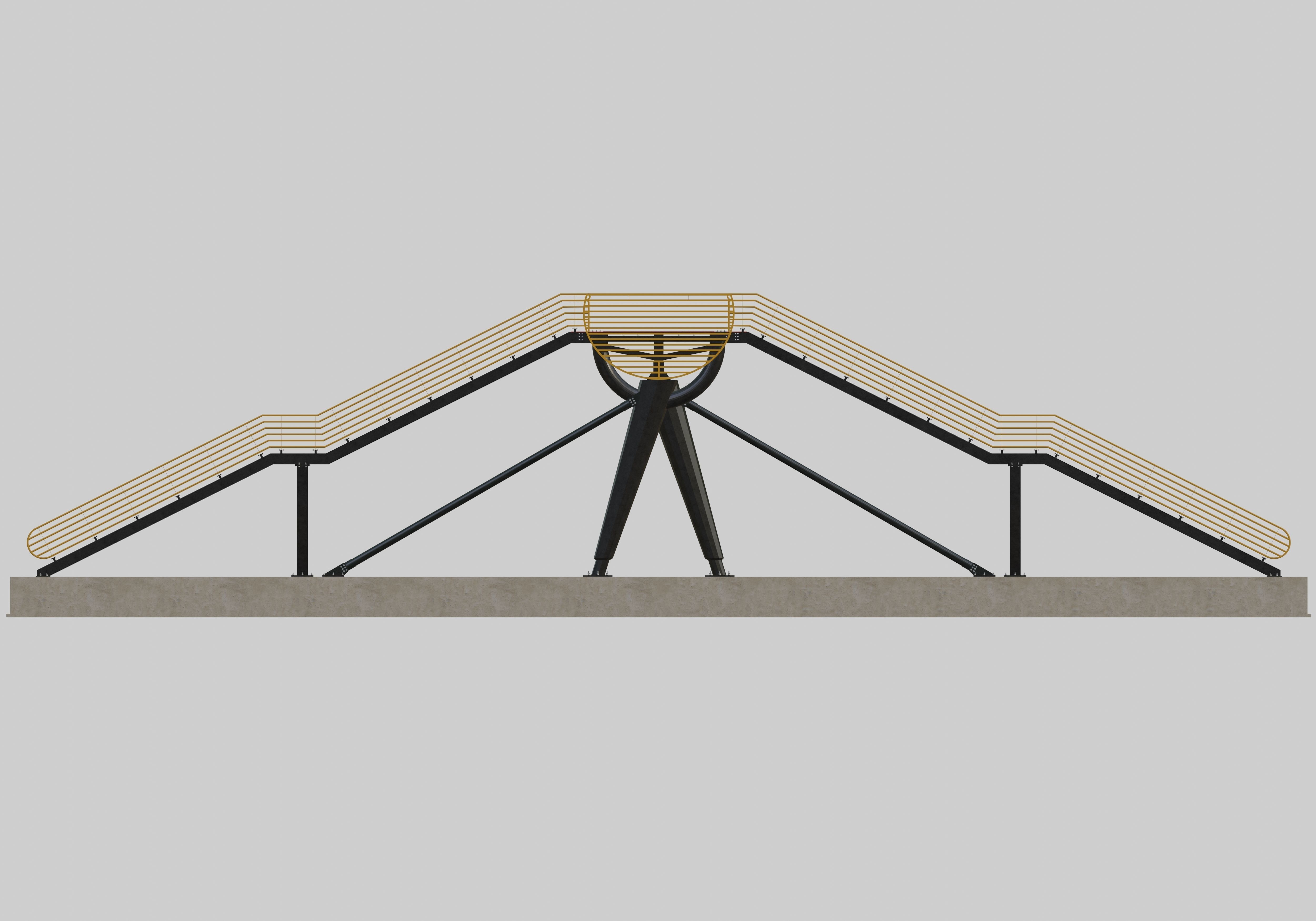

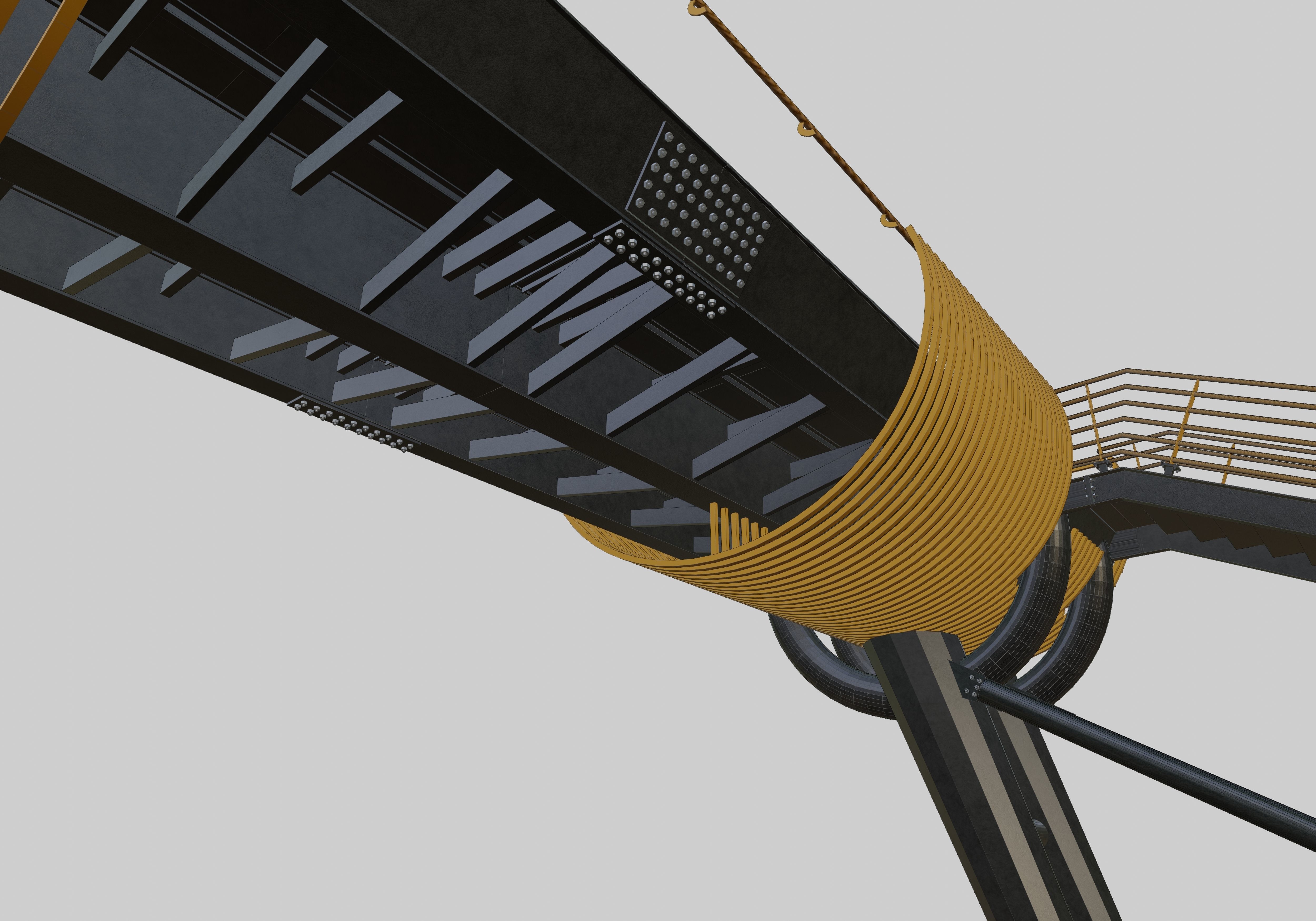

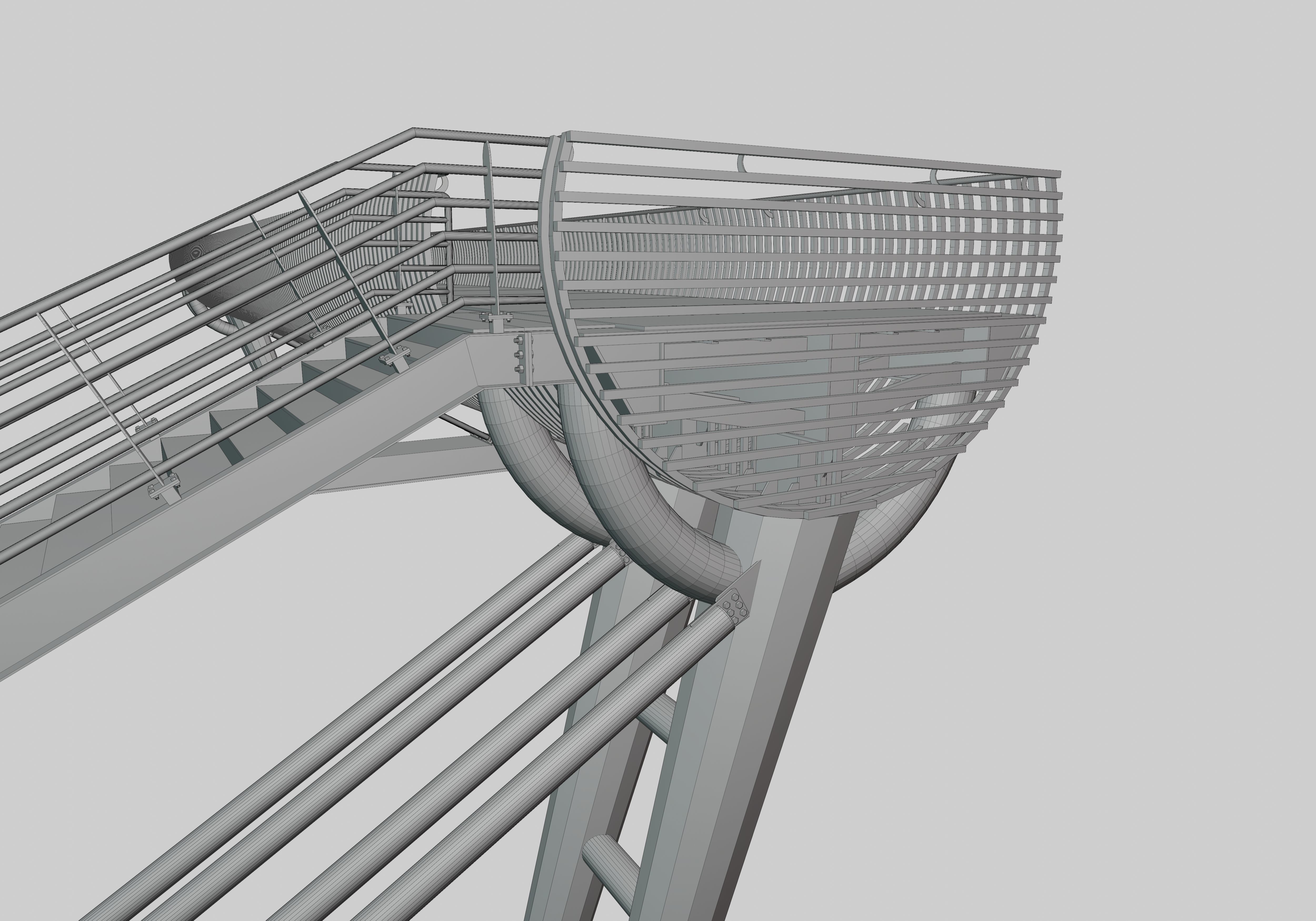

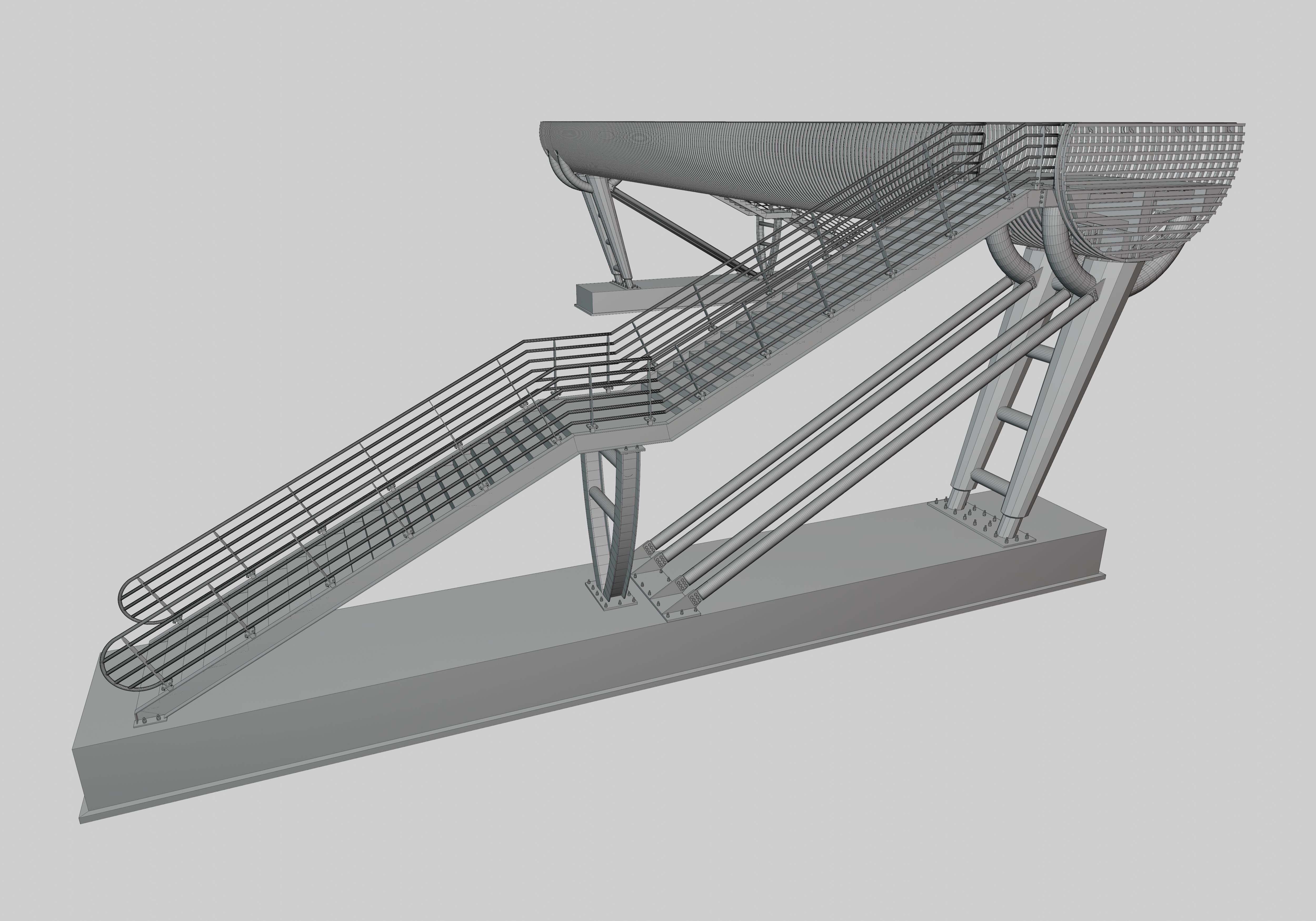

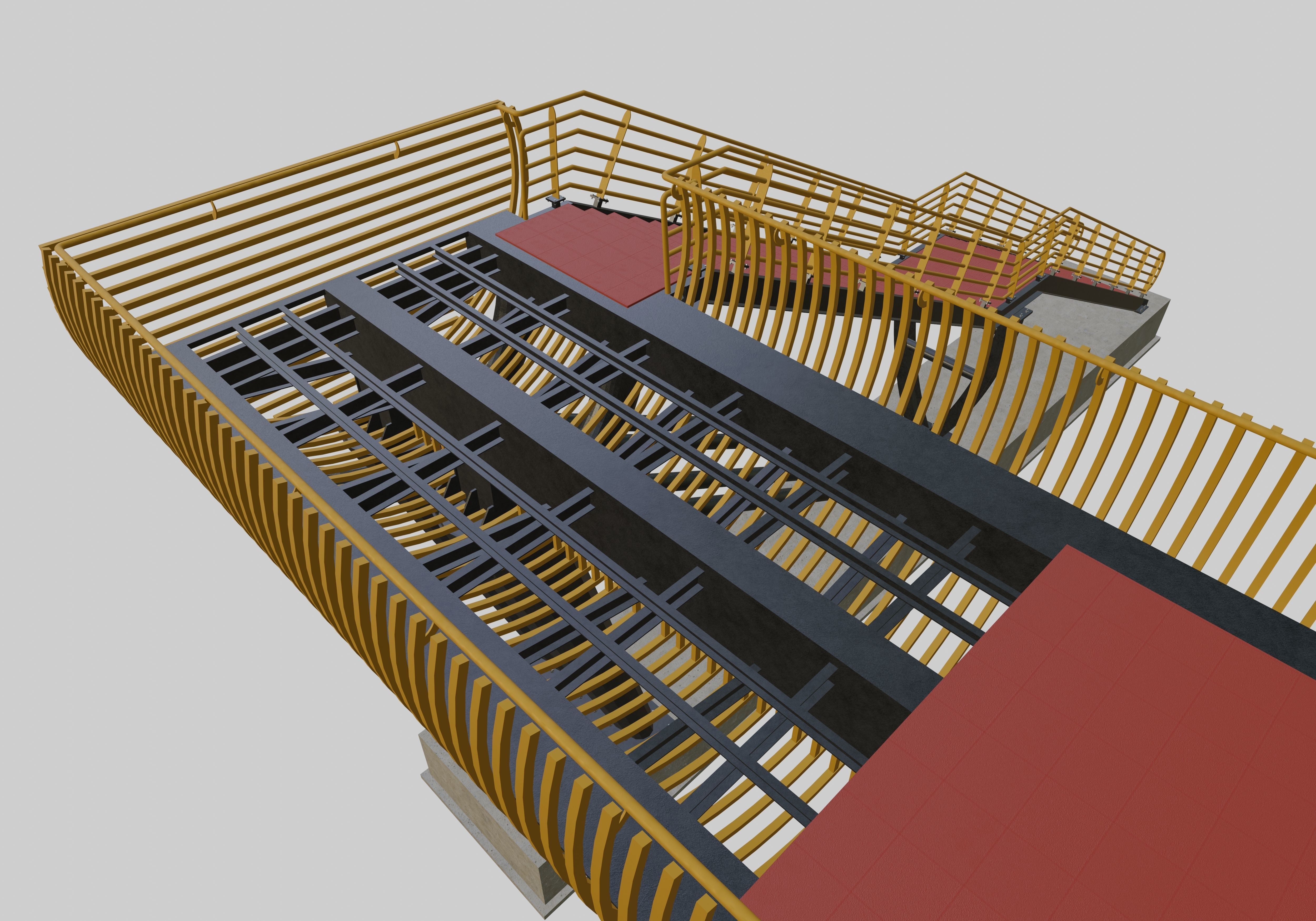

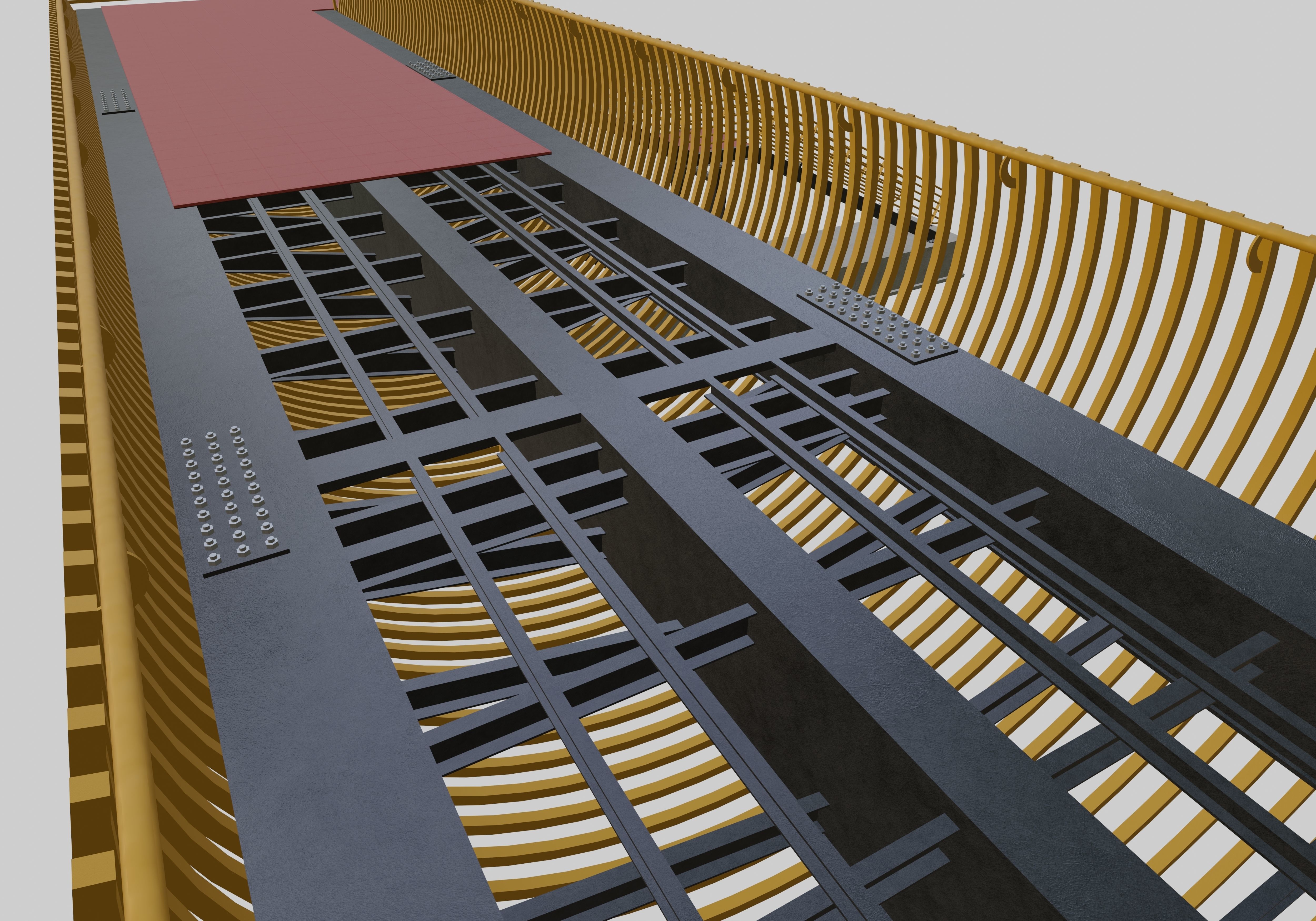

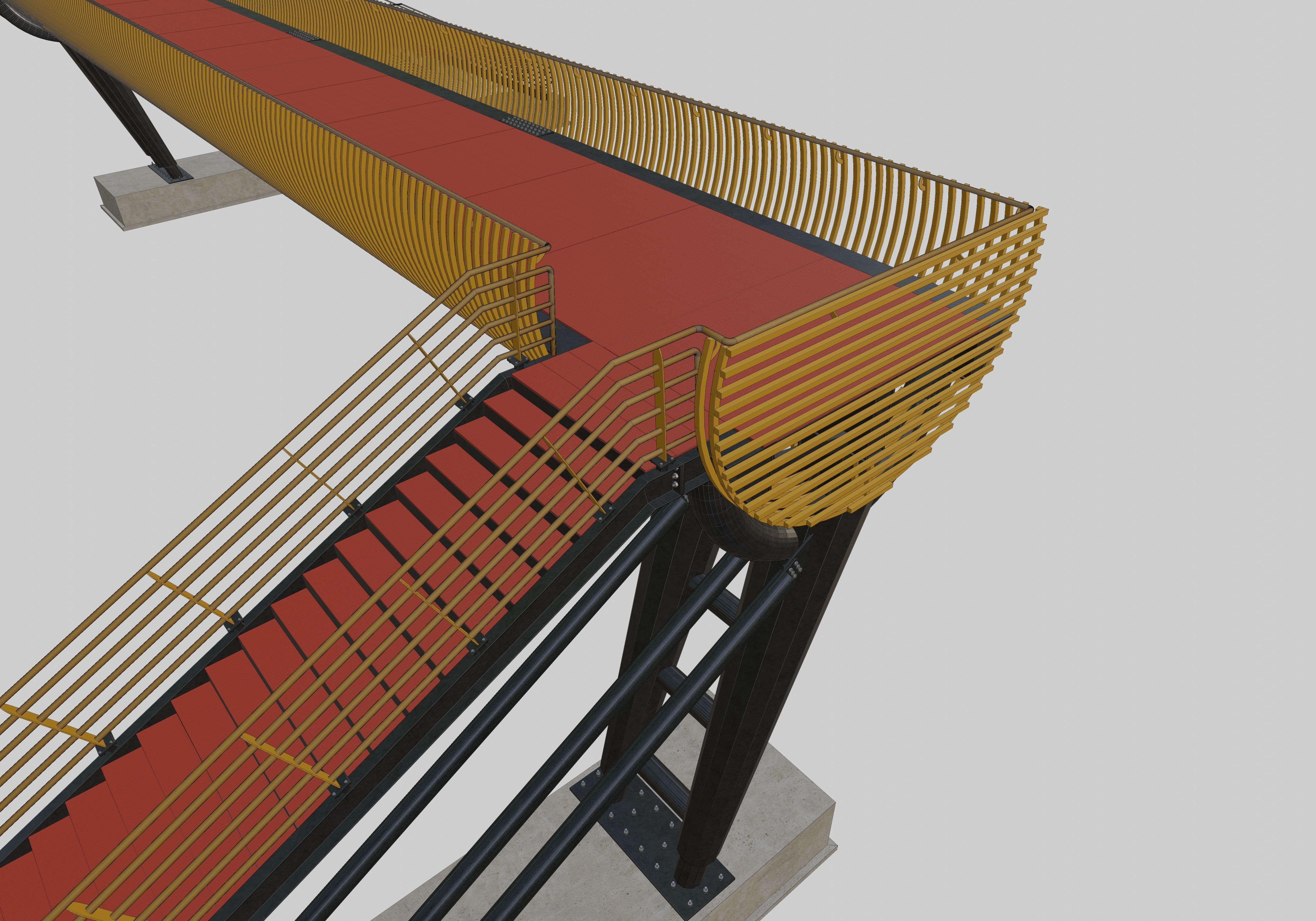

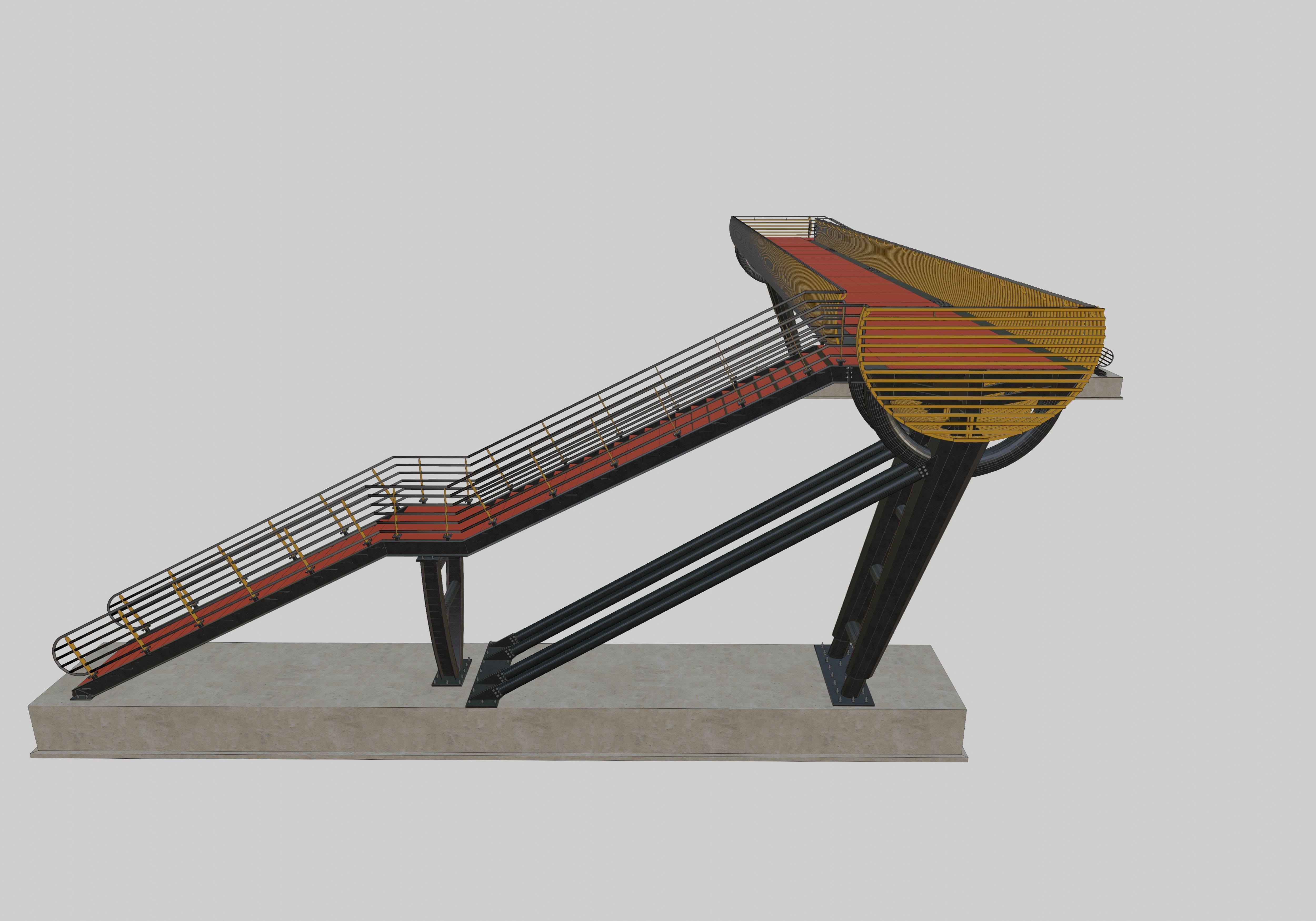

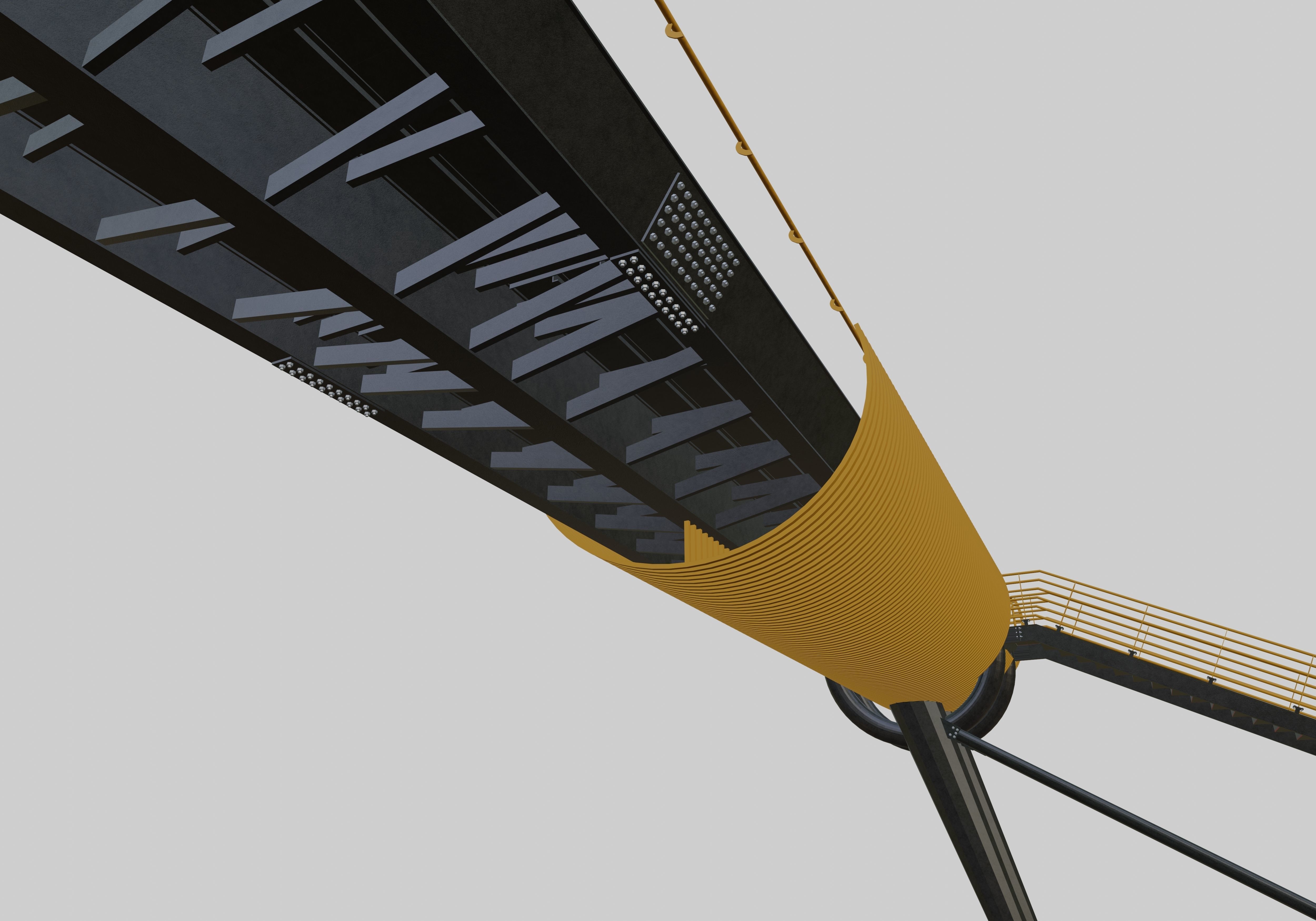

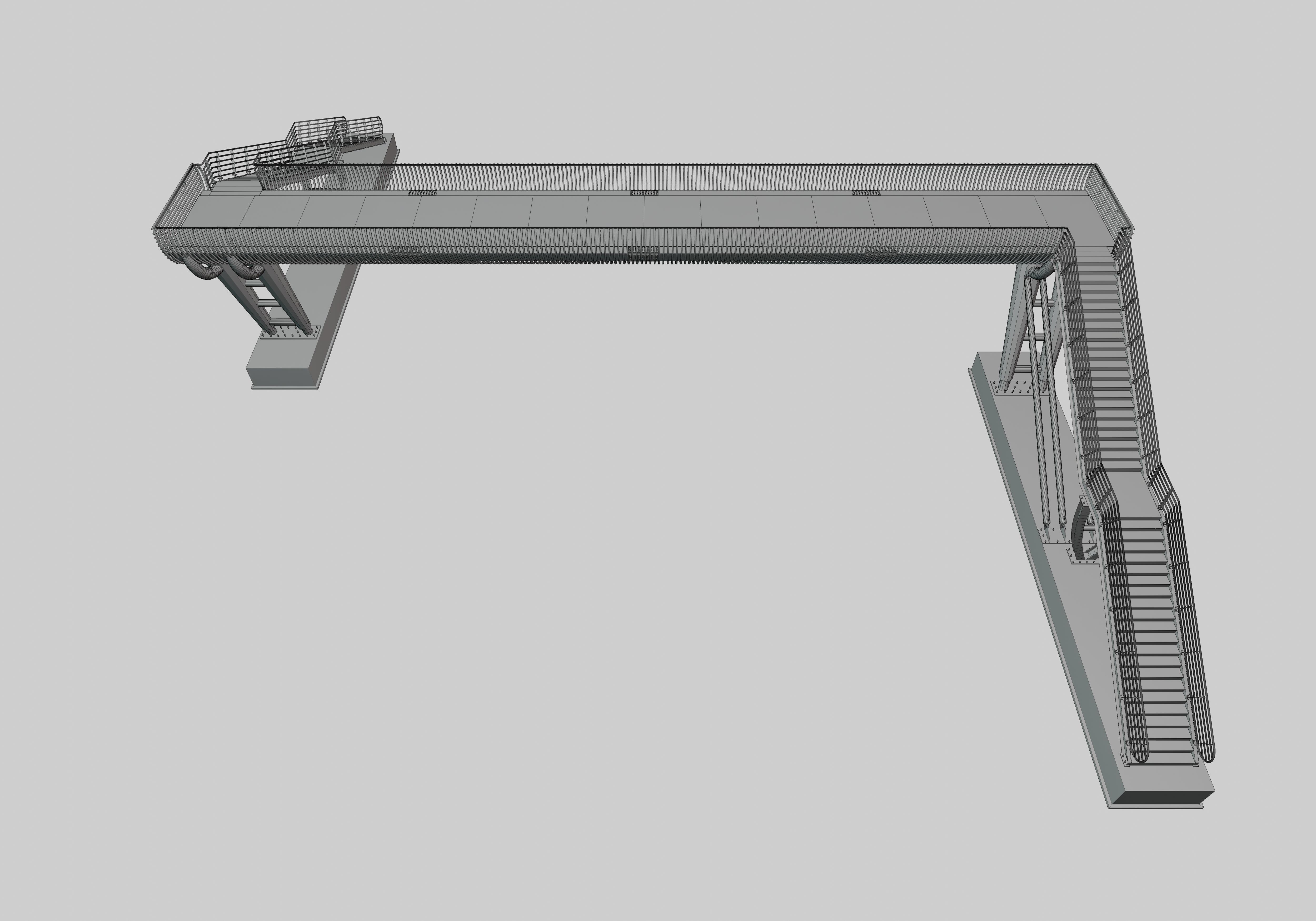

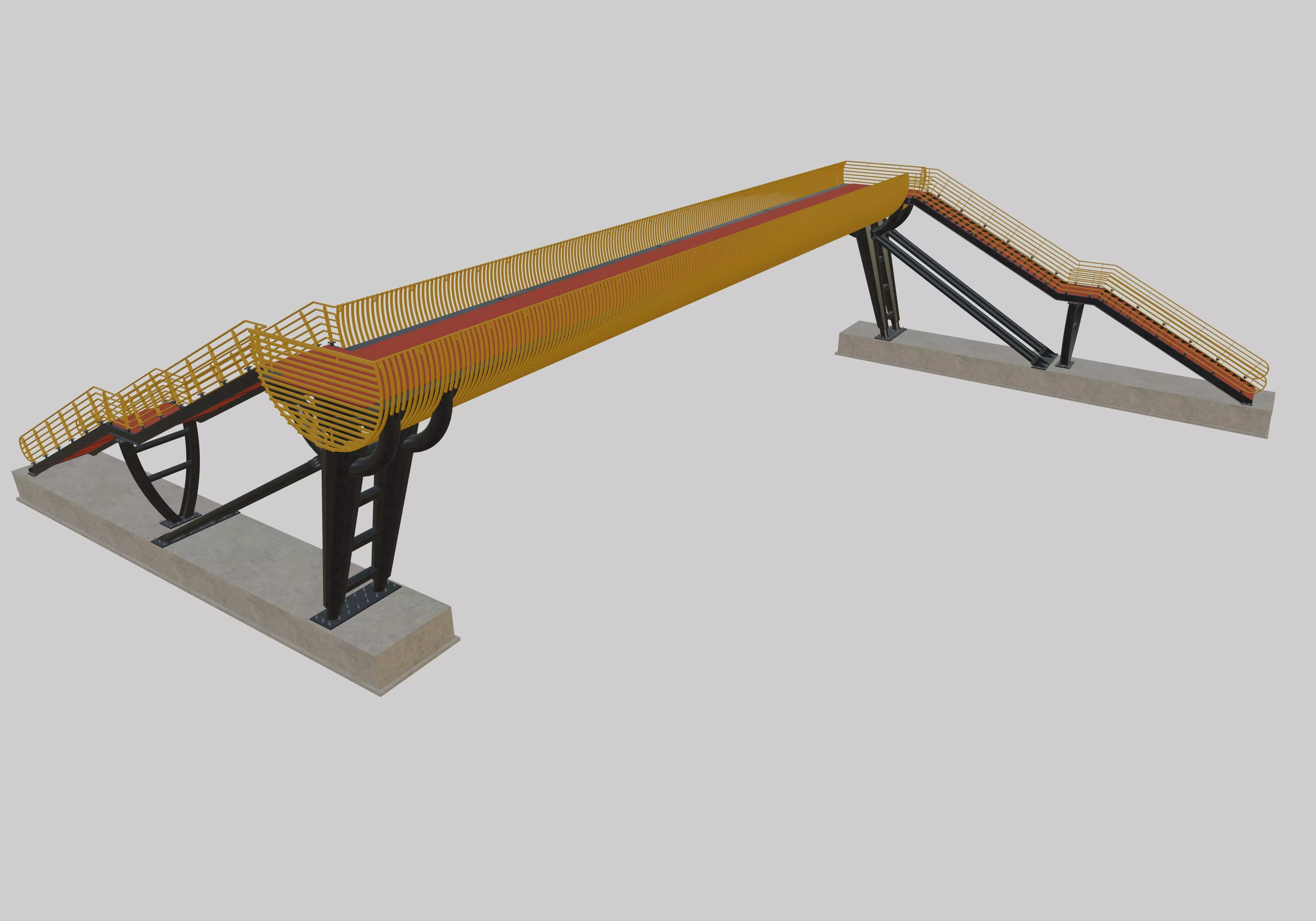

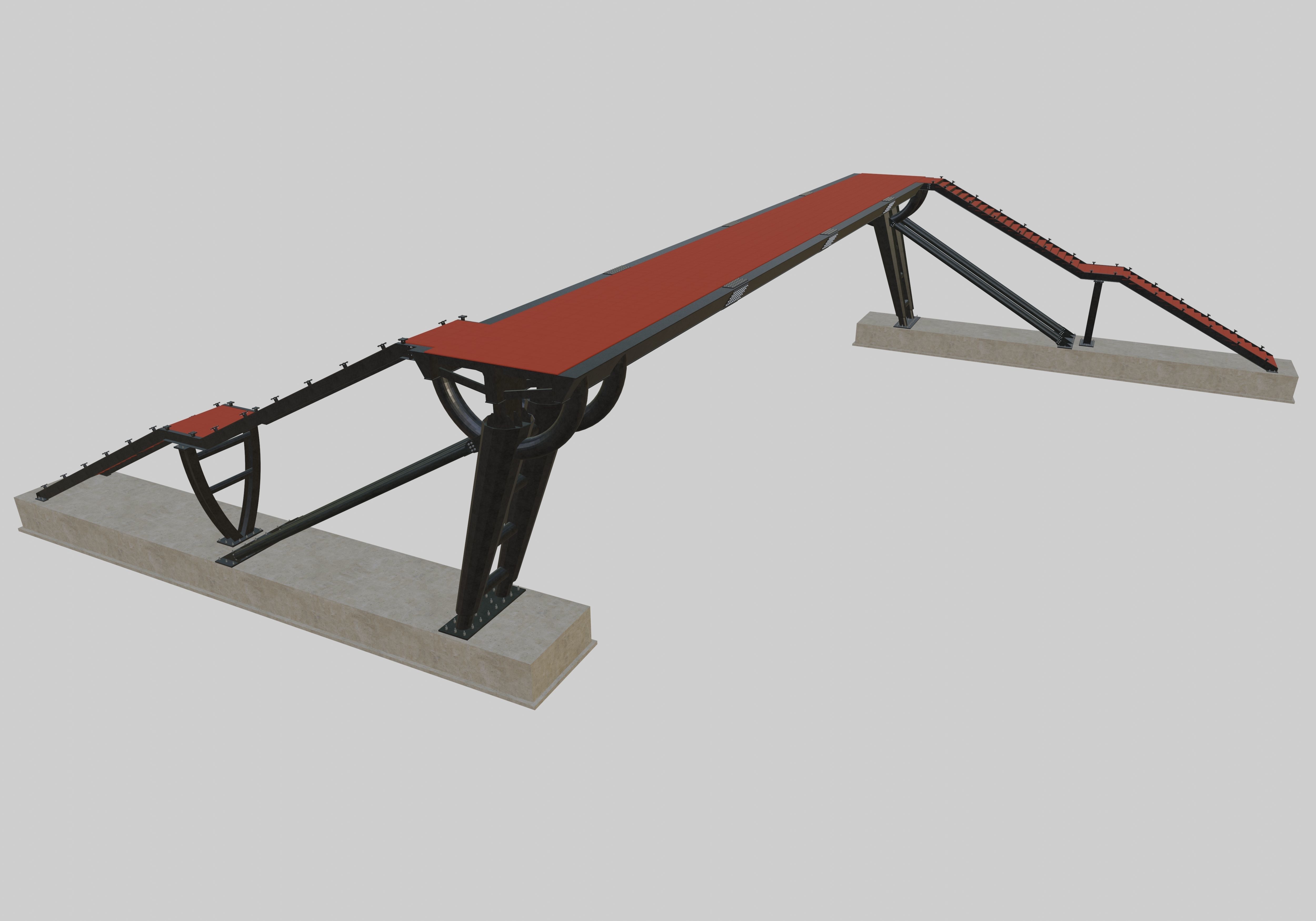

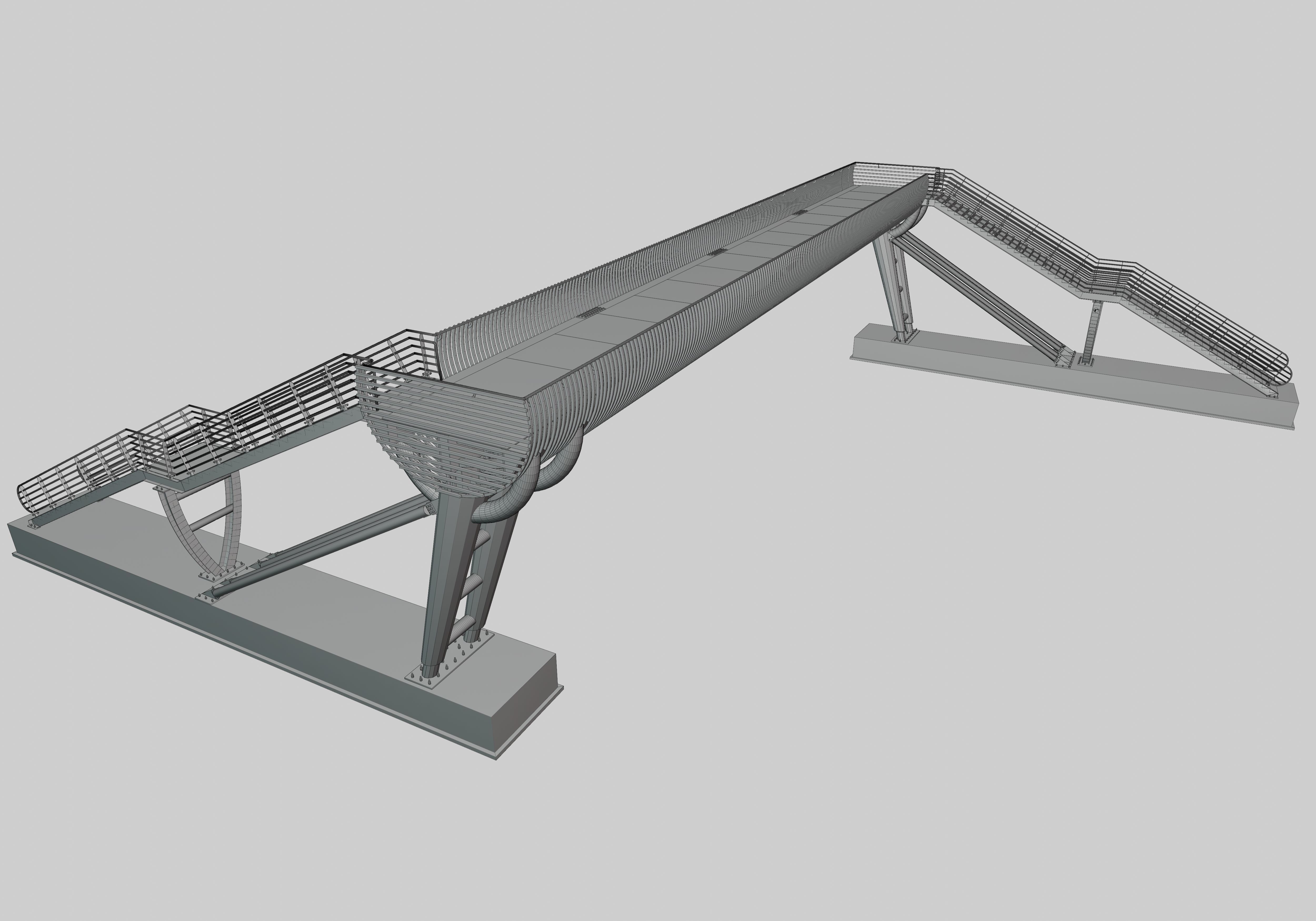

Steel Pedestrian Bridge
Two Column Consruction
Open Top Construction
Straigth Beam Type

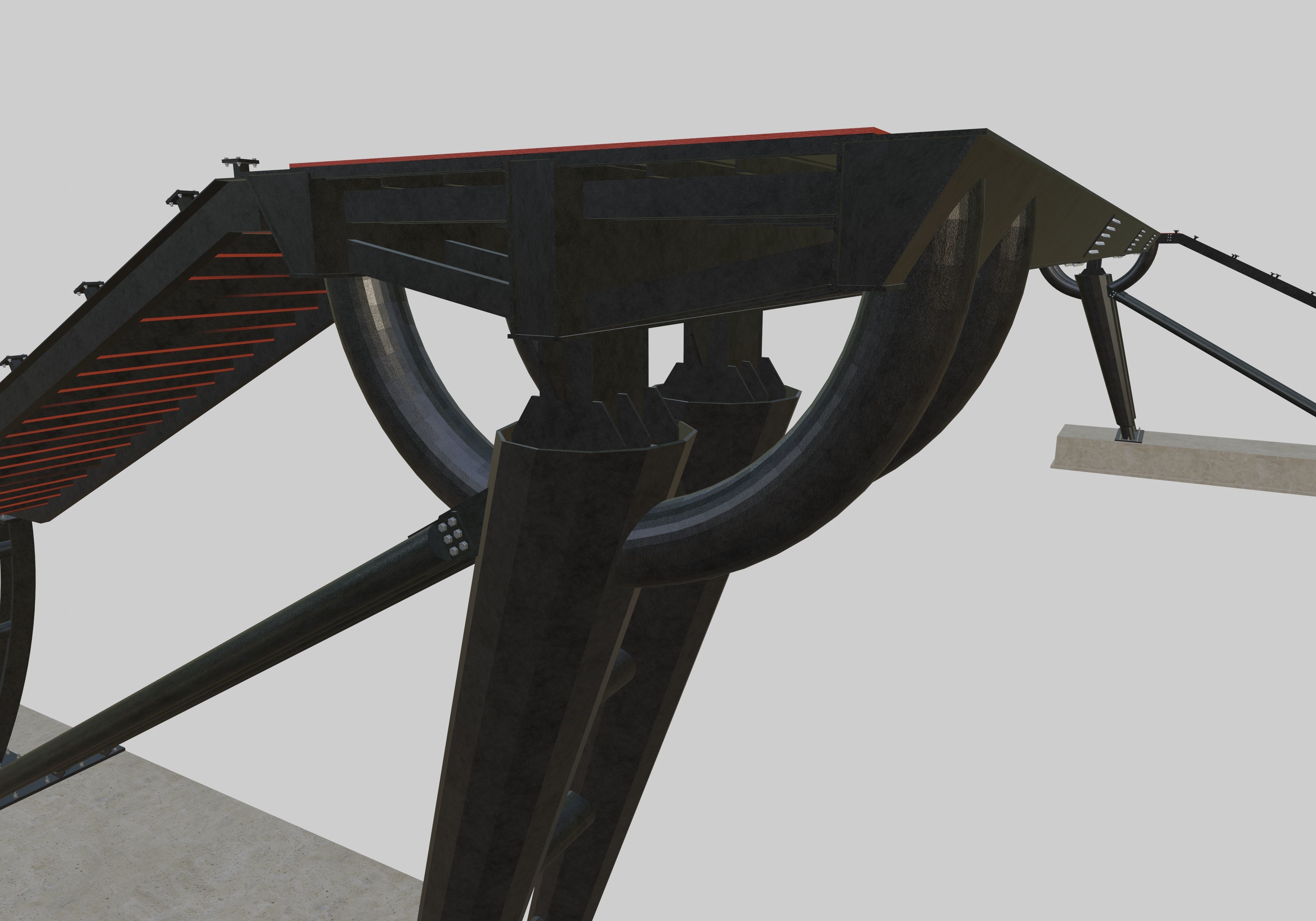

Oblique Cone Column Type
Three Rows Of Platform Beams
Named Objects
Largest Column Span : 29,5 mt.
Distance Between Two Columns : 29,5 mt.
Platform Asphalt Height : 6 mt.
Handrail Asphalt Height : 5,3 mt.
Platform Width : 3 mt.

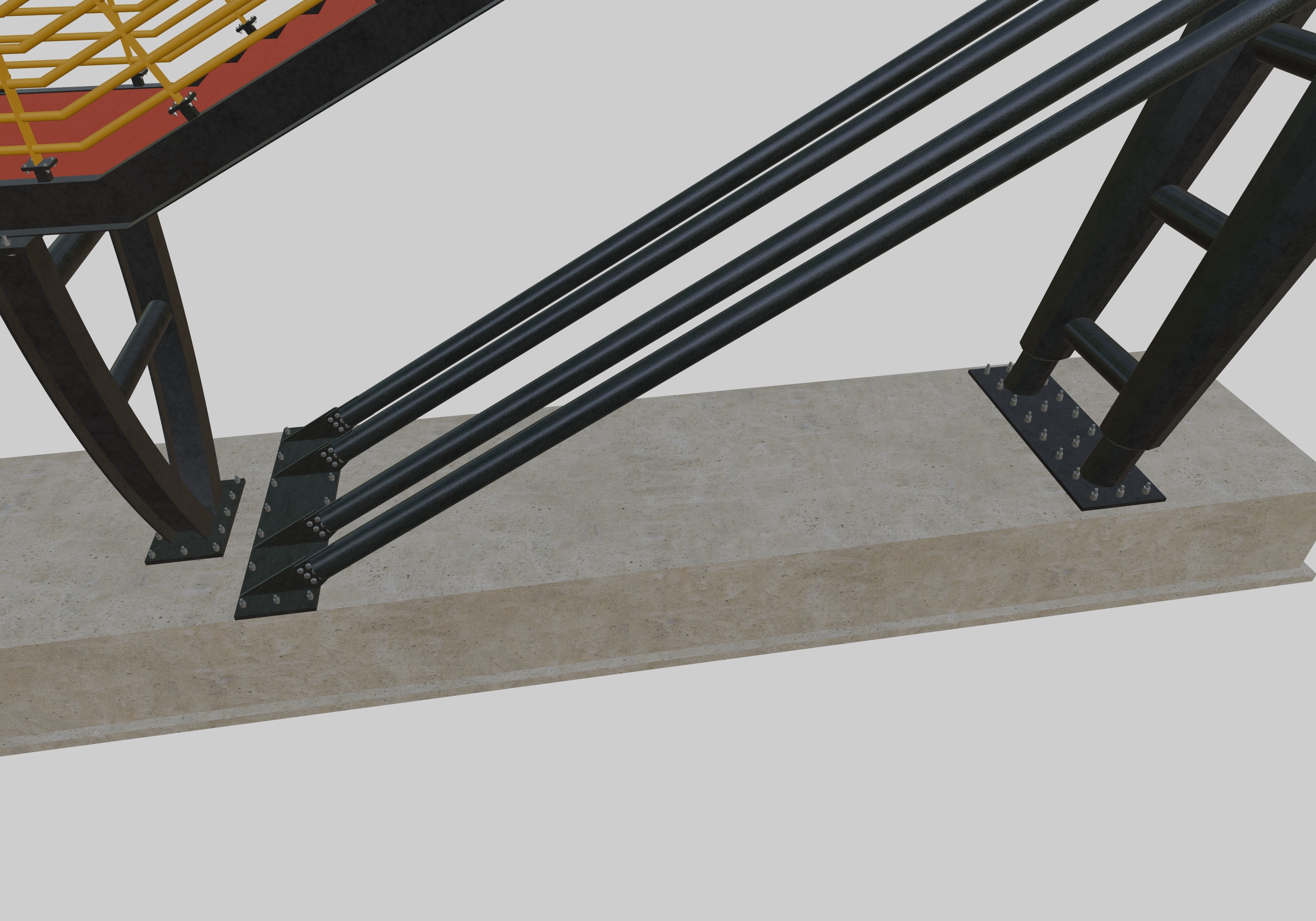

Column Raft Concrete : width 2,5 mt * length 18 mt. * height 1 mt.

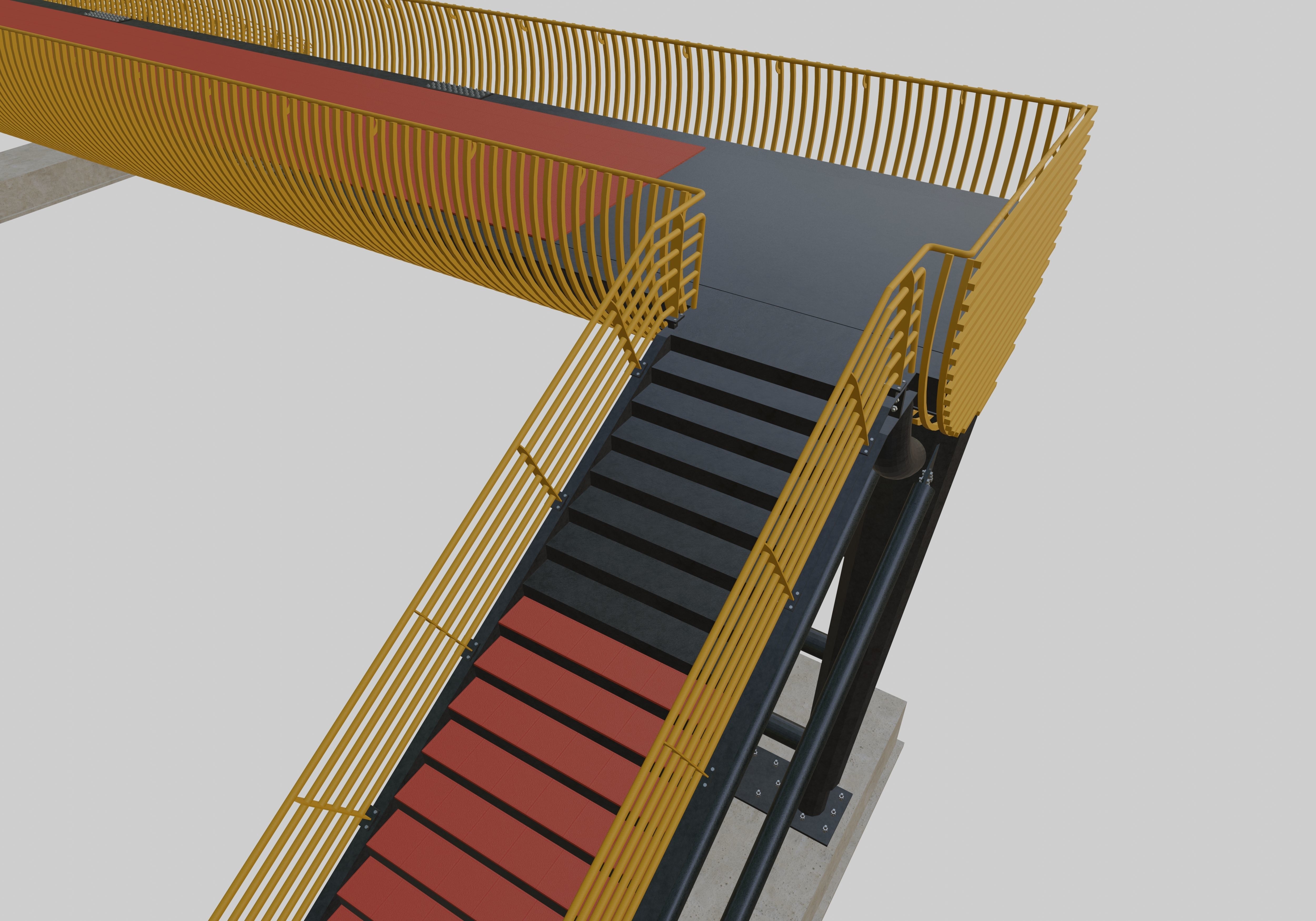

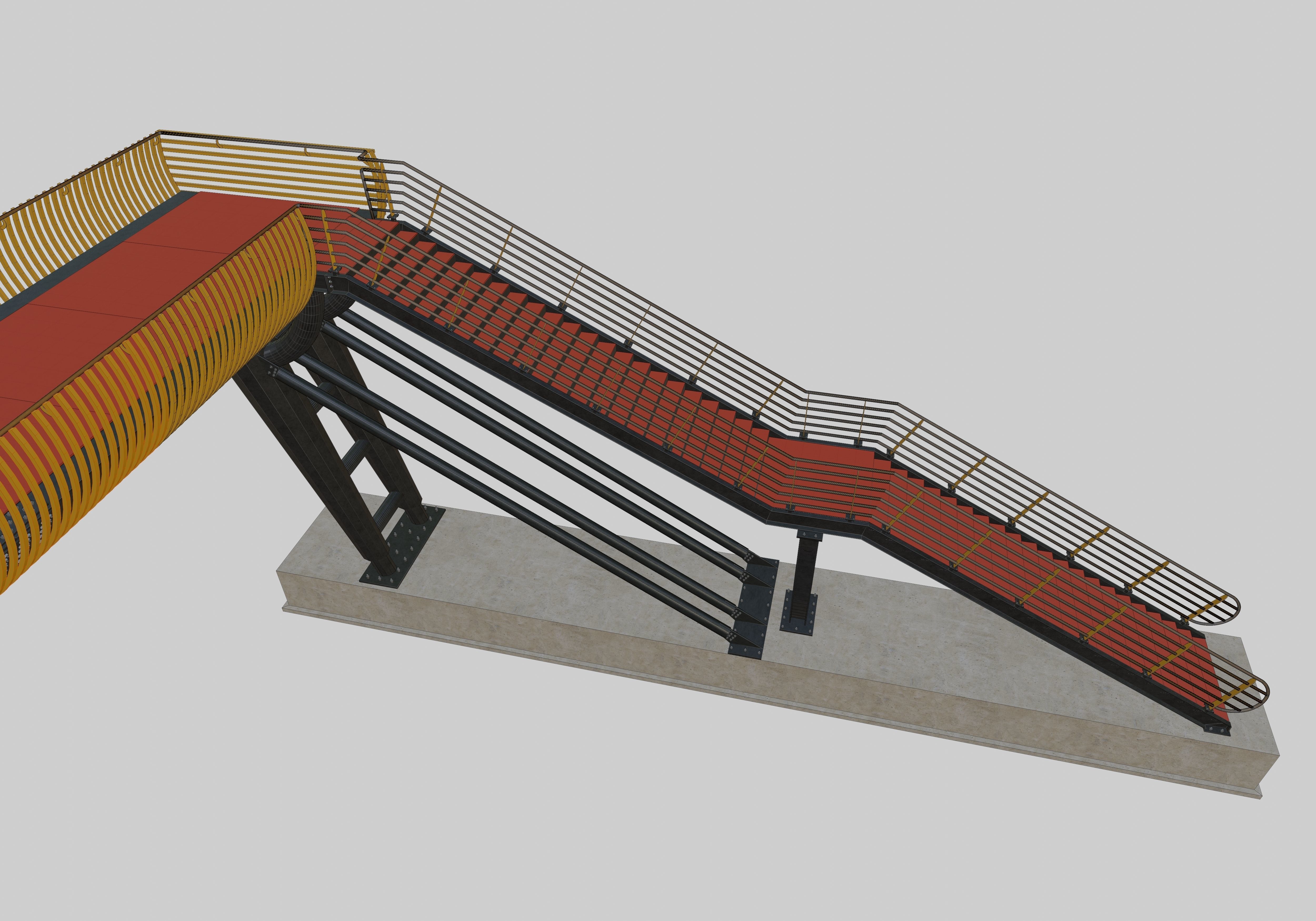

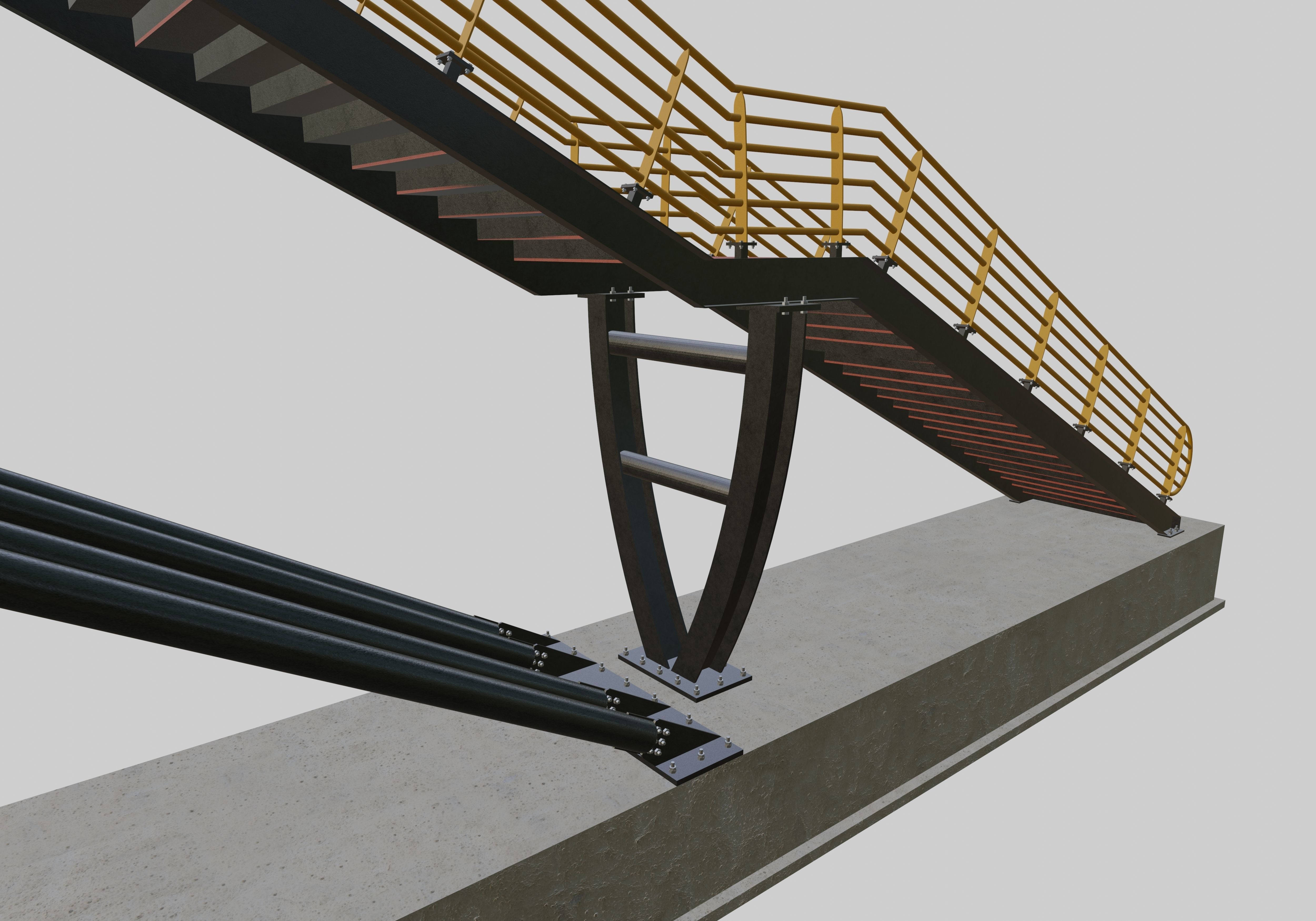

Stairs Straight Type
Stair Step Width : 1,8 mt.
Step Sizes : 300 mm. * 150 mm.

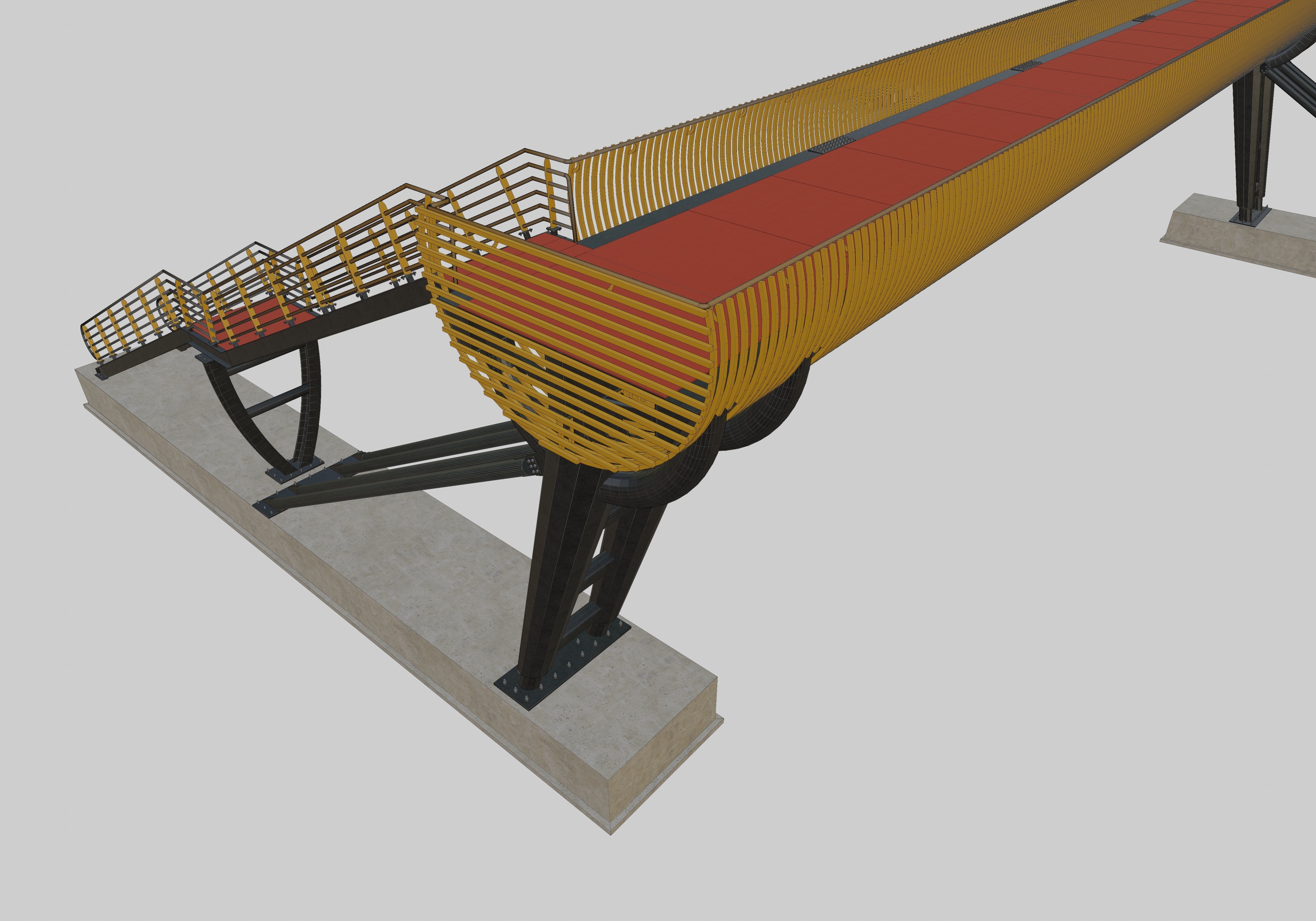

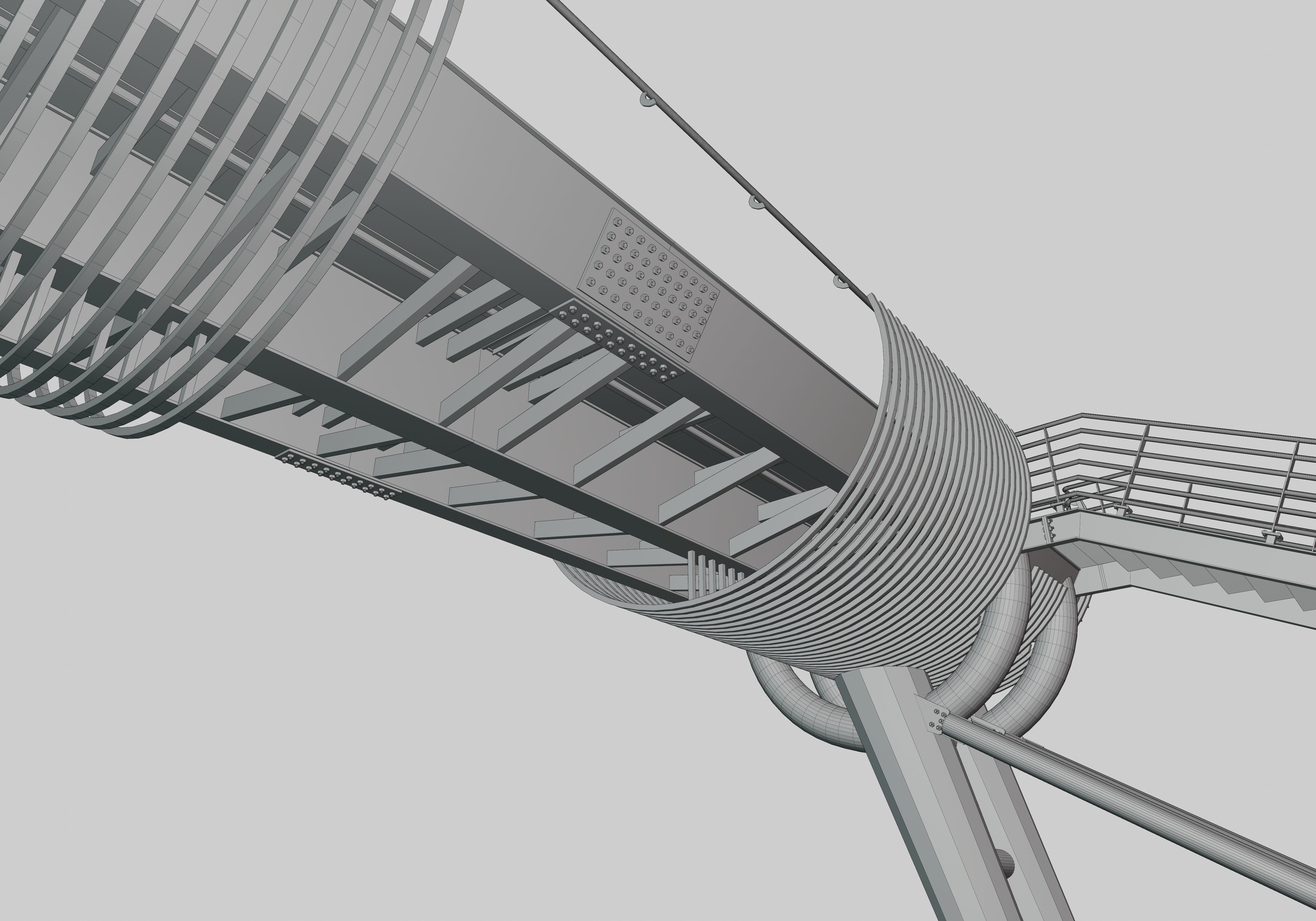

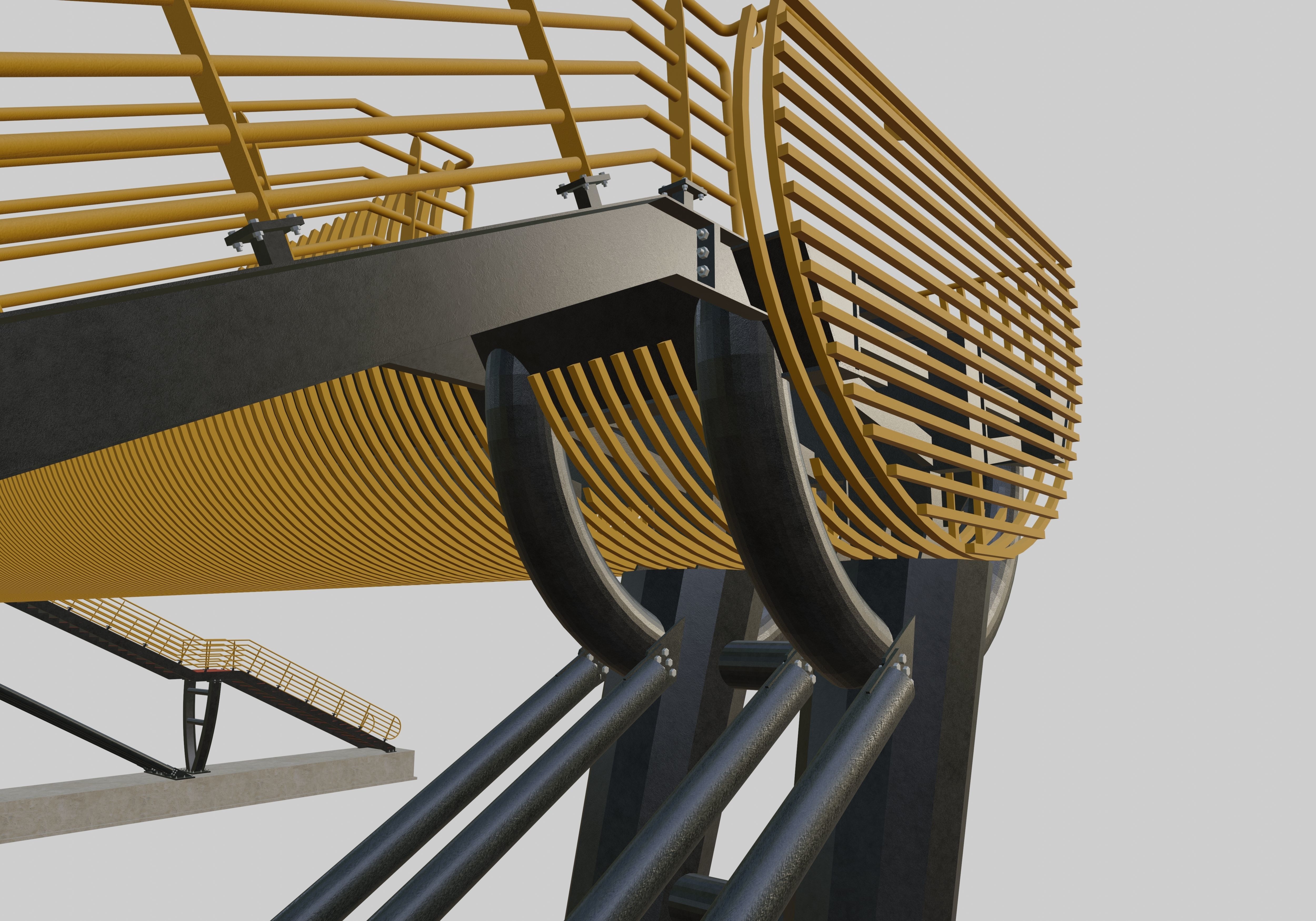

Platforms Curved Railing Type And Railings Box Profile

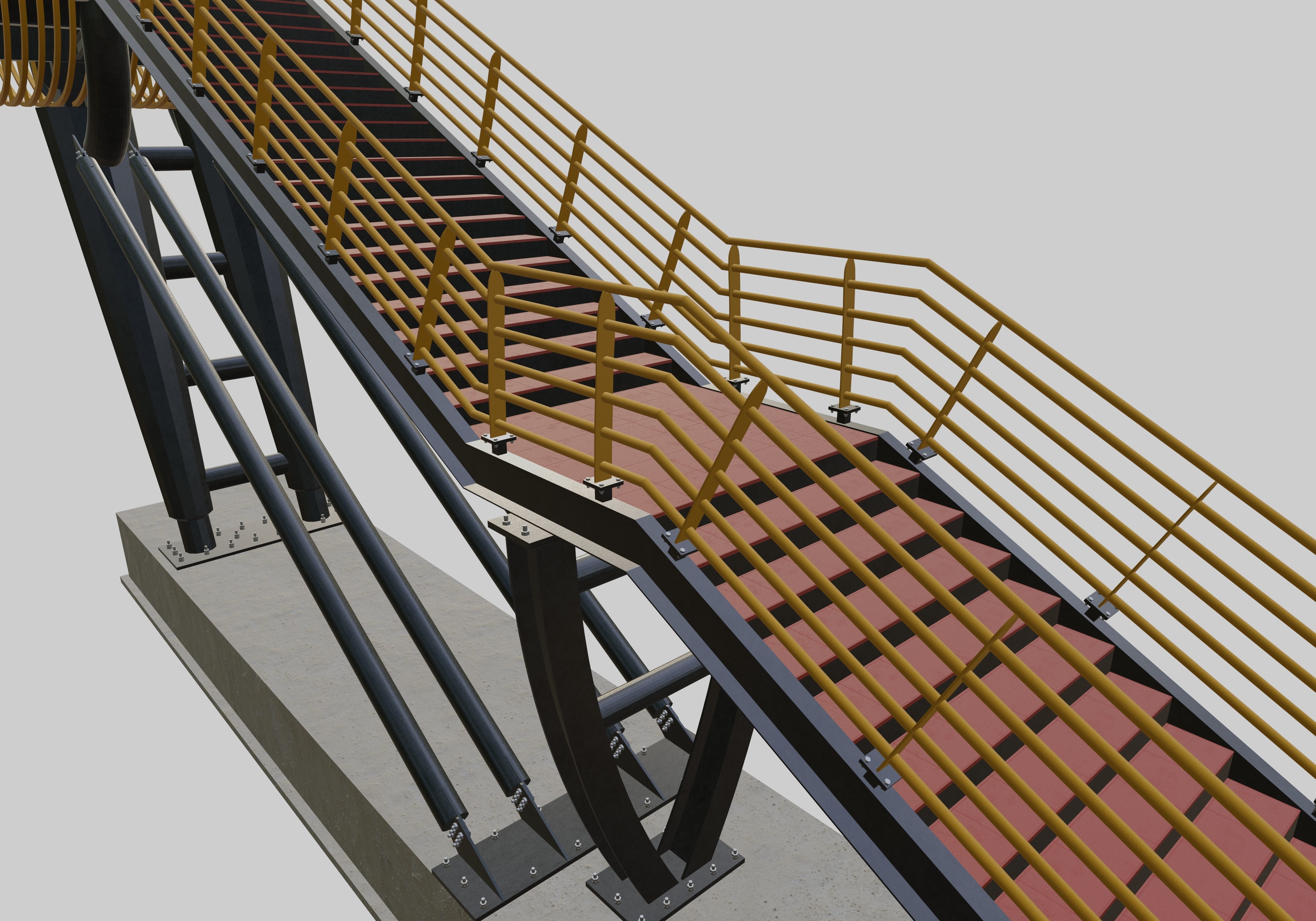

Stairs Pipe Railing Type And Railings Pipe Profile
Platform And Columns With Bolted Connection

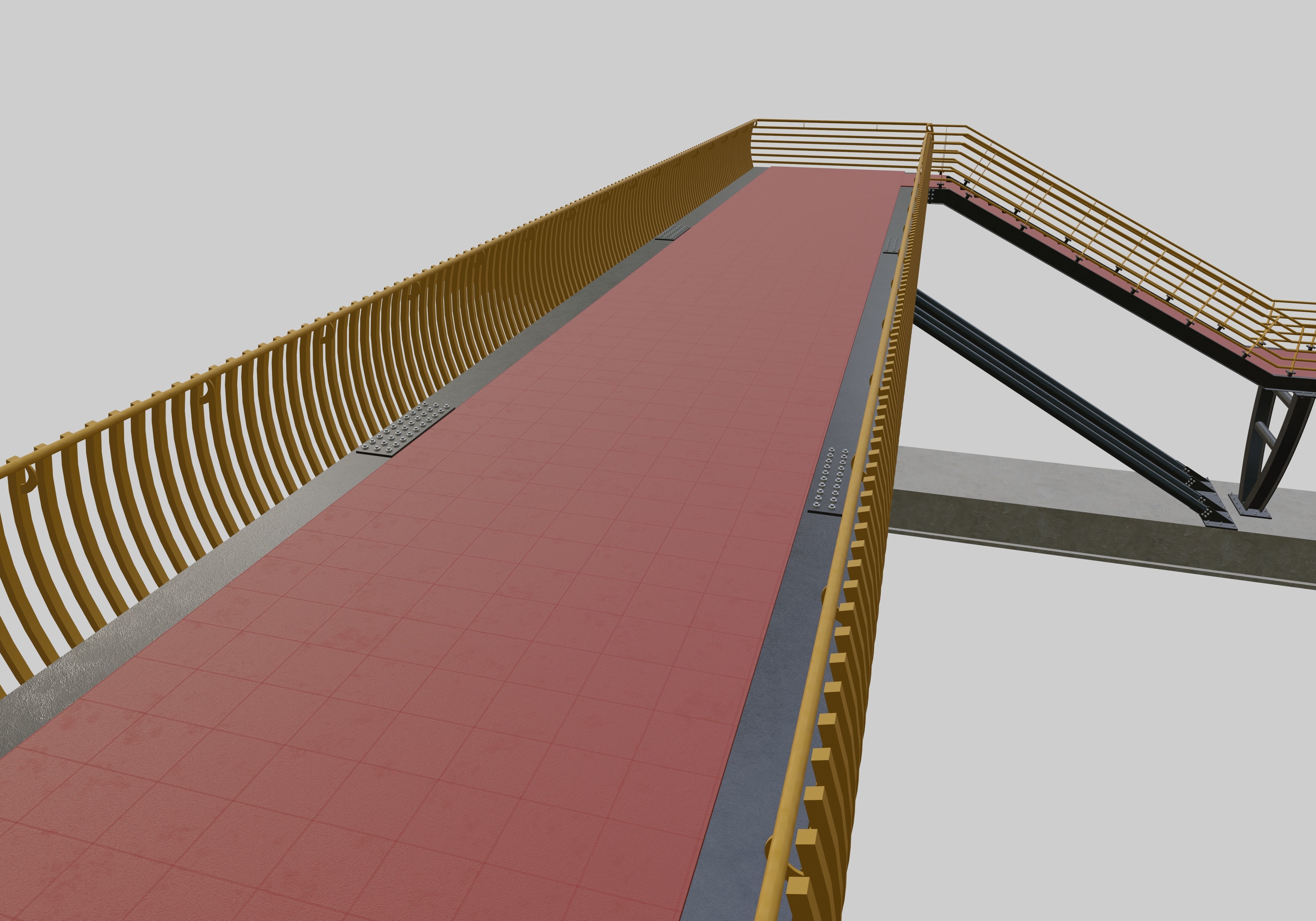

Walking Surface : 2 cm. Rubber Flooring

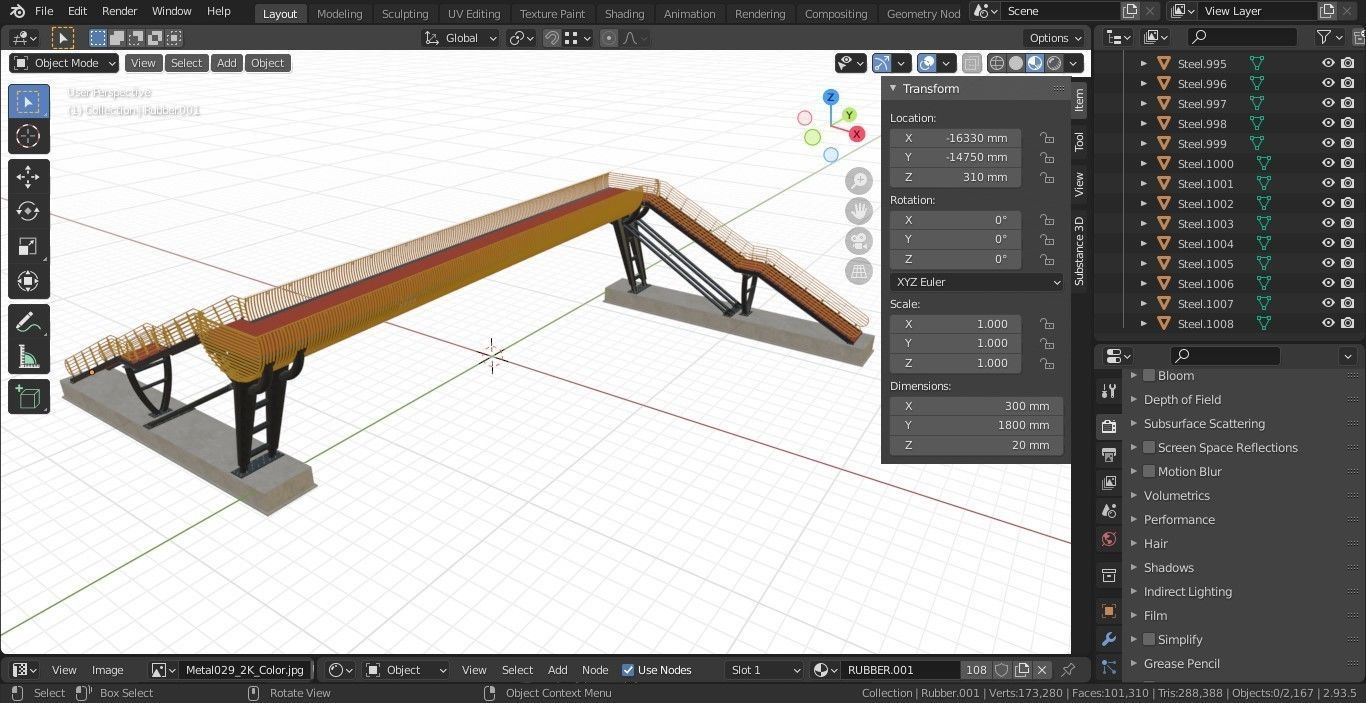

Prepared With BLENDER Version 2.93.5

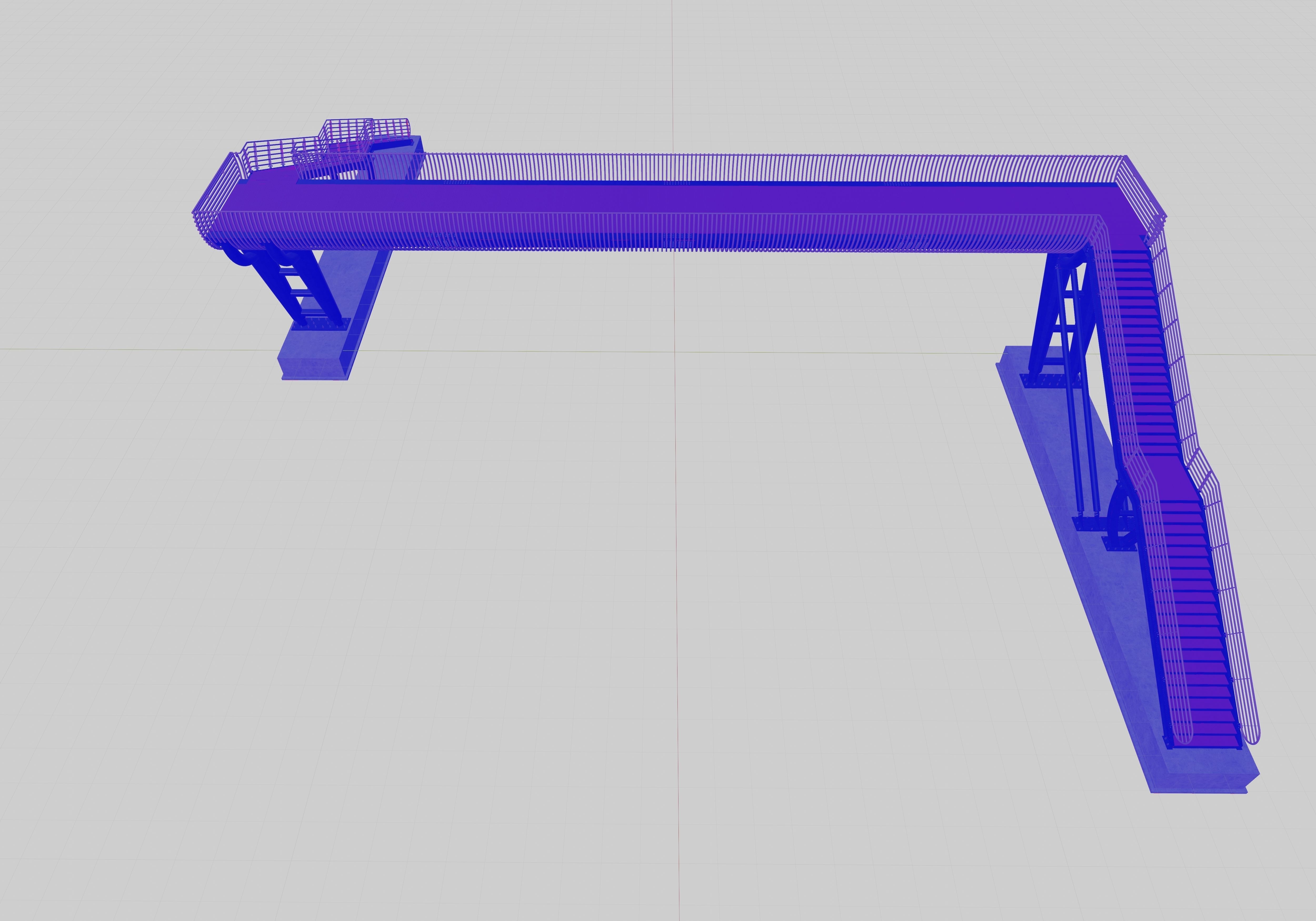

Polygons : 101310
Vertices : 173280
Objects : 2167
