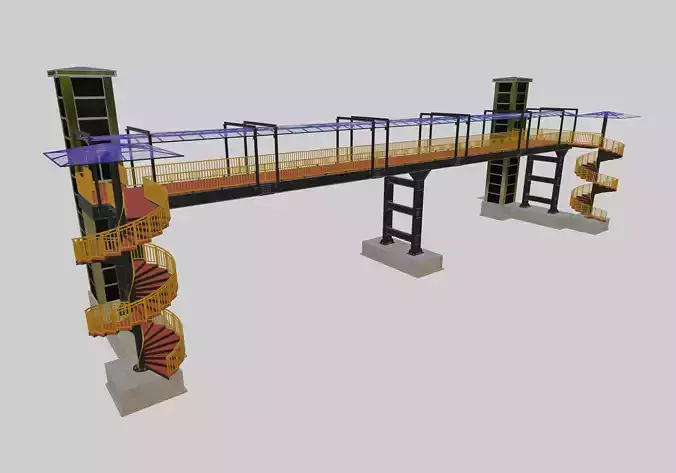

Steel Pedestrian Bridge
Three Column Consruction
Closed Top Construction
Straigth Beam Type
Straight Column Type
Named Objects
Largest Column Span : 38 mt.
Distance Between Two Columns : 19 mt.
Platform Asphalt Height : 6 mt.
Platform Width : 3 mt.
Elevator Steel Construction And Composite Coating
Elevator : width 2,25 mt * length 2,25 mt. * height 12,5 mt.
Elevator Cabin : not prepared
Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.
Spiral Stair Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.
Elevator Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1,5 mt.
Spiral Stair Type
Stair Step Width : 1,657 mt.
Step Sizes : 50/565 mm. * 150 mm.
Flat Railing Construction
Railings Box Profile
Platform And Columns With Bolted Connection
Walking Surface : 2 cm. Rubber Flooring
Top Coating Solid Polycarbonate
Prepared With BLENDER Version 2.93.5
Polygons : 110317
Vertices : 197472
Objects : 4019
