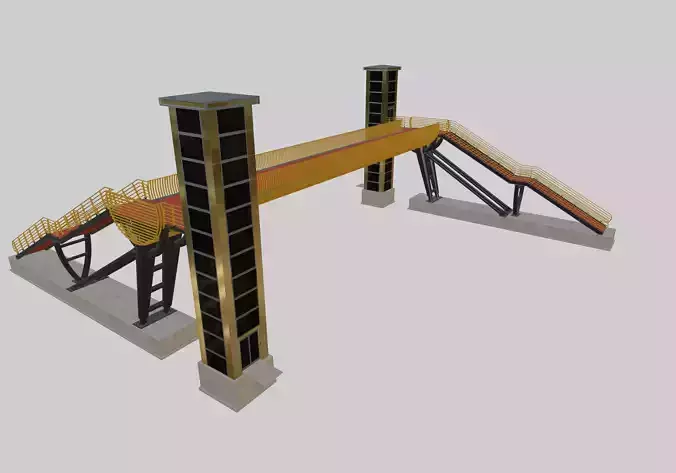

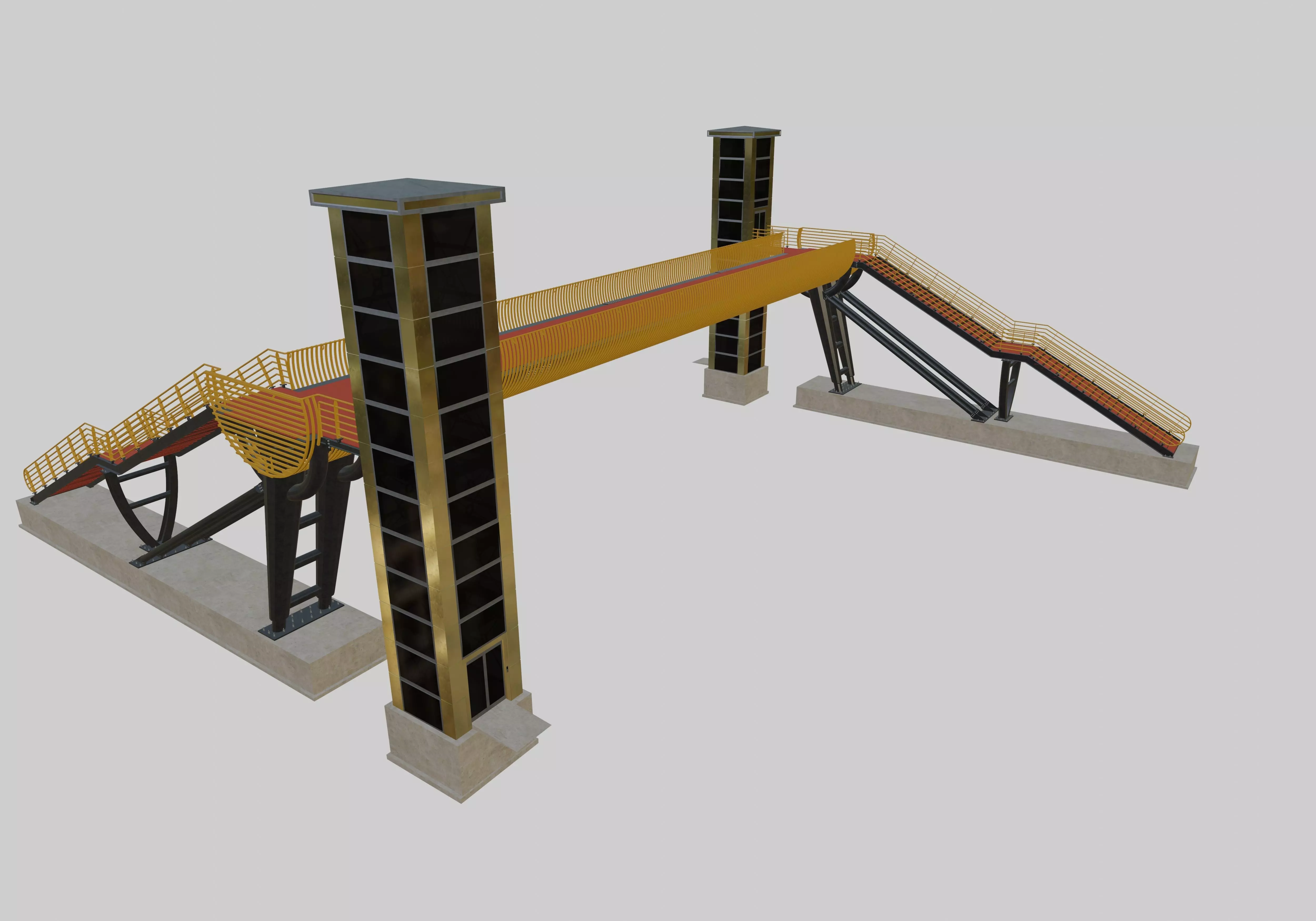

Steel Pedestrian Bridge-Elevator-Oblique Cone Column Type-25

Steel Pedestrian Bridge-Elevator-Oblique Cone Column Type-25 3D model

Description

Steel Pedestrian Bridge

Two Column Consruction

Open Top Construction

Straigth Beam Type

Oblique Cone Column Type

Three Rows Of Platform Beams

Named Objects

Largest Column Span : 29,5 mt.

Distance Between Two Columns : 29,5 mt.

Platform Asphalt Height : 6 mt.

Handrail Asphalt Height : 5,3 mt.

Platform Width : 3 mt.

Elevator Steel Construction And Composite Coating

Elevator : width 2,25 mt * length 2,25 mt. * height 12,5 mt.

Elevator Cabin : not prepared

Column Raft Concrete : width 2,5 mt * length 18 mt. * height 1 mt.

Elevator Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1,5 mt.

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.

Platforms Curved Railing Type And Railings Box Profile

Stairs Pipe Railing Type And Railings Pipe Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Prepared With BLENDER Version 2.93.5

Polygons : 116262

Vertices : 200430

Objects : 2959

Item rating
0 0
Steel Pedestrian Bridge-Elevator-Oblique Cone Column Type-25
$16.00

Royalty Free License
Steel Pedestrian Bridge-Elevator-Oblique Cone Column Type-25
$16.00

Royalty Free License
Available in these collections
Response 83% in 0.5h

3D Model formats

Format limitations
Native
  • Blender 2.93.5 (.blend)33.5 MB
Exchange

    3D Model details

    • Publish date2022-04-23
    • Model ID#3717210
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry Polygon mesh
    • Polygons 116,262
    • Vertices 200,430
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs Unknown
    • Plugins used
    • Ready for 3D Printing
