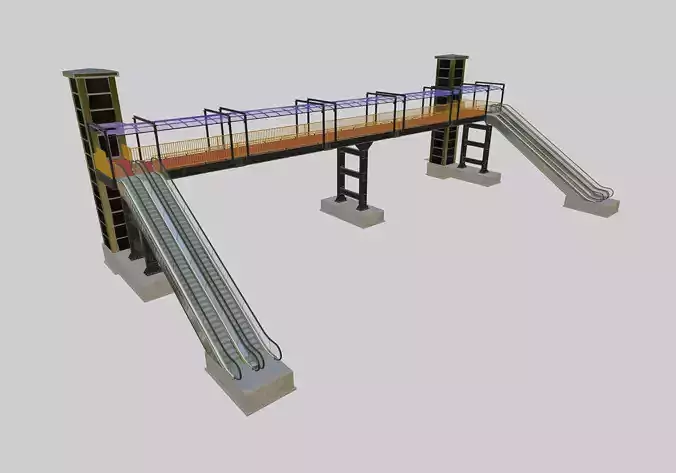

Steel Pedestrian Bridge-Elevator-Escalator-Straight Type-20 3D model

Steel Pedestrian Bridge

Three Column Consruction

Closed Top Construction

Straigth Beam Type

Straight Column Type

Named Objects

Largest Column Span : 38 mt.

Distance Between Two Columns : 19 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Elevator Steel Construction And Composite Coating

Elevator : width 2,25 mt * length 2,25 mt. * height 12,5 mt.

Elevator Cabin : not prepared

Escalator Composite Coating

Descending and Ascending Double Escalator

Escalator Steel Construction : not prepared

Escalator Step Size : width 300 mm. * length 800 mm. * height 165 mm.

Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Escalator Raft Concrete : width 2,5 mt * length 4 mt. * height 1 mt.

Elevator Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1,5 mt.

Steel Stair : not prepared

Flat Railing Construction

Railings Box Profile

Platform And Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

Top Coating Solid Polycarbonate

Prepared With BLENDER Version 2.93.5

Polygons : 134714

Vertices : 225928

Objects : 4620
