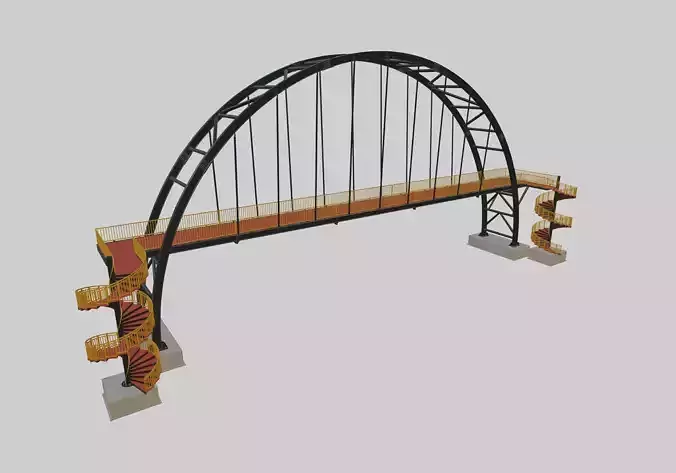

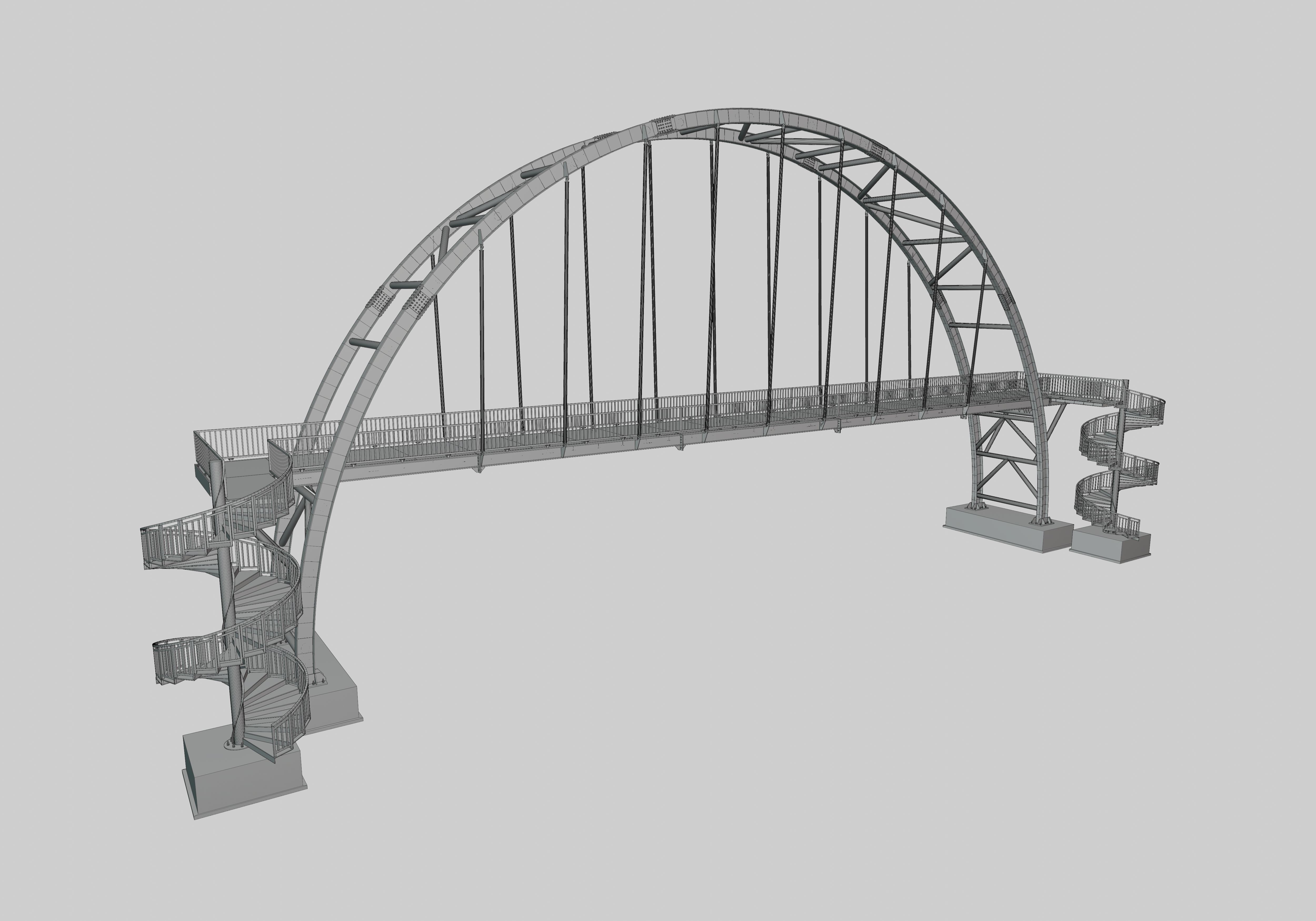

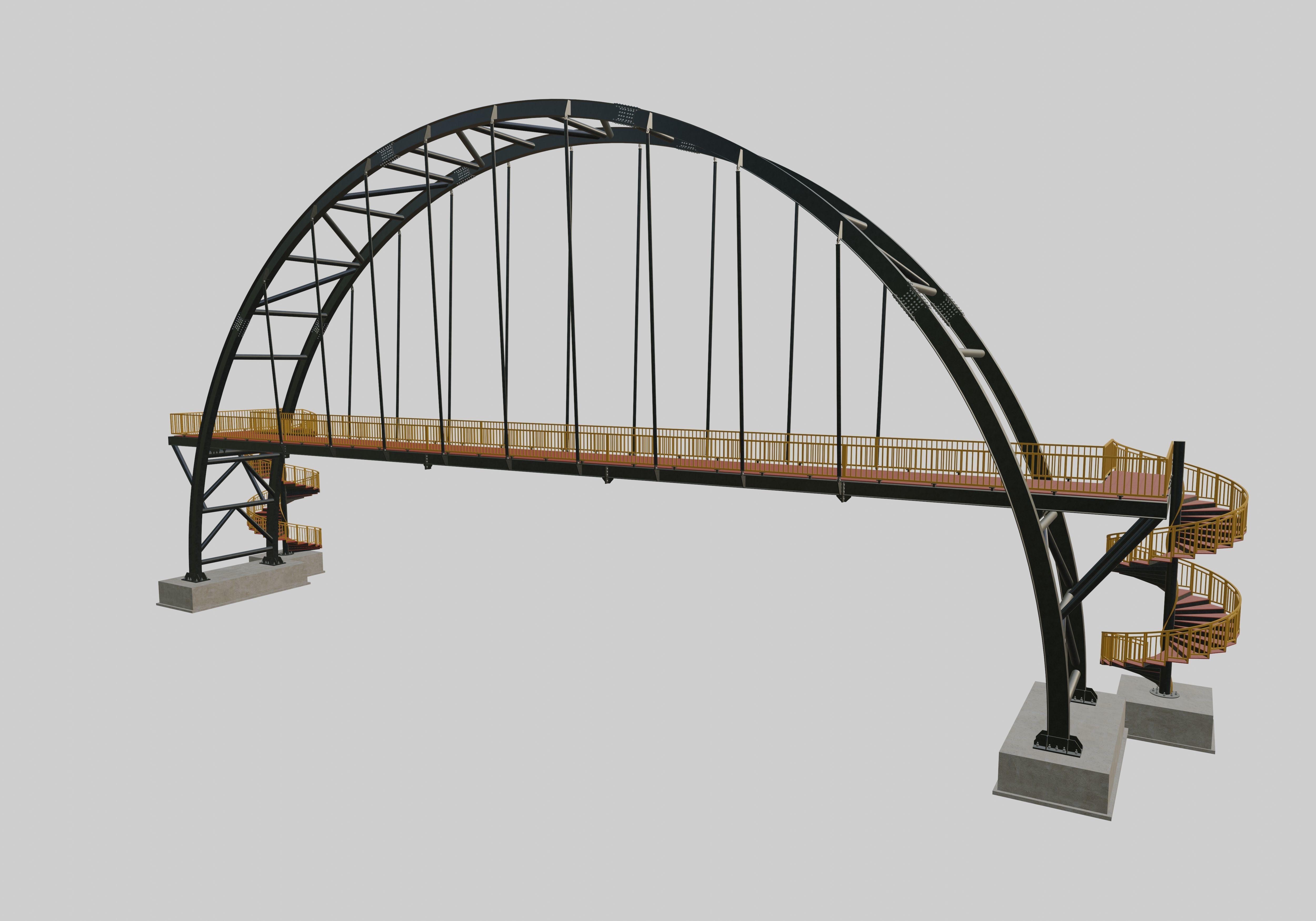

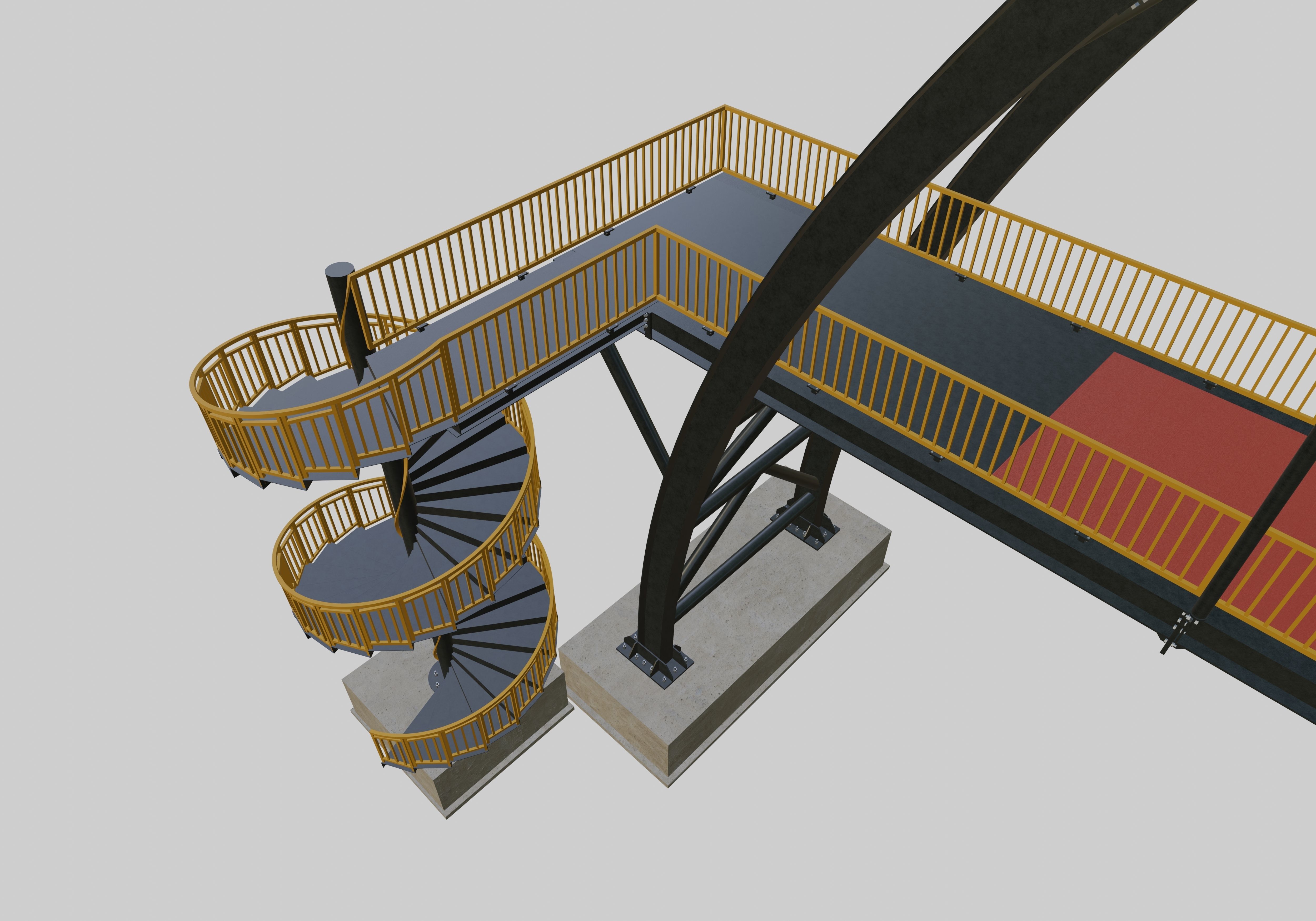

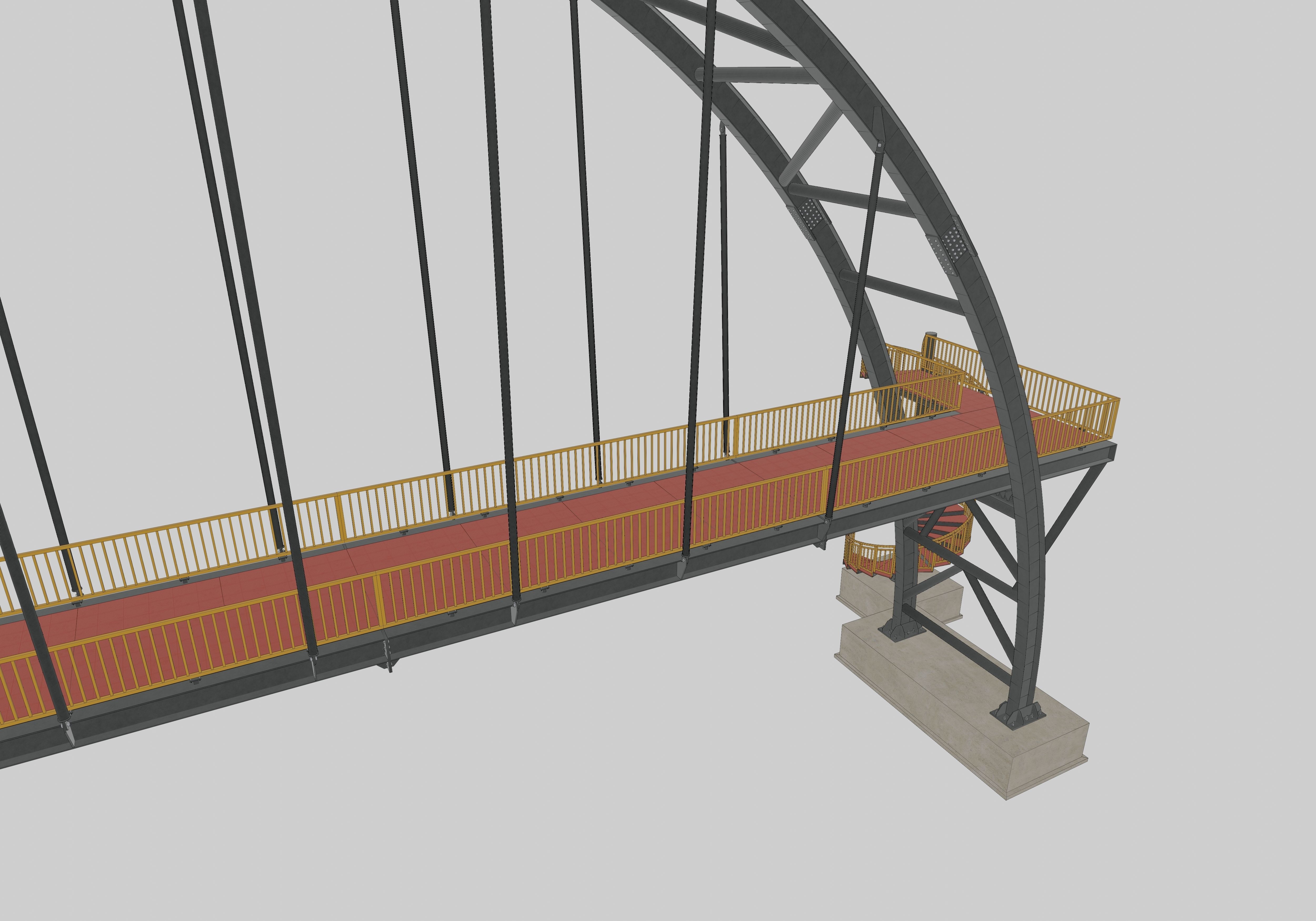

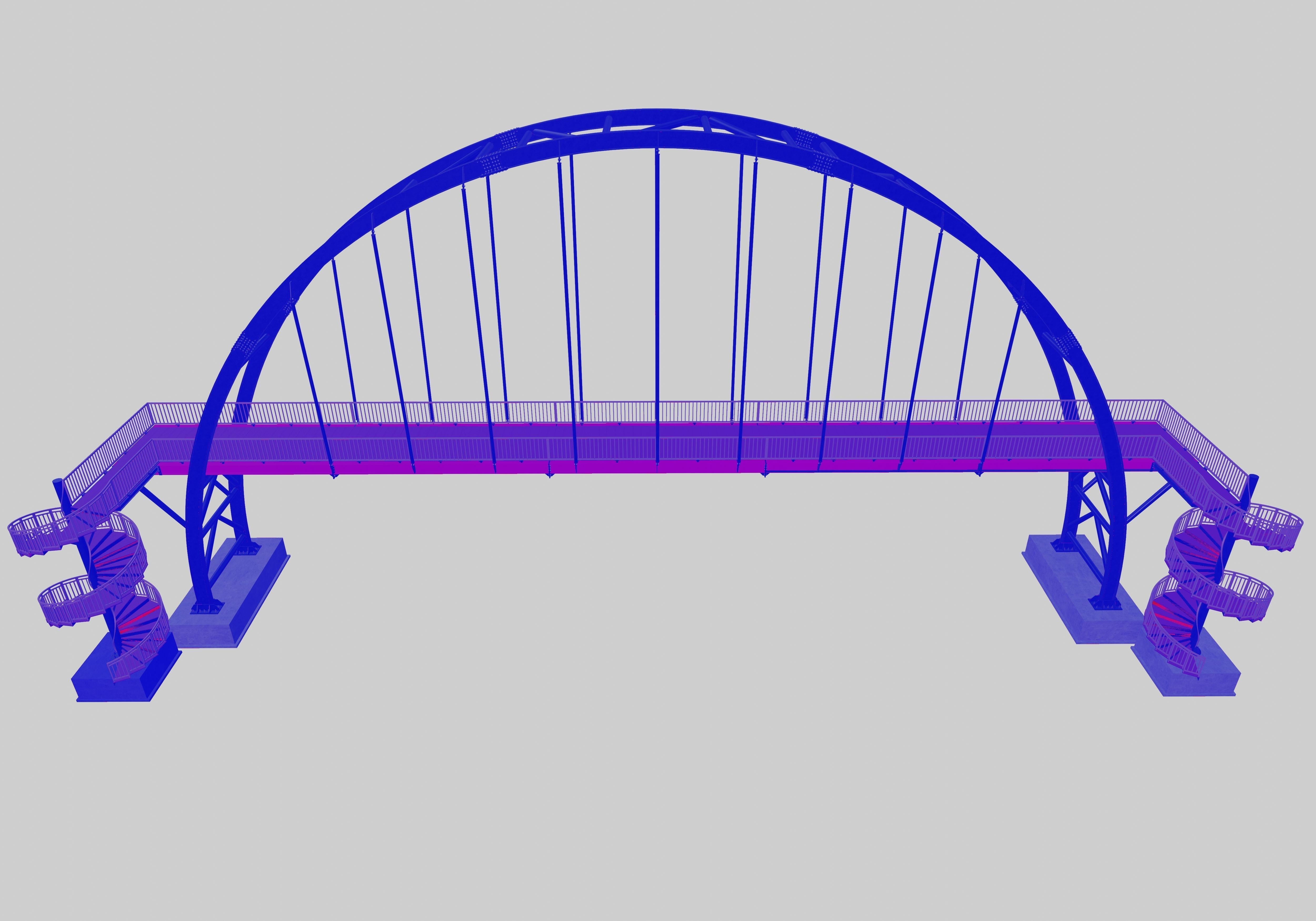

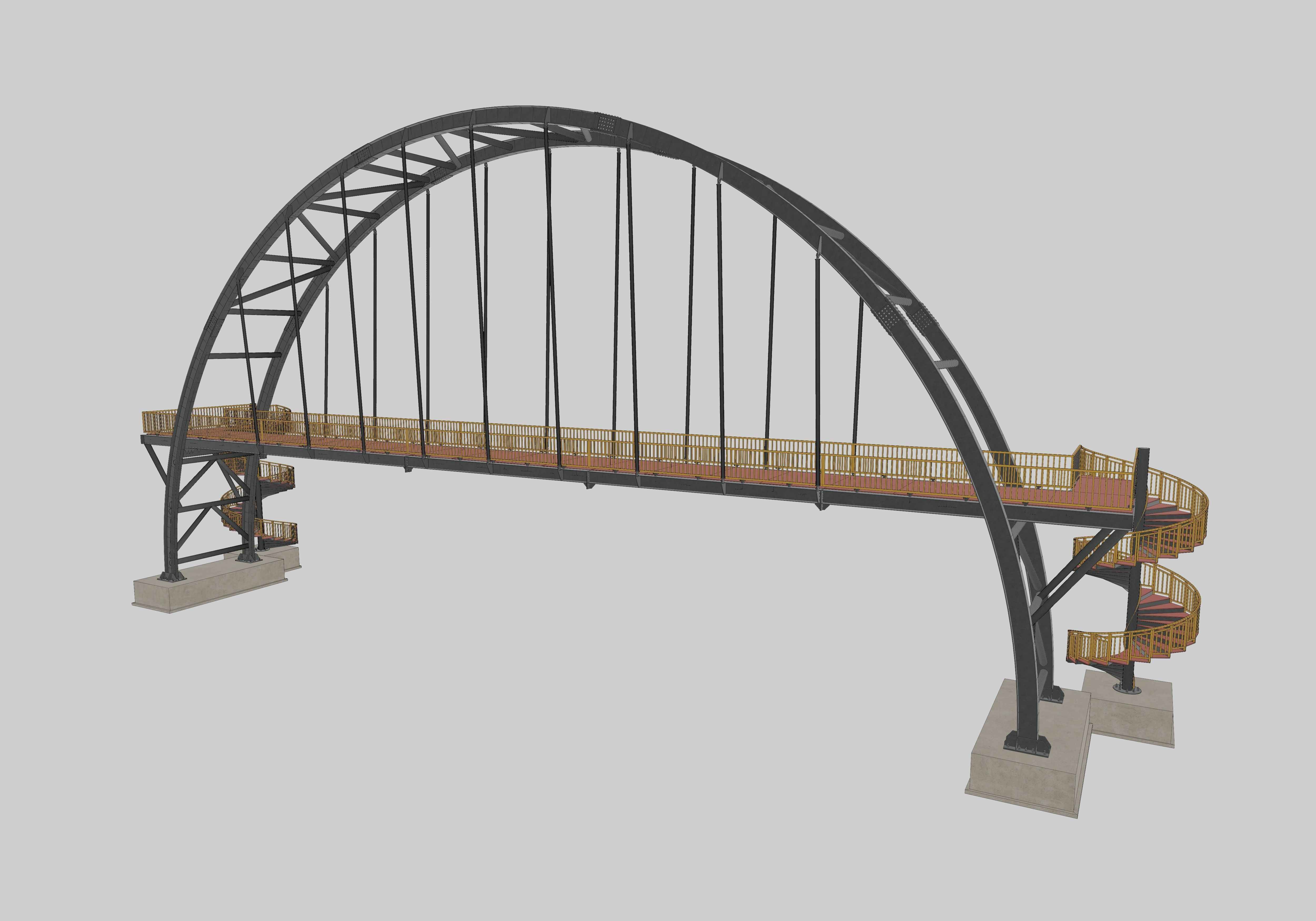

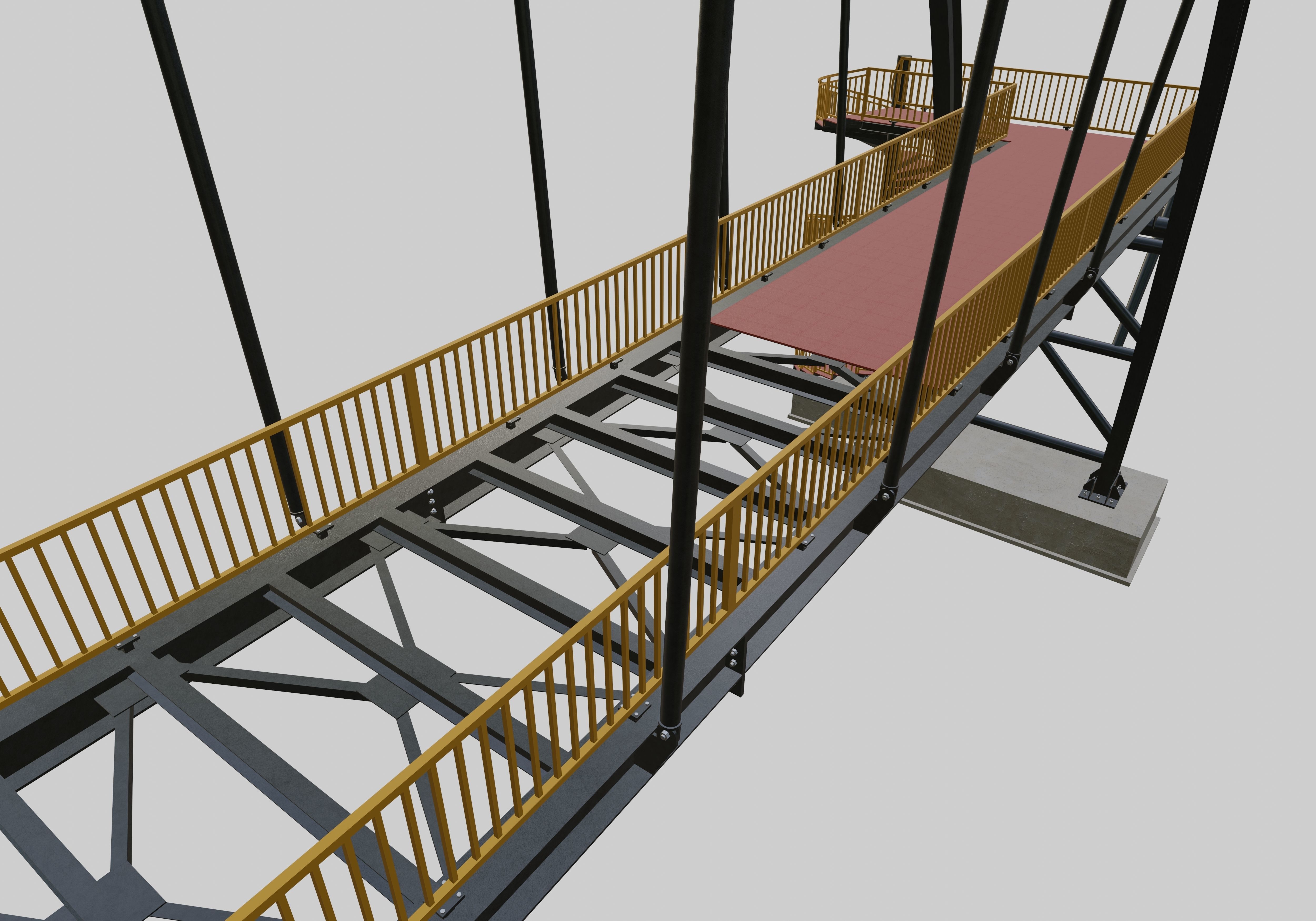

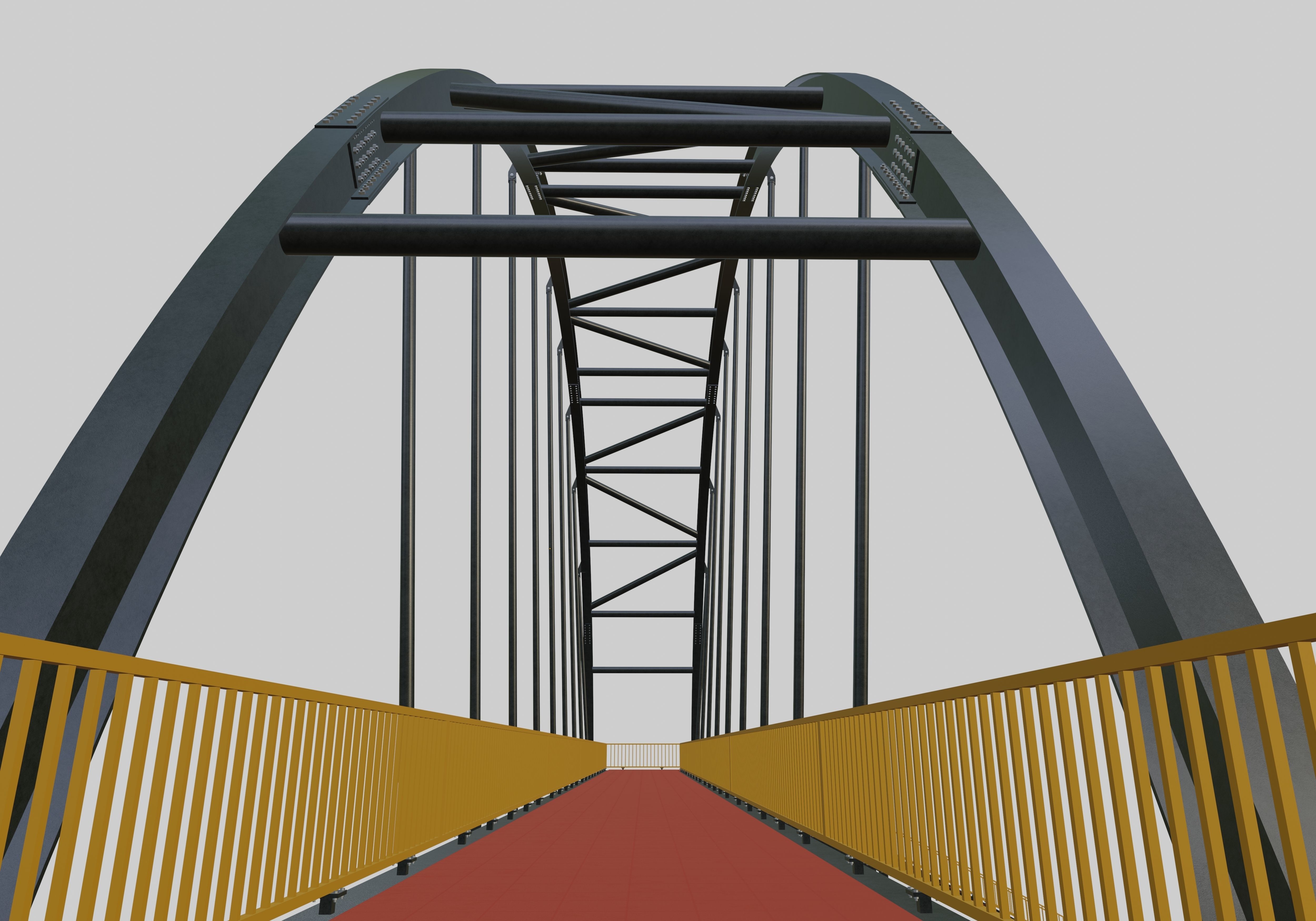

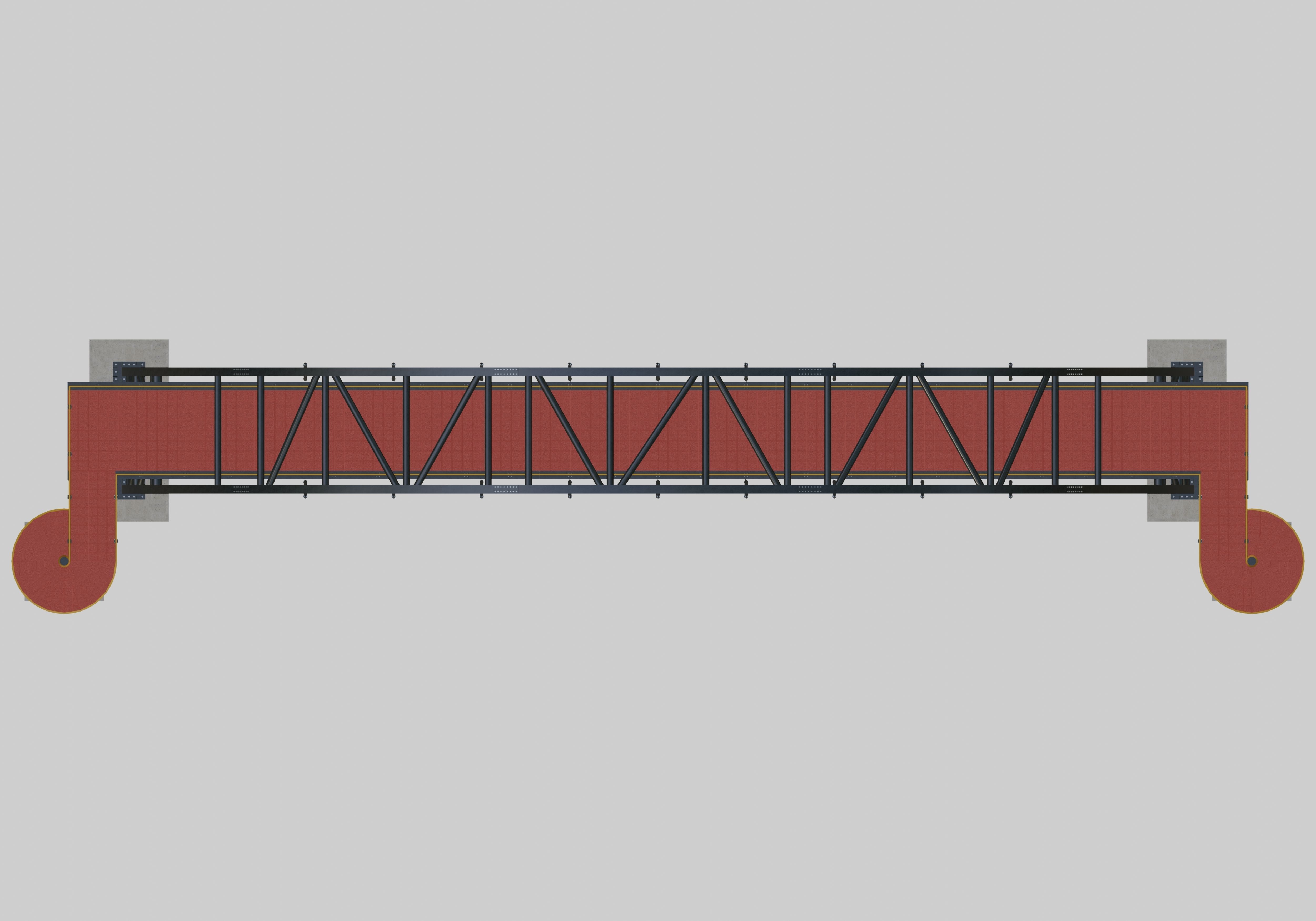

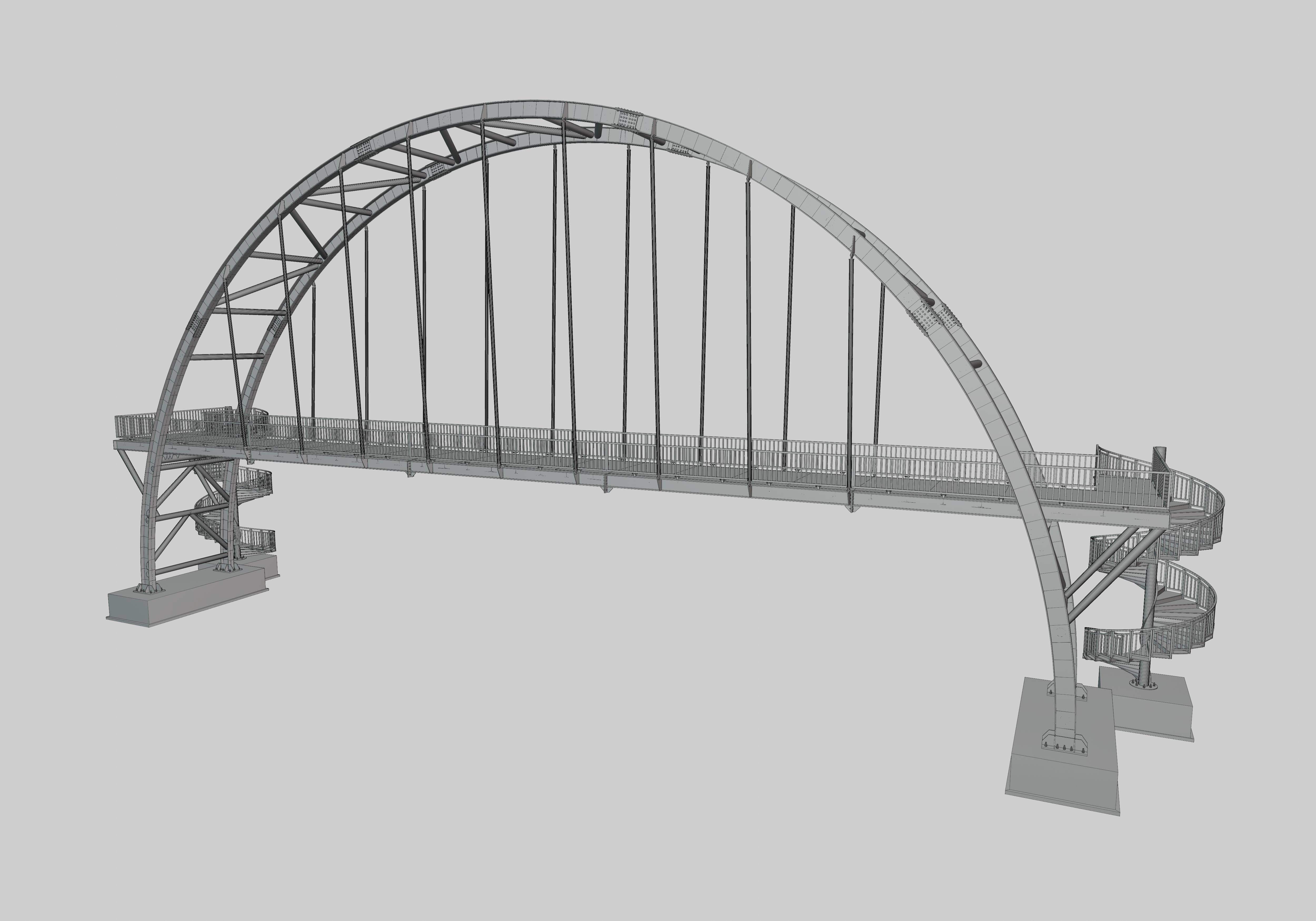

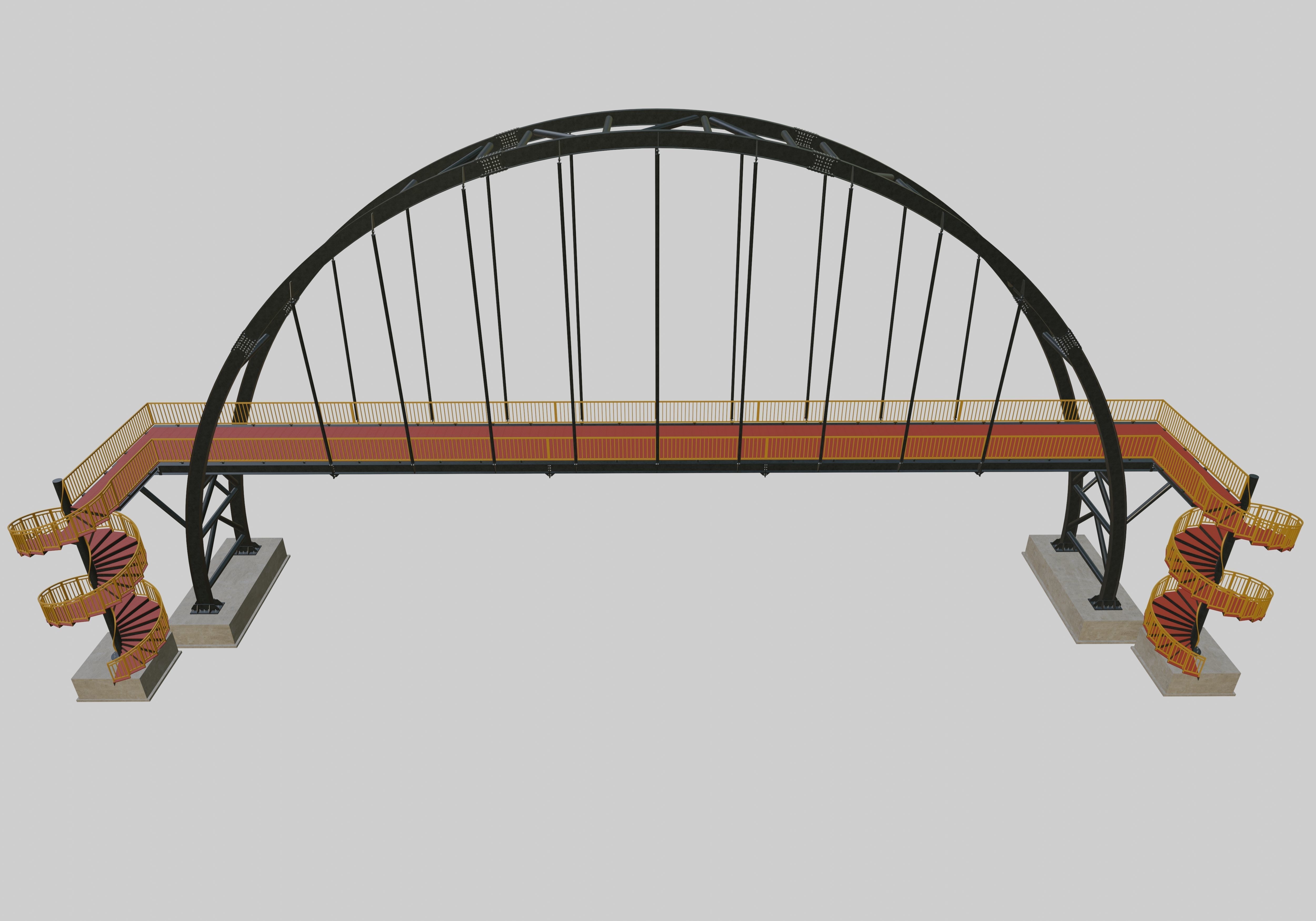

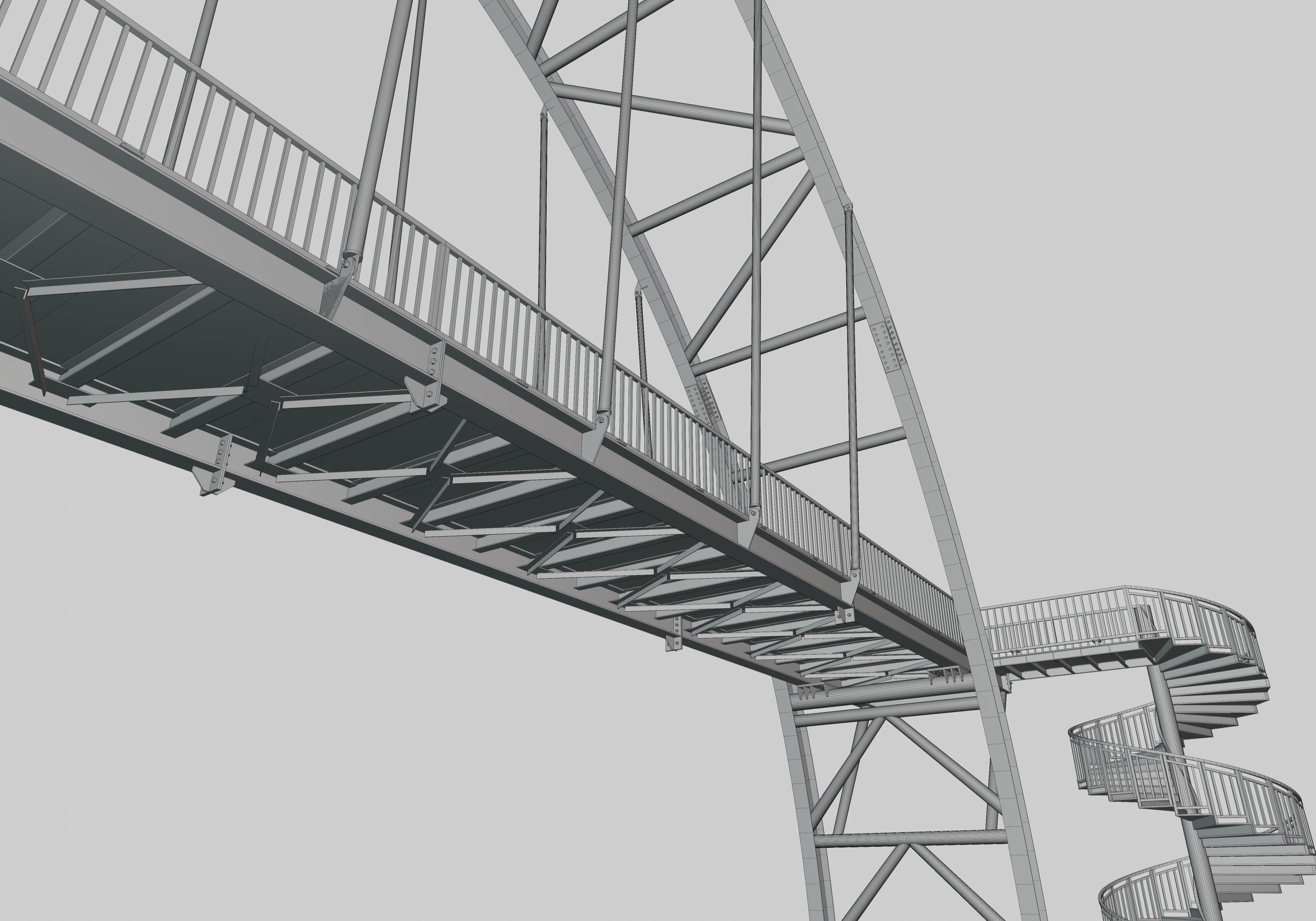

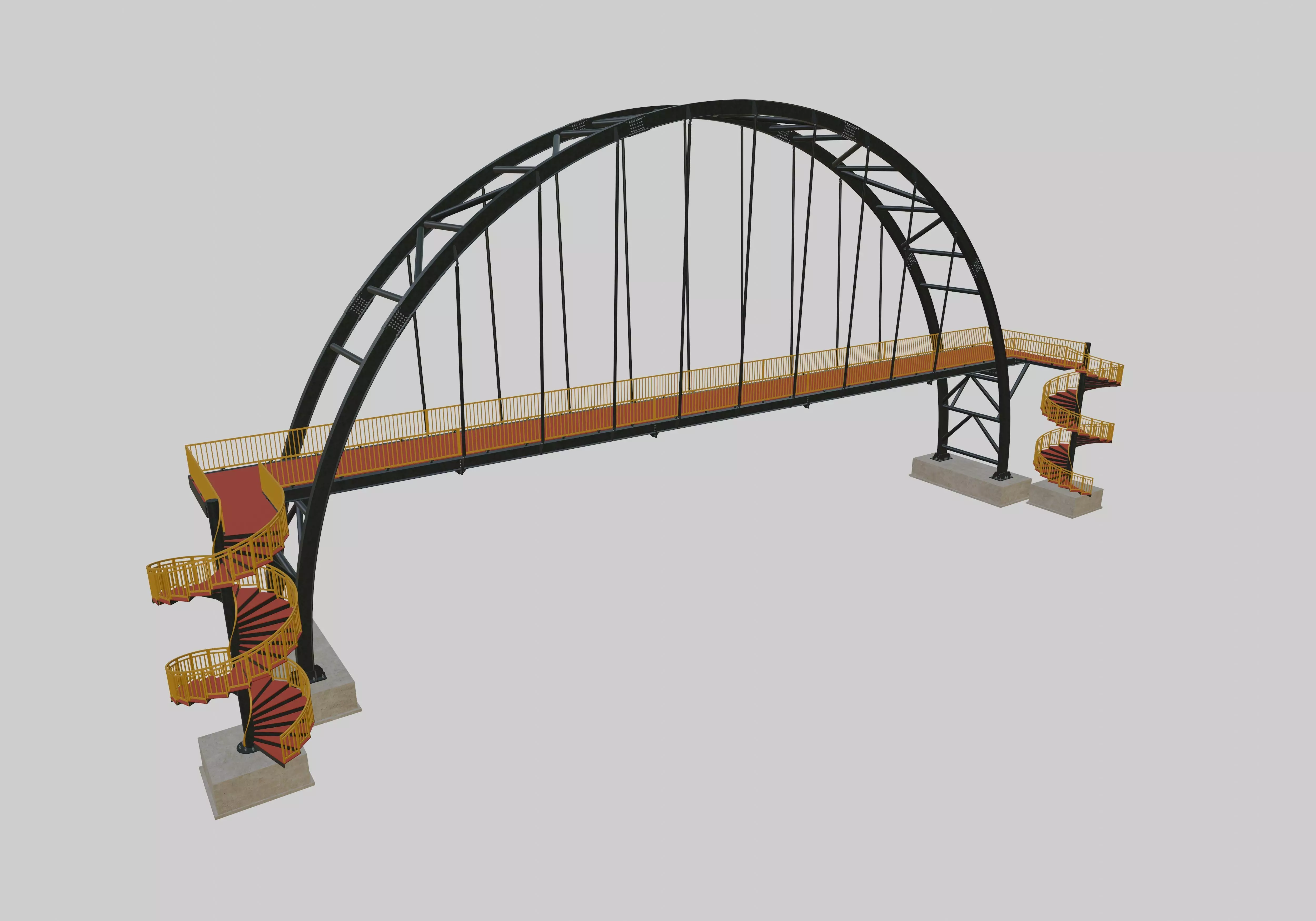

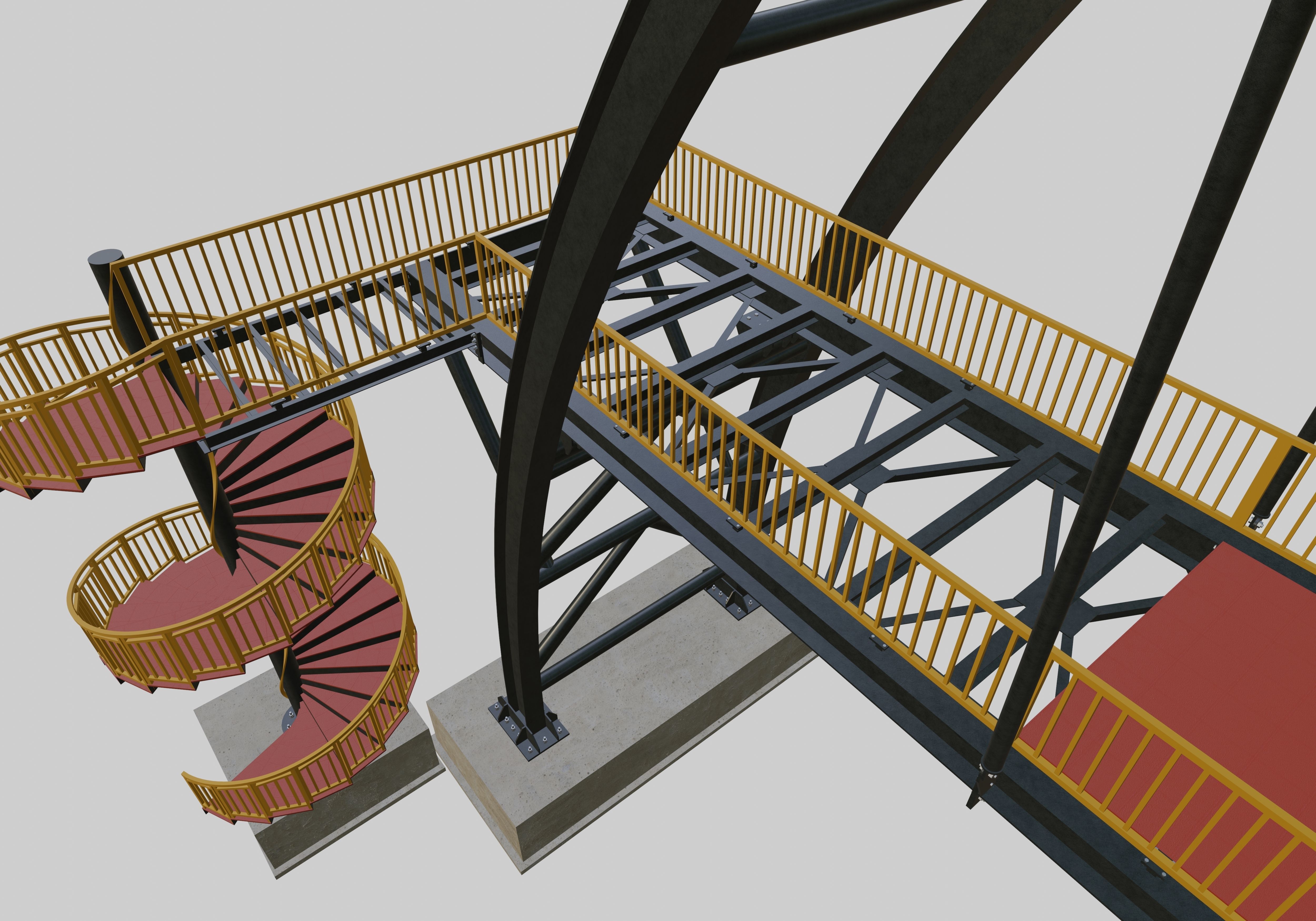

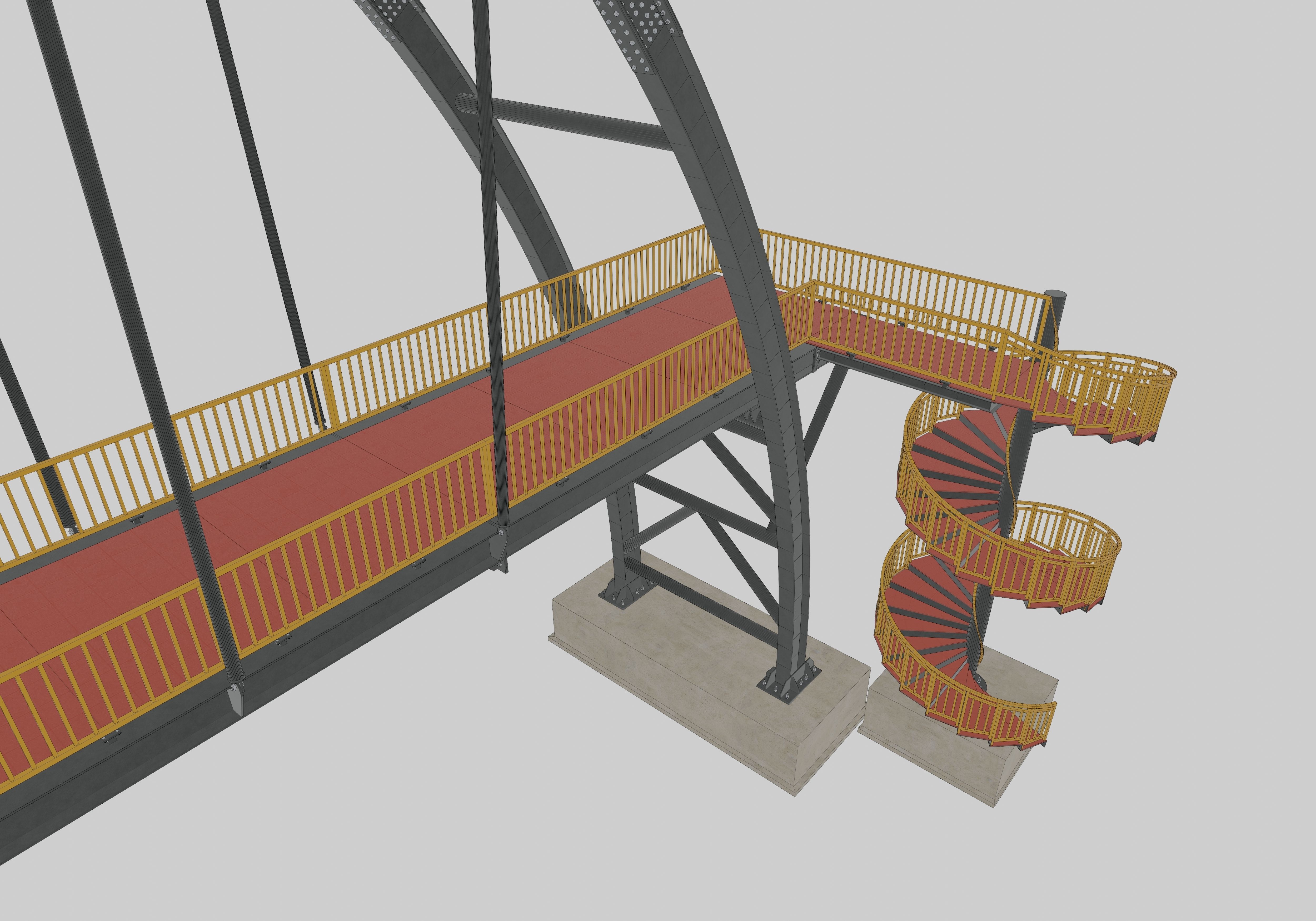

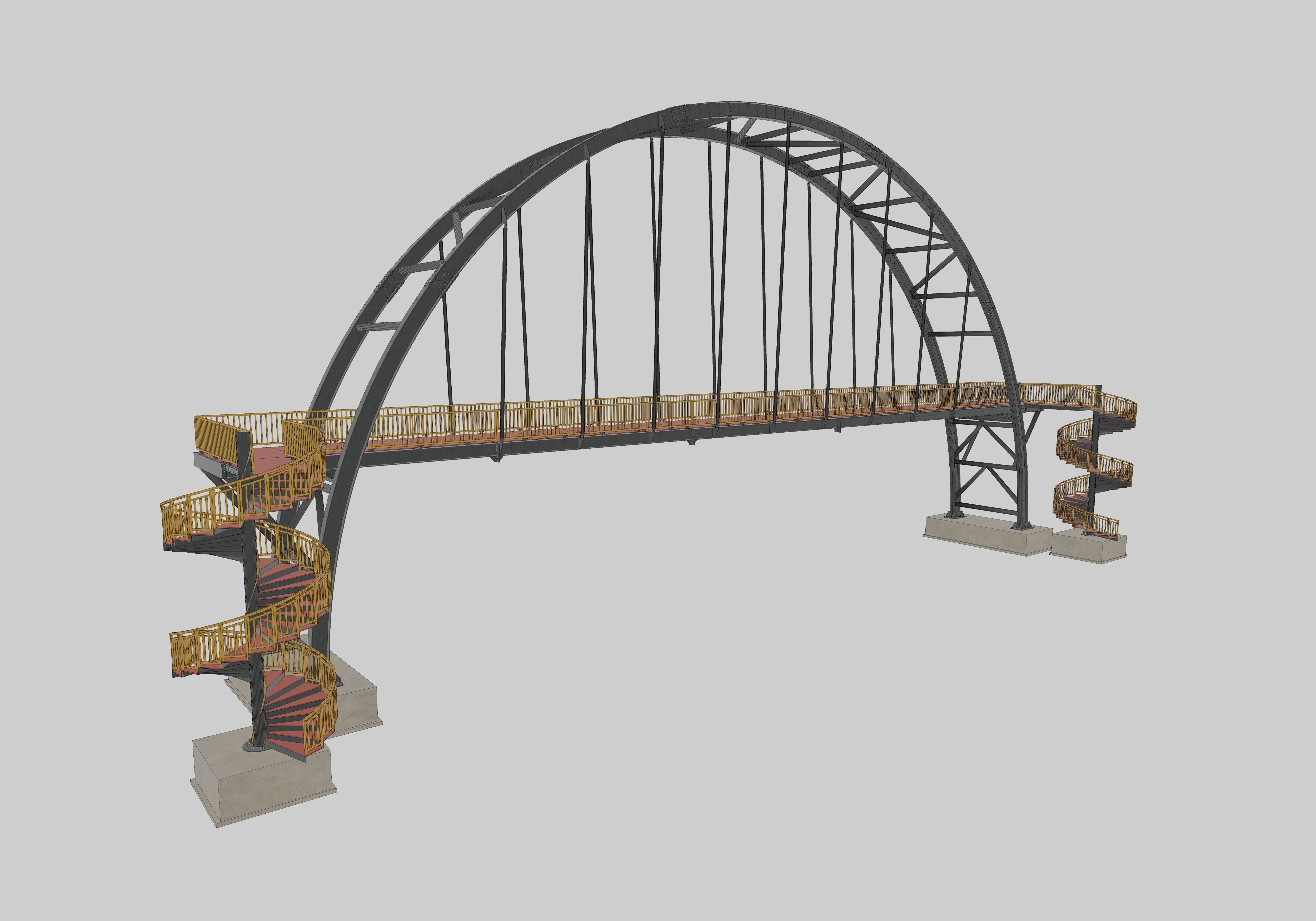

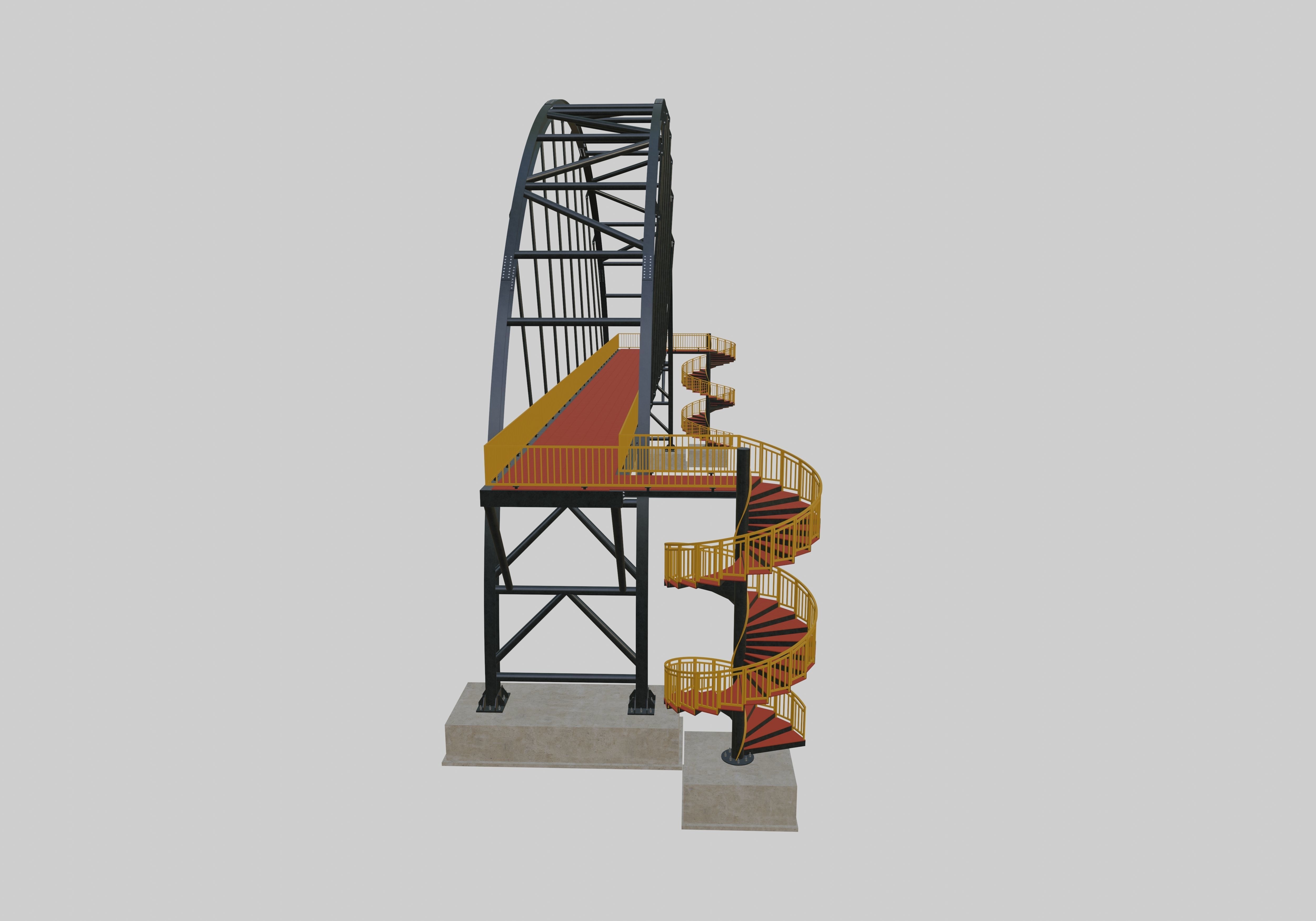

Steel Pedestrian Bridge-Arch Column Type-Spiral Stair-30 3D model

Steel Pedestrian Bridge

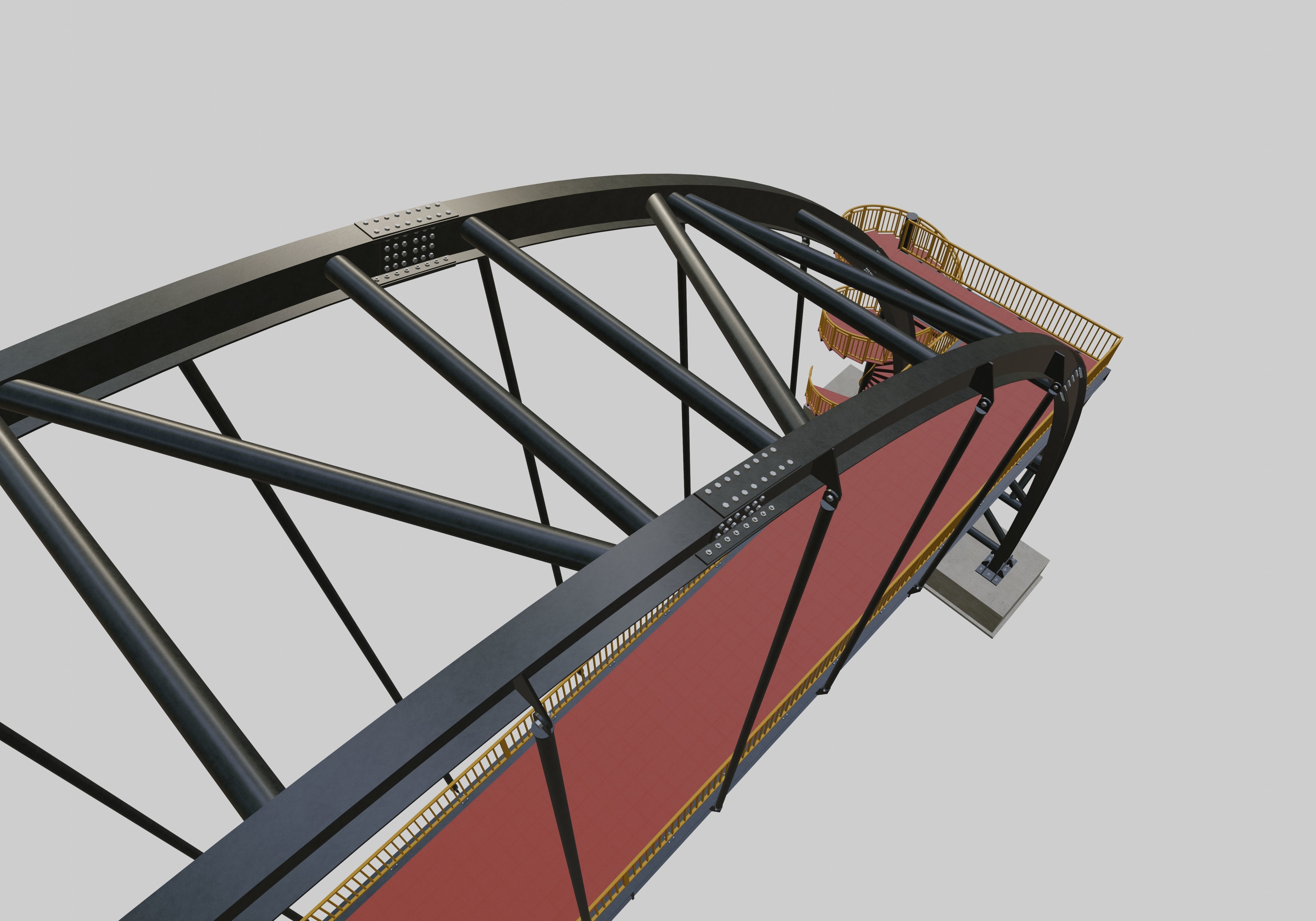

Arch Type Column Construction

Open Top Construction

Straigth Beam Type

Named Objects

Largest Column Span : 36 mt.

Distance Between Two Columns : 36 mt.

Platform Asphalt Height : 6 mt.

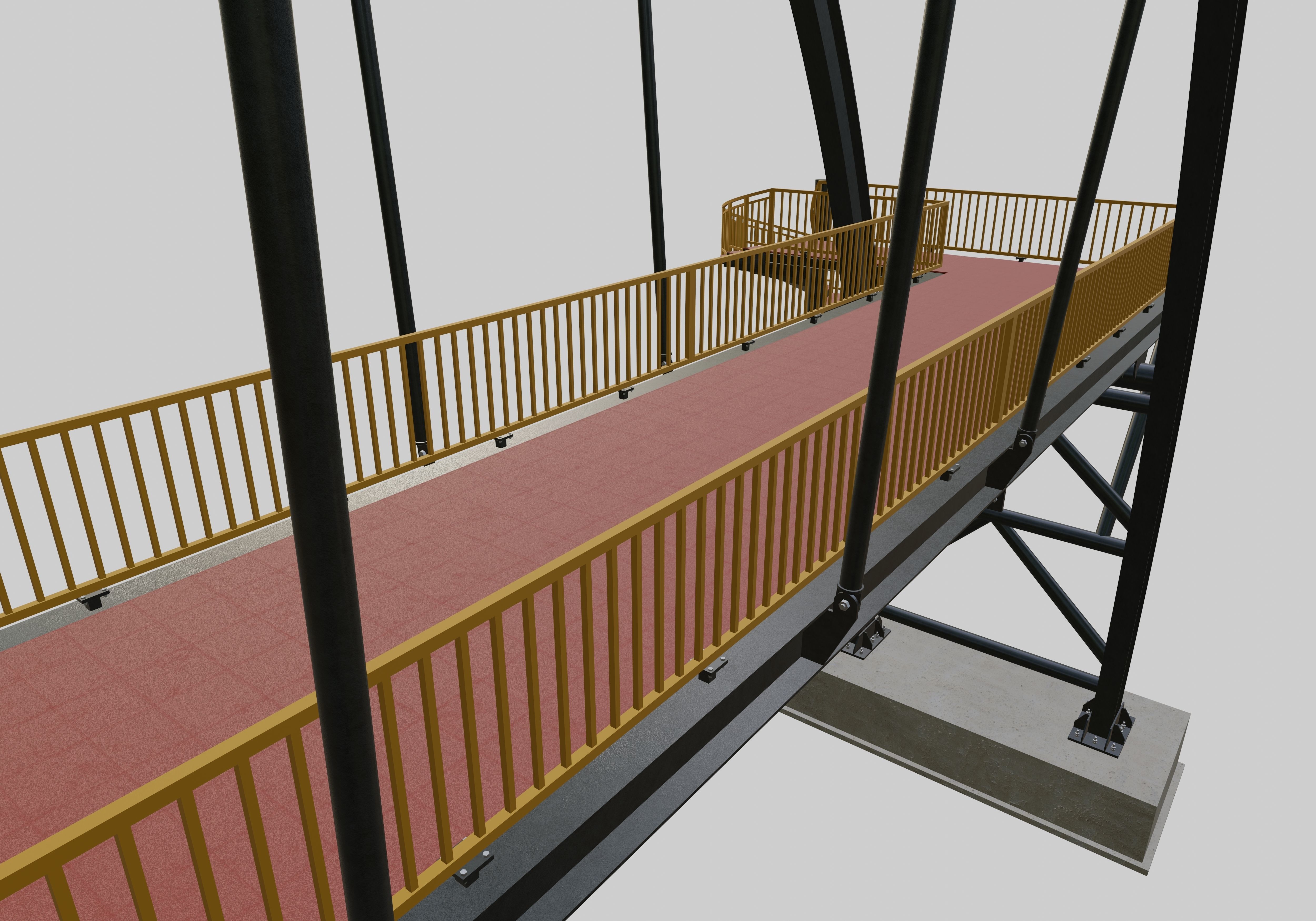

Platform Width : 3 mt.

Arch Column Width : 4 mt.

Arch Column Height : 18,25 mt.

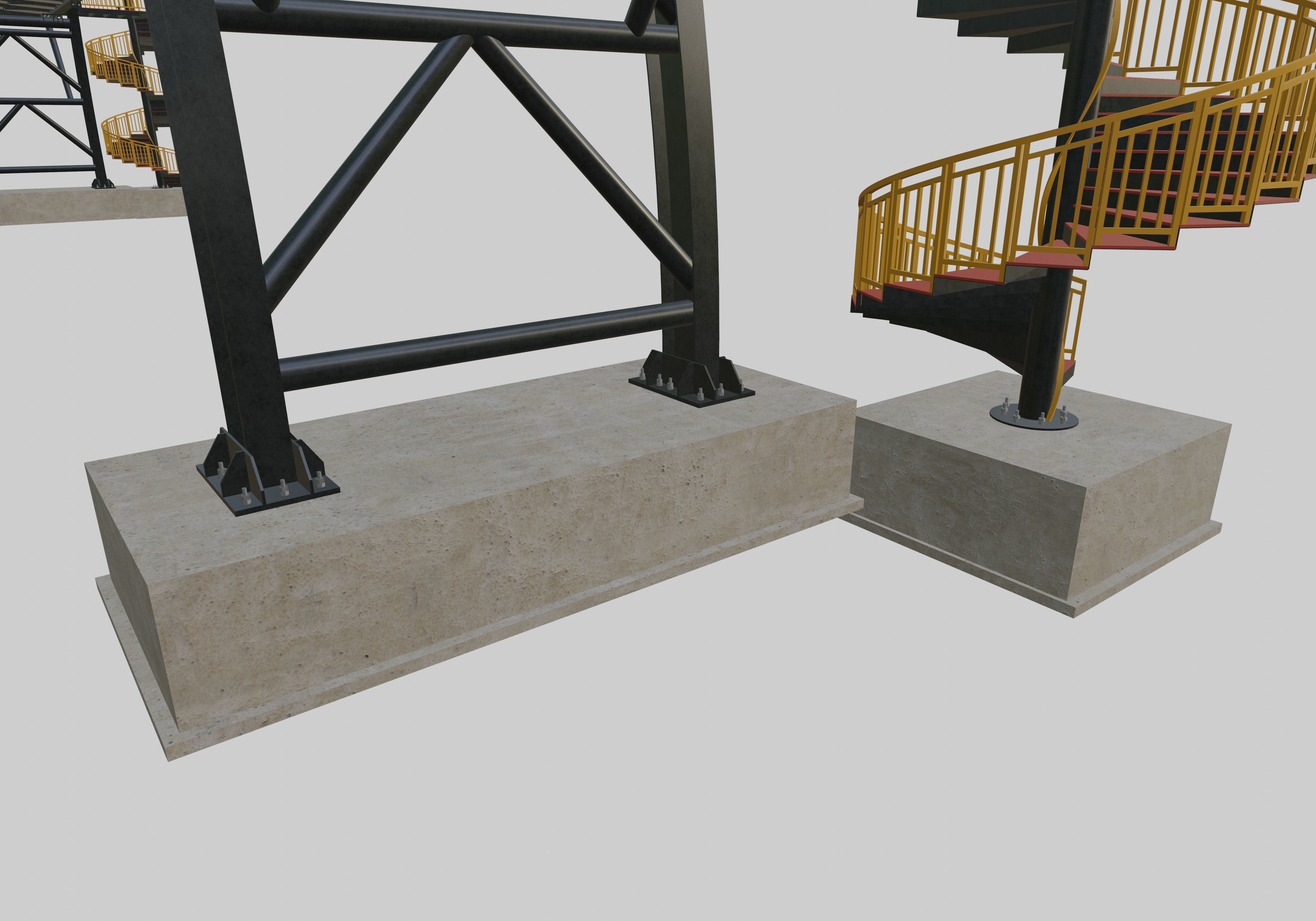

Arch Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

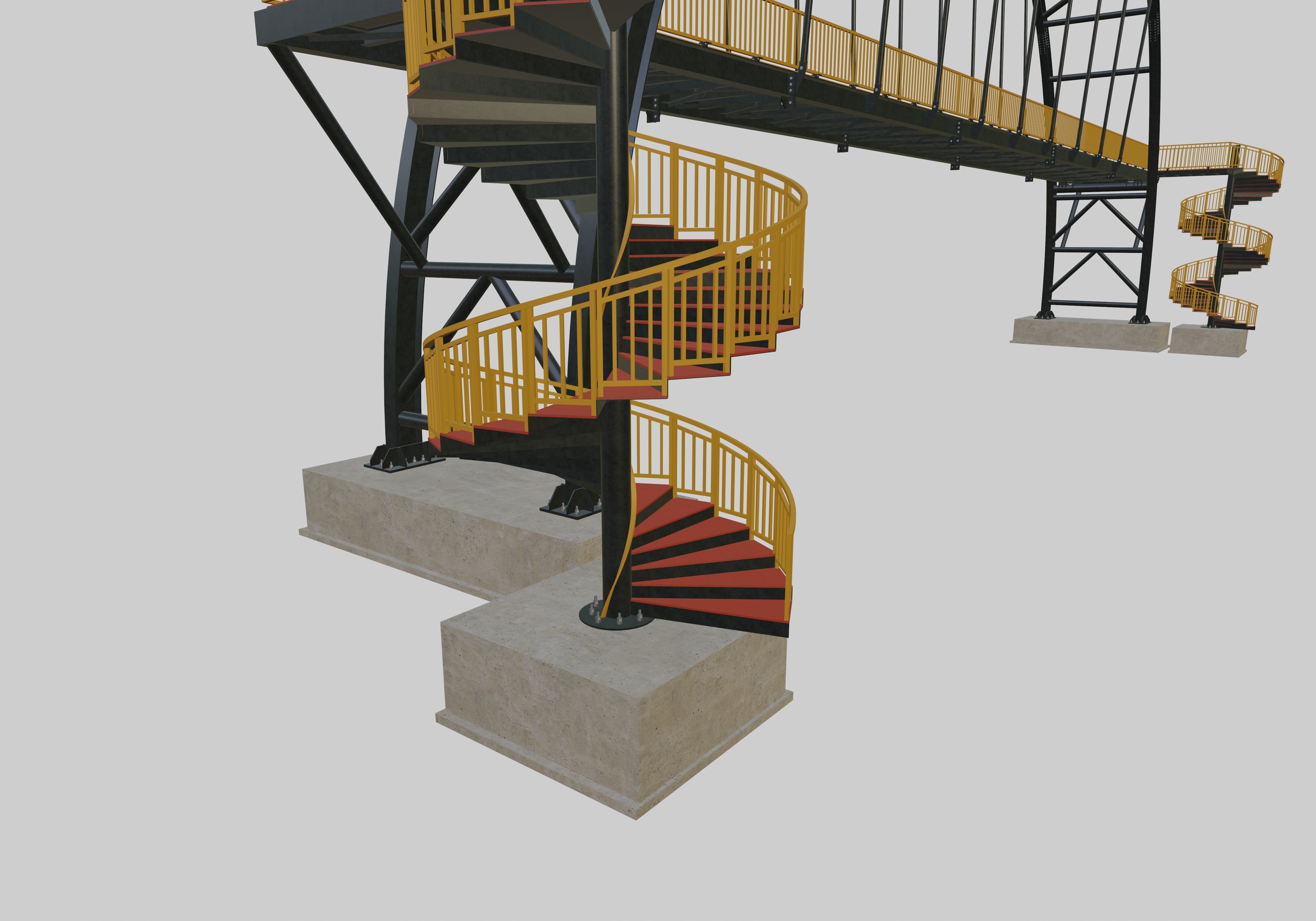

Spiral Stairs Raft Concrete : width 2,5 mt * length 2,5 mt. * height 1 mt.

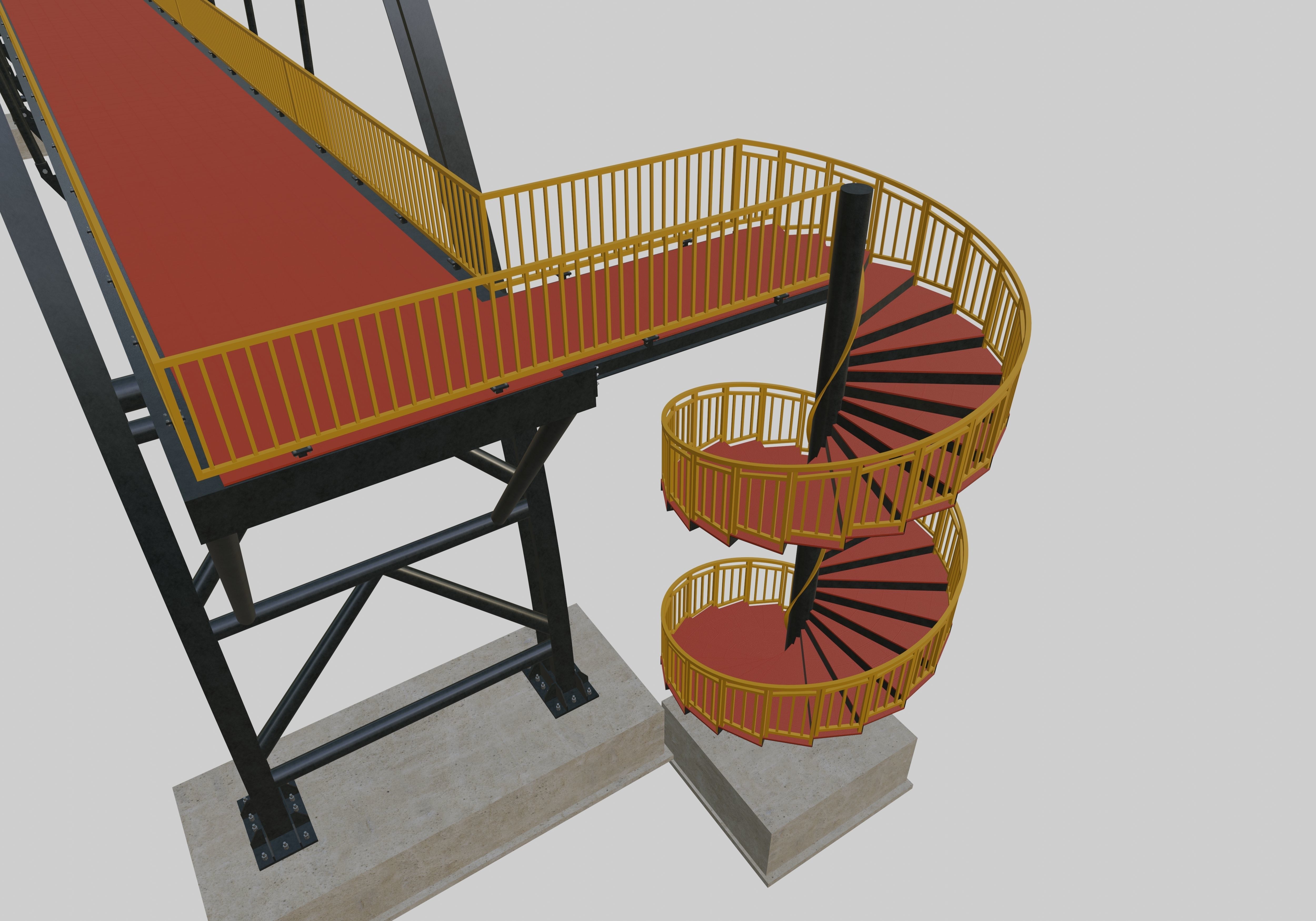

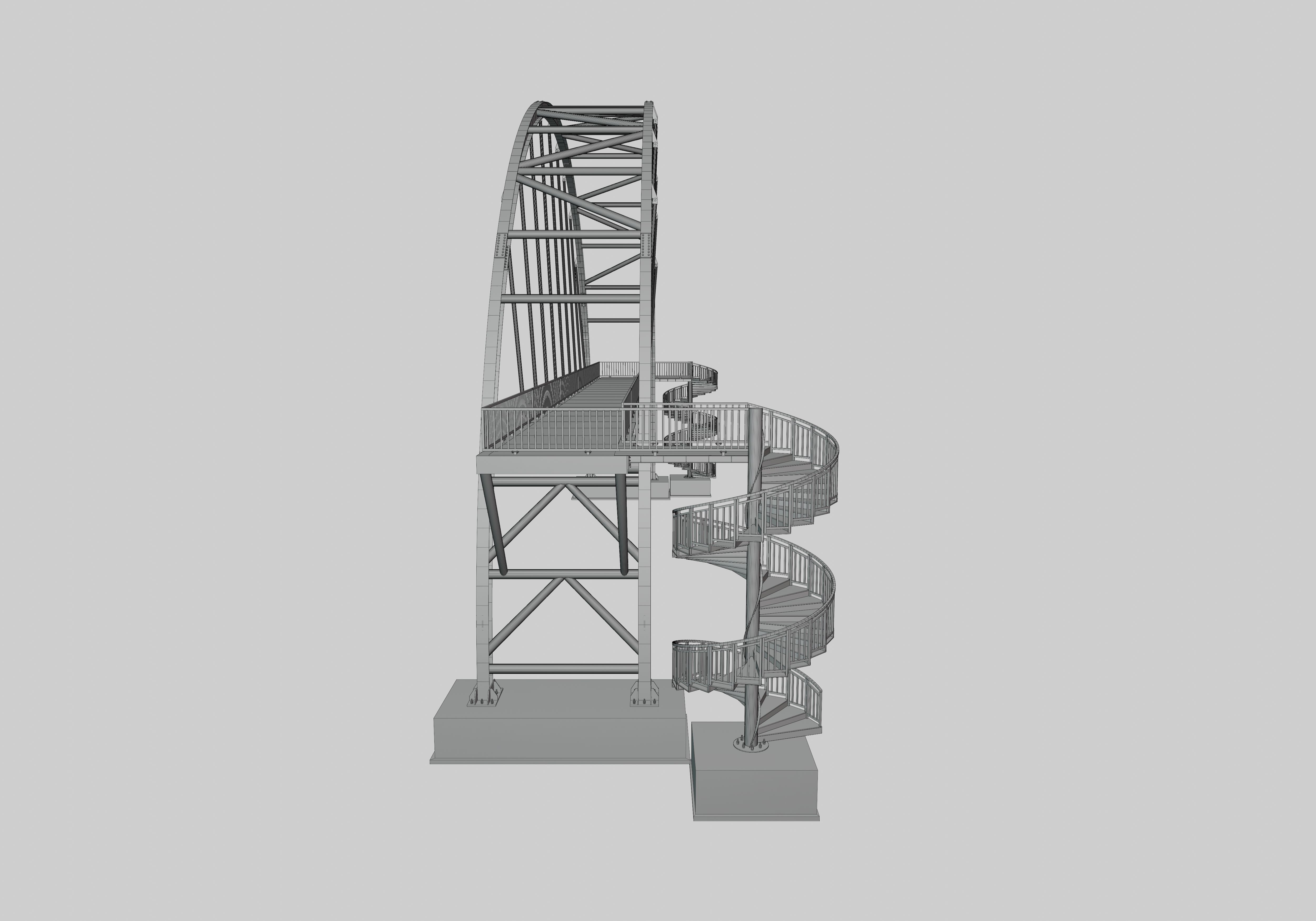

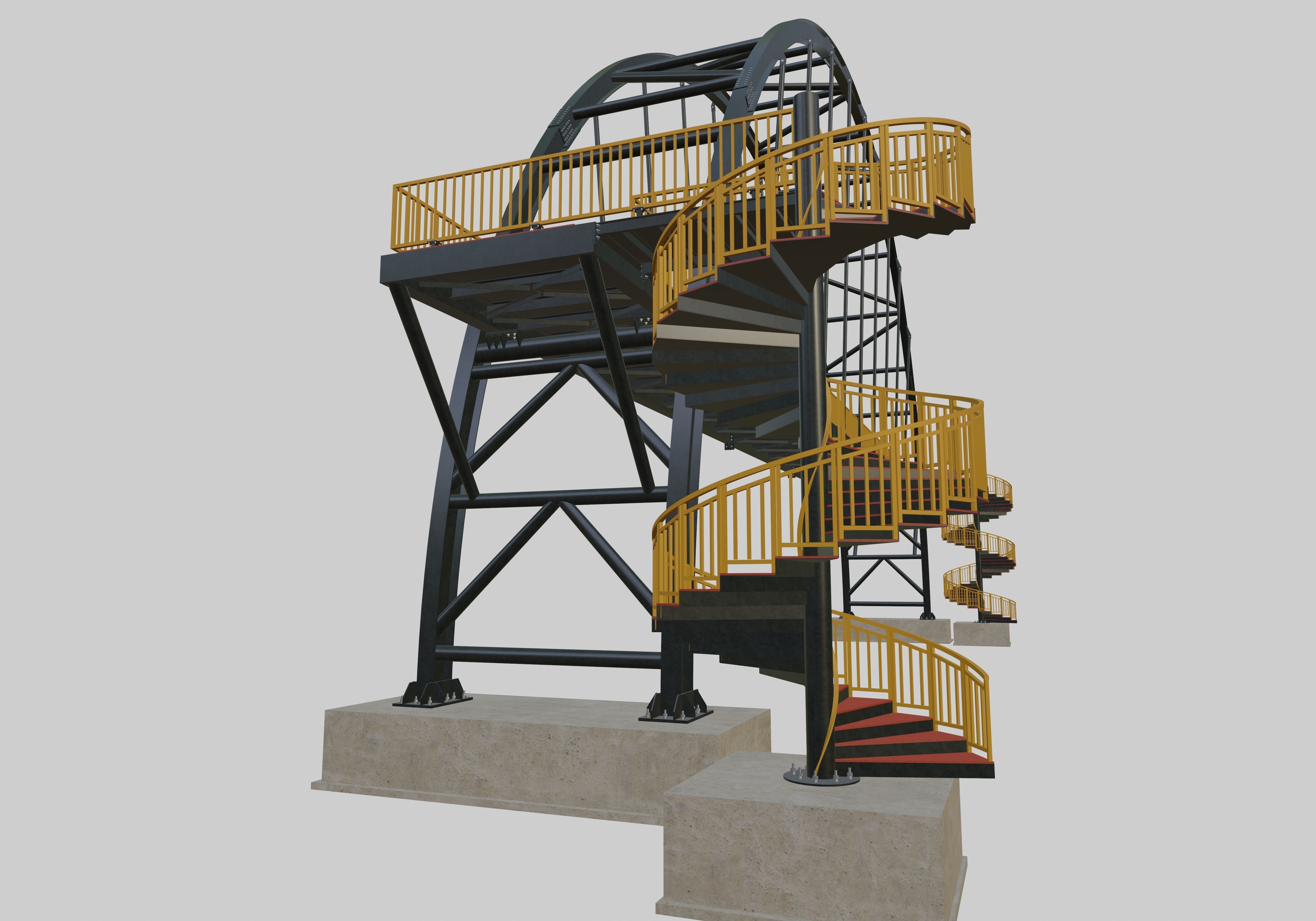

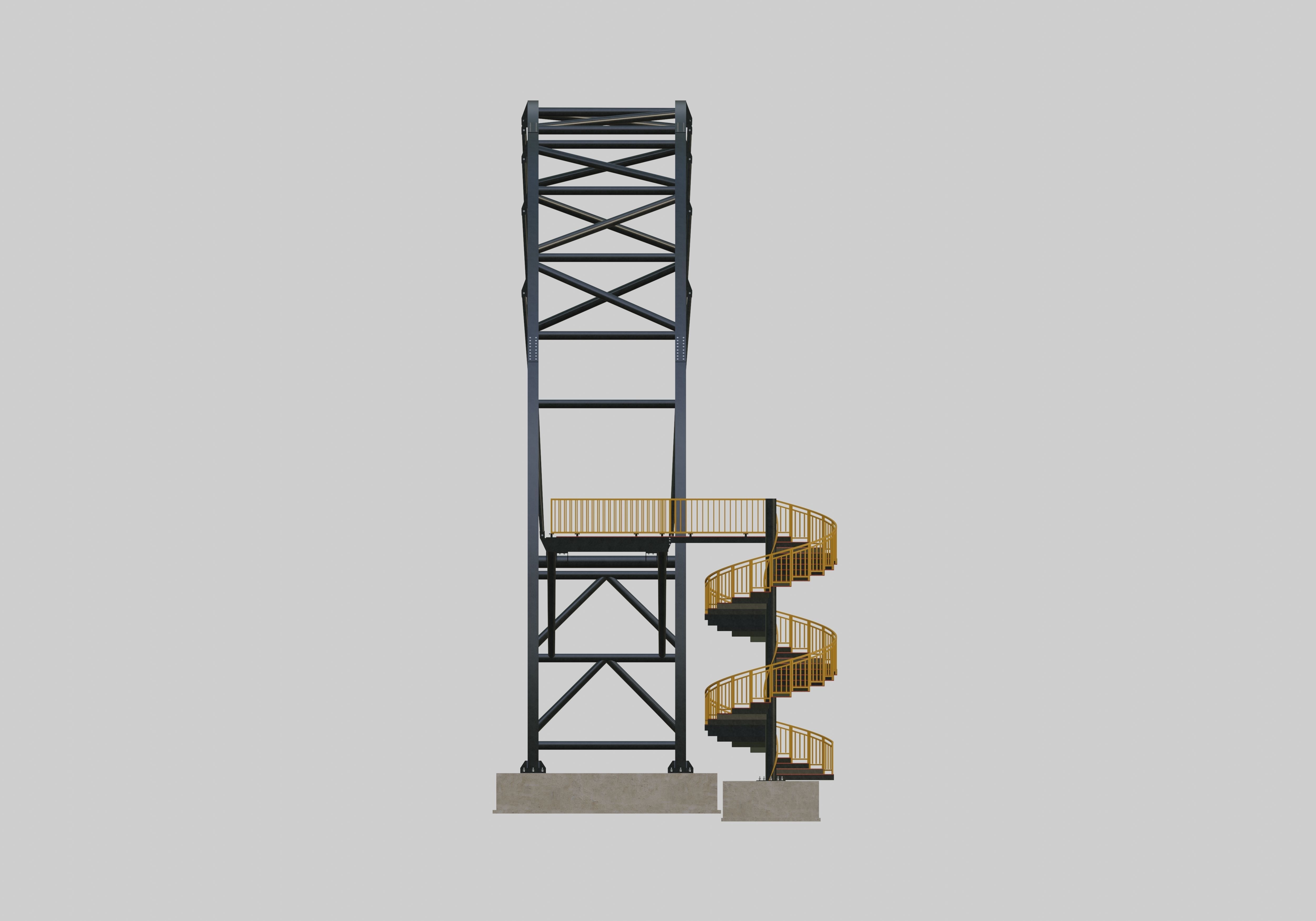

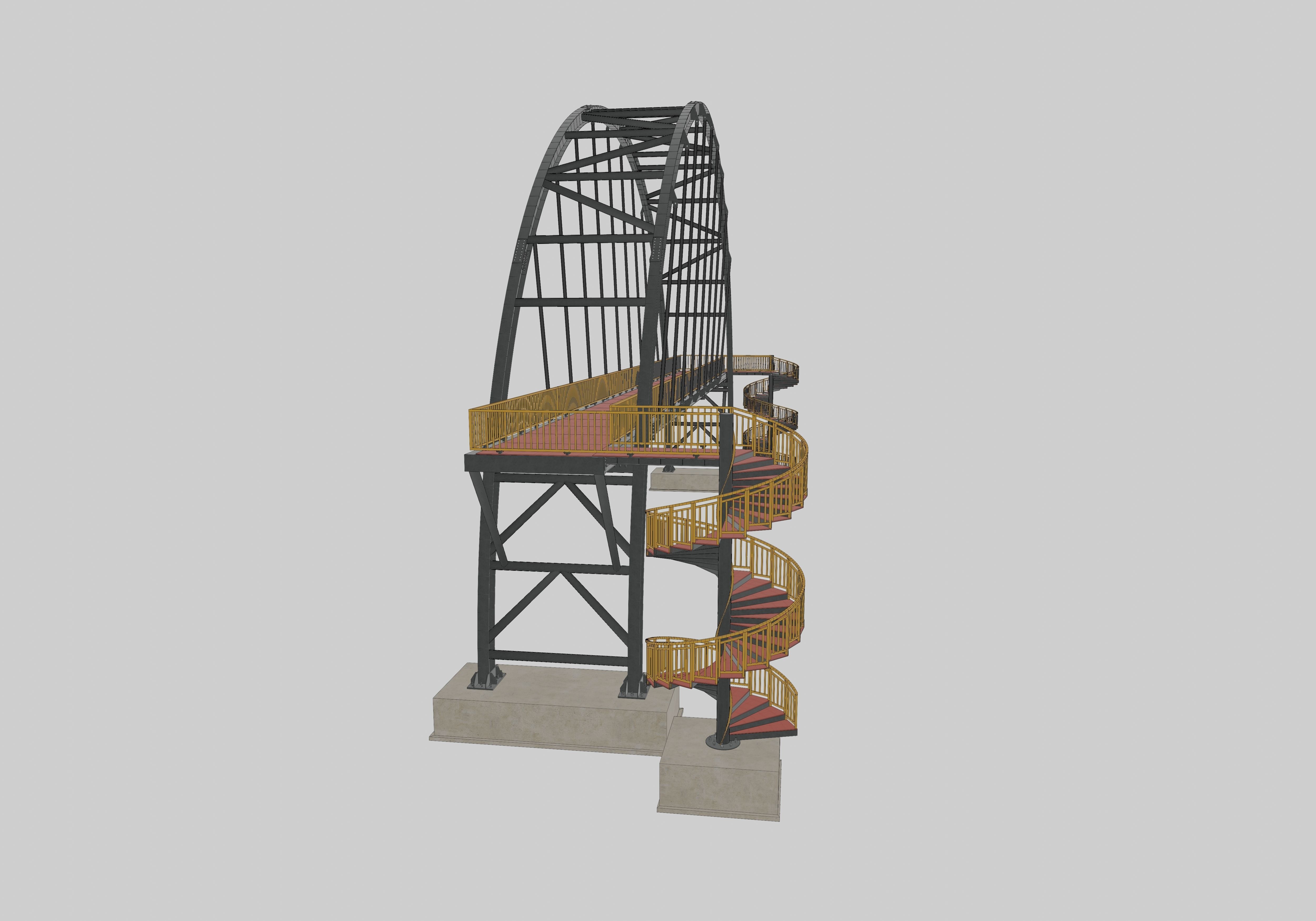

Spiral Stairs Type

Stair Step Width : 1,657 mt.

Step Sizes : 300 mm. * 150 mm.

Flat Railing Construction

Railings Box Profile

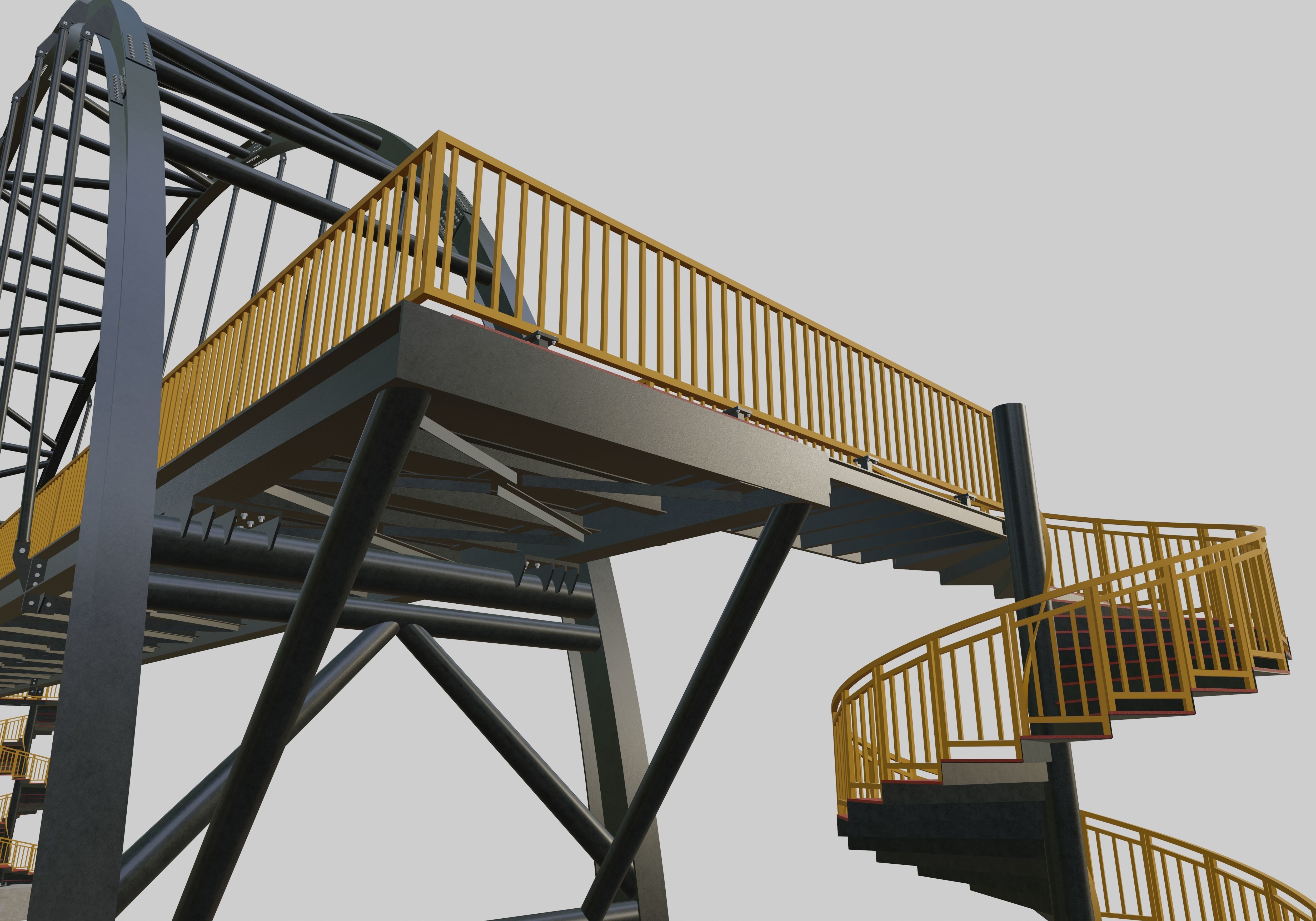

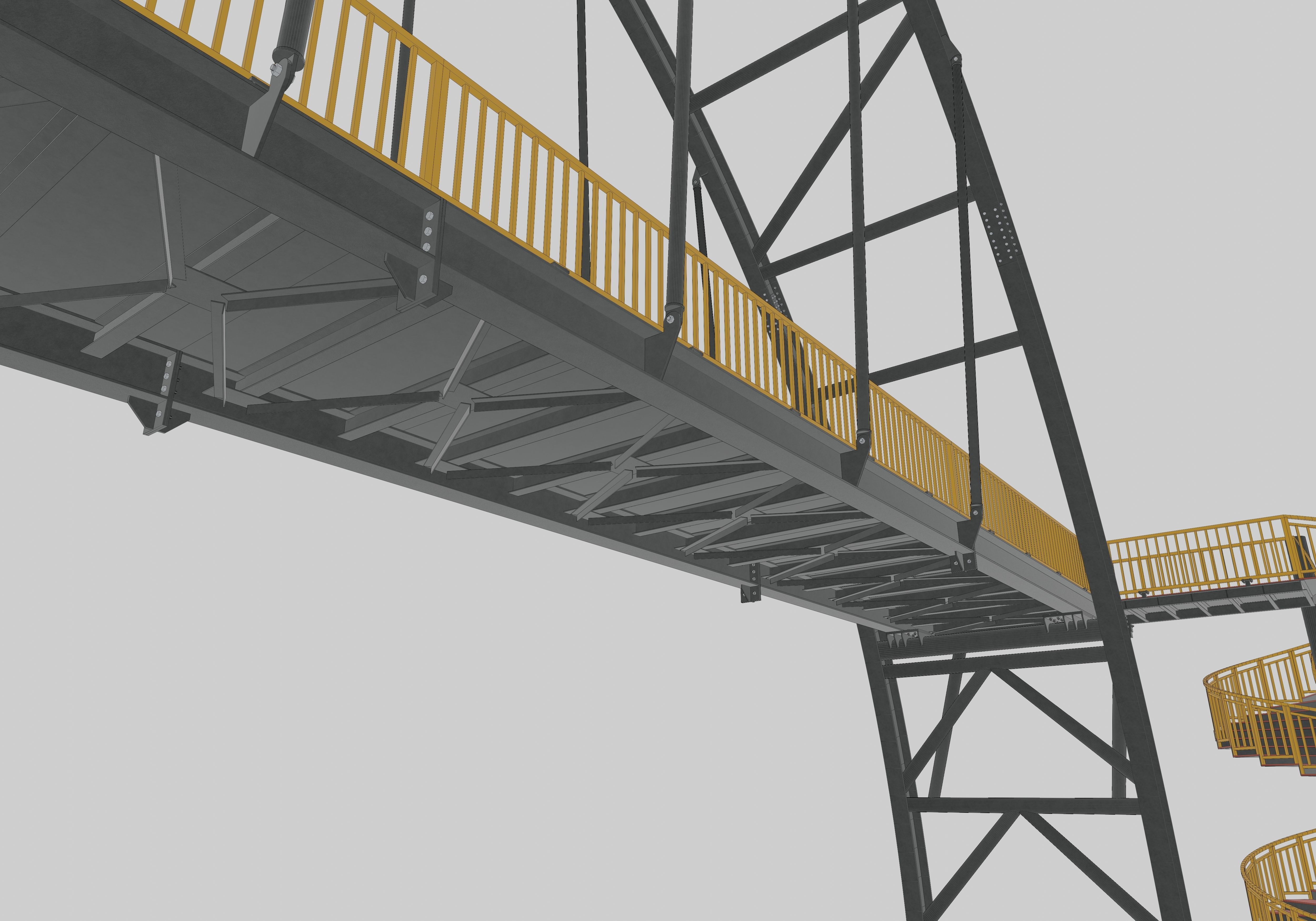

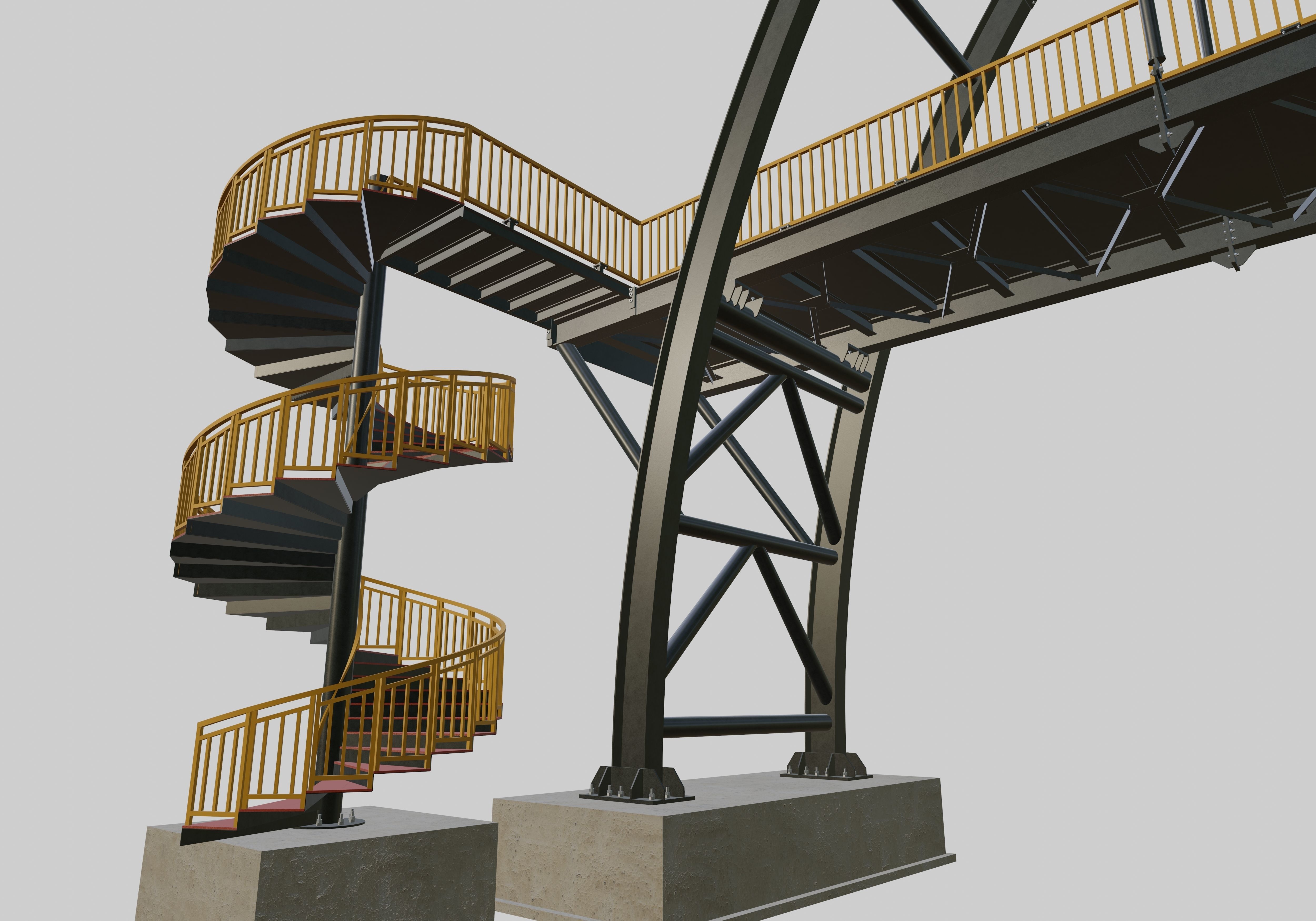

Platform And Arch Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

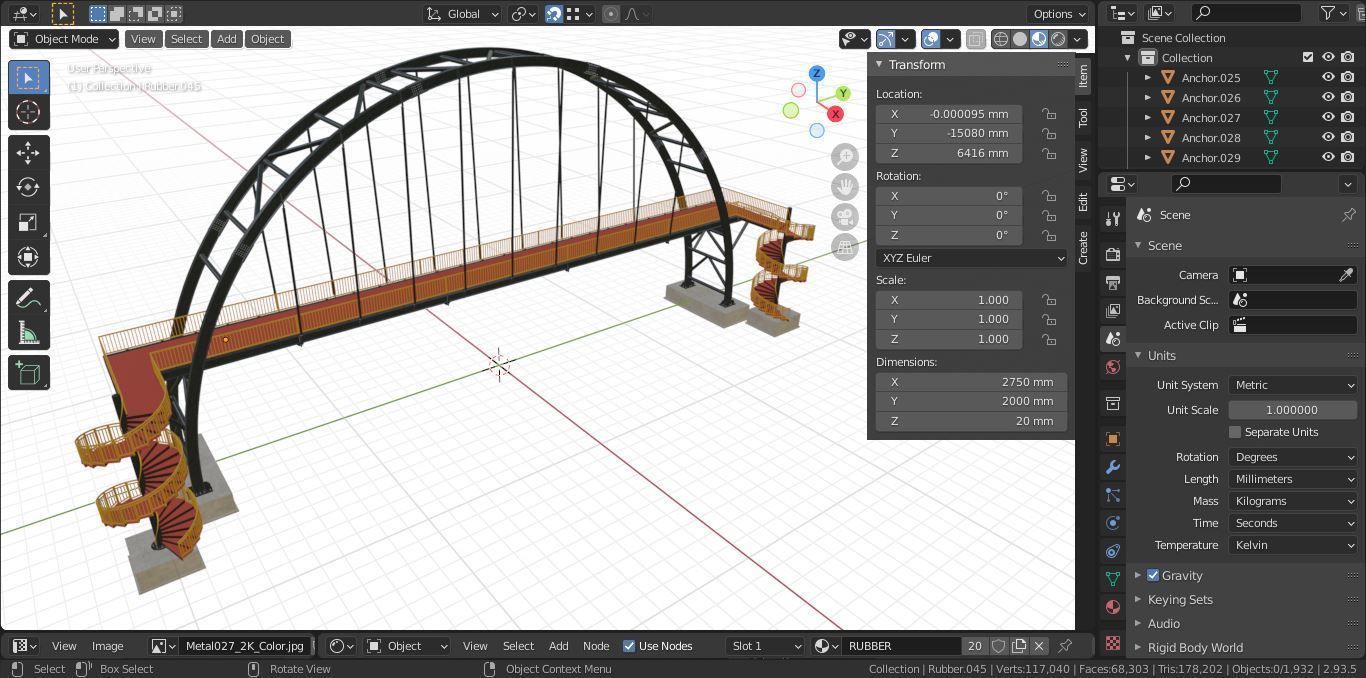

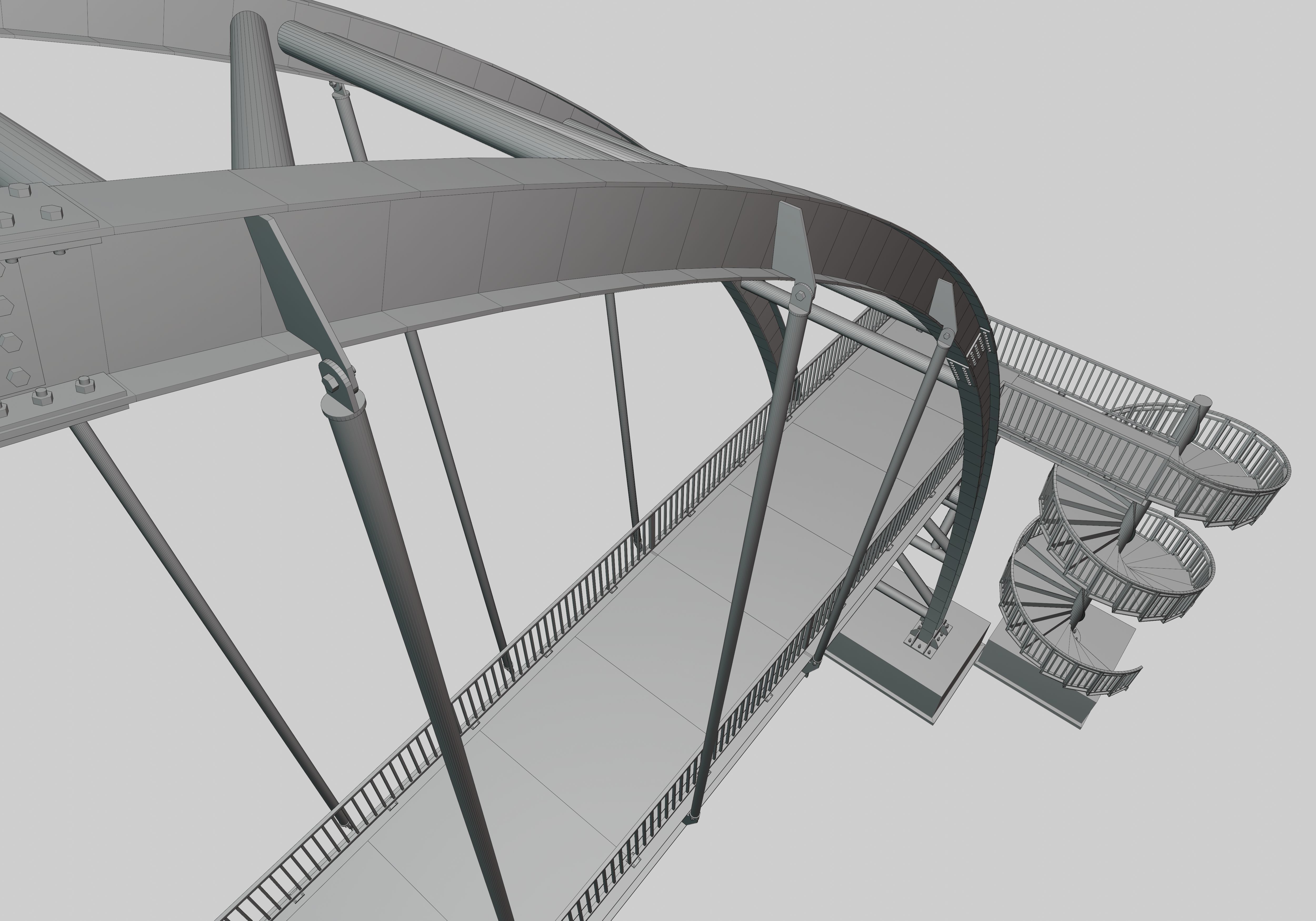

Prepared With BLENDER Version 2.93.5

Polygons : 68303

Vertices : 117040

Objects : 1932
