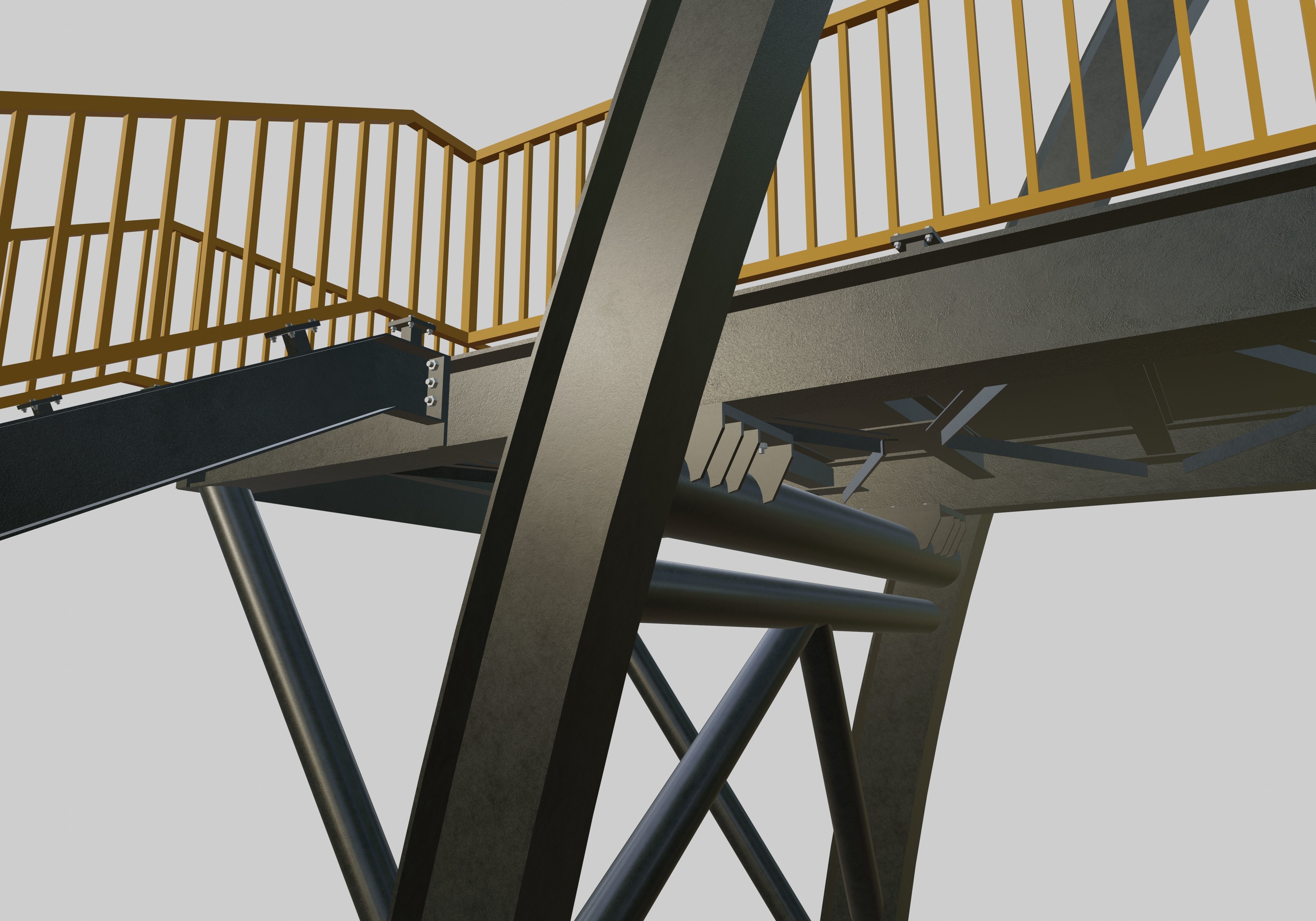

Steel Pedestrian Bridge-Arch Column Type-29 3D model

Steel Pedestrian Bridge

Arch Type Column Construction

Open Top Construction

Straigth Beam Type

Named Objects

Largest Column Span : 36 mt.

Distance Between Two Columns : 36 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Arch Column Width : 4 mt.

Arch Column Height : 18,25 mt.

Arch Column Raft Concrete : width 2,5 mt * length 6 mt. * height 1 mt.

Stairs Raft Concrete : width 1 mt * length 2,5 mt. * height 1 mt.

Stairs Straight Type

Stair Step Width : 1,8 mt.

Step Sizes : 300 mm. * 150 mm.

Flat Railing Construction

Railings Box Profile

Platform And Arch Columns With Bolted Connection

Walking Surface : 2 cm. Rubber Flooring

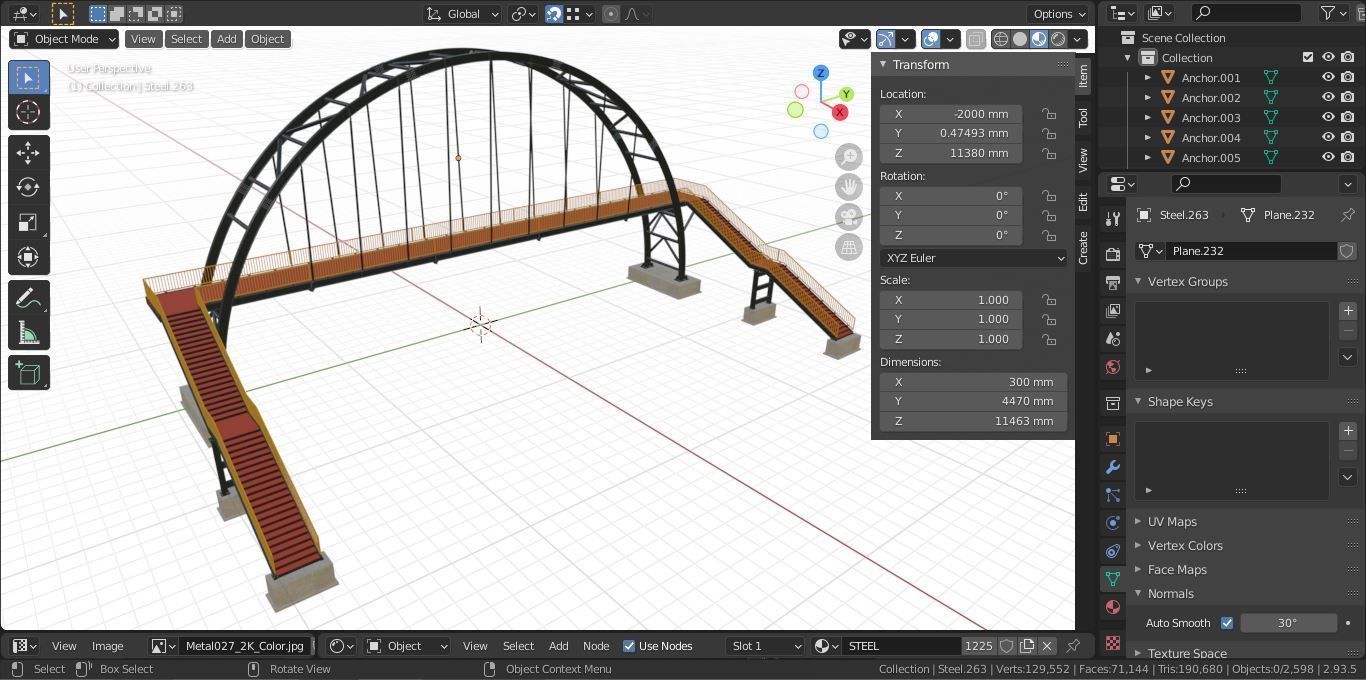

Prepared With BLENDER Version 2.93.5

Polygons : 71144

Vertices : 129552

Objects : 2598
