Solar Energy Irrigation Systems-No Bolt 3D model

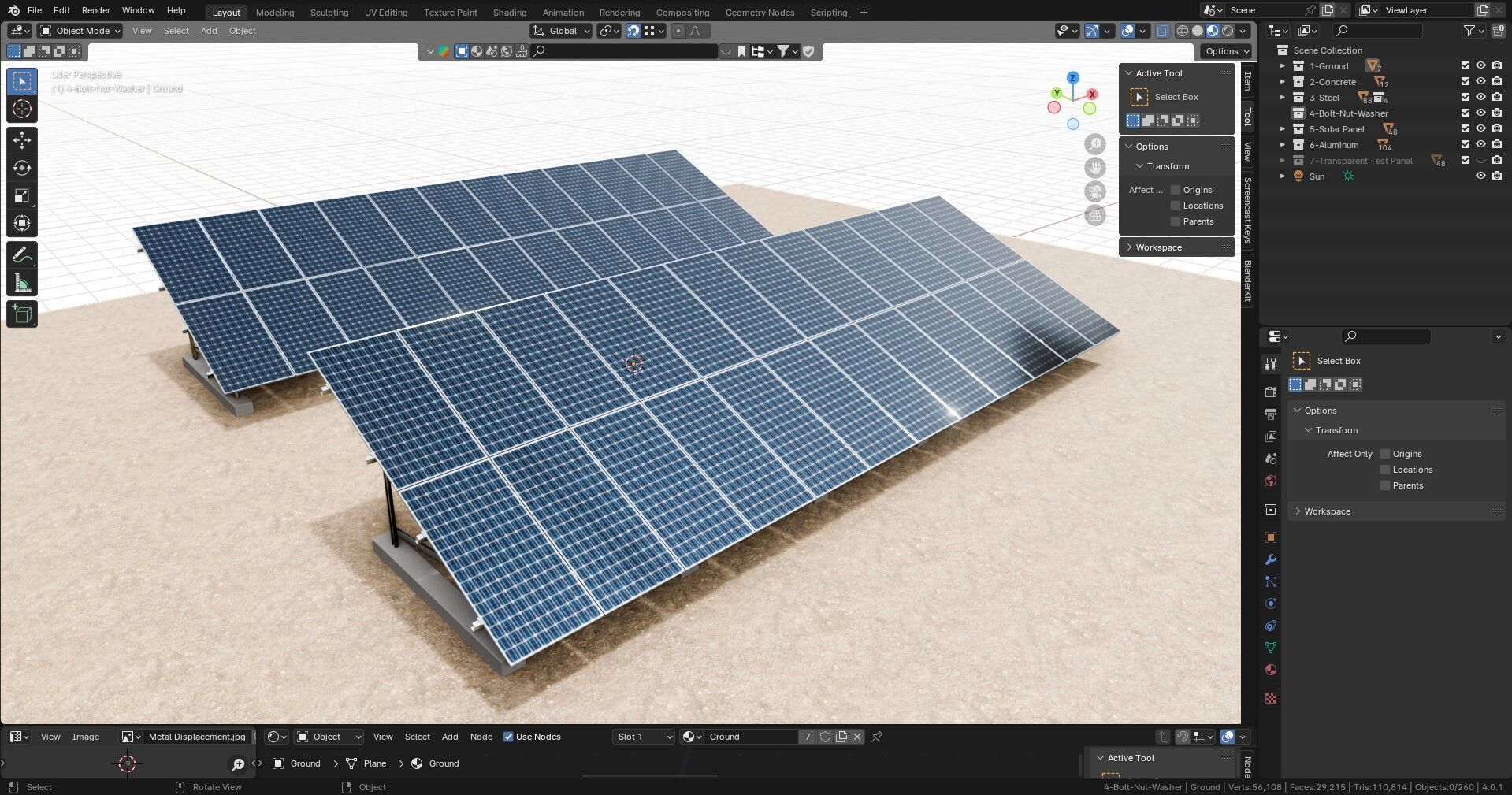

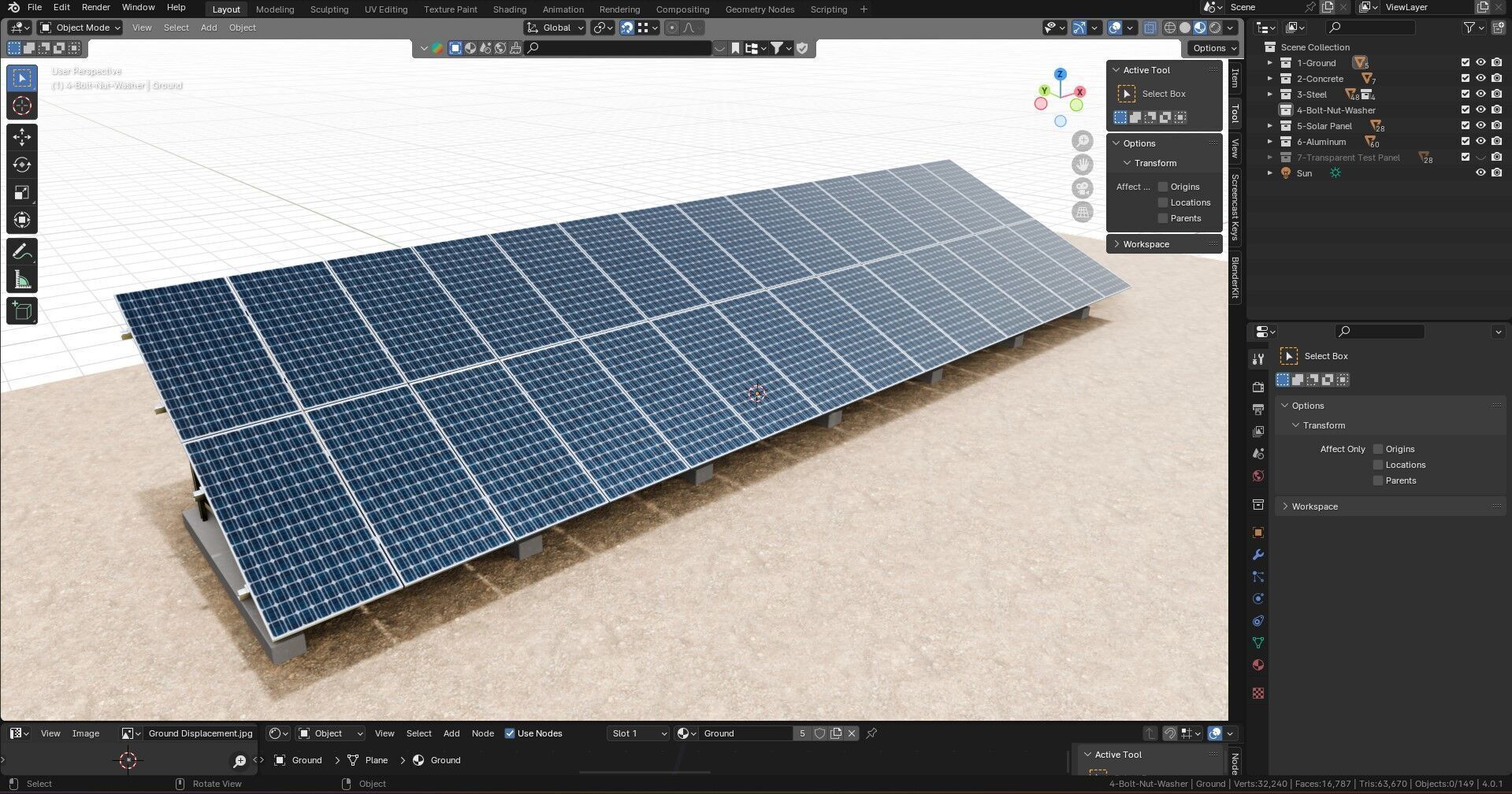

Solar Energy Irrigation Systems-No Bolt

Bolts and fasteners were removed from the models to reduce the number of polygons.

These are the models revised without bolts without disturbing the image and model integrity.

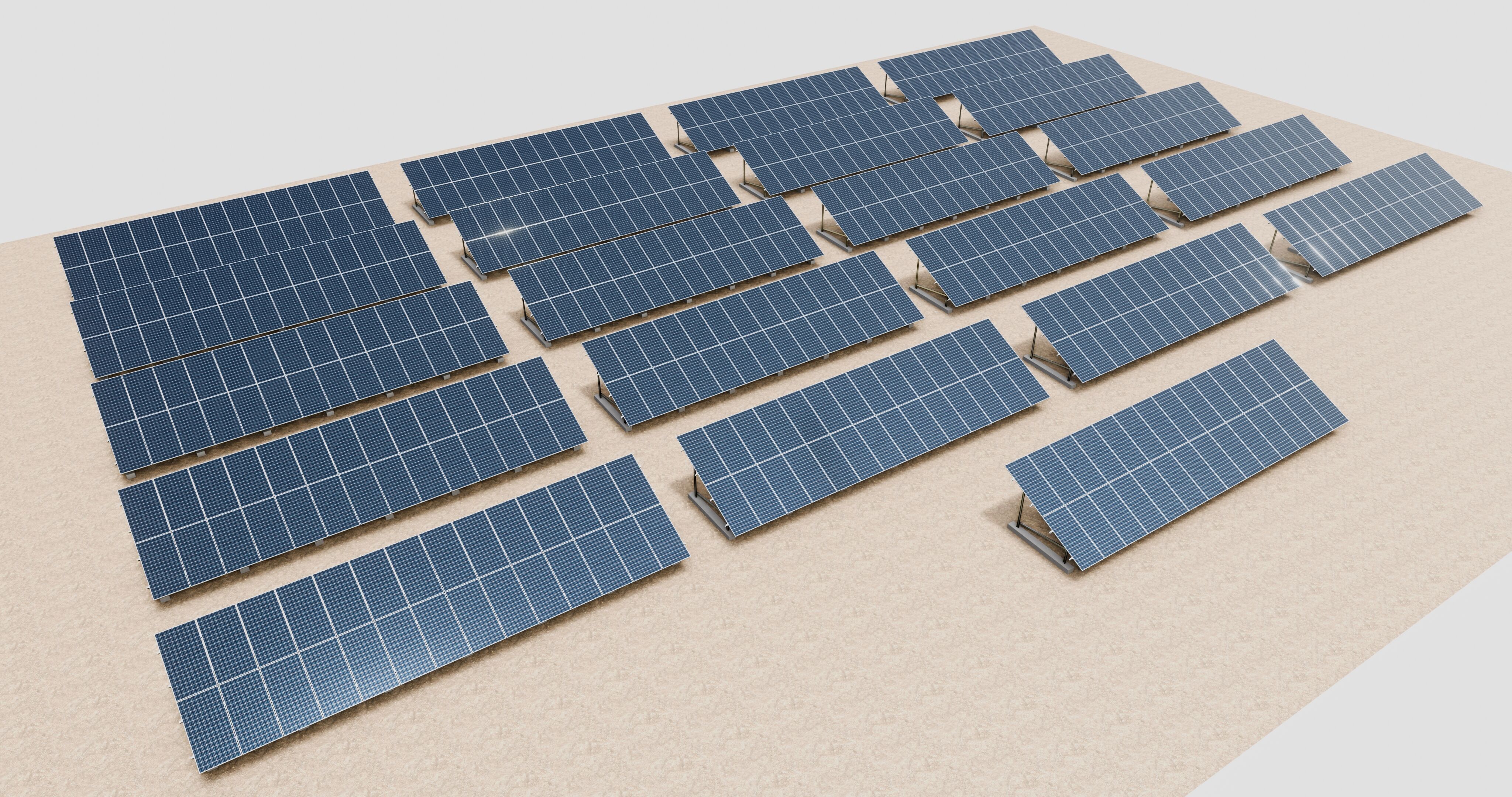

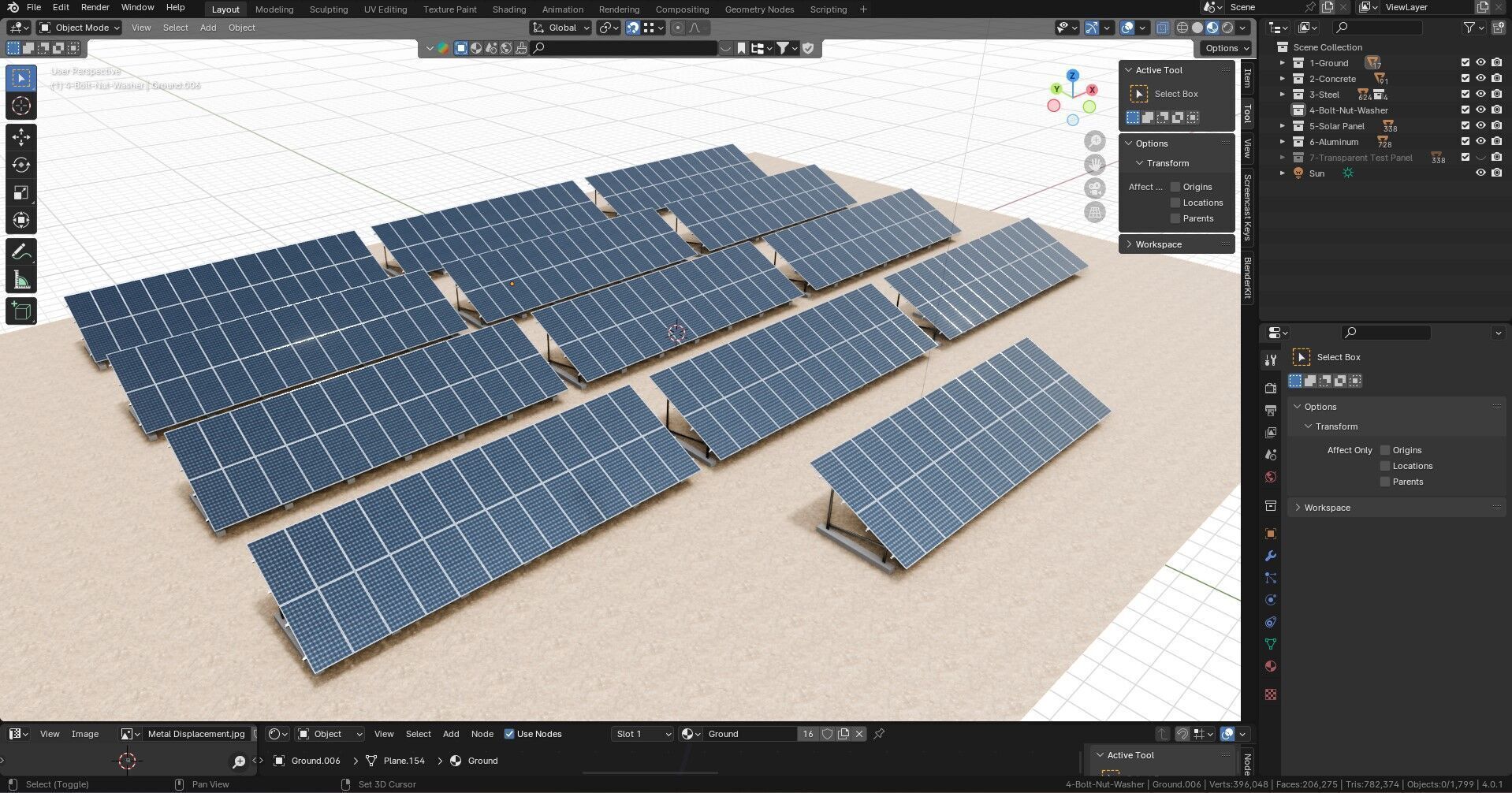

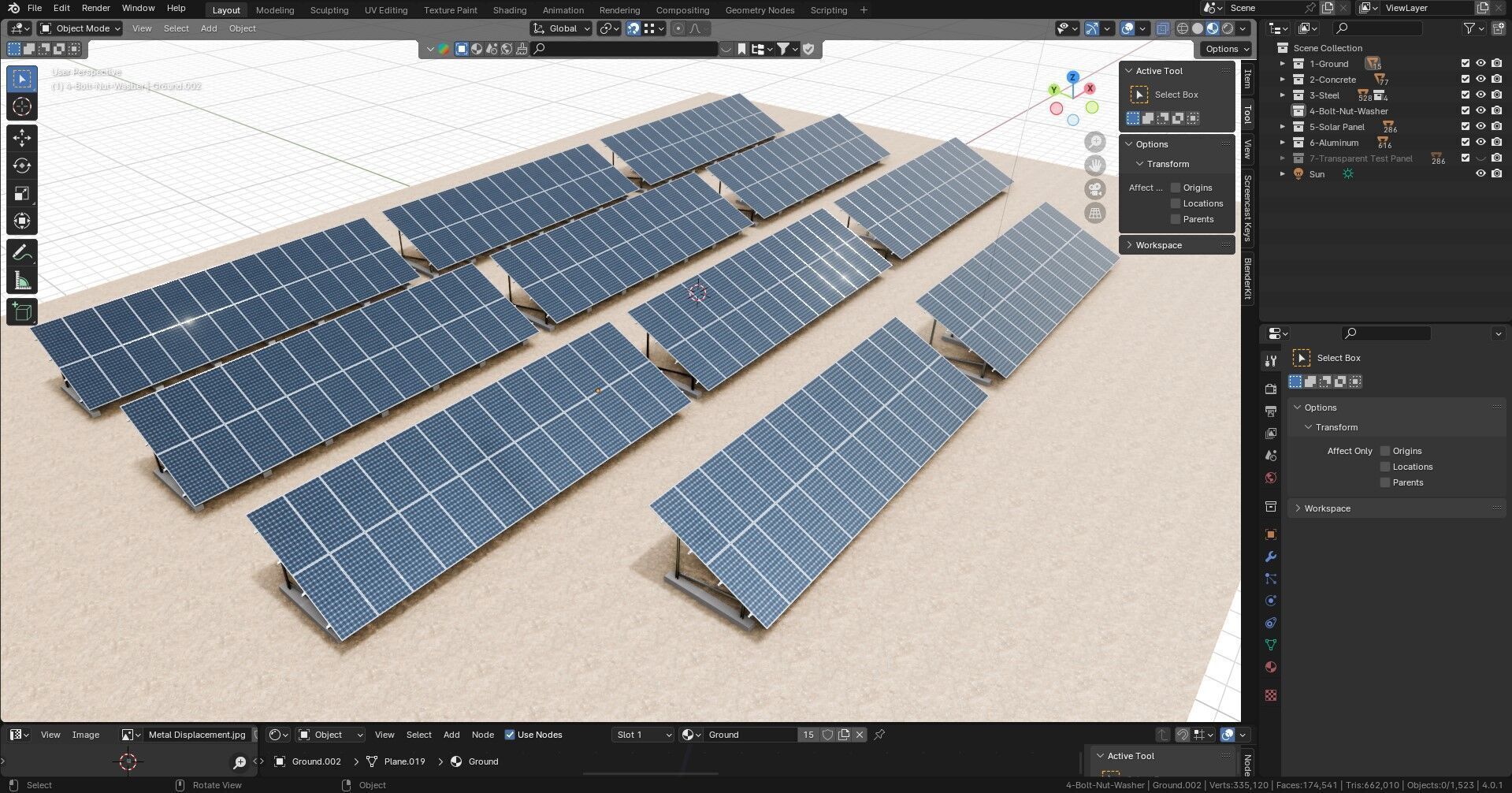

21 Different Models

FBX Format for All Models,OBJ Format for All Models,

All fbx formats are compressed and uploaded in one file.All obj formats are compressed and uploaded in one file.All blender formats are compressed and uploaded in one file.

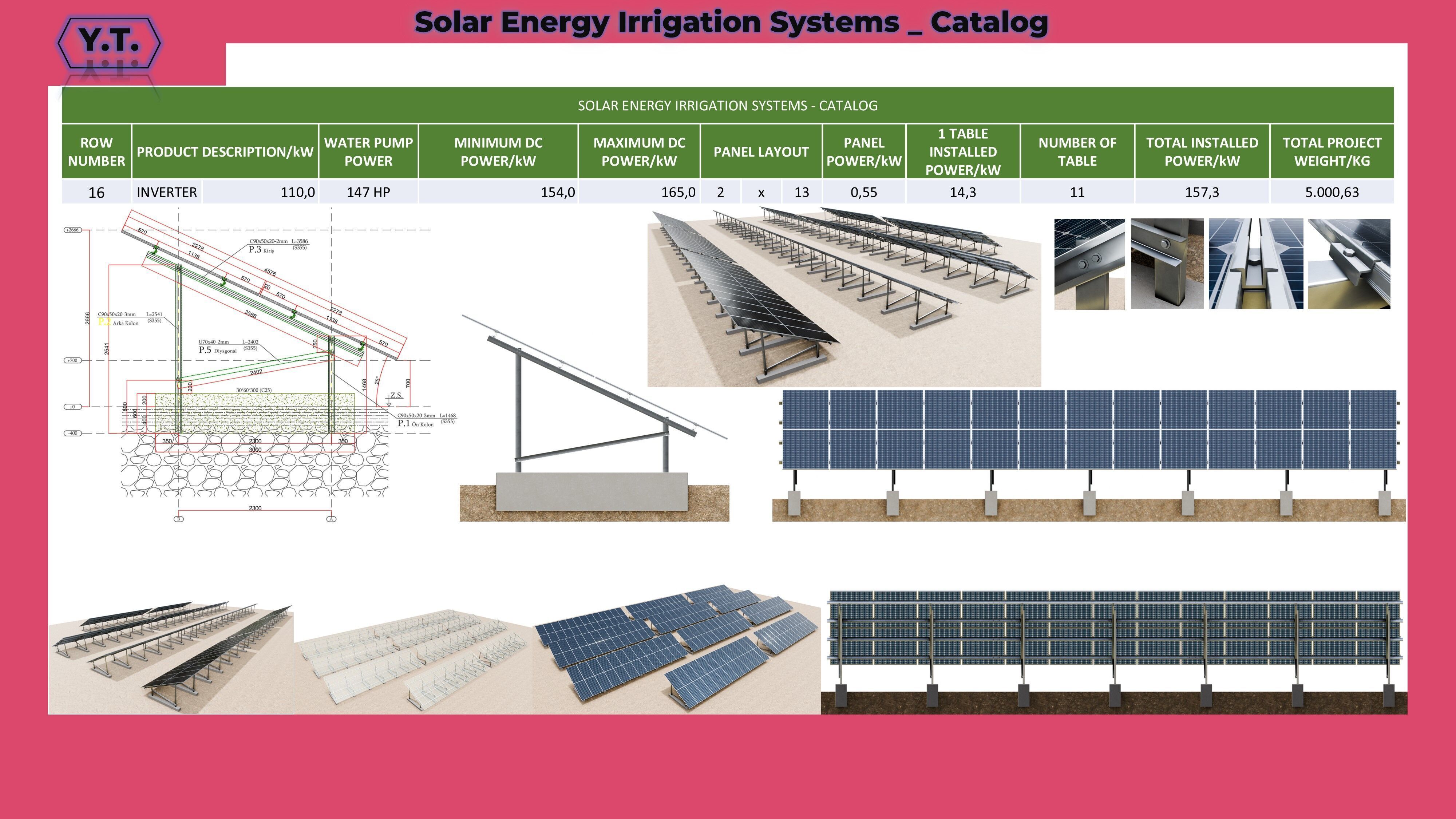

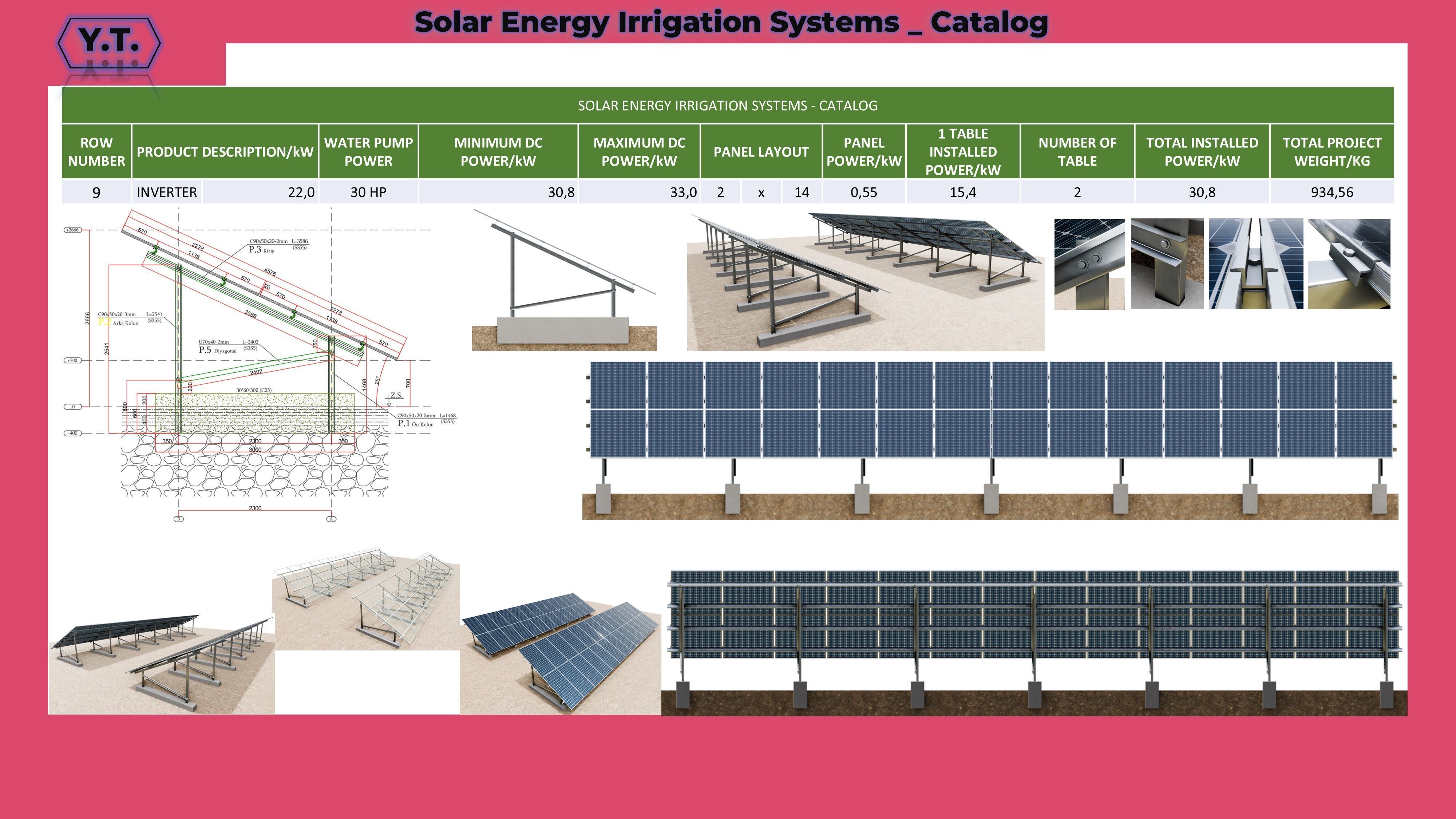

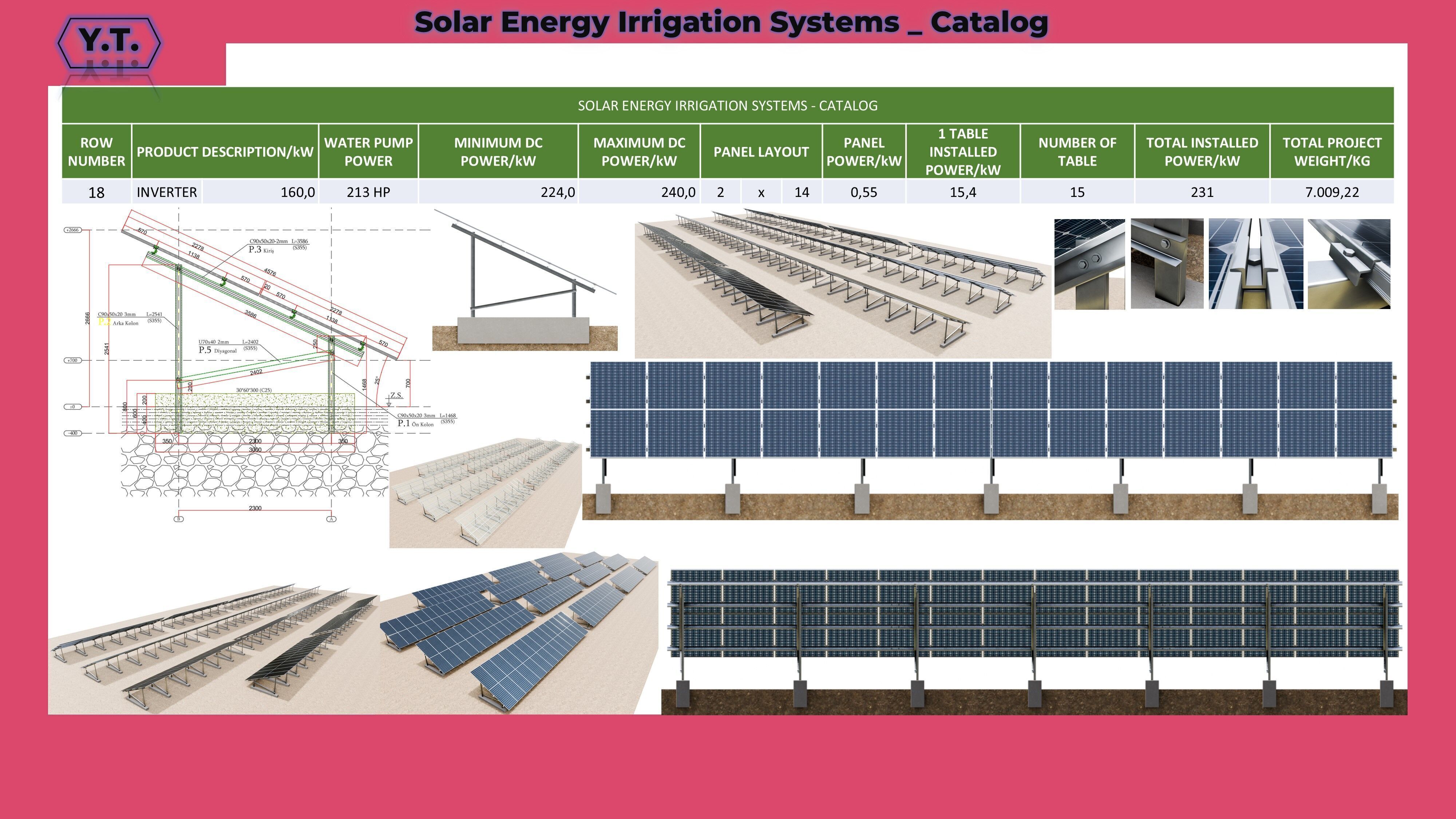

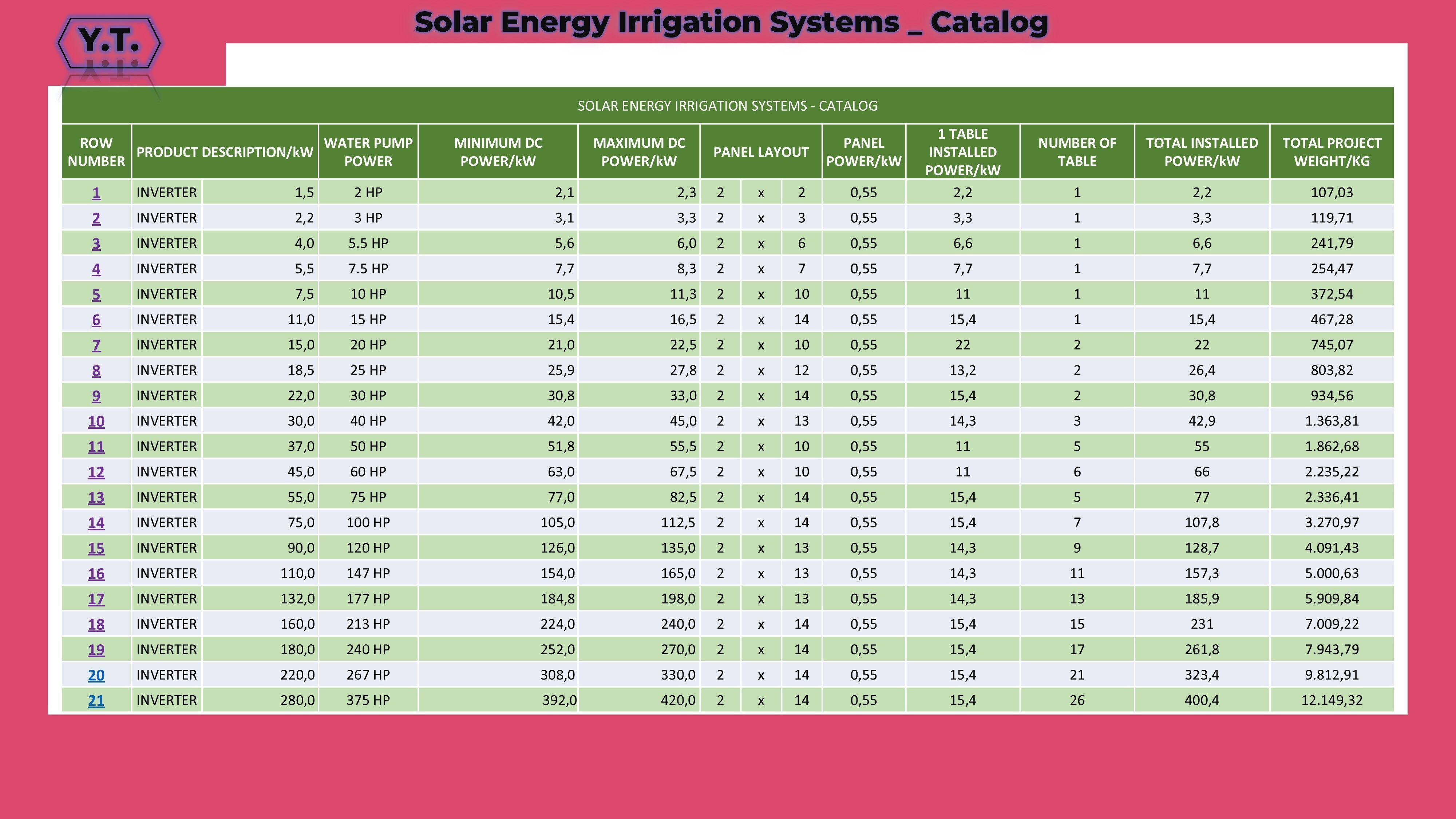

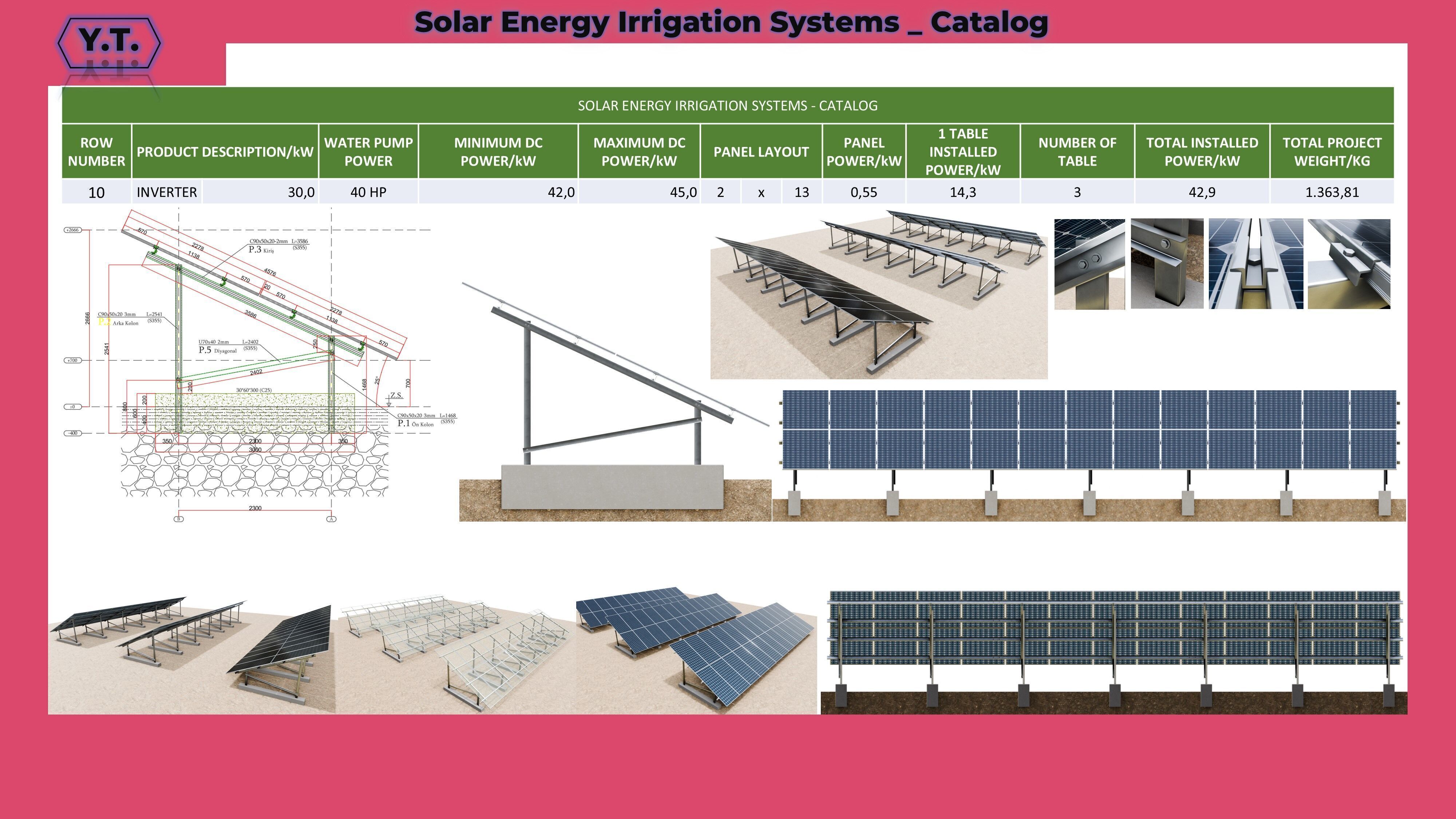

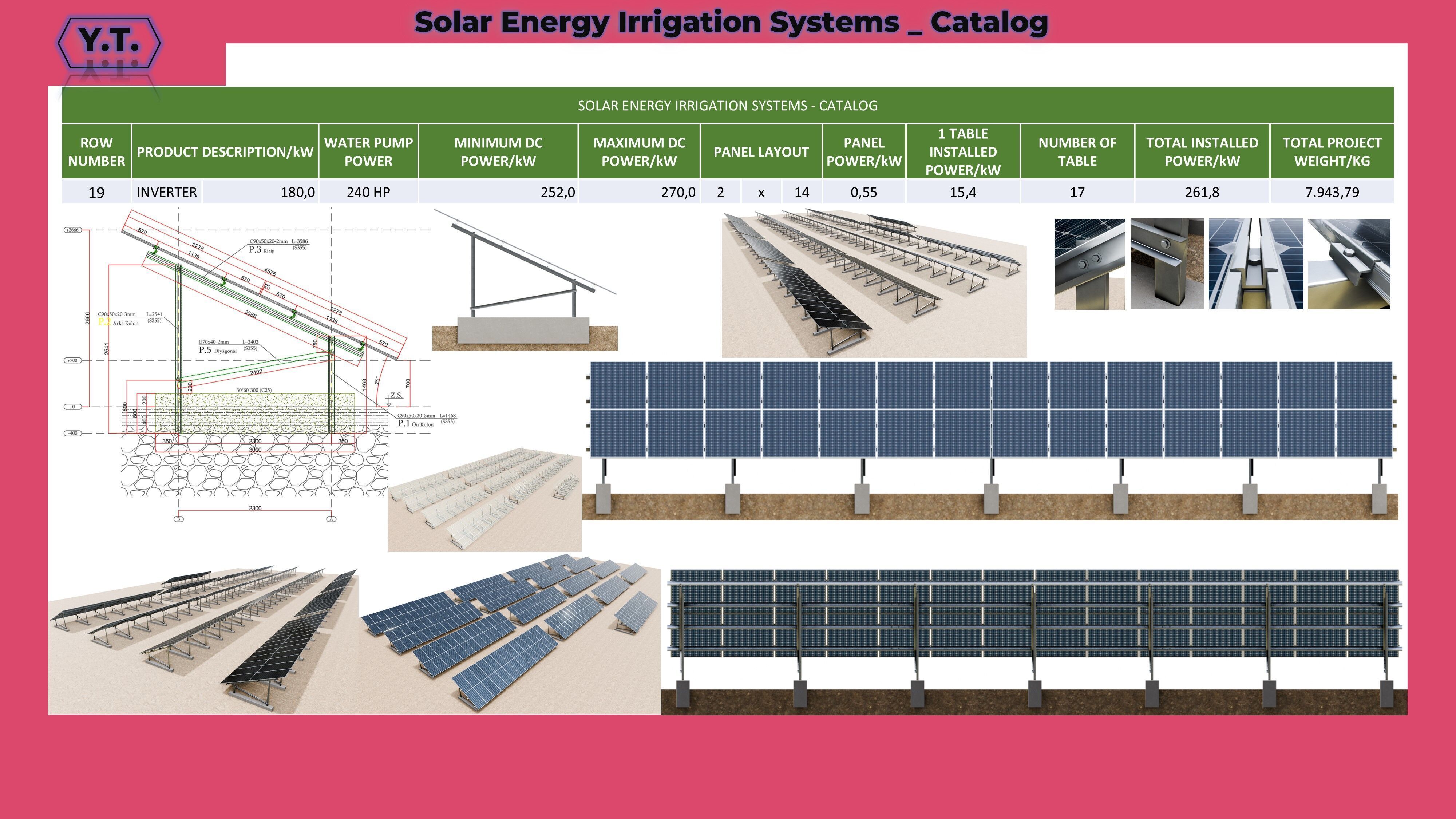

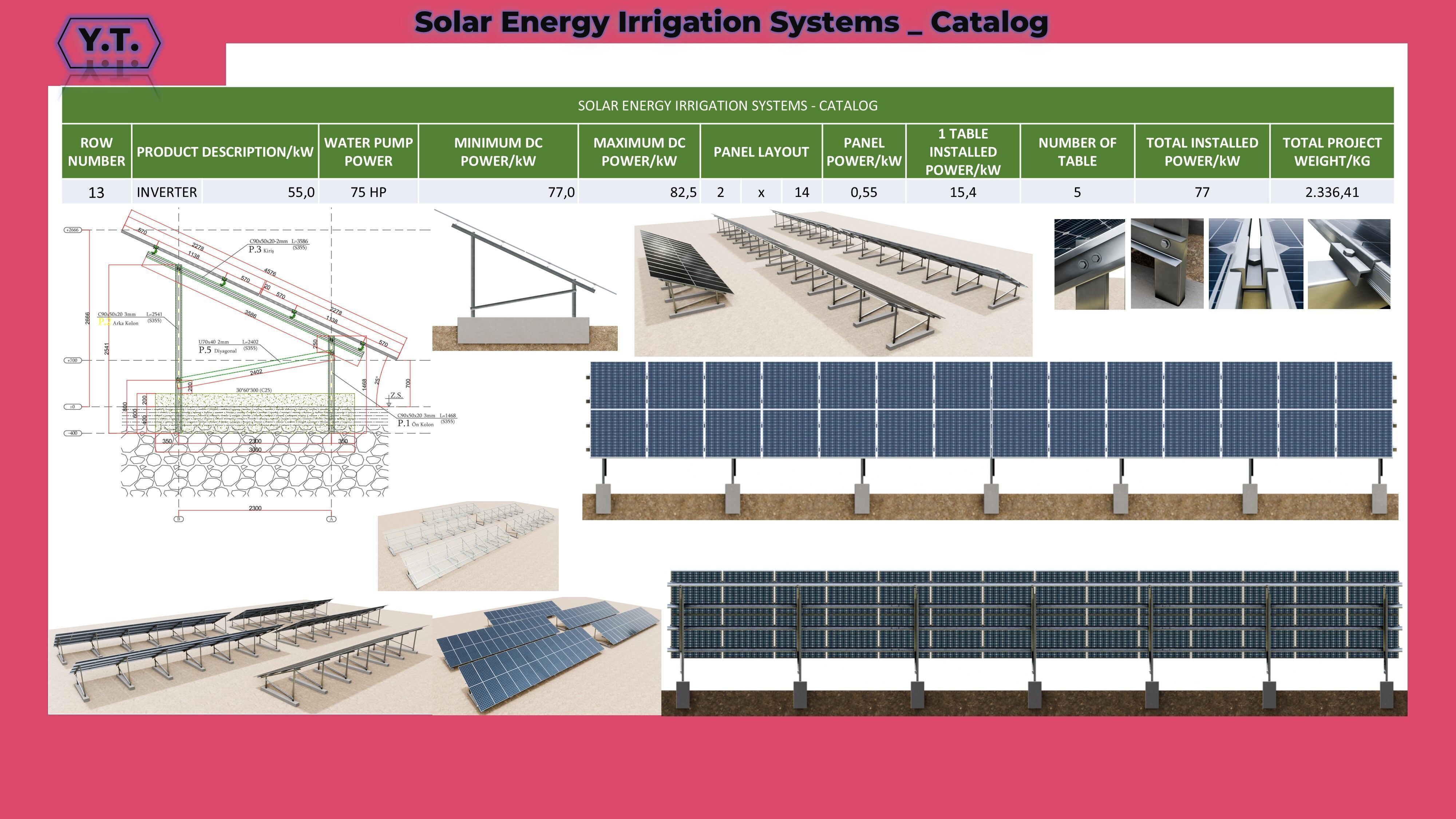

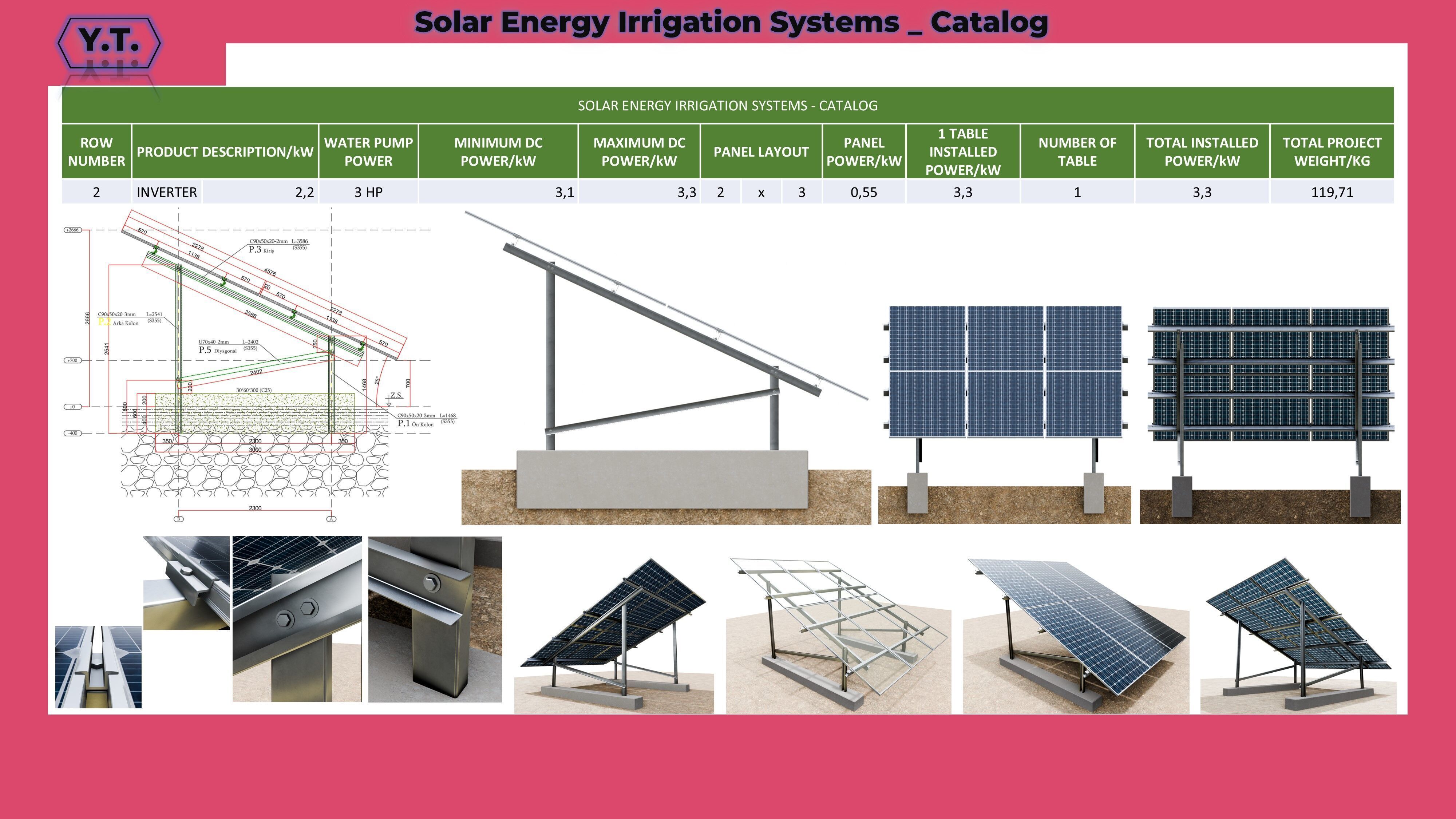

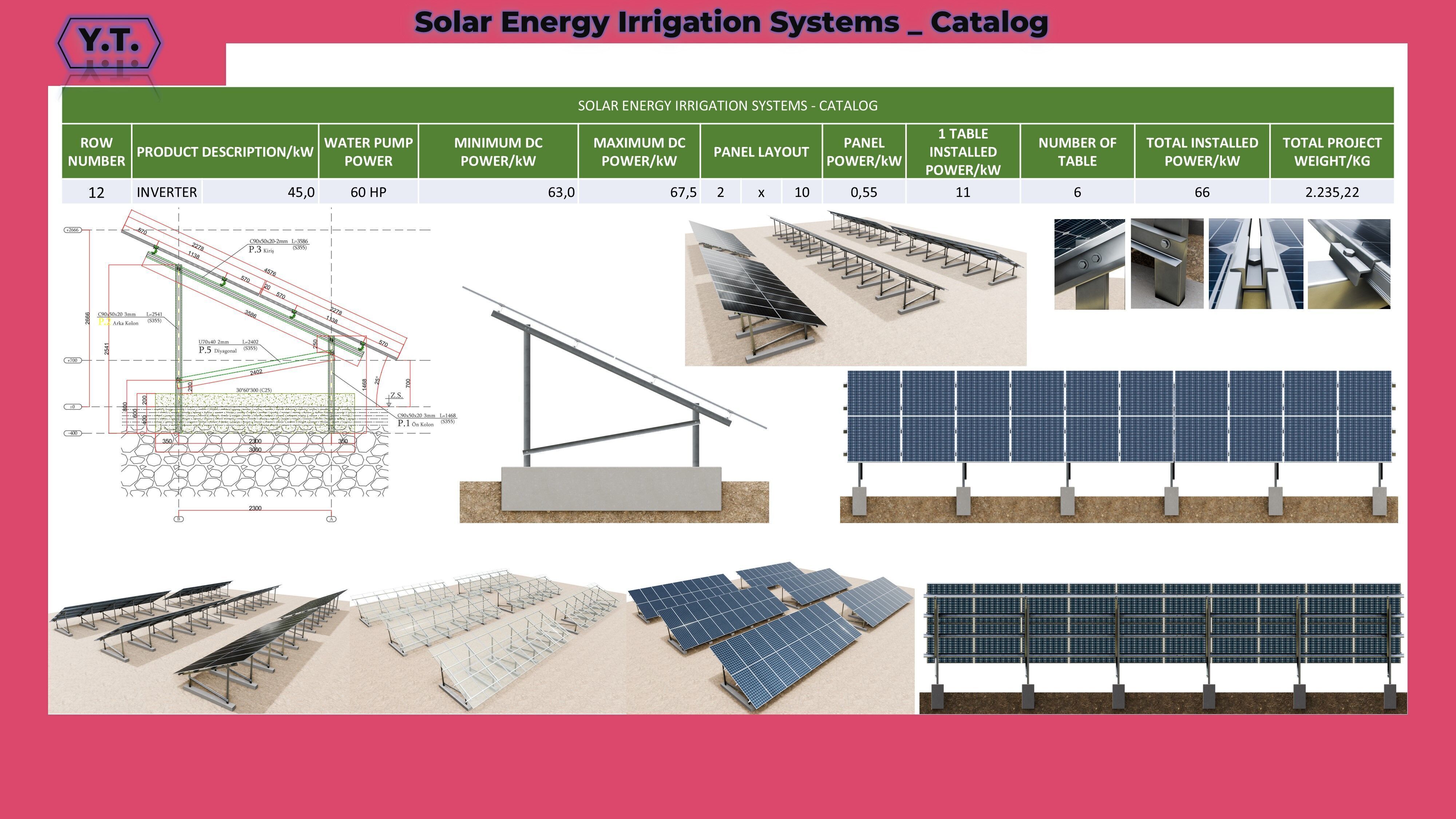

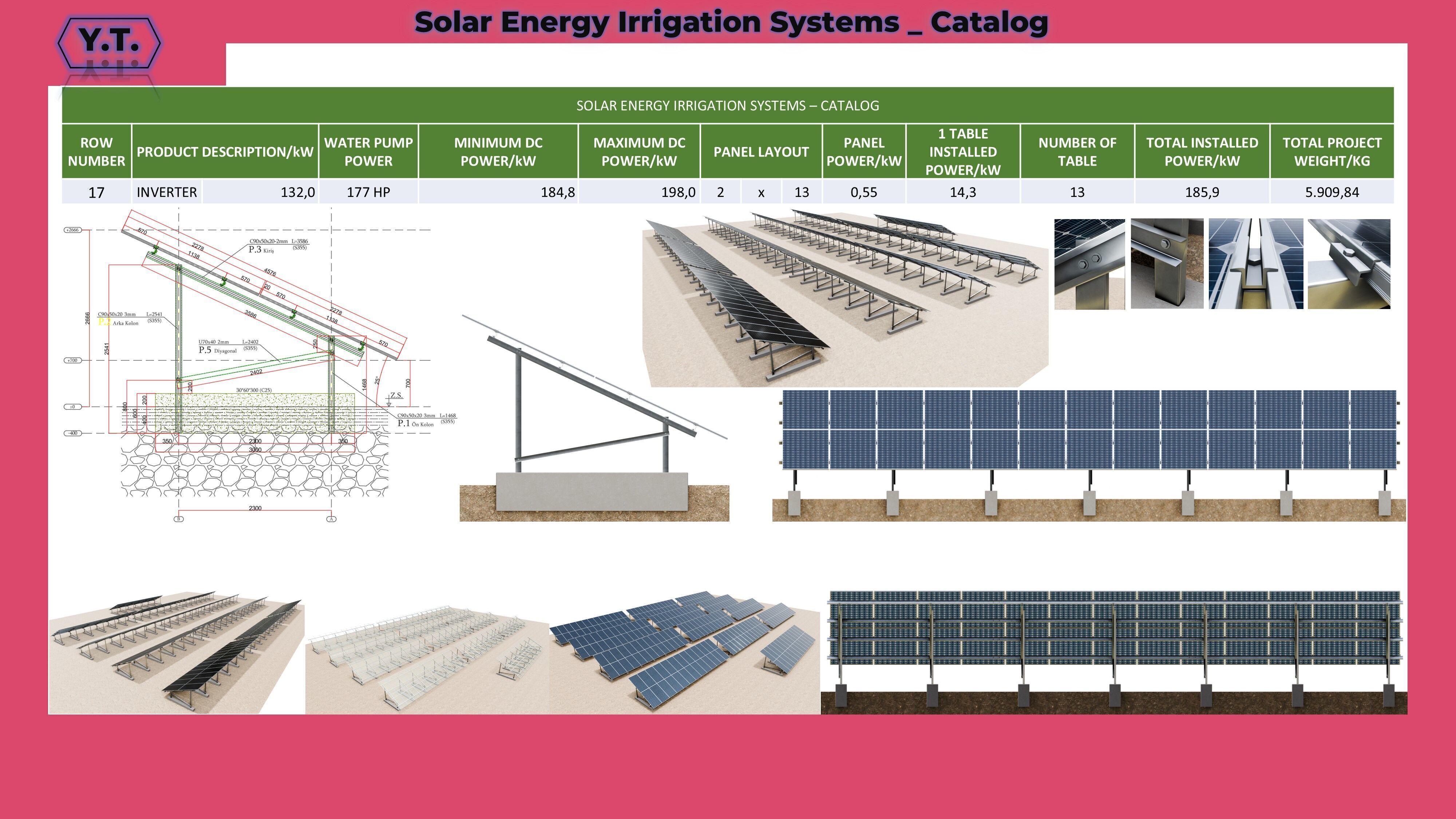

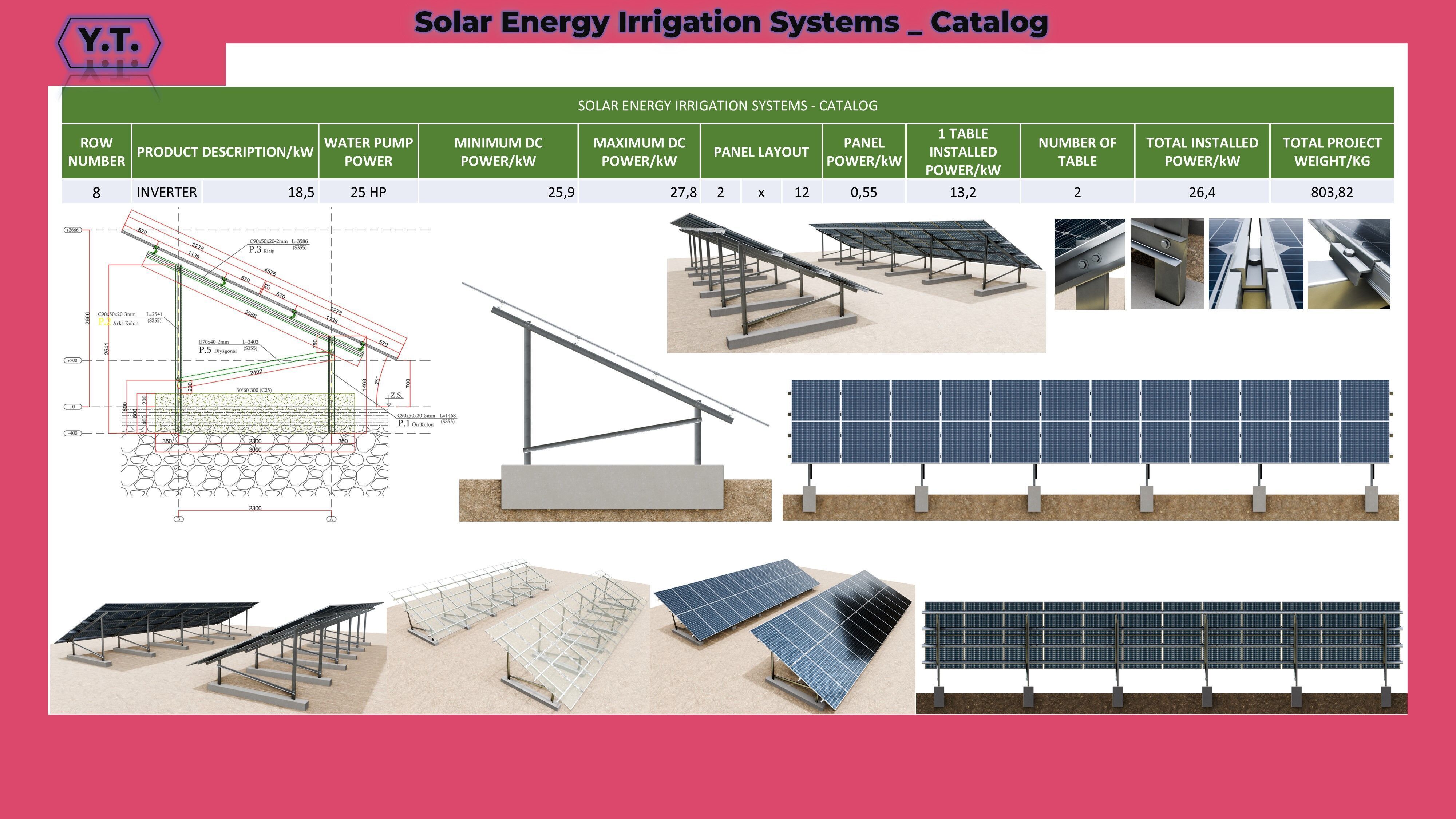

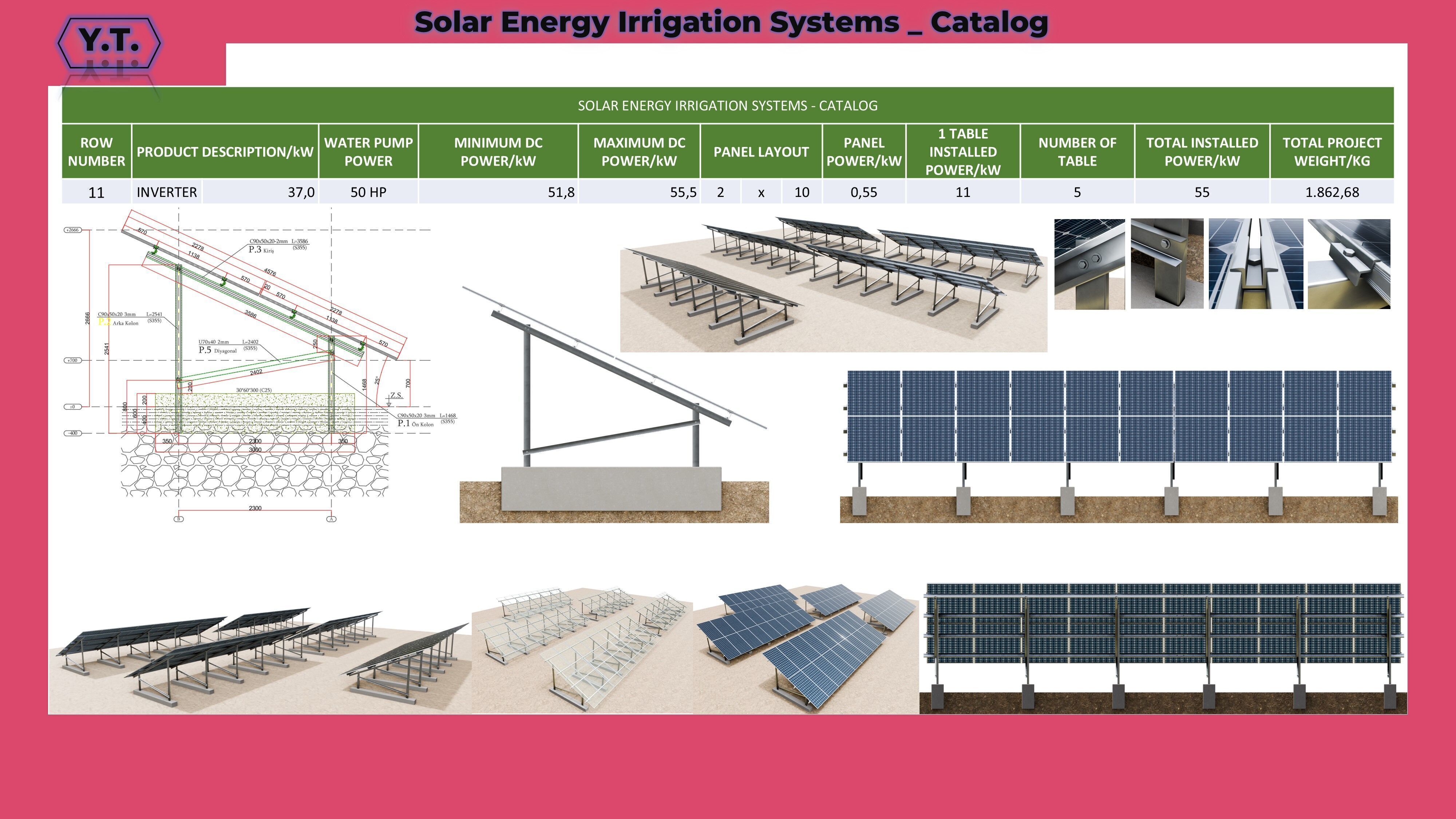

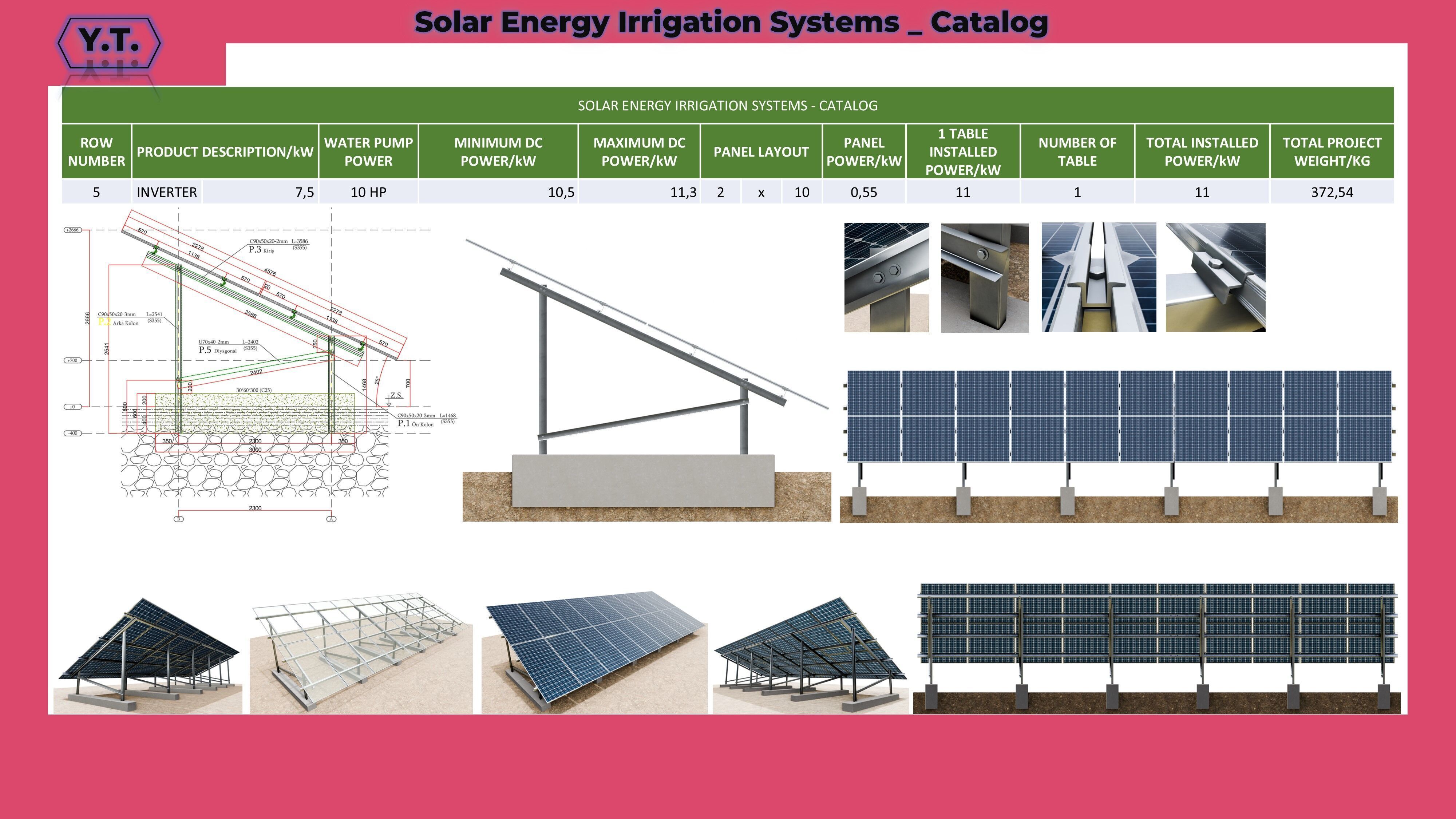

According to 21 different water pump powers, a pdf catalog has been prepared and is available for download

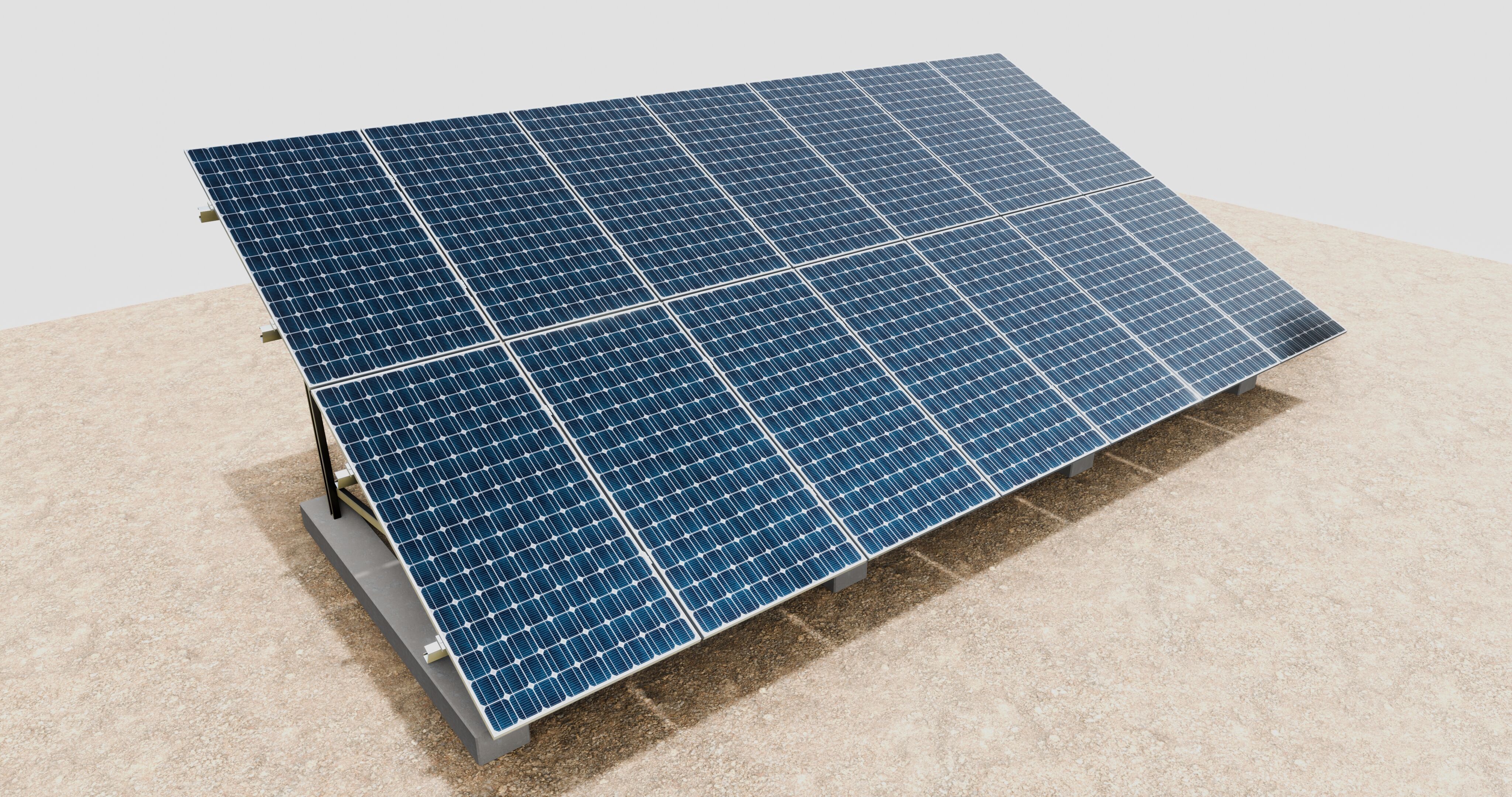

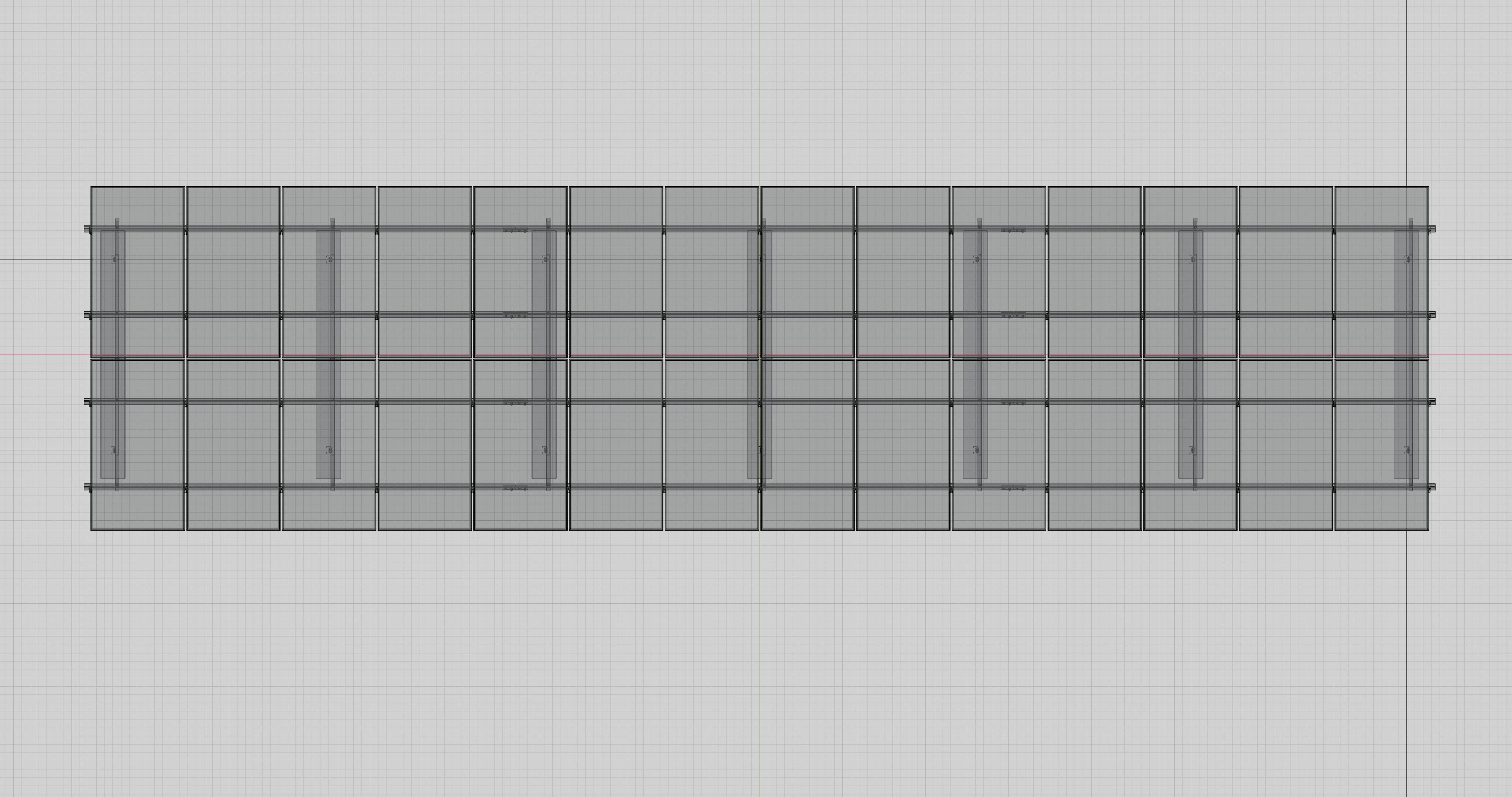

Panel Dimensions: 2278x1134x30mm 550 Wp

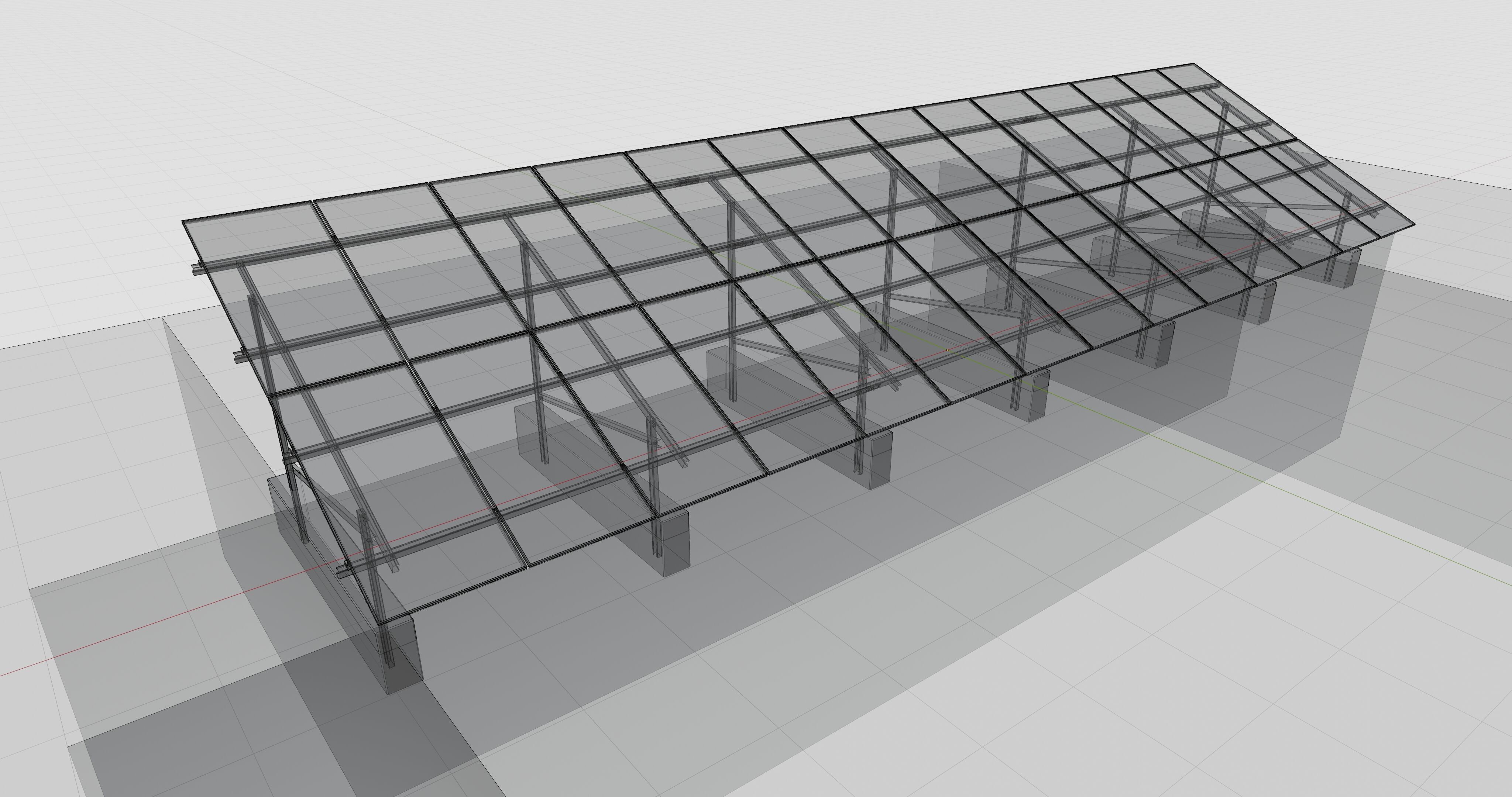

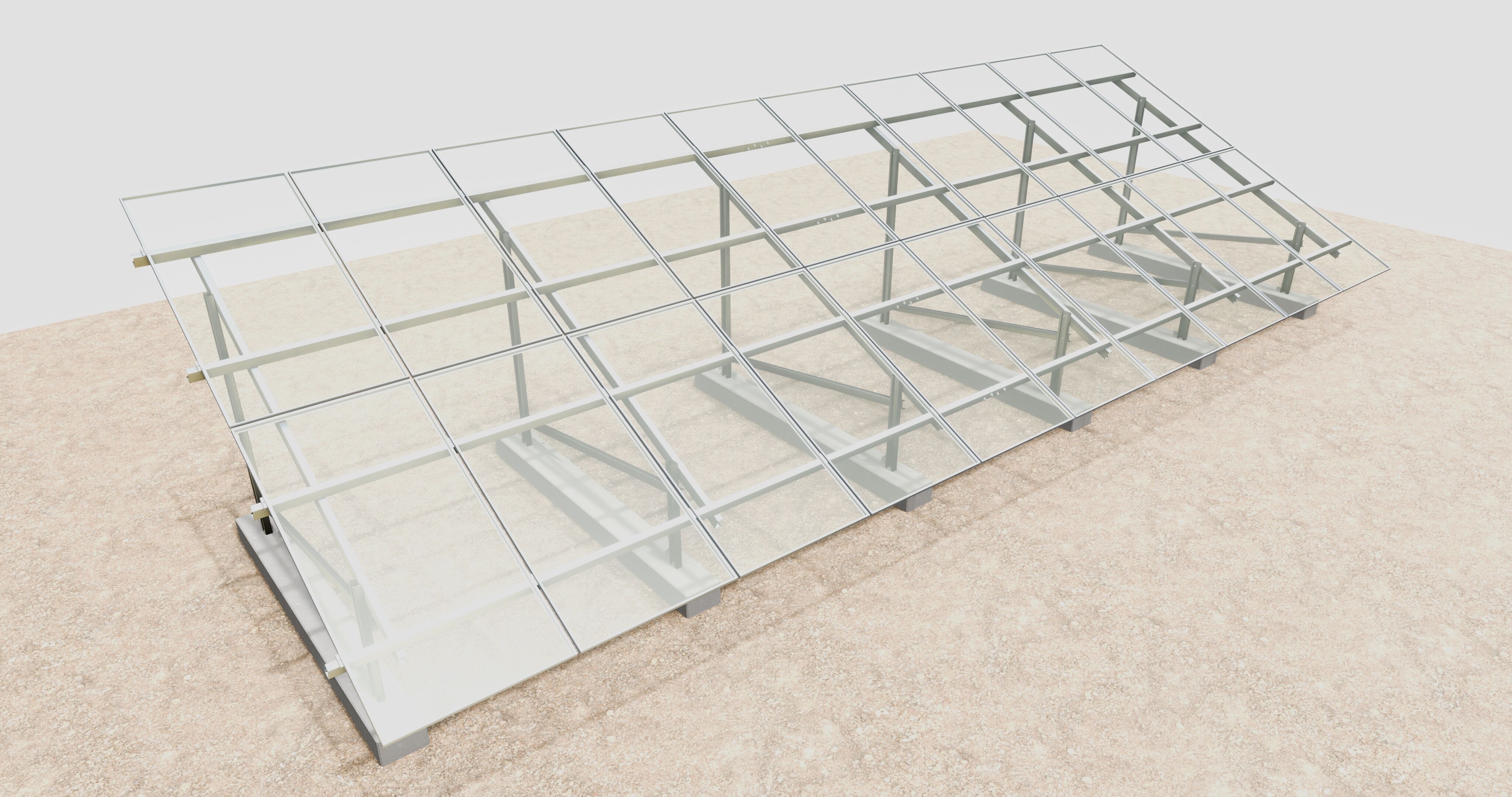

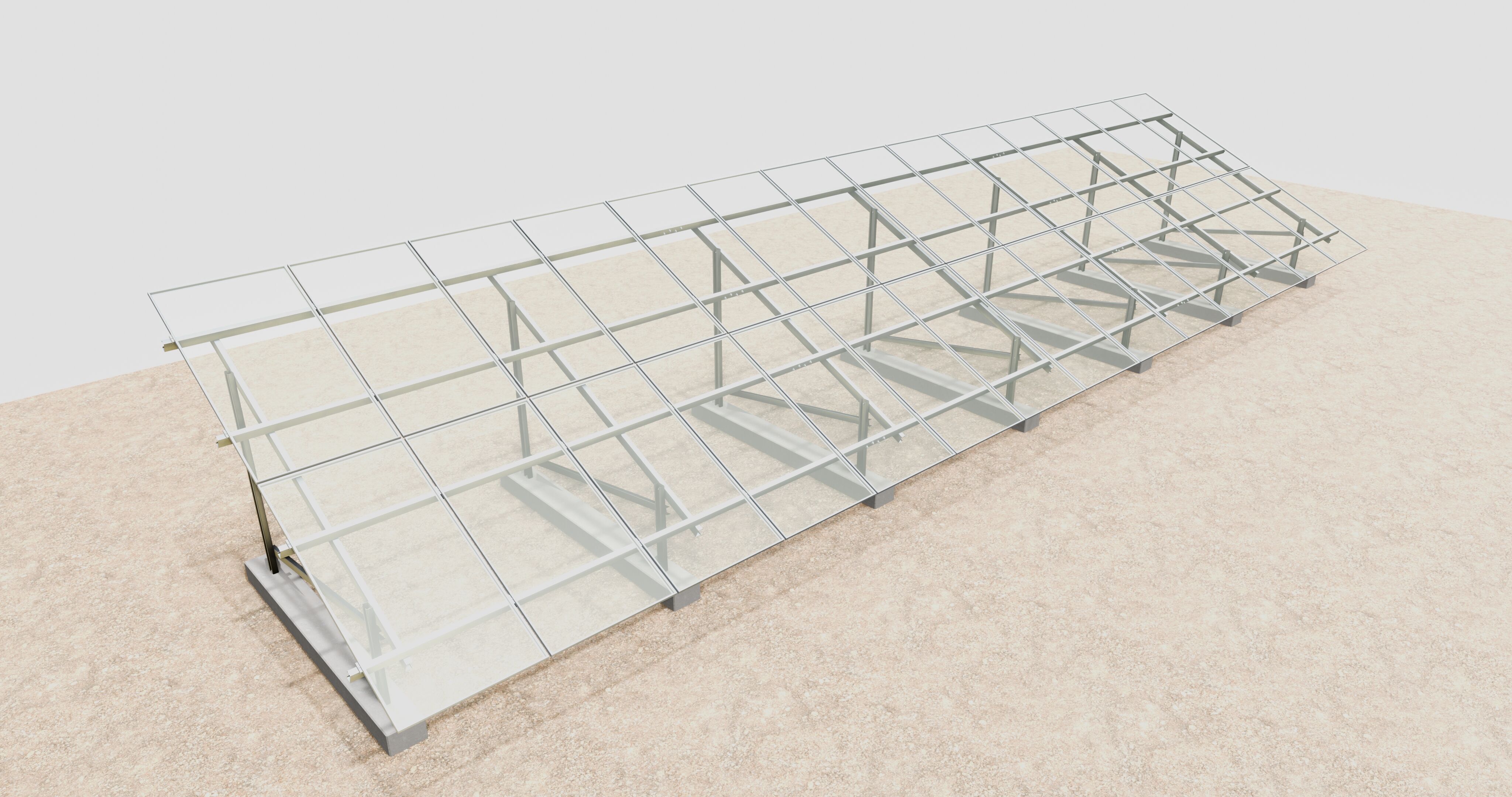

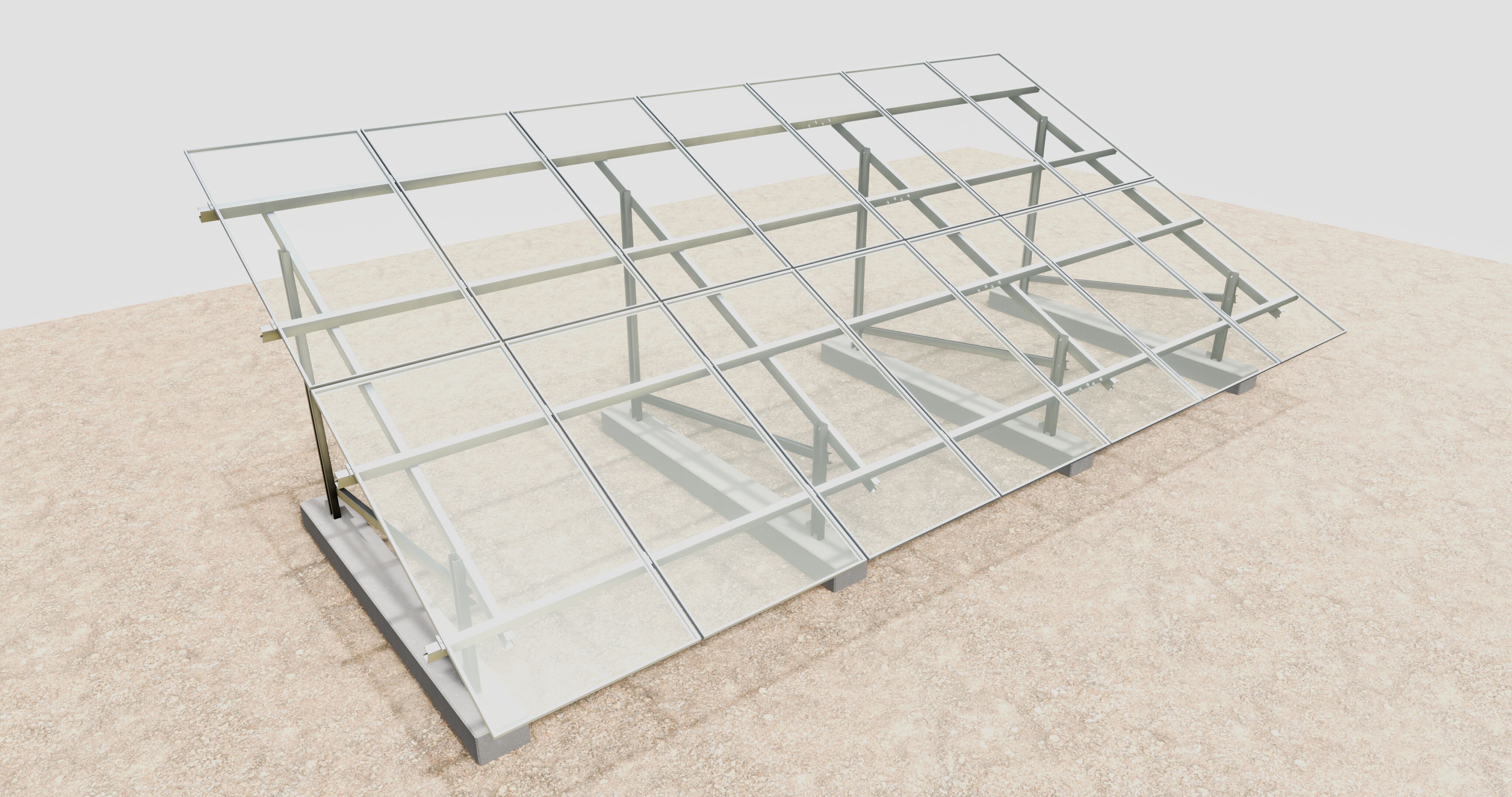

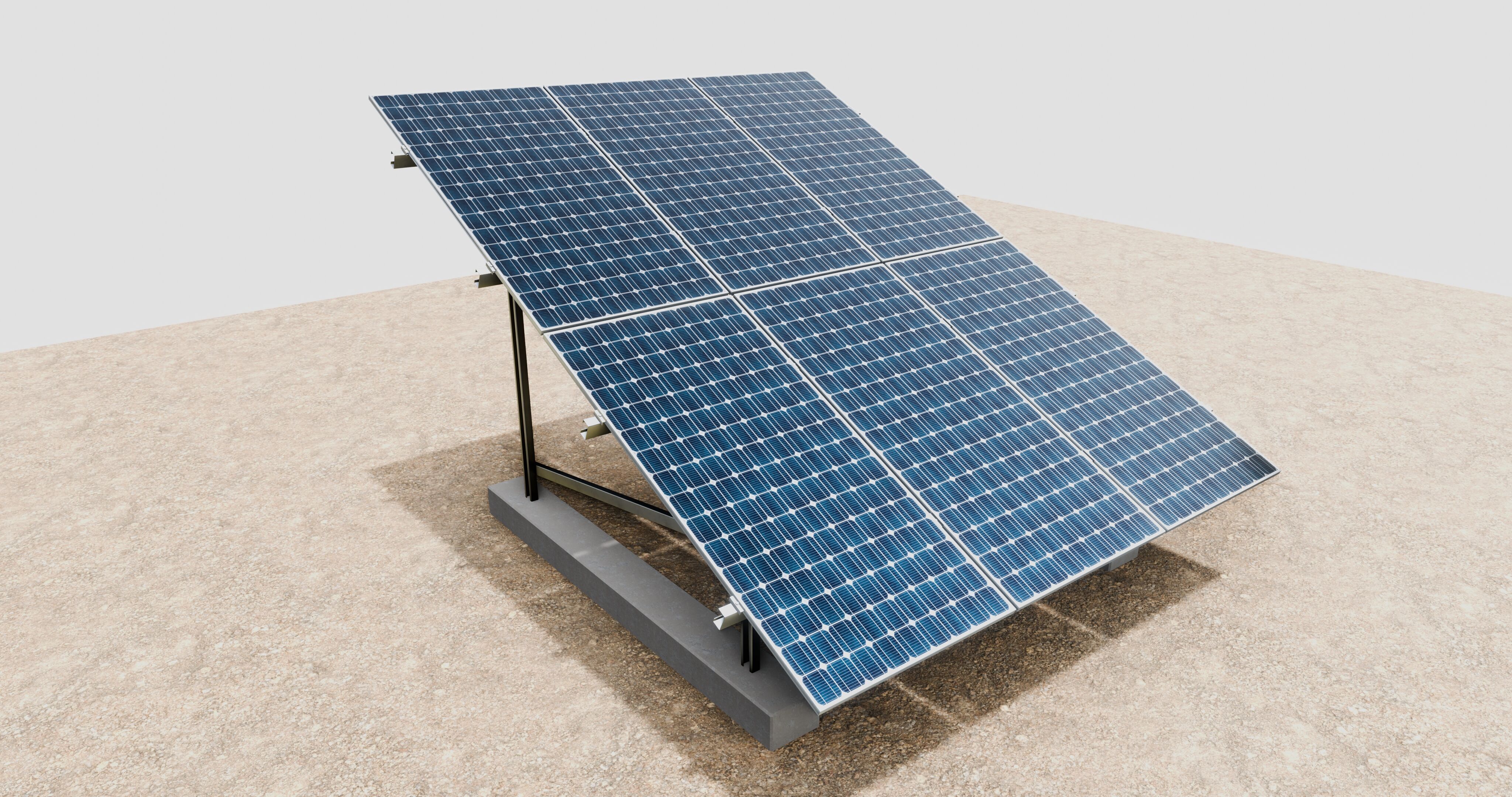

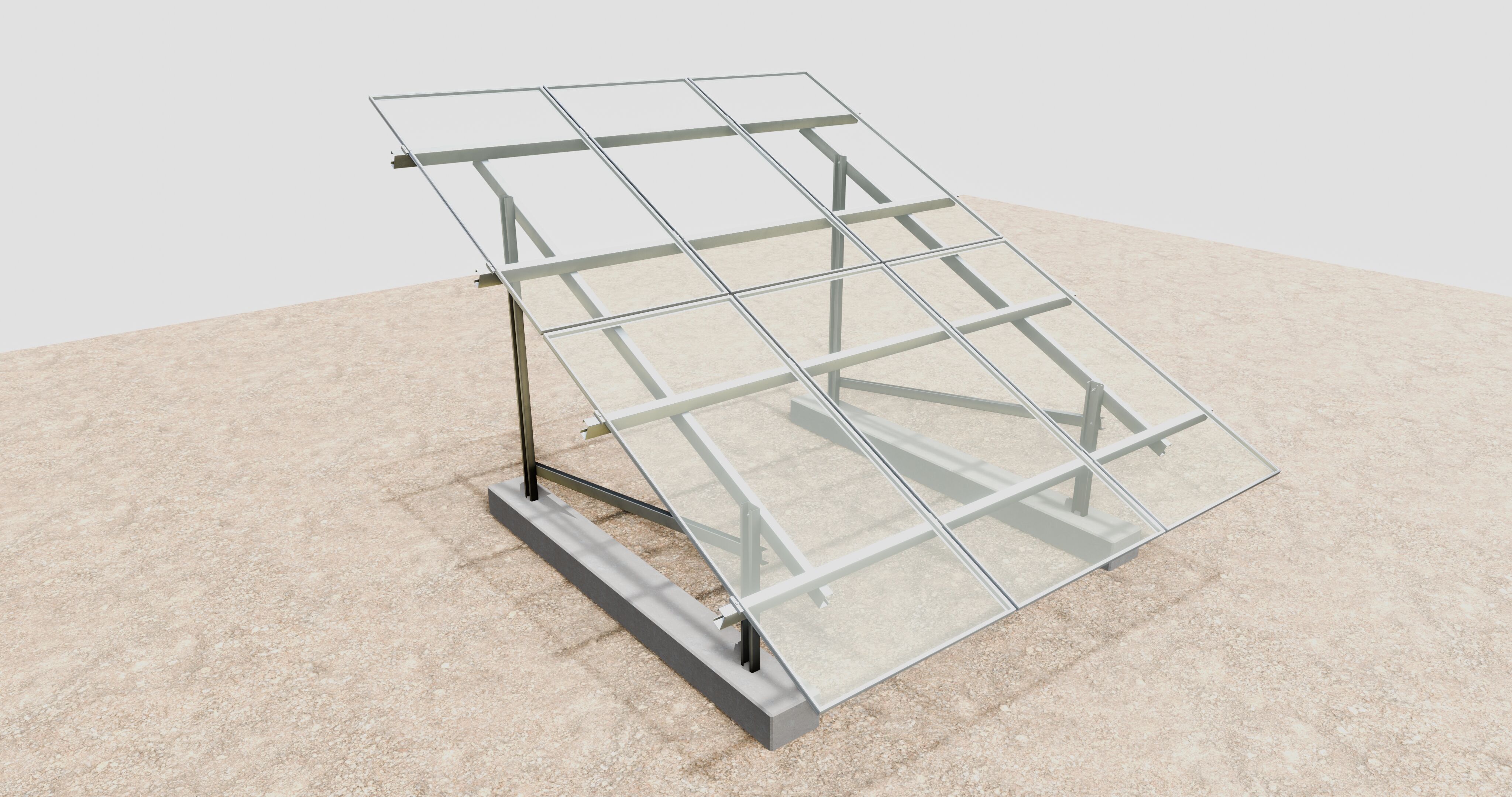

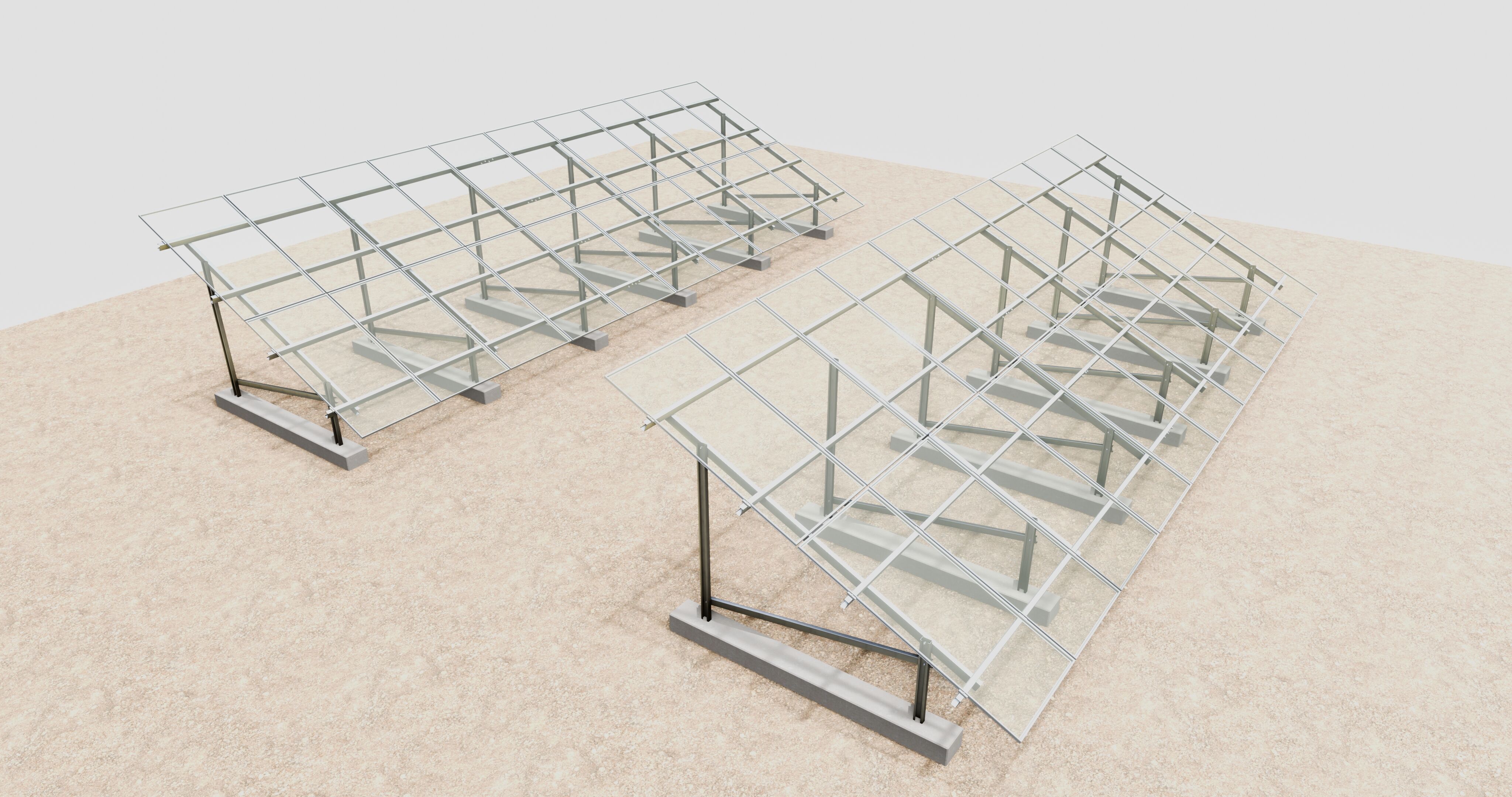

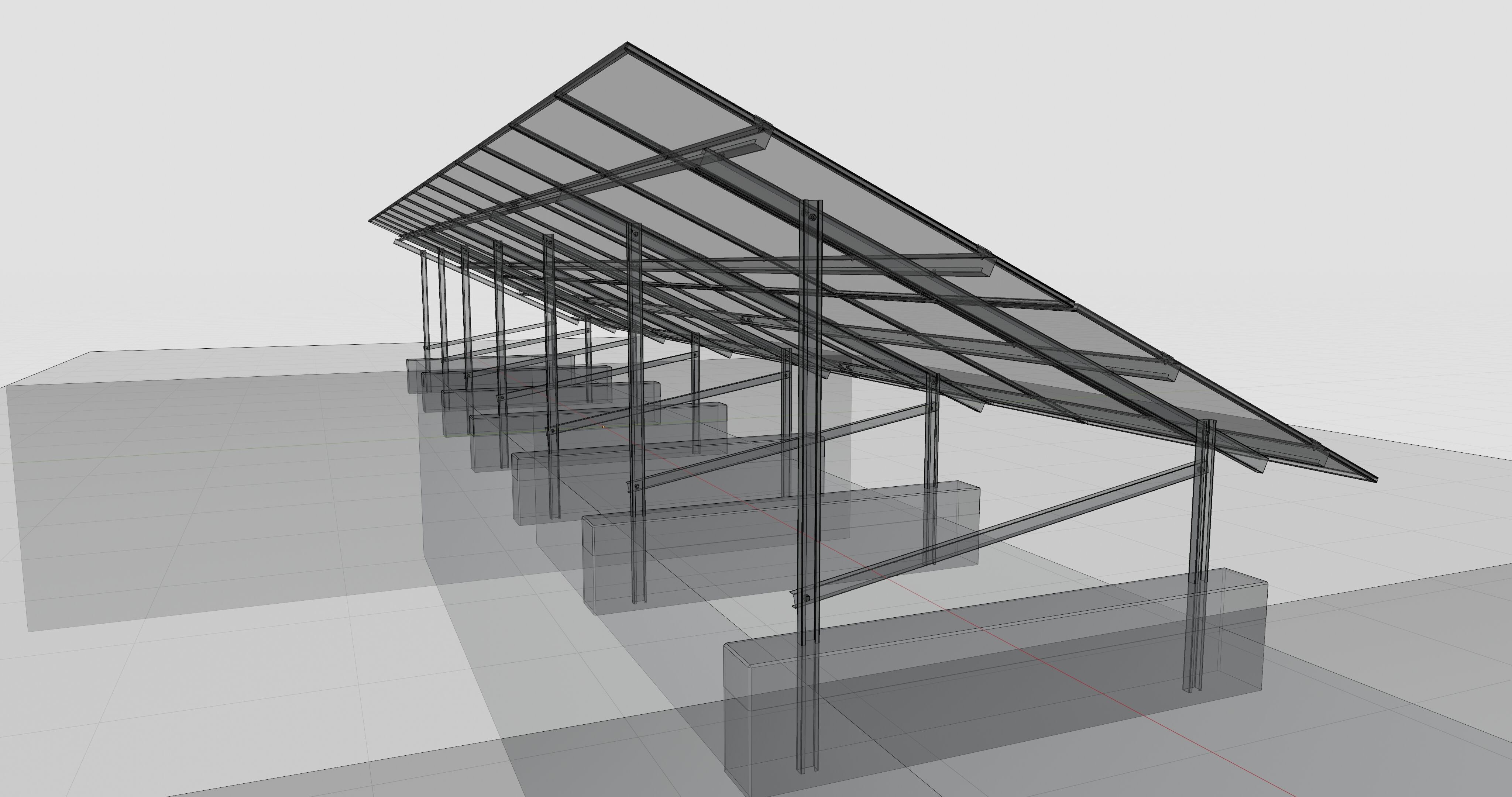

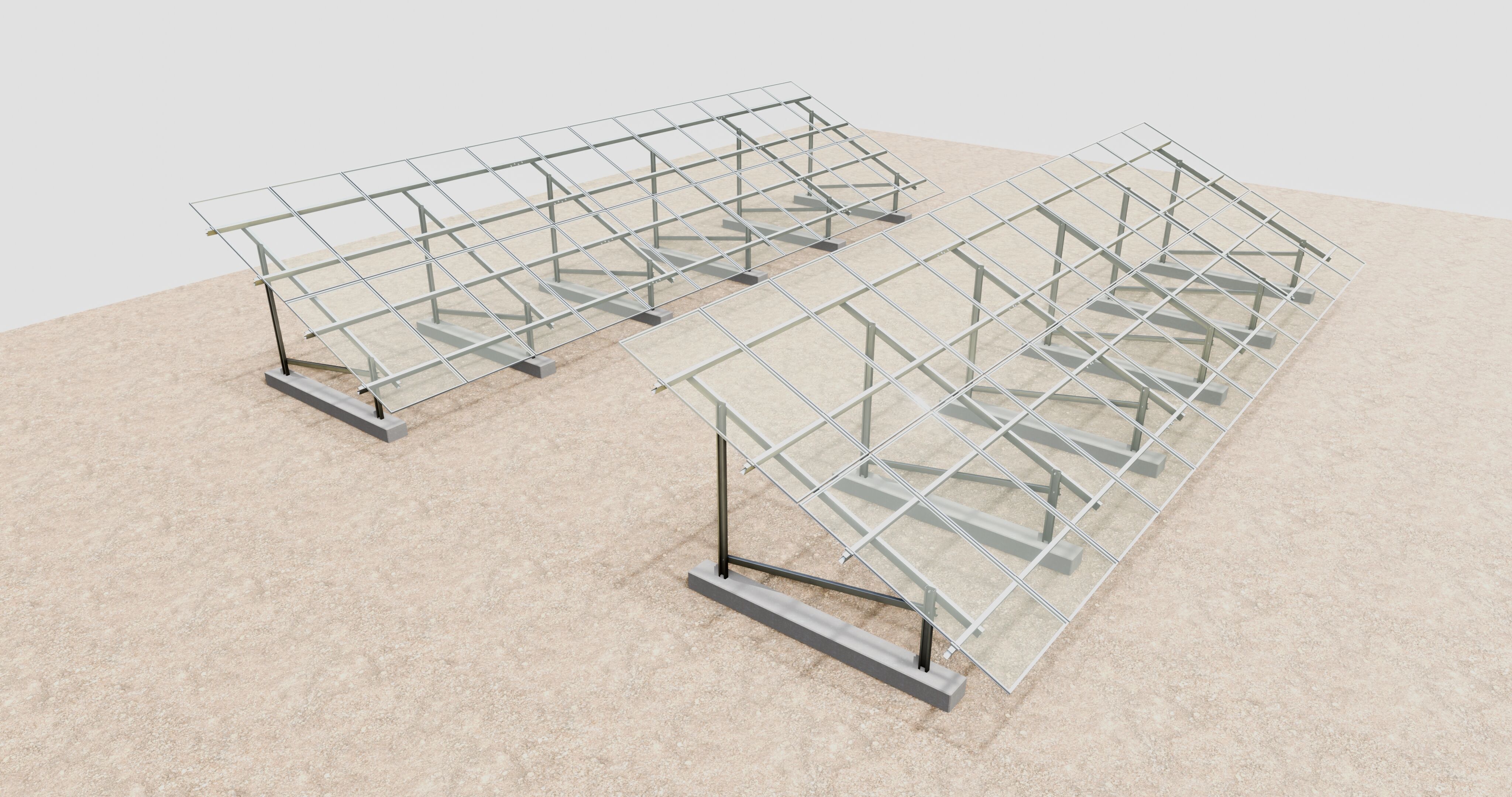

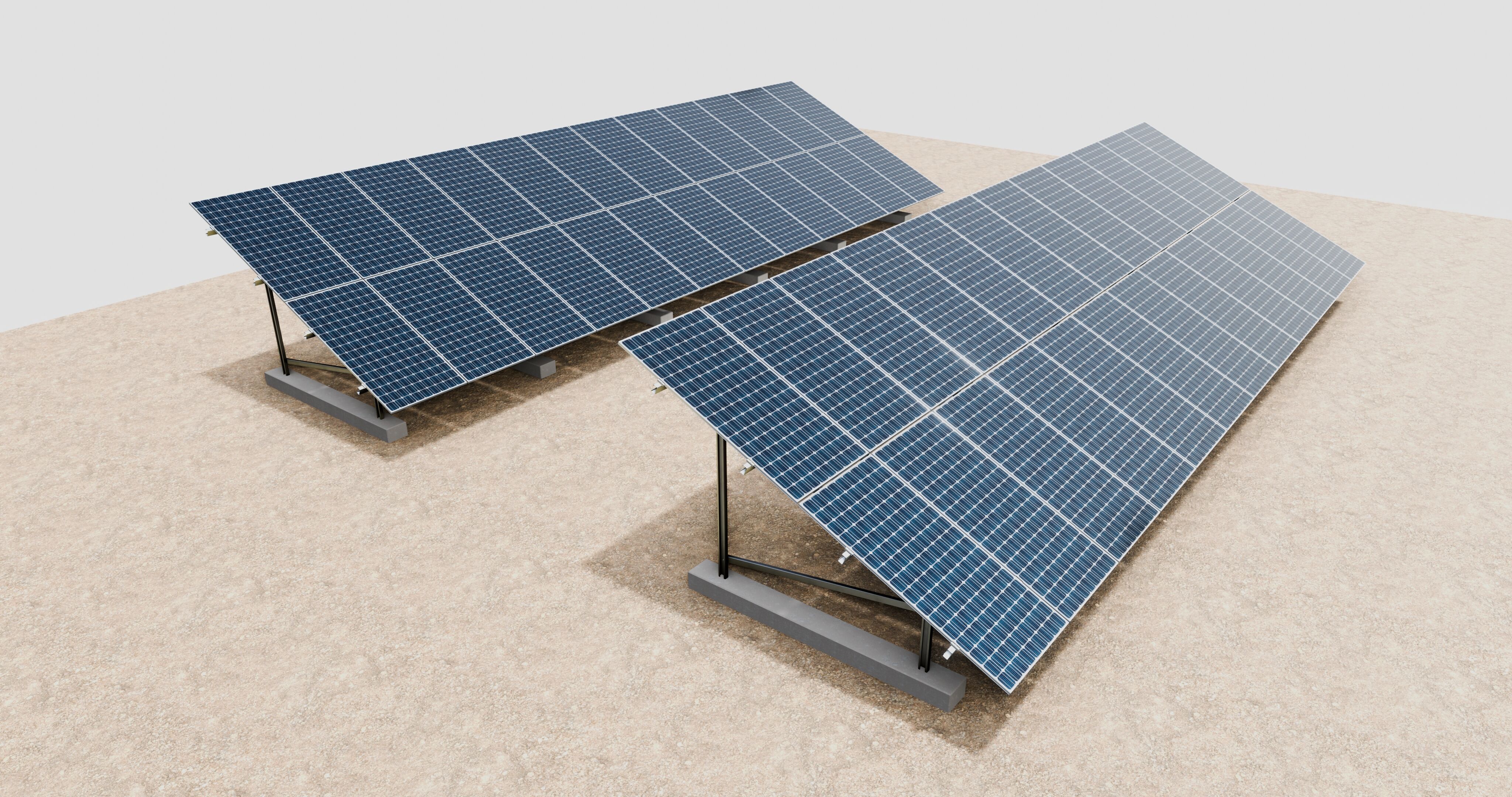

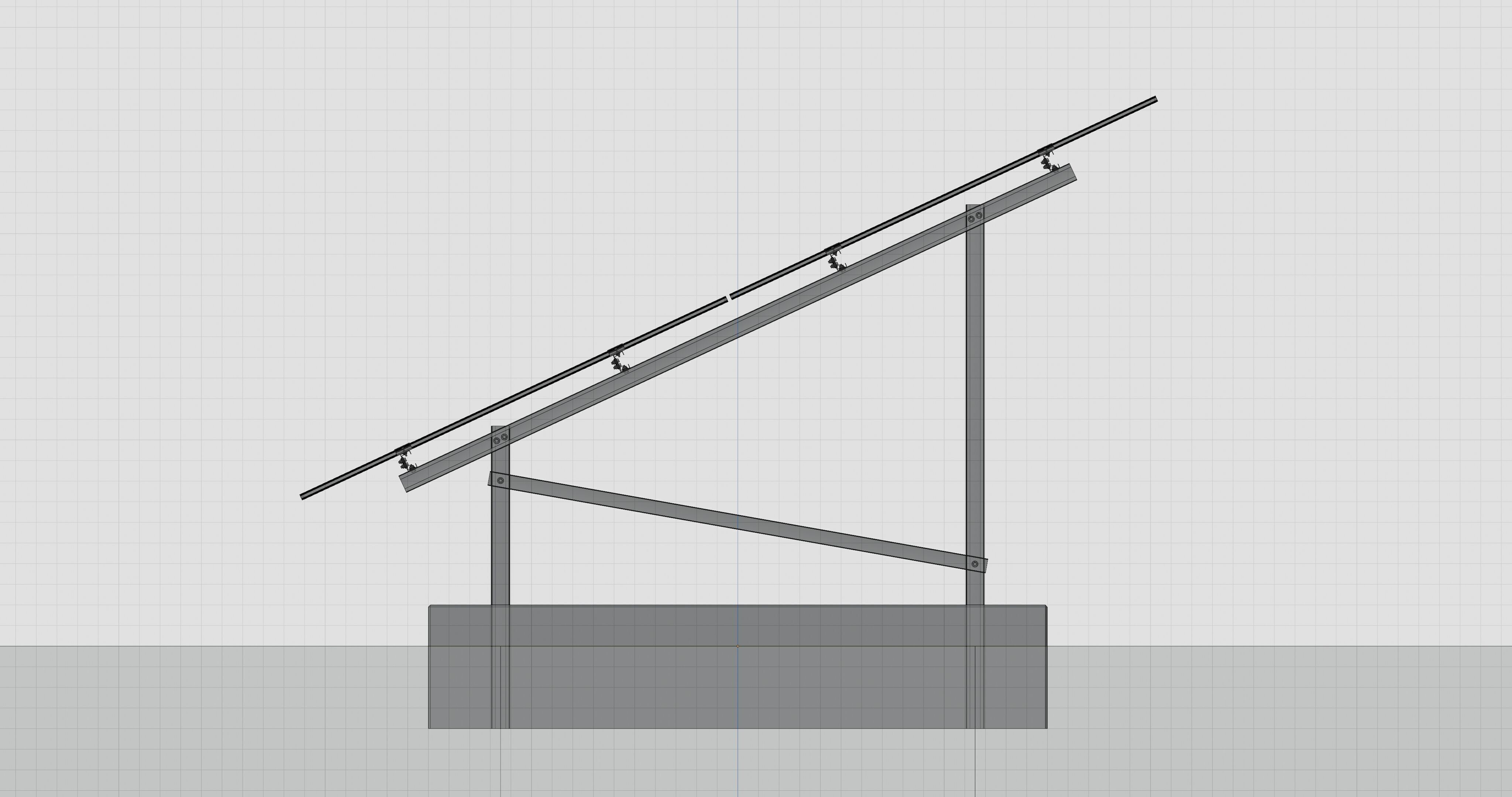

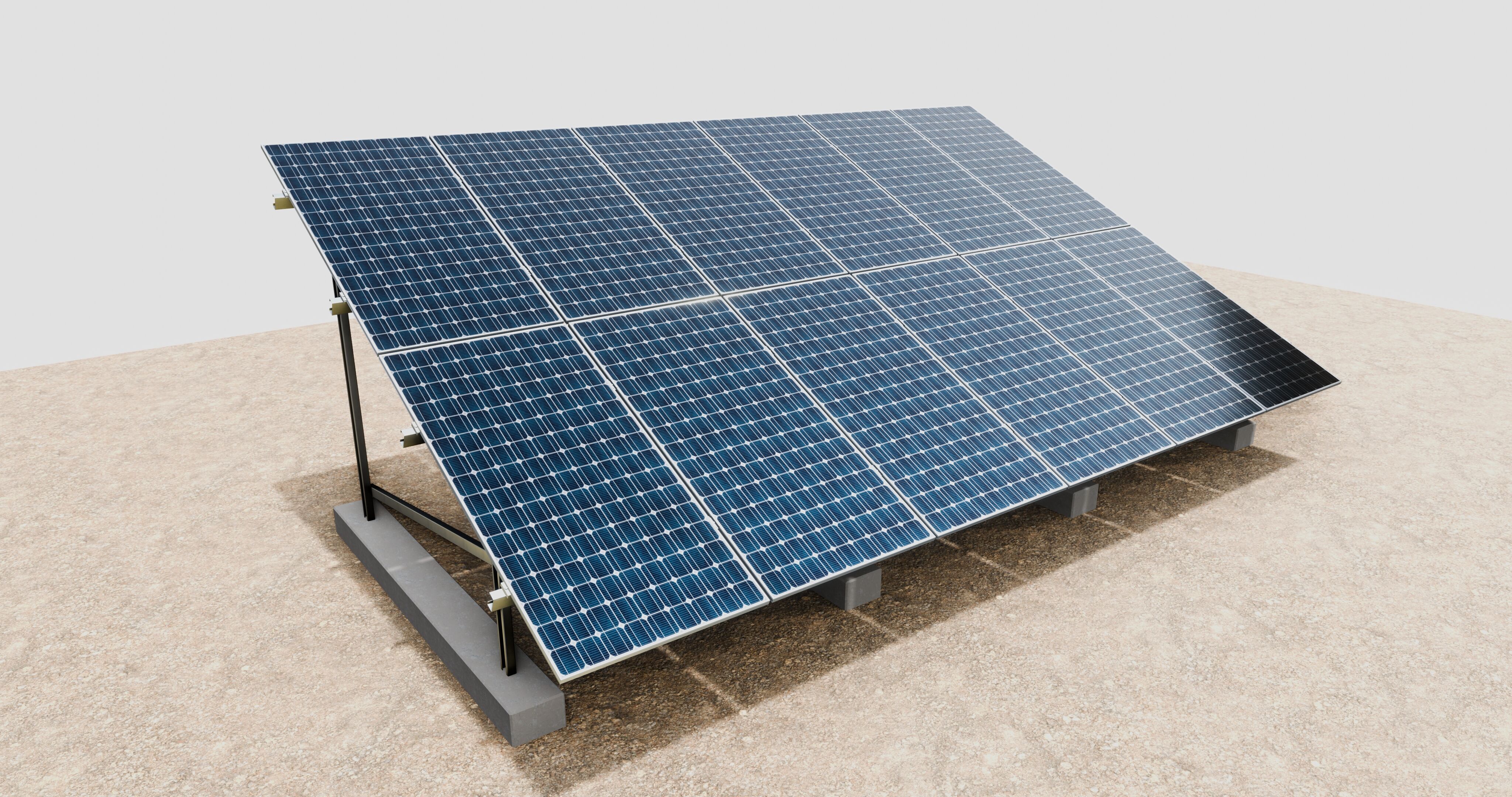

Designed as Portable Solar Energy Stands. Mass Concrete was used for fixing the columns to the ground.

Foundation Concrete Dimensions : 30cm x 60cm x 300cm

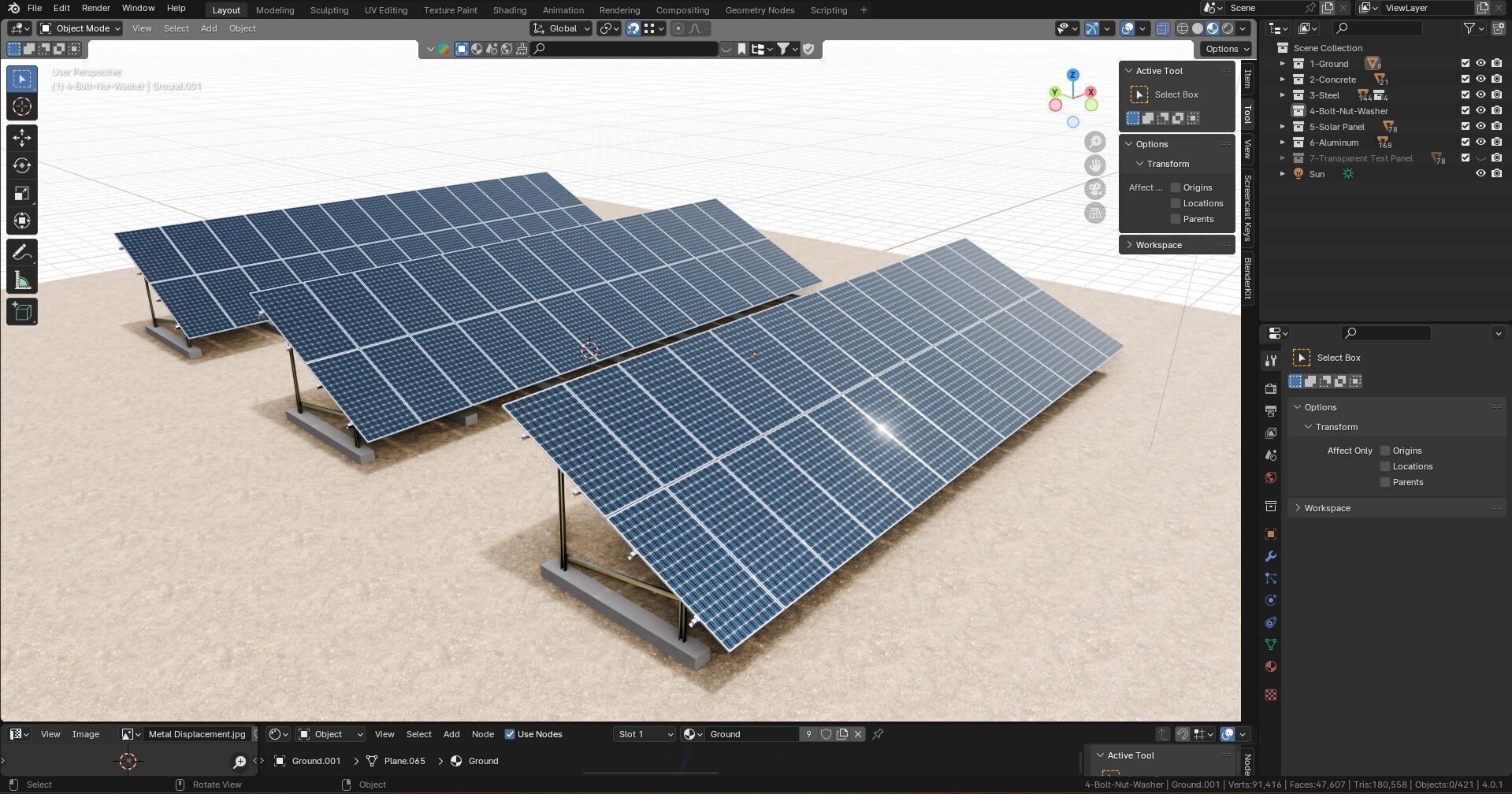

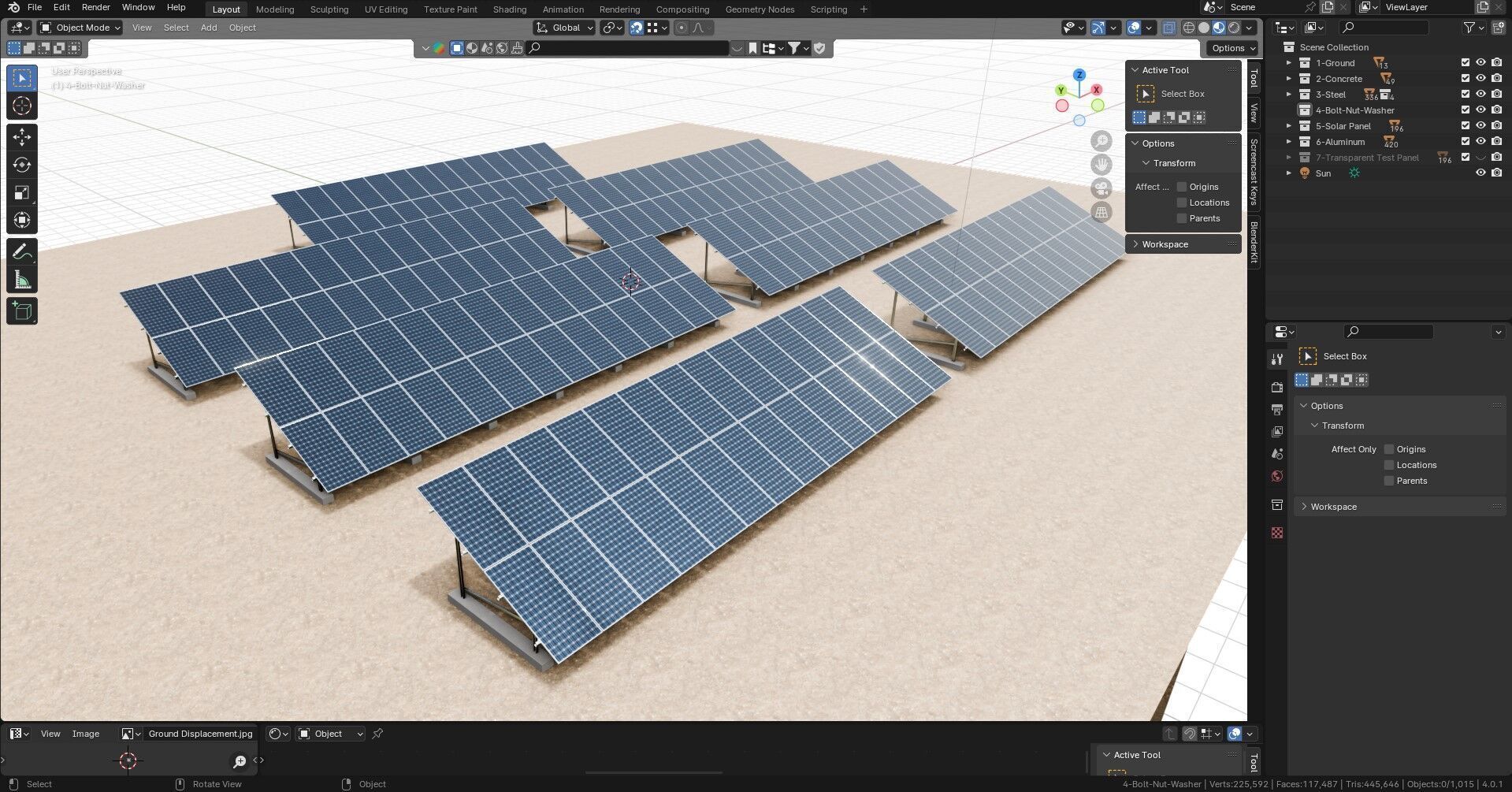

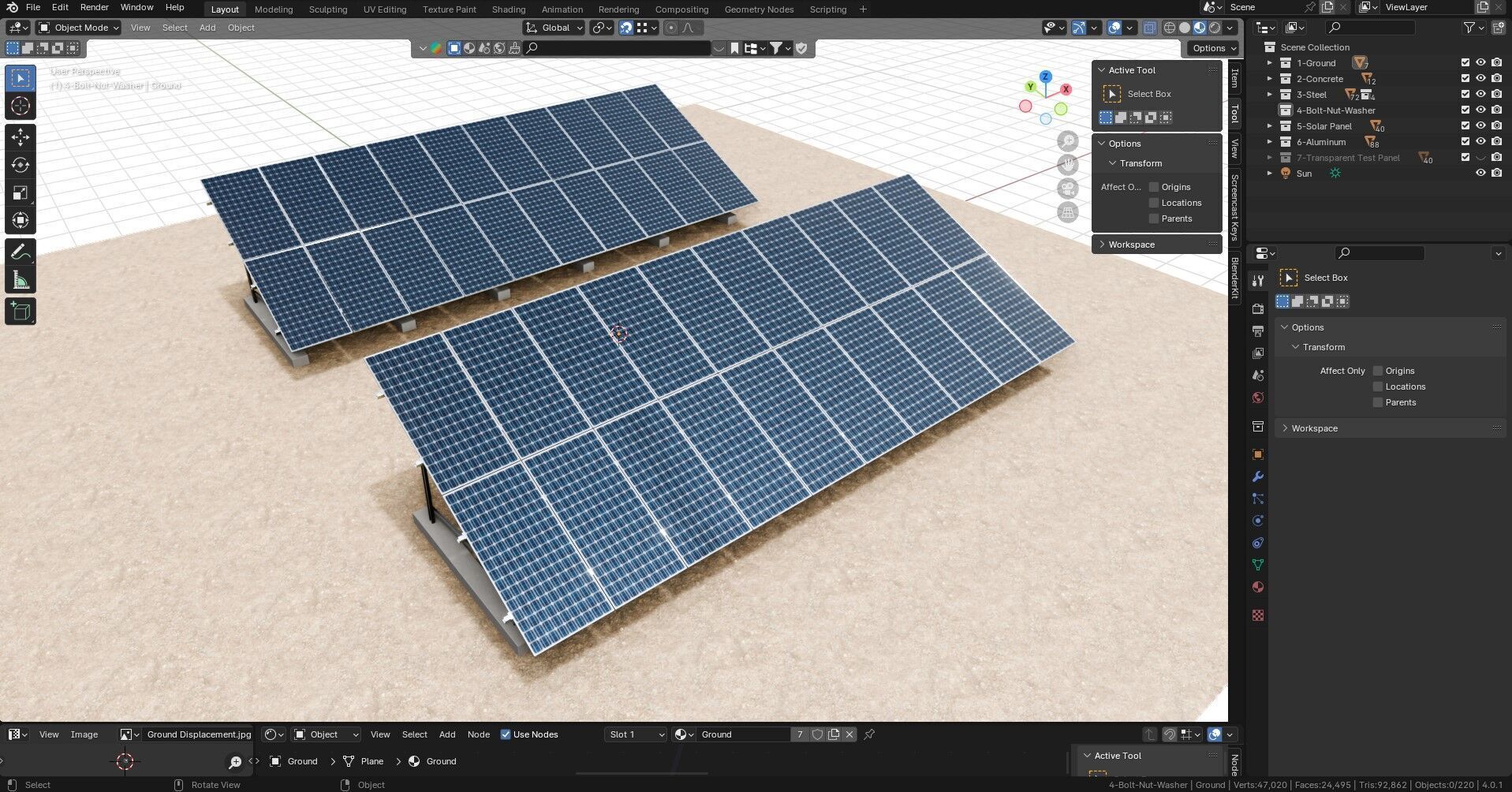

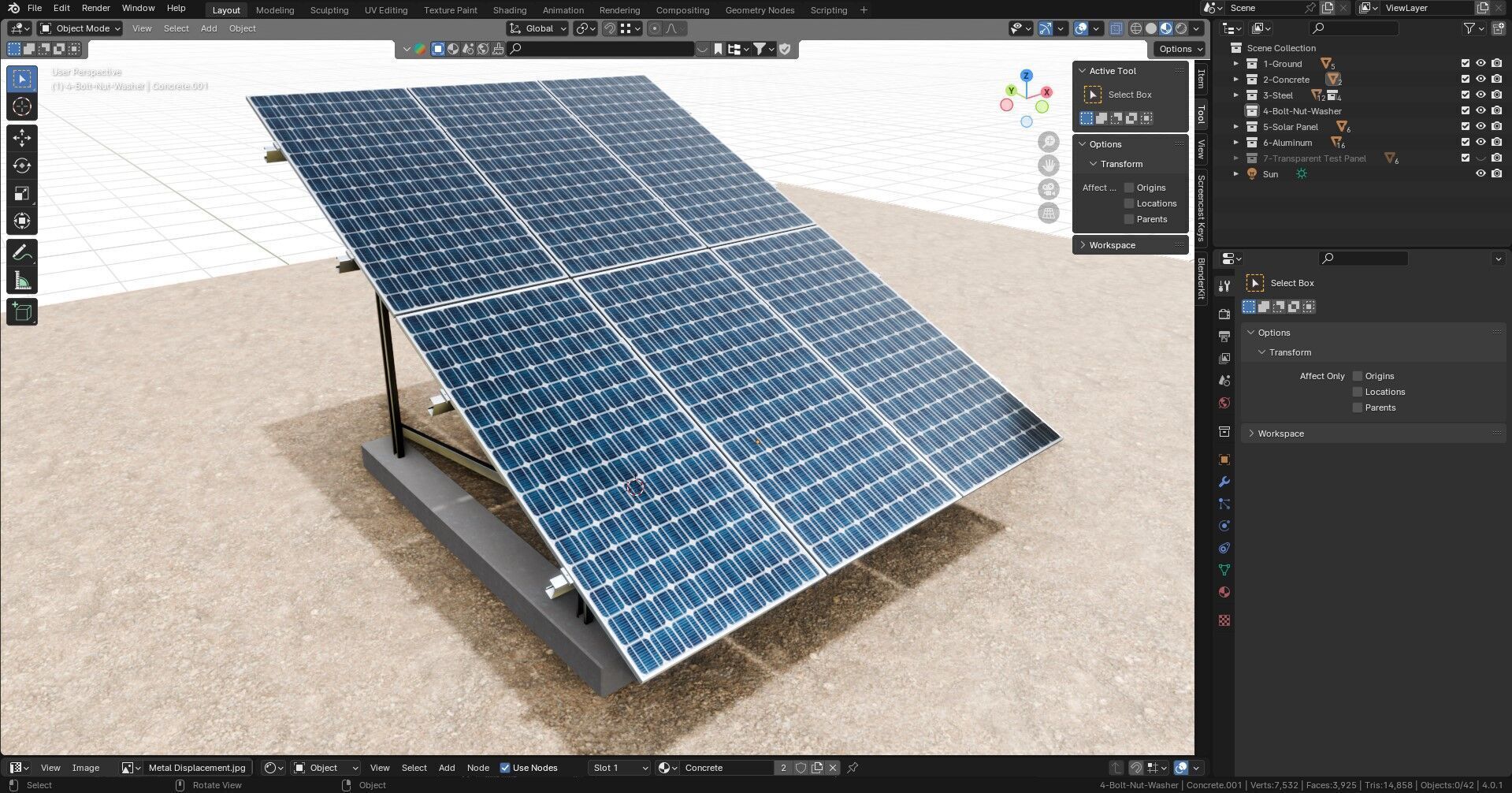

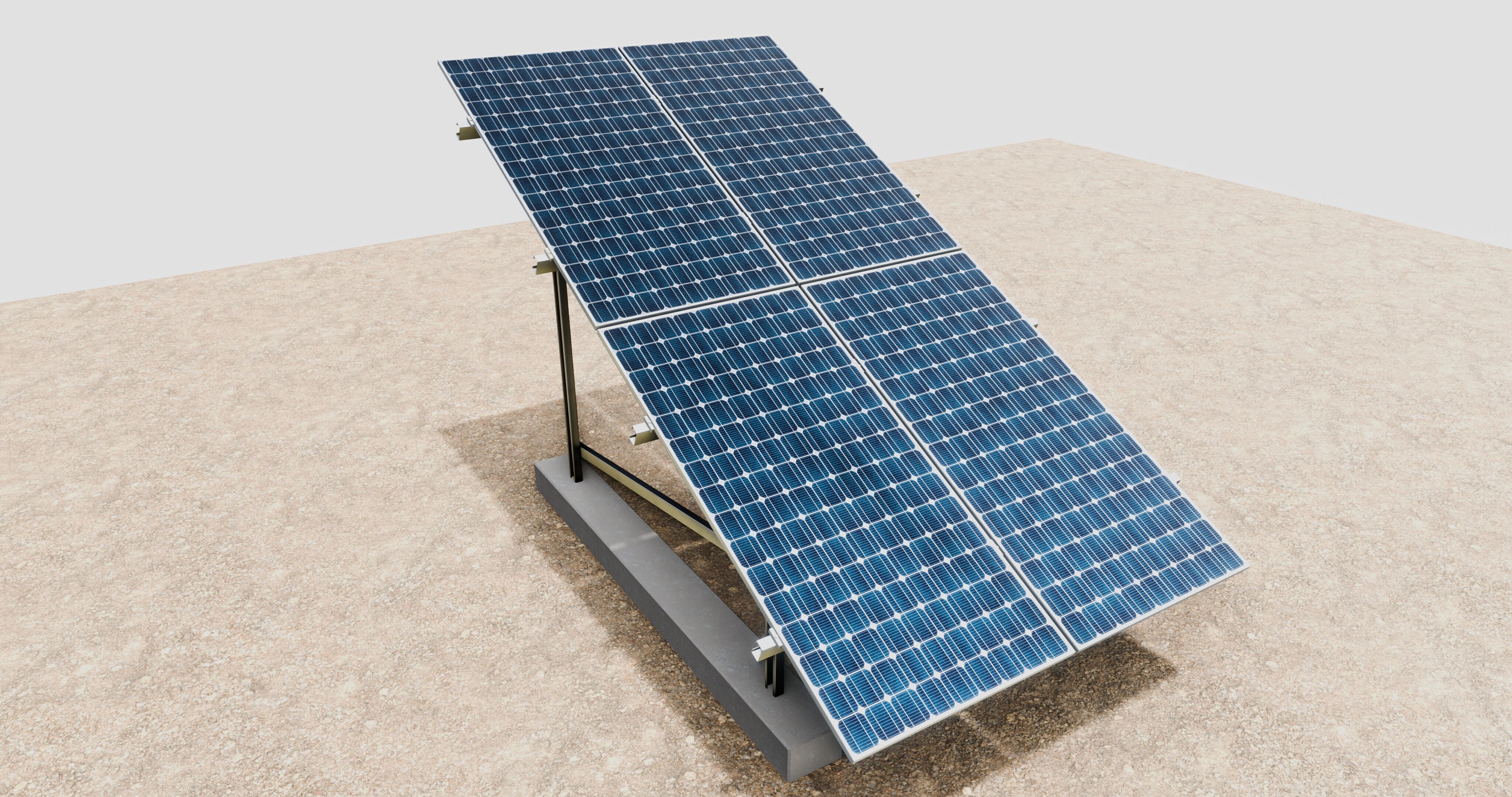

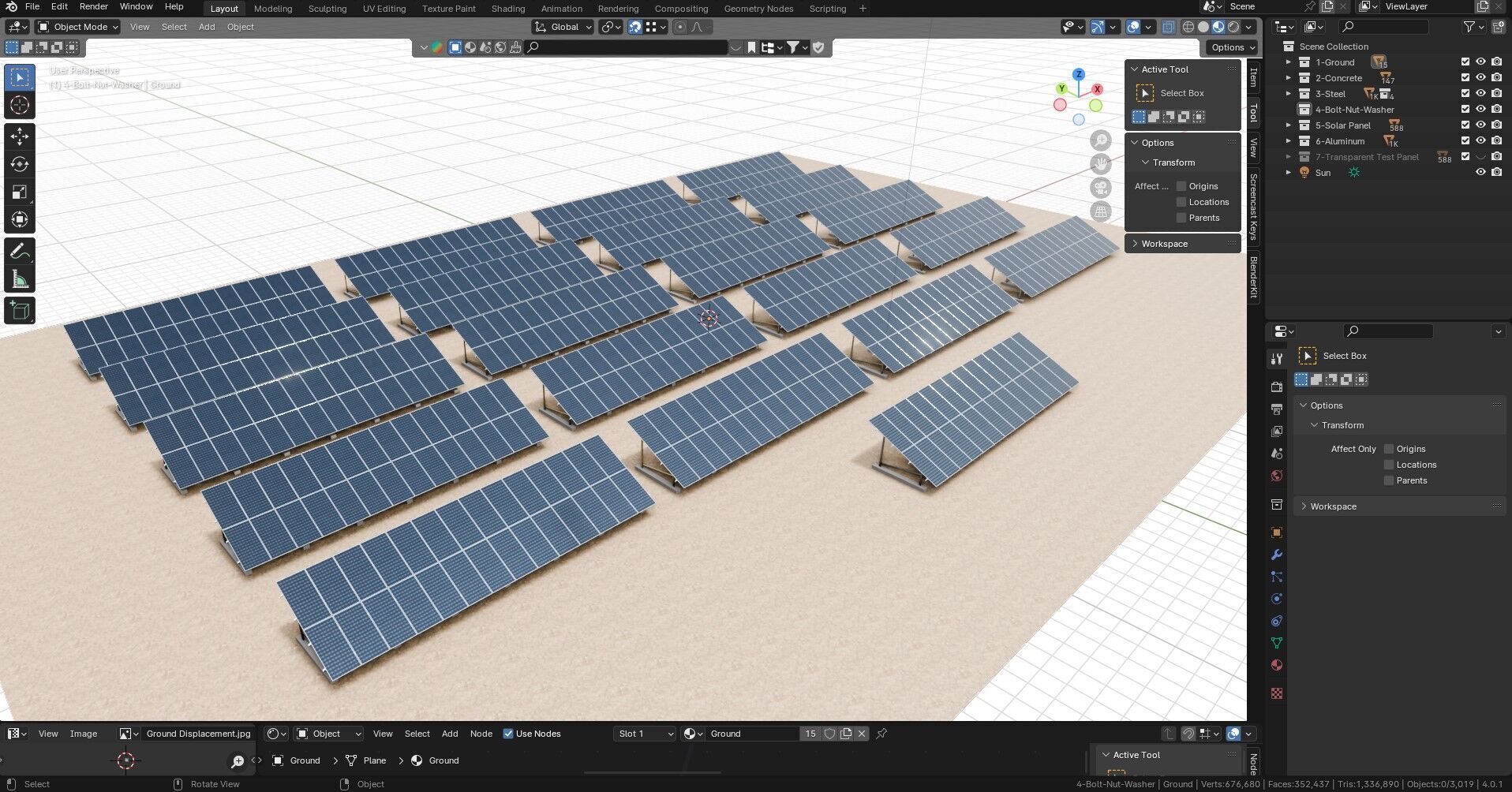

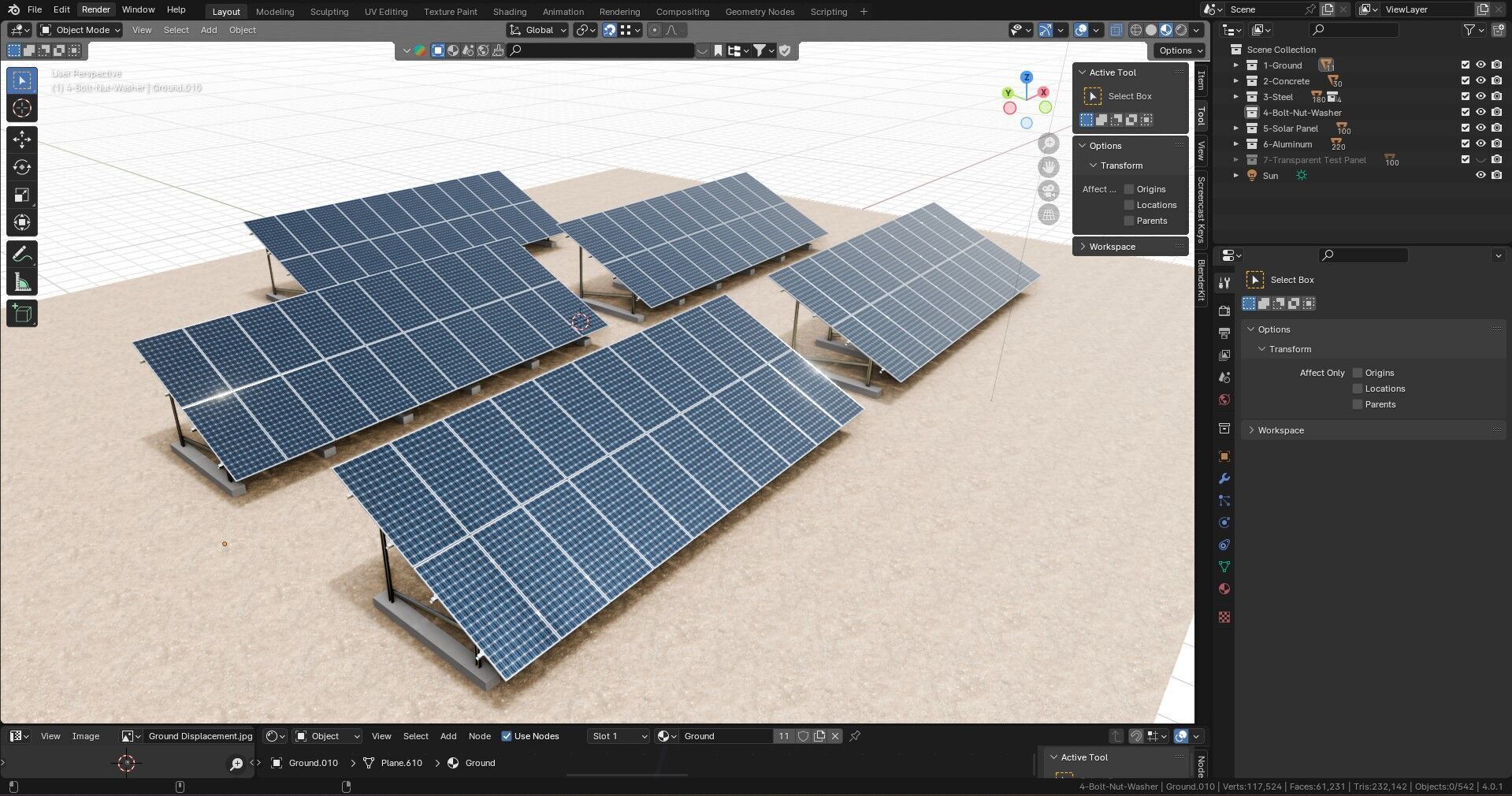

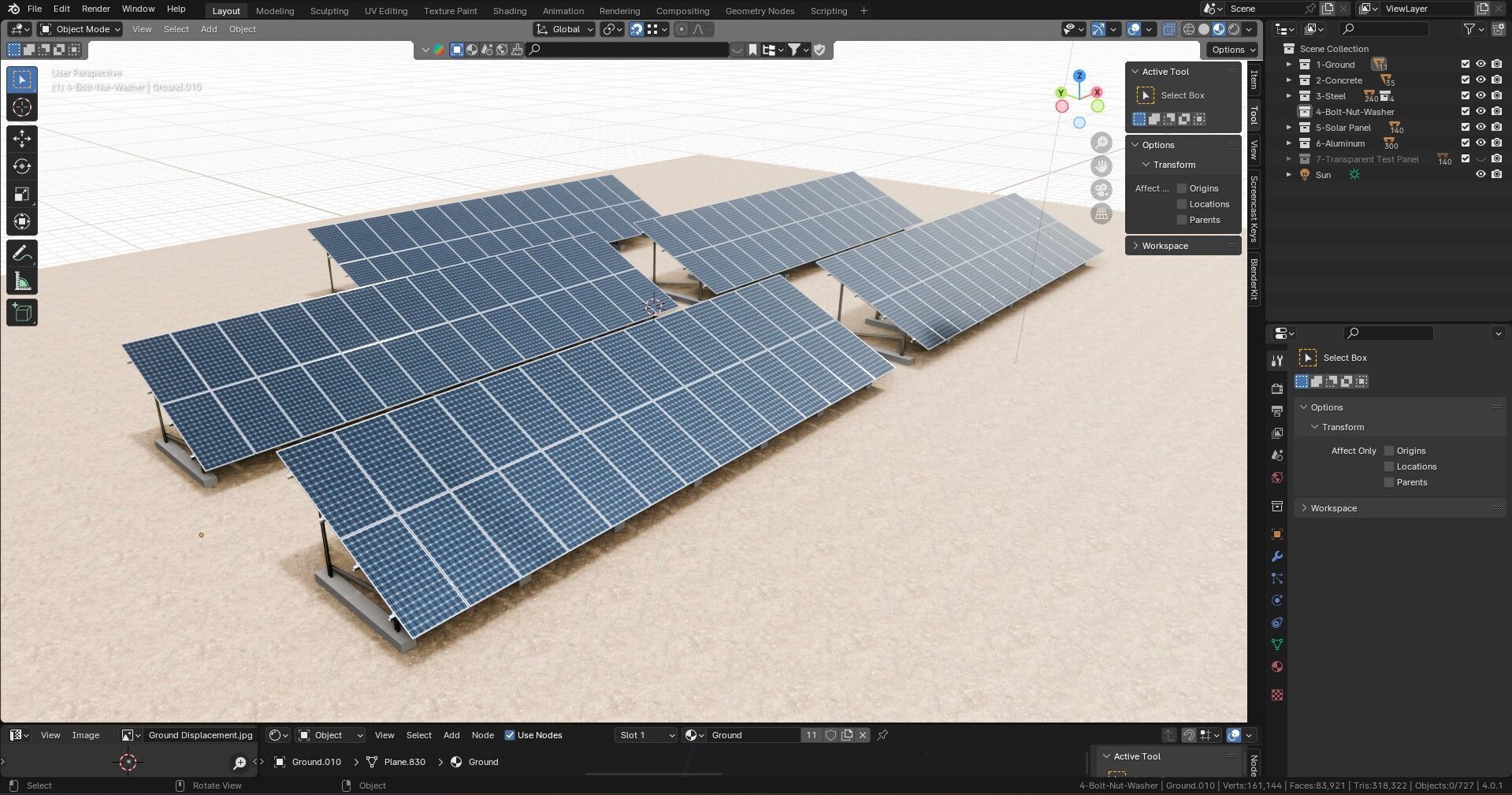

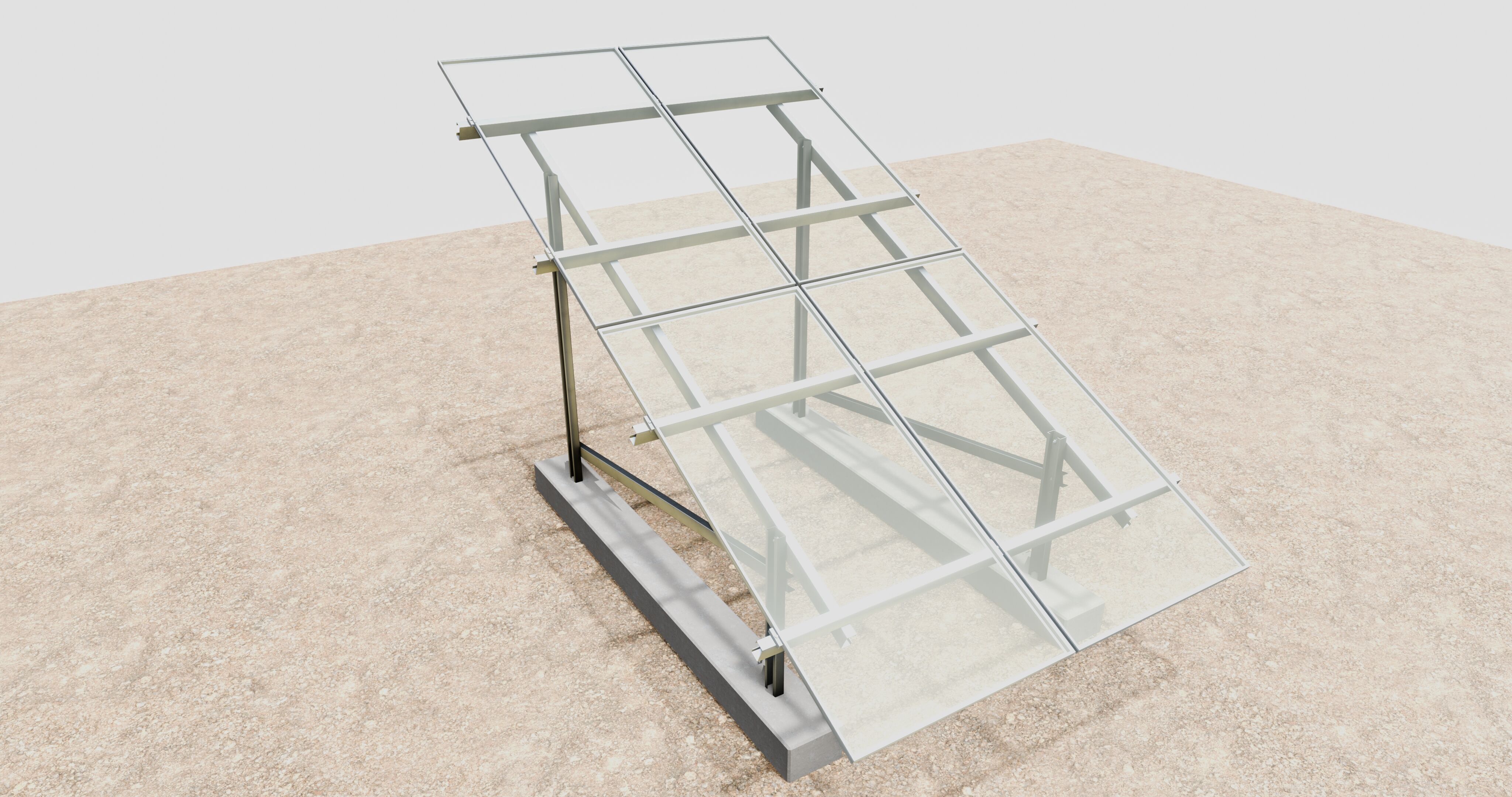

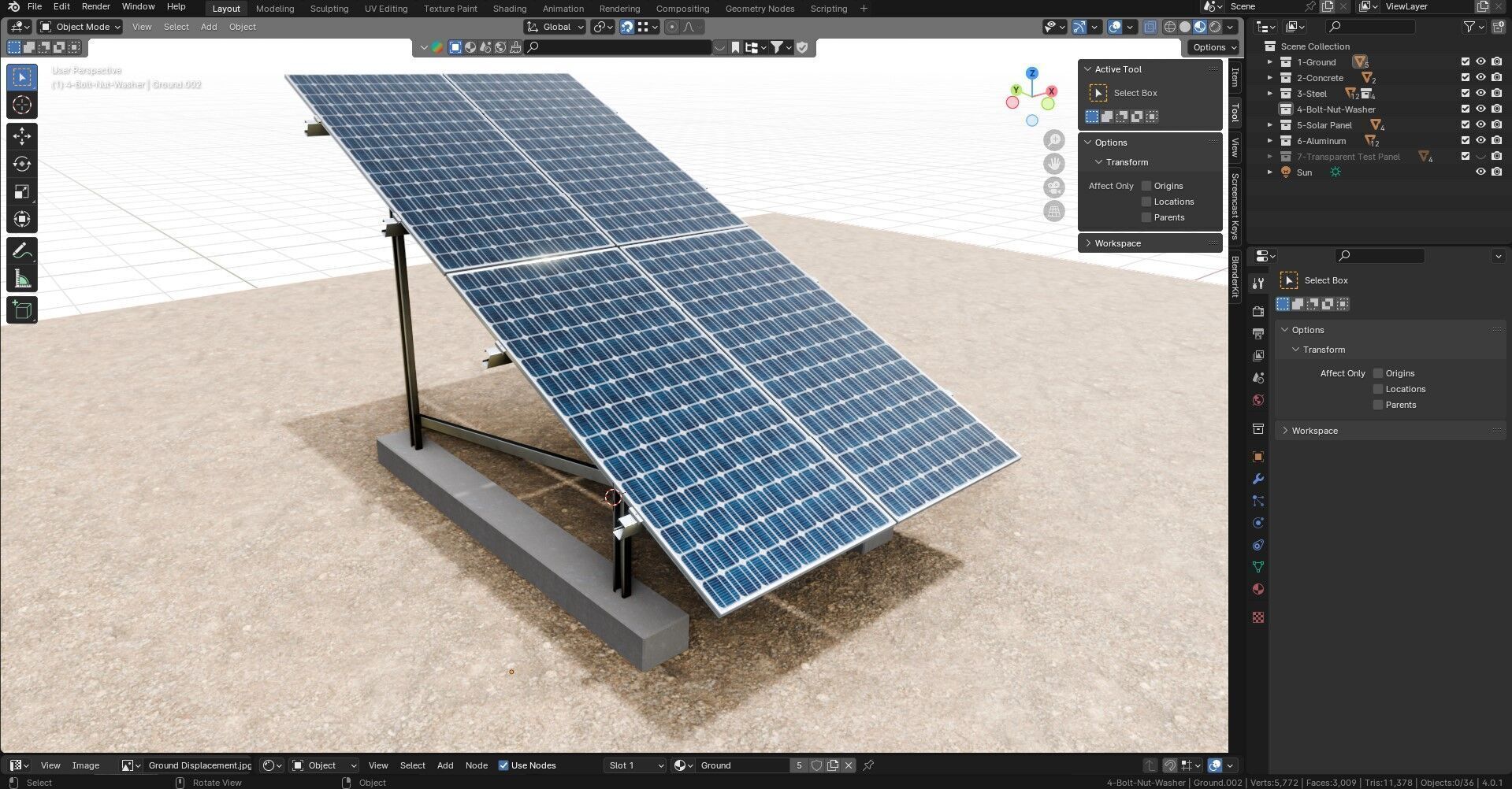

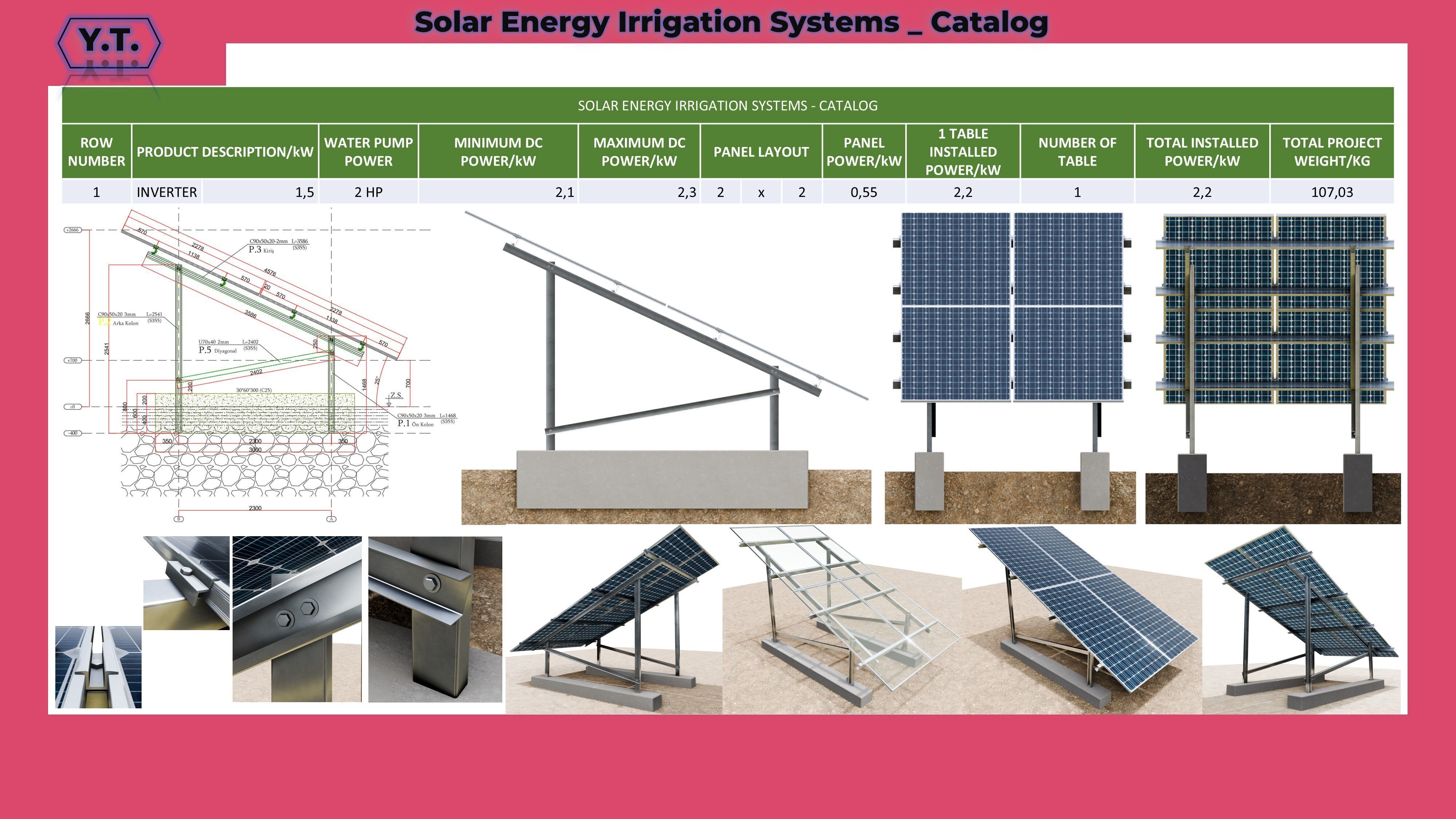

1-Irrigation Solar Power 2HP-2.2kw-2x2 TablePrepared With BLENDER Version 4.0.1Polygons : 3009Vertices : 5772Objects : 36

2-Irrigation Solar Power 3HP-3.3kw-2x3 TablePrepared With BLENDER Version 4.0.1Polygons : 3925Vertices : 7532Objects : 42

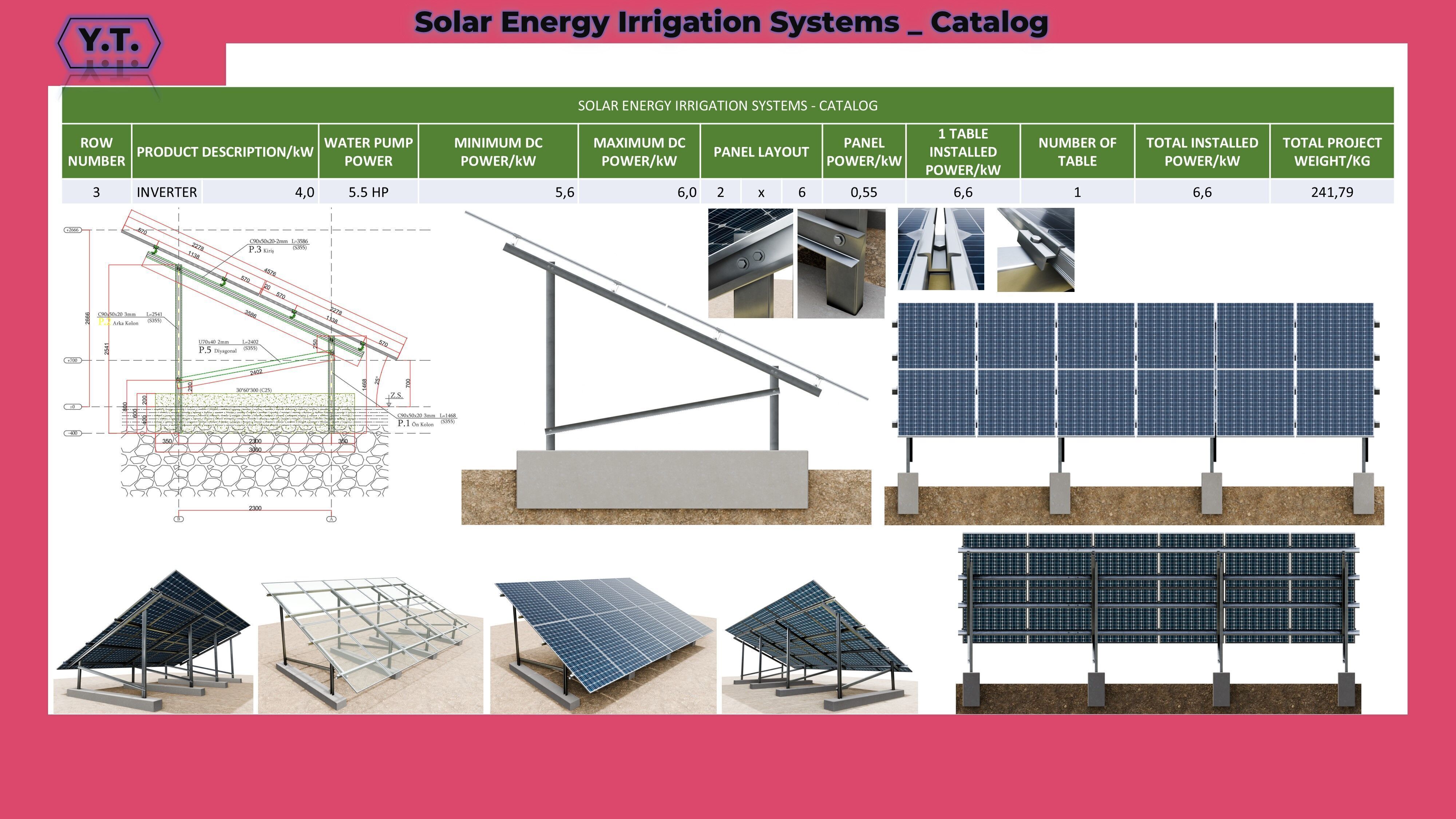

3-Irrigation Solar Power 5.5HP-6.6kw-2x6 TablePrepared With BLENDER Version 4.0.1Polygons : 7893Vertices : 15156Objects : 78

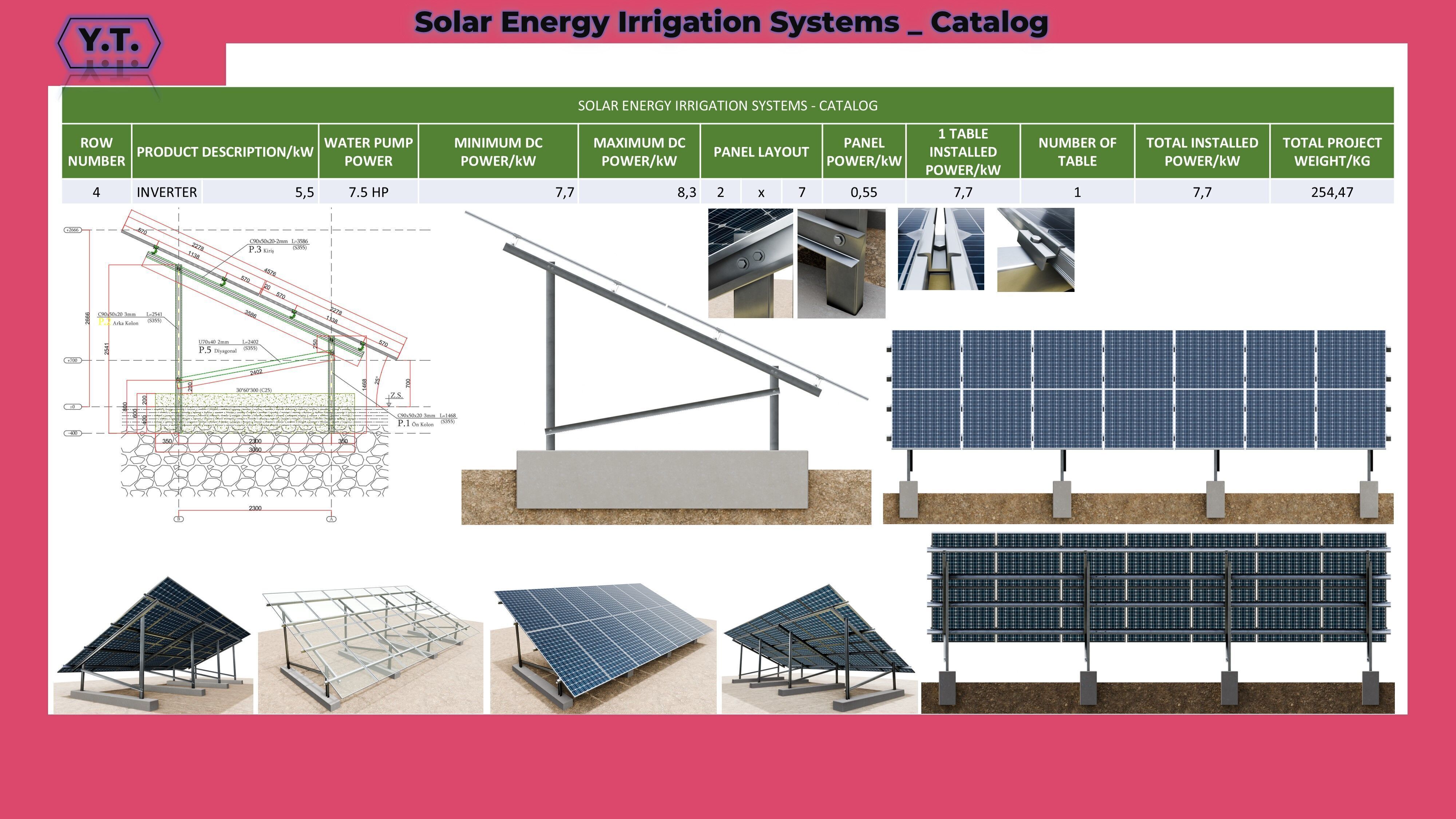

4-Irrigation Solar Power 7.5HP-7.7kw-2x7 TablePrepared With BLENDER Version 4.0.1Polygons : 8809Vertices : 16916Objects : 84

5-Irrigation Solar Power 10HP-11.0kw-2x10 TablePrepared With BLENDER Version 4.0.1Polygons : 12249Vertices : 23516Objects : 112

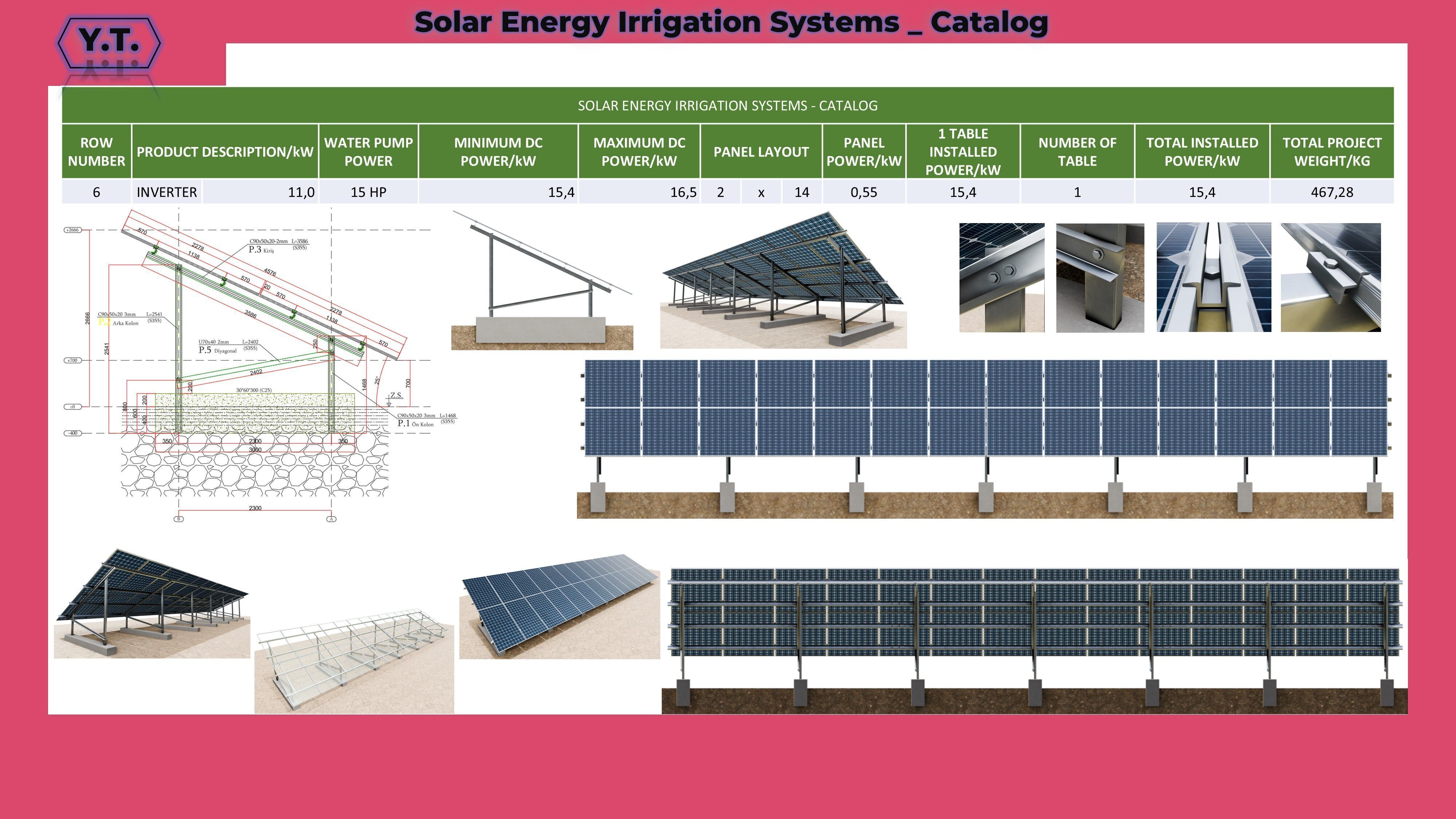

6-Irrigation Solar Power 15HP-15.4kw-2x14 TablePrepared With BLENDER Version 4.0.1Polygons : 16787Vertices : 32240Objects : 149

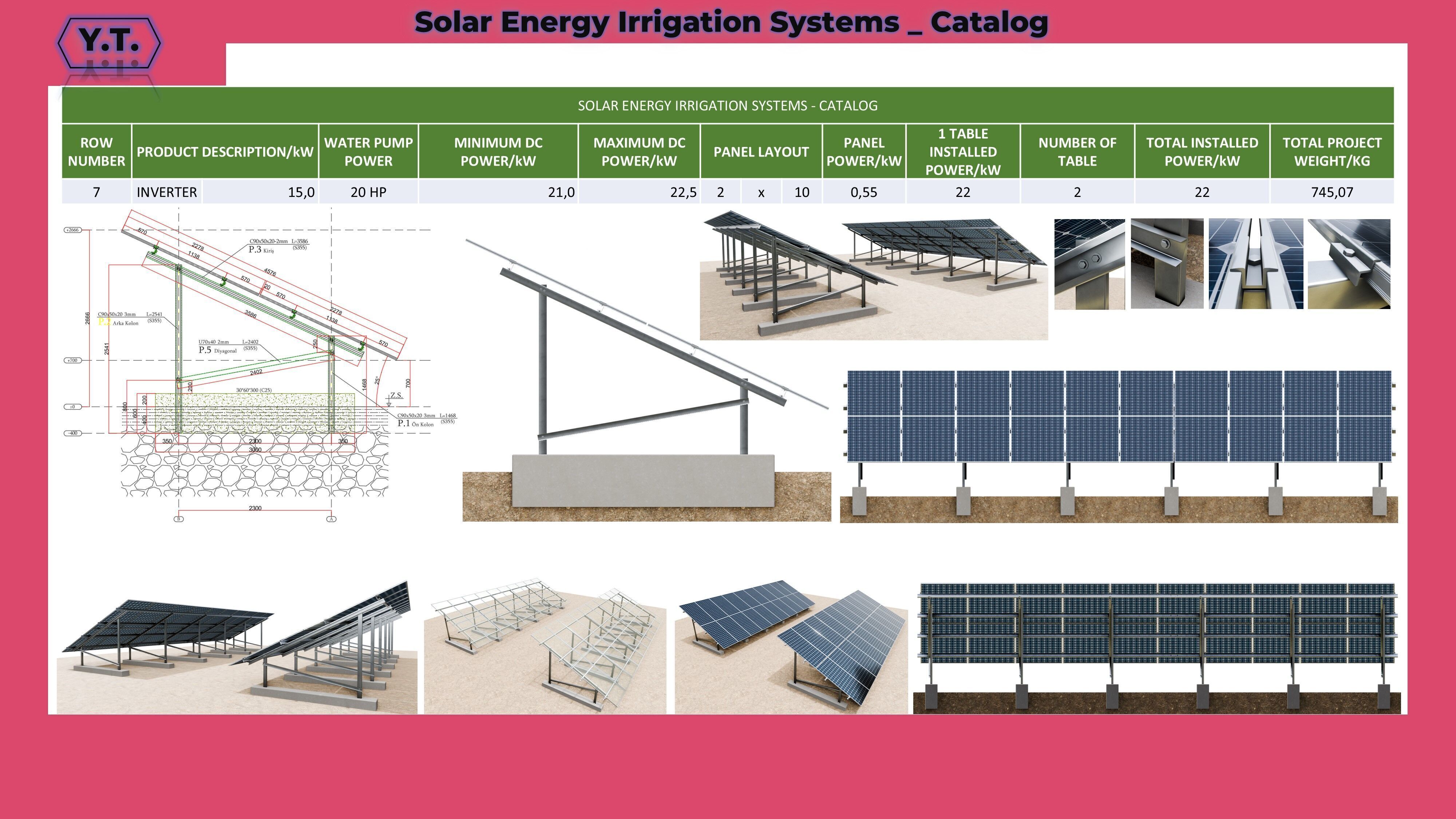

7-Irrigation Solar Power 20HP-22.0kw-2x10 Table-2 pcsPrepared With BLENDER Version 4.0.1Polygons : 24495Vertices : 47020Objects : 220

8-Irrigation Solar Power 25HP-26.4kw-2x12 Table-2 pcsPrepared With BLENDER Version 4.0.1Polygons : 29215Vertices : 56108Objects : 260

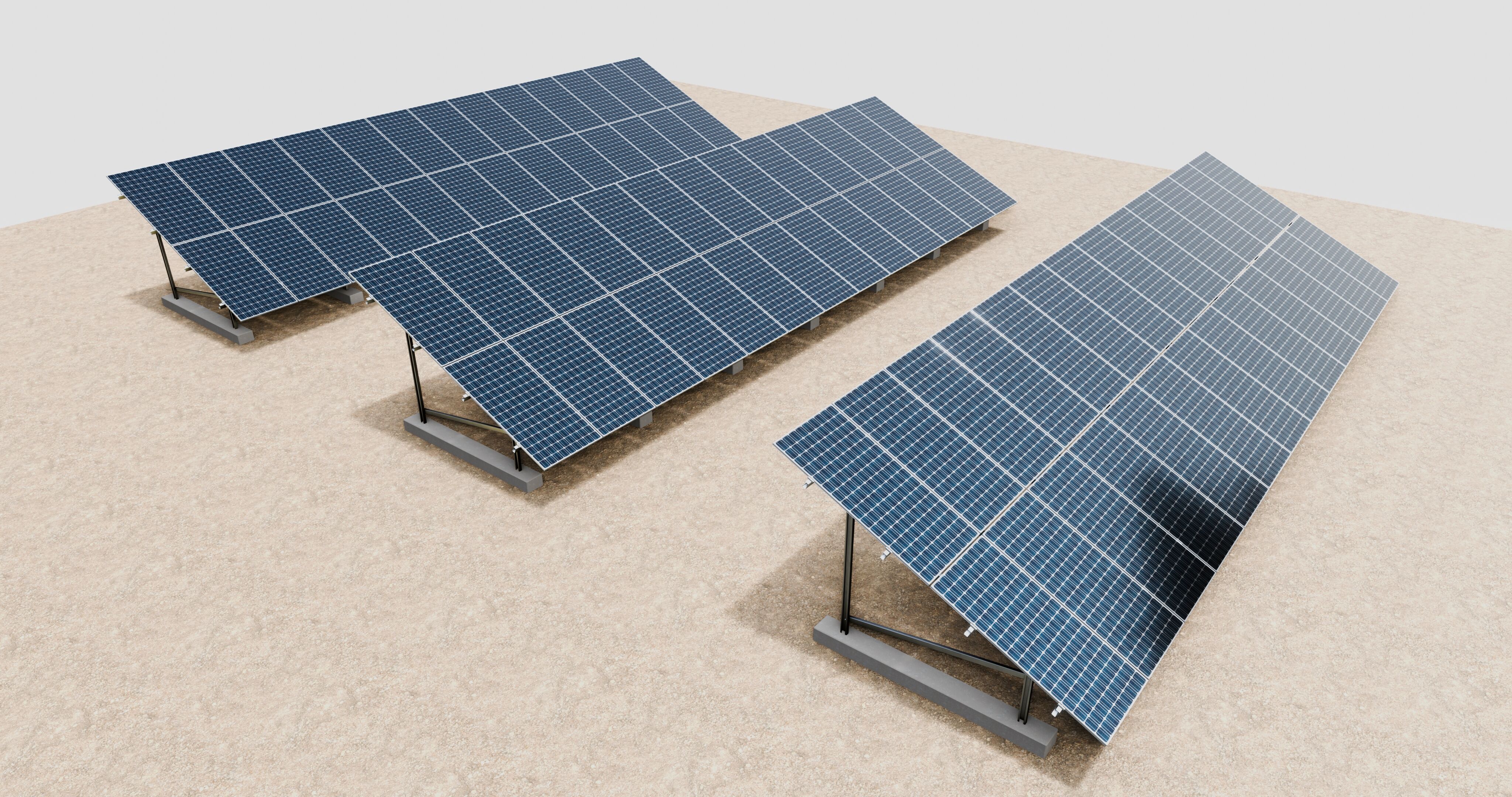

9-Irrigation Solar Power 30HP-30.8kw-2x14 Table-2 pcsPrepared With BLENDER Version 4.0.1Polygons : 33571Vertices : 64468Objects : 294

10-Irrigation Solar Power 40HP-42.9kw-2x13 Table-3 pcsPrepared With BLENDER Version 4.0.1Polygons : 47607Vertices : 91416Objects : 421

11-Irrigation Solar Power 50HP-55.0kw-2x10 Table-5 pcsPrepared With BLENDER Version 4.0.1Polygons : 61231Vertices : 117524Objects : 542

12-Irrigation Solar Power 60HP-66.0kw-2x10 Table-6 pcsPrepared With BLENDER Version 4.0.1Polygons : 73473Vertices : 141012Objects : 646

13-Irrigation Solar Power 75HP-77.0kw-2x14 Table-5 pcsPrepared With BLENDER Version 4.0.1Polygons : 83921Vertices : 161144Objects : 727

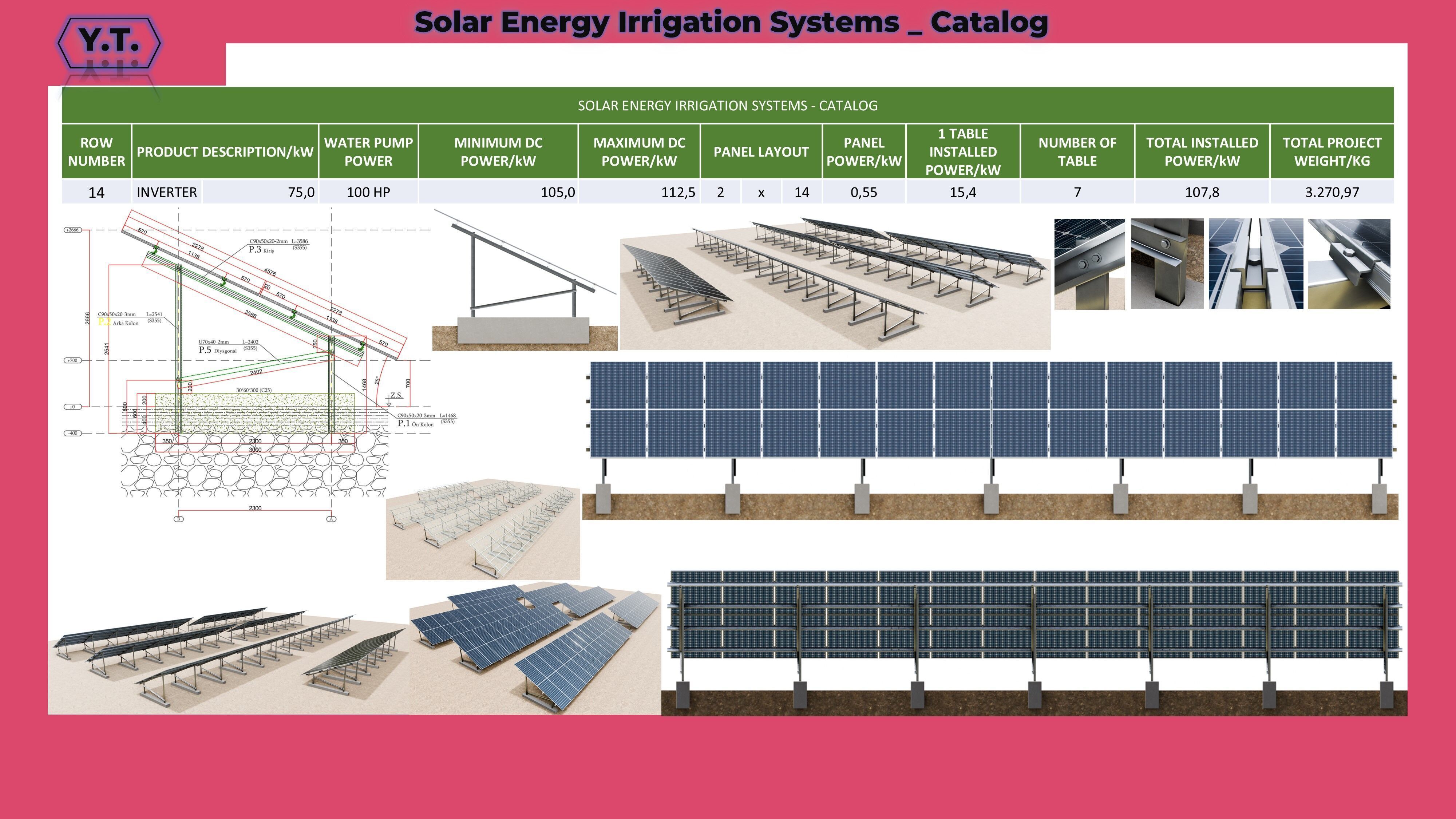

14-Irrigation Solar Power 100HP-107.8kw-2x14 Table-7 pcsPrepared With BLENDER Version 4.0.1Polygons : 117487Vertices : 225592Objects : 1015

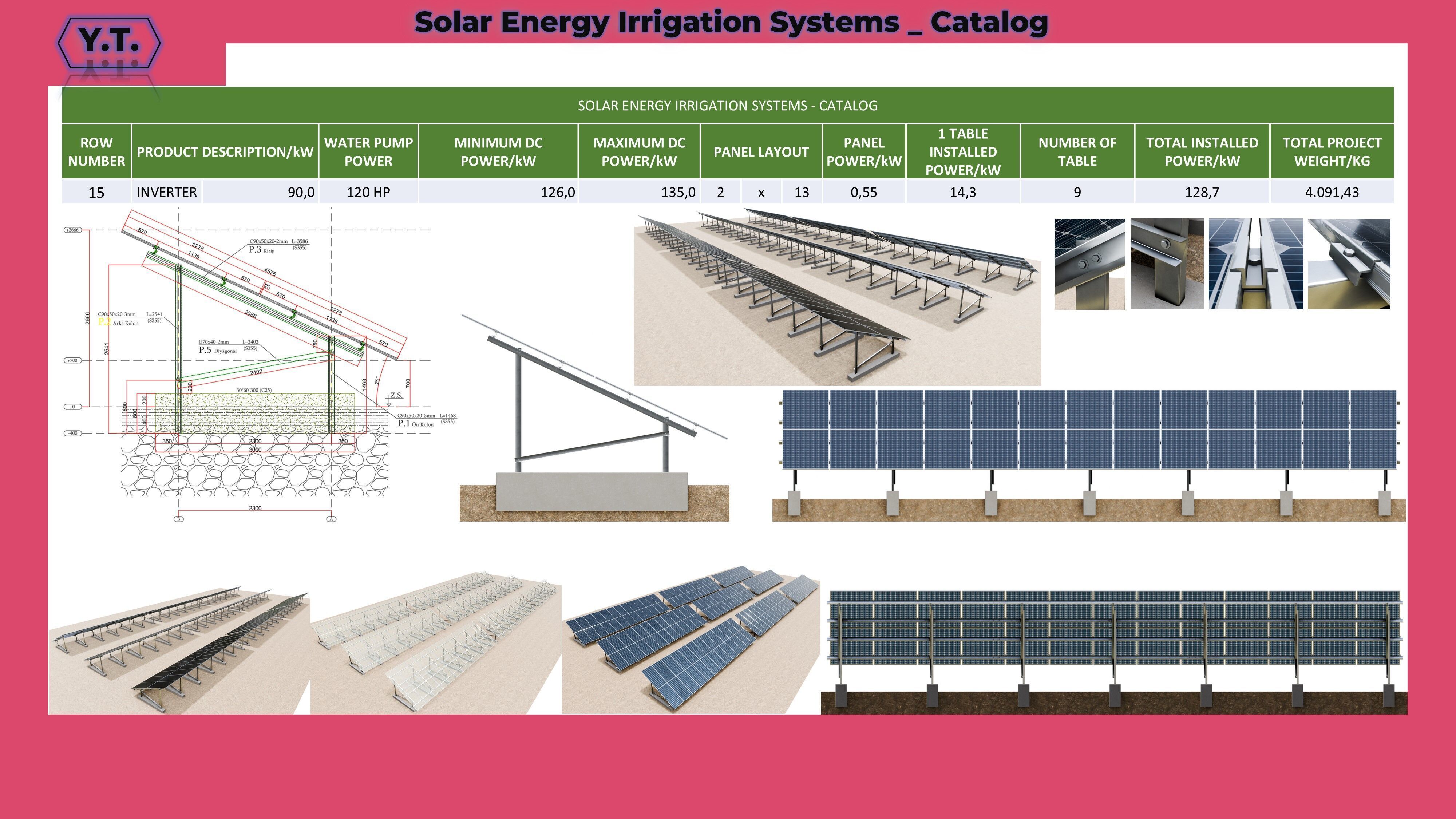

15-Irrigation Solar Power 120HP-128.7kw-2x13 Table-9 pcsPrepared With BLENDER Version 4.0.1Polygons : 142807Vertices : 274192Objects : 1247

16-Irrigation Solar Power 147HP-157.3kw-2x13 Table-11 pcsPrepared With BLENDER Version 4.0.1Polygons : 174541Vertices : 335120Objects : 1523

17-Irrigation Solar Power 177HP-185.9kw-2x13 Table-13 pcsPrepared With BLENDER Version 4.0.1Polygons : 206275Vertices : 396048Objects : 1799

18-Irrigation Solar Power 213HP-231.0kw-2x14 Table-15 pcsPrepared With BLENDER Version 4.0.1Polygons : 251741Vertices : 483344Objects : 2157

19-Irrigation Solar Power 240HP-261.8kw-2x14 Table-17 pcsPrepared With BLENDER Version 4.0.1Polygons : 285307Vertices : 547792Objects : 2445

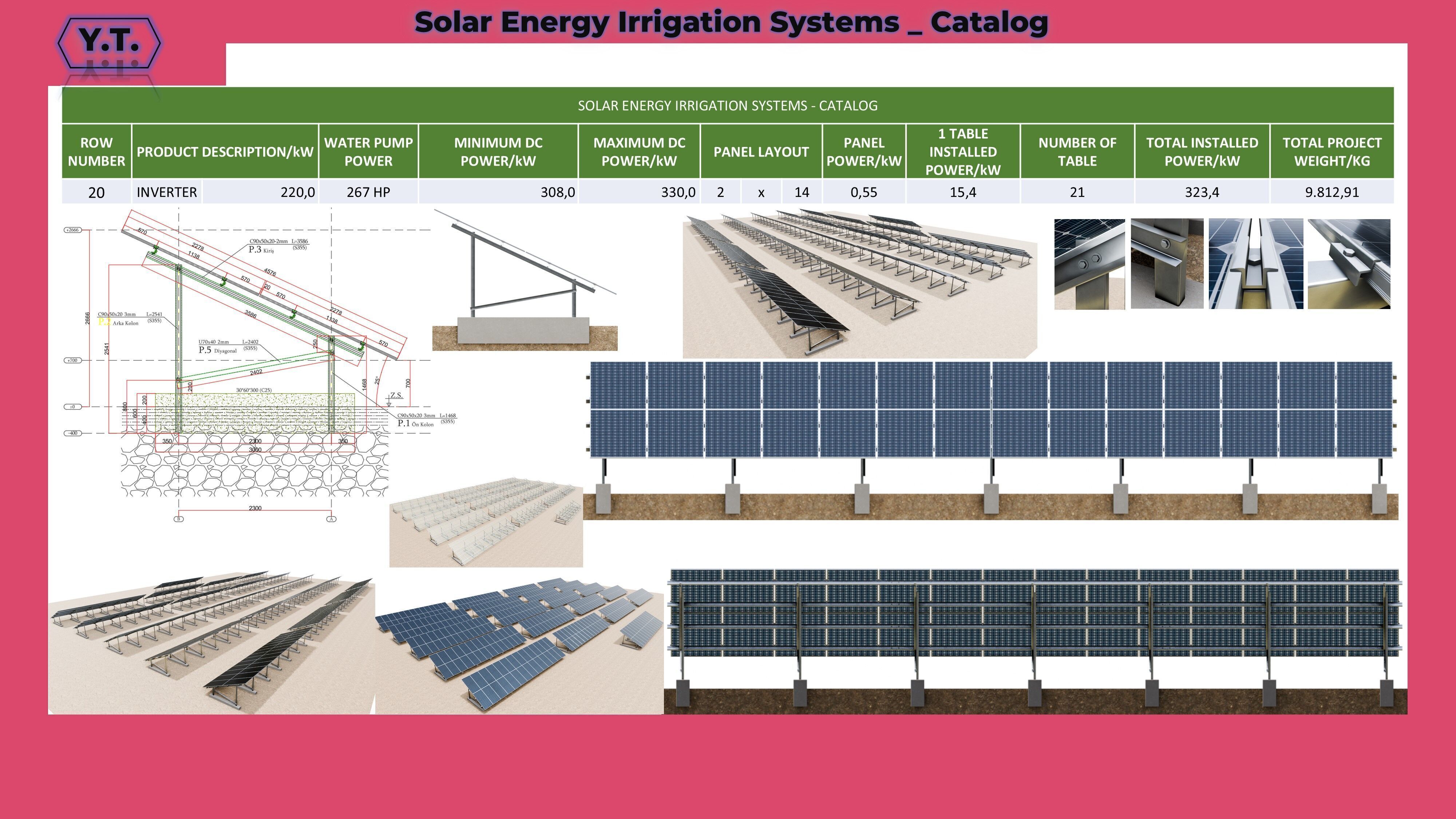

20-Irrigation Solar Power 267HP-323.4kw-2x14 Table-21 pcsPrepared With BLENDER Version 4.0.1Polygons : 352437Vertices : 676680Objects : 3019

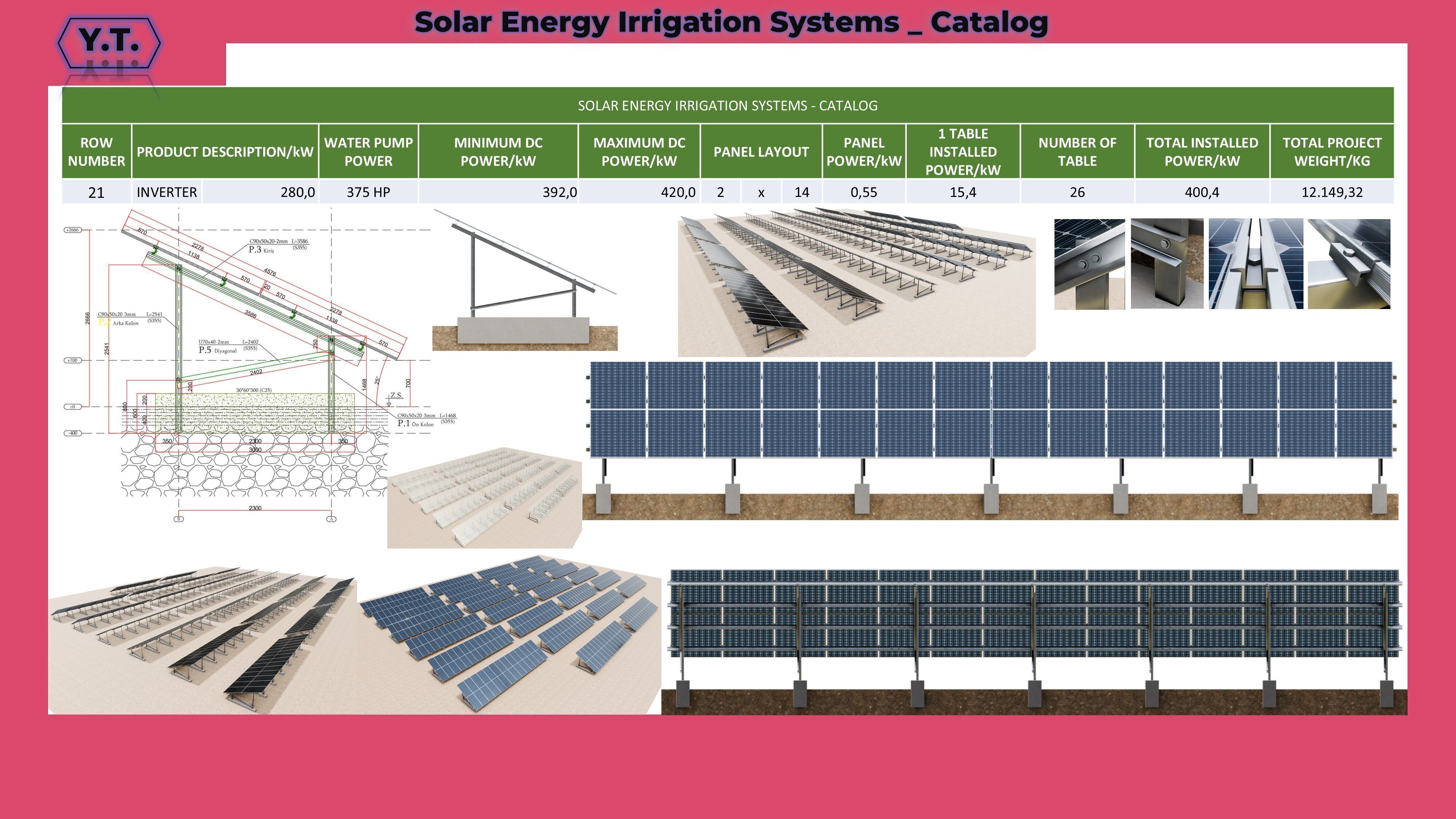

21-Irrigation Solar Power 375HP-400.4kw-2x14 Table-26 pcsPrepared With BLENDER Version 4.0.1Polygons : 436349Vertices : 837788Objects : 3736
