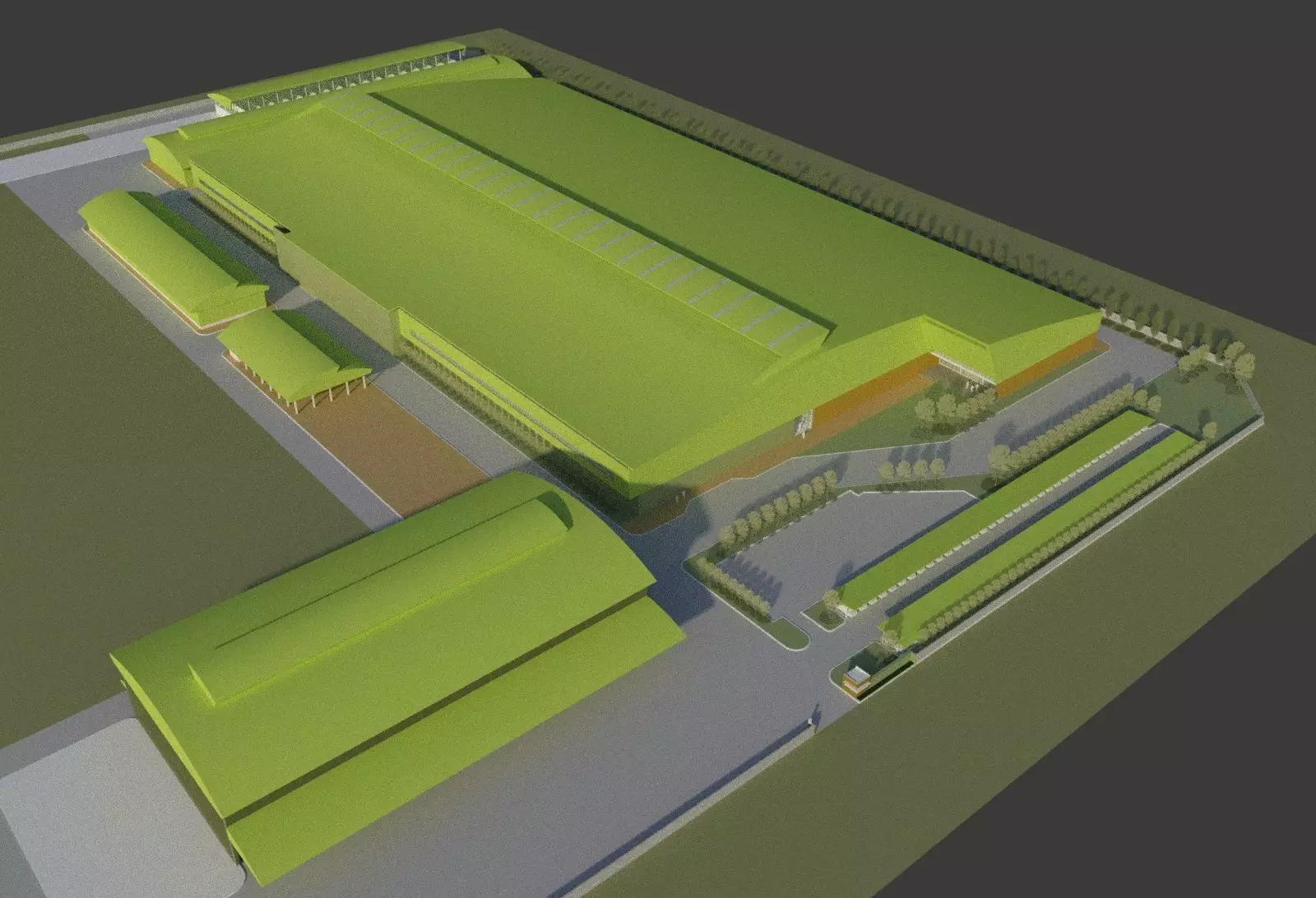

Factory layout -01 3D model

Sanitaryware factory

Building design concept

• Envioronment

  • Bring the environment sustainable concern to overall project’s design such as ;
  • Roof’s Light color tone to reflect sunlight & reduce the building’s temperature
  • Gain more daylight into the building
  • Gain more Green area to reduce heat from concrete or hardscape area

• Function

  • Concern for usage, function zone for user such as ;
  • Single access - Parking to control cars & motorcycles
  • Separating Office for
  • Gaining Daylight & Ventilation
  • Easy perception for visitor
  • Single curve roofing to
  • Minimise the roof’s gutter scope & maintenance
  • Heat collected inside the building for product curing

• Safety

  • Bring the safety concern to design and construction such as ;
  • Number of access (including Fire exit)
  • Detail for worker between construction

• Project info :

  • Factory area : 40,000 sq.m. ; size : 192 m. x 118 m.
  • Office area : 1,300 sq.m. ; size : 36 m. x 18 m.
