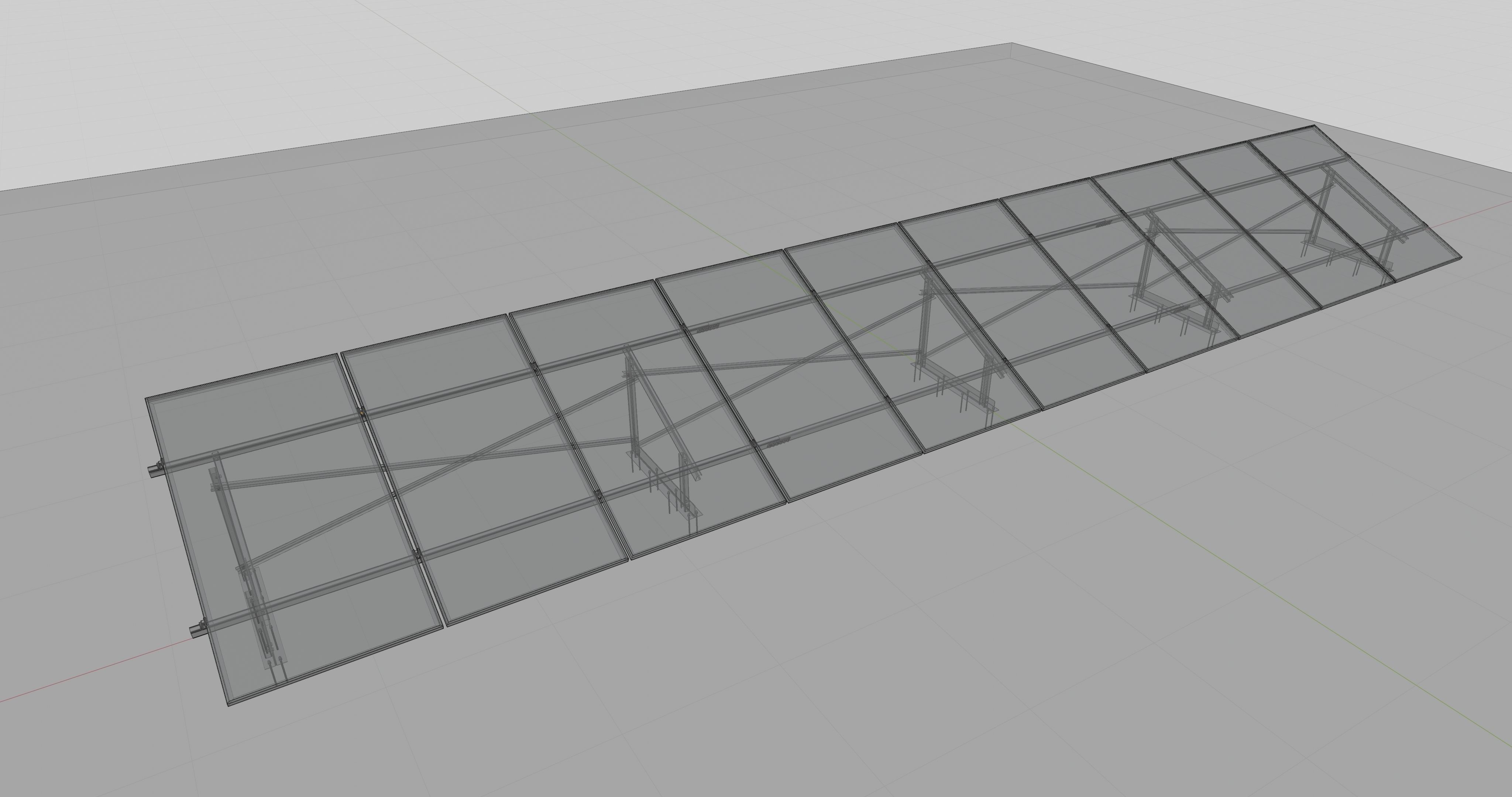

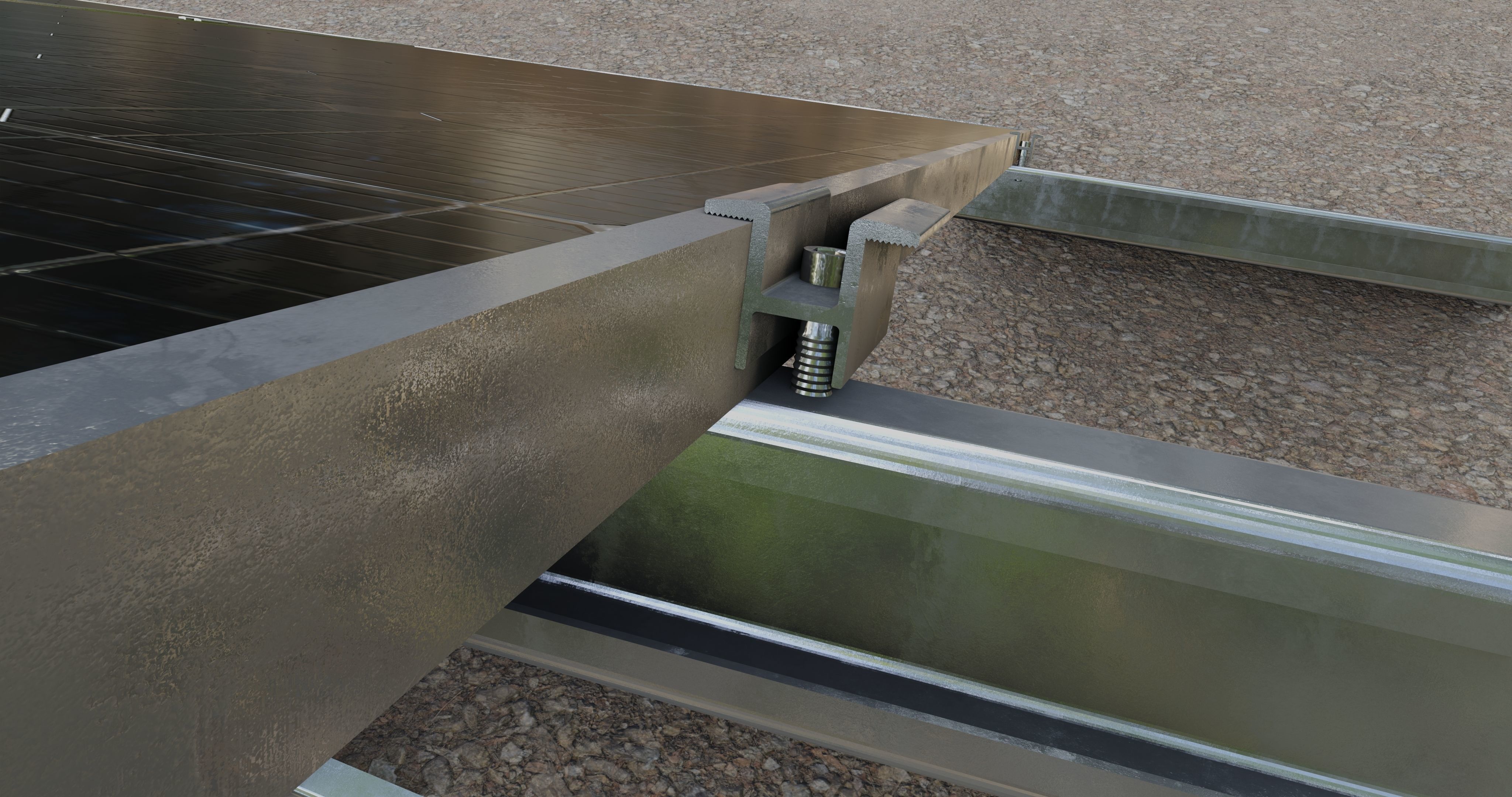

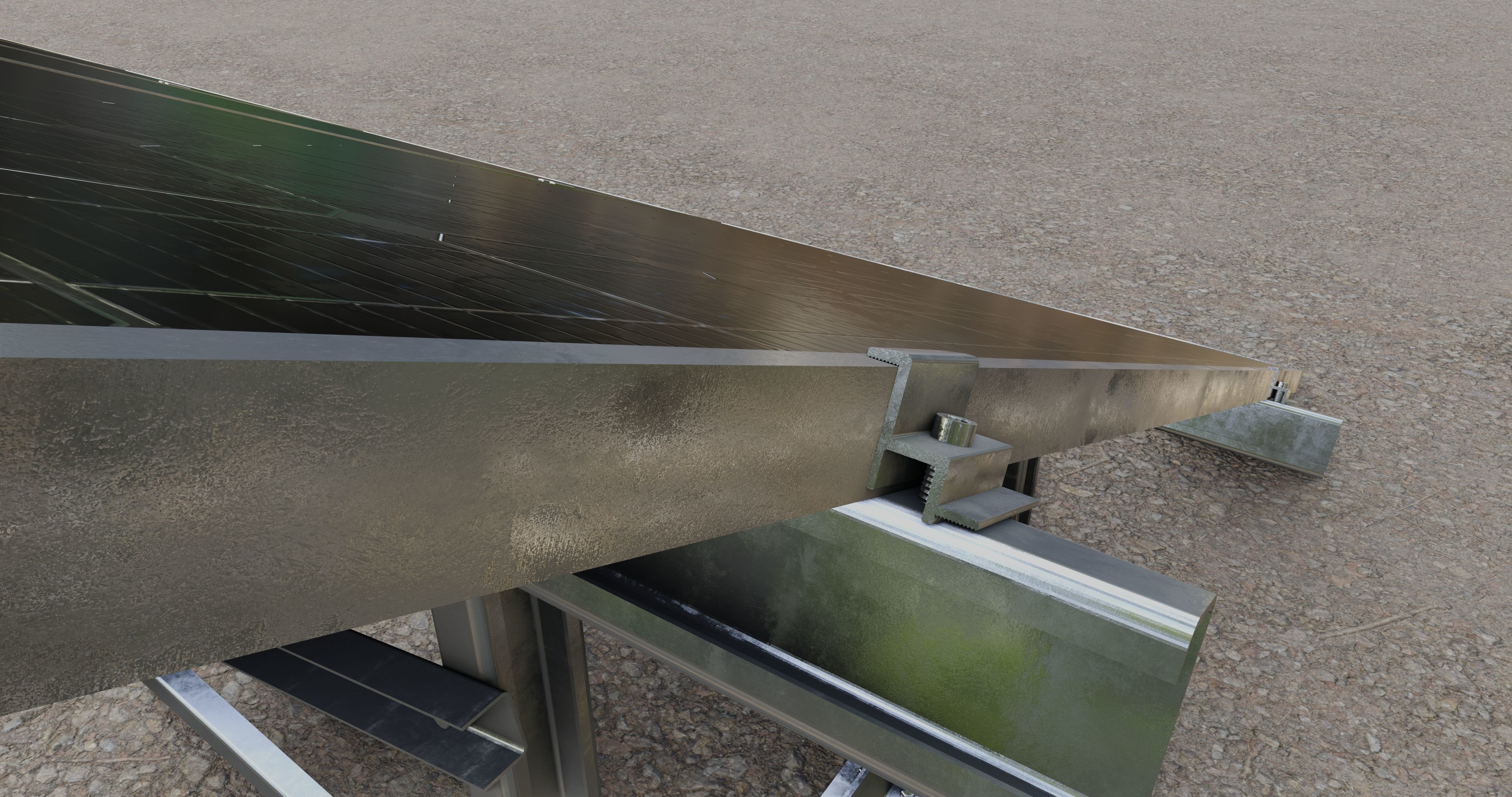

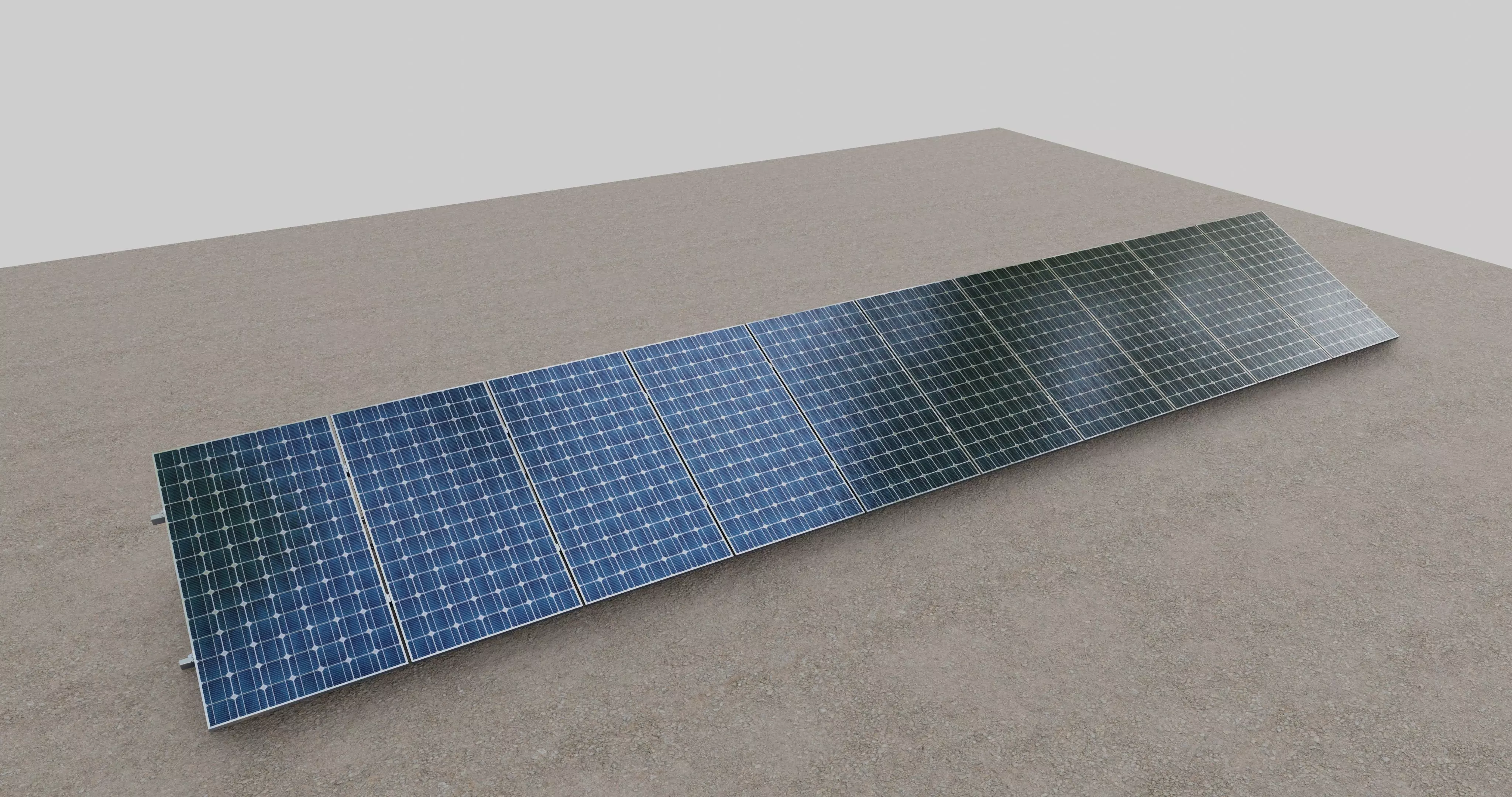

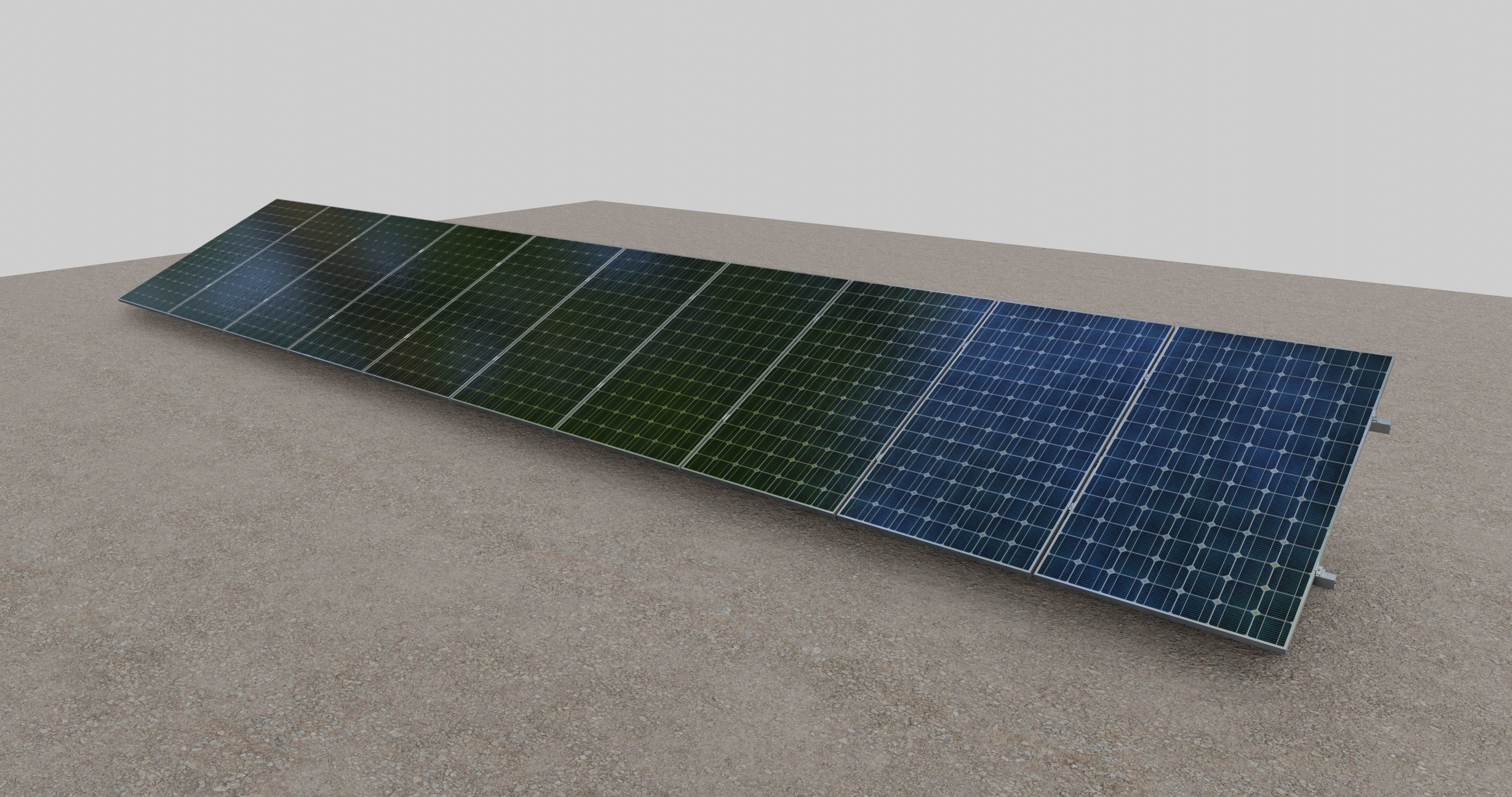

Roof Type Solar Panel Steel Construction 3D model
Description

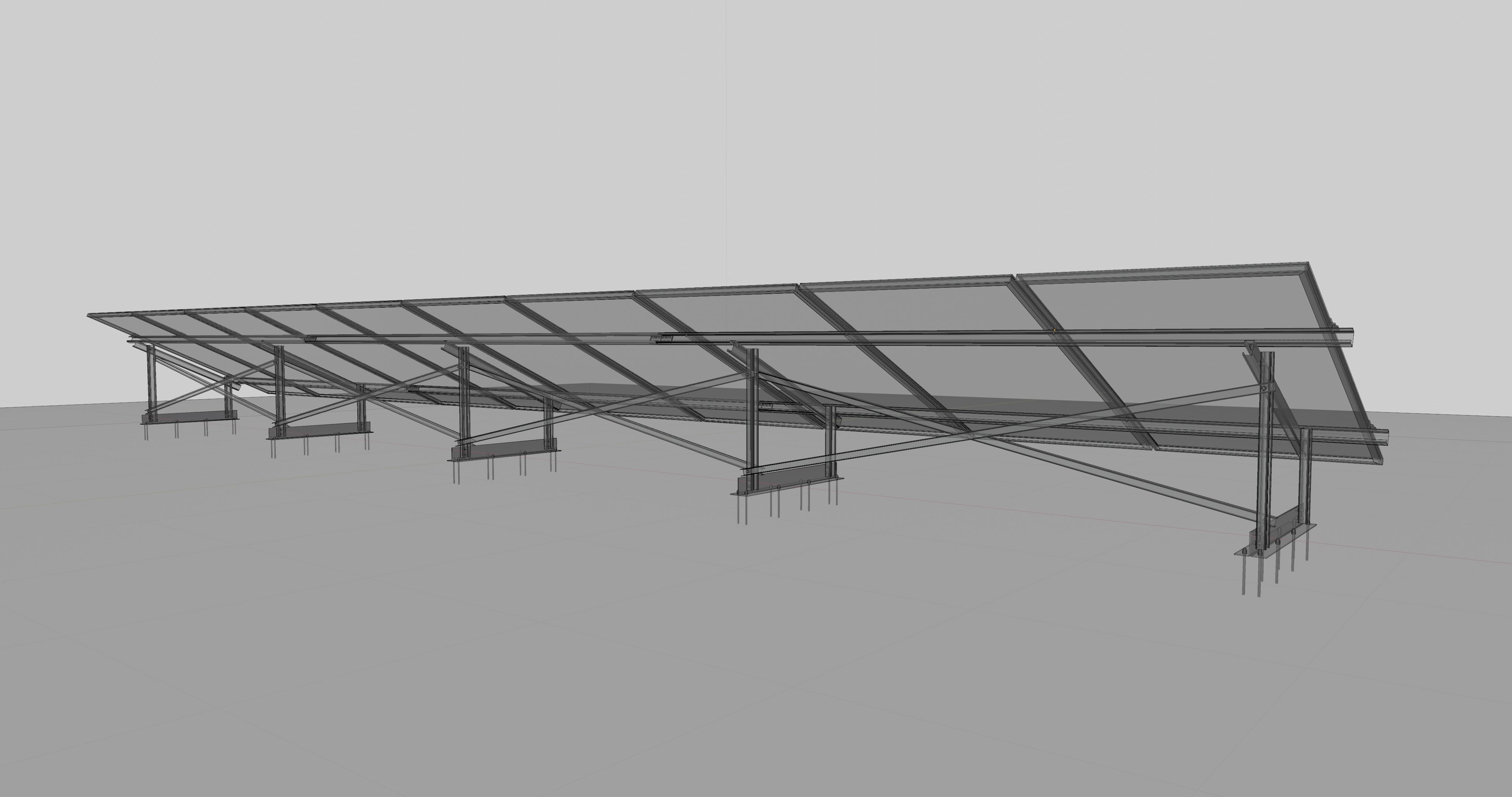

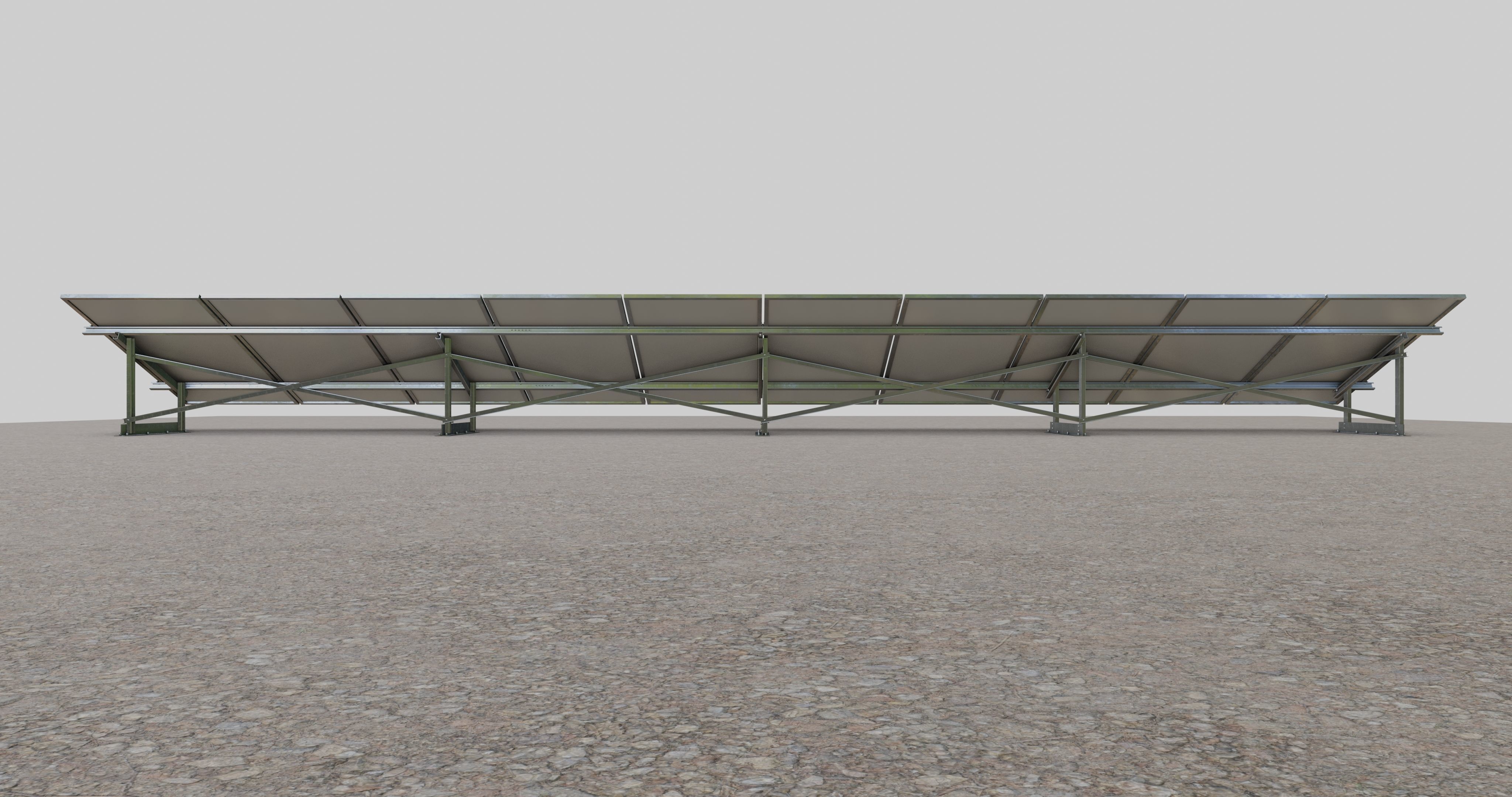

Roof Type Solar Panel Steel Construction

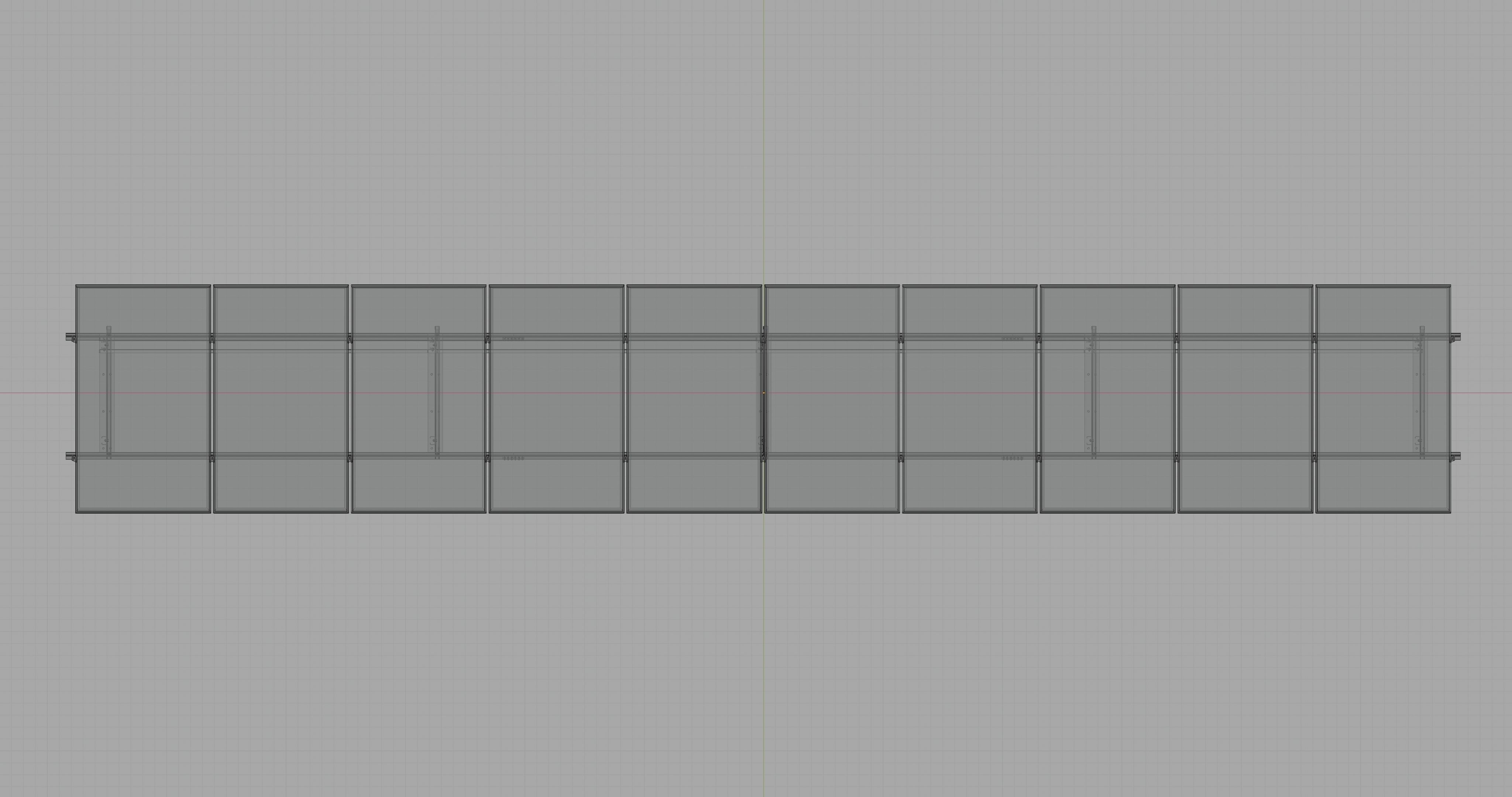

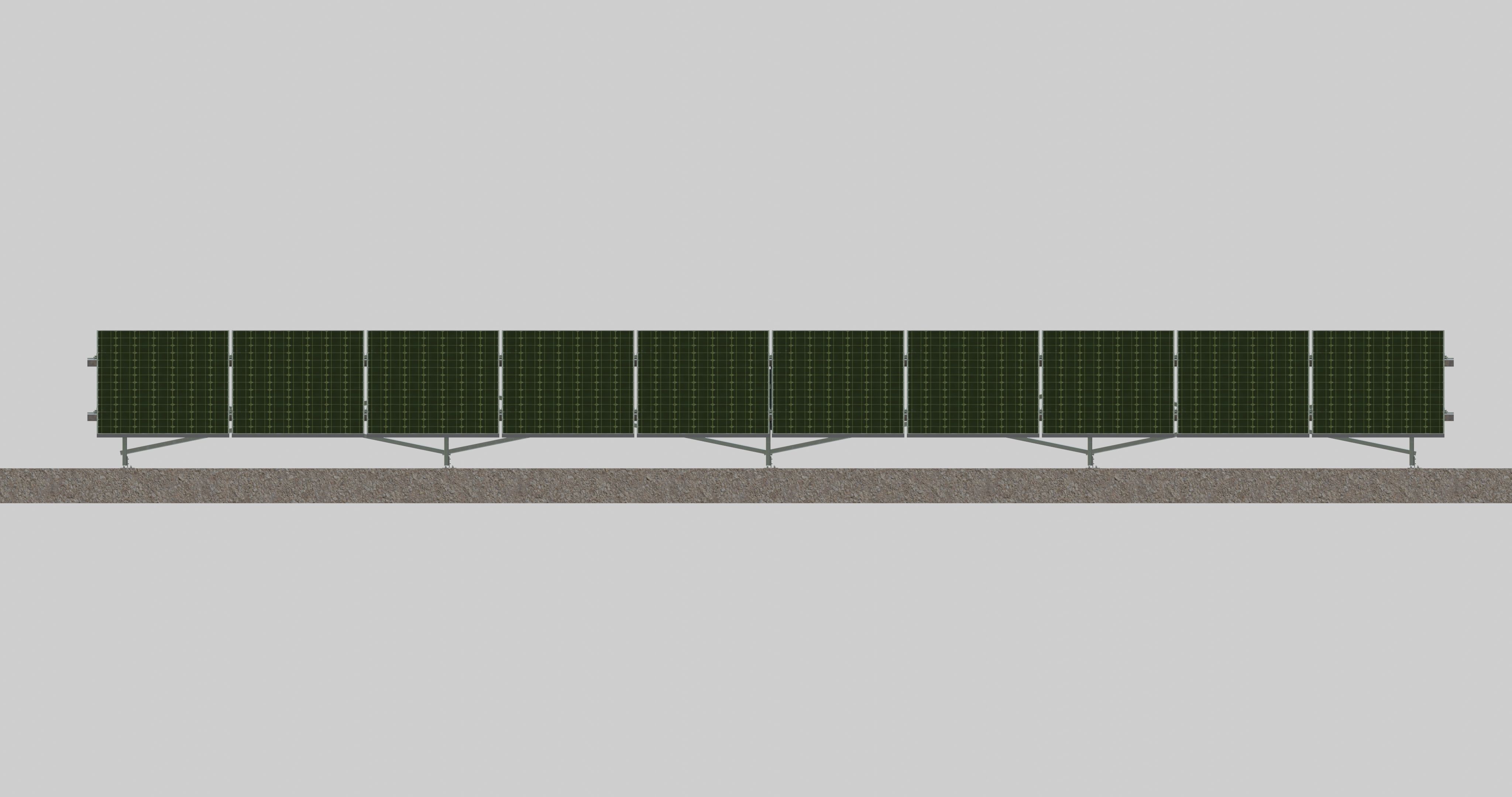

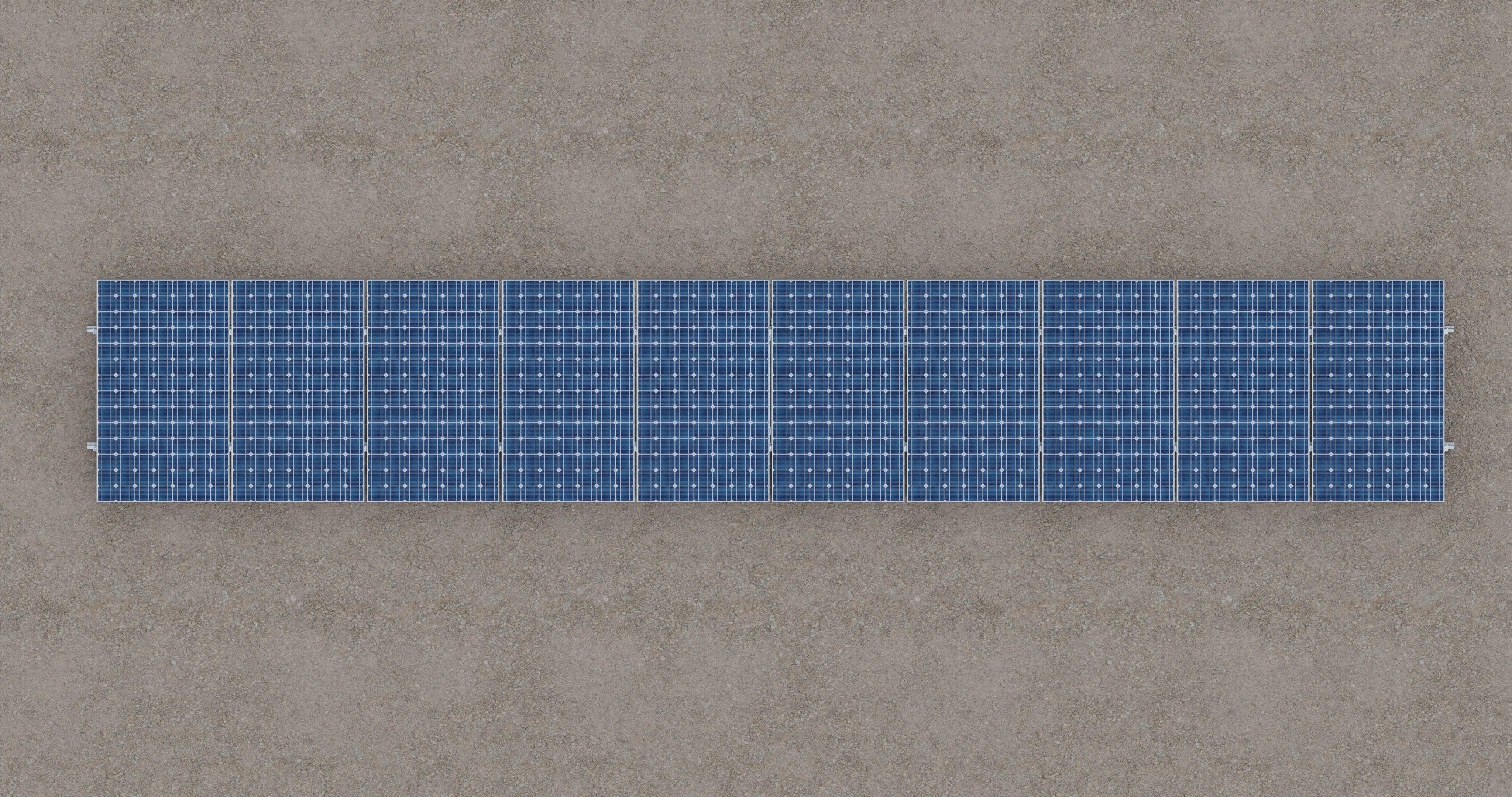

1x10 Vertical Panel Layout

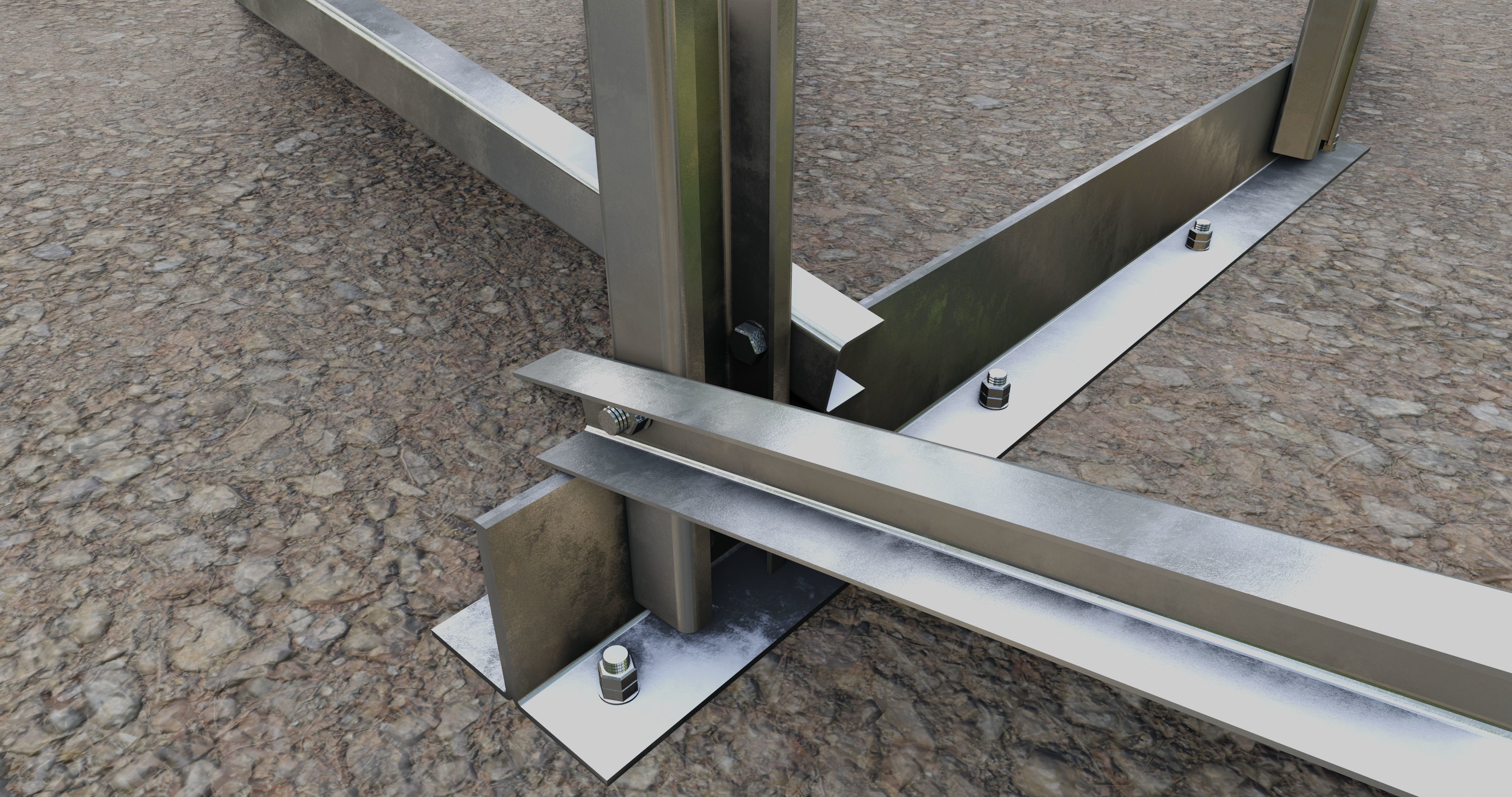

Roof Floor Connection Type; With Anchors
Panel Dimensions : 1909 x 1134 x 35 mm
Panel Power : 450Wp
1 solar panel steel construction produces 4,5 kWp power in 1 hour

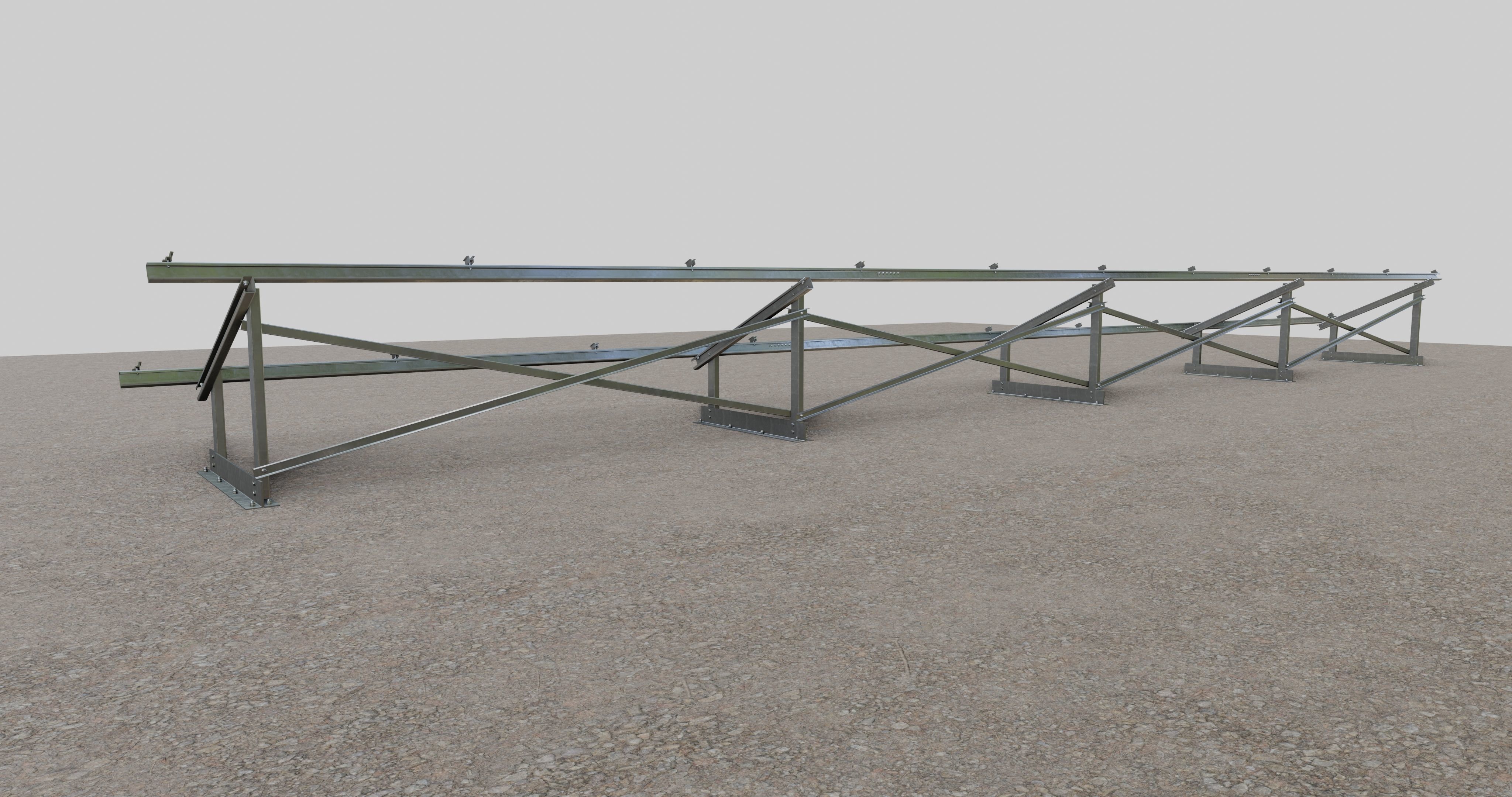

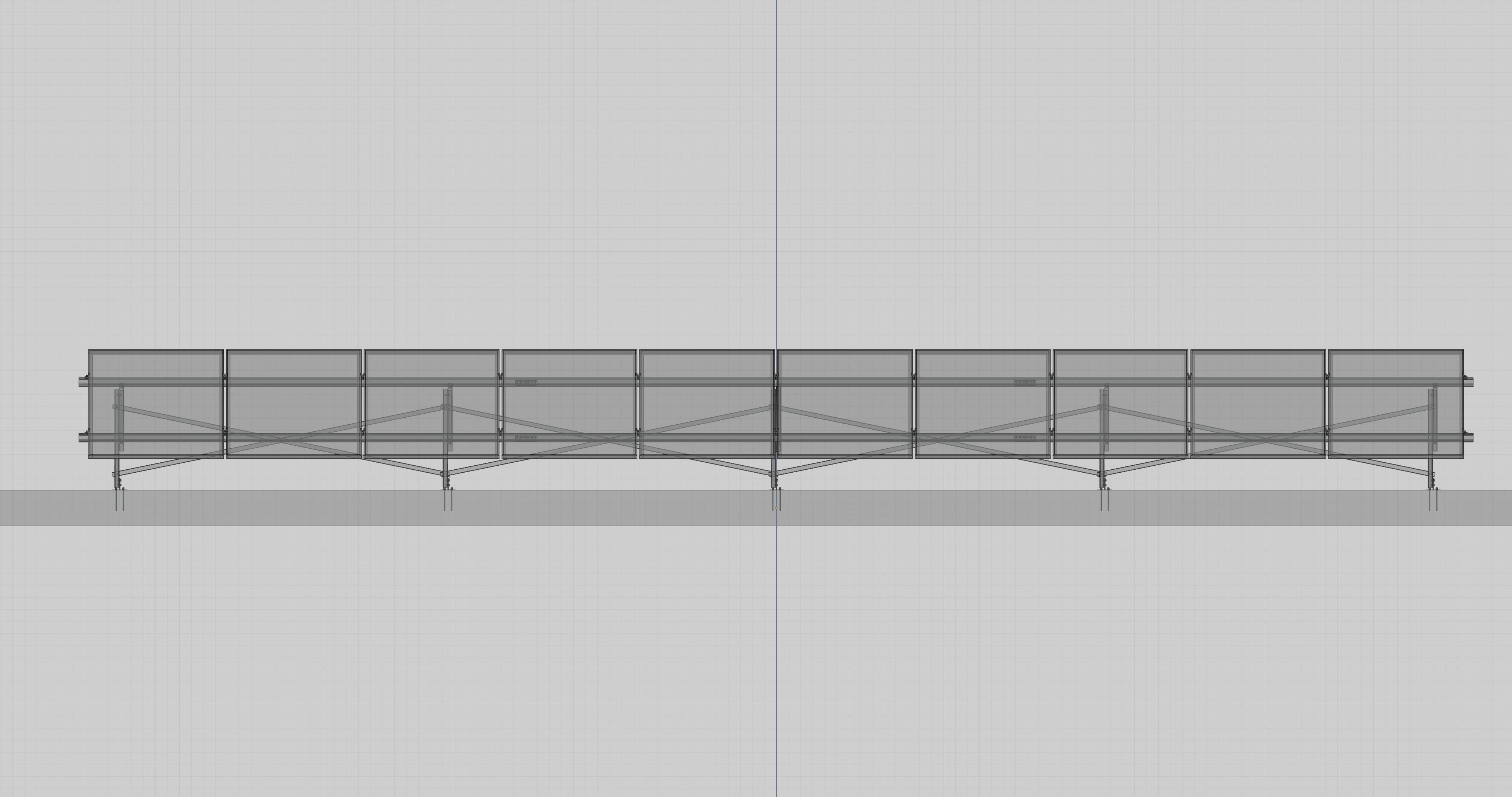

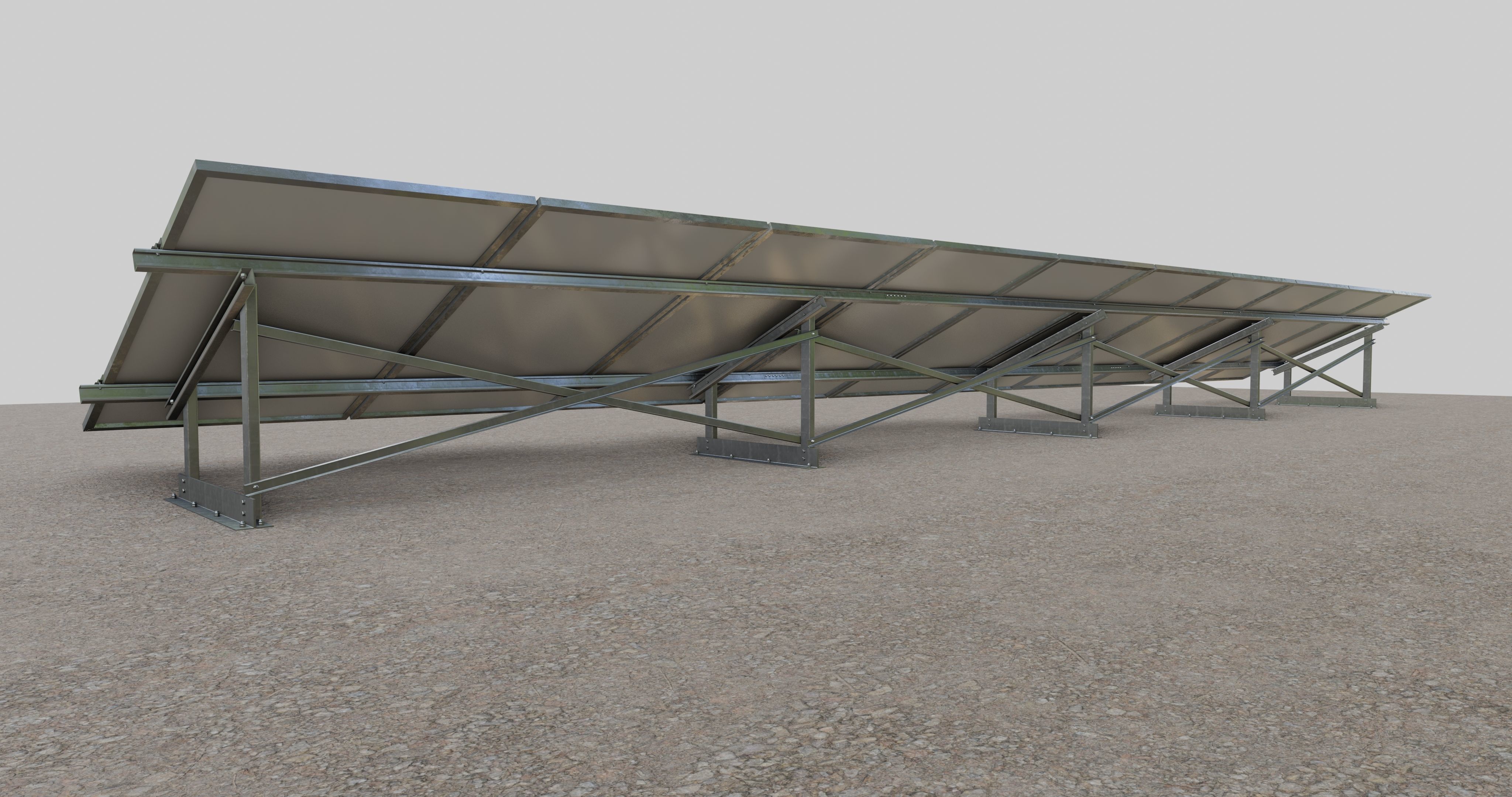

The system consists of 5 axles and the distance between each axle is 2750 mm.
Distance between two columns 800 mm.
Horizantal angle of panel 25°
The closest distance of the panels to the floor 300 mm.

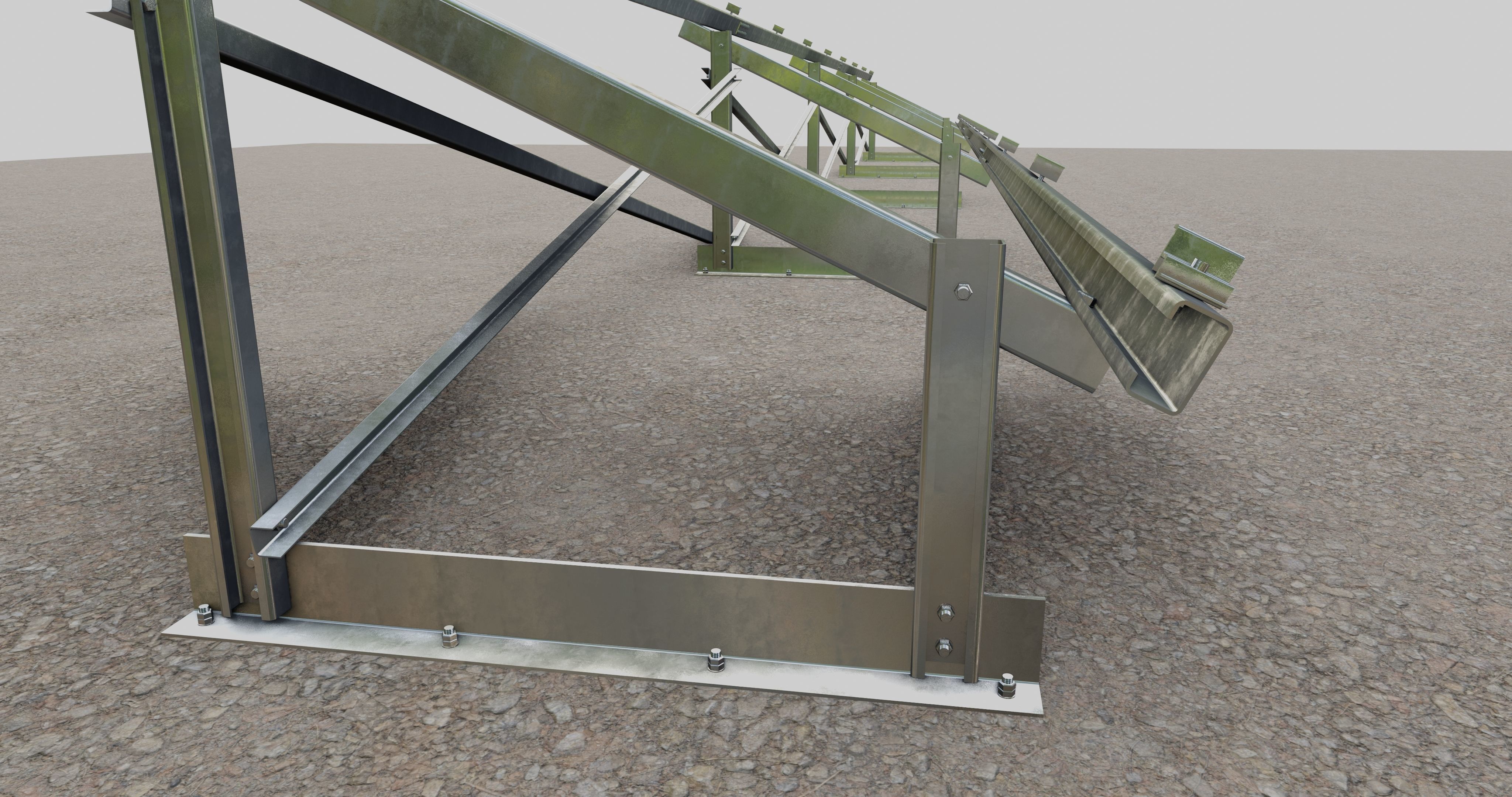

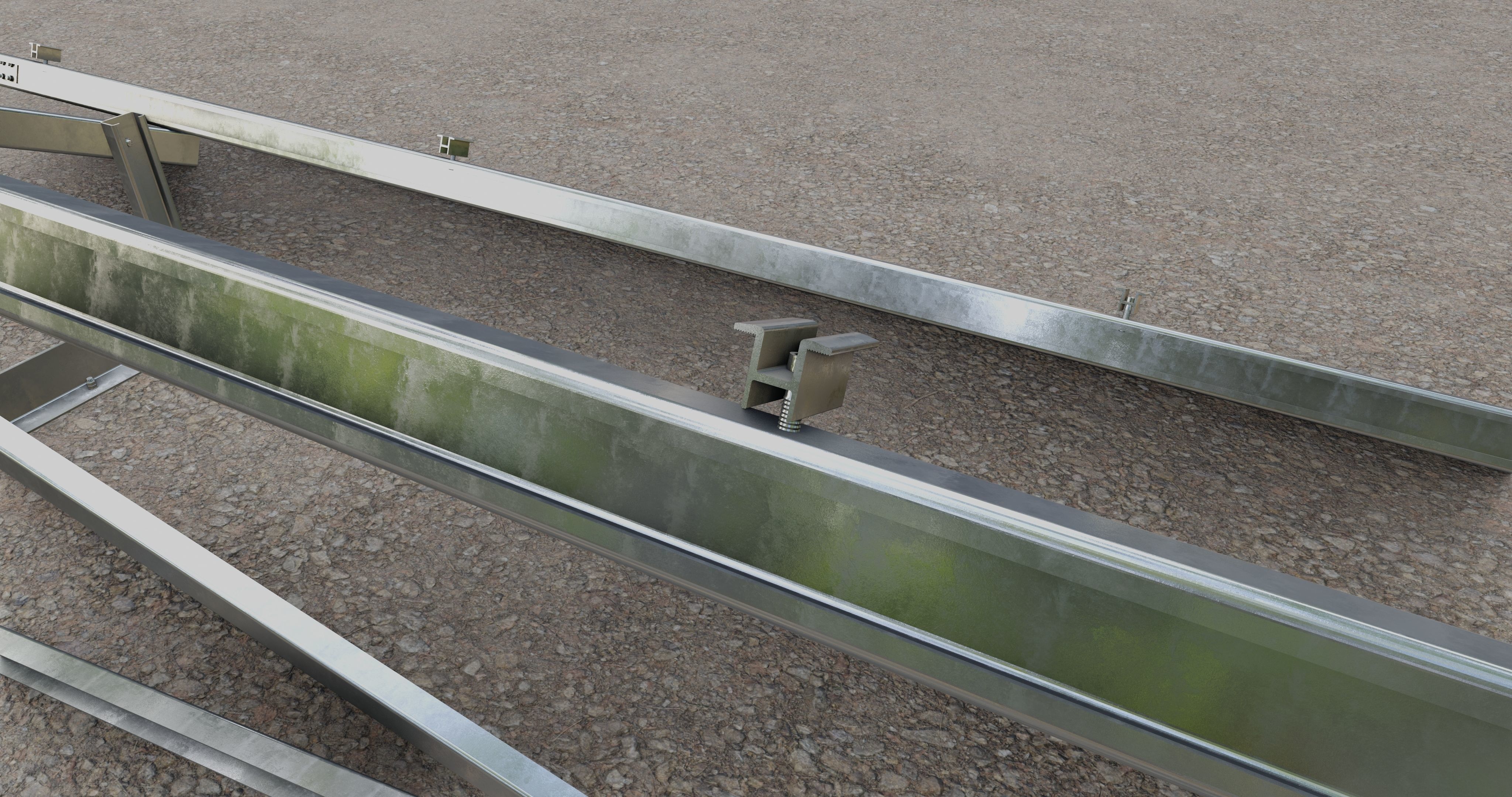

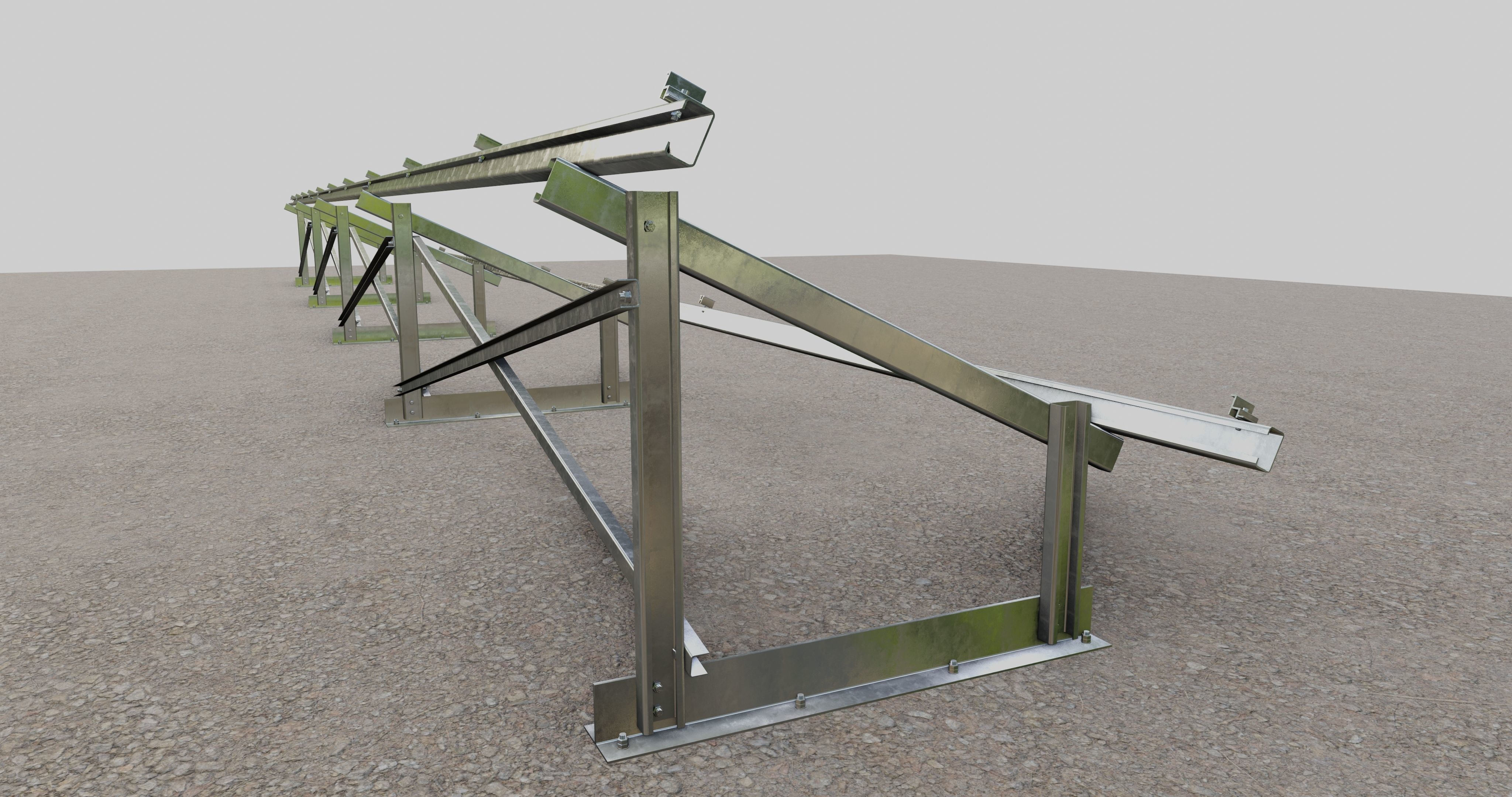

Profile Section;

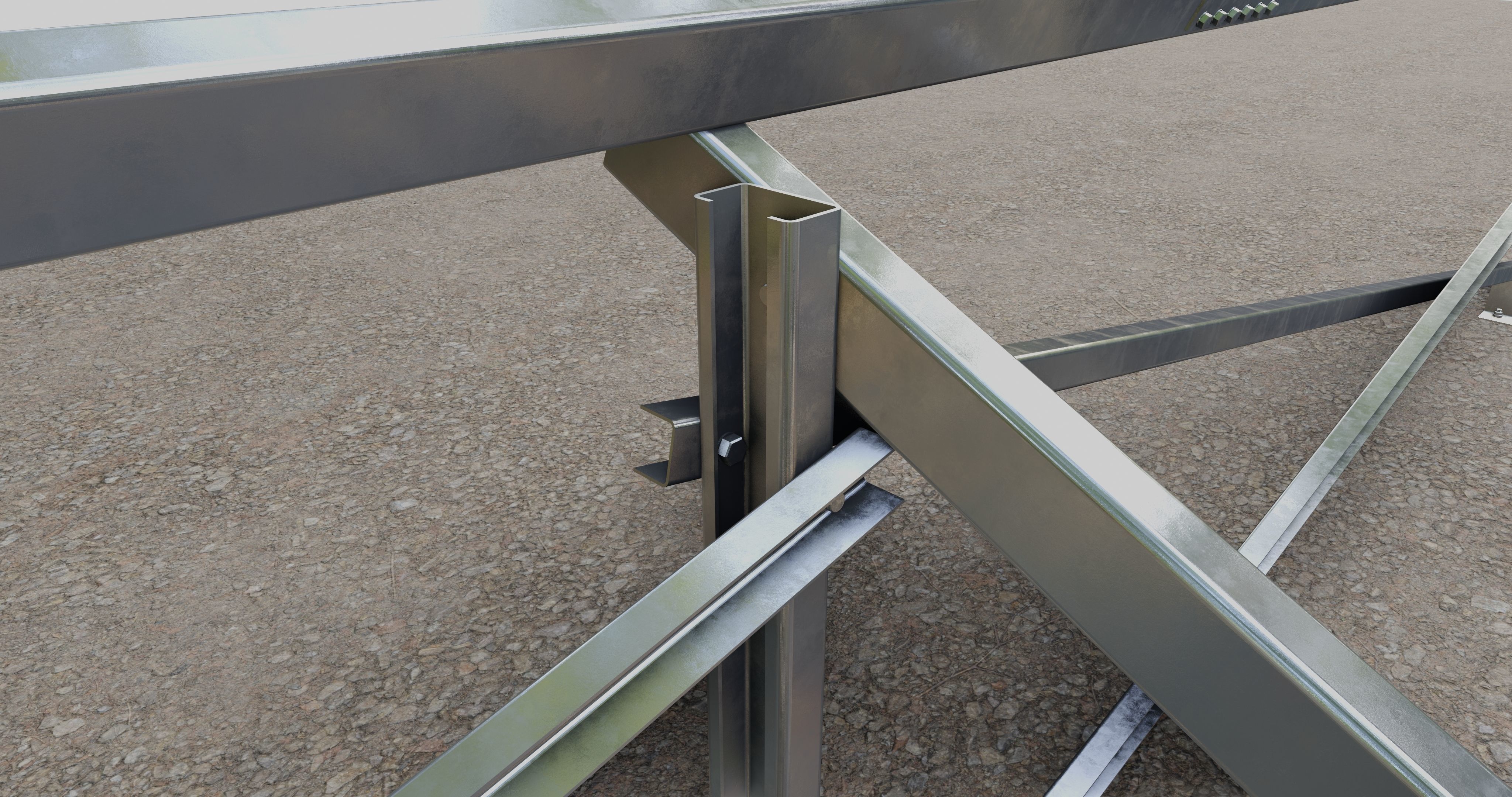

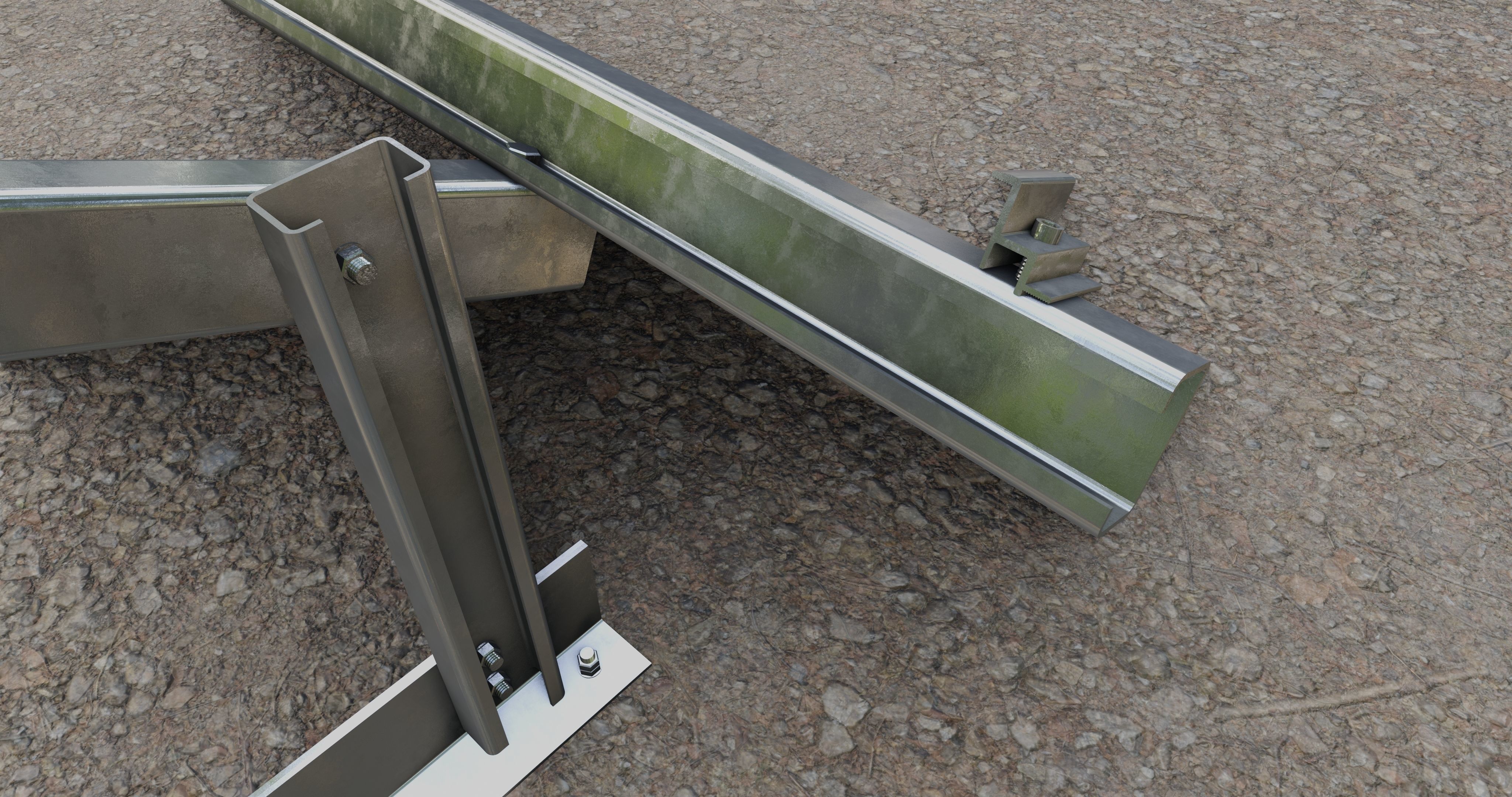

Column : C Profile C70x40x15-3mmBeam : C Profile C70x40x15-3mmPurlin : C Profile C70x40x15x-2mmDiagonal : U Profile U50x30-2mm

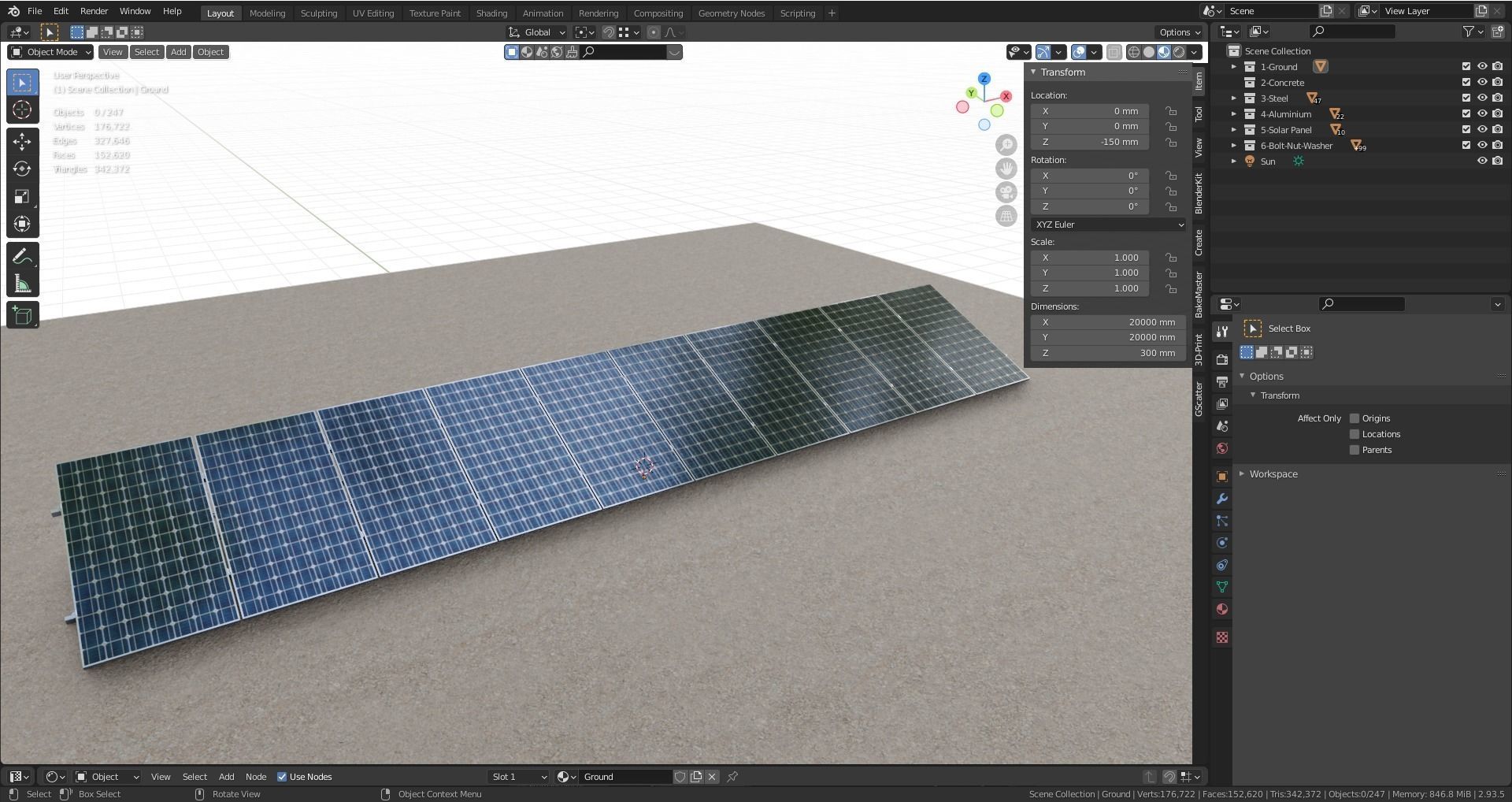

Prepared With BLENDER Version 2.93.5
Polygons : 152620
Vertices : 176722
Objects : 247
Roof Type Solar Panel Steel Construction
Royalty Free License
Roof Type Solar Panel Steel Construction
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- Blender 2.93.5 (.blend)23.8 MBVersion: 2.93.5Renderer: Eevee 2.93.5
Exchange
3D Model details
- Publish date2023-06-23
- Model ID#4591499
- Animated
- Rigged
- VR / AR / Low-poly
- PBR approved
- Geometry Polygon mesh
- Polygons 152,620
- Vertices 176,722
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
