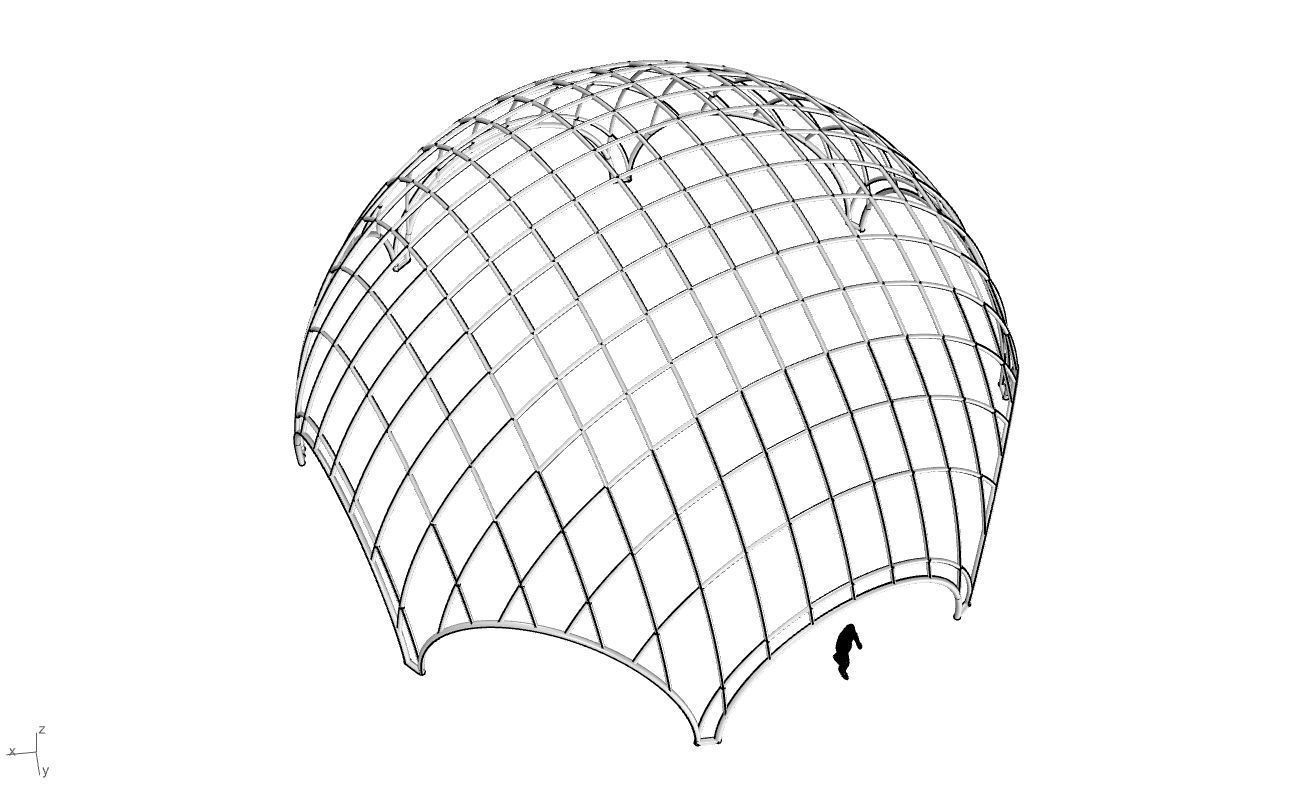

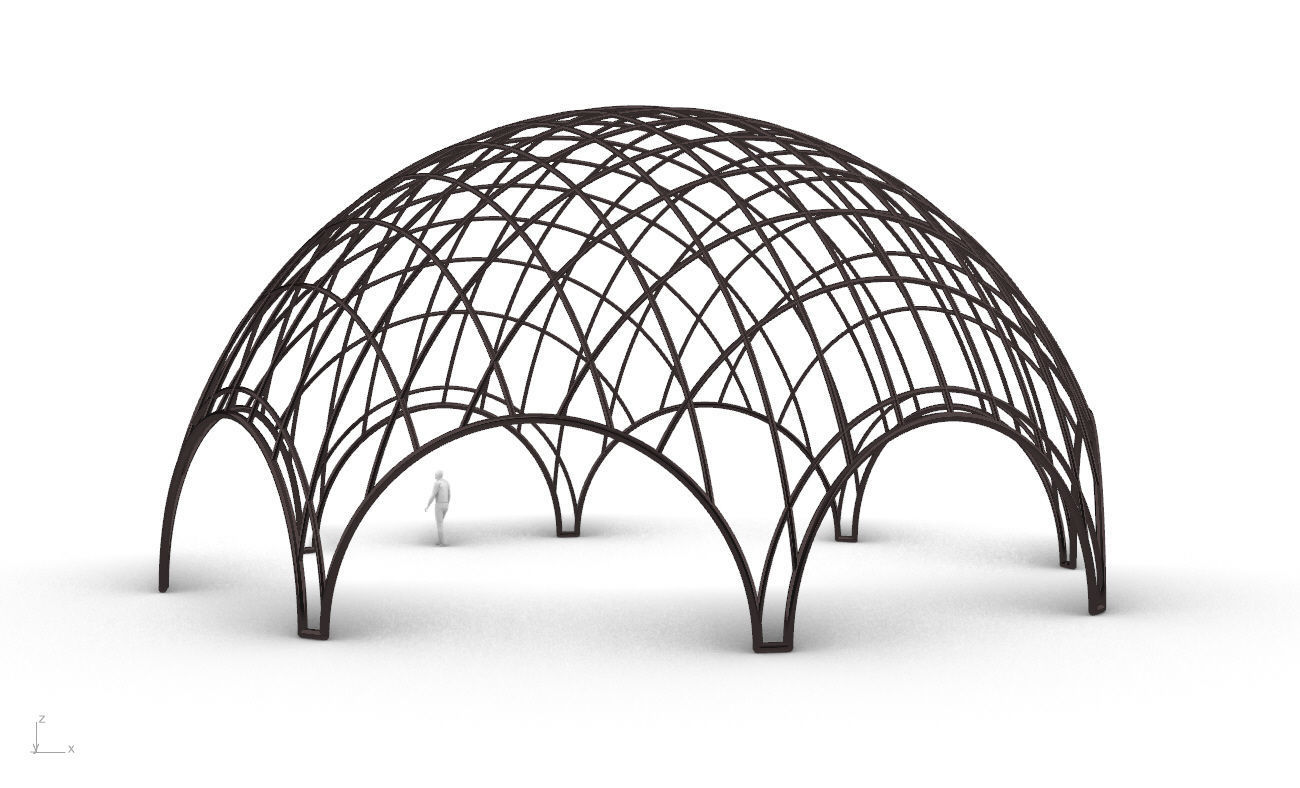

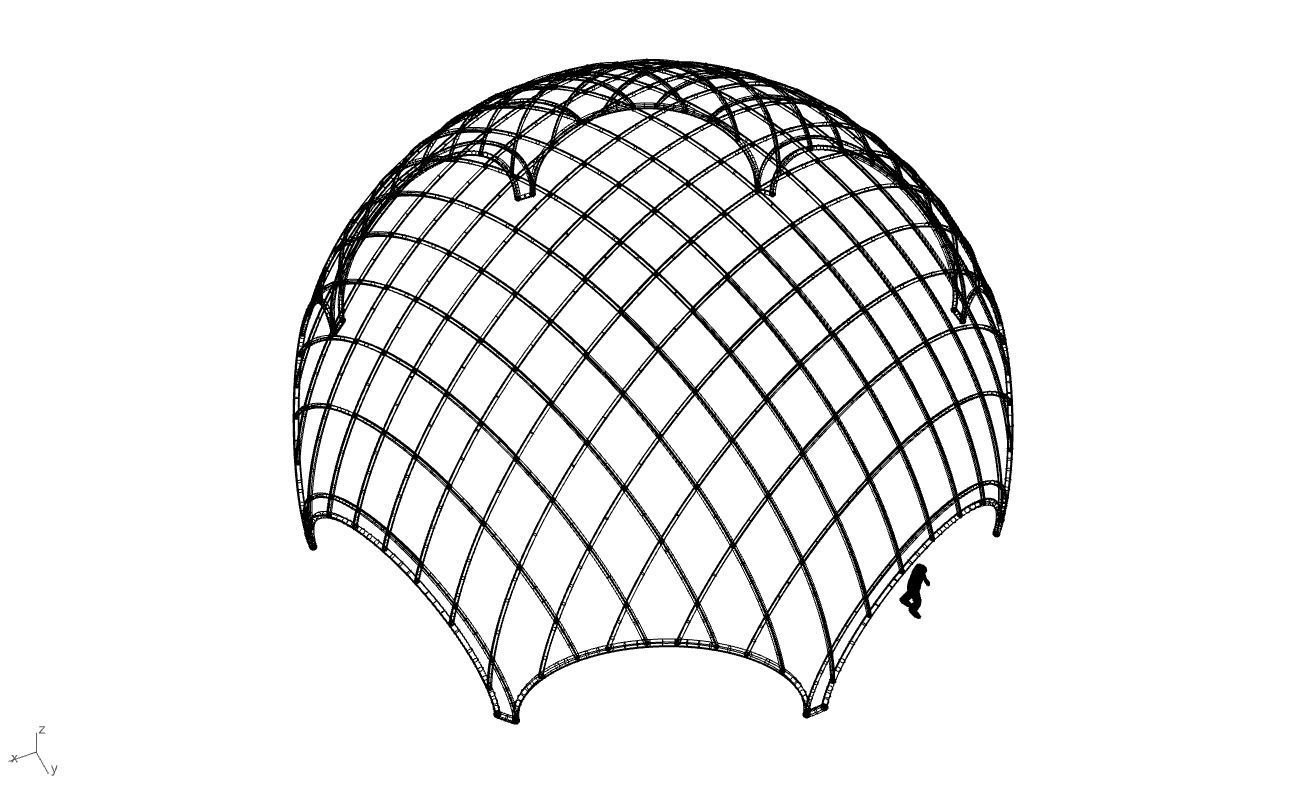

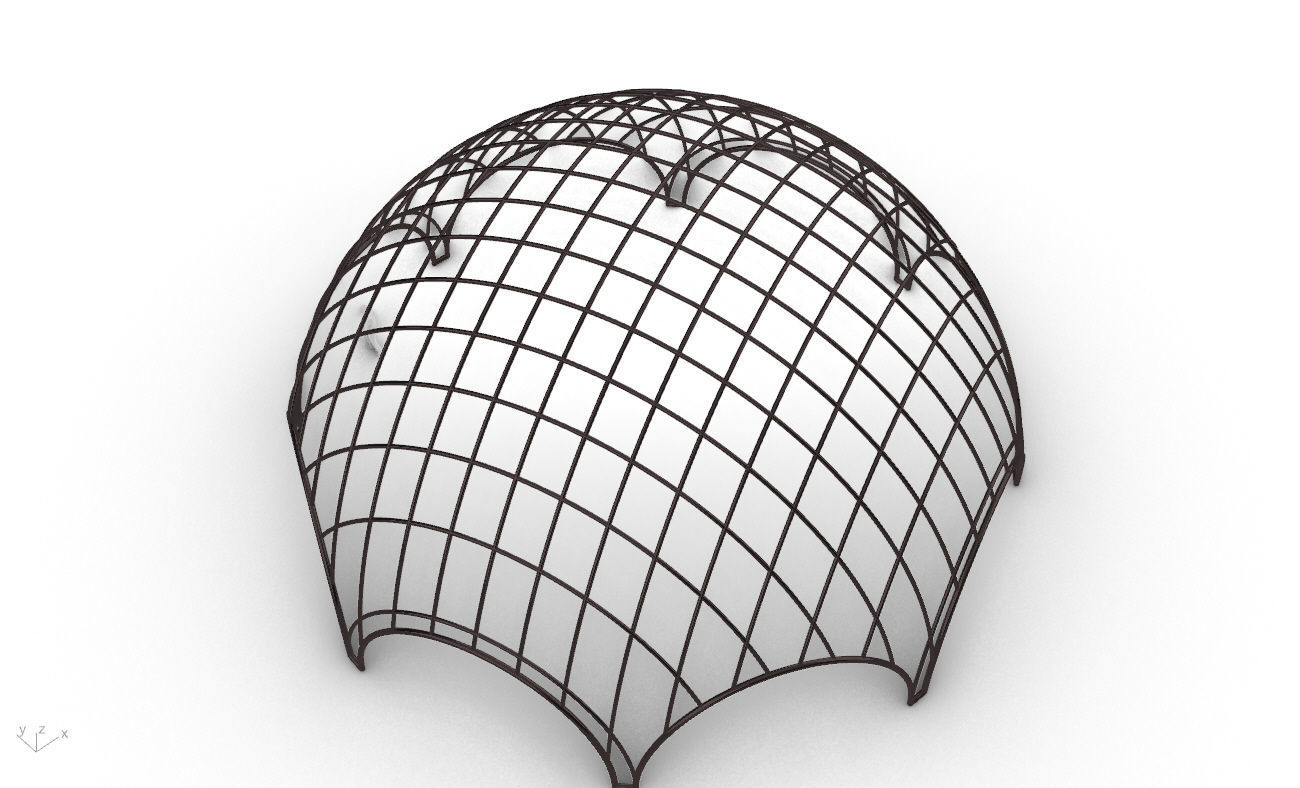

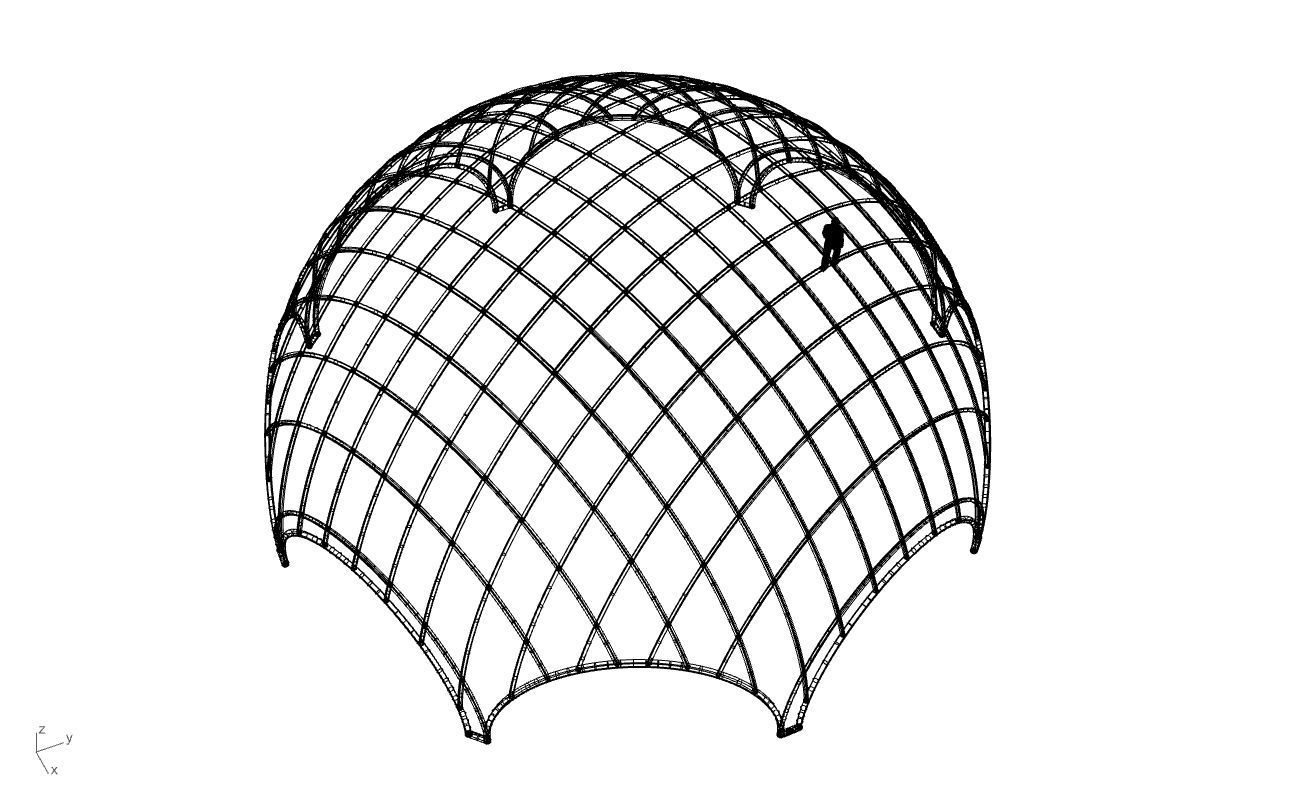

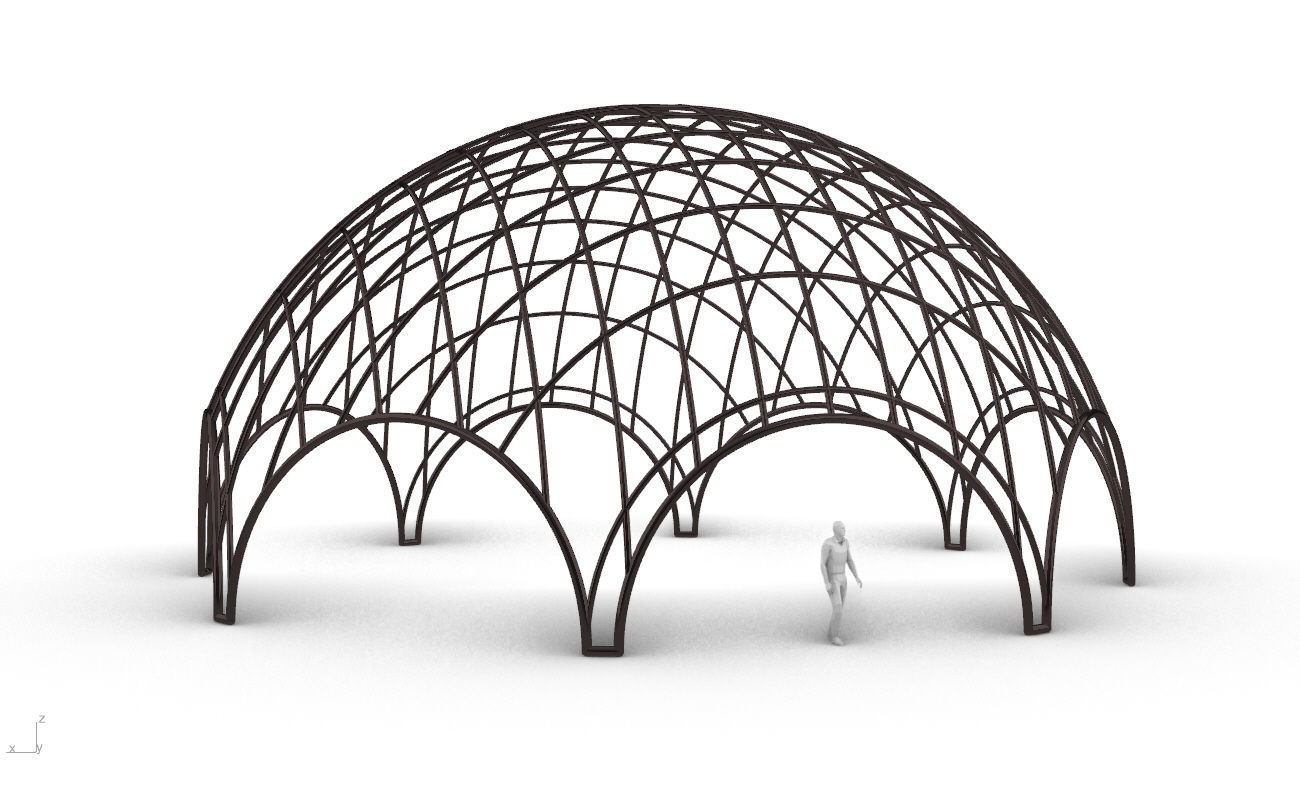

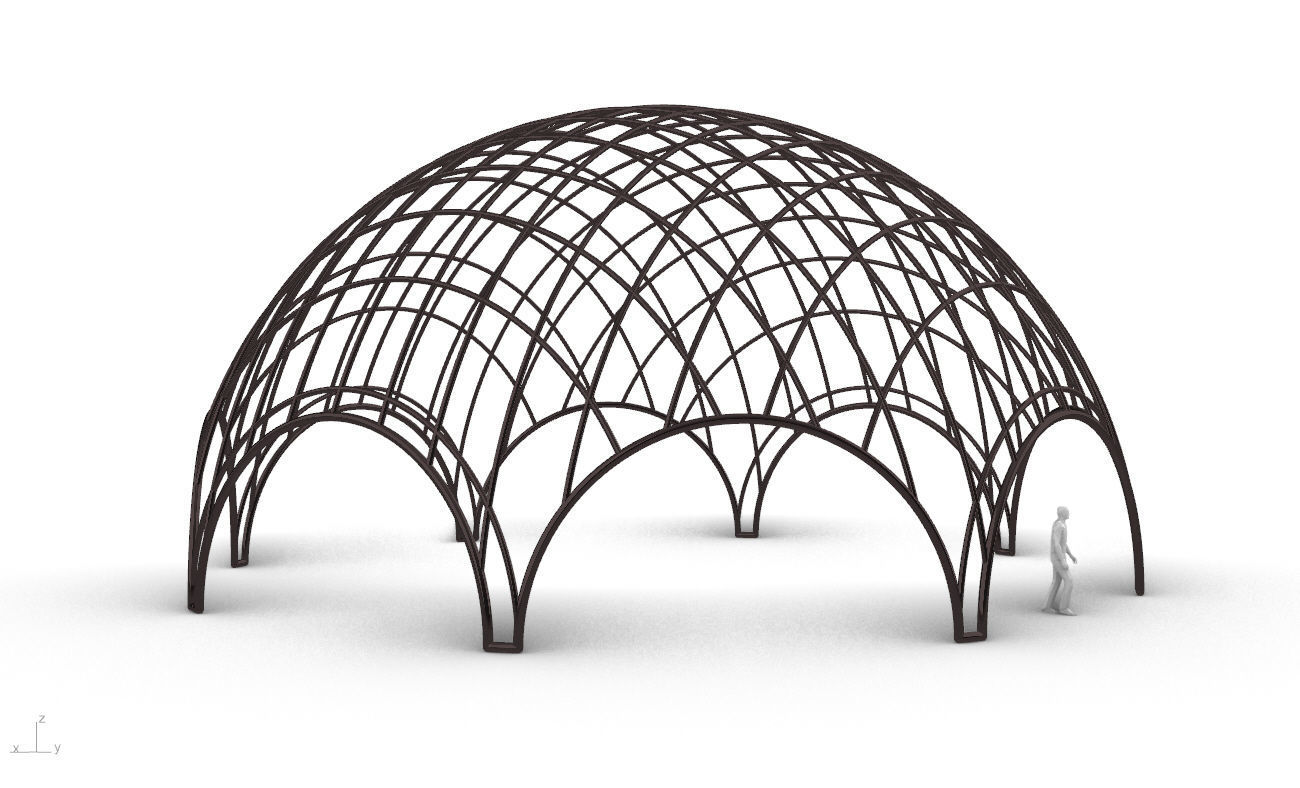

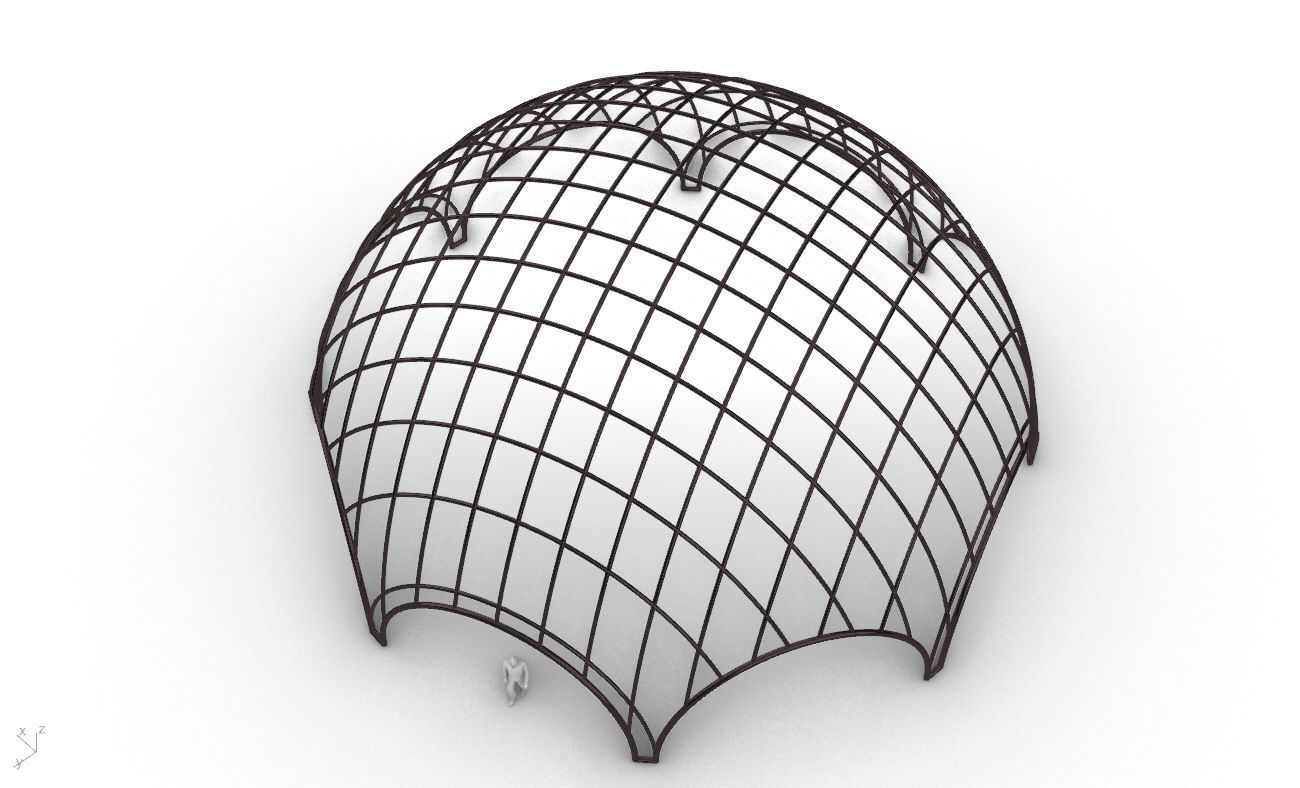

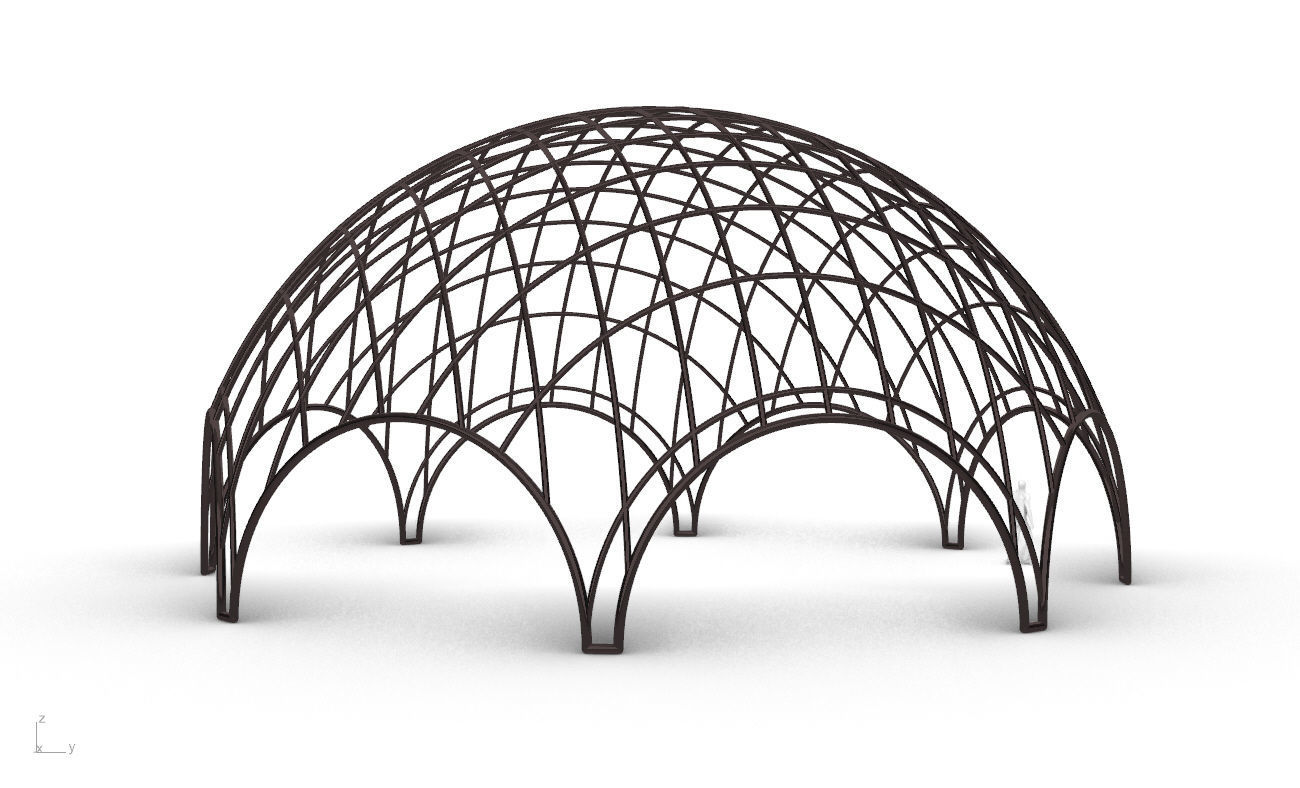

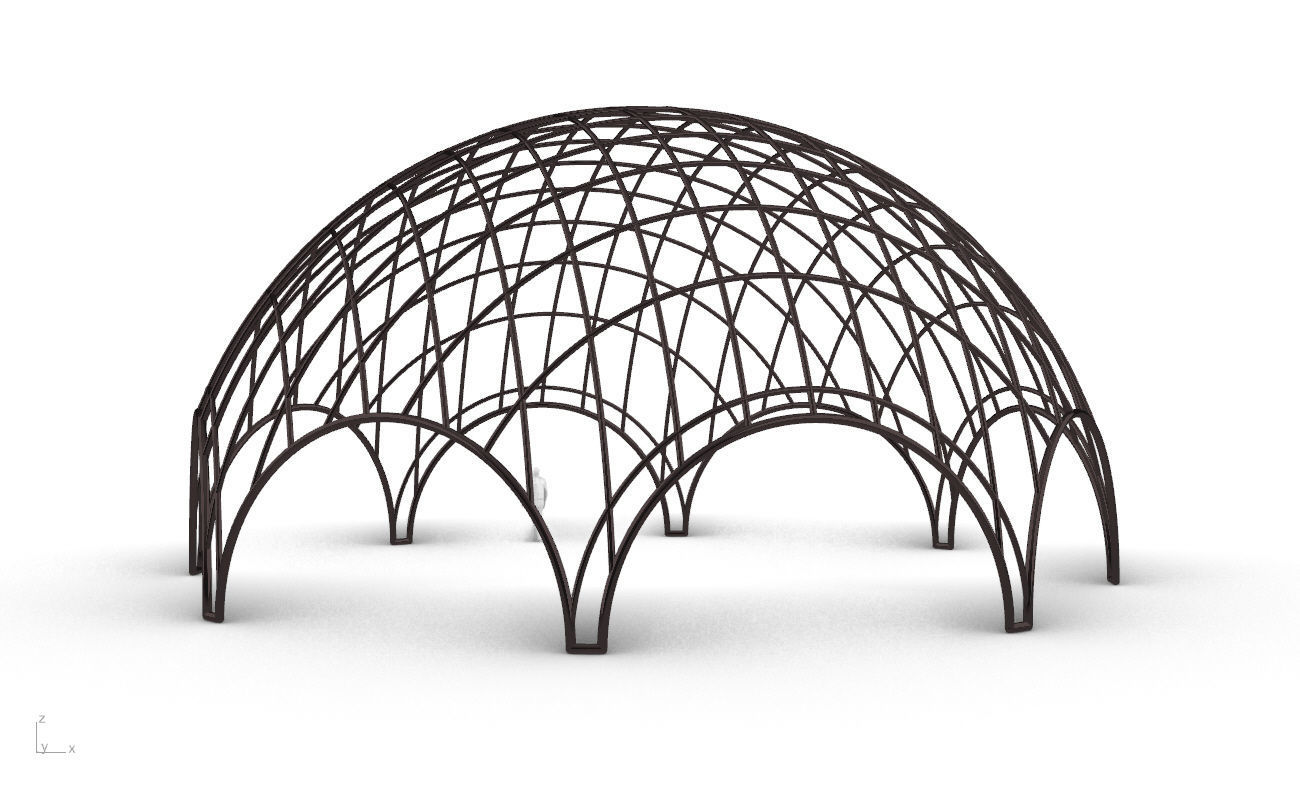

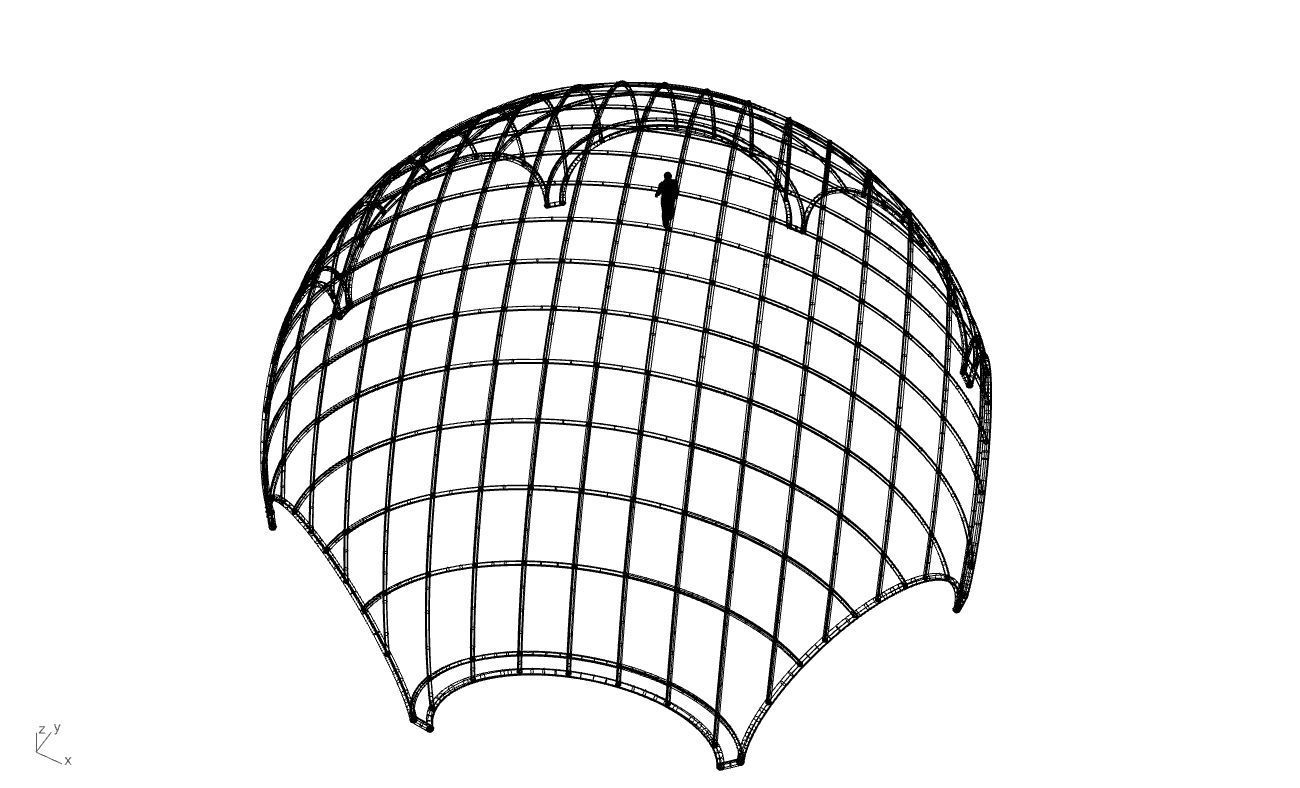

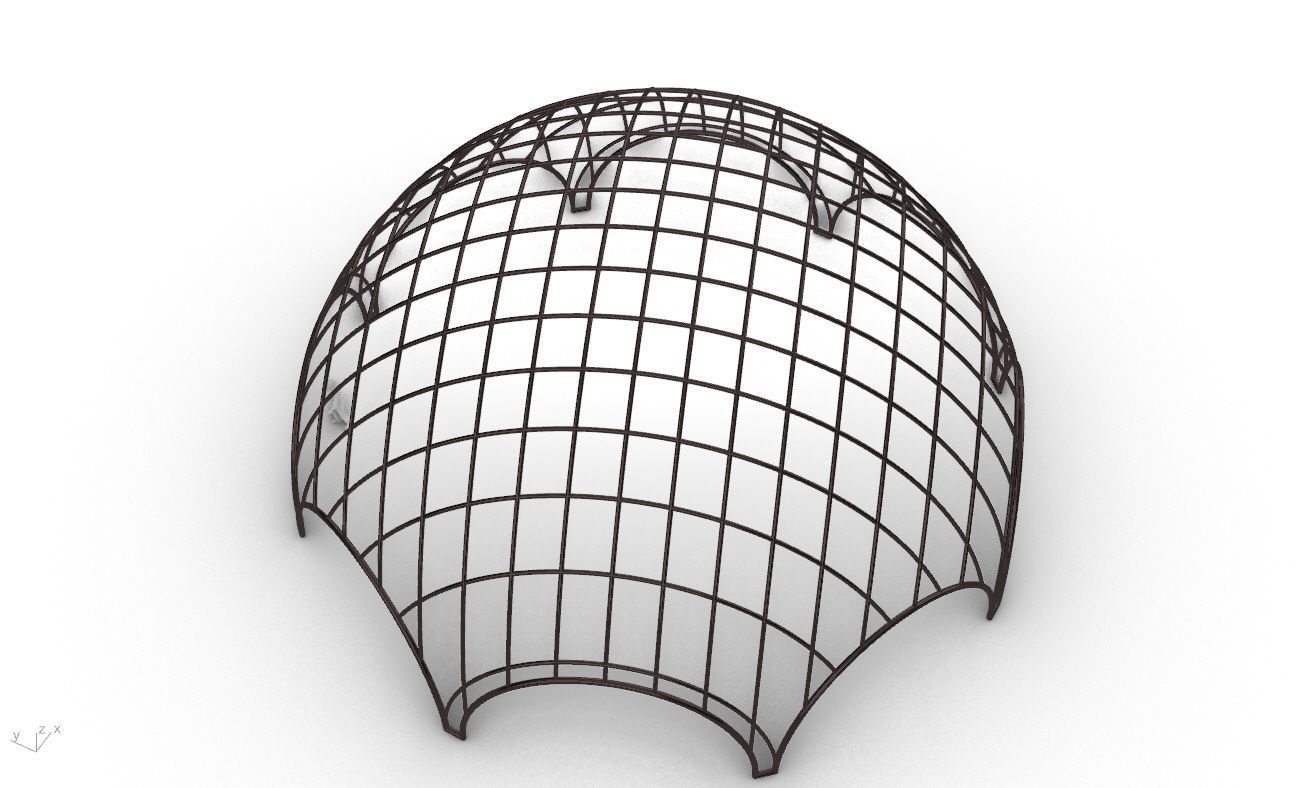

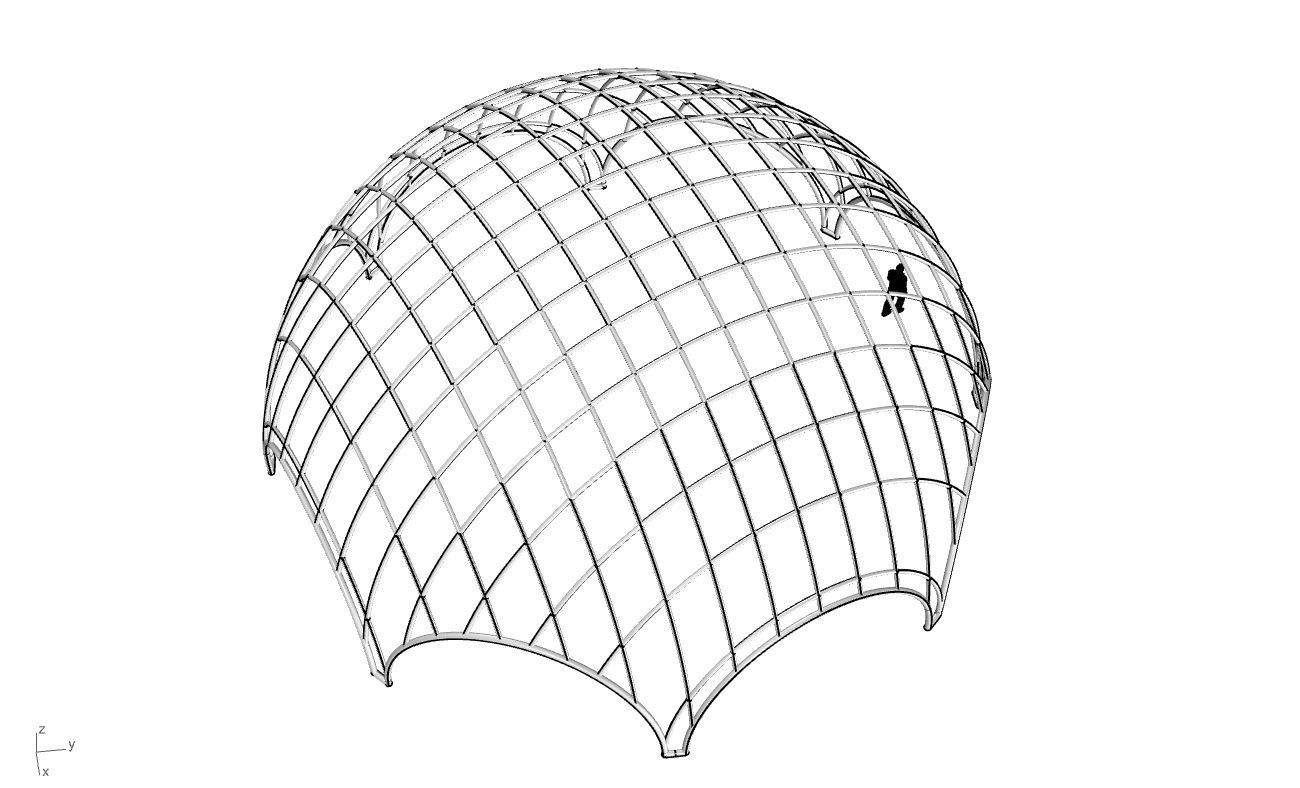

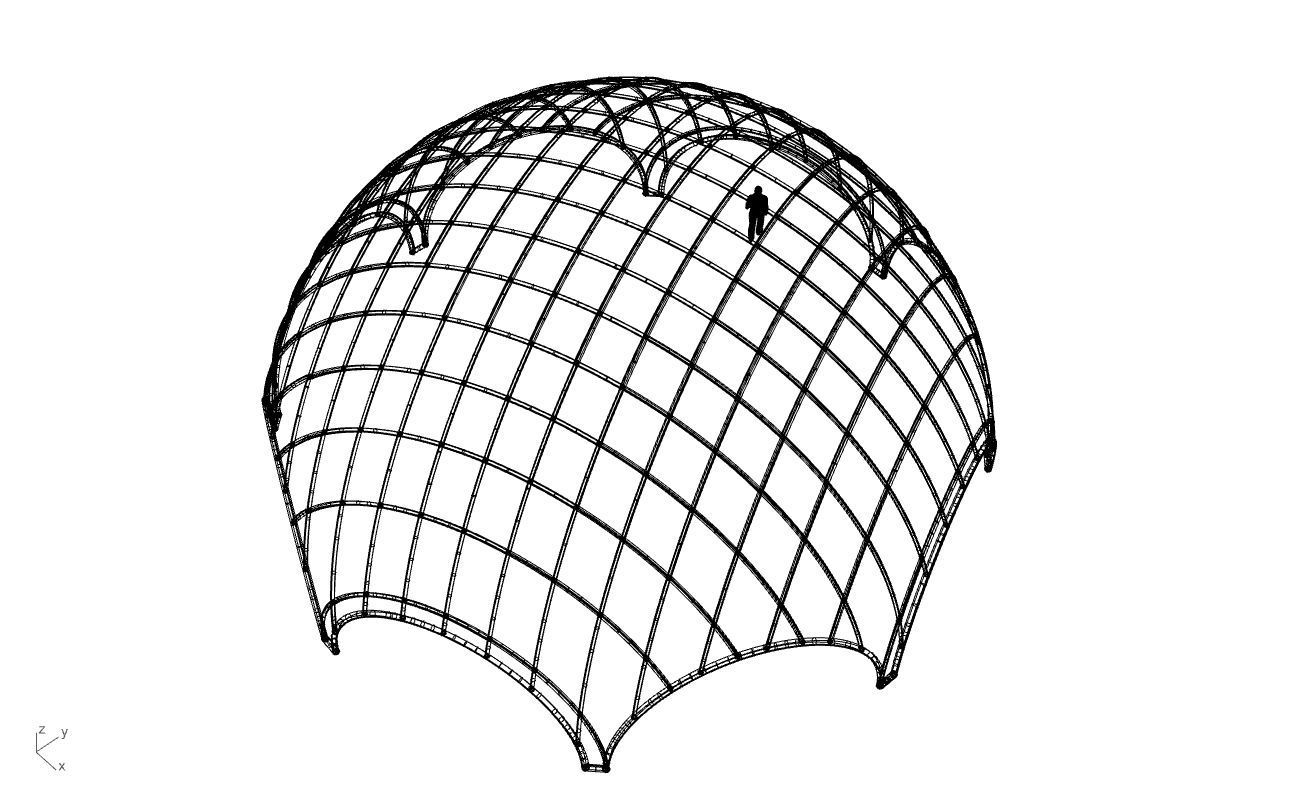

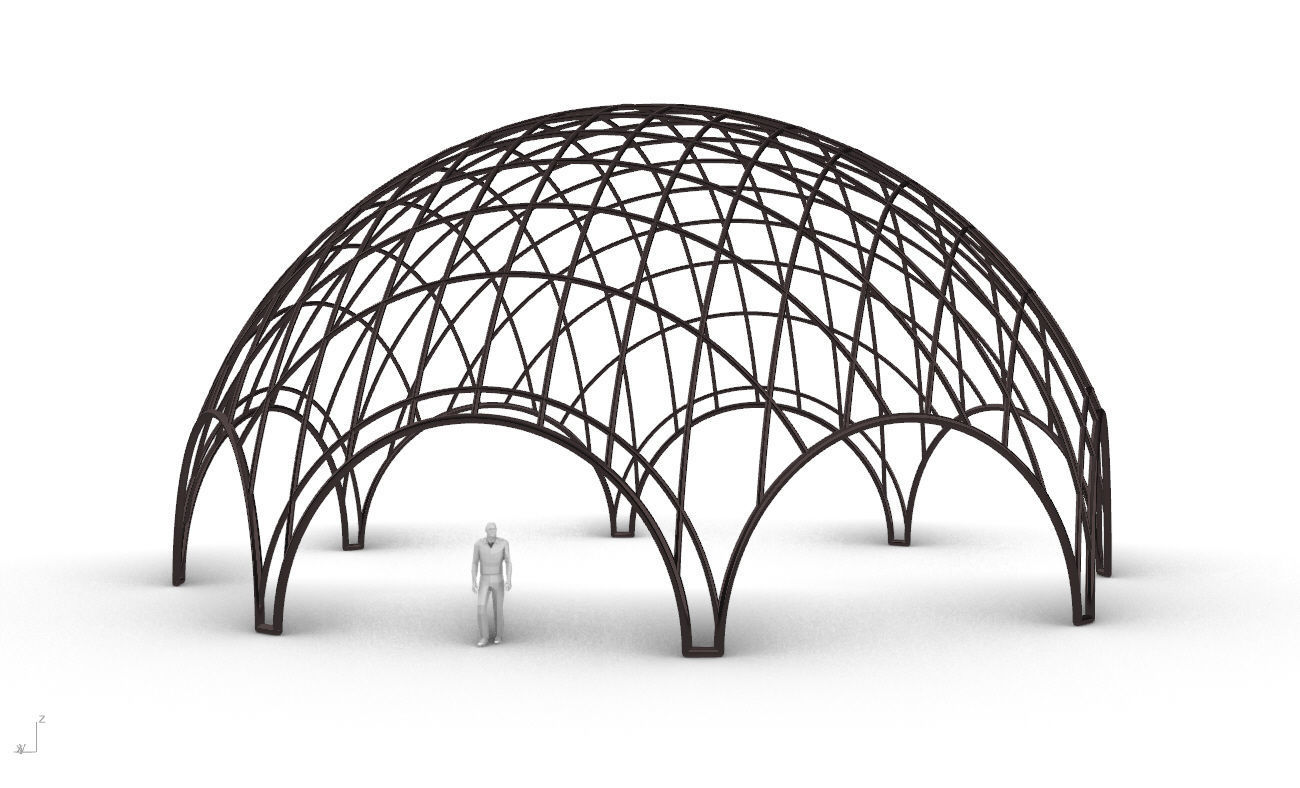

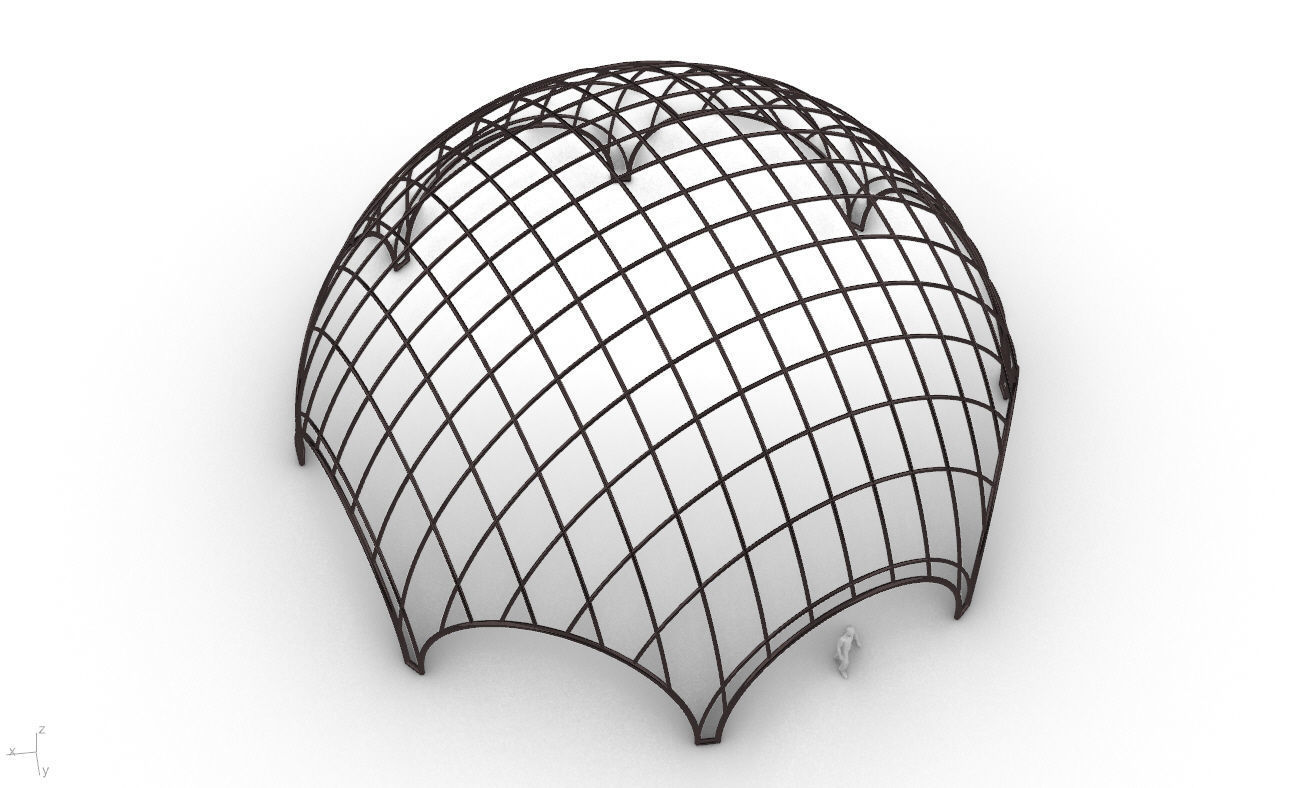

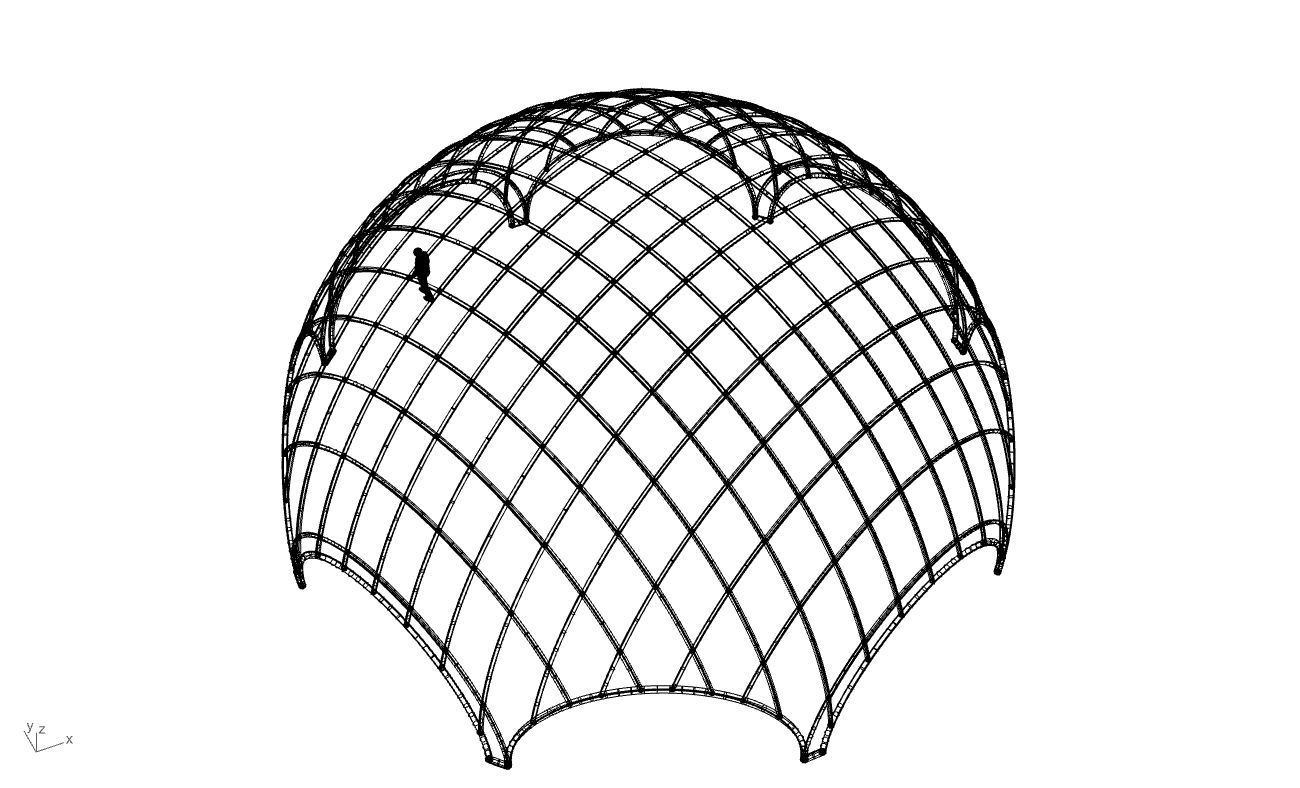

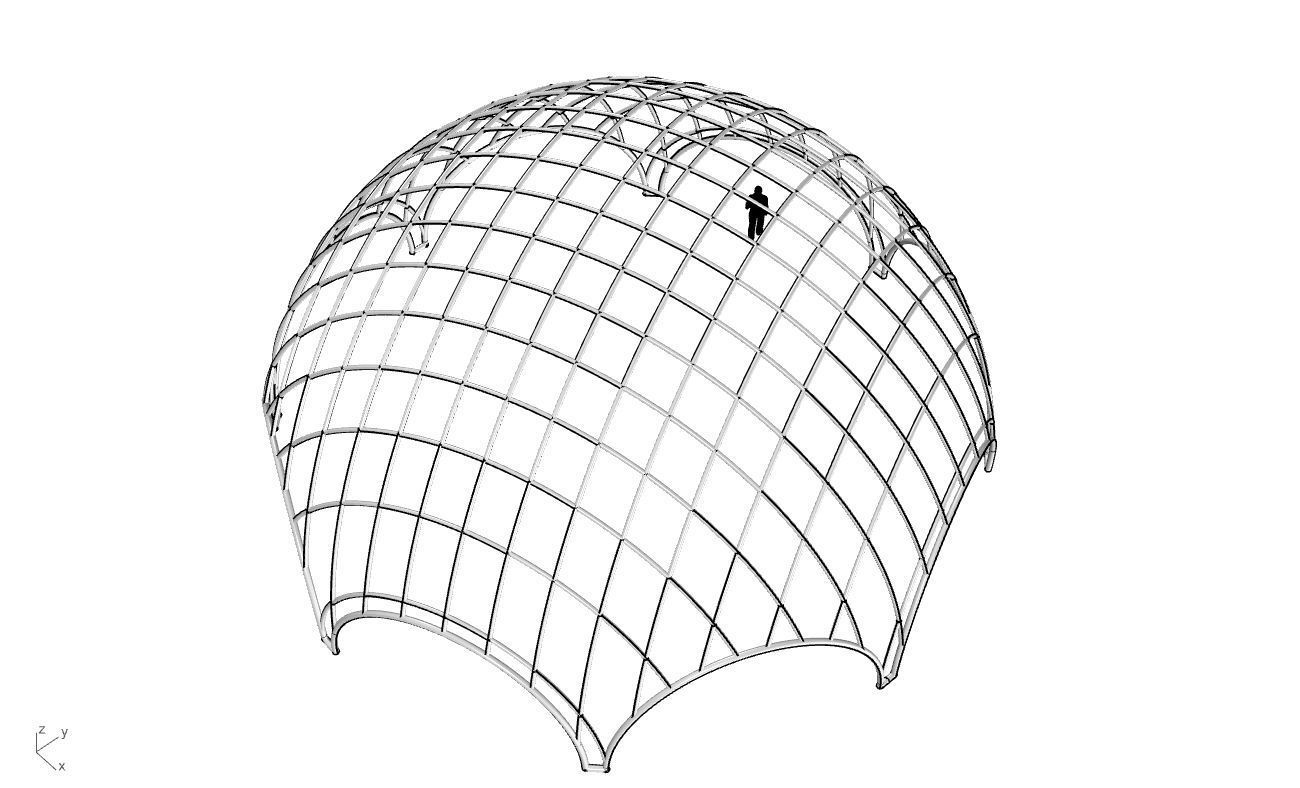

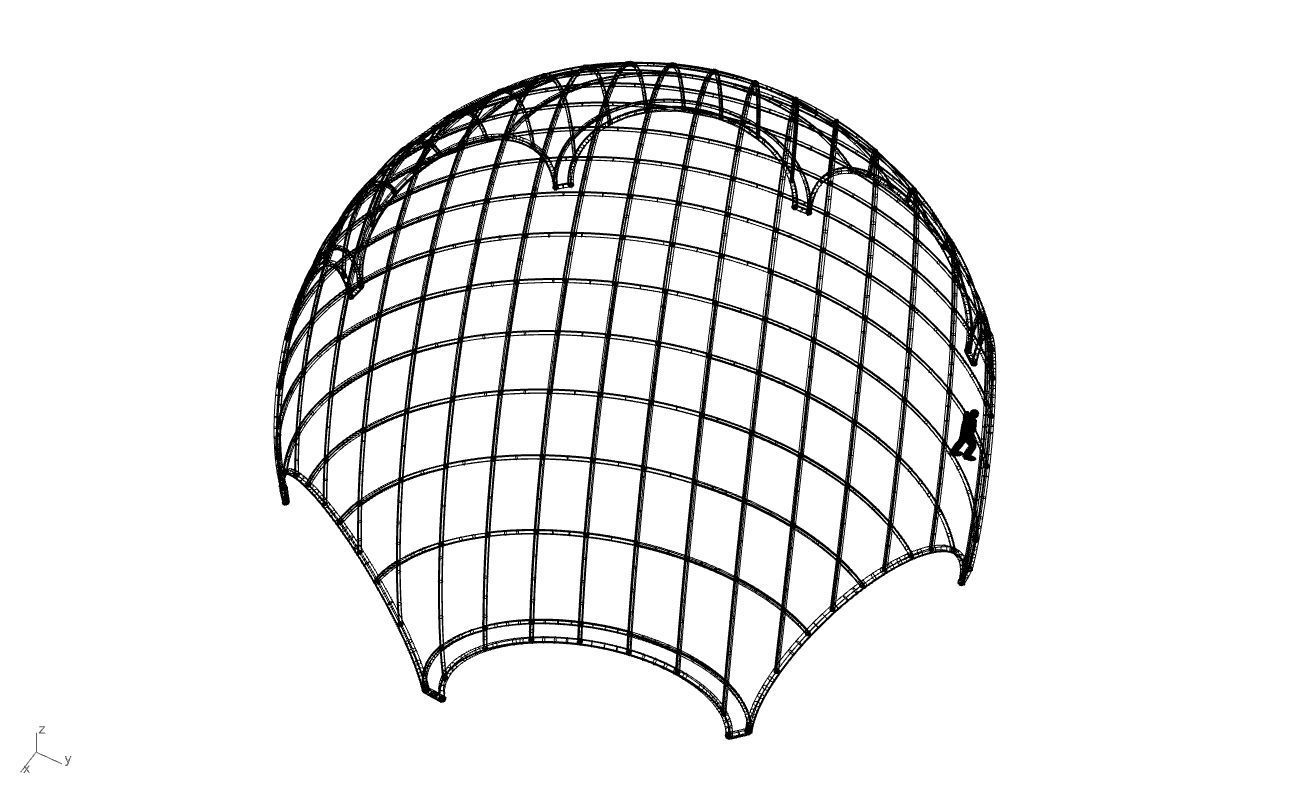

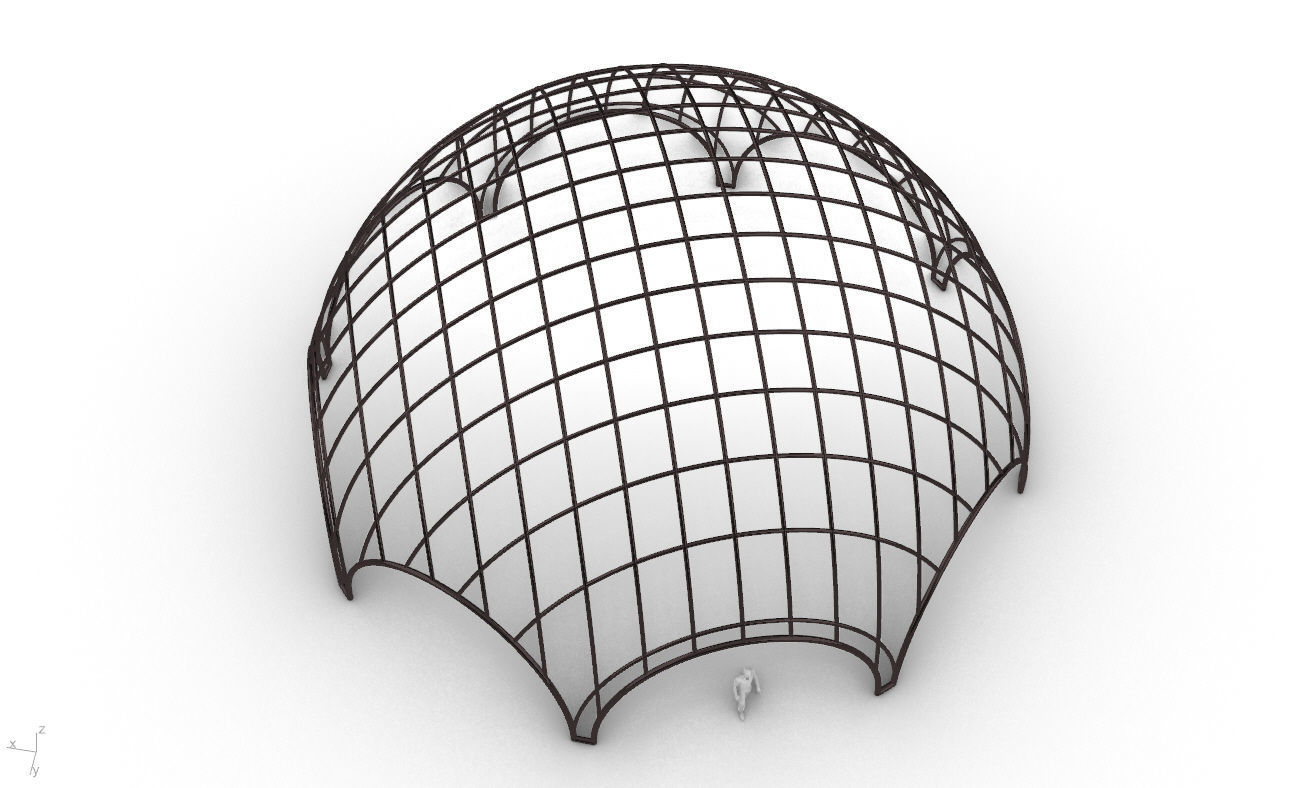

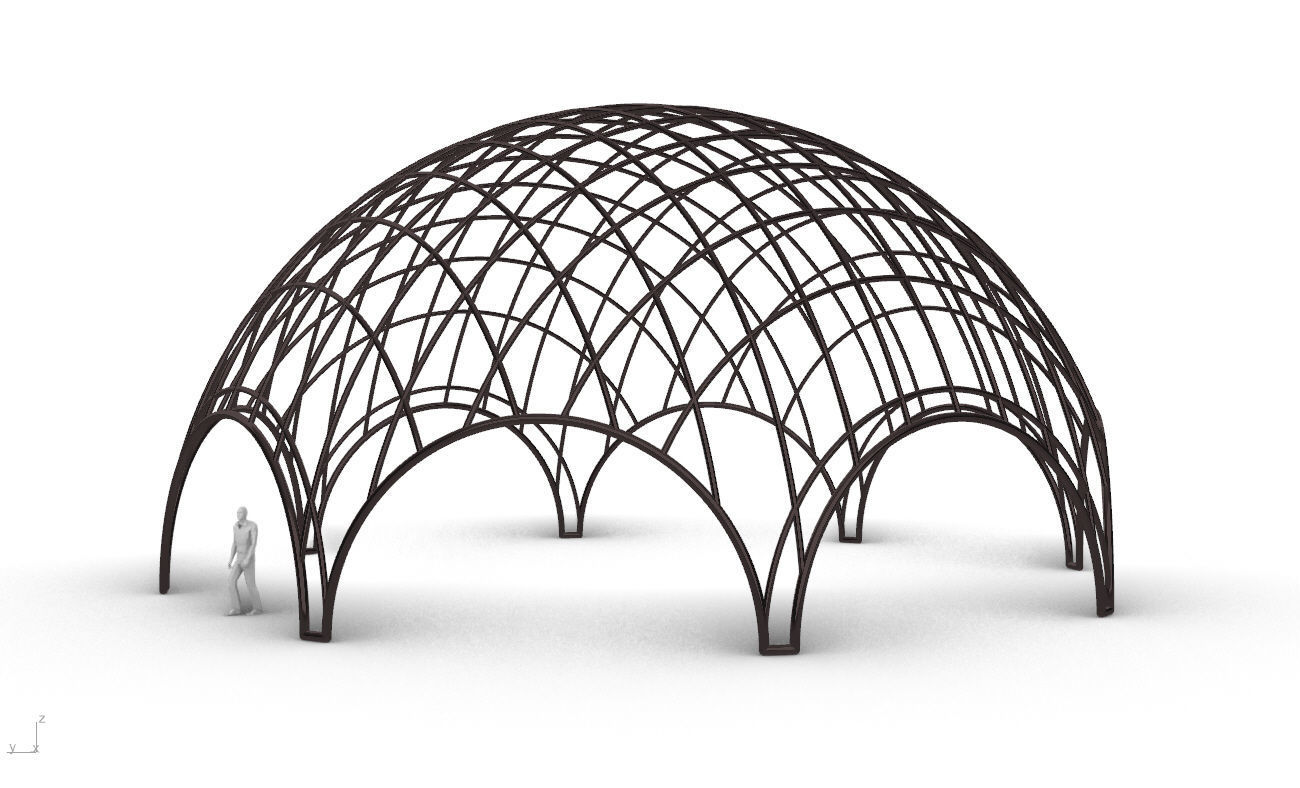

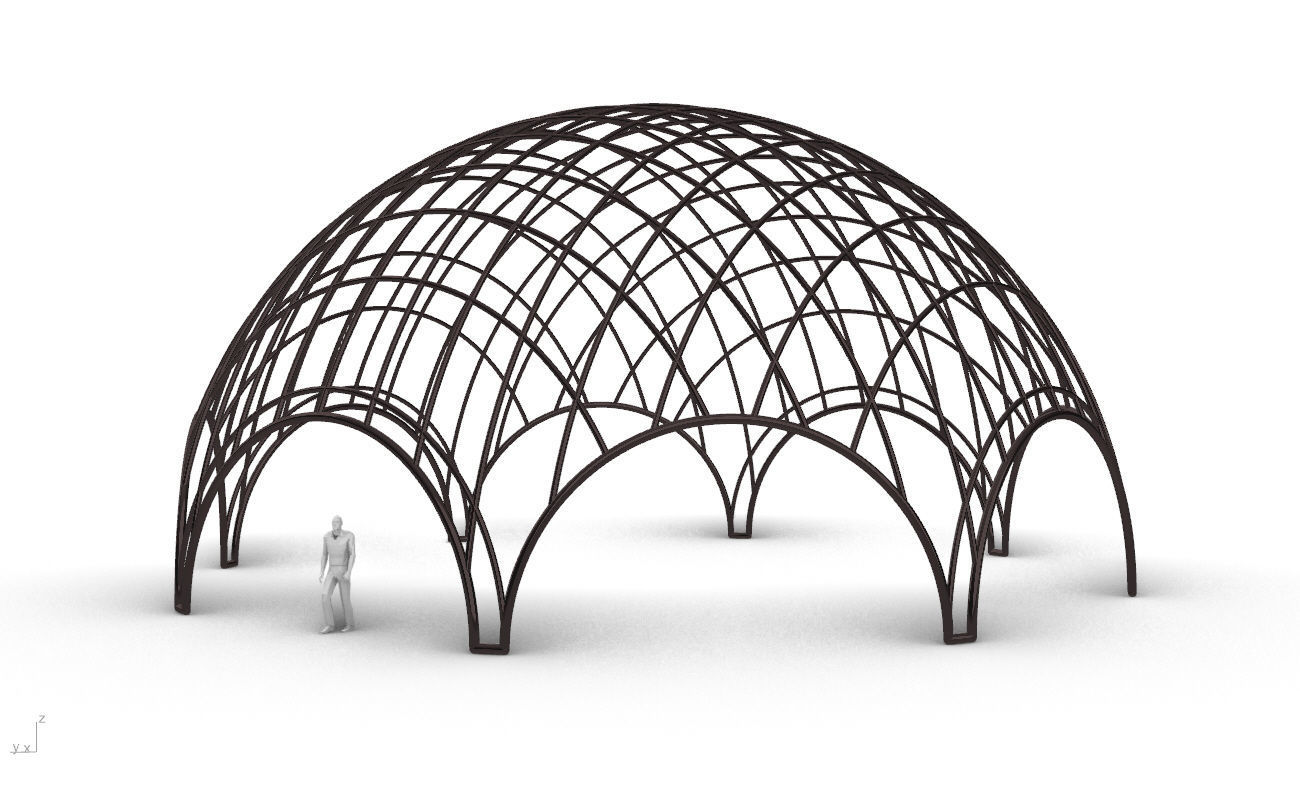

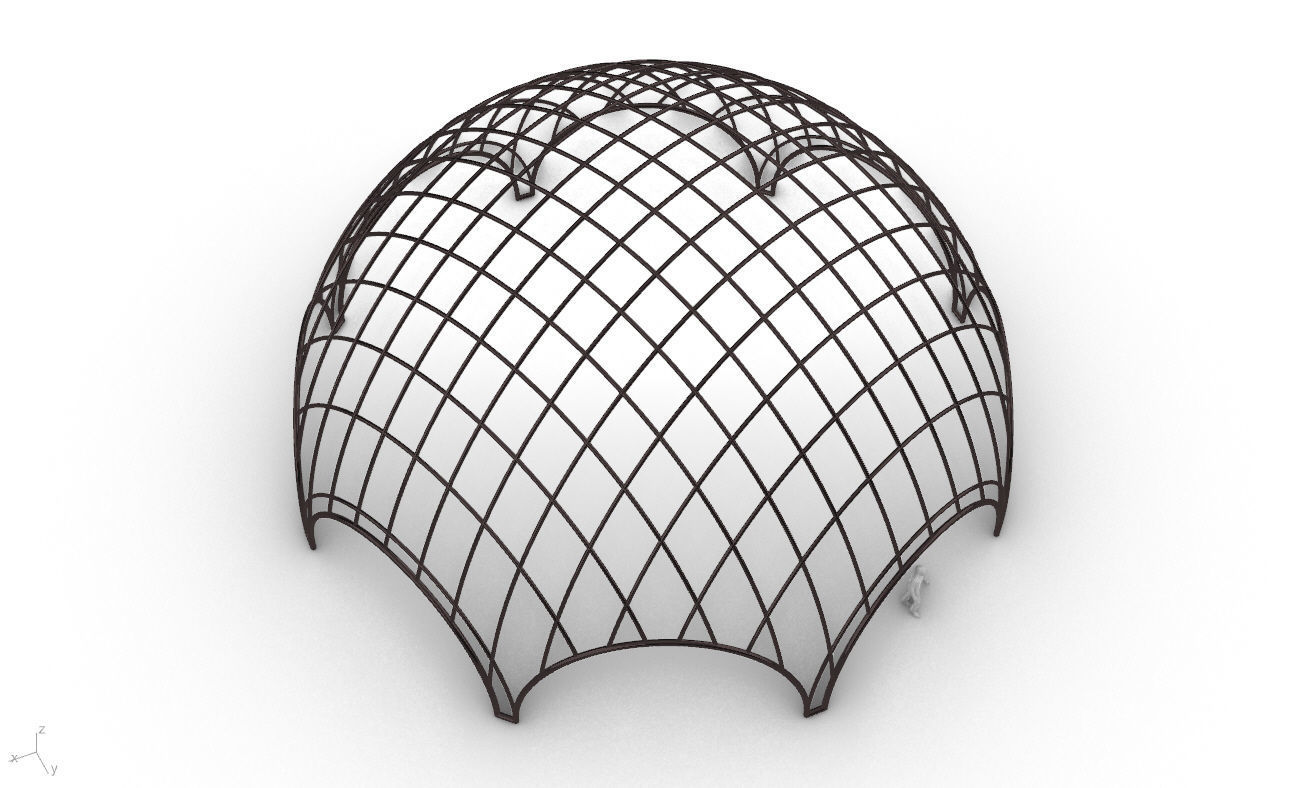

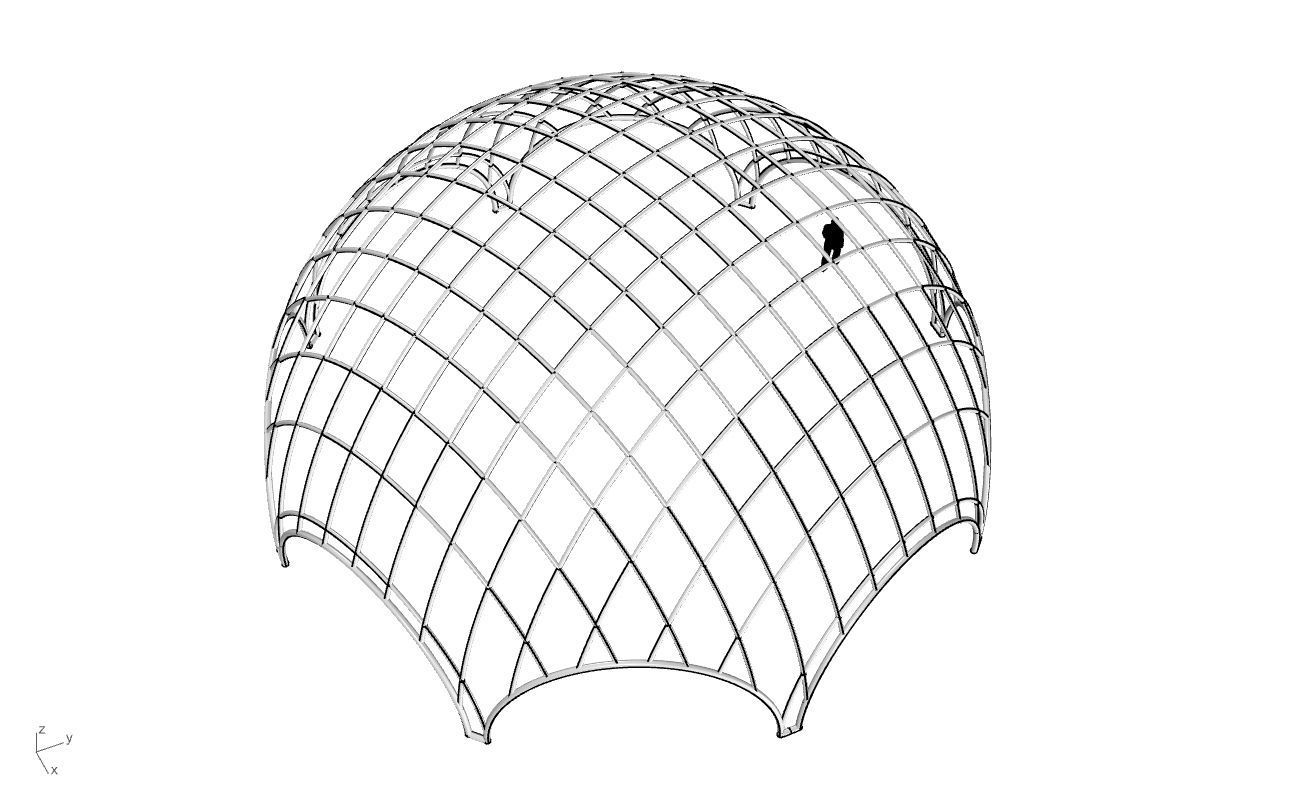

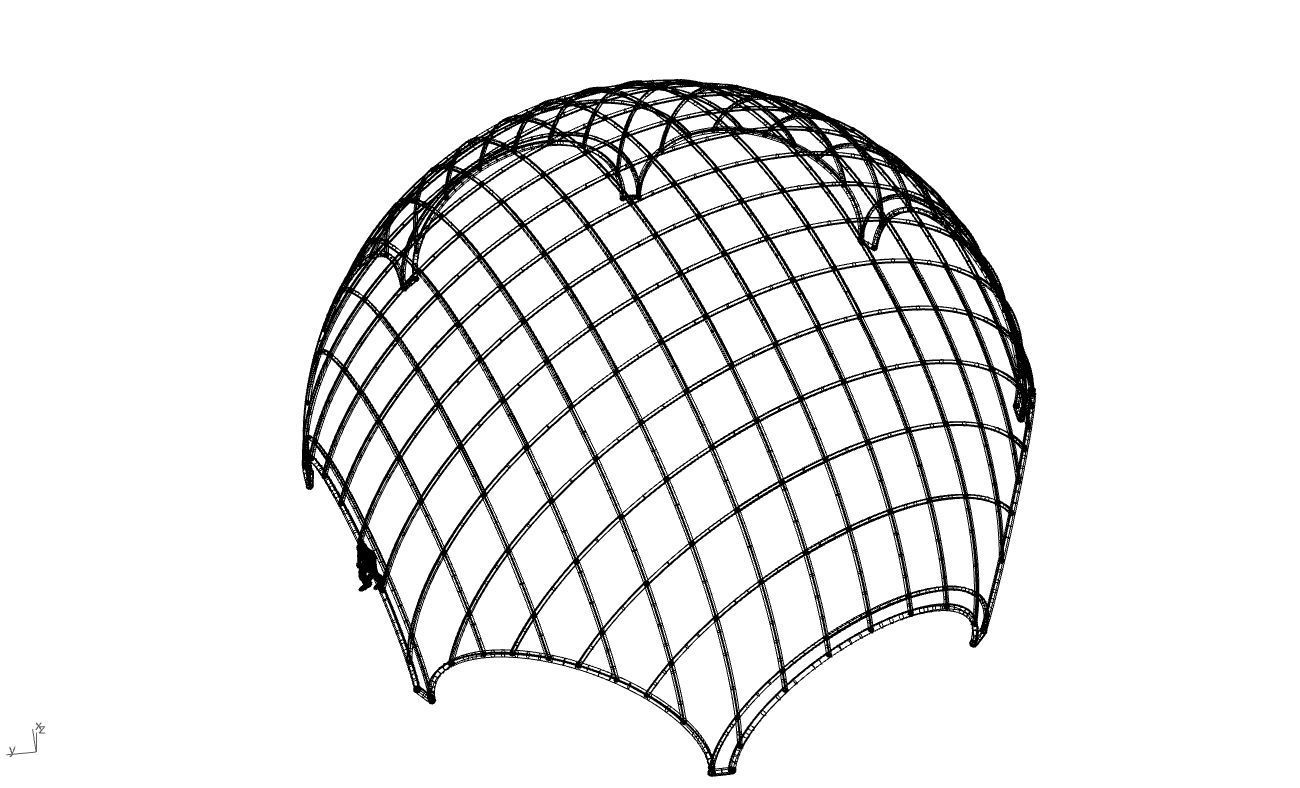

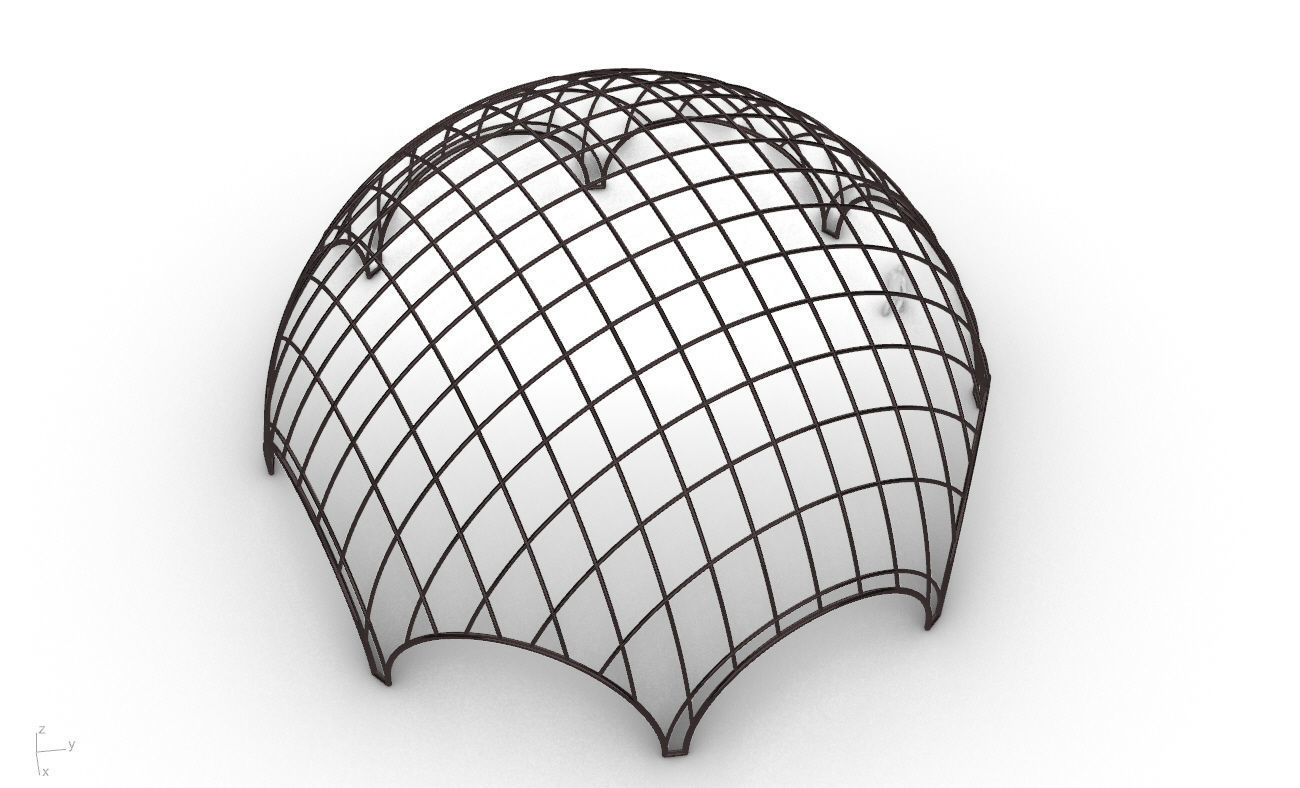

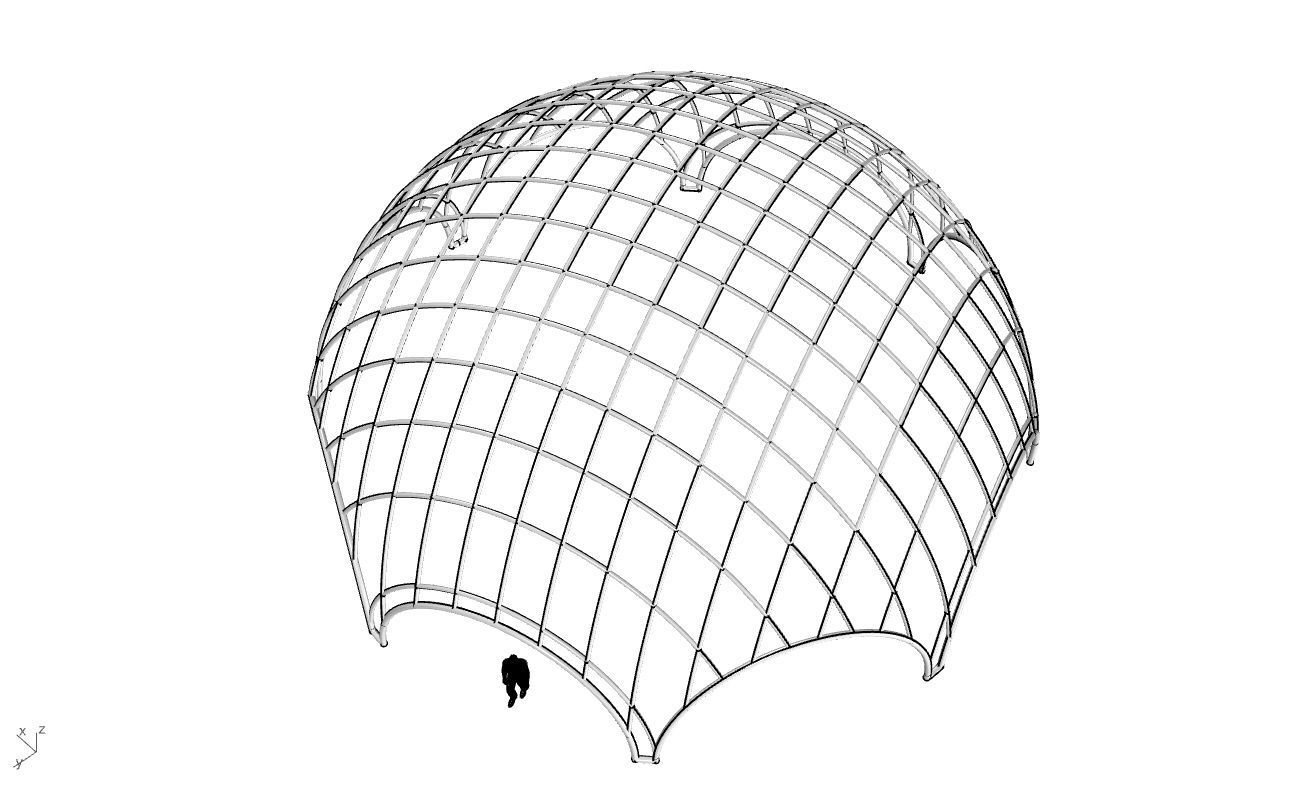

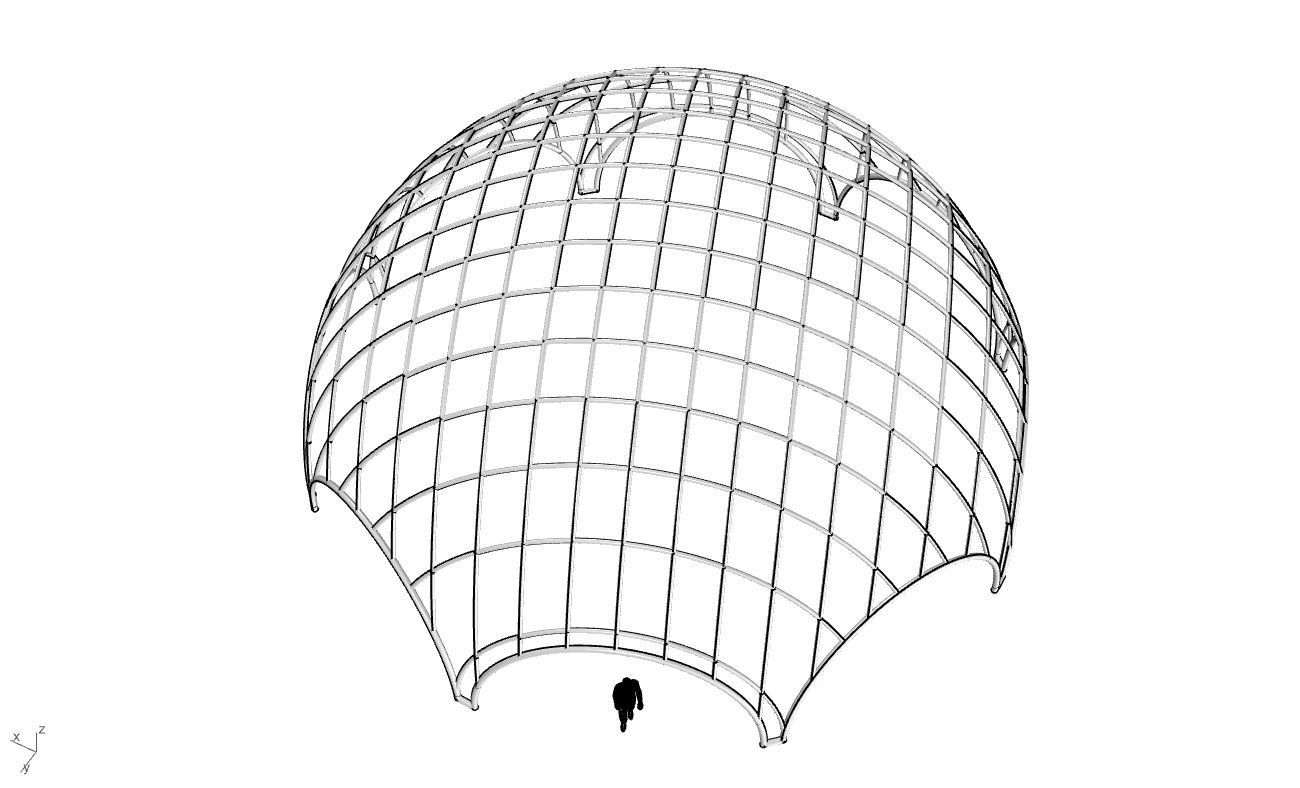

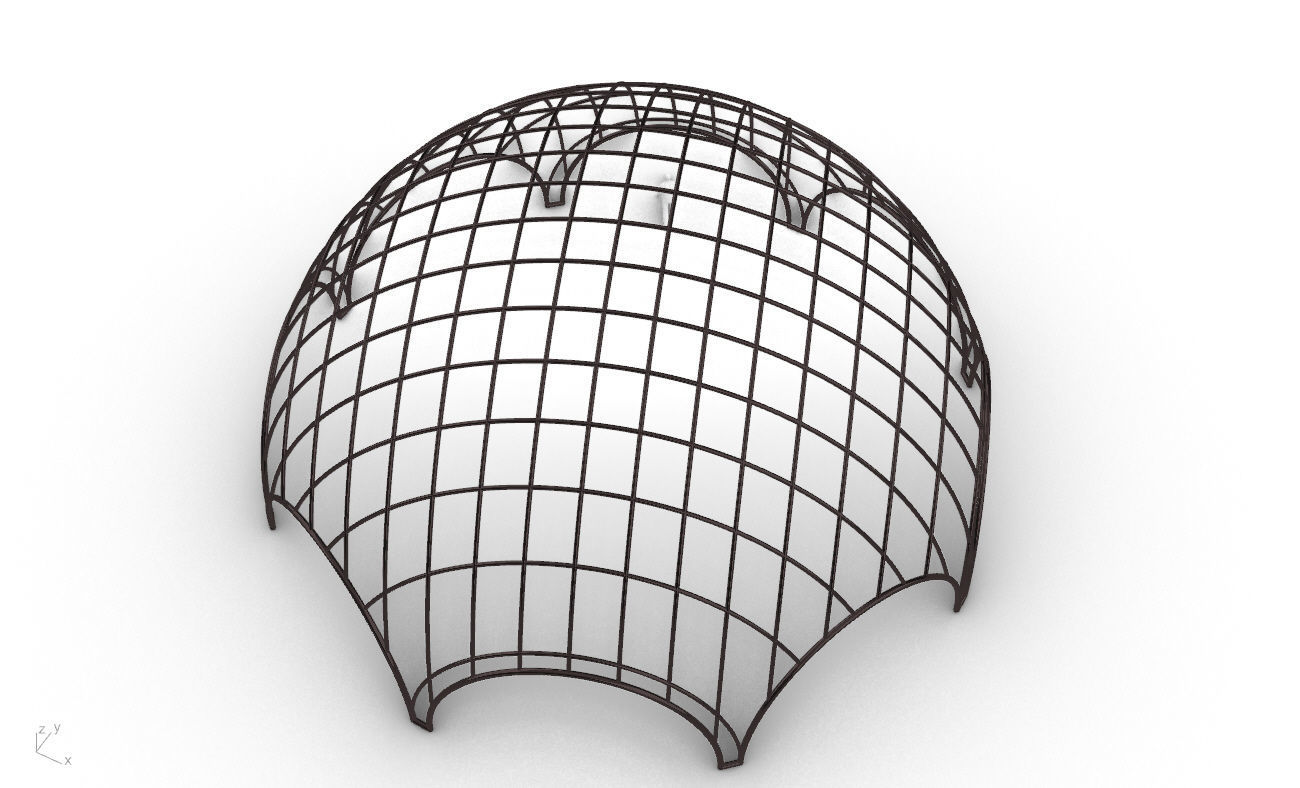

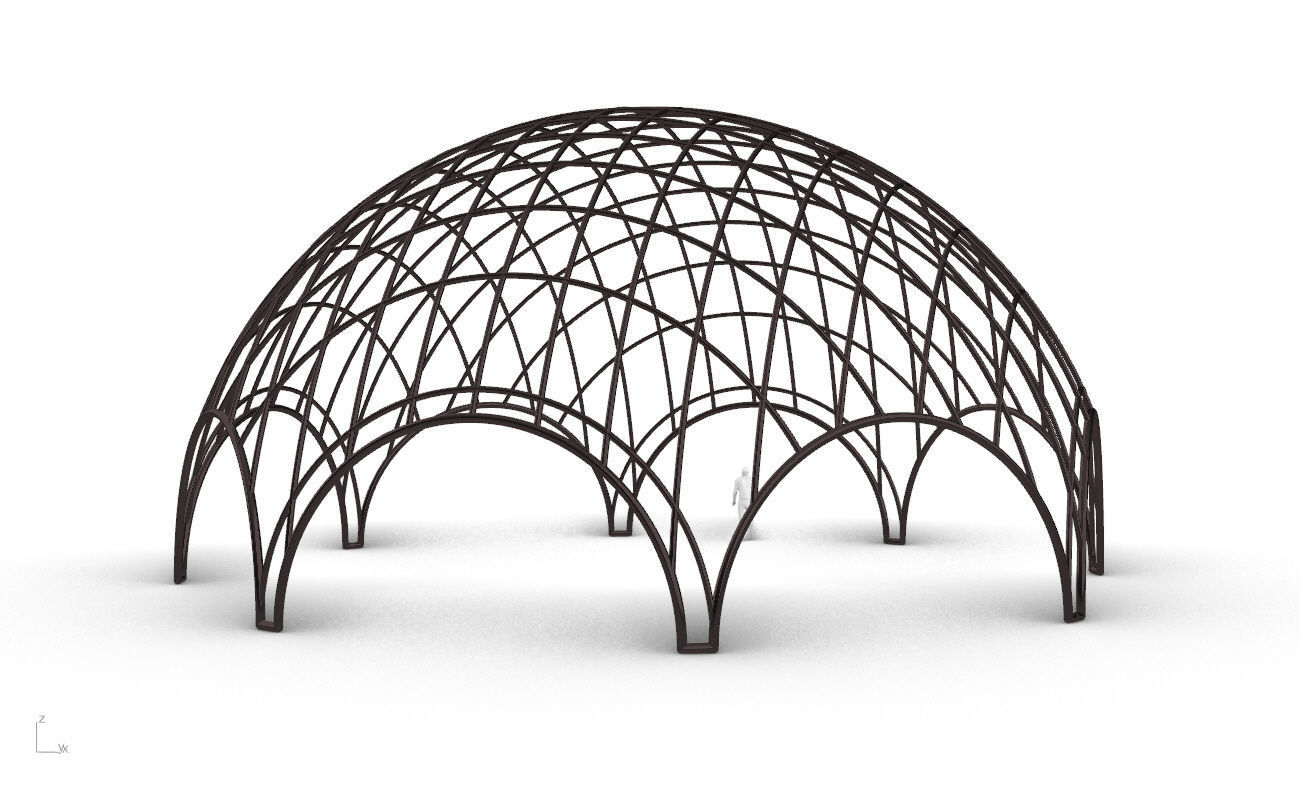

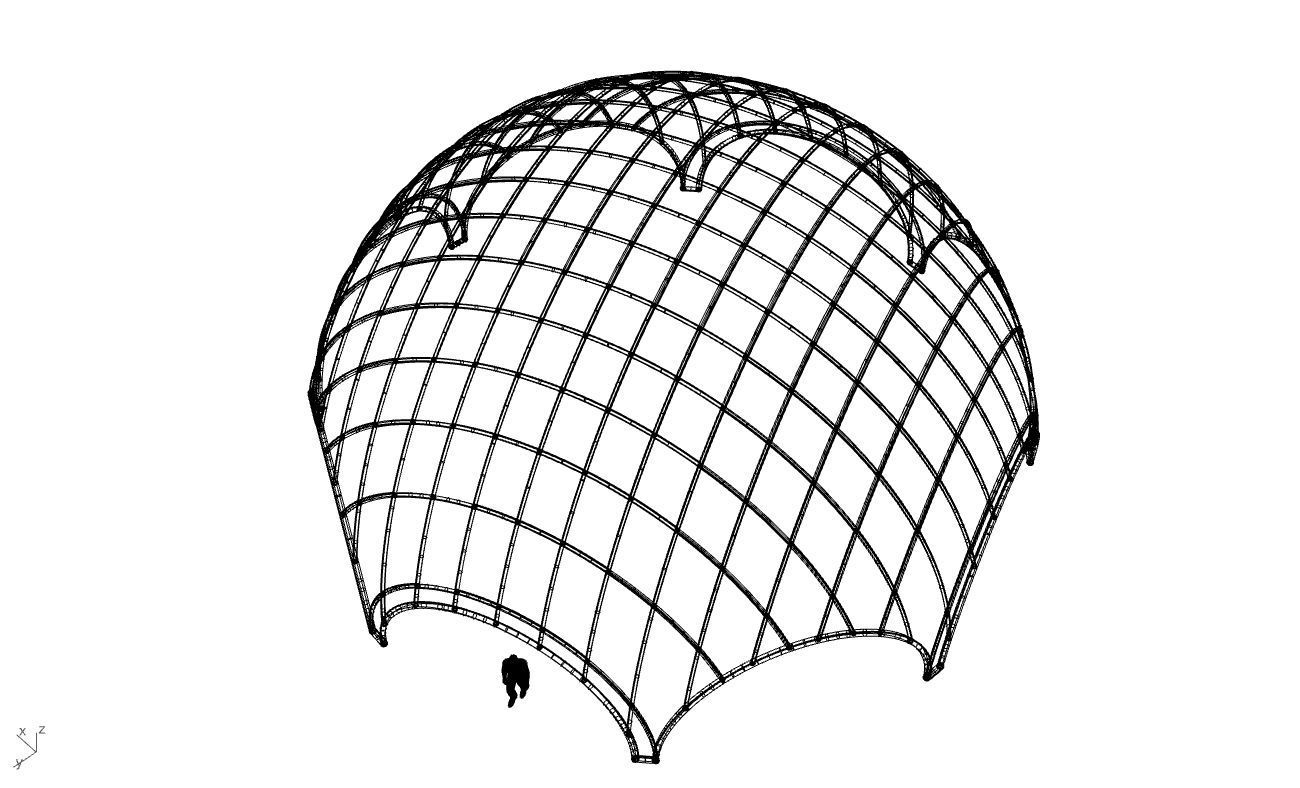

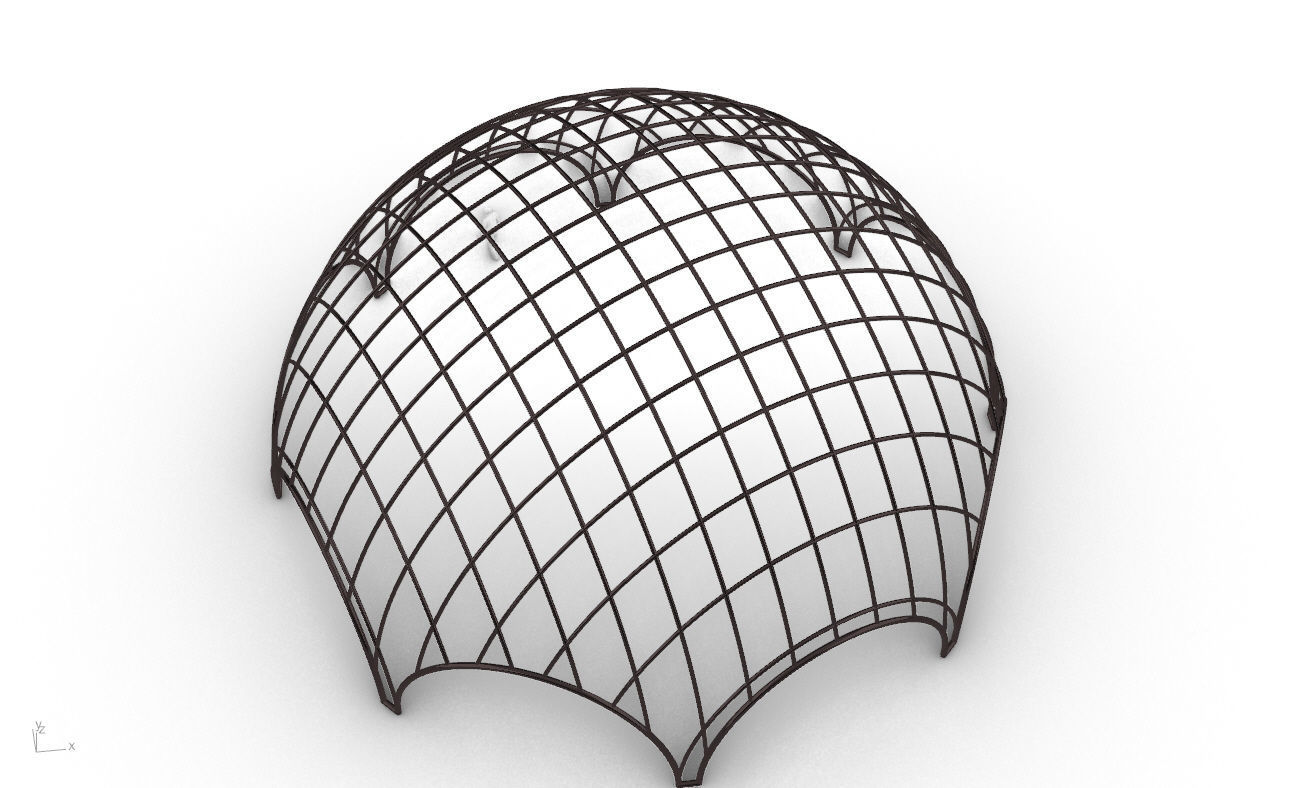

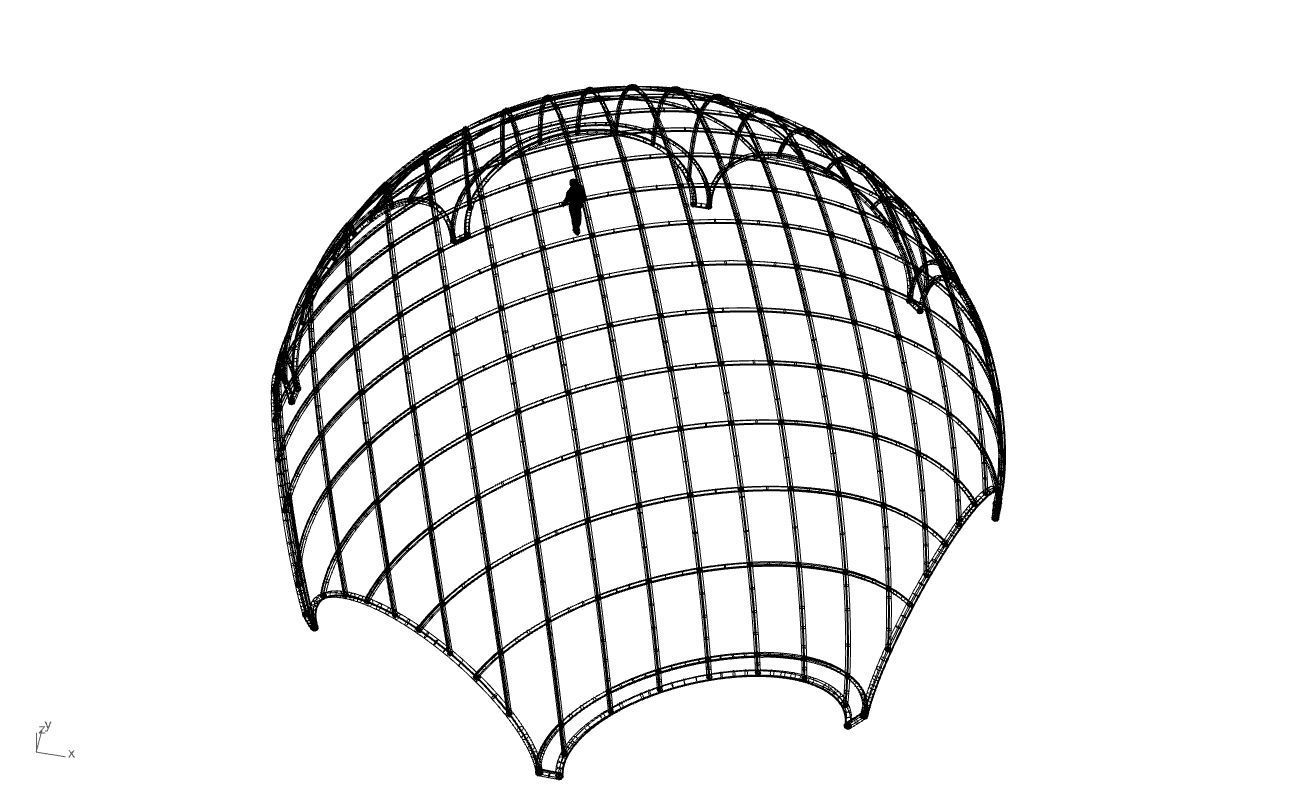

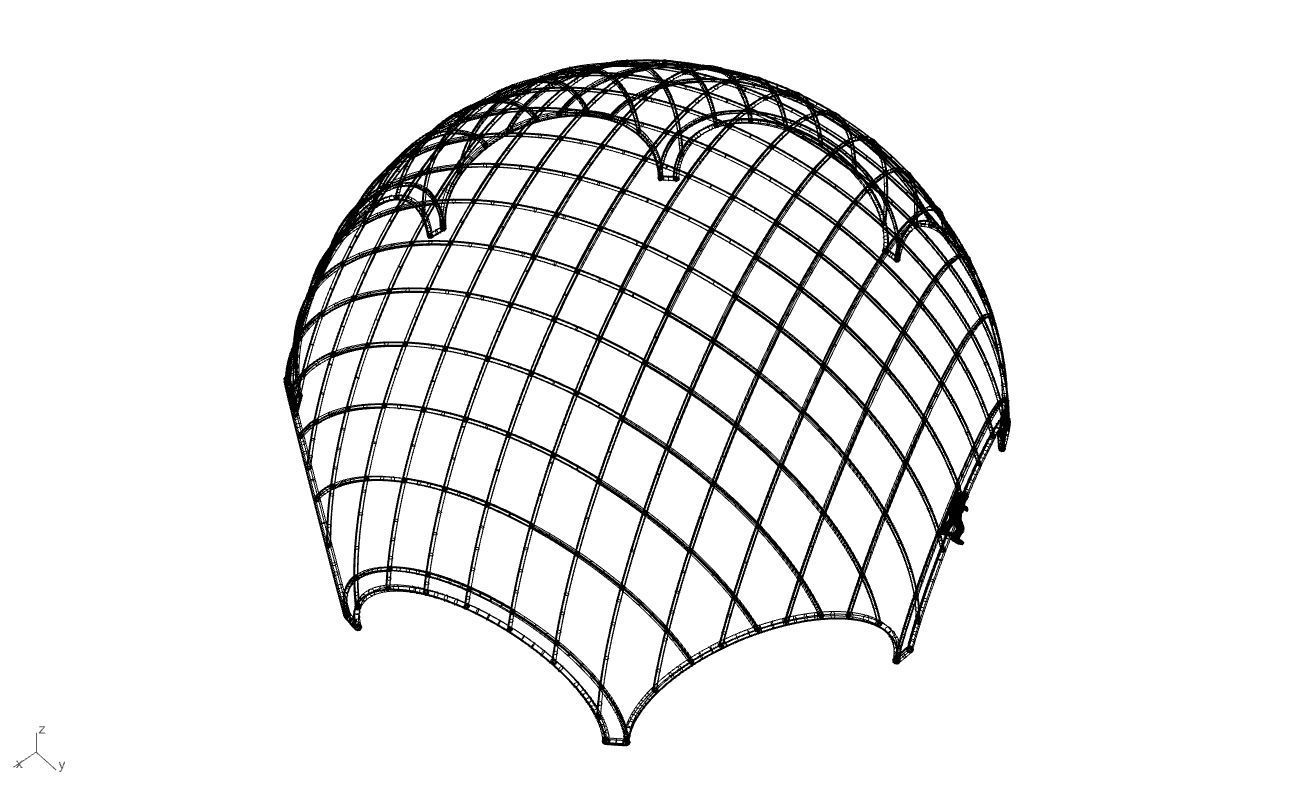

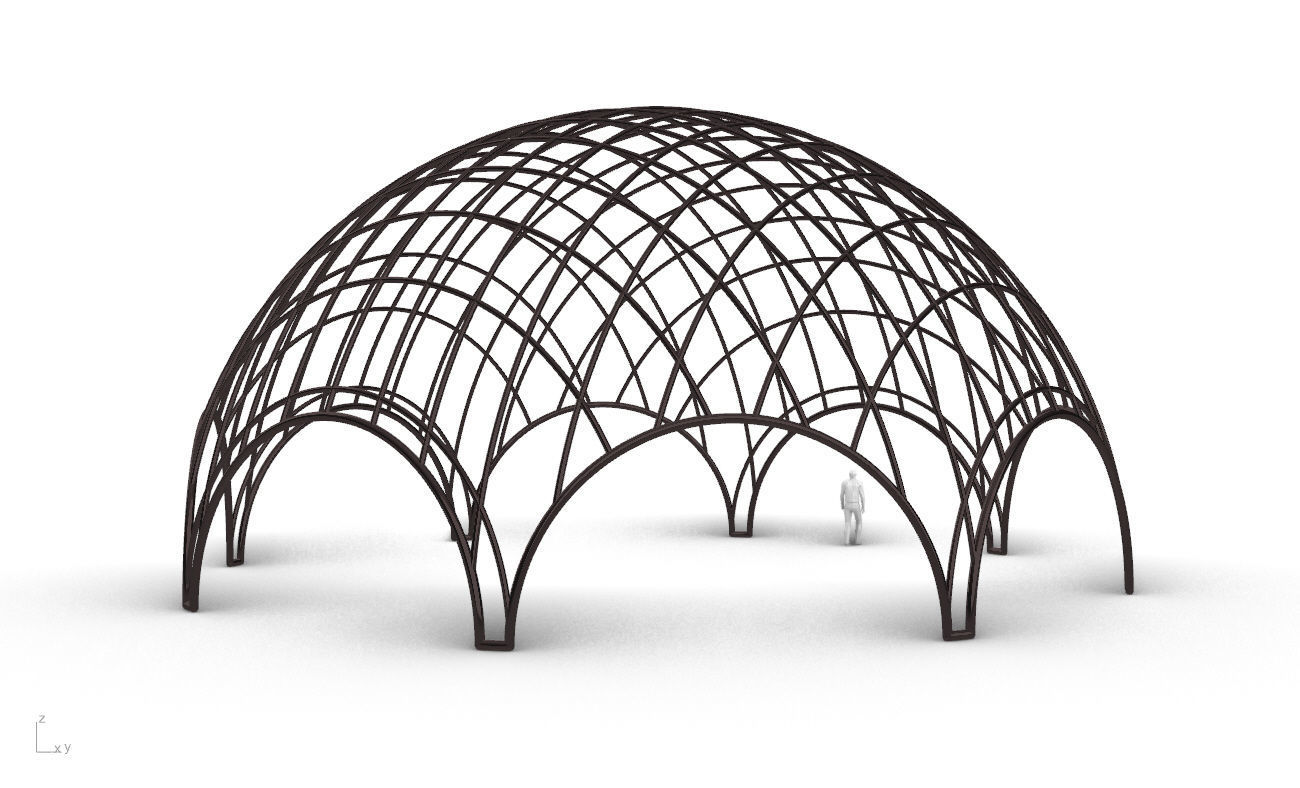

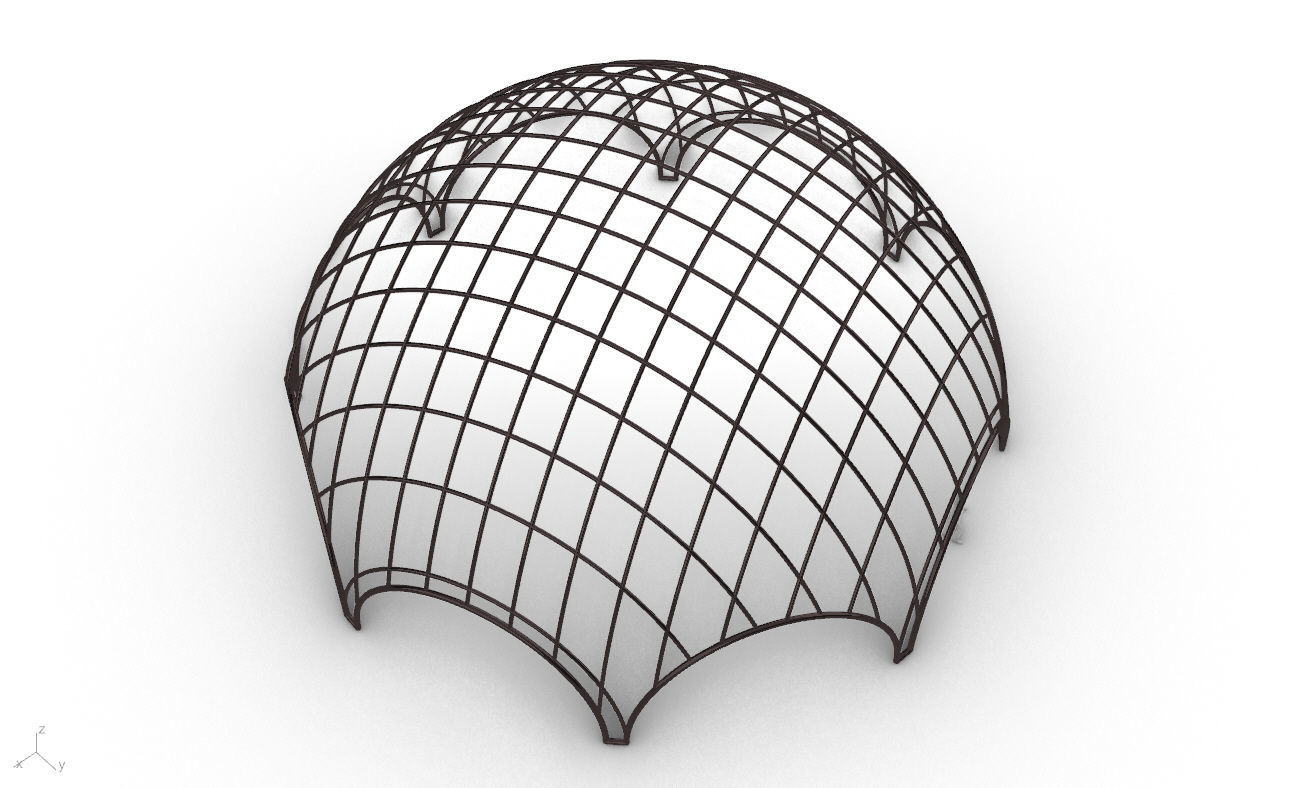

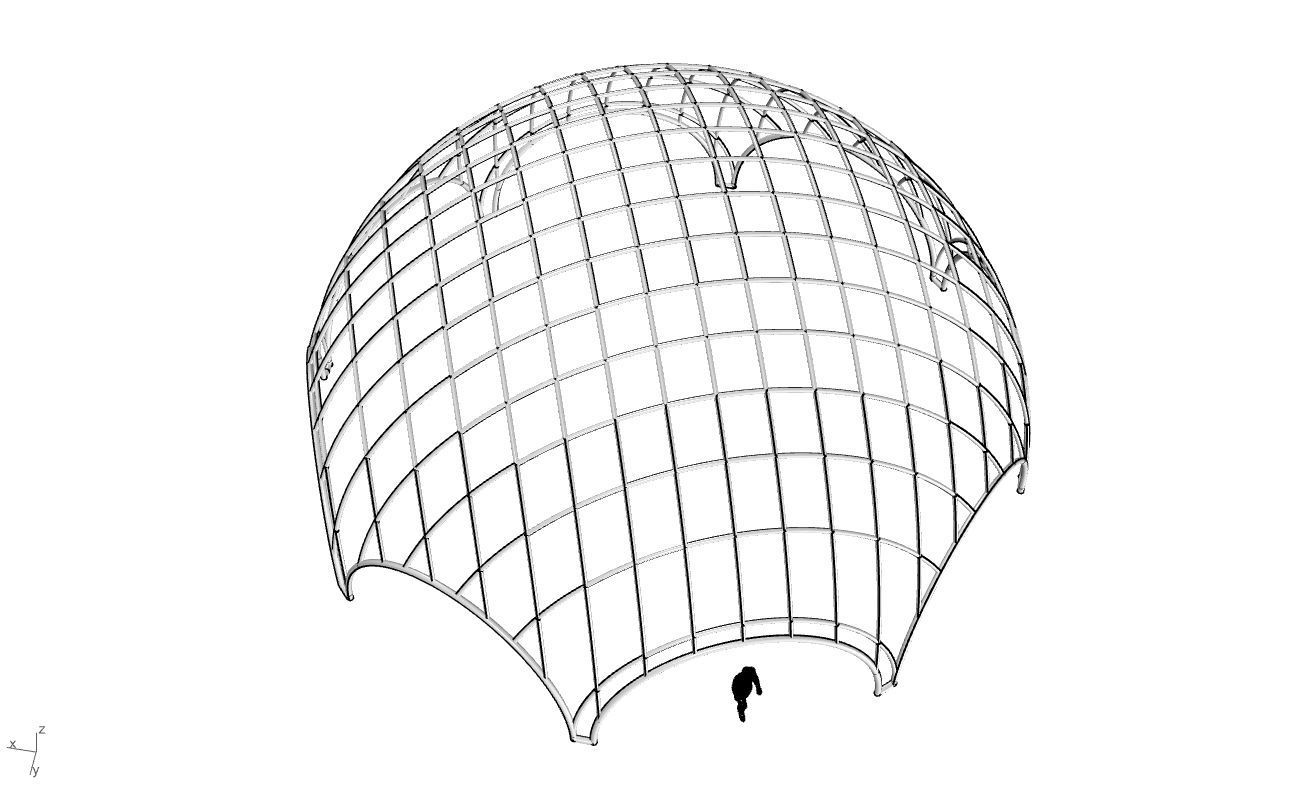

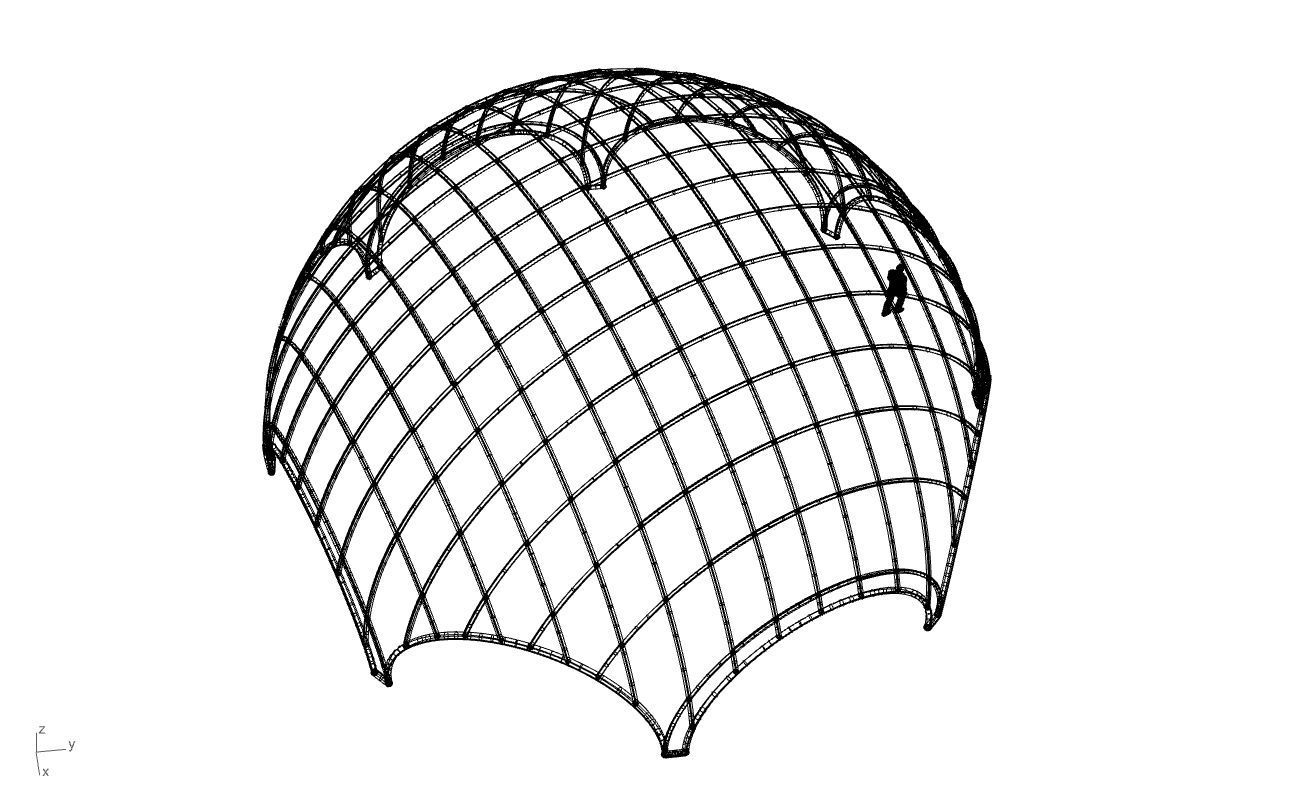

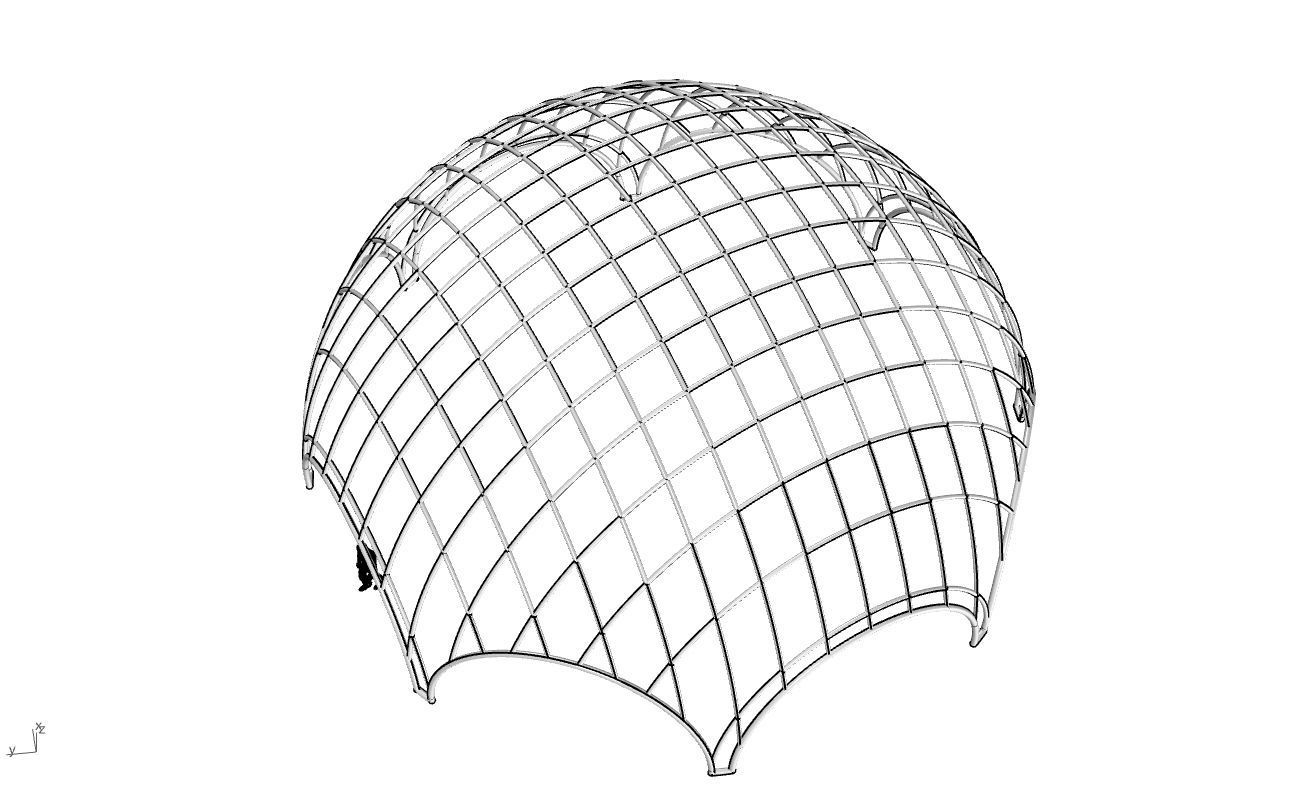

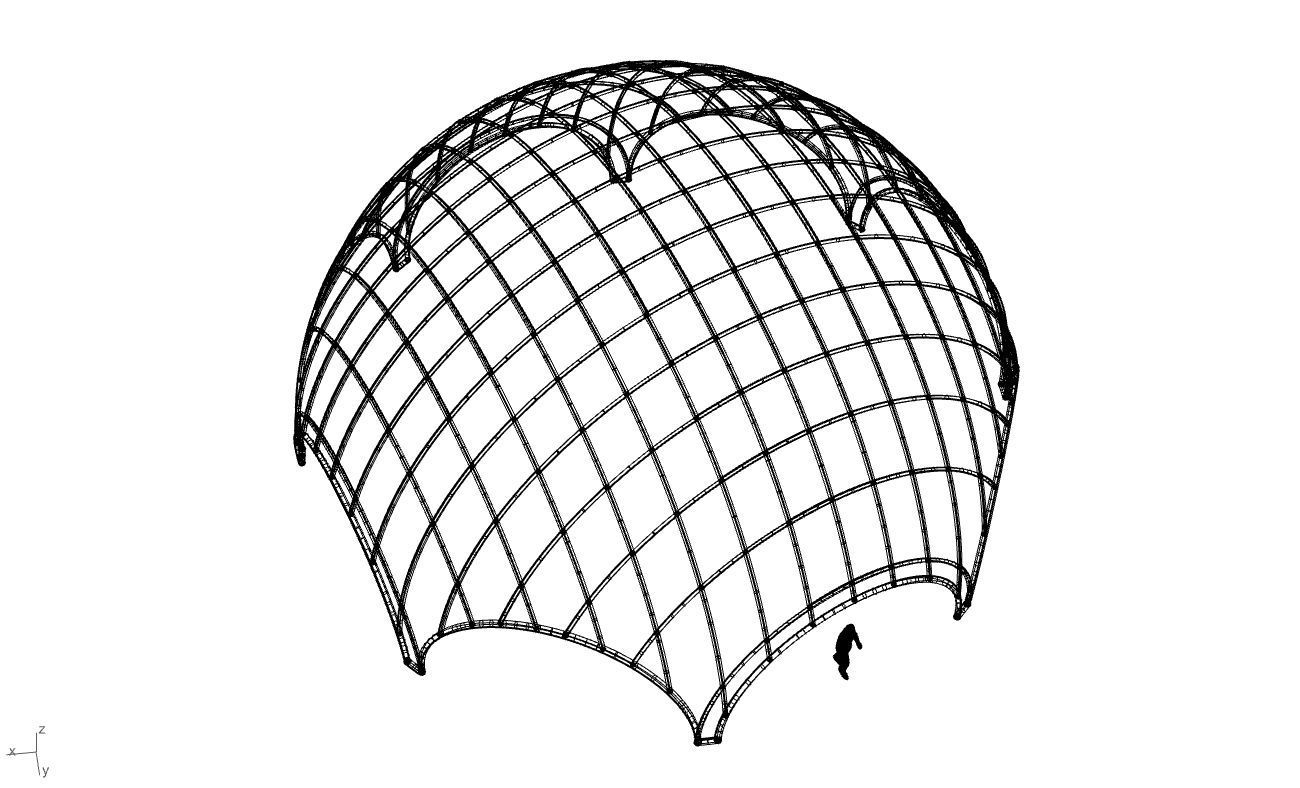

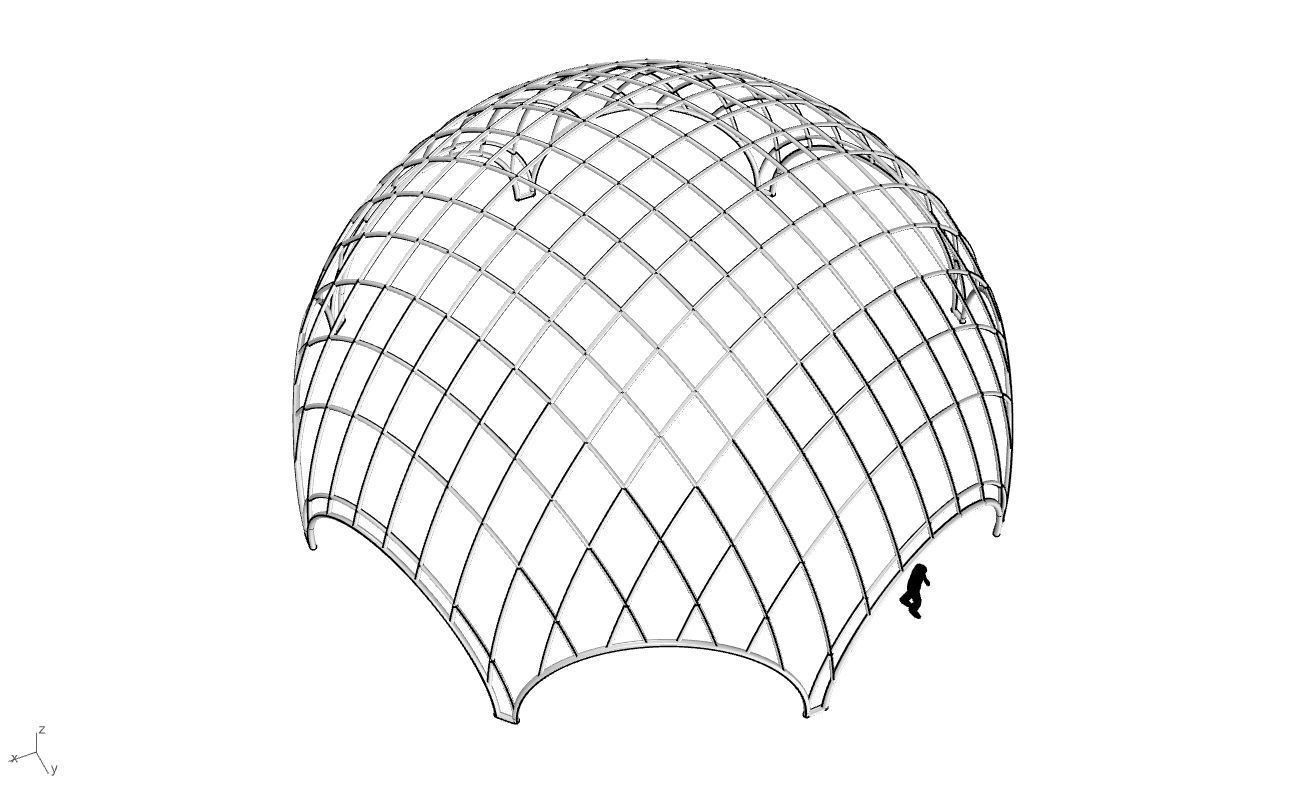

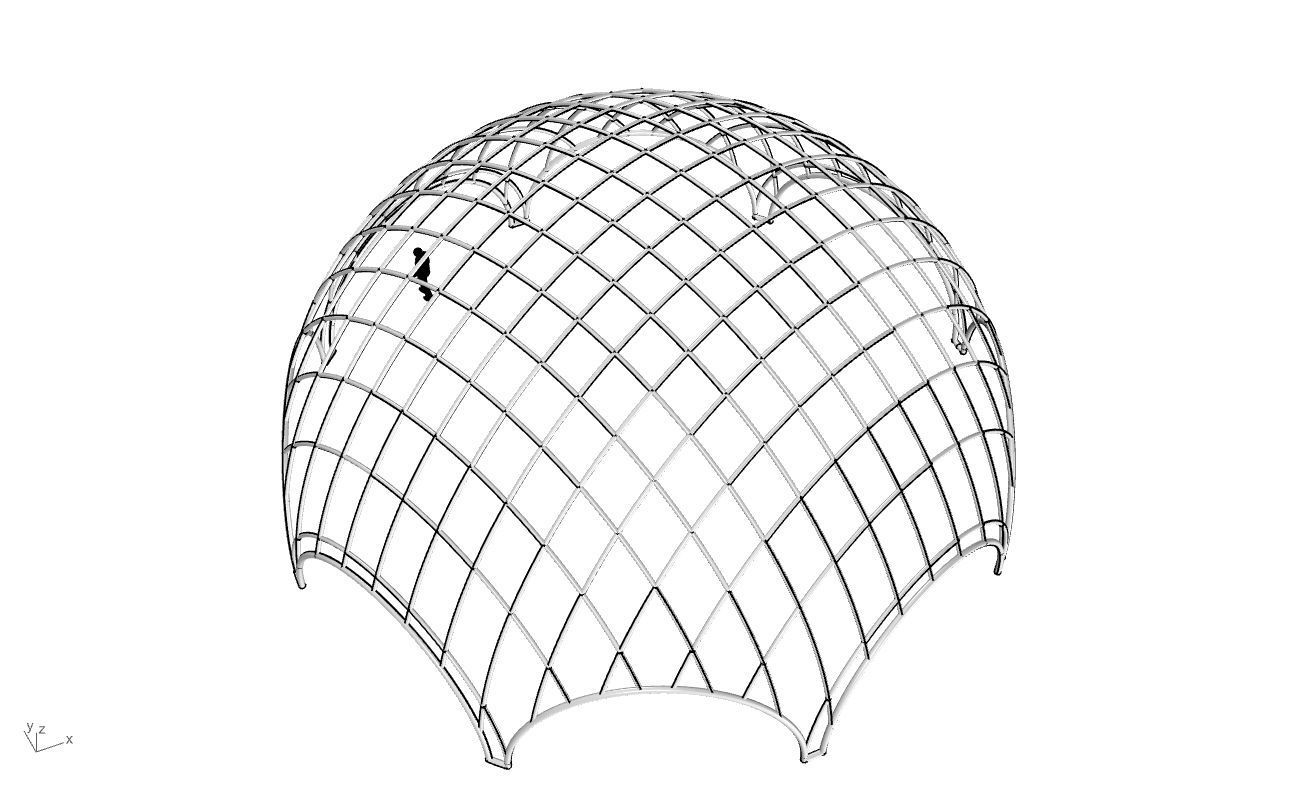

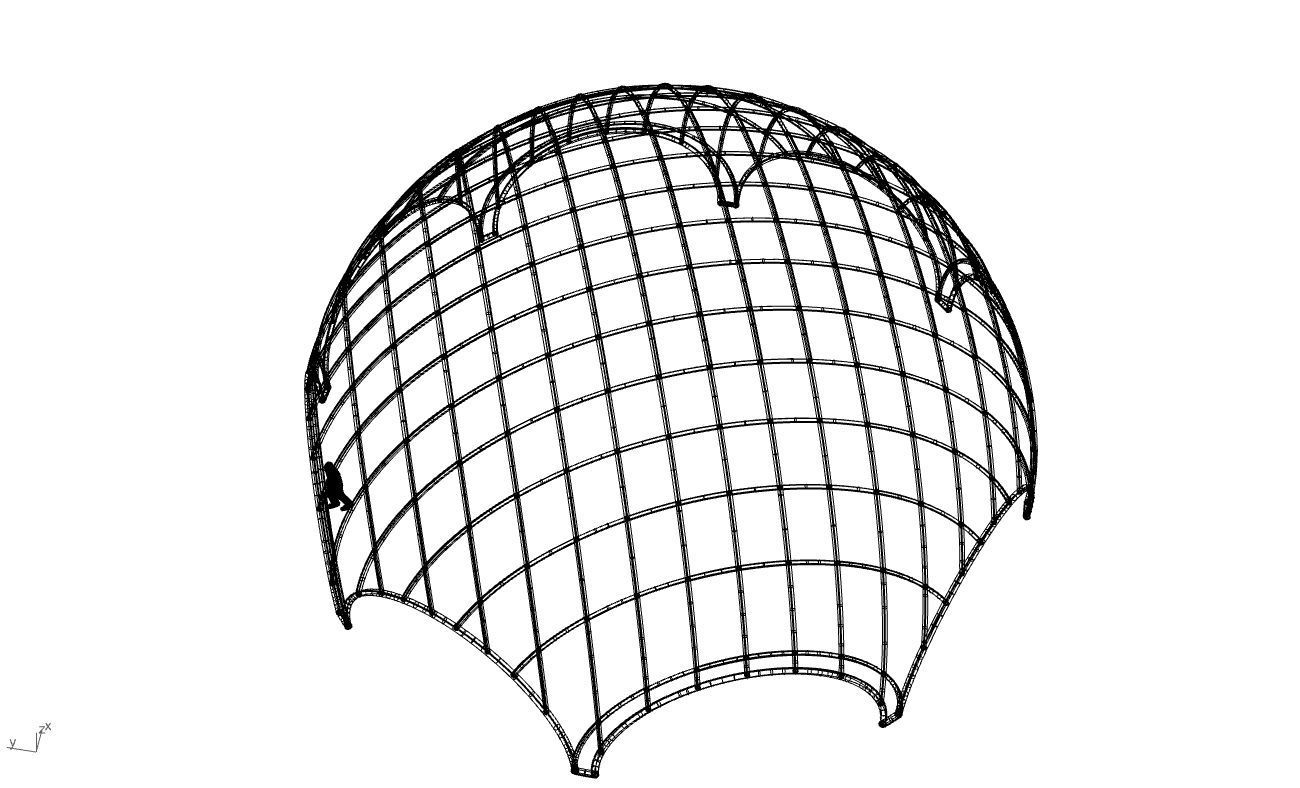

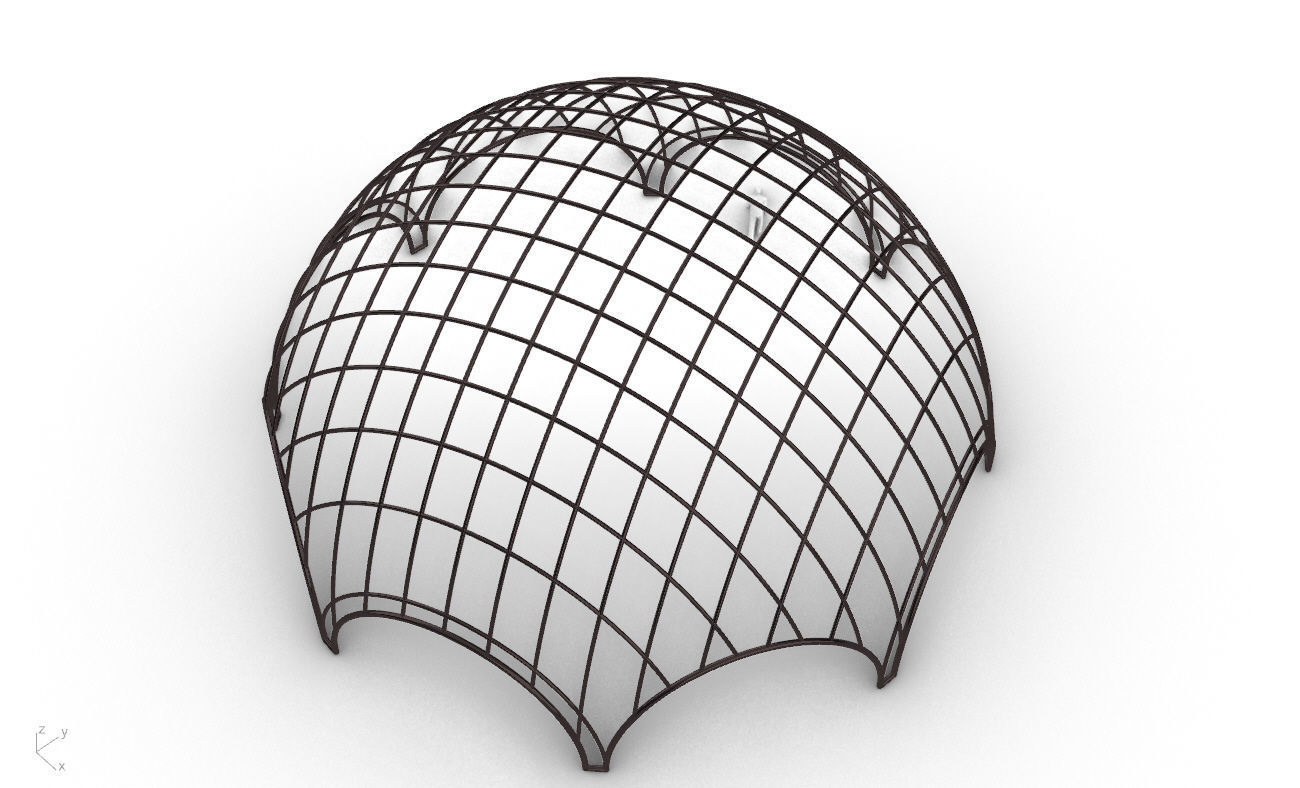

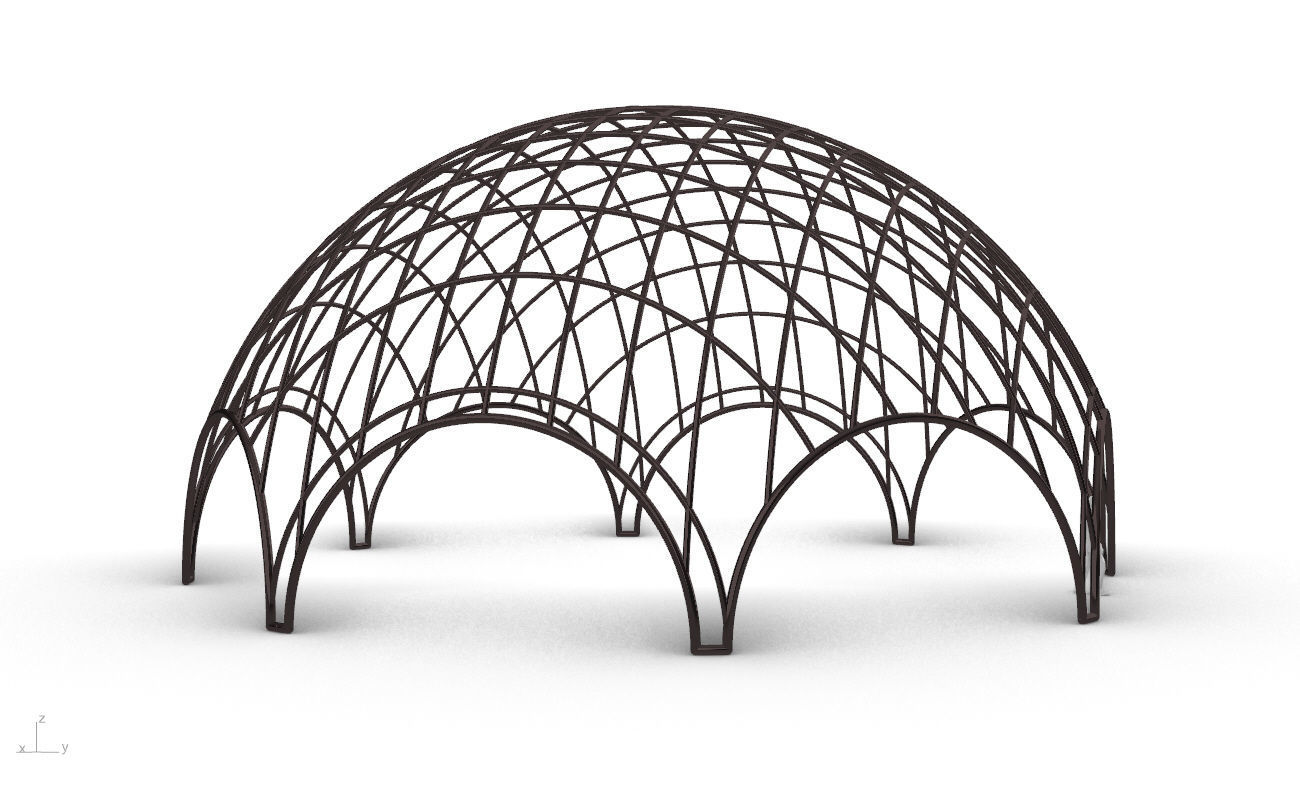

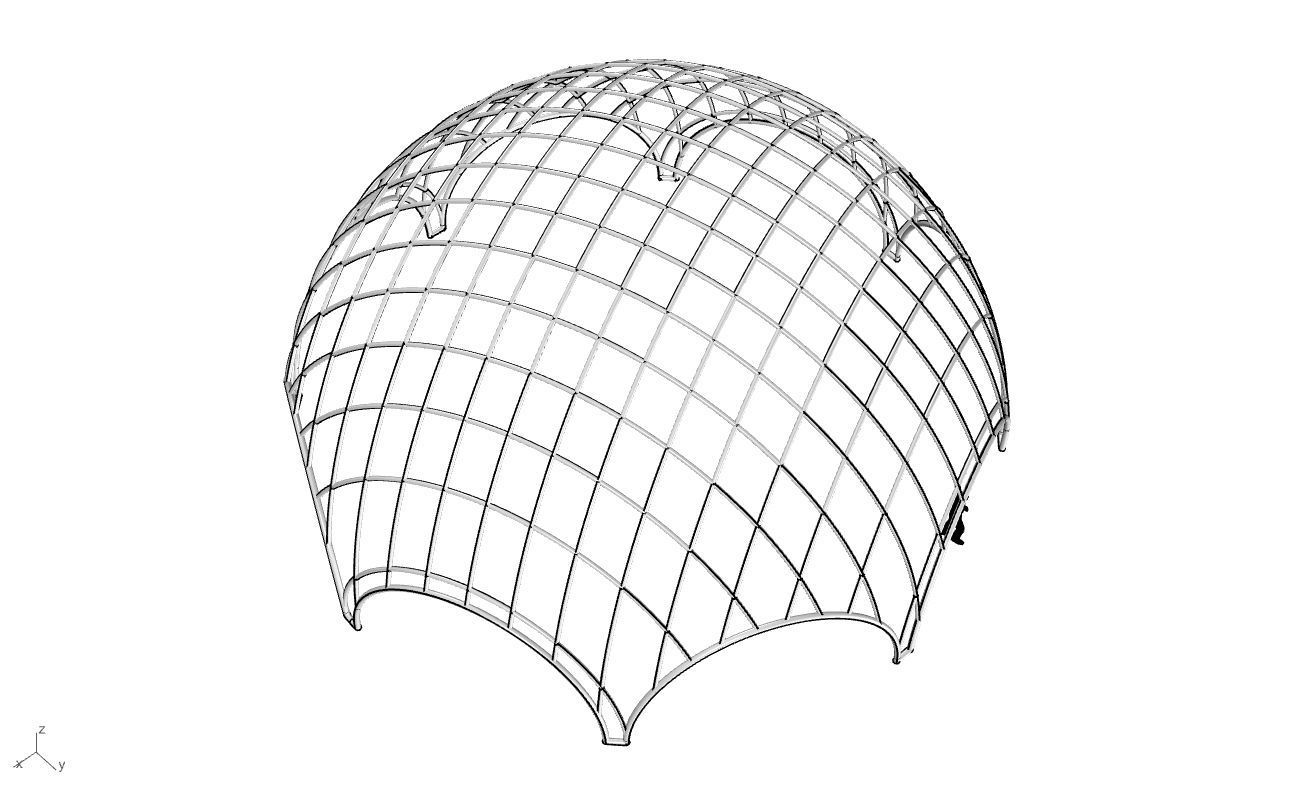

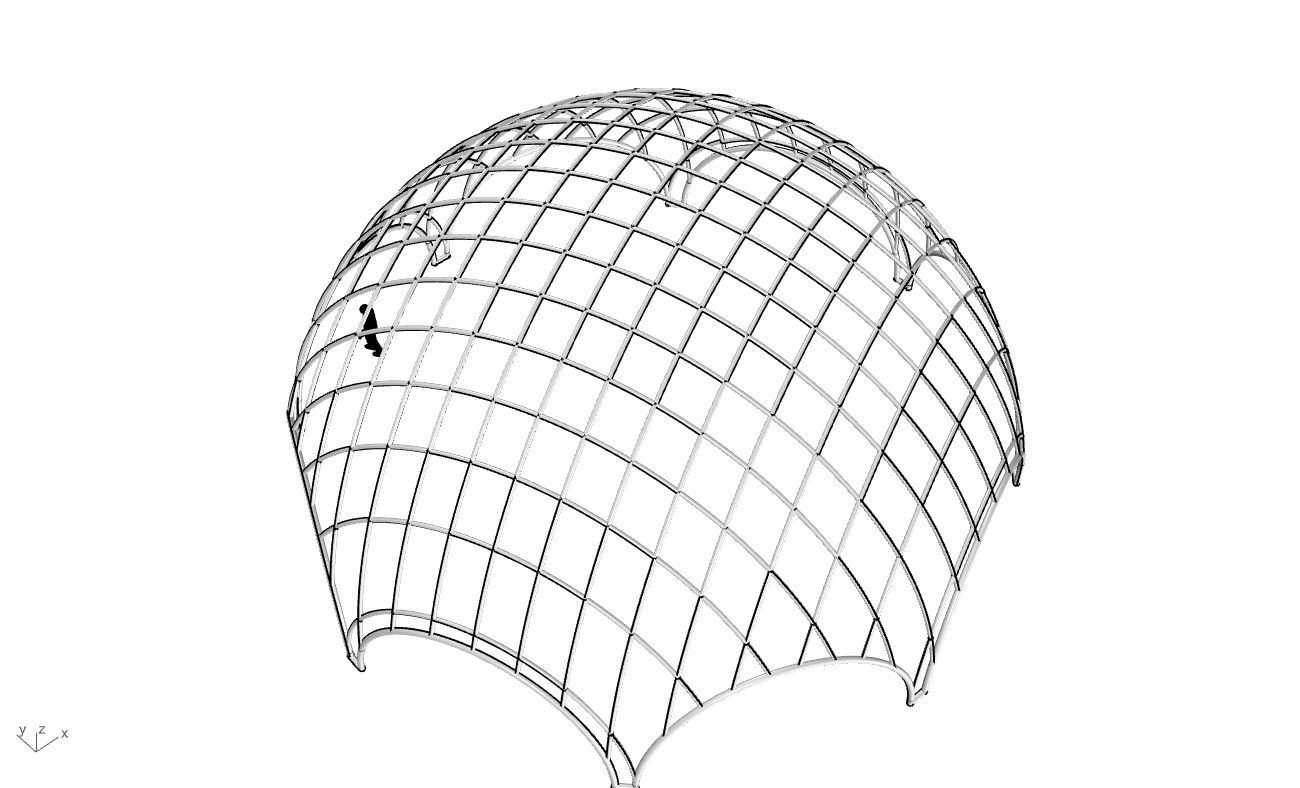

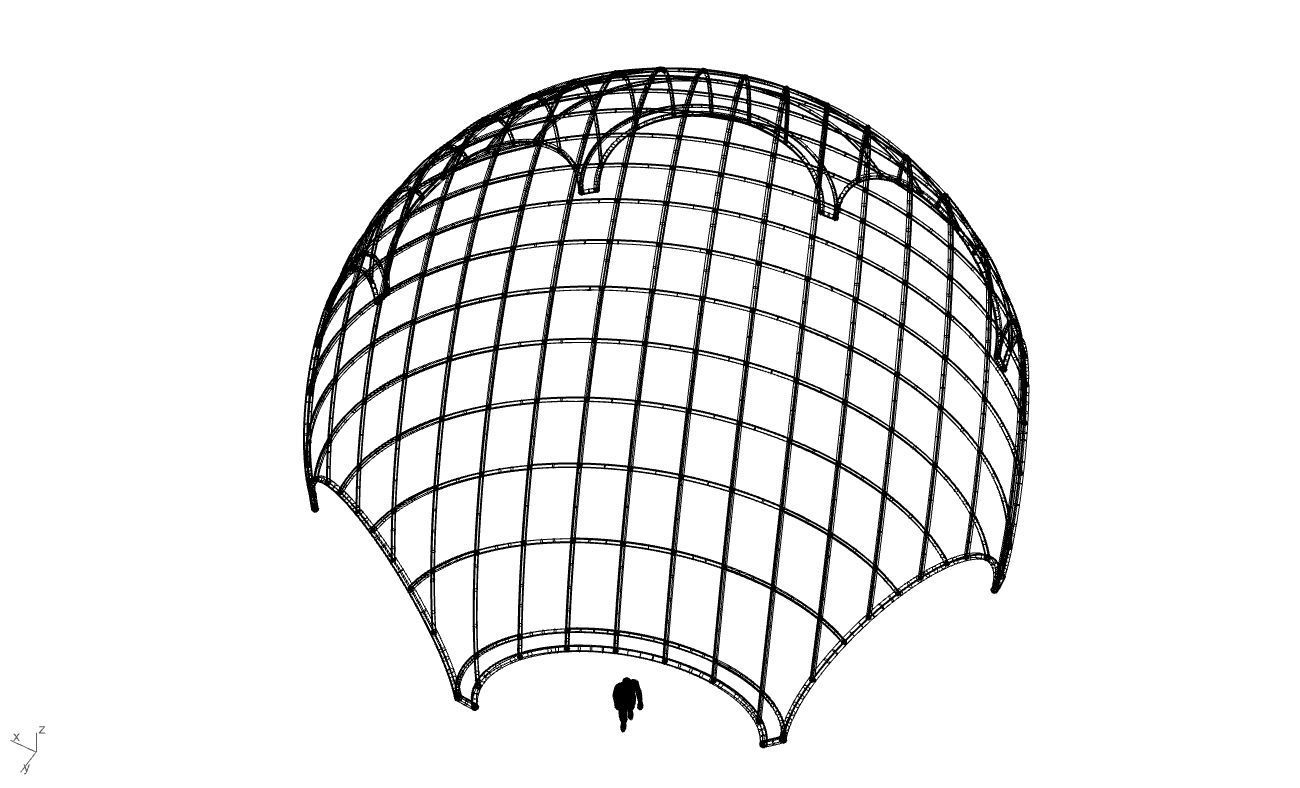

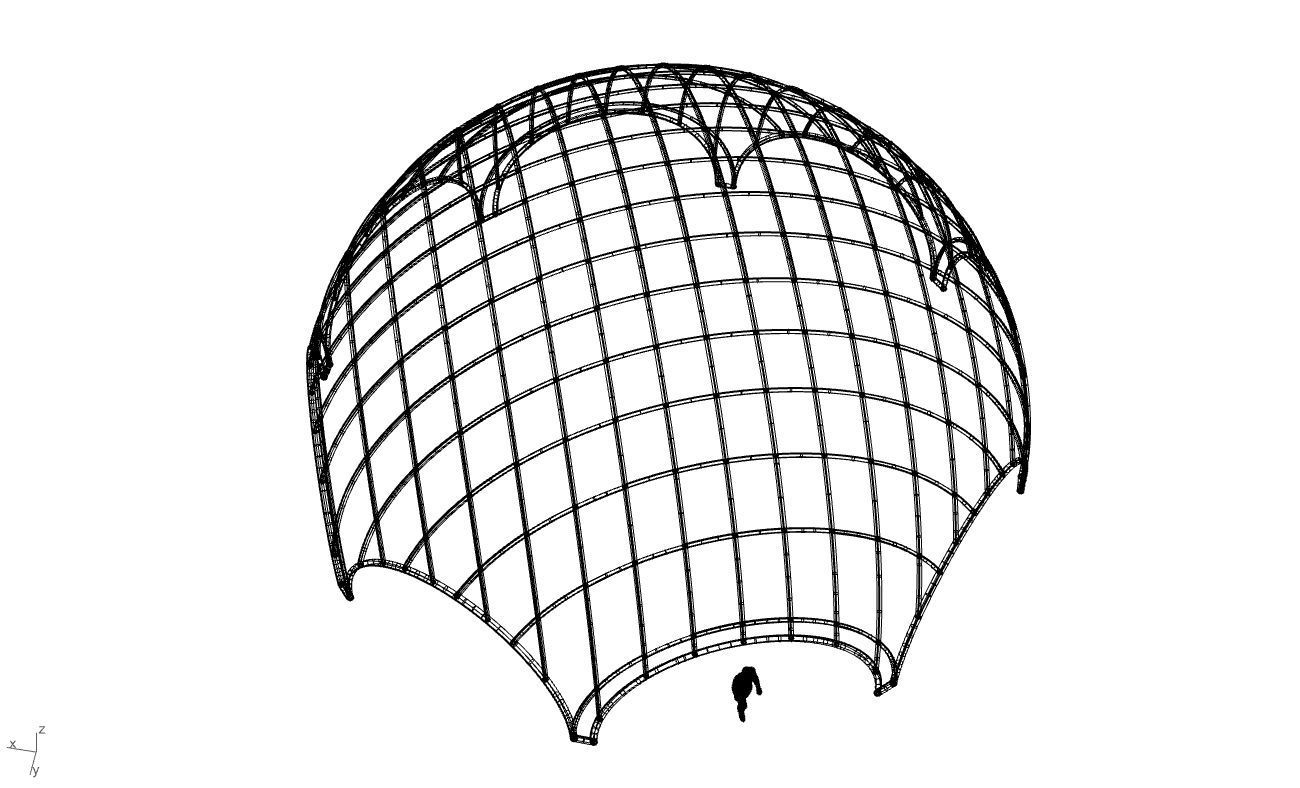

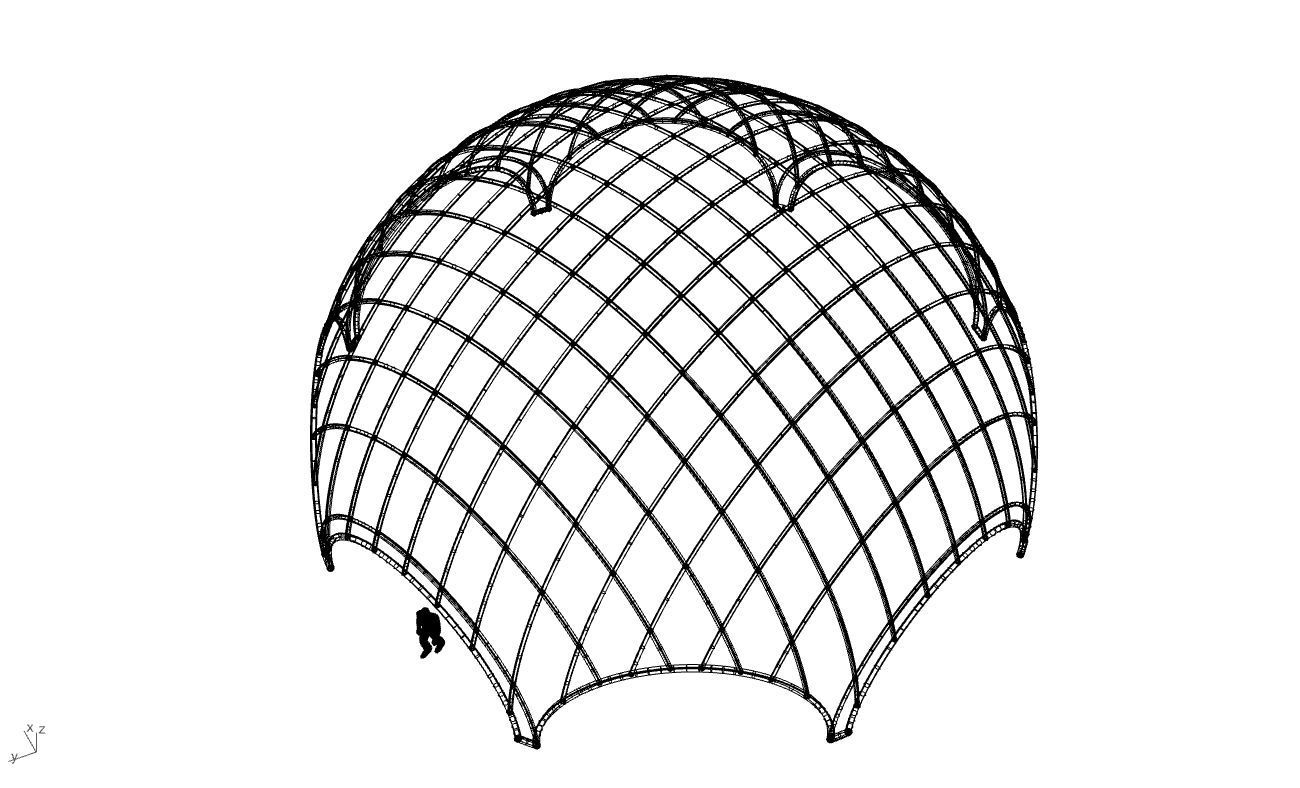

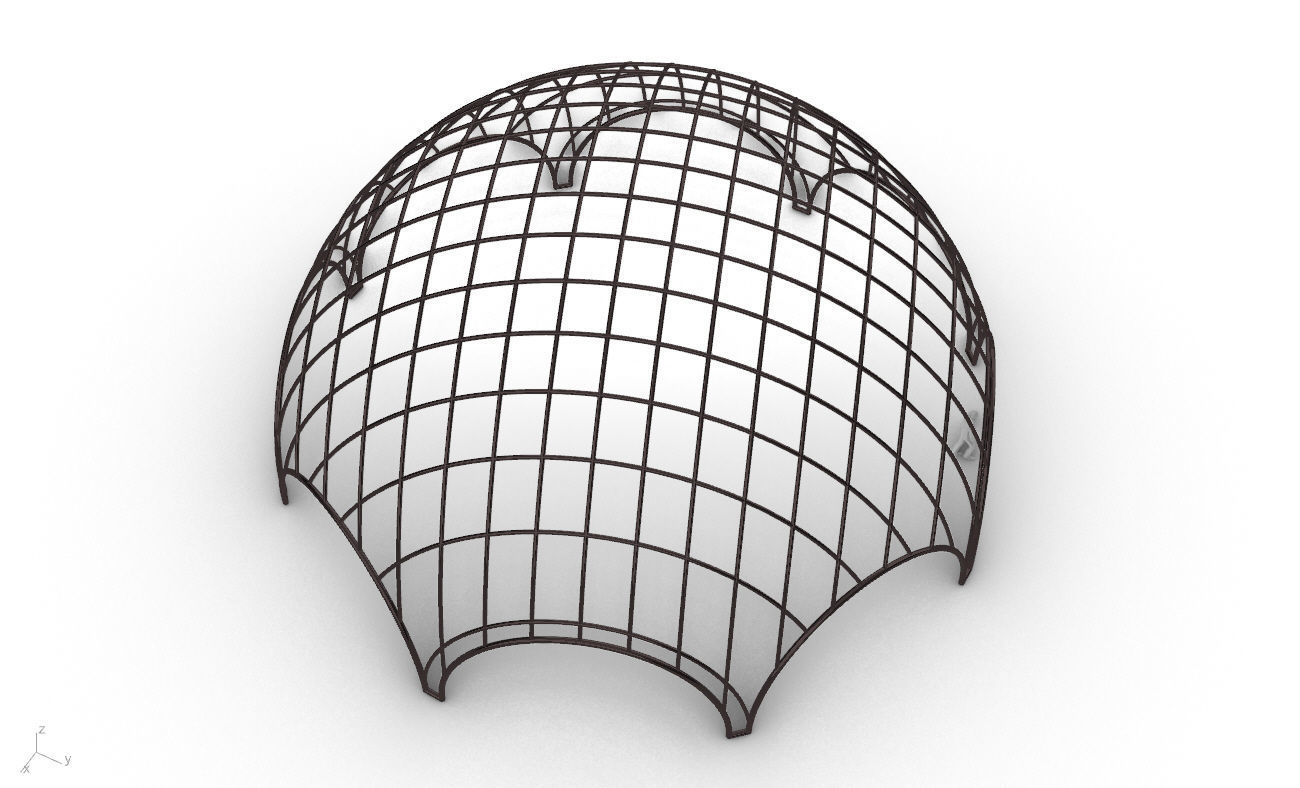

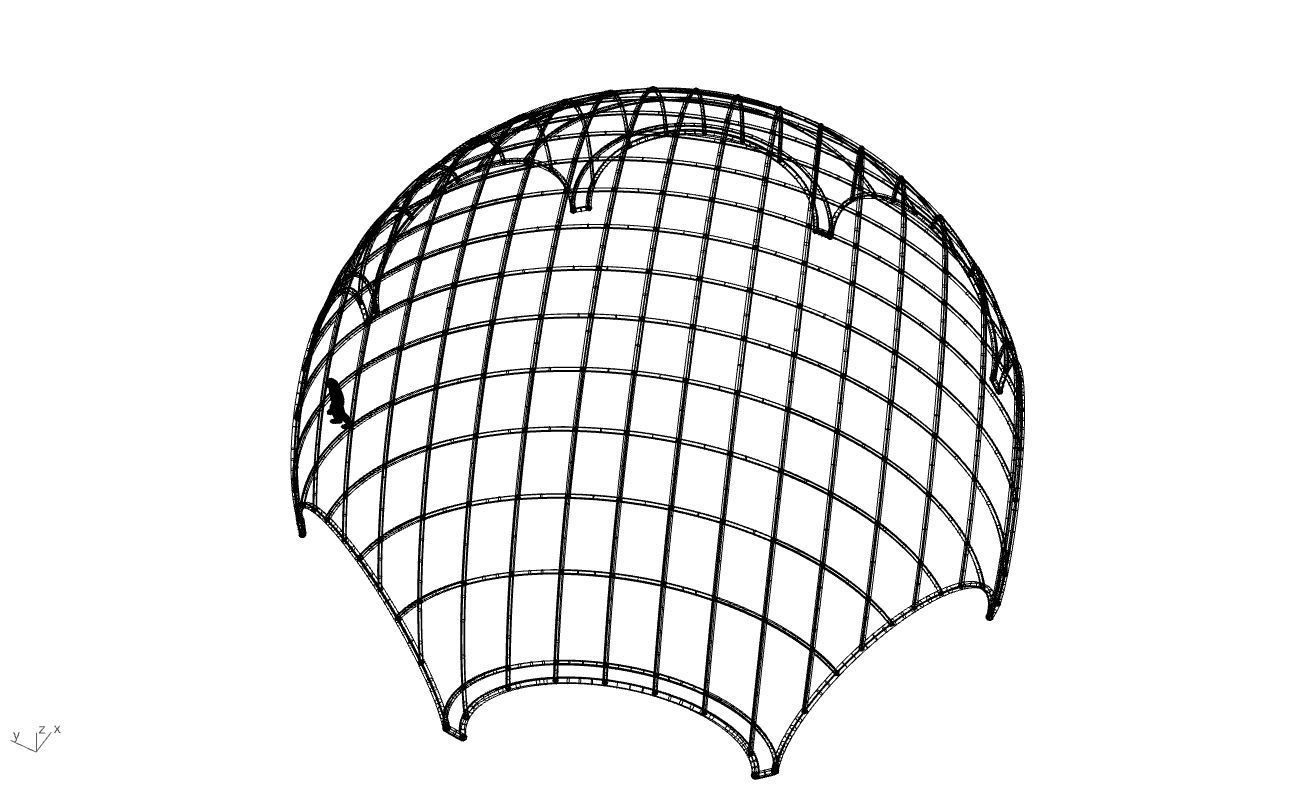

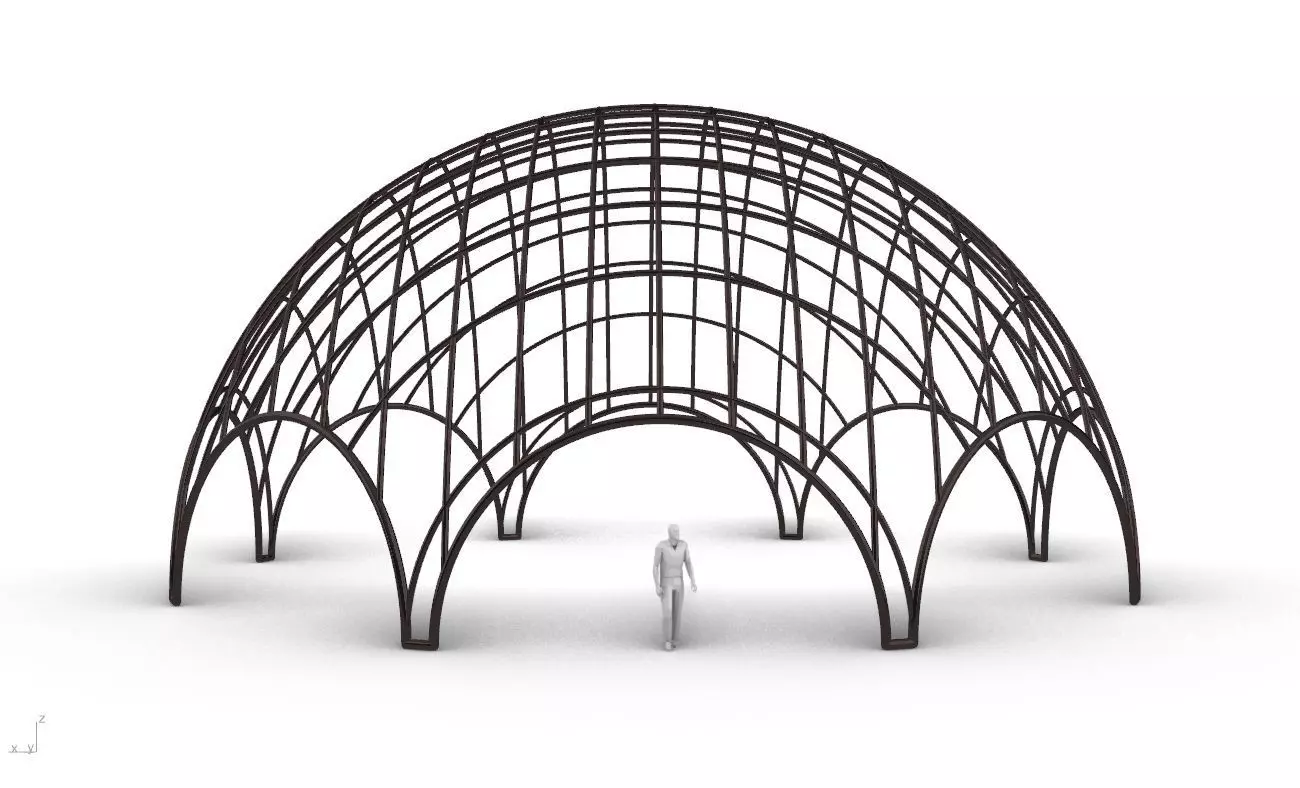

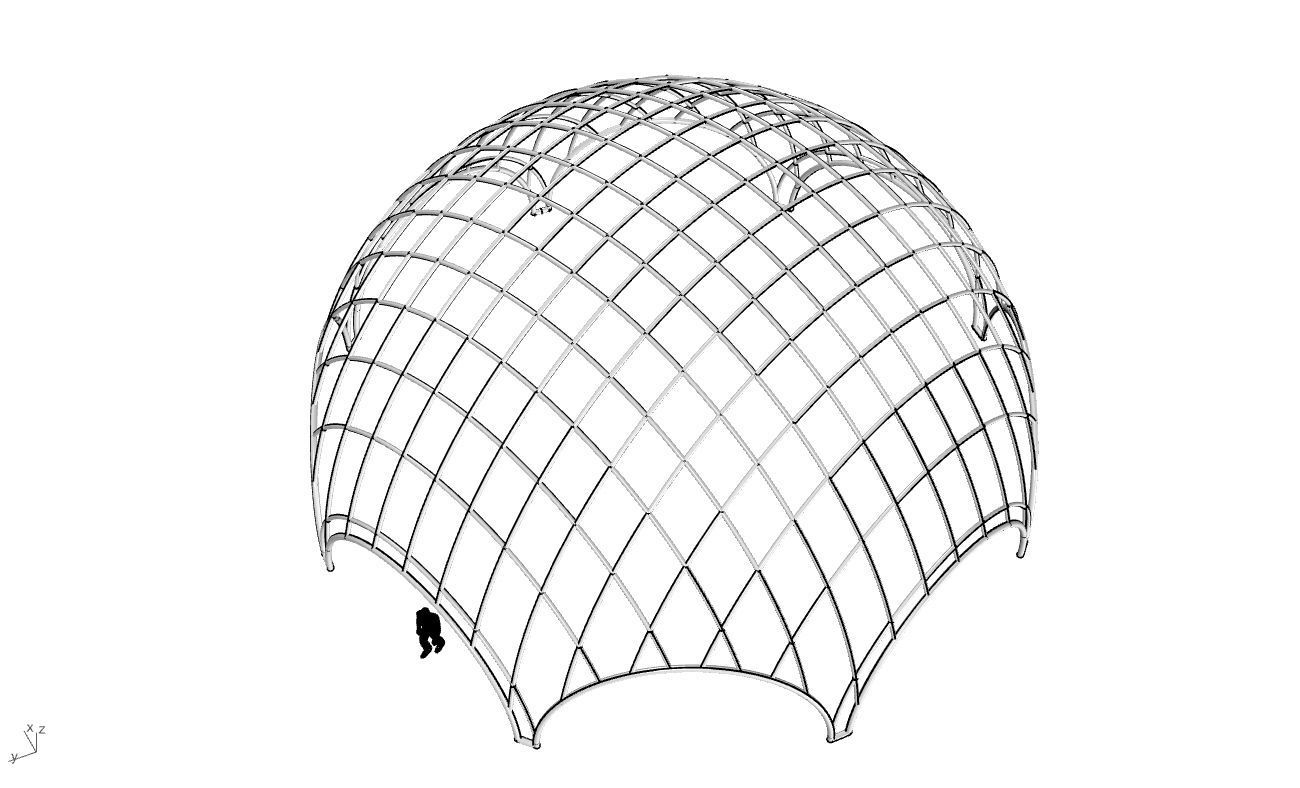

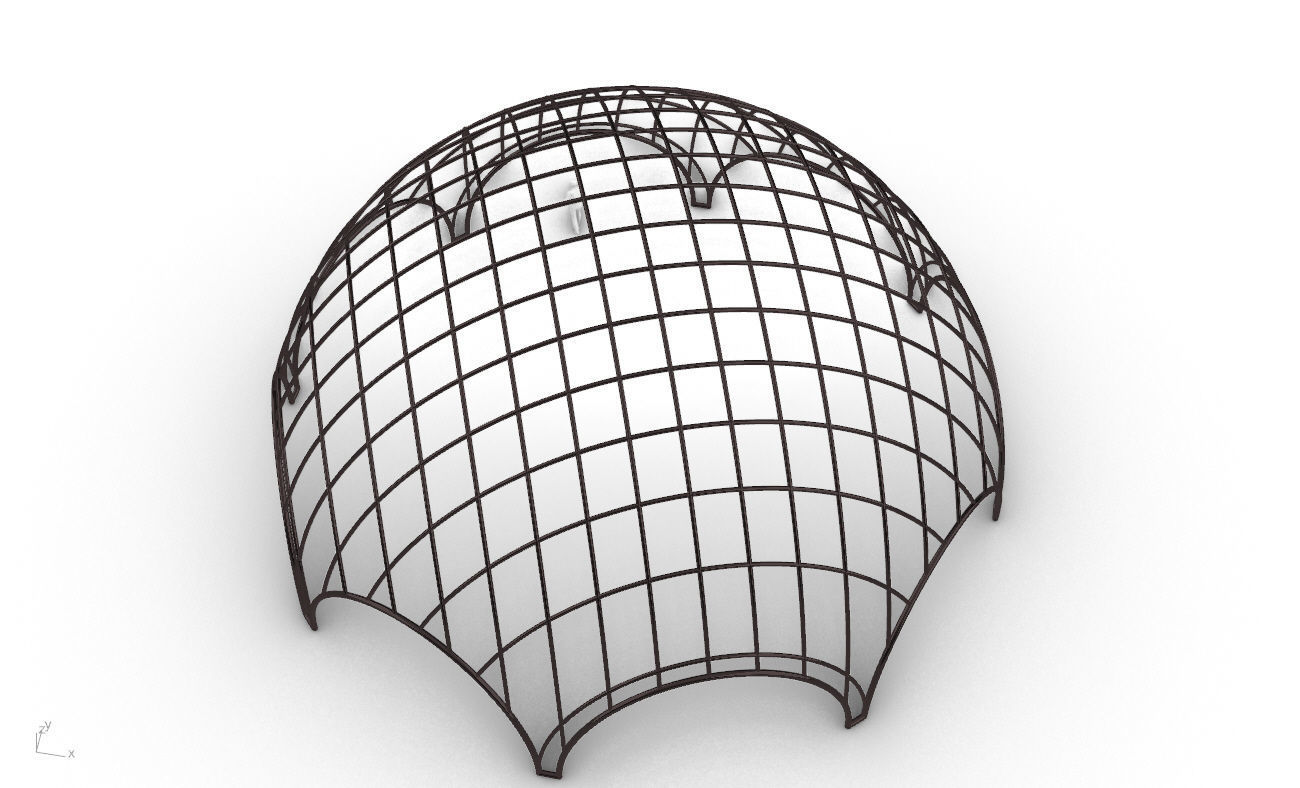

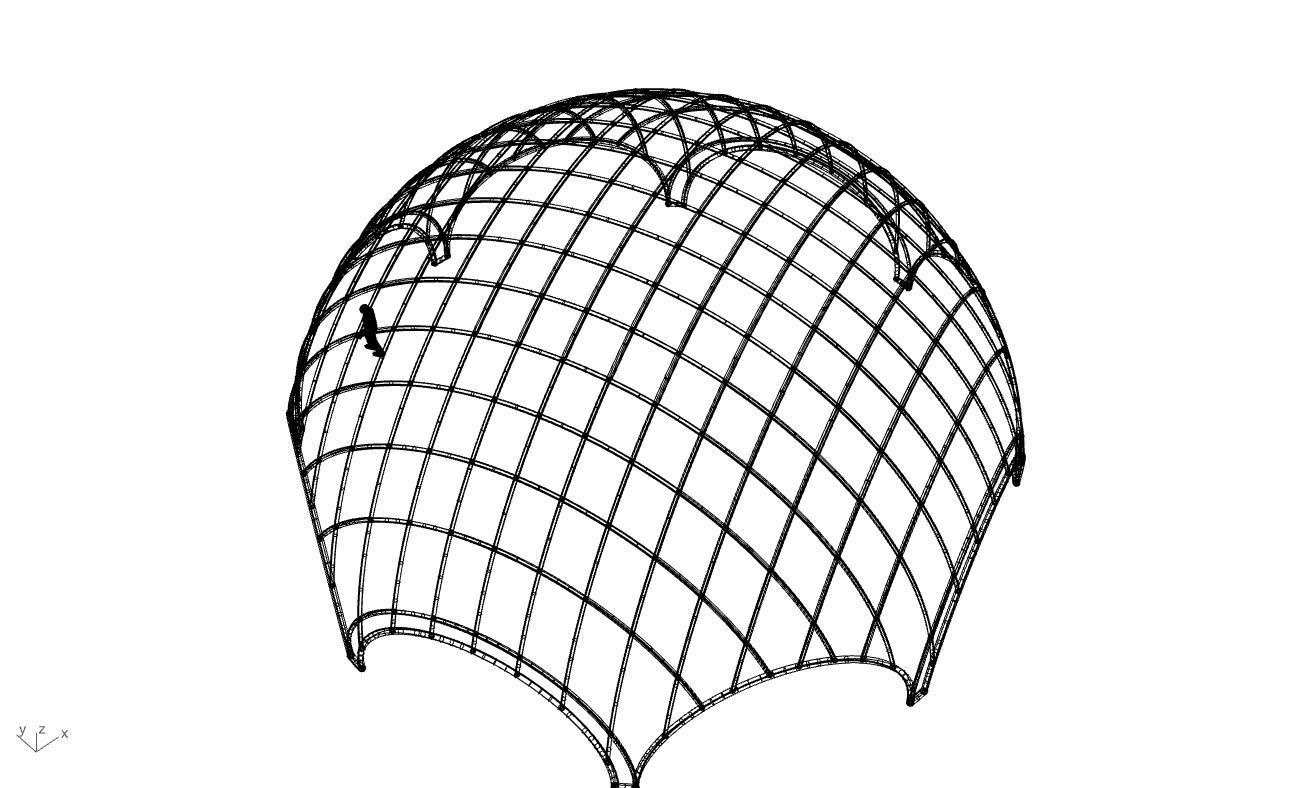

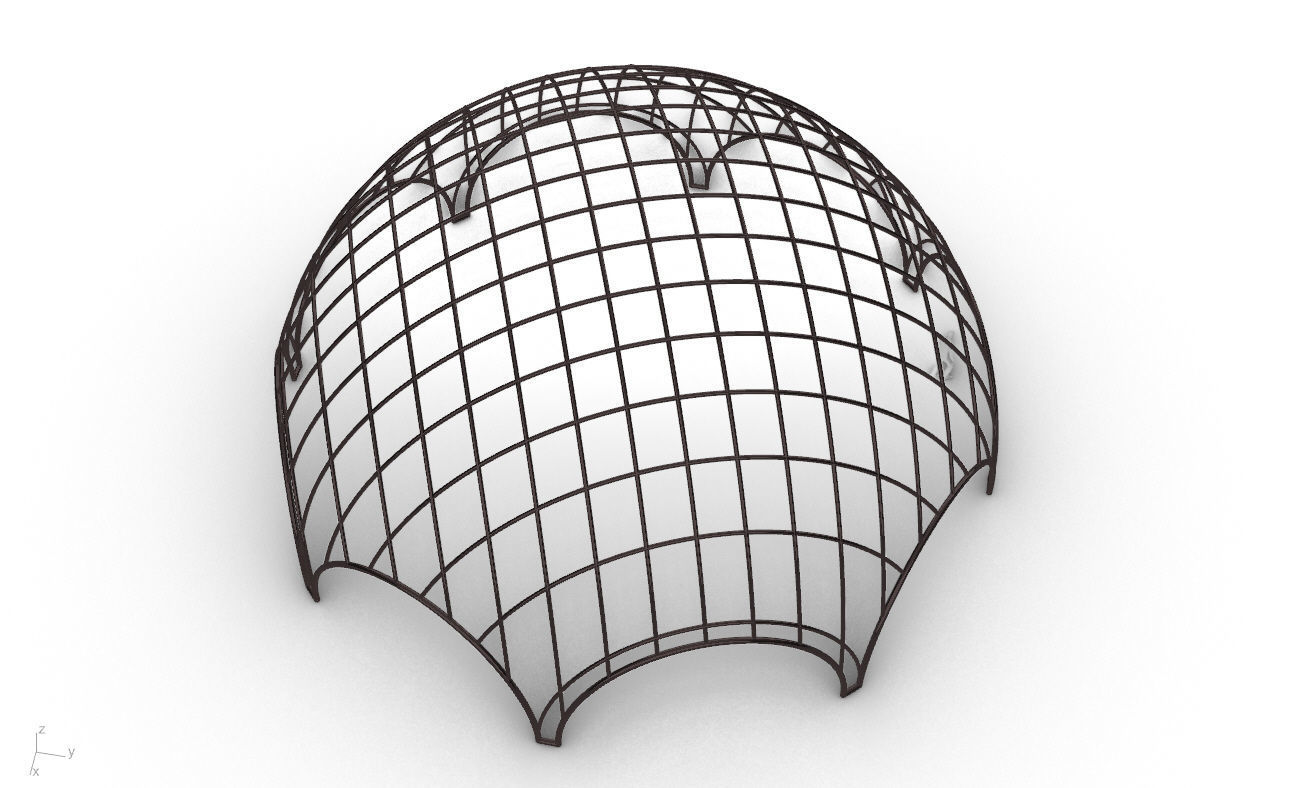

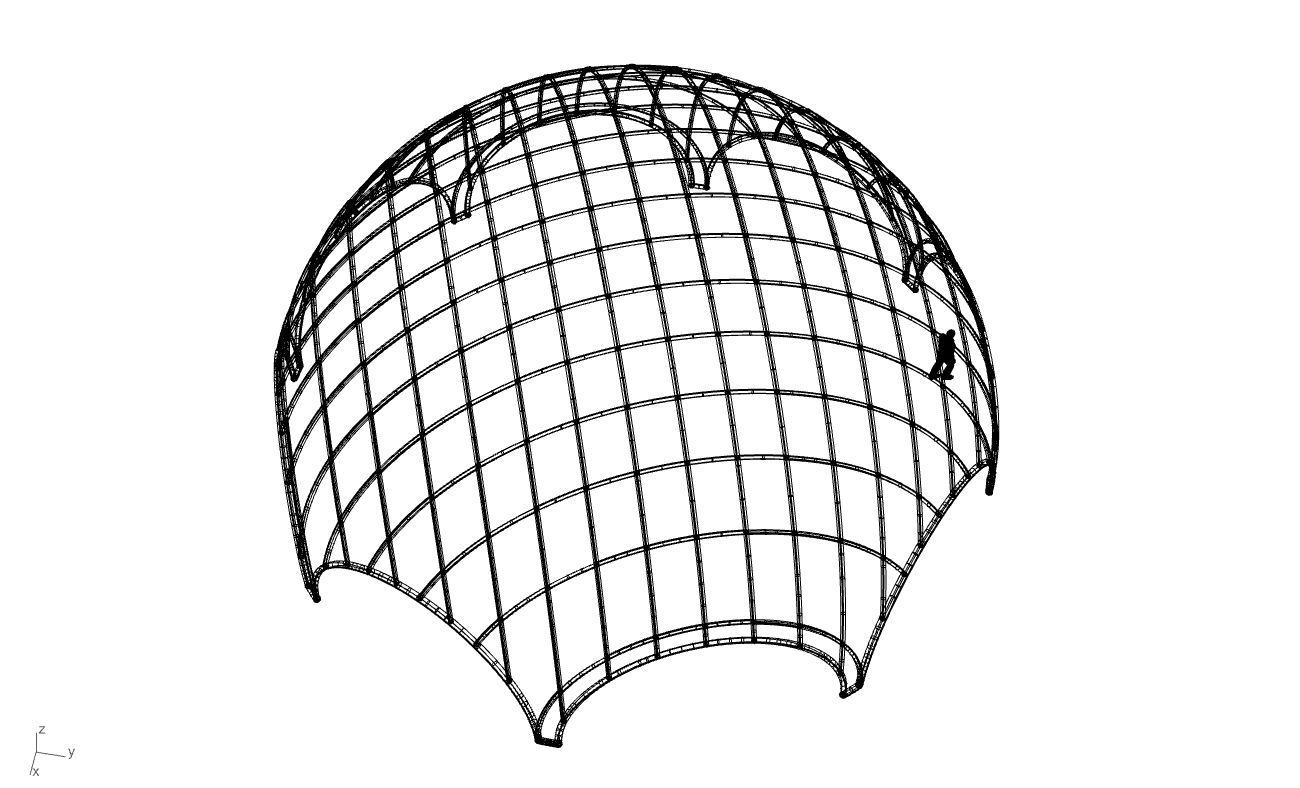

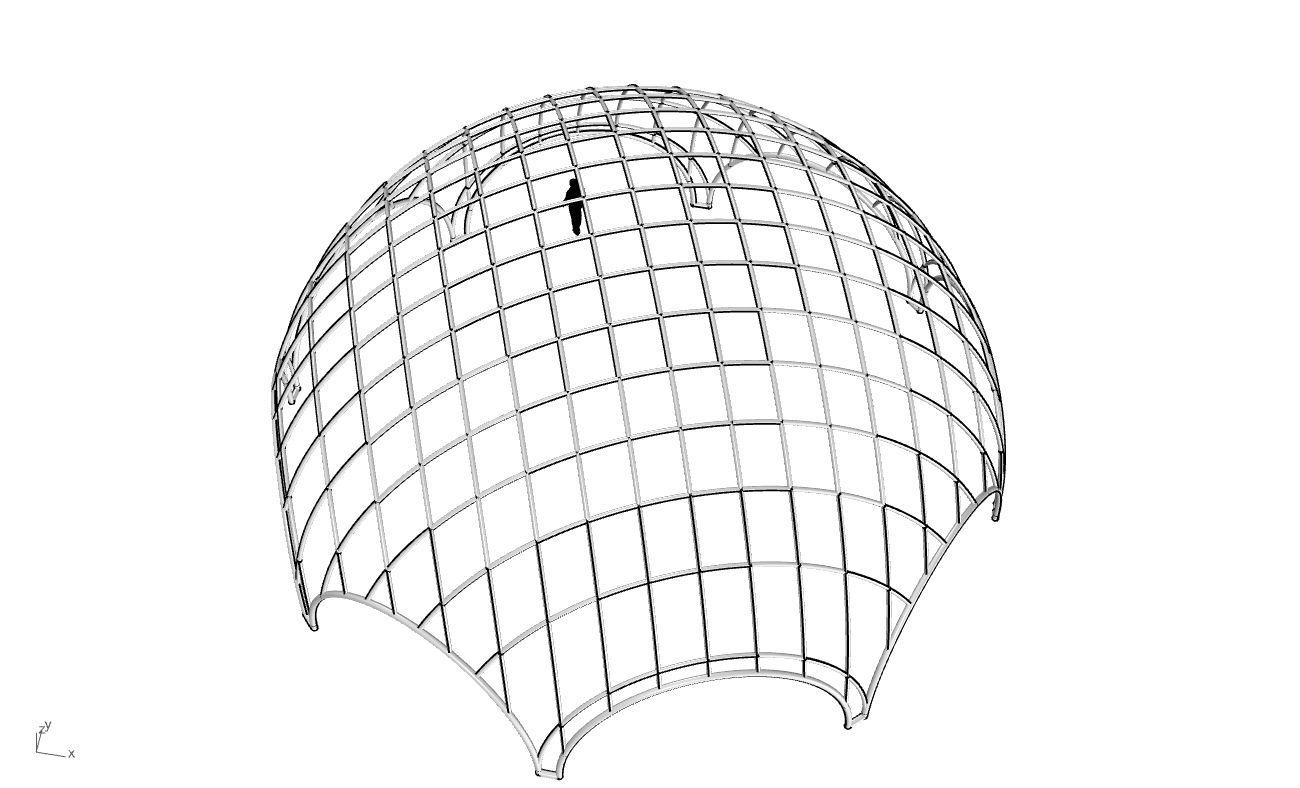

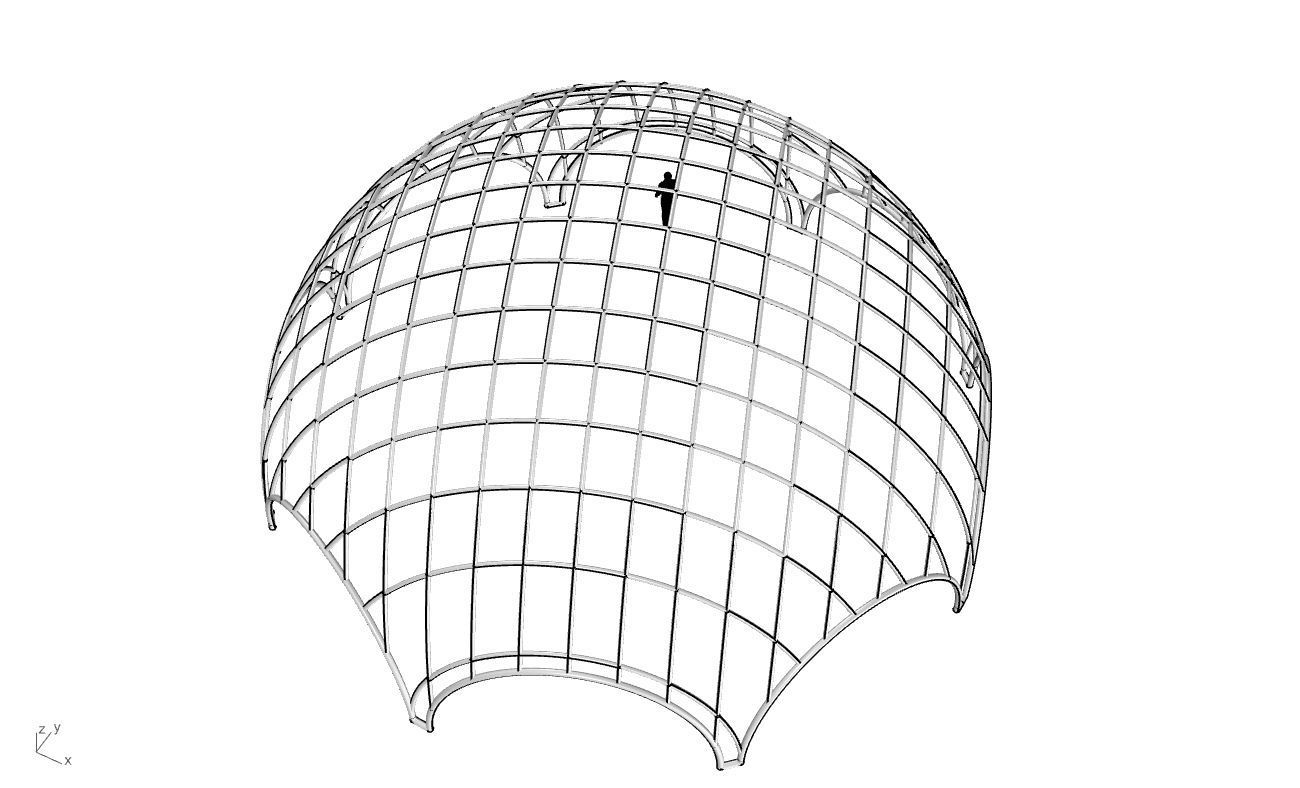

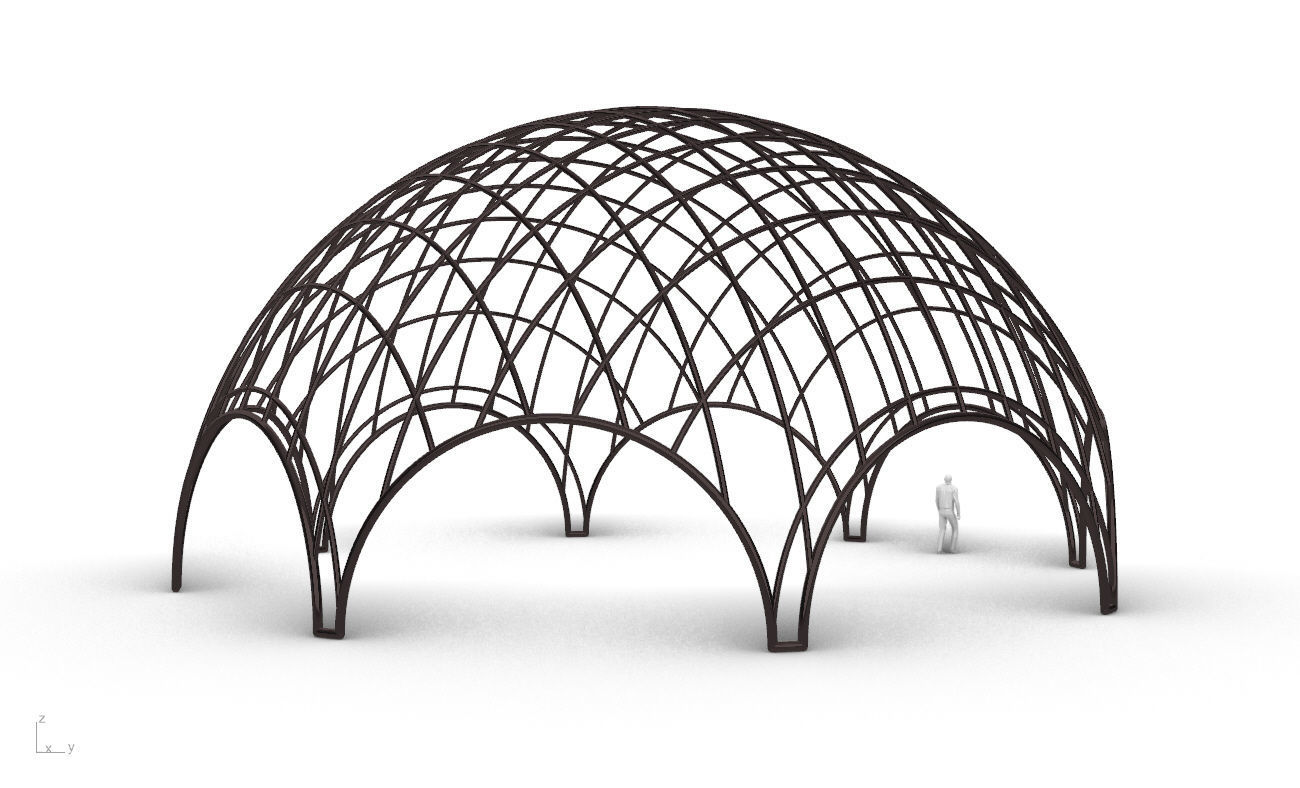

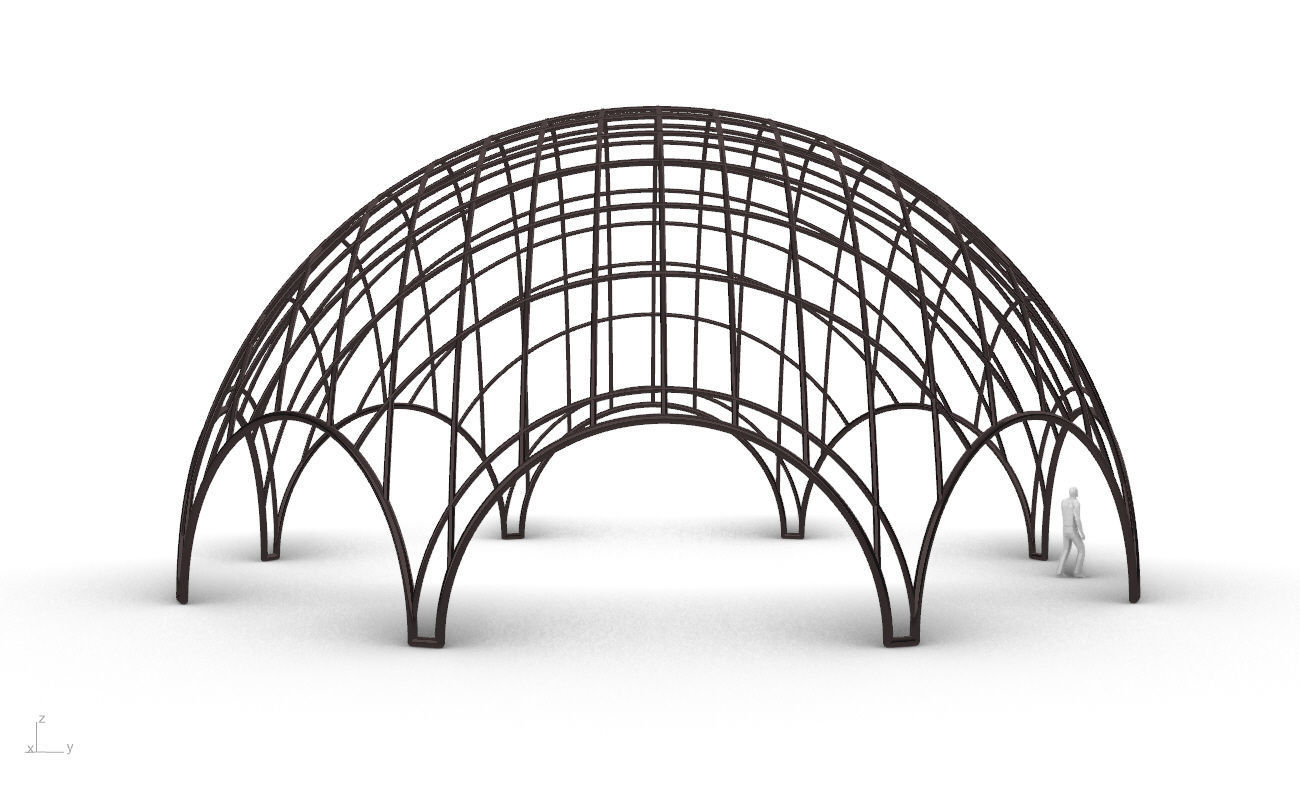

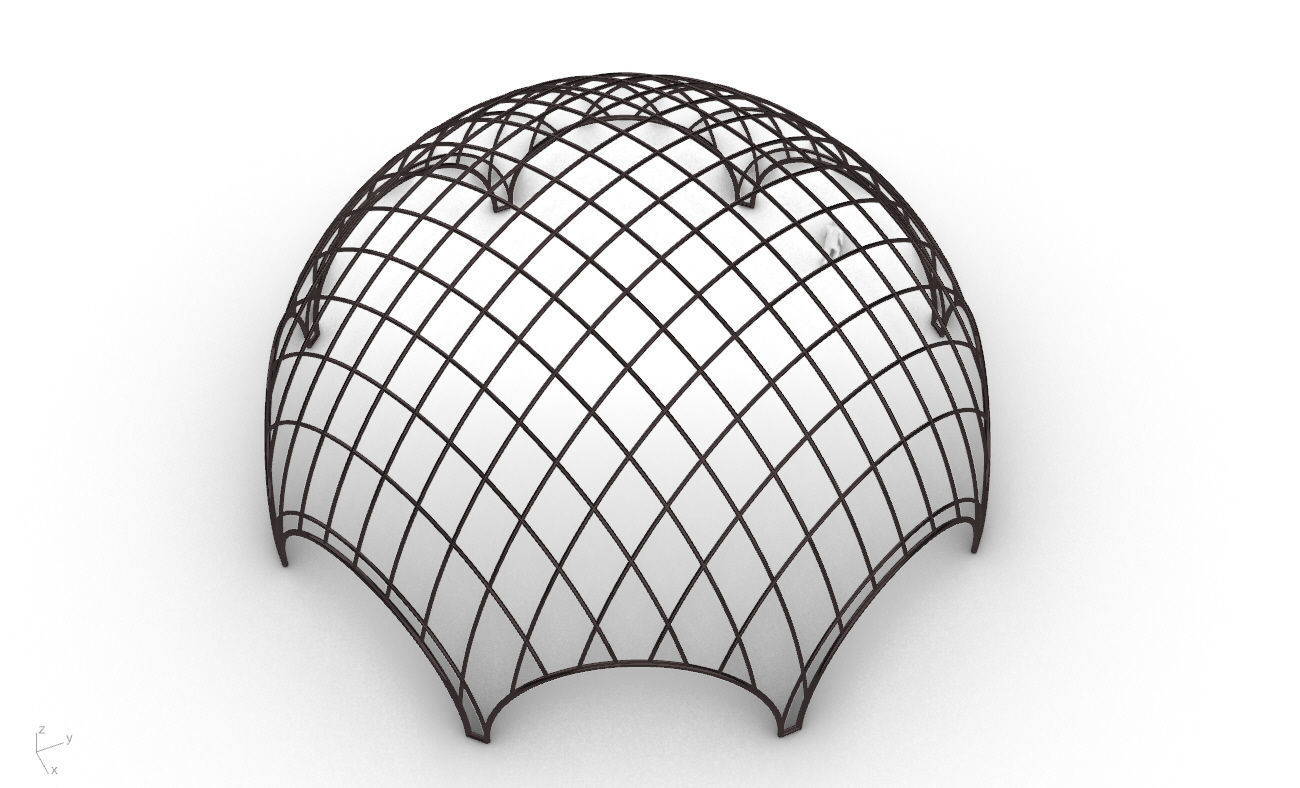

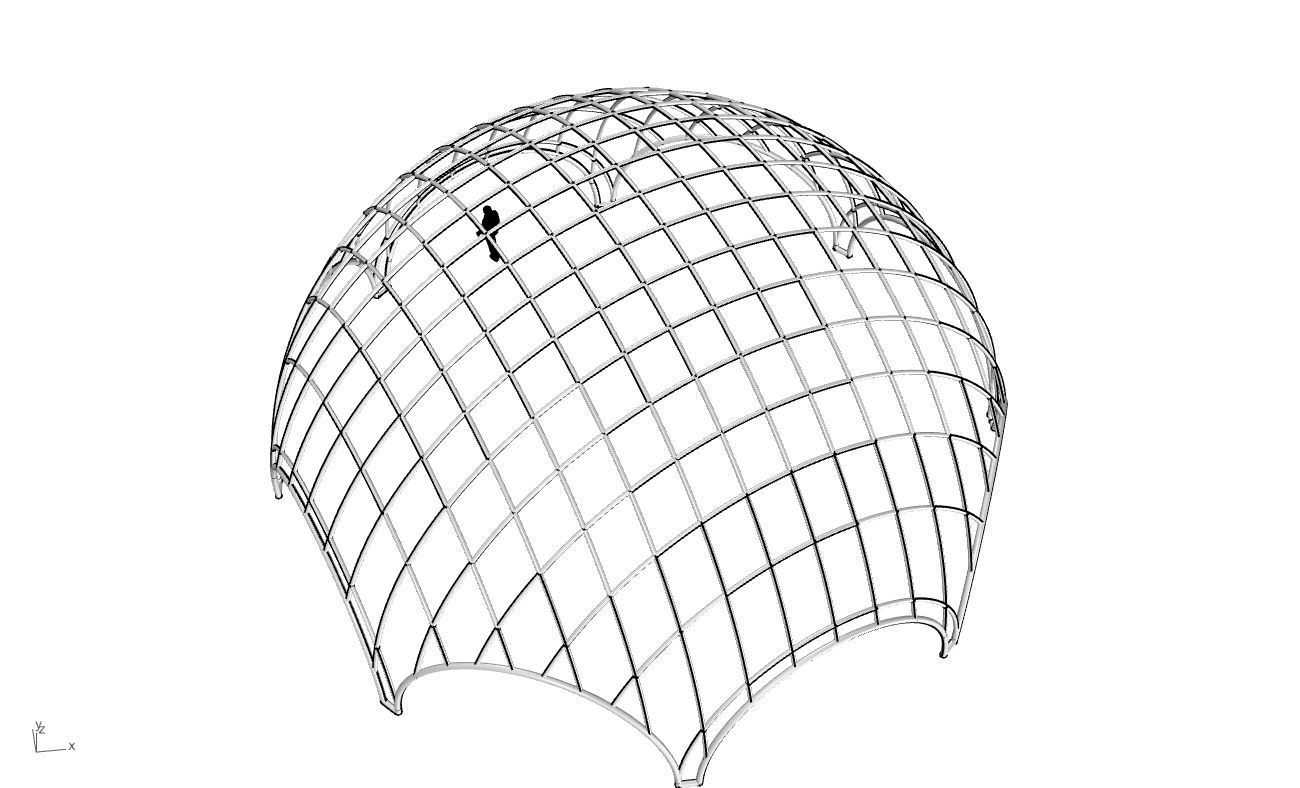

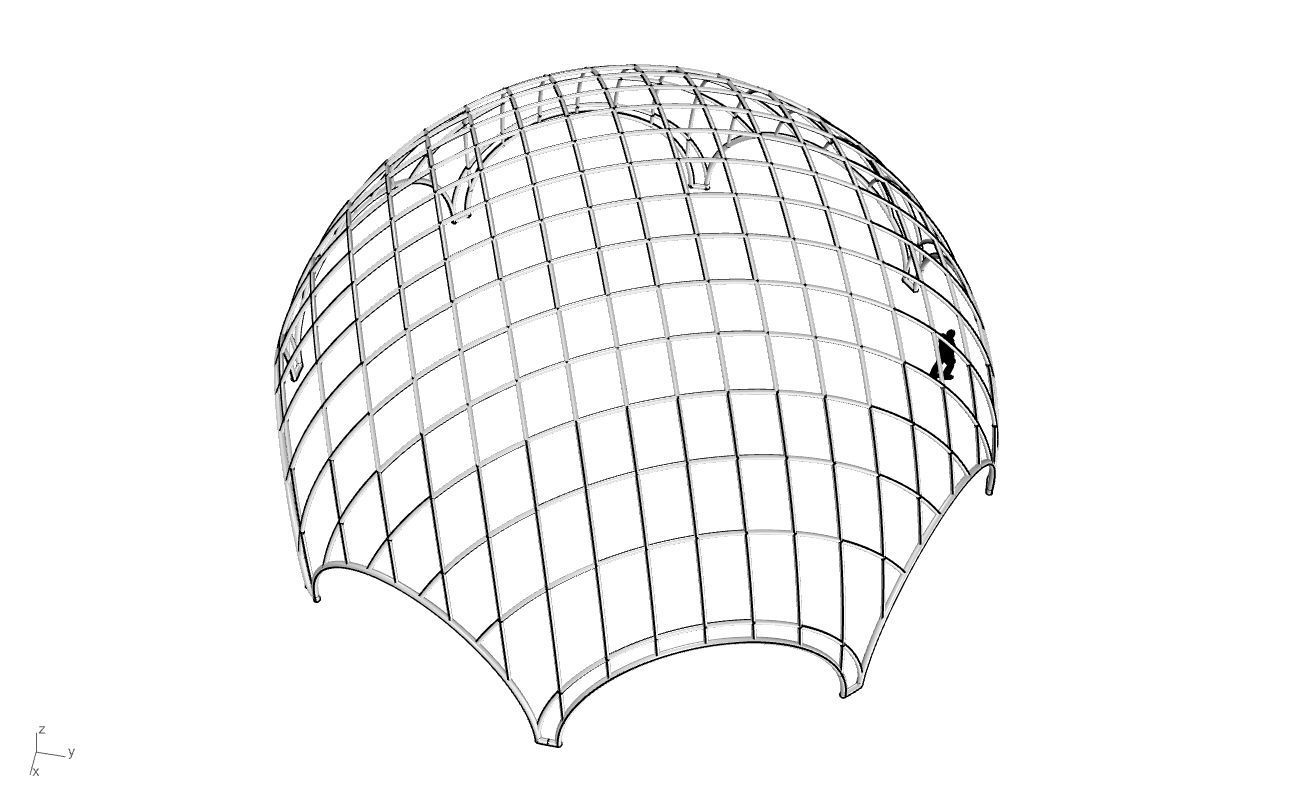

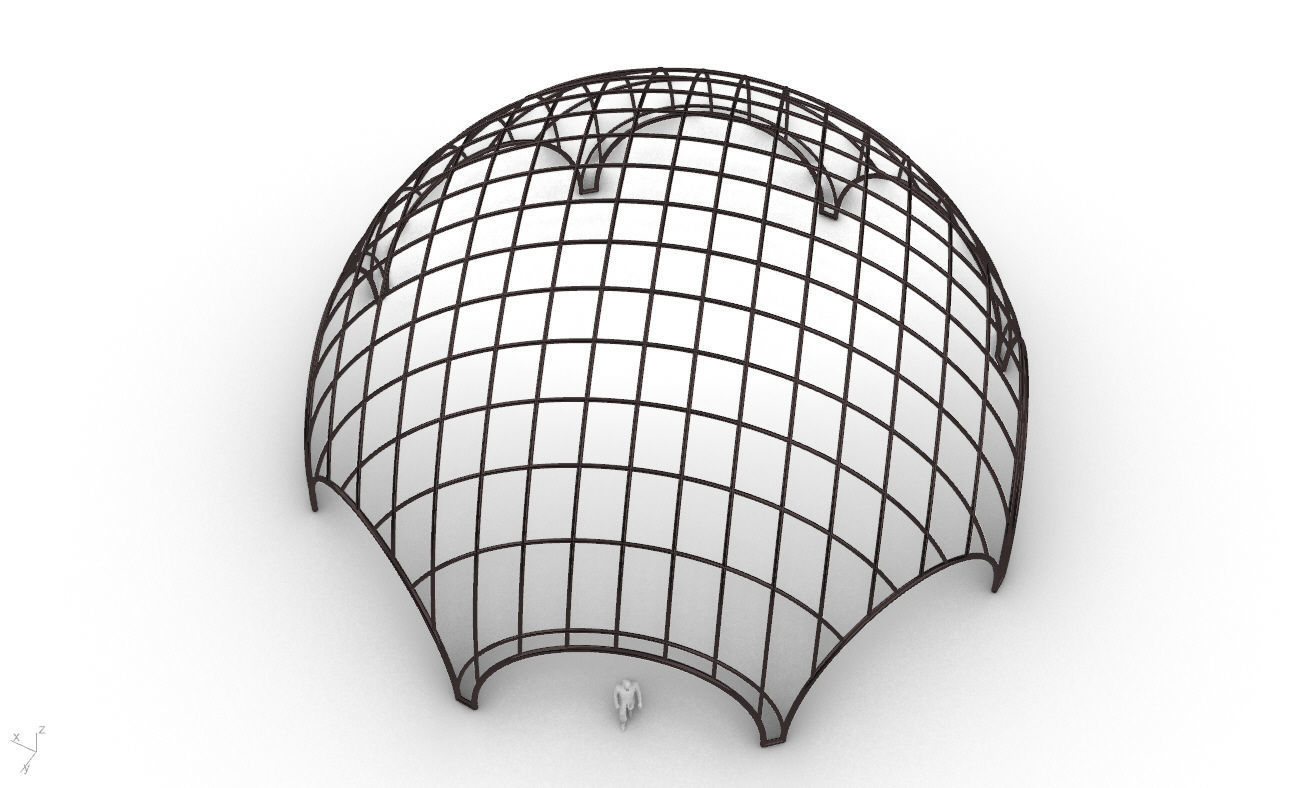

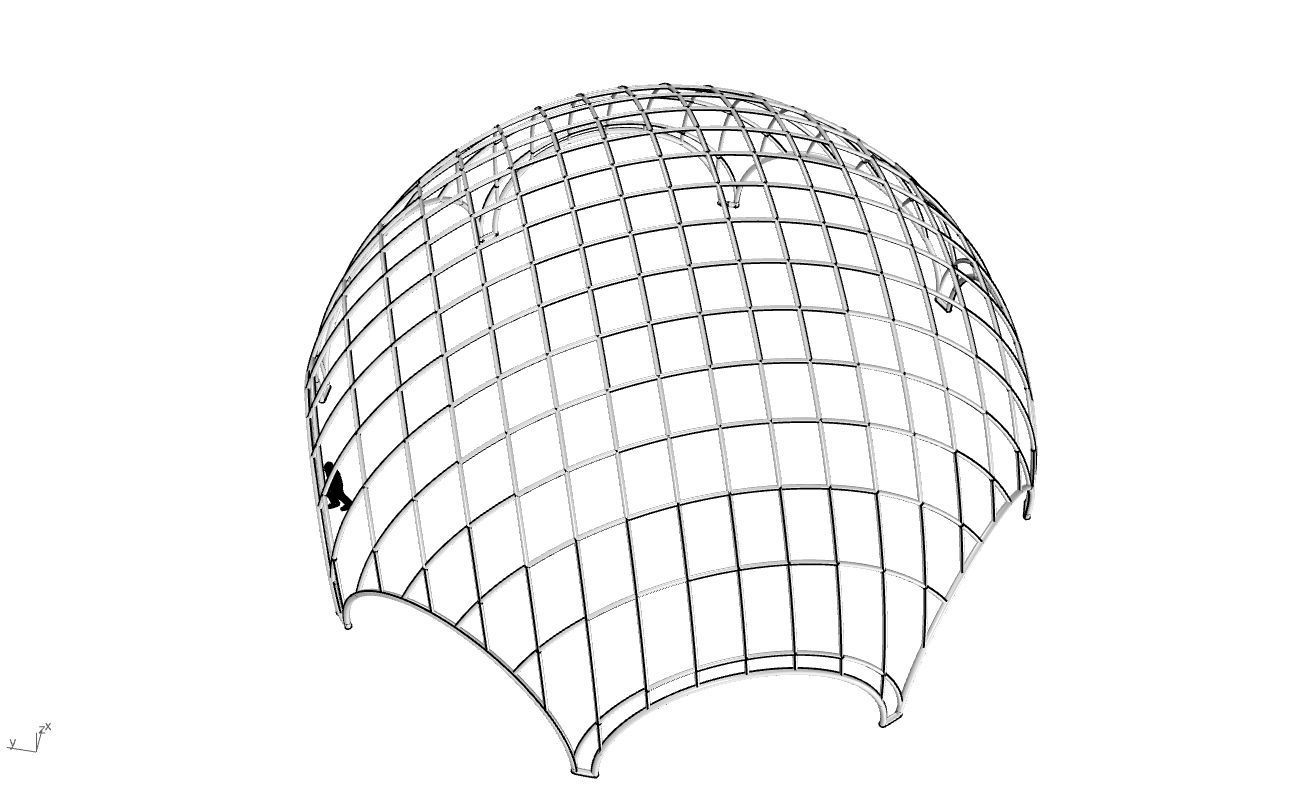

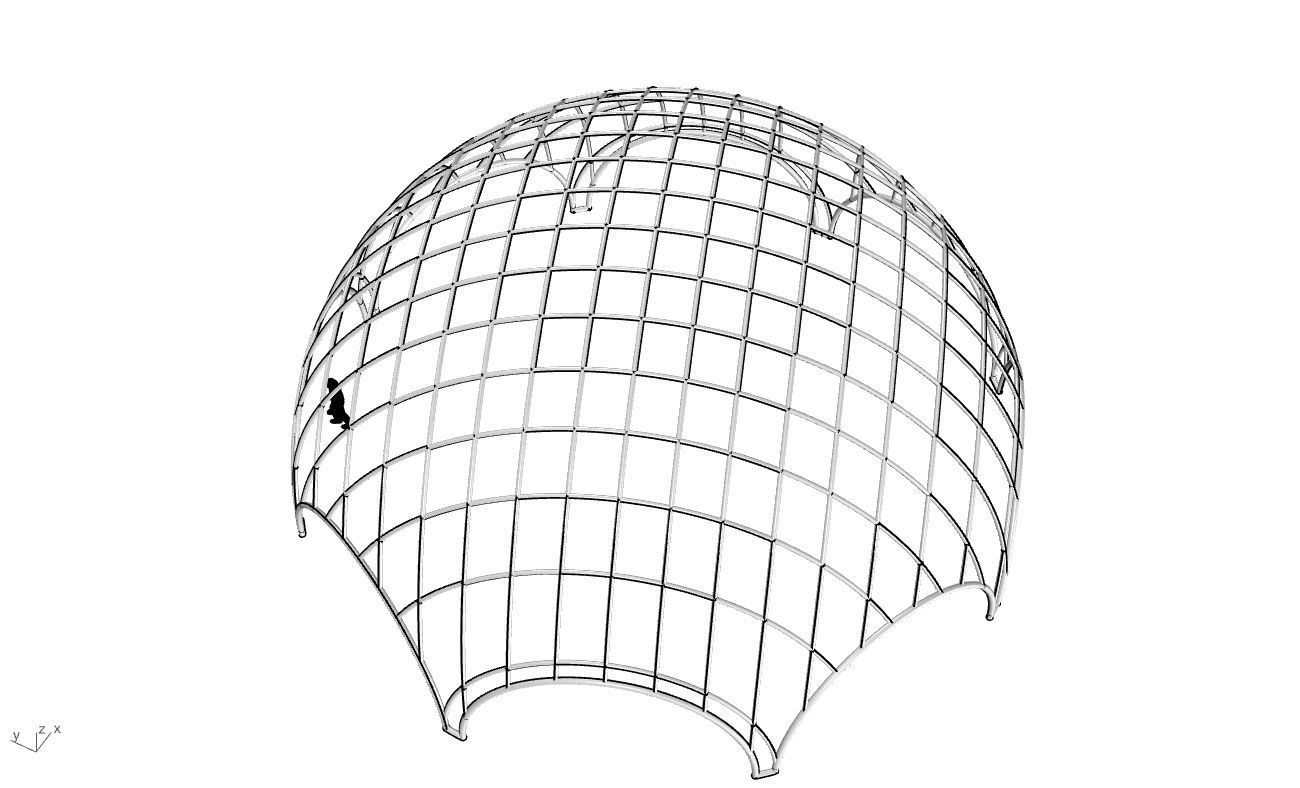

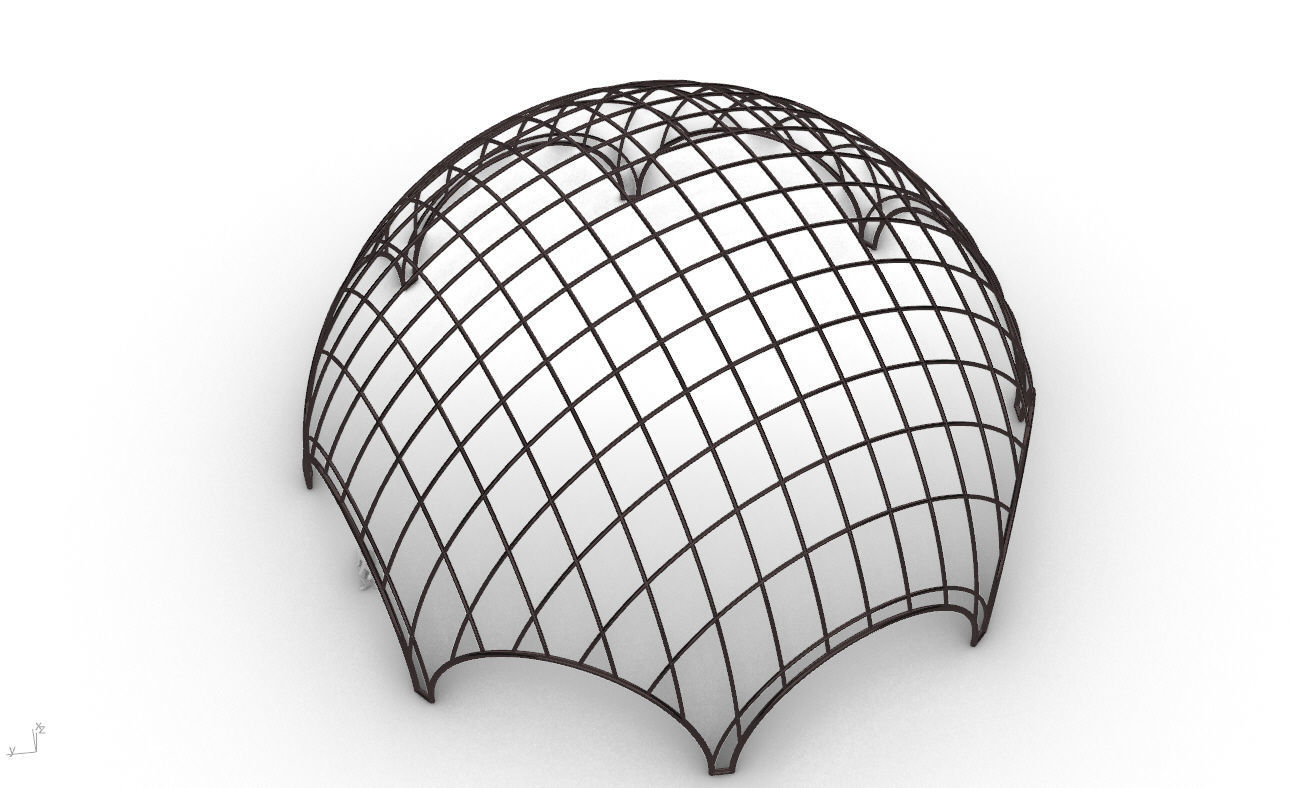

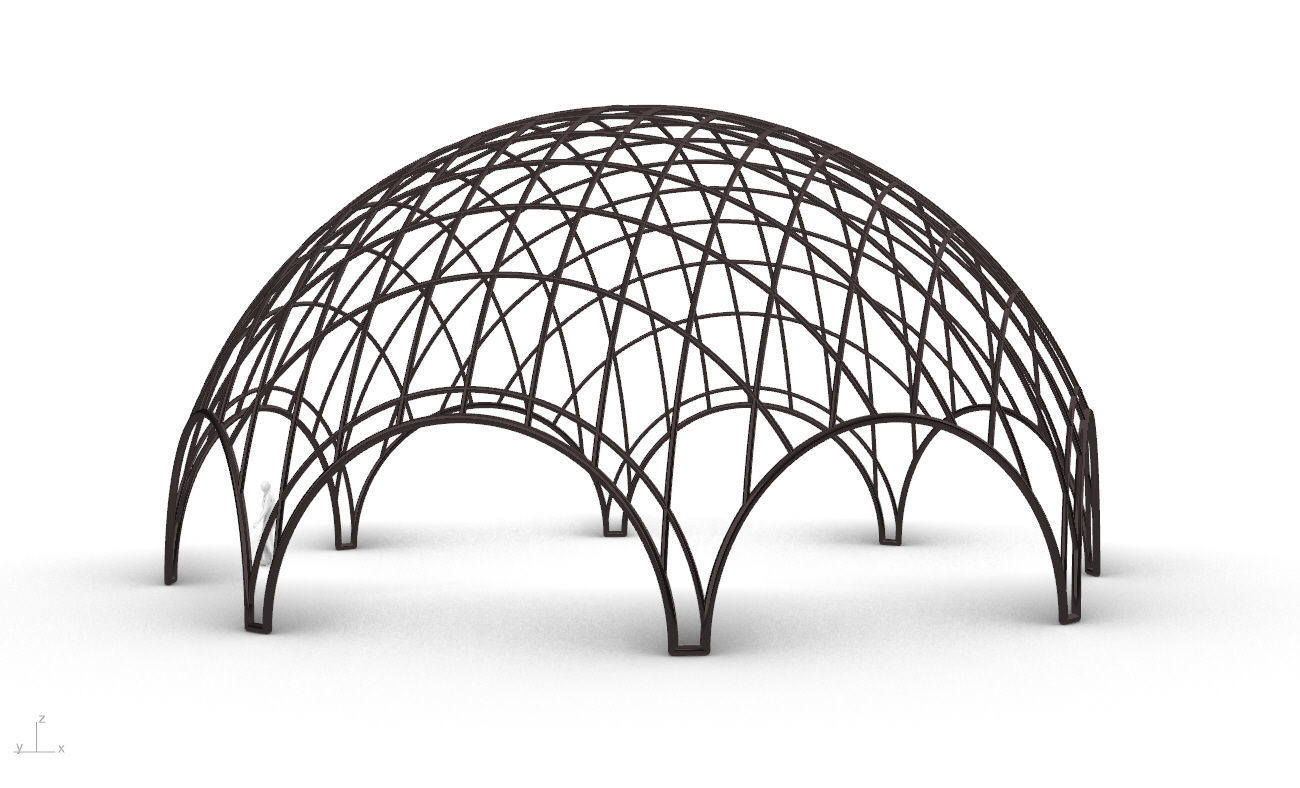

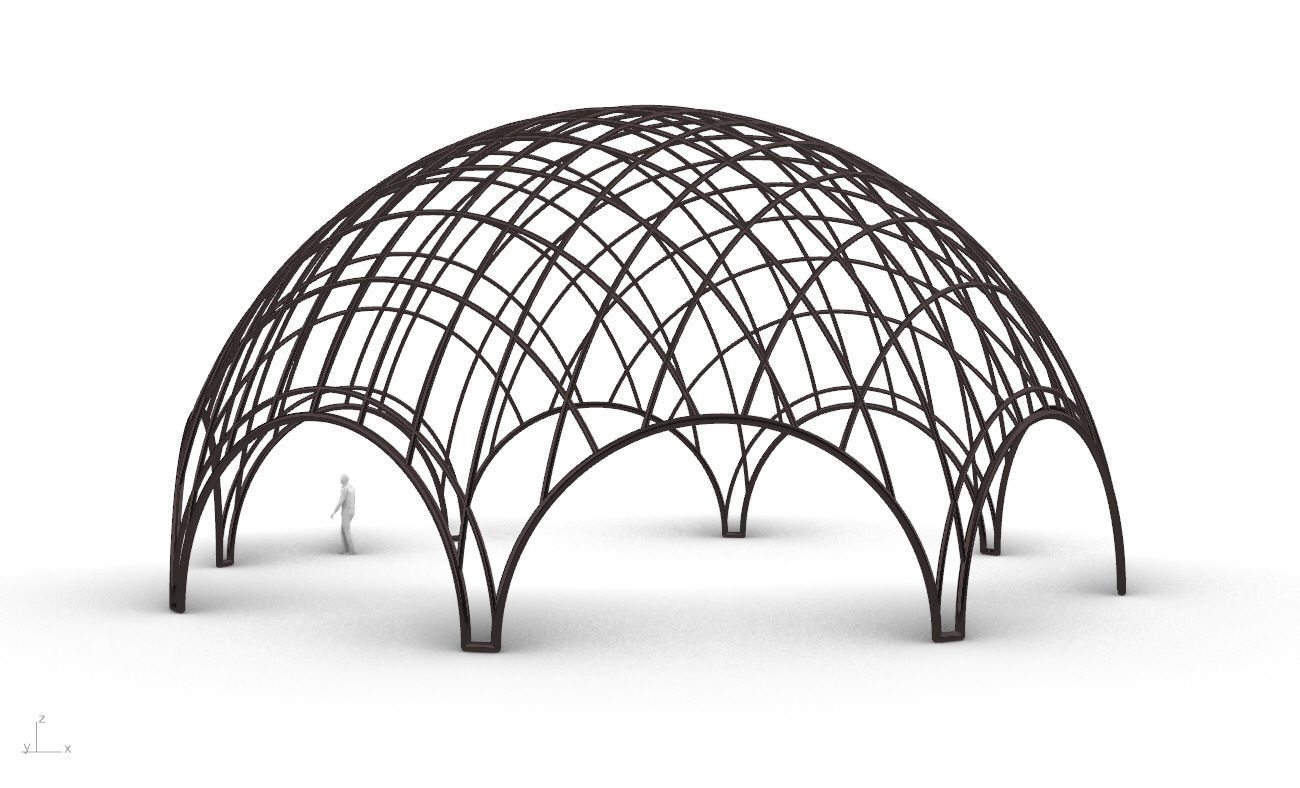

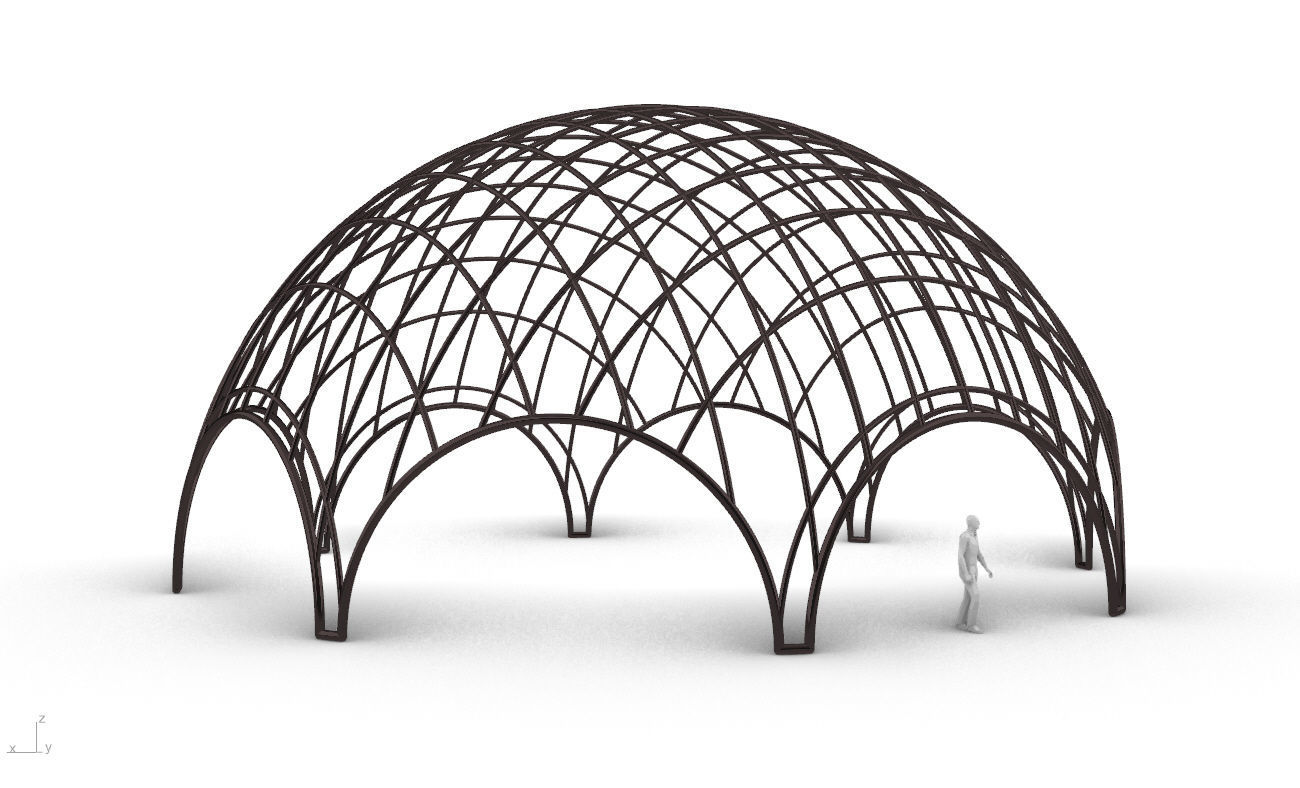

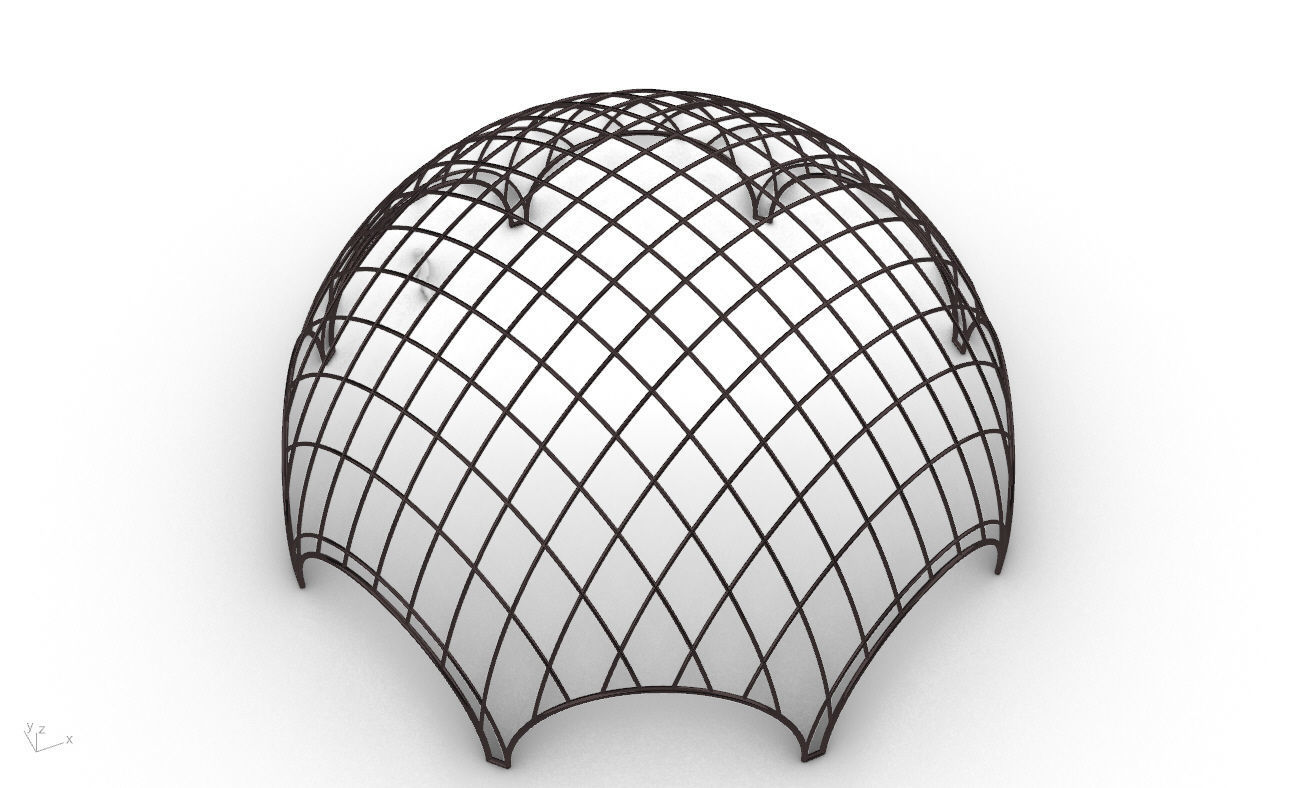

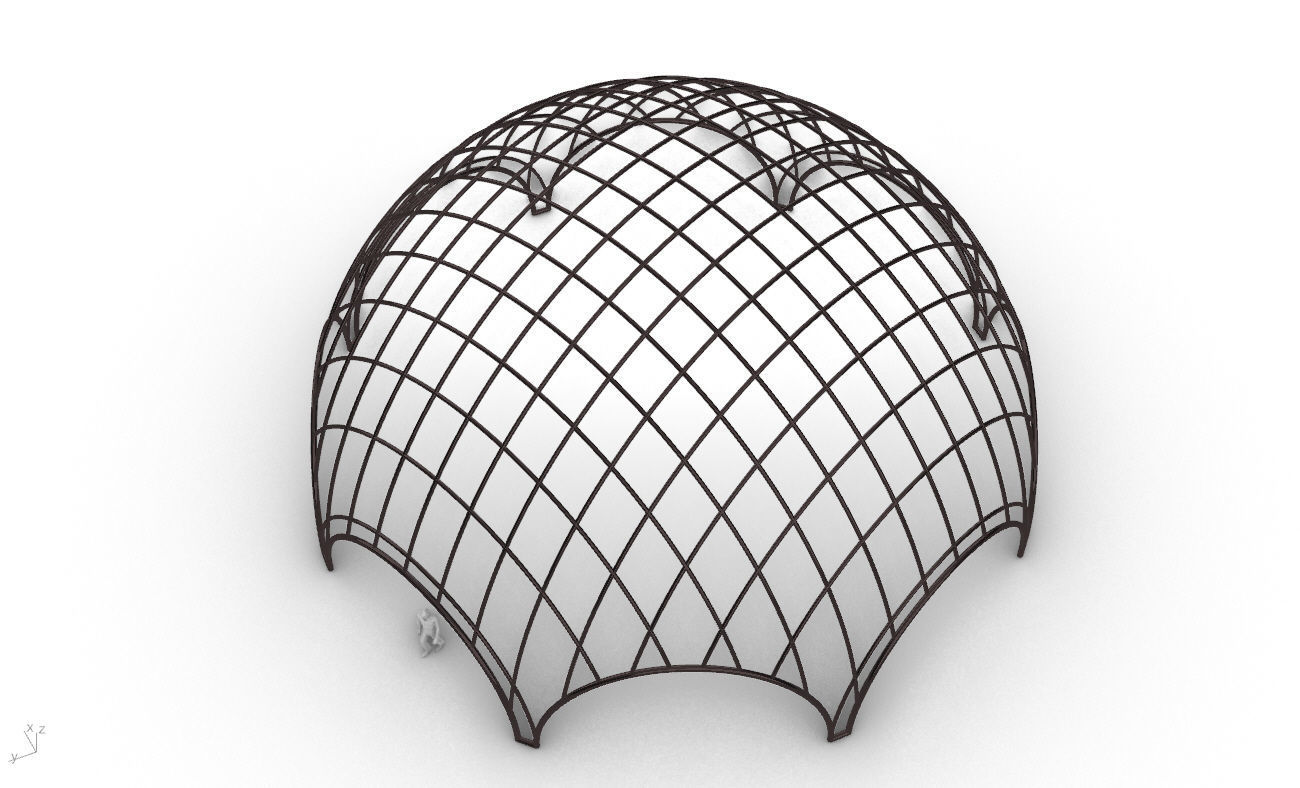

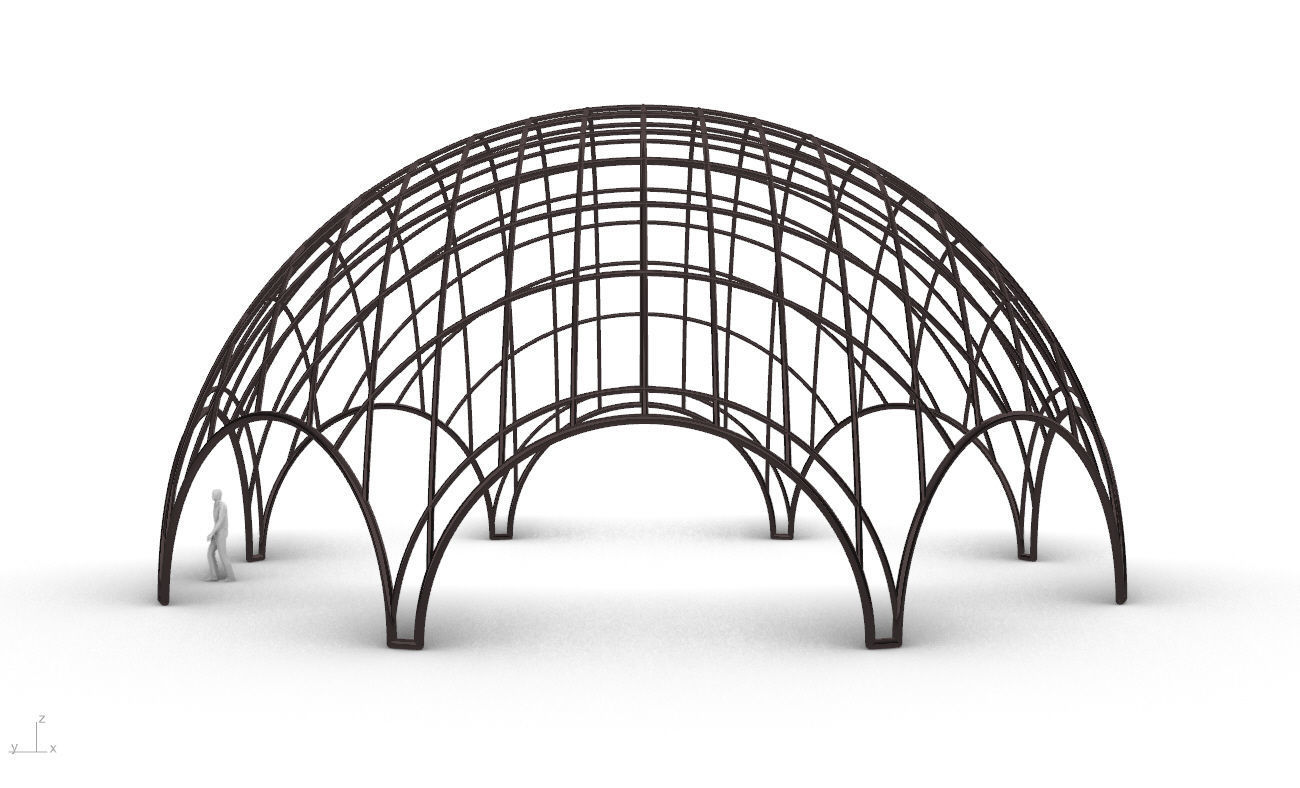

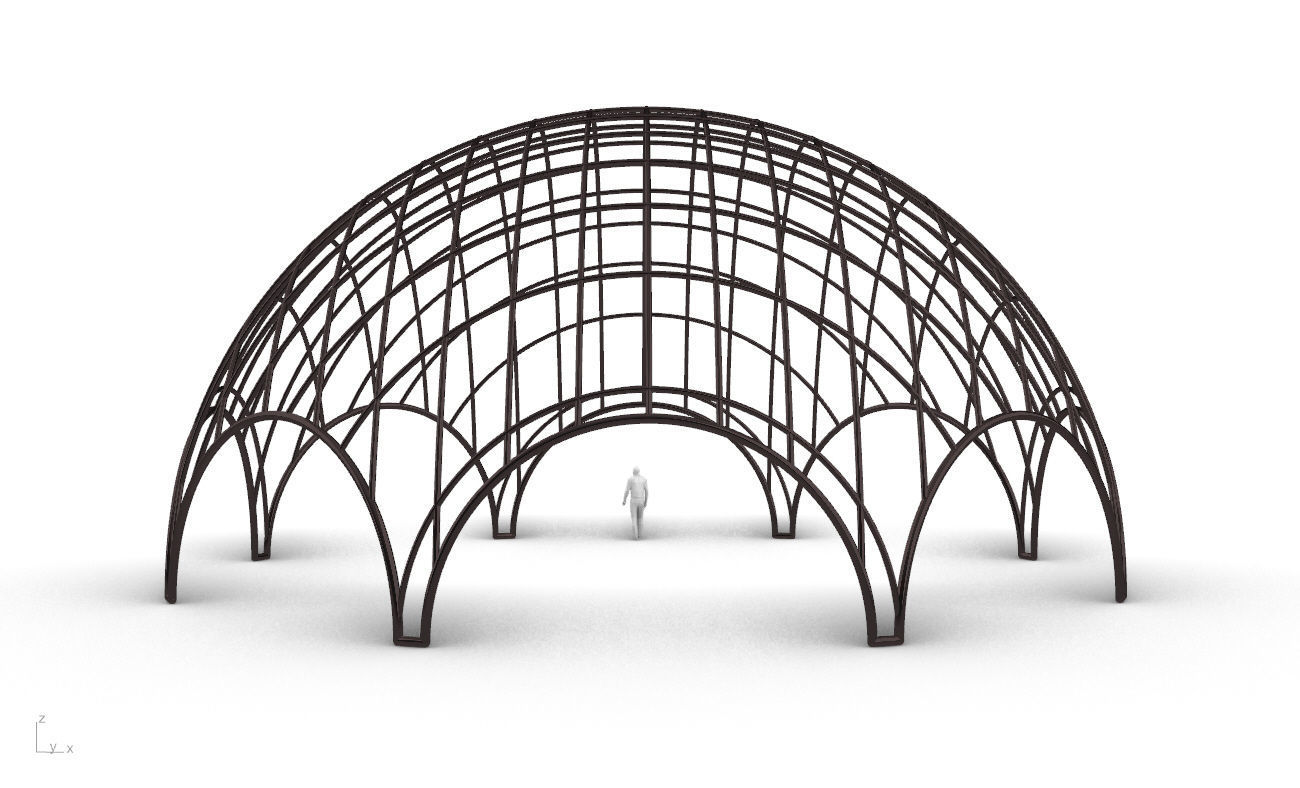

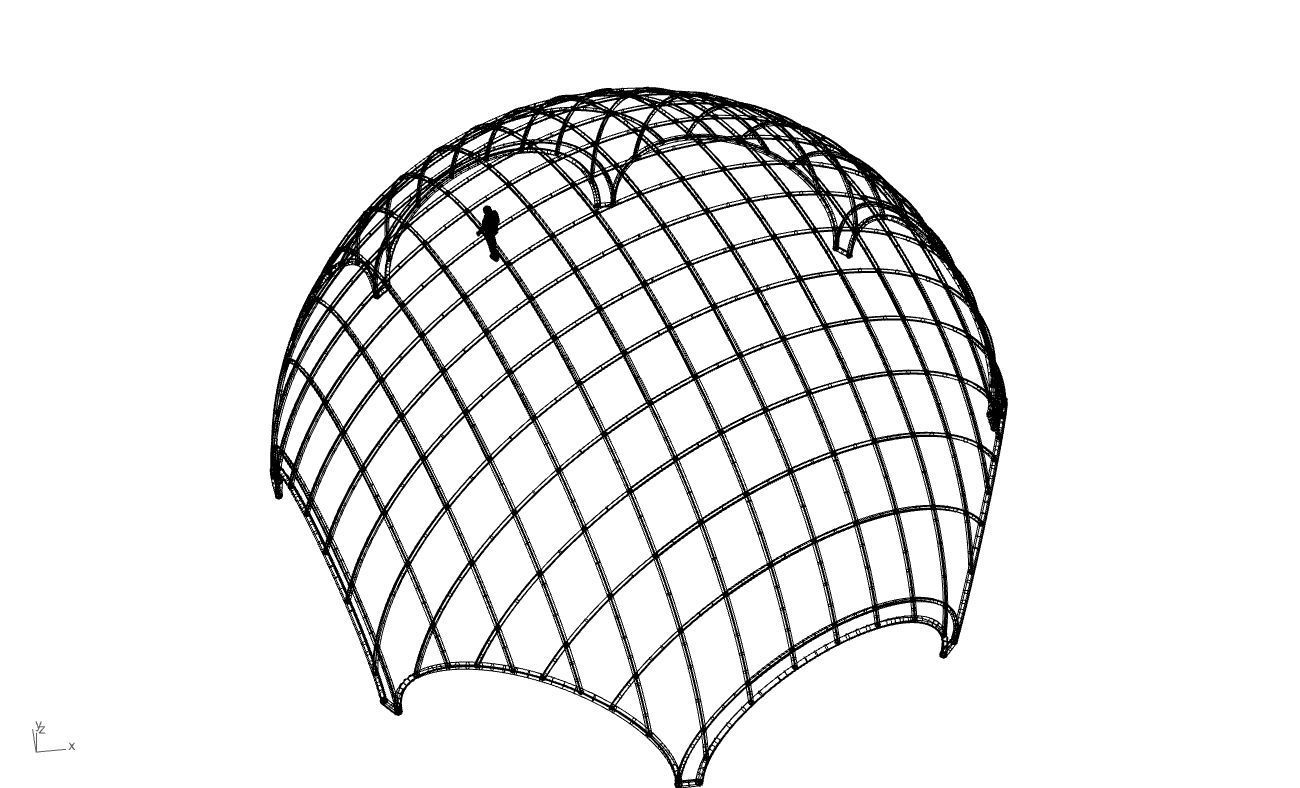

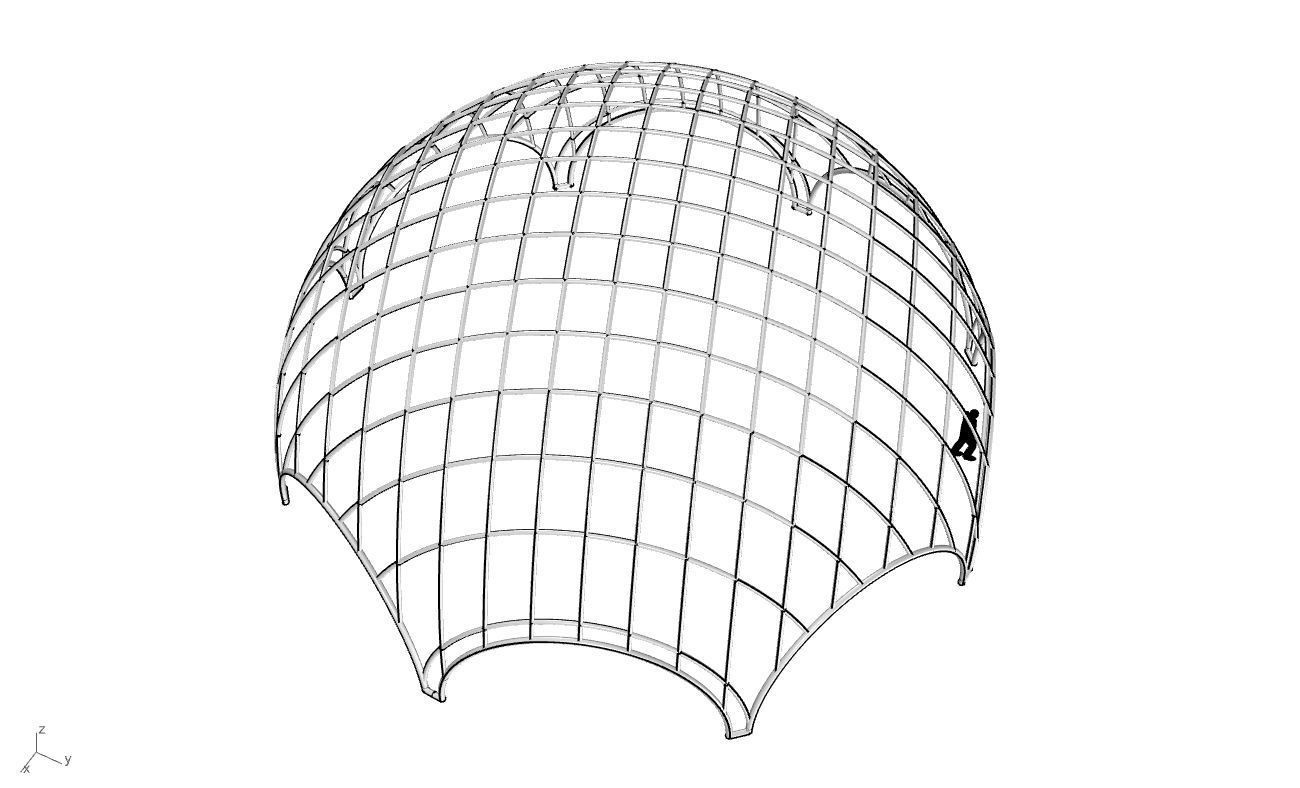

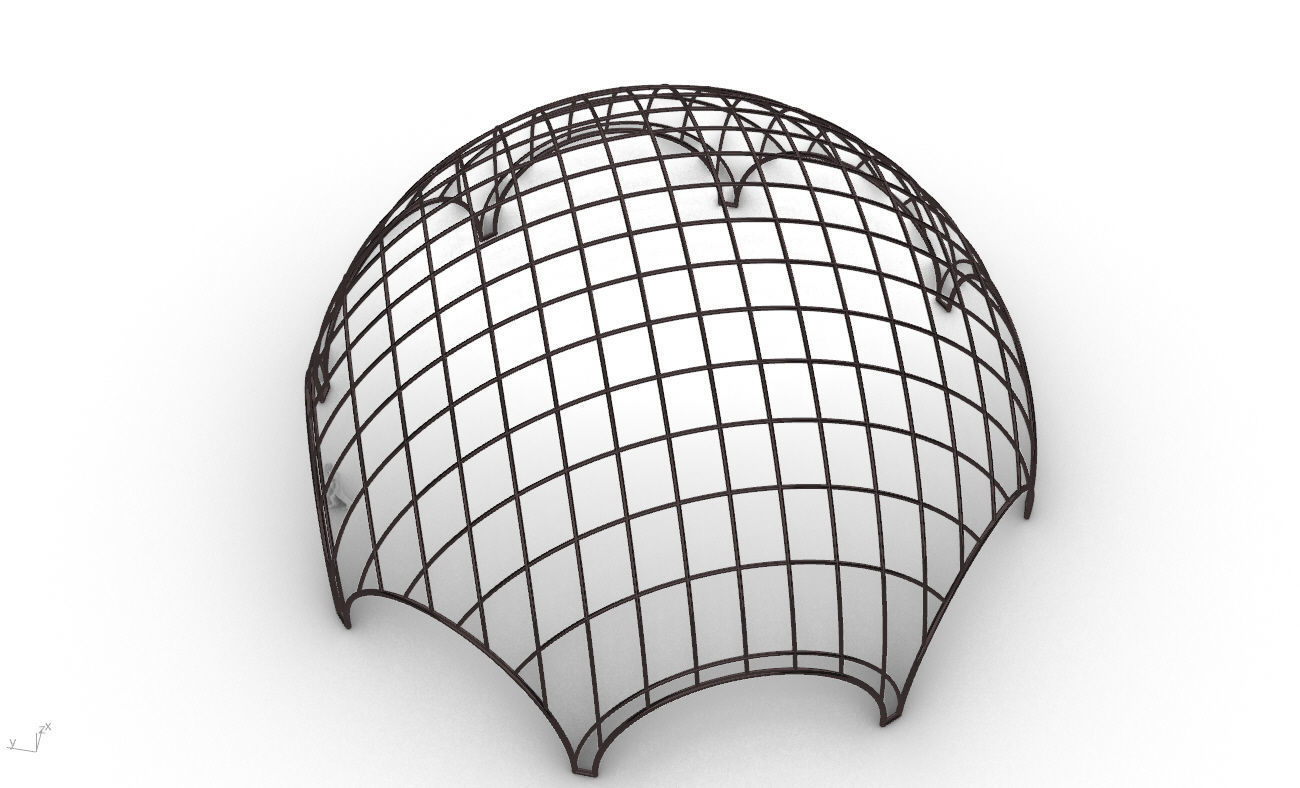

Octagonal Dome with Diagonal Wireframe Structure 3D model
This model was created in Rhino 6 along with Grasshopper. This is a custom design that can be updated and changed.
This model is exported in various formats, so please let me know if you have any issues with the files. I can also create custom designs with specific dimensions. So please contact me here or at designfablab@gmail.com
Notes: -Objects are separated by layers, and have materials applied. -These can be overridden with your own for quick update. -Everything is ready to render.
If you want to know how these structures were made make sure you visit my Youtube page where I have tutorials. Make sure to subscribe! https://www.youtube.com/channel/UC6NXKKakAiQi7R1vt2c84Ig
https://youtu.be/9Gqvg70CXss https://youtu.be/OrapTE3LP-Q
If you have any questions or concerns please contact me directly at designfablab@gmail.com
3DM 3DS STL FBX OBJ DWG DXF DAE
3D Model formats
Format limitations
- DXF (.dxf)17.9 MB
- Autodesk FBX (.fbx)10.1 MB
- Collada (.dae)102 MB
- Rhinoceros 3D (.3dm)31 MB
- AutoCAD (.dwg)2.99 MB
- OBJ (.obj, .mtl) (2 files)69.8 MB
- STEP (.stp)15.2 MB
- 3D Studio (.3ds)12.4 MB
- Stereolithography (.stl)151 MB
3D Model details
- Publish date2020-10-12
- Model ID#2649962
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
