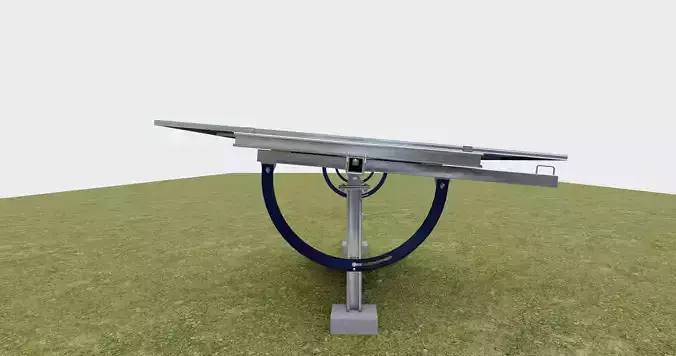

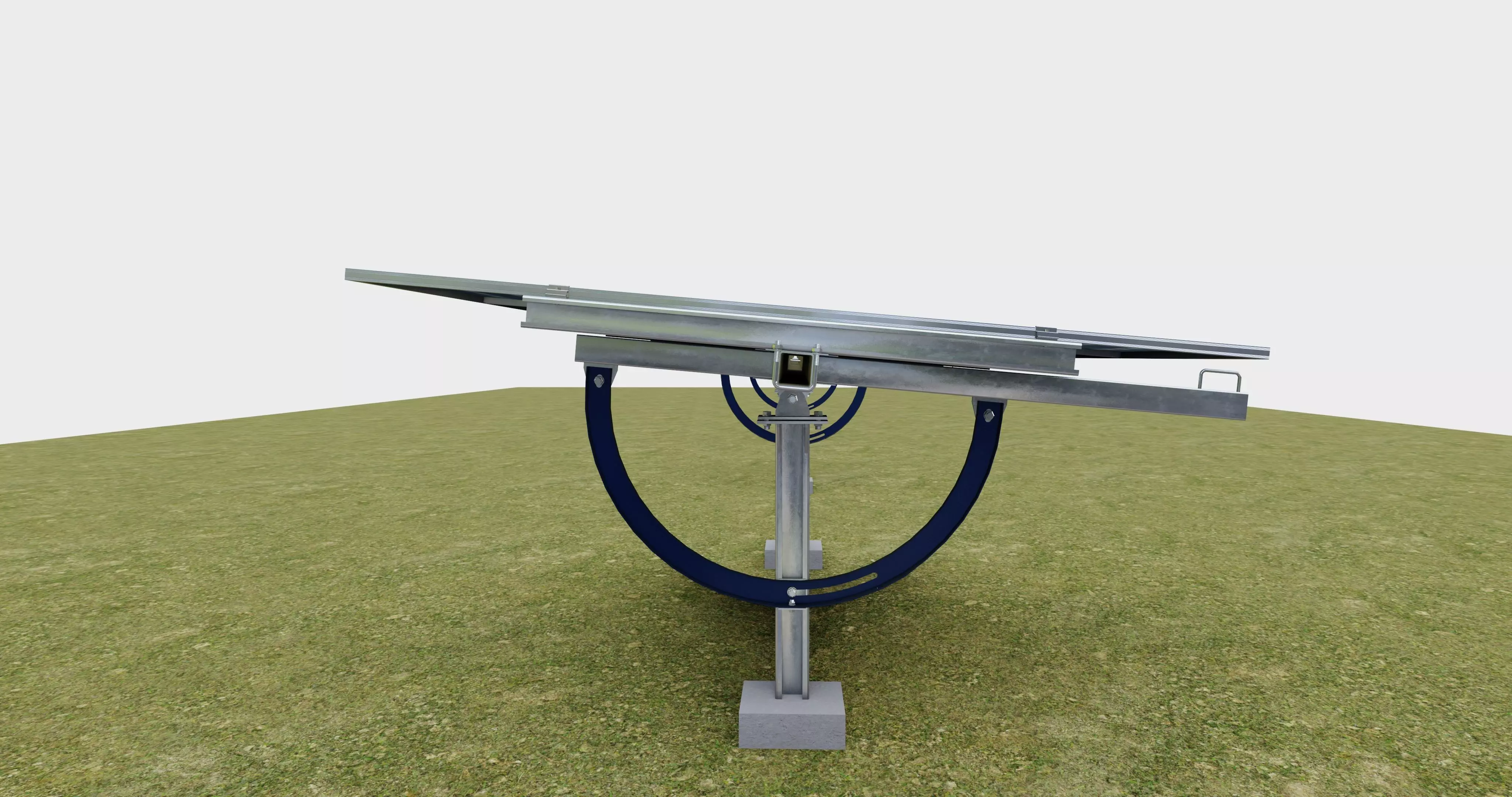

Manual Tracker Solar Energy Structure Type-5 3D model
Description
Manual Tracker Solar Energy Structure Type-5
1x26 Vertical Panel Layout
Ground Connection Type; With Concrete Friction Pile
Distance of Columns Below Ground 1600 mm.
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 28,6 kWp power in 1 hour
The system consists of 12 axles and the distance between each axle is 2500 mm.
Horizantal angle of panel 5° - 18° - 30°
The closest distance of the panels to the floor 600 mm.
Prepared With BLENDER Version 4.0.1
Polygons : 495177
Vertices : 567372
Objects : 753
Manual Tracker Solar Energy Structure Type-5
Royalty Free License
Manual Tracker Solar Energy Structure Type-5
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- Blender 4.0.1 (.blend)58 MBVersion: 4.0.1Renderer: Eevee 4.0.1
Exchange
- Autodesk FBX (.fbx)49.2 MB
- DXF (.dxf)350 MB
3D Model details
- Publish date2024-04-27
- Model ID#5247276
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 495,177
- Vertices 567,372
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
