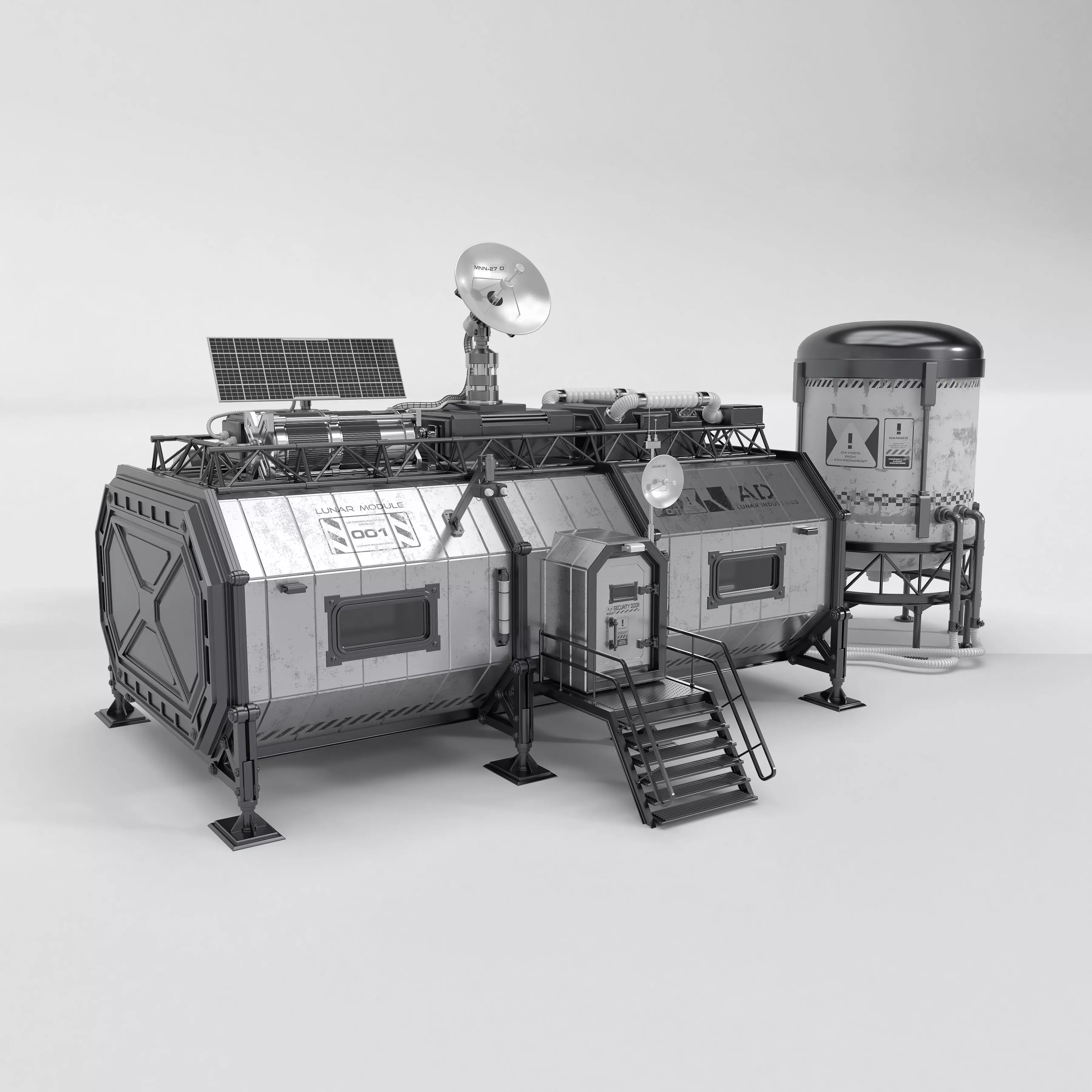

Lunar habitat 3D model

DESIGN NAME: Moon base.

PRIMARY FUNCTION: Lunar habitat

UNIQUE PROPERTIES / PROJECT DESCRIPTION: The concept of this module is mobility. It can be assembled in parts. Parts of this design can be delivered by spacecraft and assembled on the surface of the moon. There are other ideas to create a lunar base from inflatable materials, also from lunar soil, to sculpt and build using a 3D printer. My concept is to create a lunar base based on a simple and functional system for easy transportation, and assembly.

OPERATION / FLOW / INTERACTION: The design of this module is made of lightweight materials to reduce weight during transportation. The module is prefabricated, parts of each part are disassembled into separate sections. The structure is assembled on the ground, also an option on the surface of the moon.

PROJECT DURATION AND LOCATION: Started at 02.10.2020. Completed on 29.10.2020

PRODUCTION / REALIZATION TECHNOLOGY: Module materials from aircraft metal, options of aluminum and titanium alloy. Dimensions and proportions of the module 11m x 6.50m. The module consists of three sections, 2 veins and one entrance group, a vacuum receiver for astronafts. The oxygen supply is via an external separate Gallon. The surface, the facade of the module is sheathed with titanium alloy, it is also possible to install solar panels. Autonomous energy supply from solar energy, the panel is installed on the module surface.

SPECIFICATIONS / DIMENSION / PACKAGE / TECHNICAL PROPERTIES: 11.50m x 6.50m H=3.50m

RESEARCH ABSTRACT: The idea and implementation of this concept is implemented and visualized in the 3Ds max program. All subsequent work from the beginning of the idea to the creation of the model was carried out by me, without the group and participants.
