Layout for Cement plant entrance 3D model

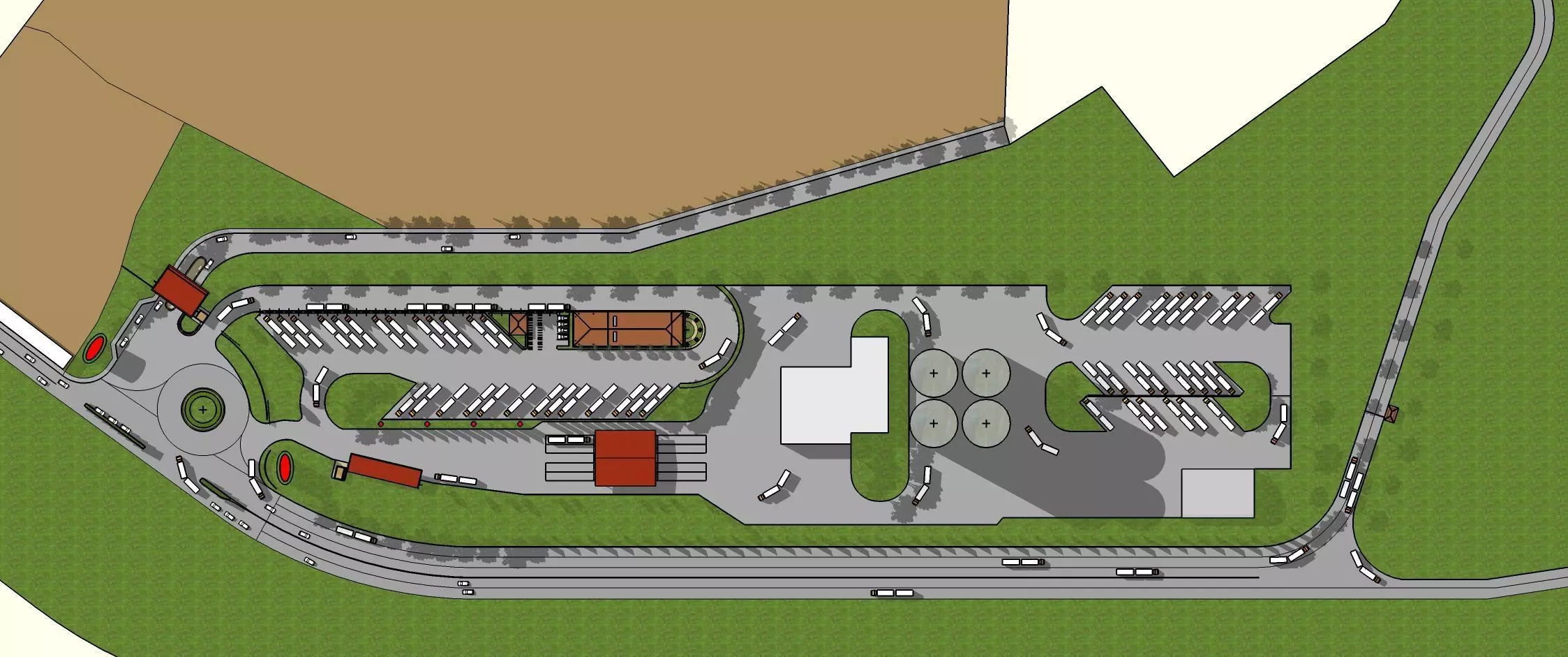

Layout for Cement plant entrance

Project info :

• Area : 50,000 sq.m.
• Facility in layout :
  • Office
  • Canteen
  • Weight scale for trucks
  • Guard house

  • Stand alone rest room

The open green area can be accessed from front and back, and can be seen from rooms around, also natural ventilation can be flow through the open space.

• The building's void, glass windows area for daylight gain and visual security also.
• The function can be used for office, meeting room, mini seminar, co-working space.
• The structure is reinforce concrete with cantilever flat - concrete roof slab to reduce the direct sunlight.

• Exposed stair to the open green area for visual securiry accesss.

This native model was made by SketchUP 2020 and imported to Autodesk 3D Max 2020. There are some objects inside this building such as furnitures, sanitary wares.

Building & material info :

• Foundation : Spread footing
• Structure : Post and beam - Reinforce concrete
• Roof : Reinforce concrete Slab
• Ceiling : Gypsum panel / Fiberglass insulation blanket type
• Wall : Autoclaved aerated concrete (AAC) masonry / plastering / Gypsum panel
• Floor : Reinforce Concrete hollow core / Terrazzo finished
• Doors & windows : Aluminium frame / Glass 6 mm.thk
