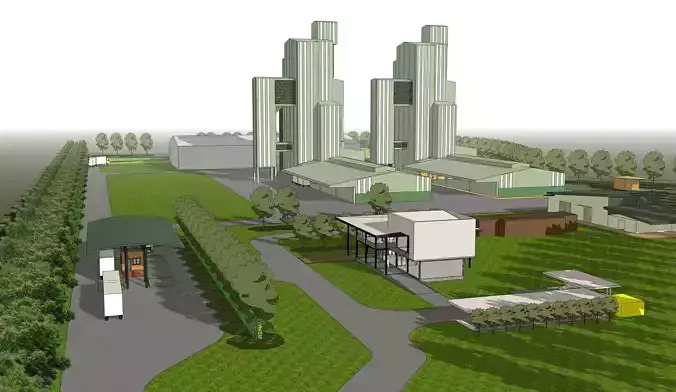

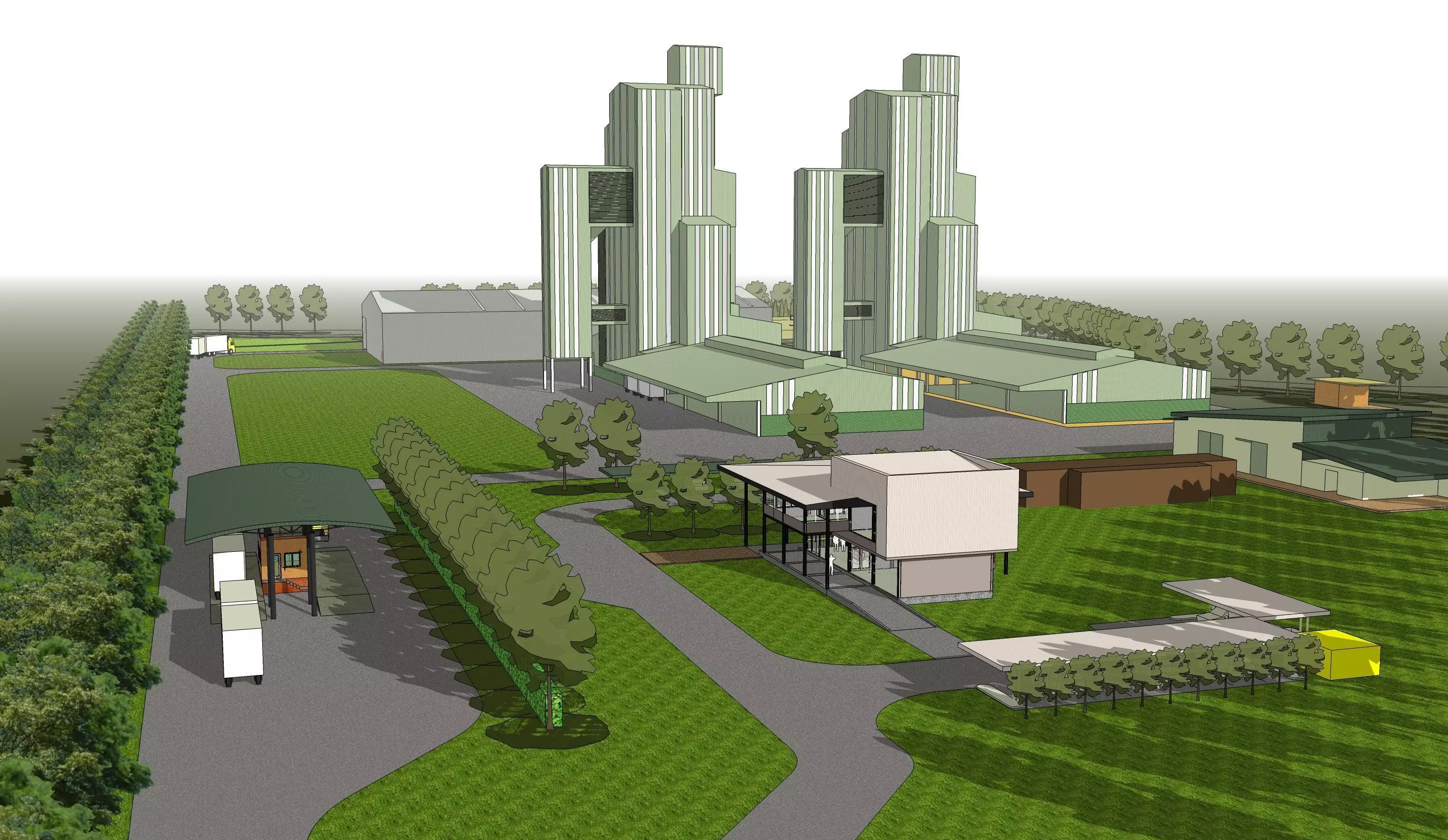

Layout for Cement plant -01 3D model

Layout for Cement plant

Project info :

• Area : 88,000 sq.m.
• Facility in layout :
  • Office
  • Canteen
  • Lab & Workshop & Store
  • Weight scale for trucks
  • Guard house
  • Pump house
  • Material storage
  • Power generator’s house

Layout planning is concerned with :

1. Optimization : For factory area, function, traffic, circulation, and budget control.
2. Energy conservation & Environment :
   • Natural daylight and natural ventilation to reduce budget for management and maintenance
   • Planning for green area in design stage to reduce heat in the factory’s area, surface runoff
3. Safety :
   • Traffic for all vehicles in site area, related to factory’s access & workflow
   • Reduce the risk by layout planning such as : the junction, circulation
4. Modernization :
   • Green surrounding and better atmosphere for employee’s working ,also guest for factory’s visiting
   • Clean & clear perception, easy to understand for factory’s users about circulation, zone, vision
