Composite Metal Deck Flooring 3D model

A high quality 3D model of a Composite Metal Deck Flooring.

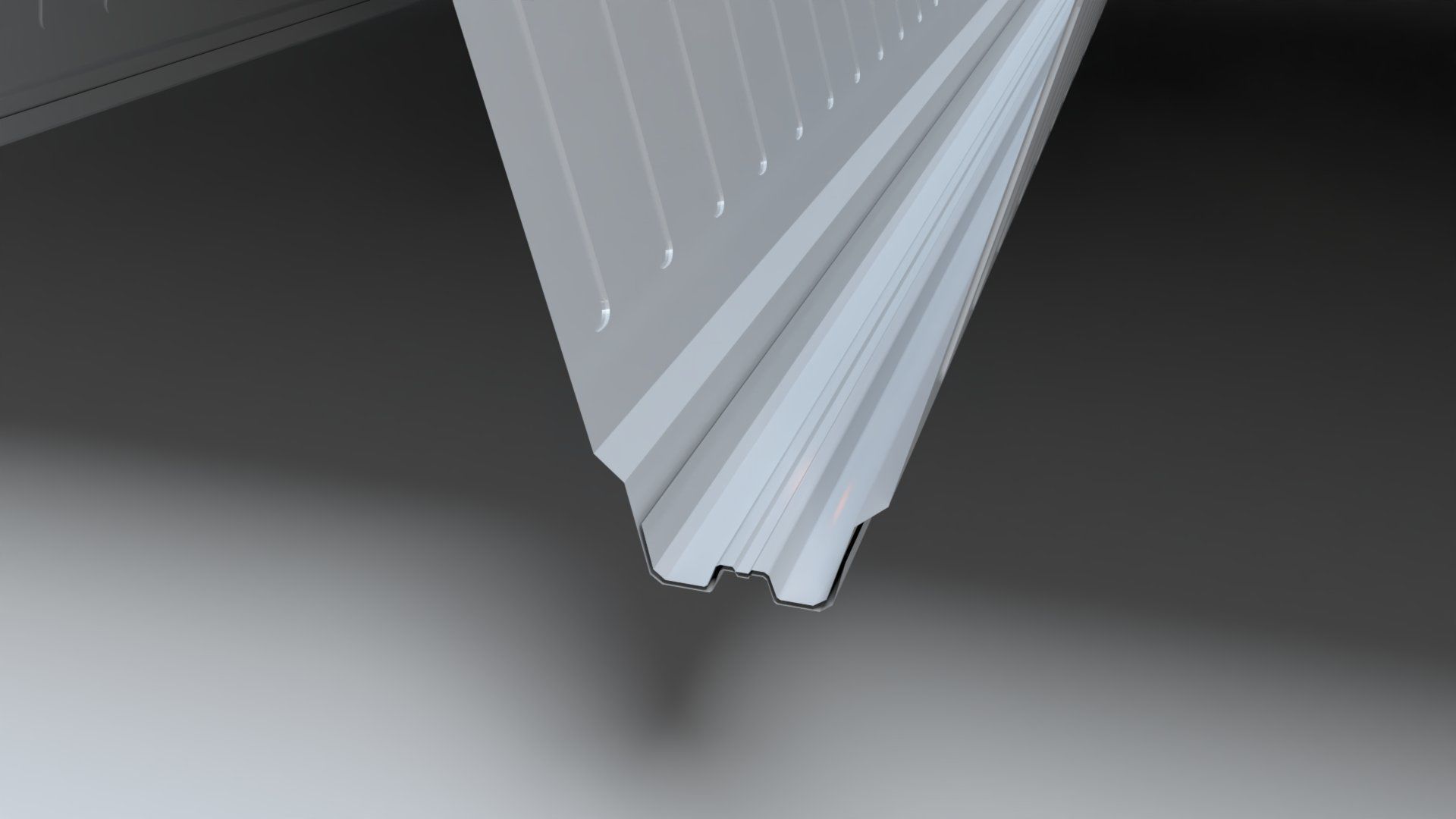

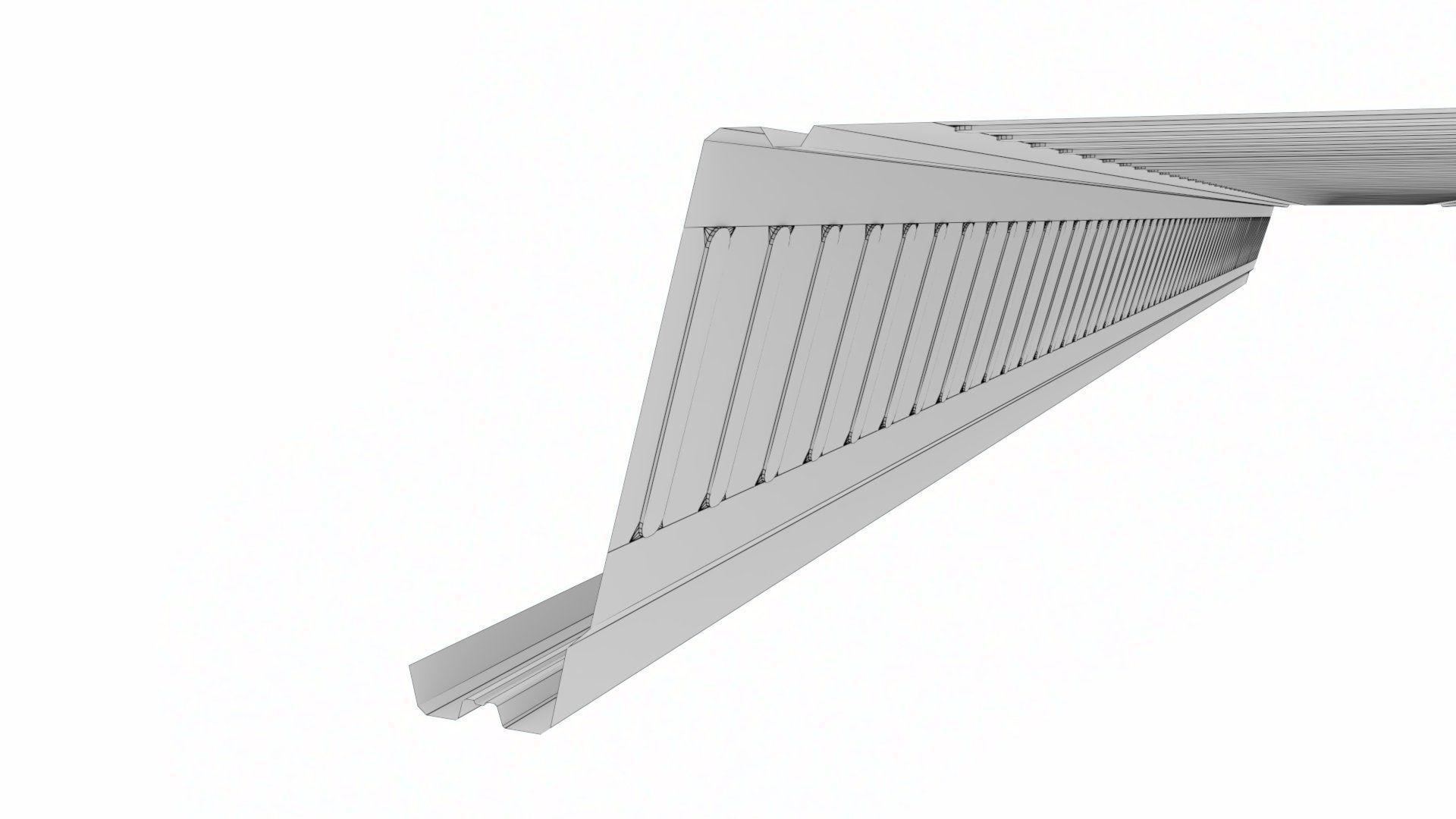

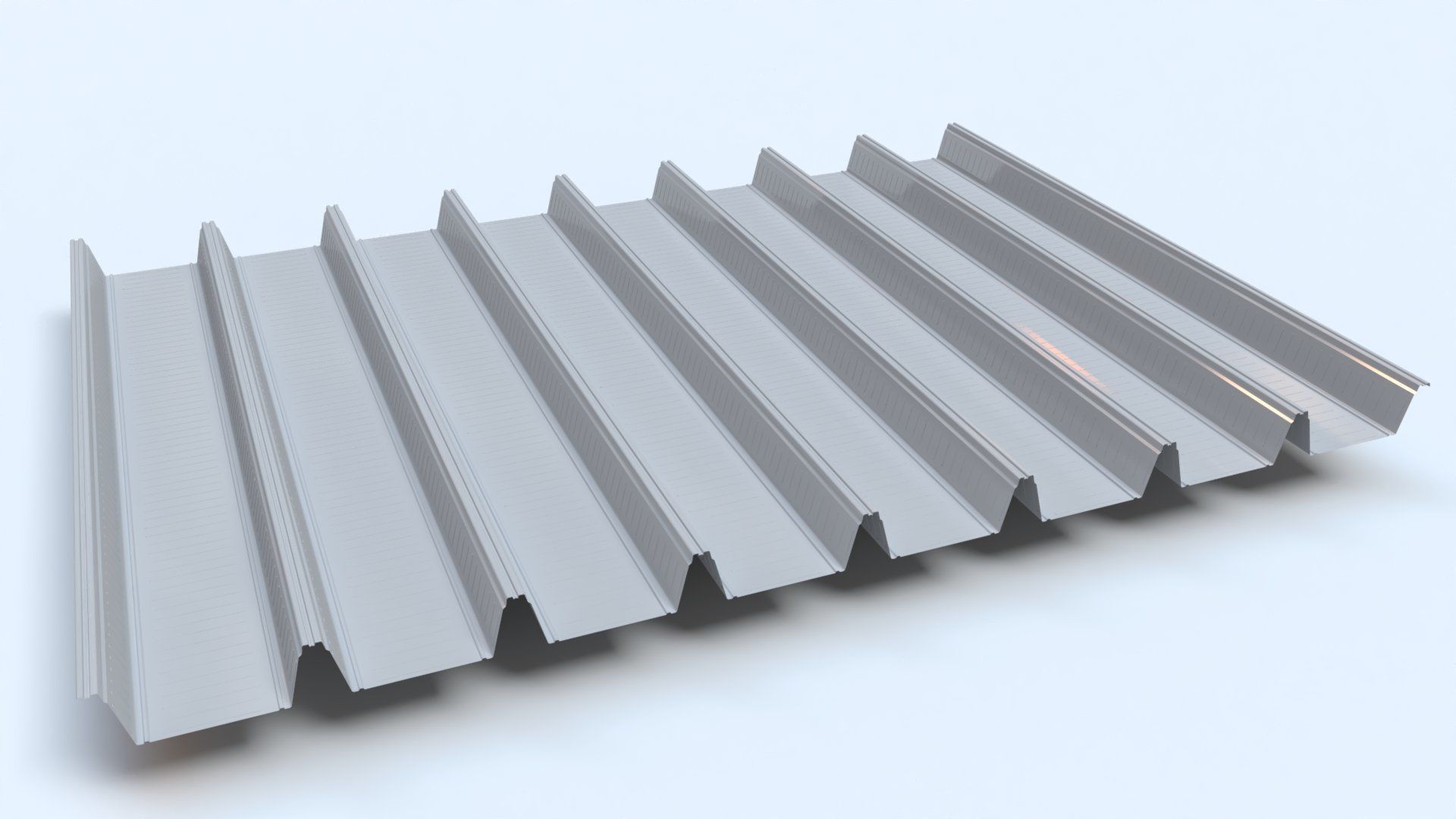

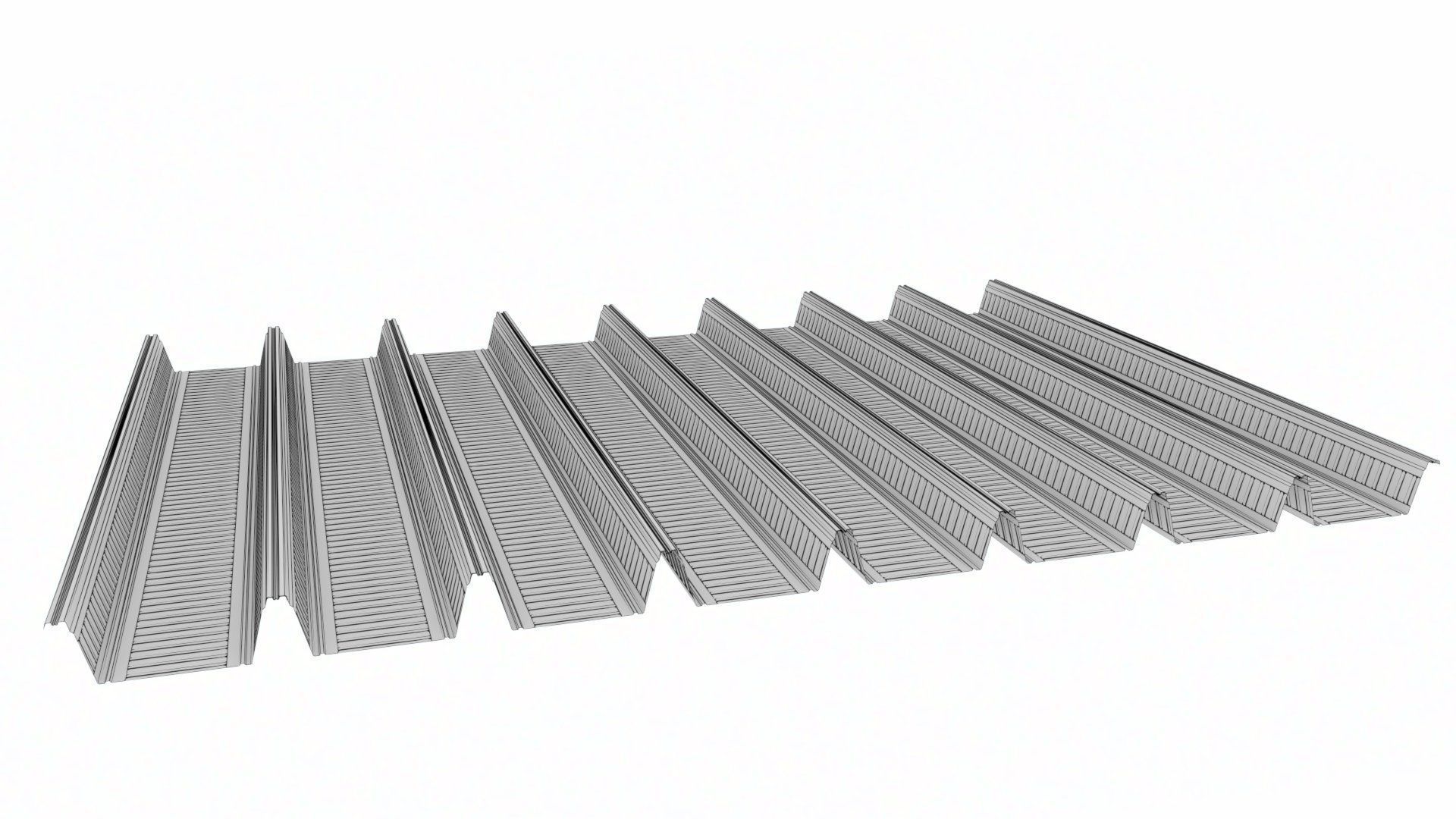

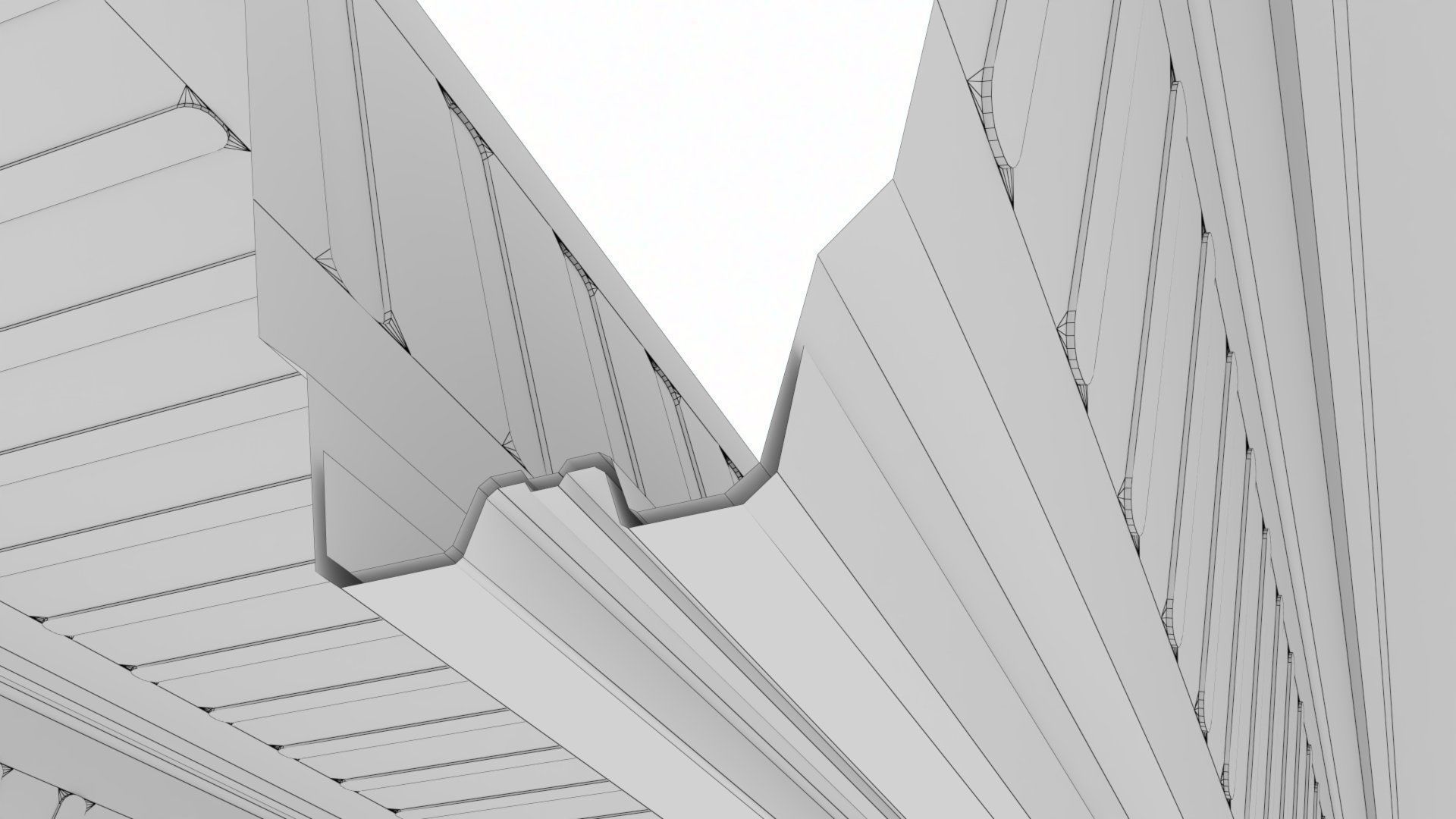

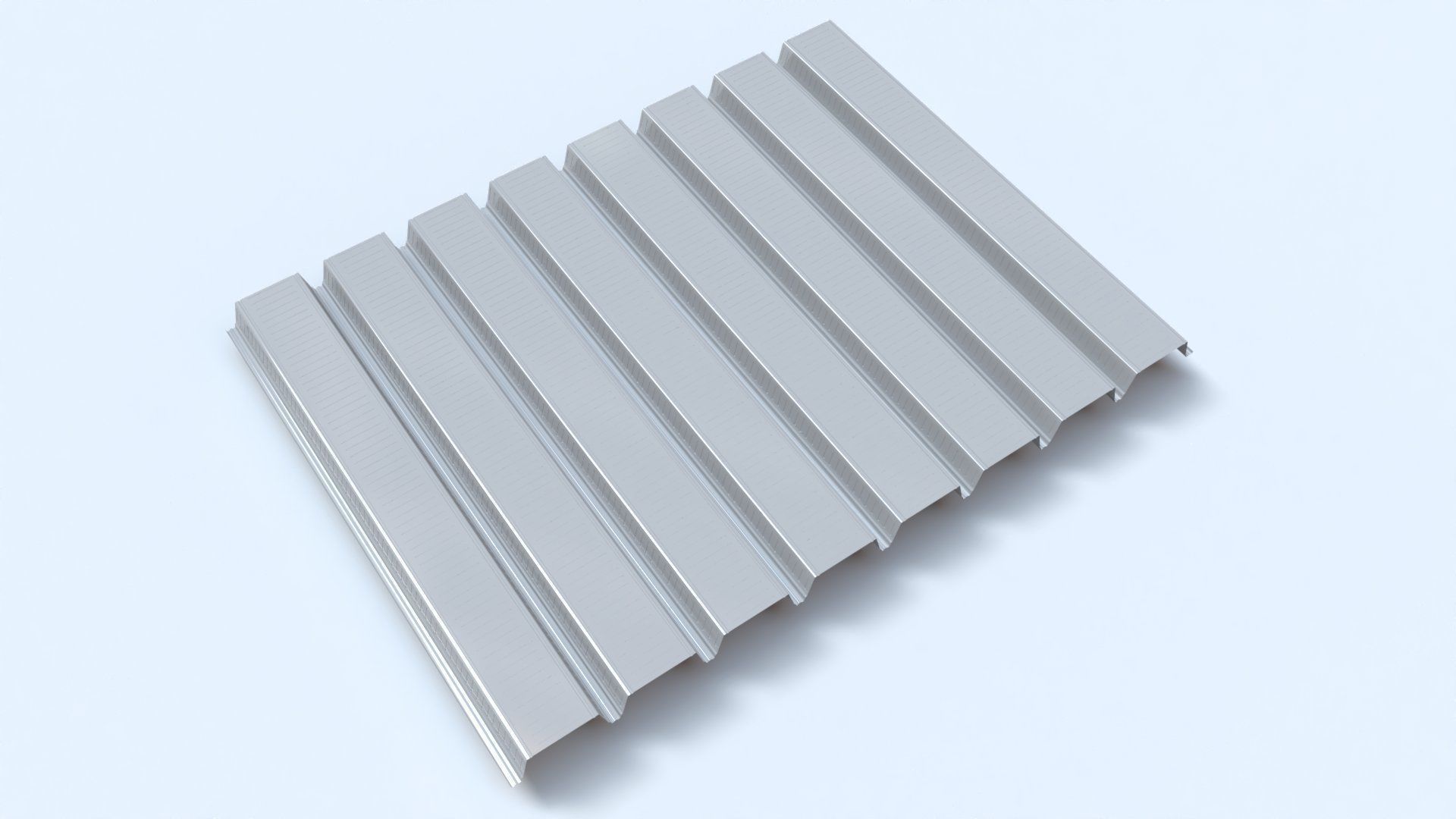

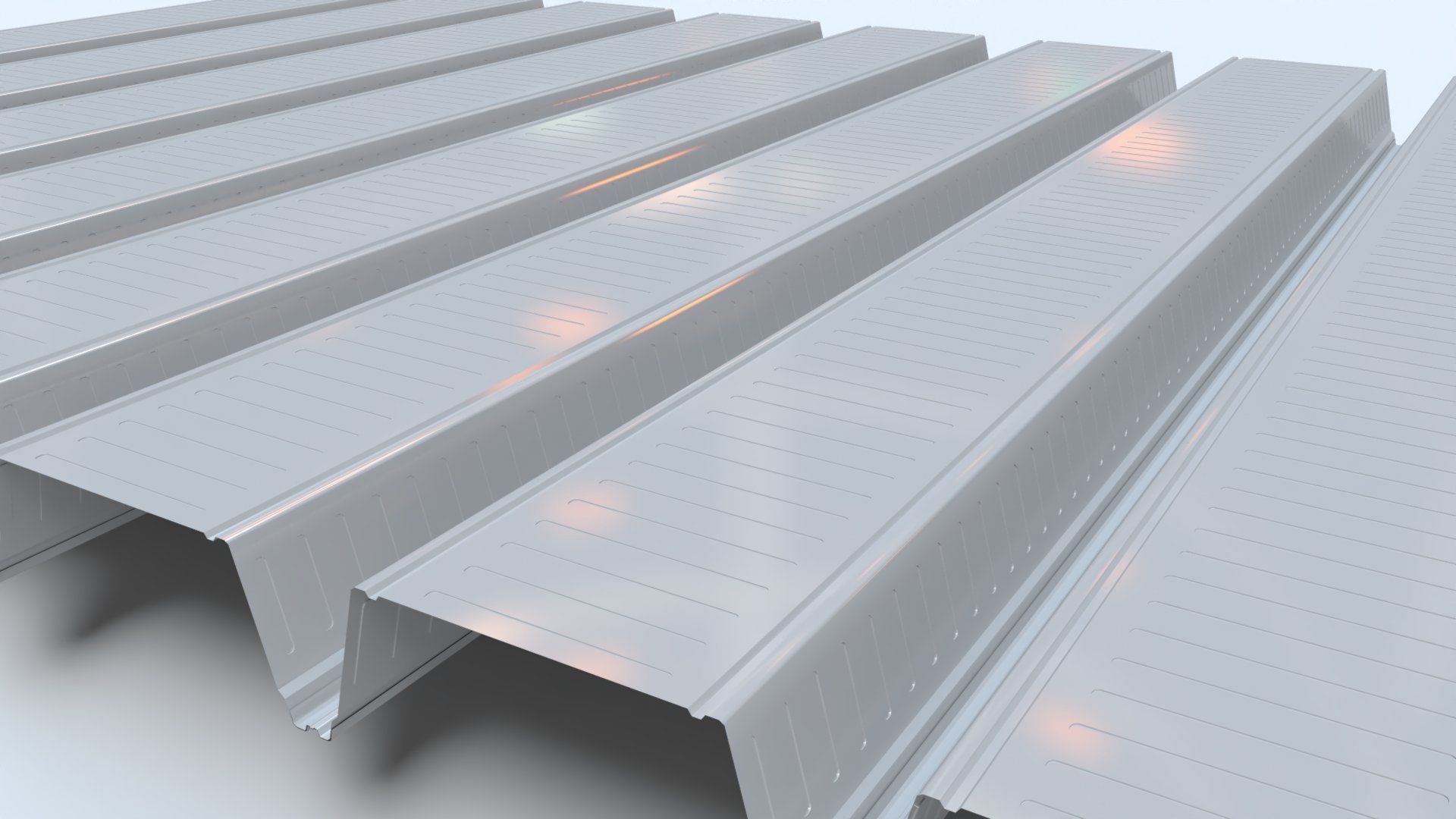

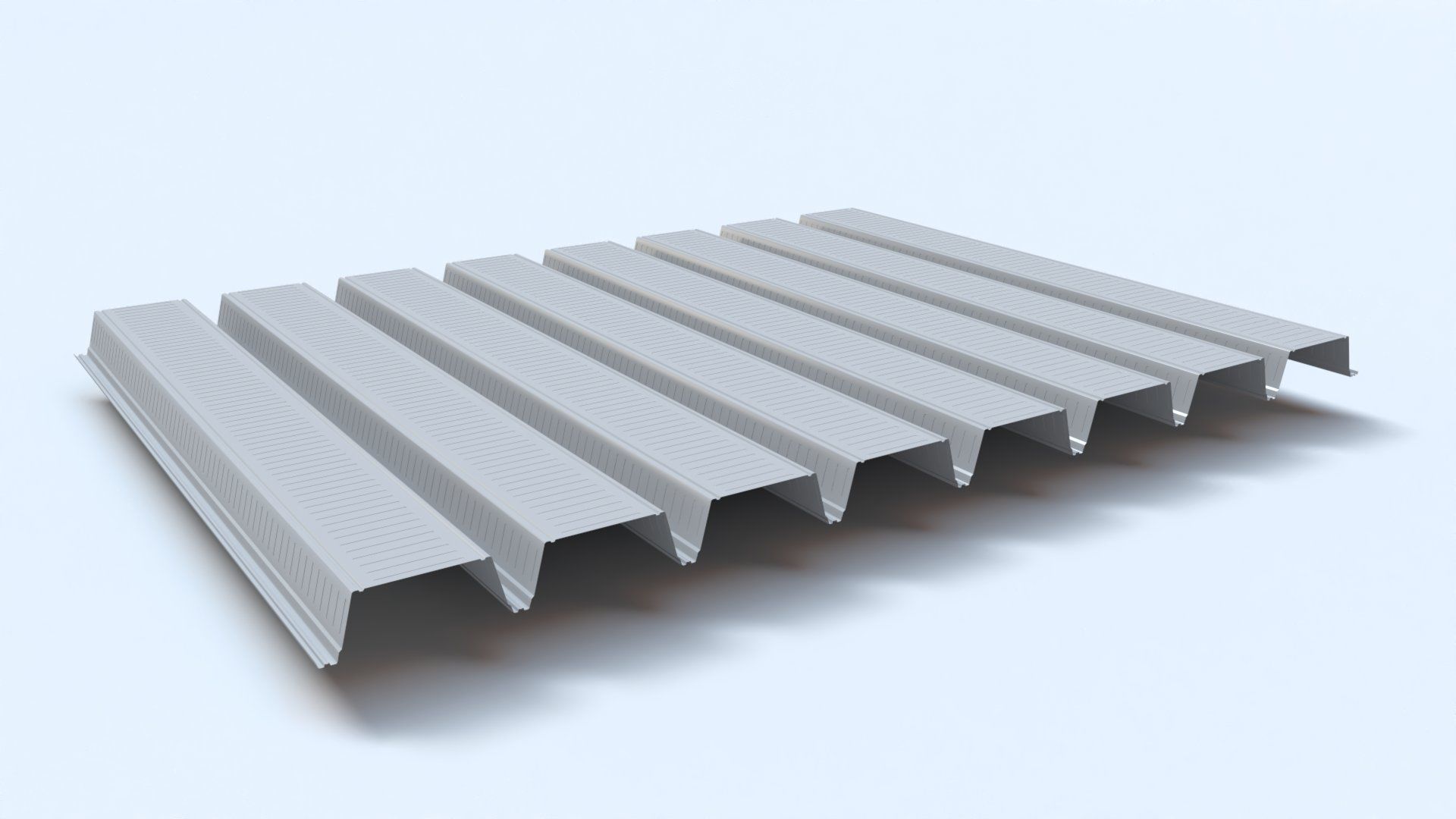

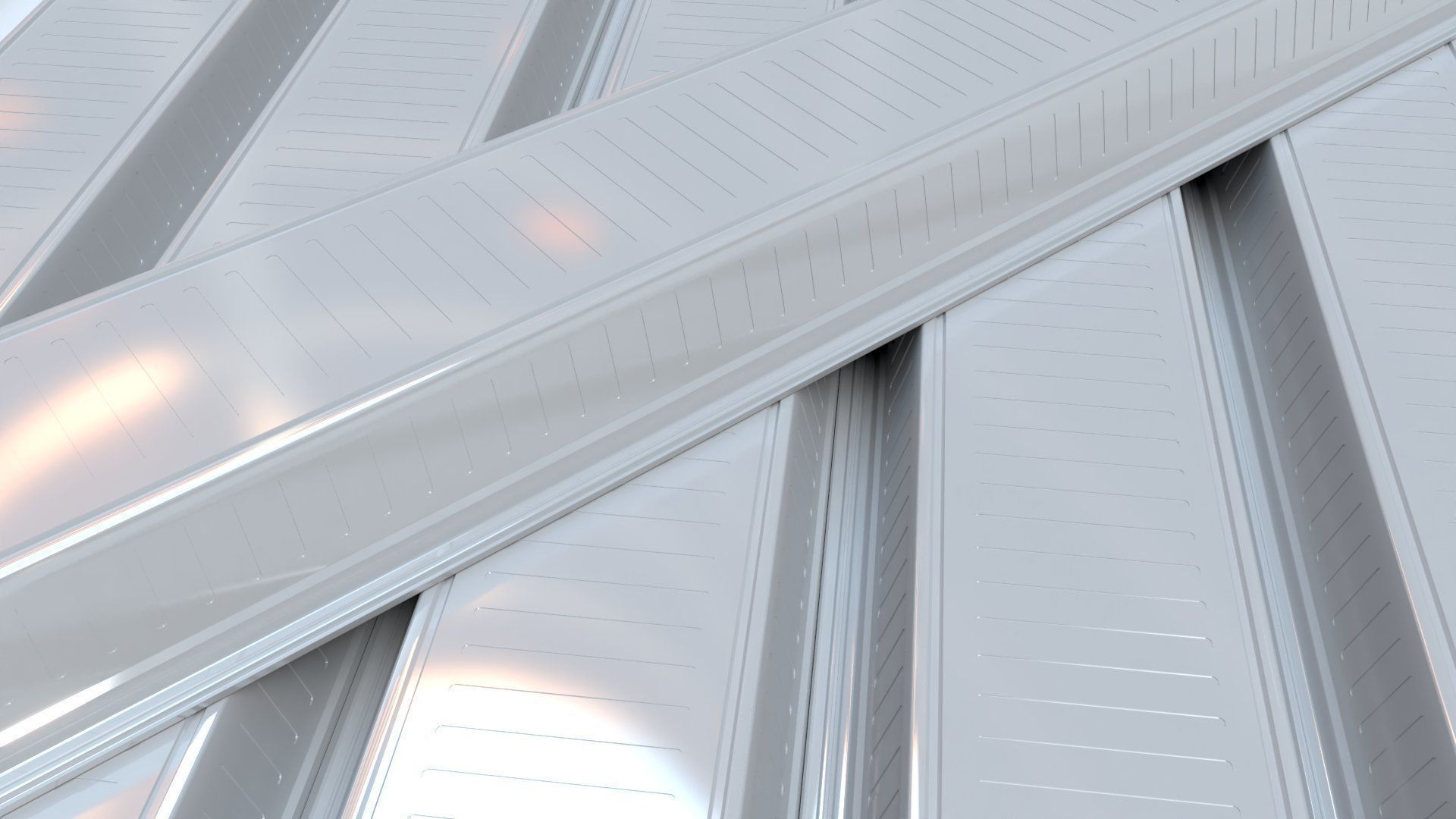

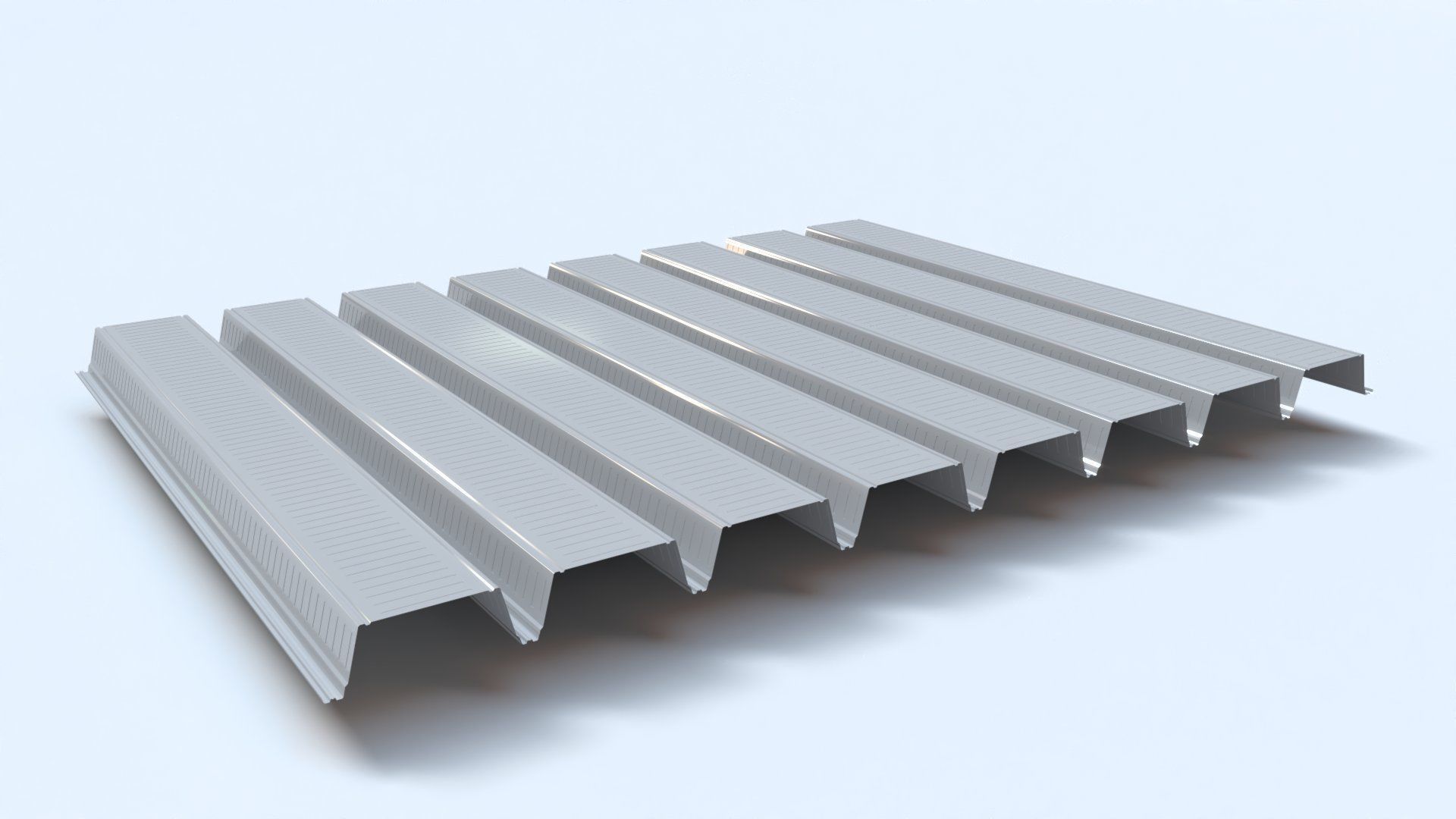

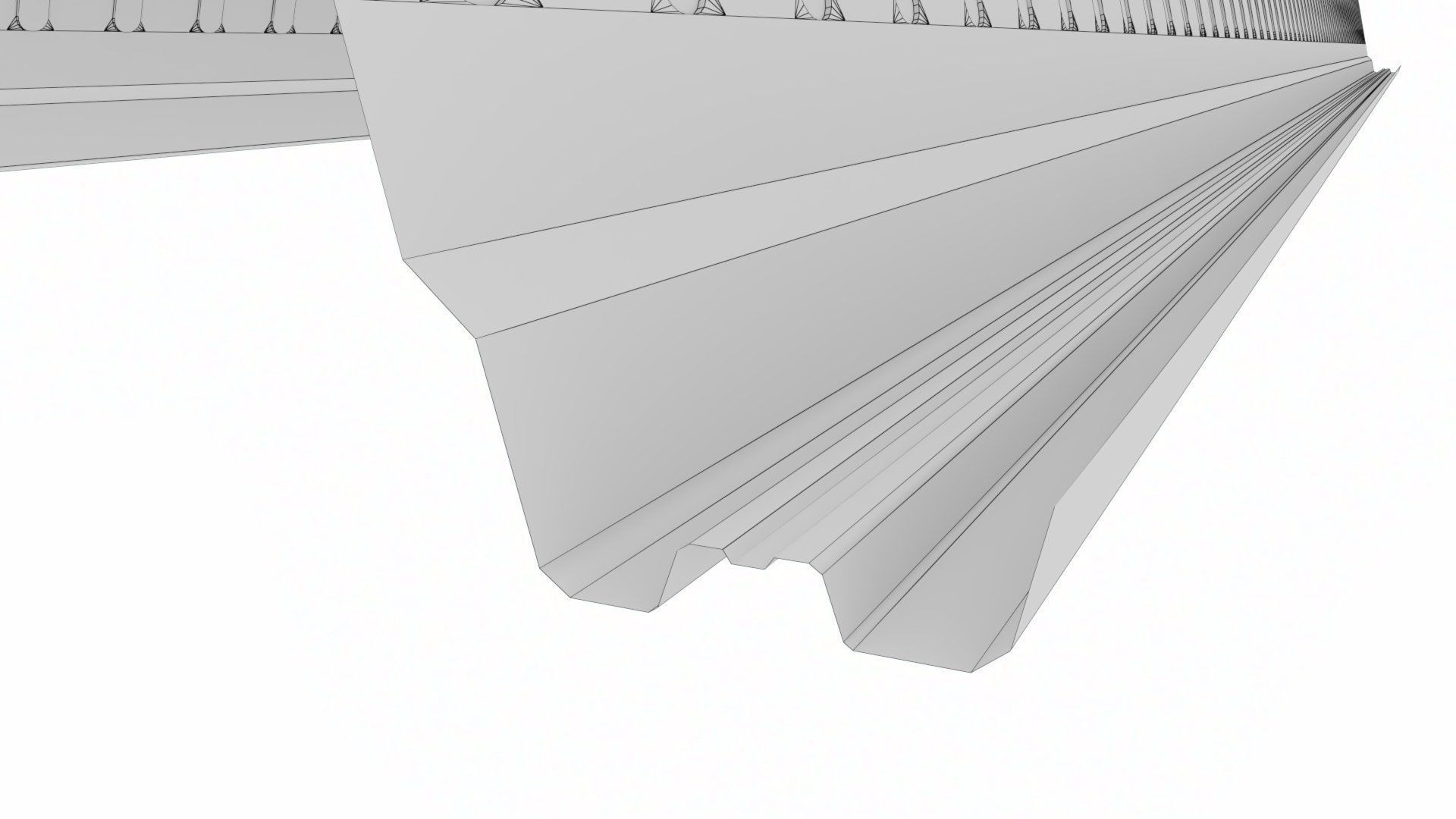

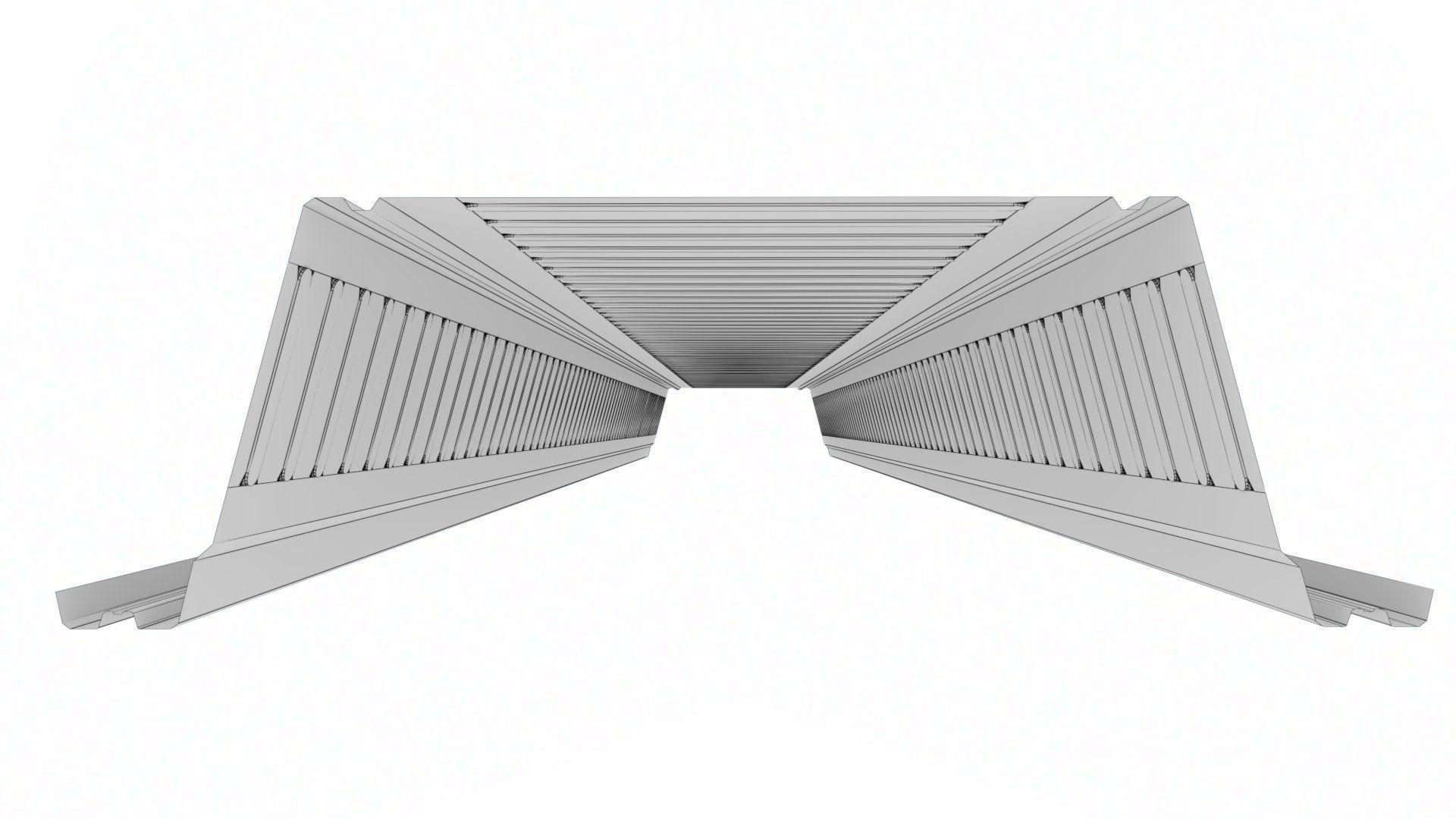

In the construction industry, the term ‘metal decking’ covers all forms of the profiled steel sheeting commonly used together with concrete and steelwork to create a composite floor system or as a structural element to support a built-up roof system. The decking typically comes in two different profiles, named for their specific shapes – dovetail (or re-entrant) and trapezoidal. This particular model is of the latter, trapezoidal decking.

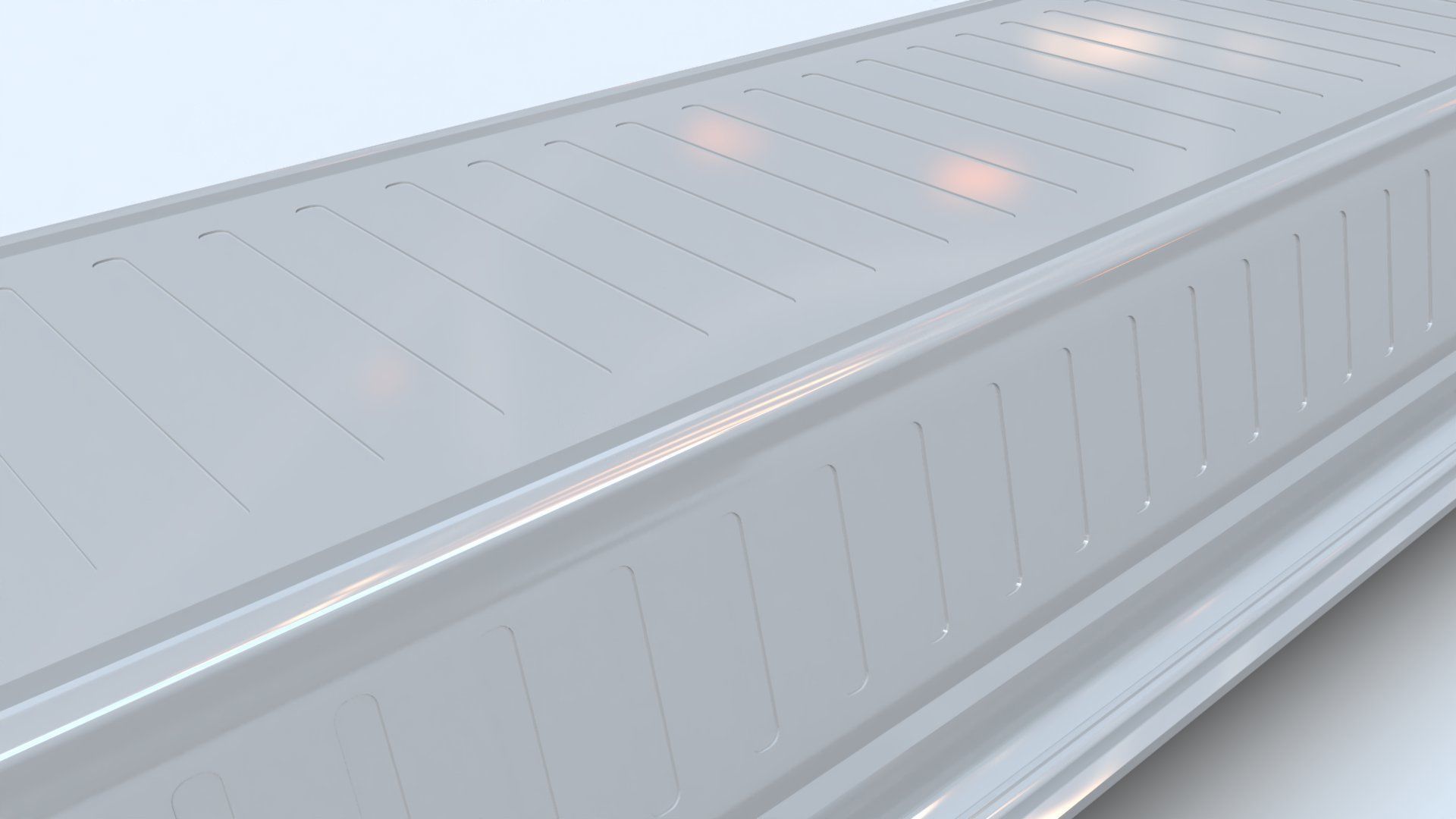

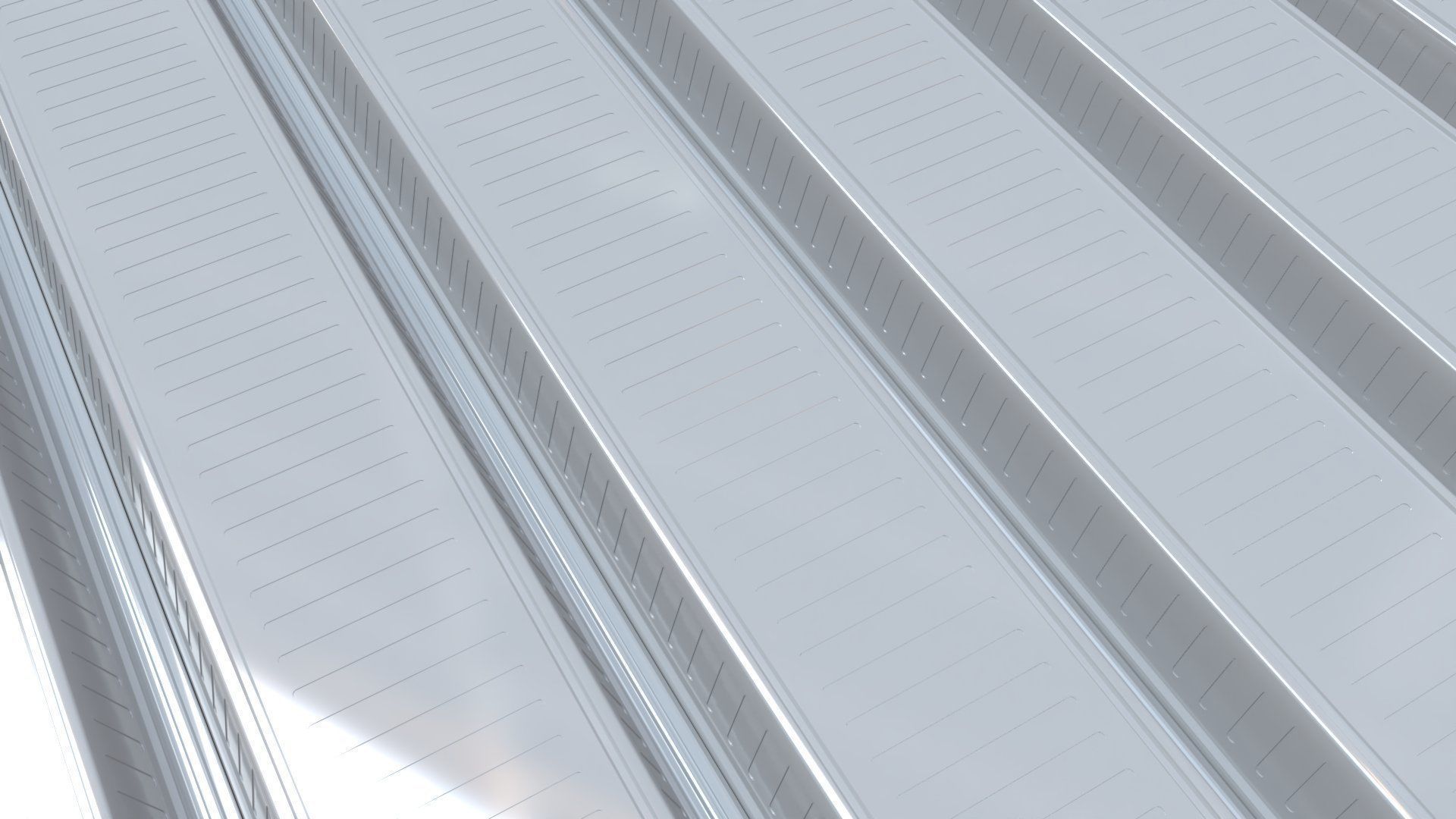

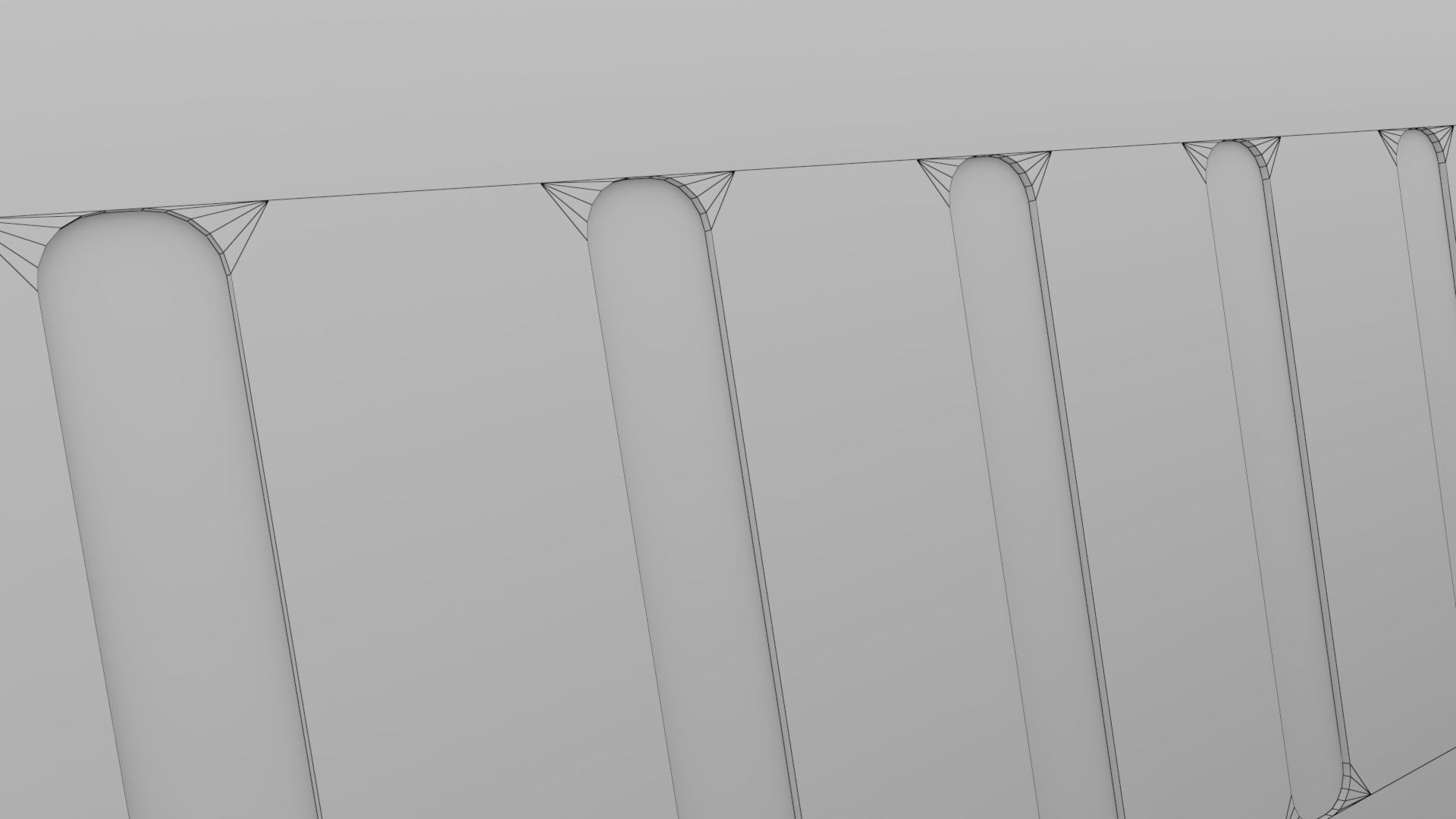

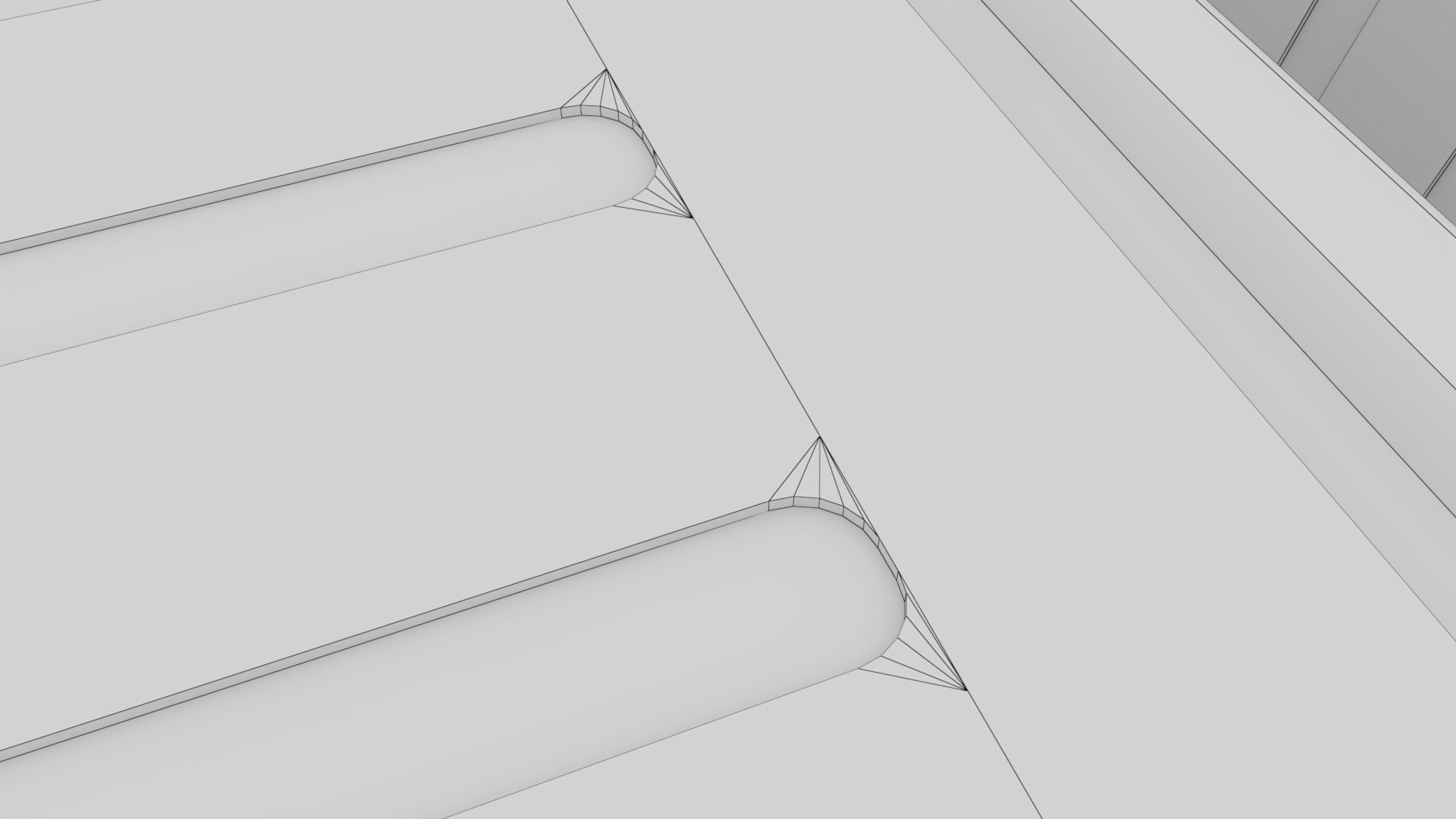

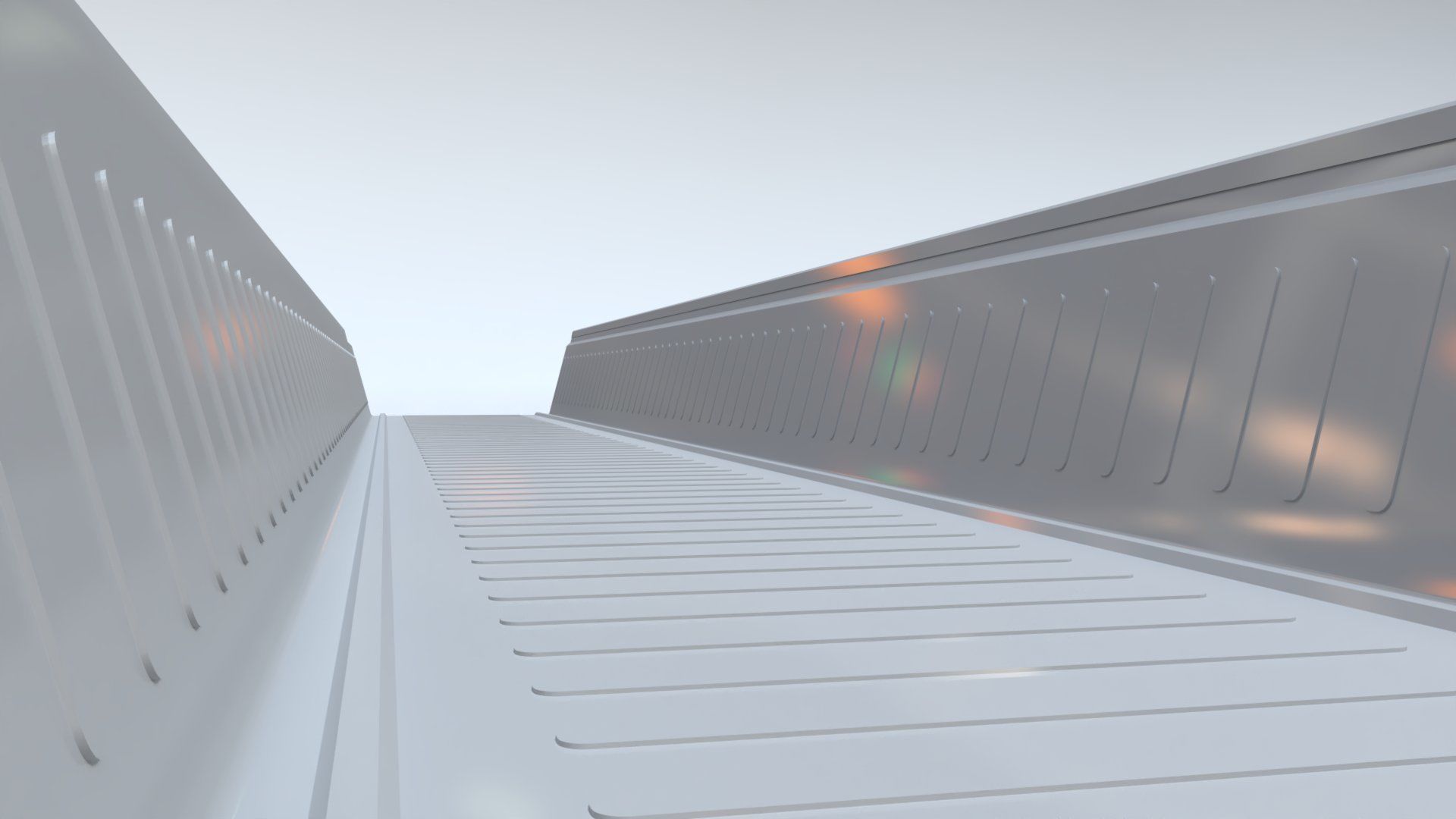

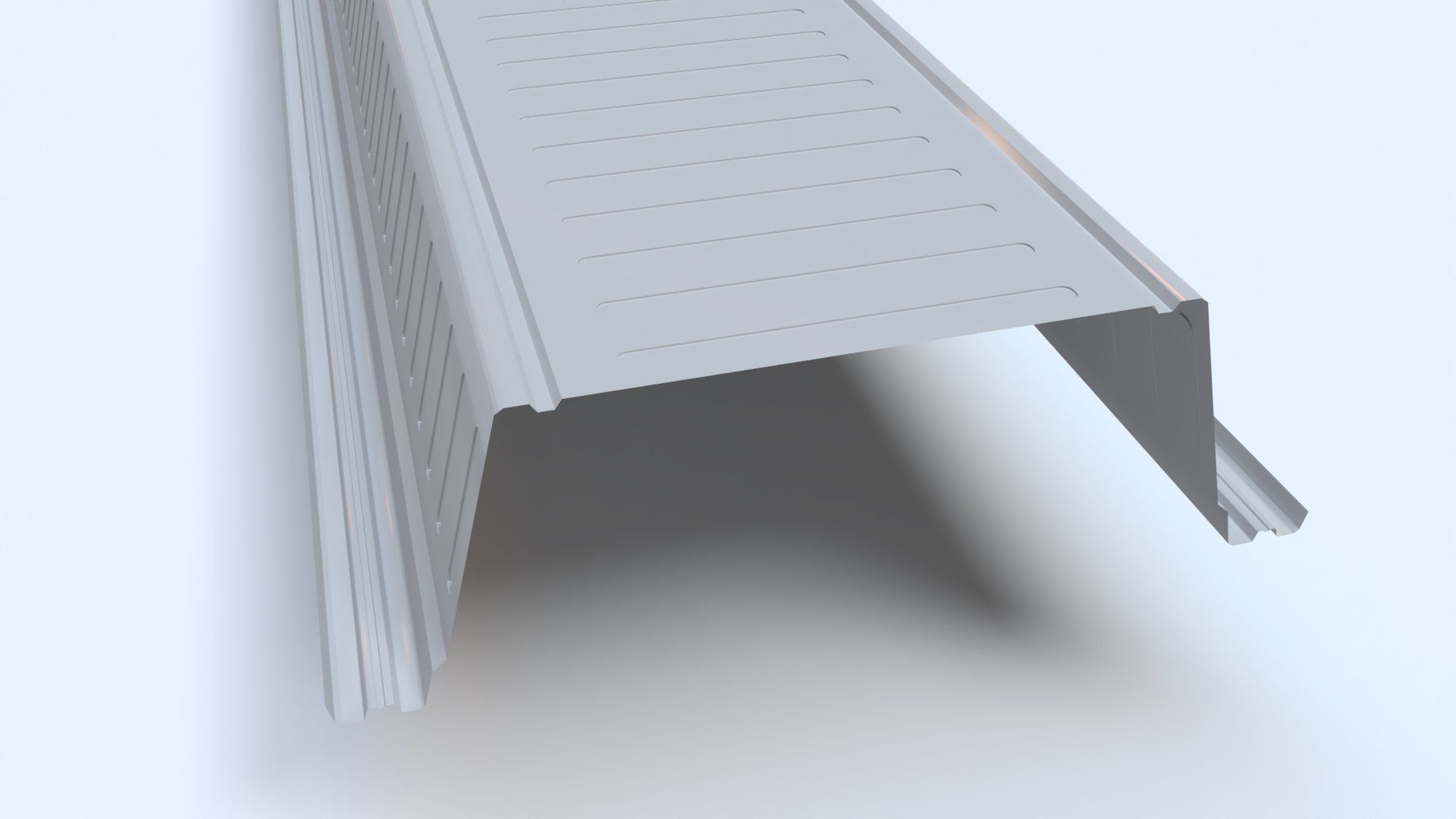

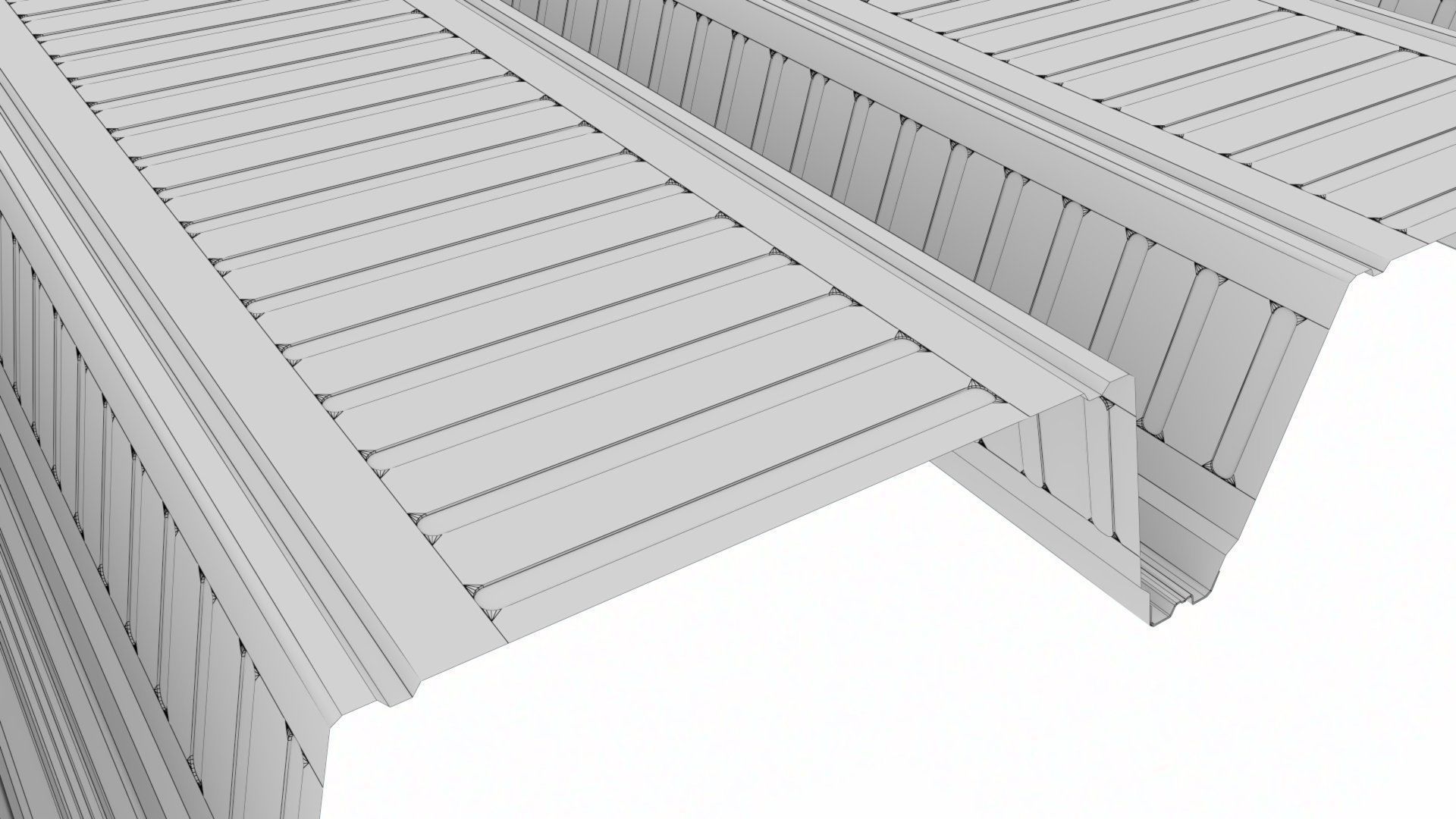

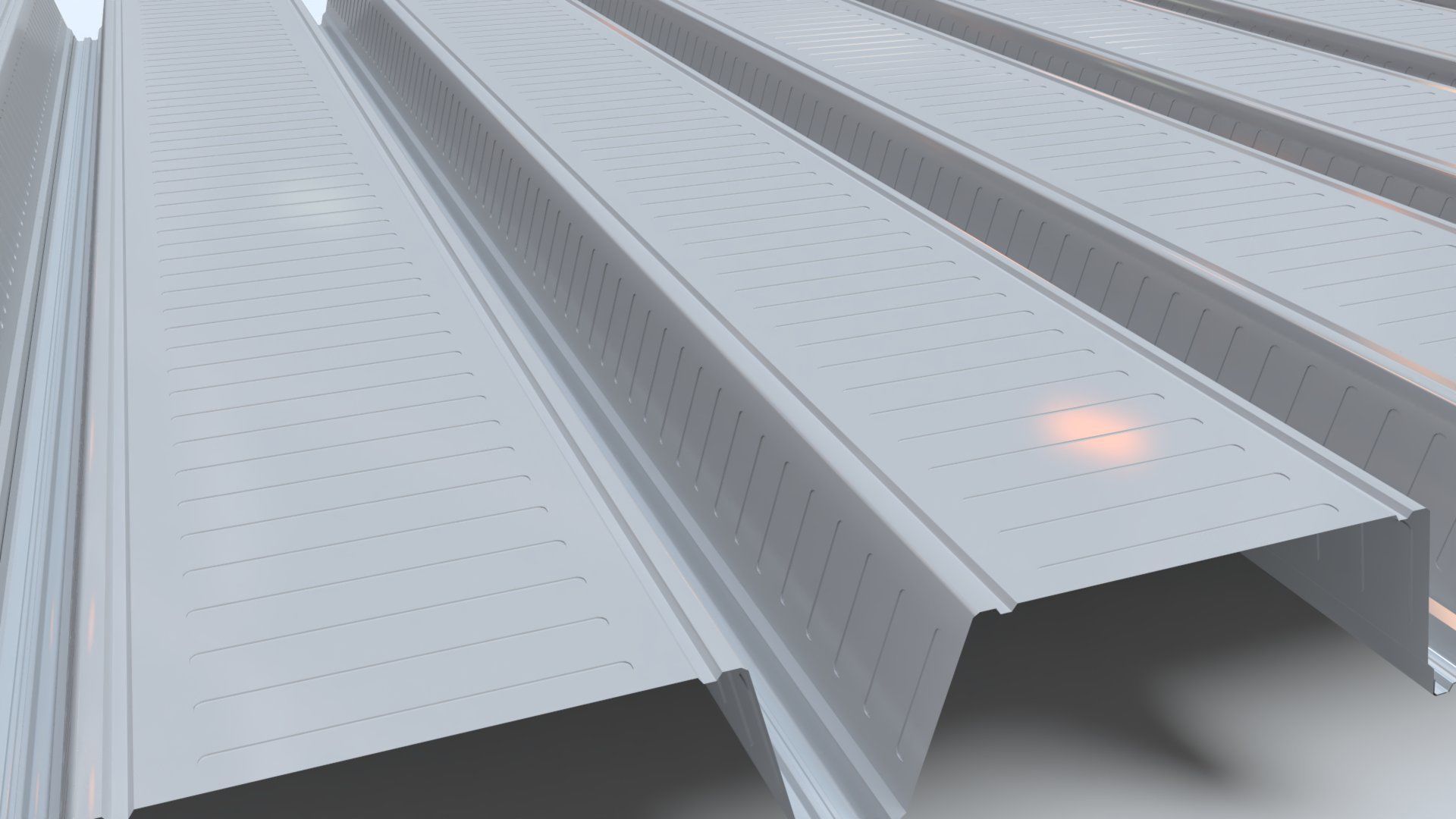

This 3D model was used in a high-end animation, to demonstrate the build process of installing a concrete slab floor by using a metal deck frame. We have included certain details that take reference from TATA Steel's 80 line. It includes the steel deck, with an embossed rib.

The model is great to use in your games, films as CGI, VR, or animations. It's low poly but holds enough detail to place into a scene for a realistic CGI element.

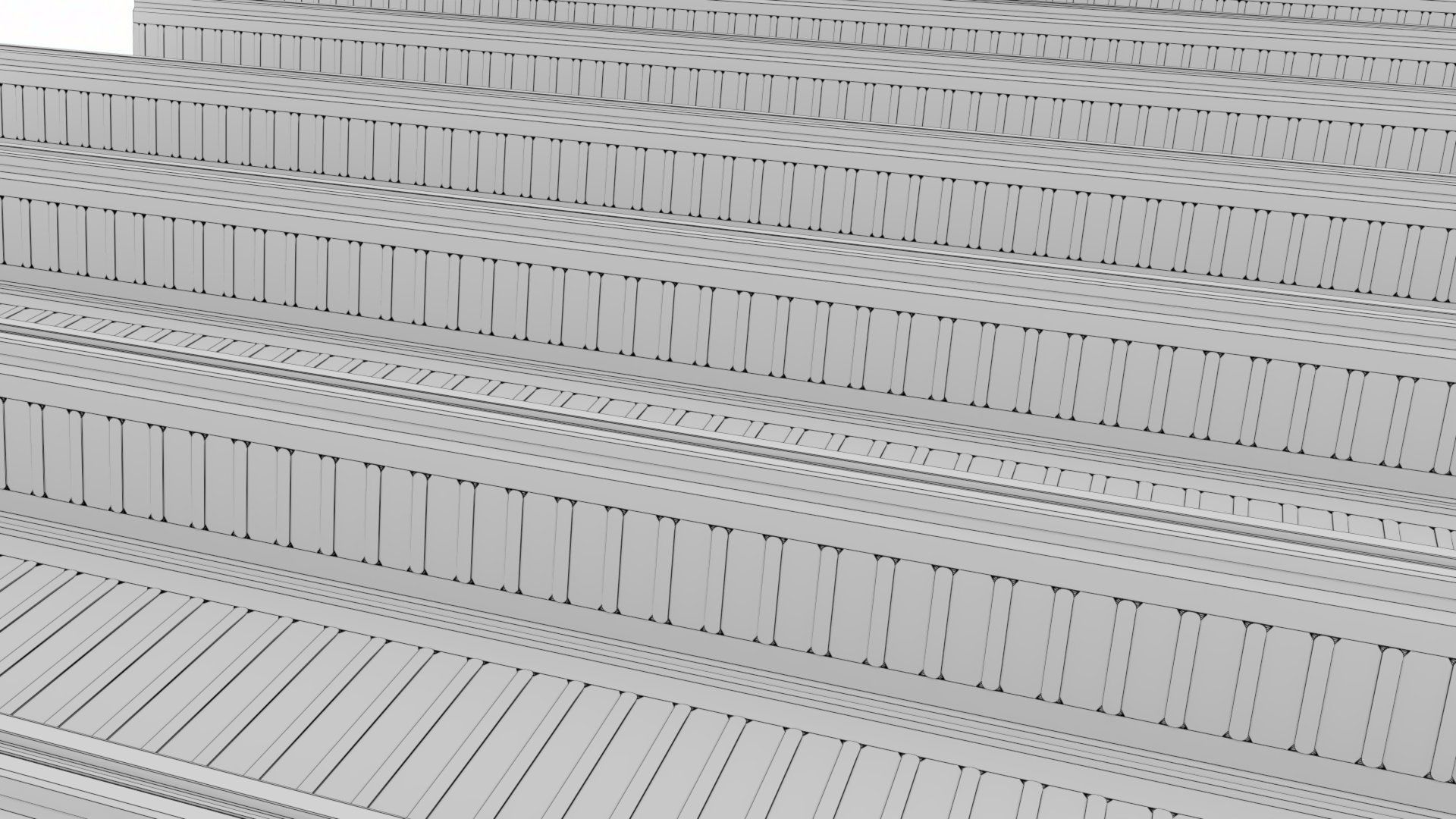

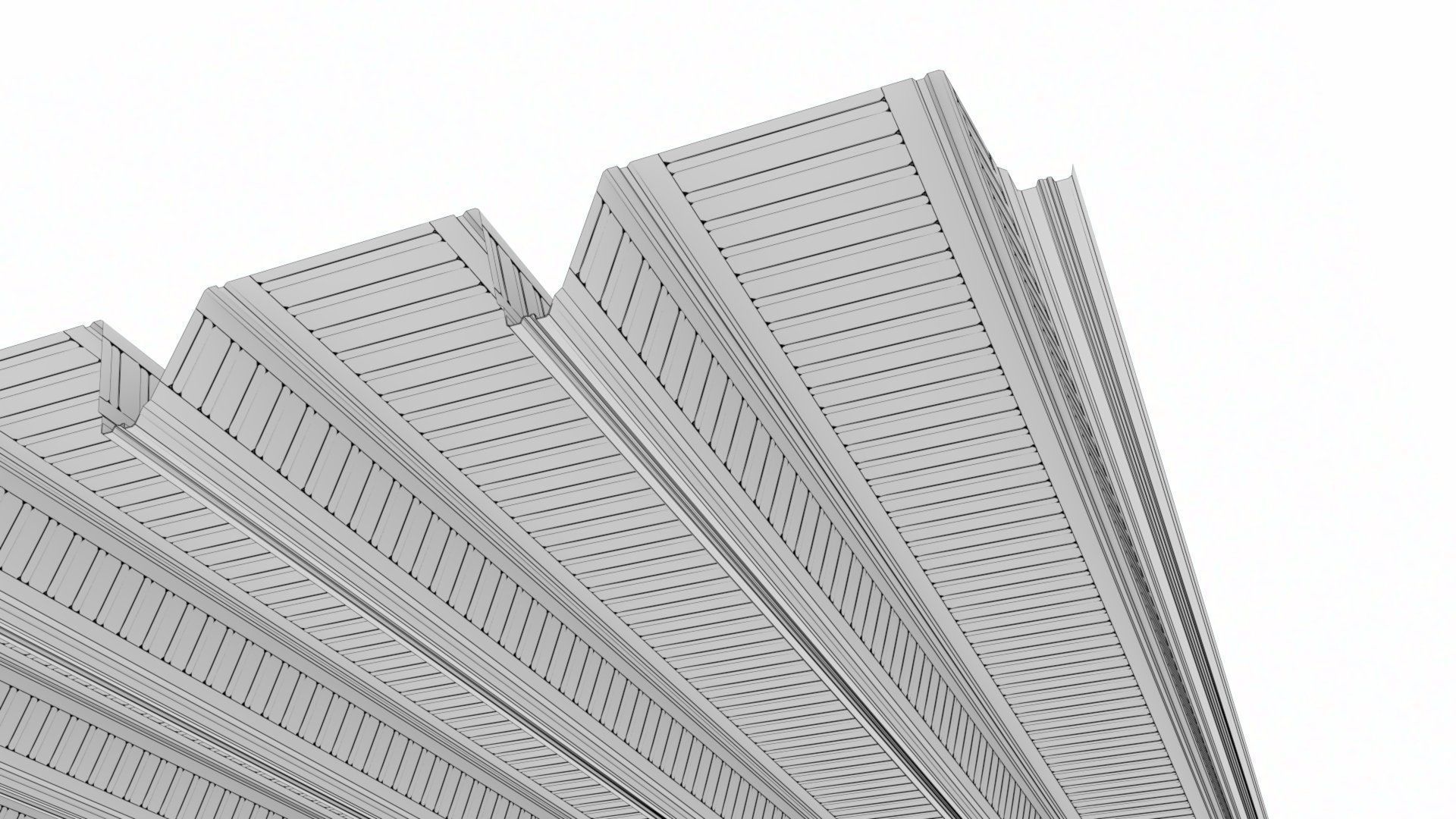

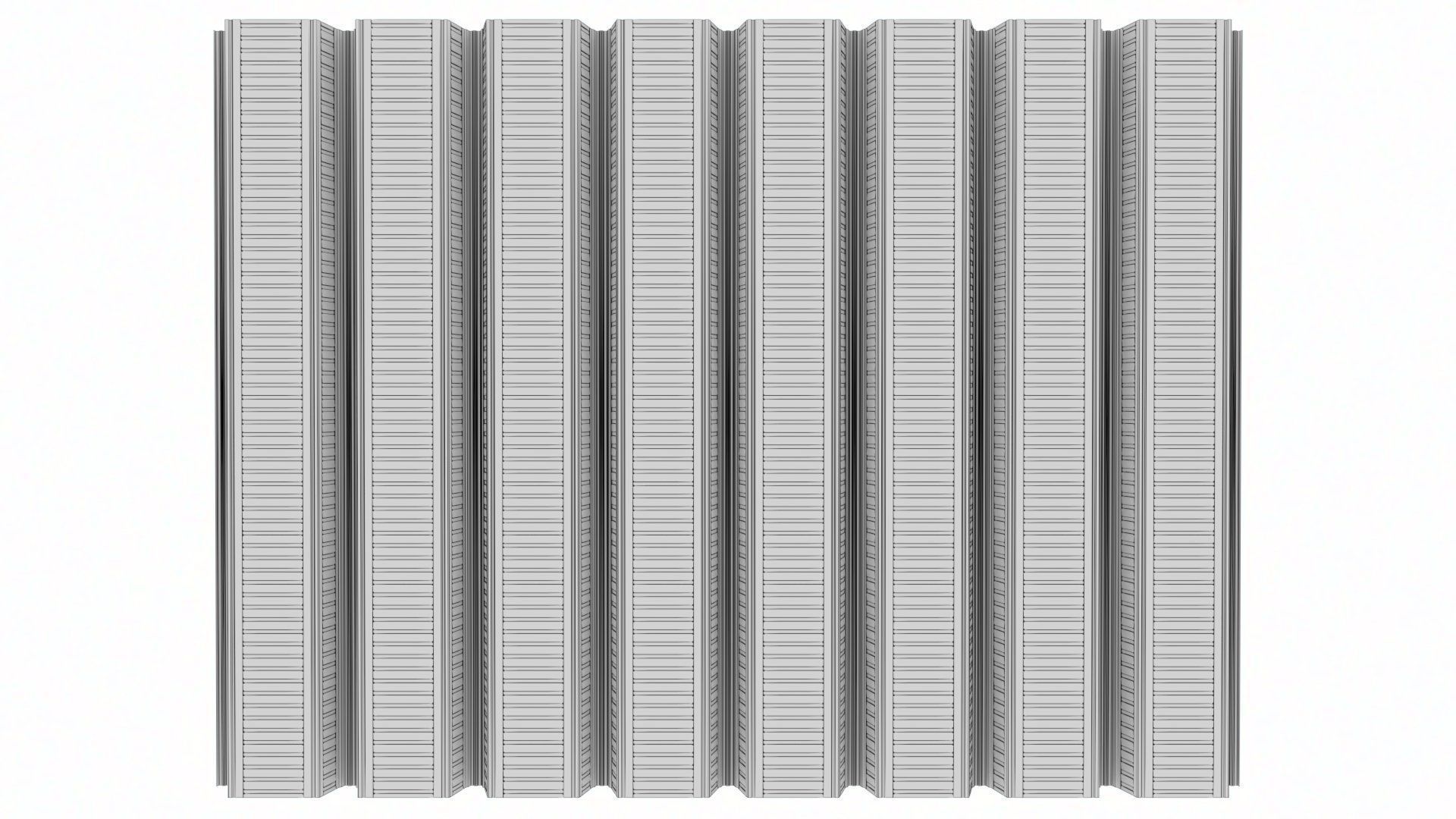

Panel Poly / Vert count

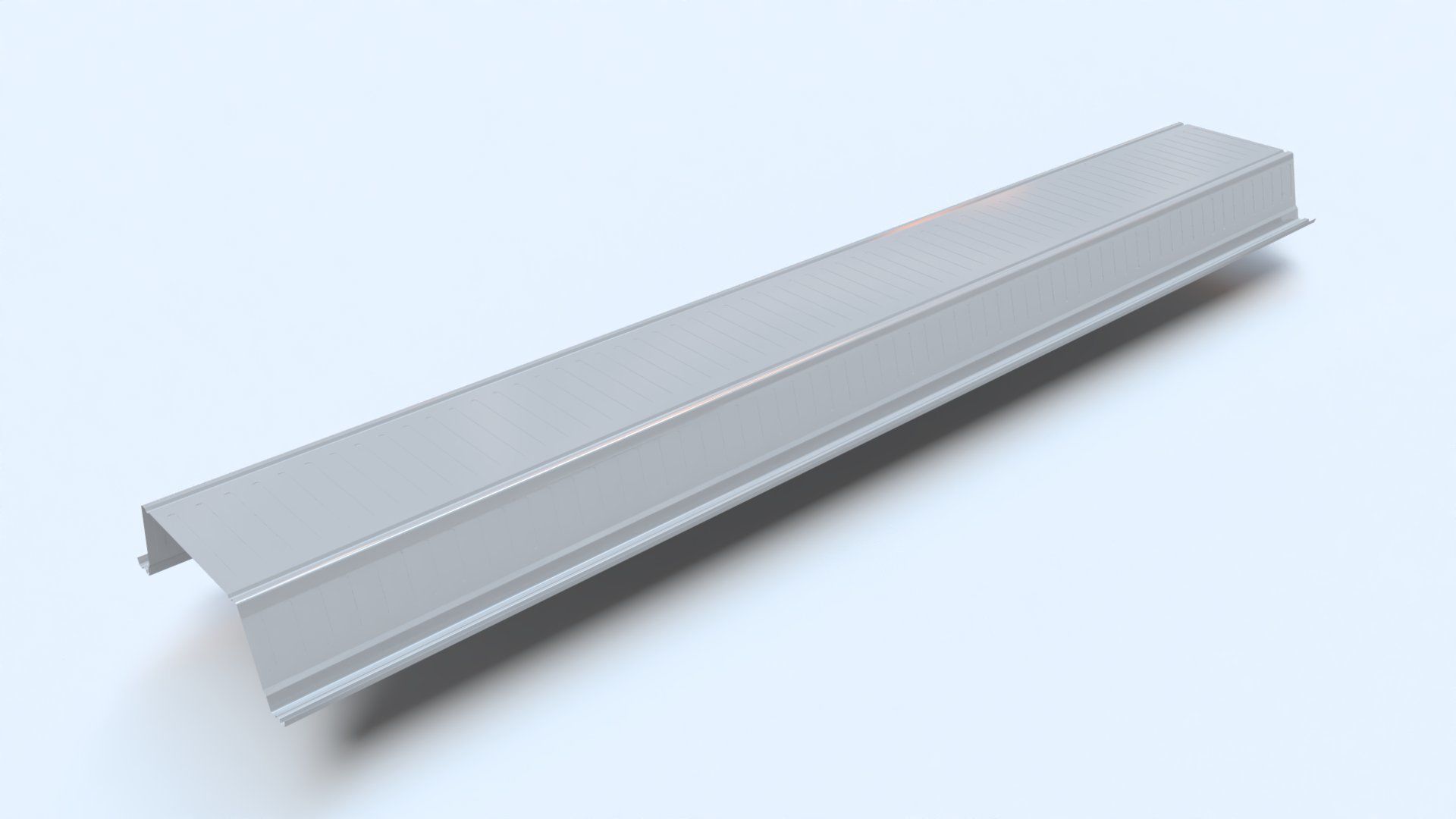

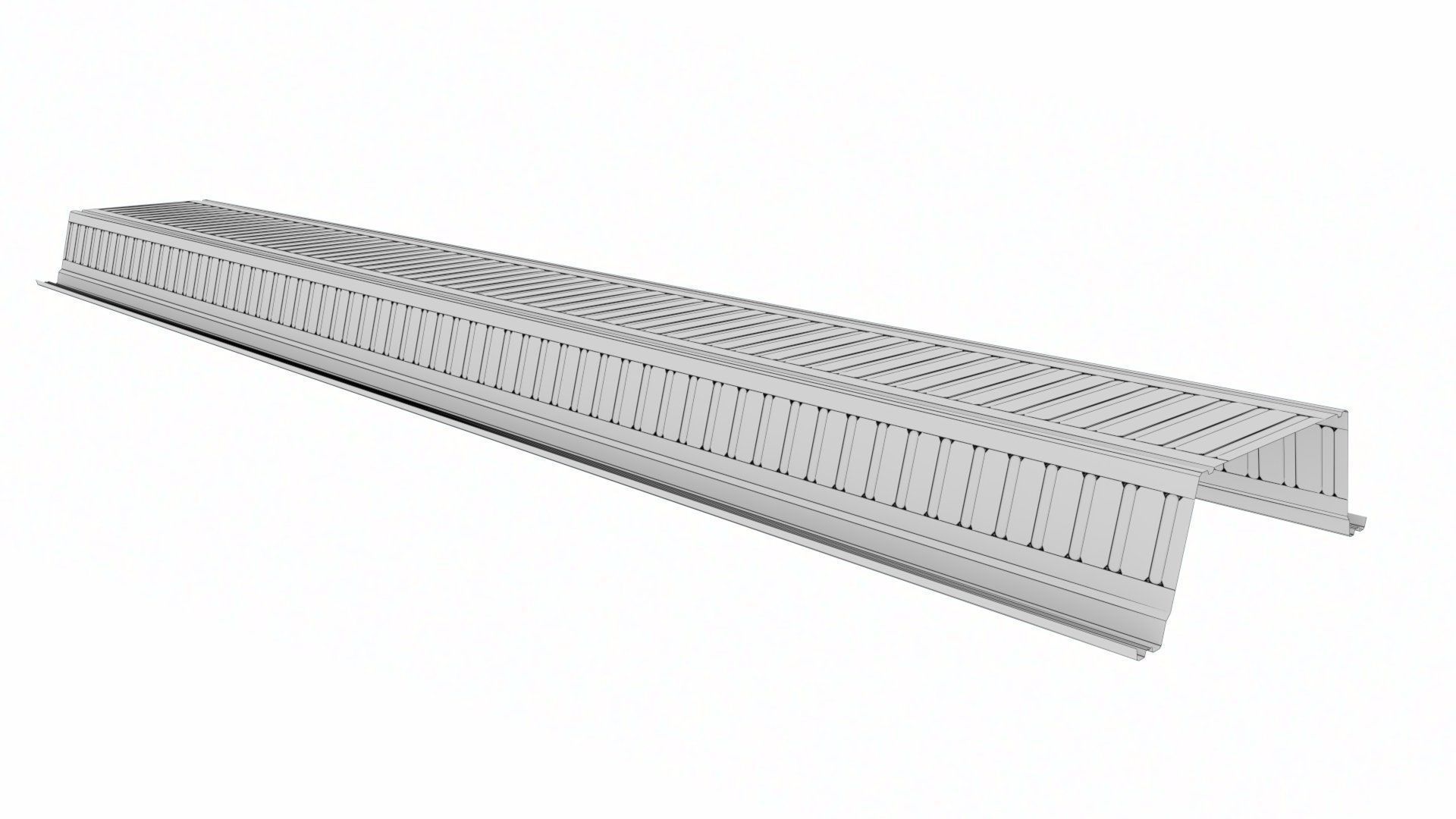

Individual panel Poly: 8749 Vert: 9940

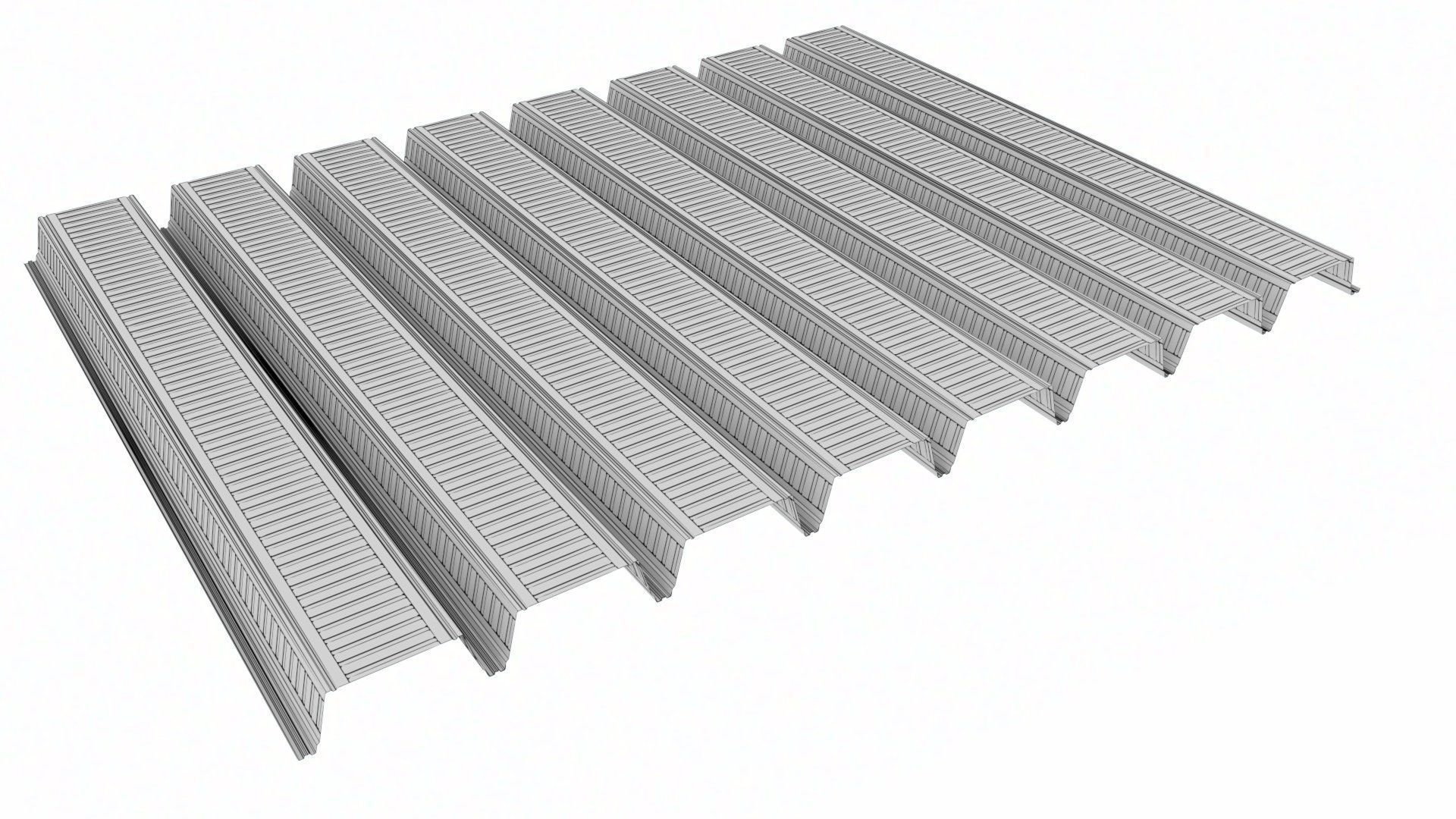

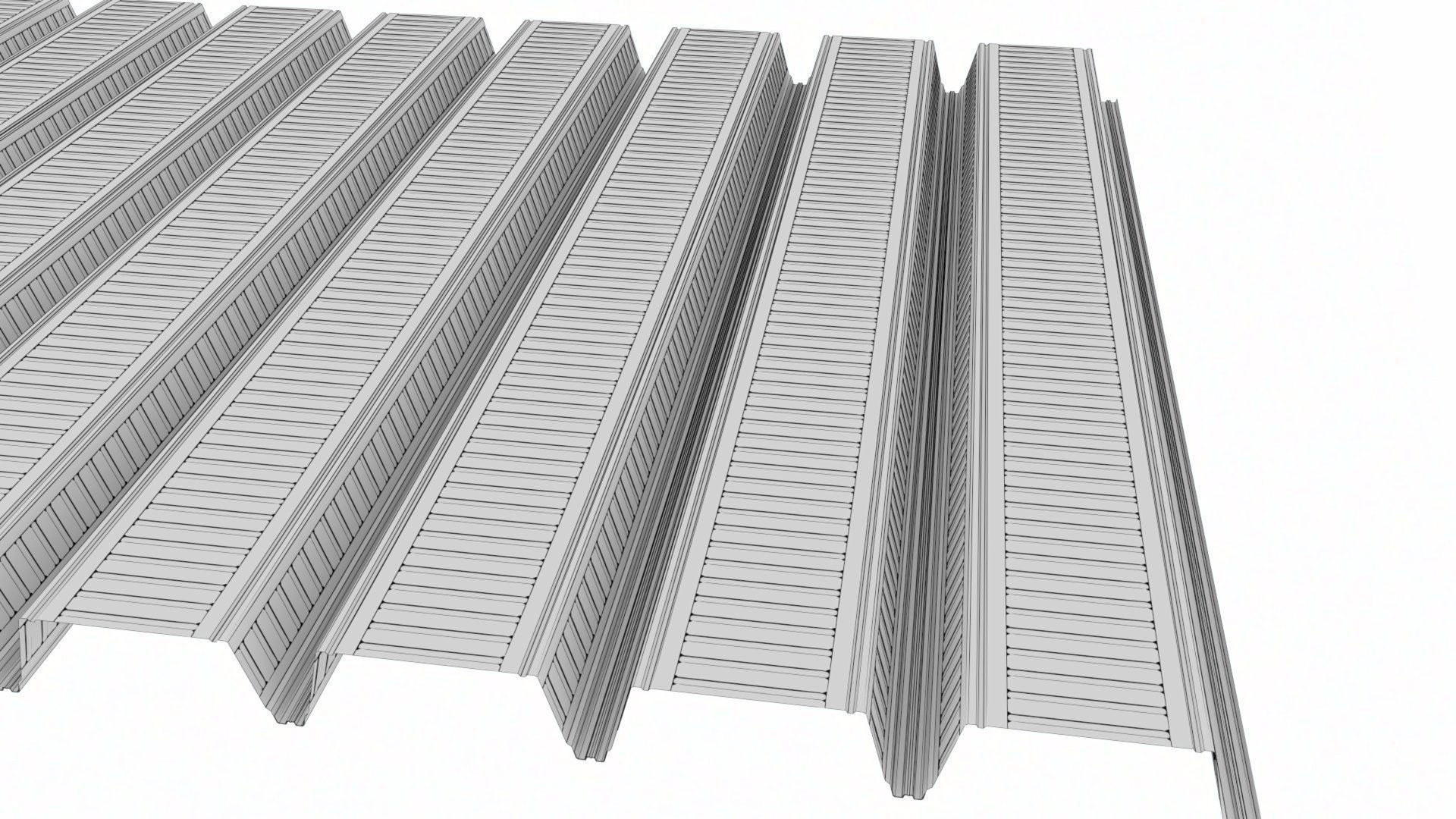

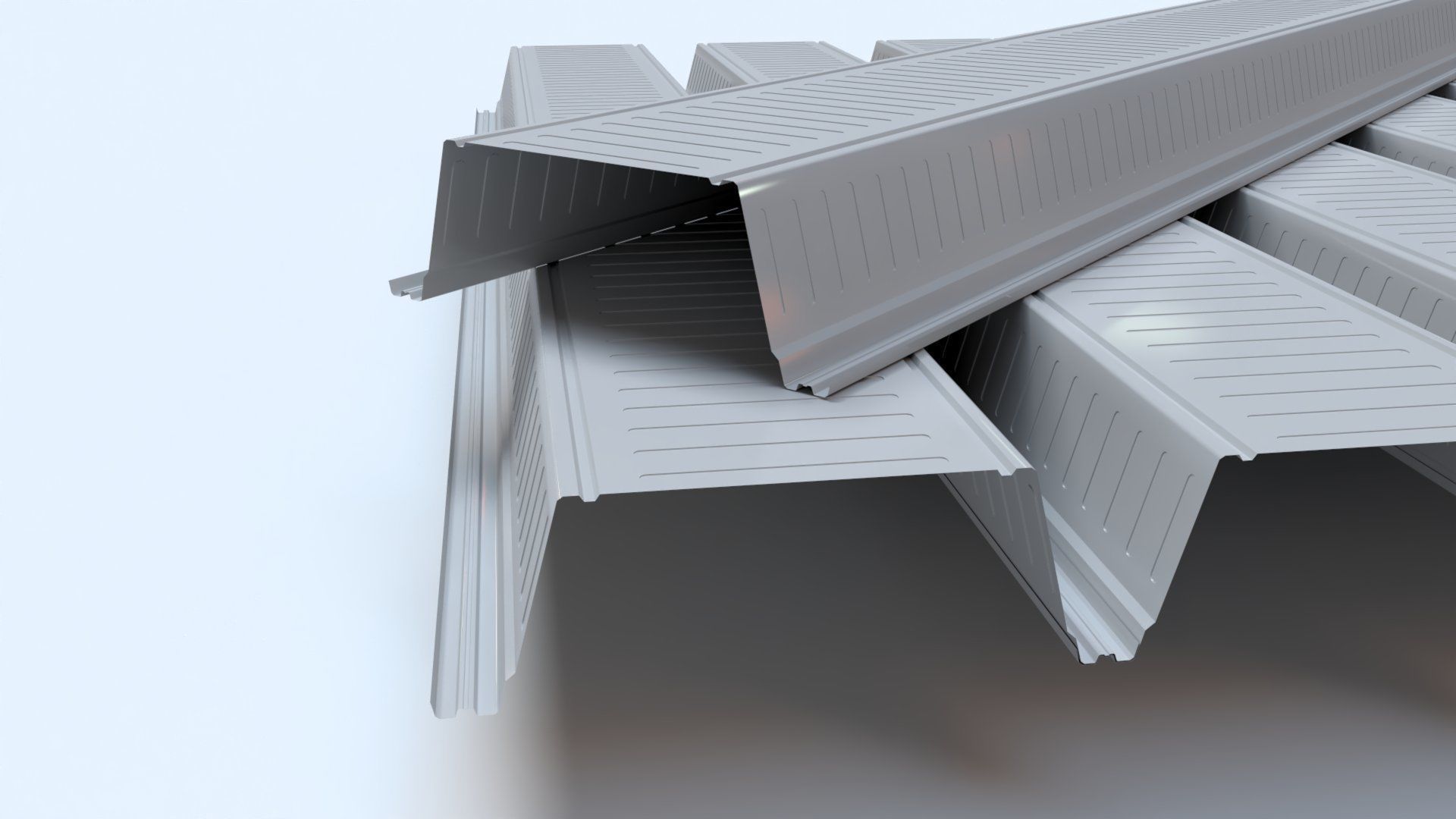

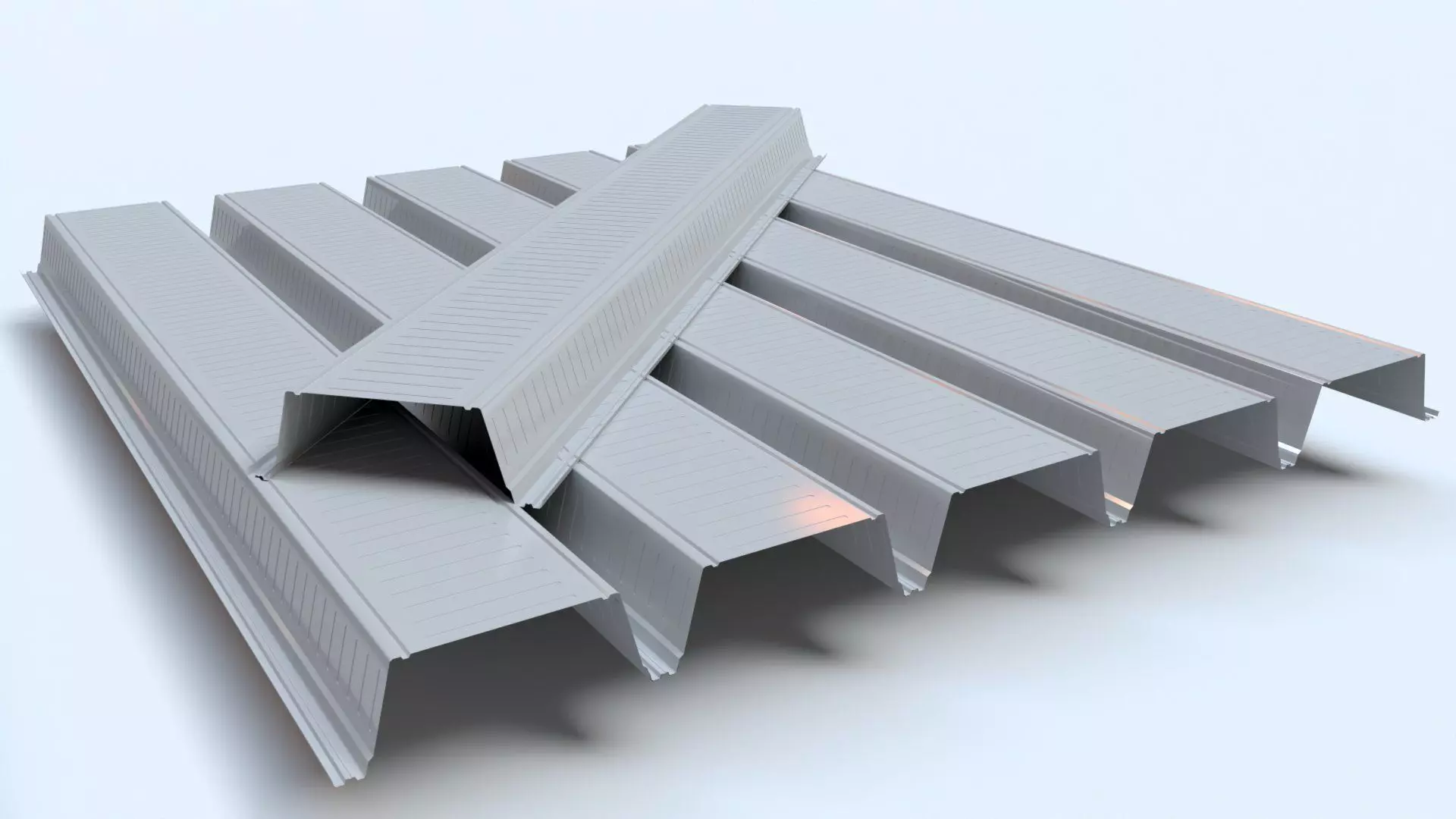

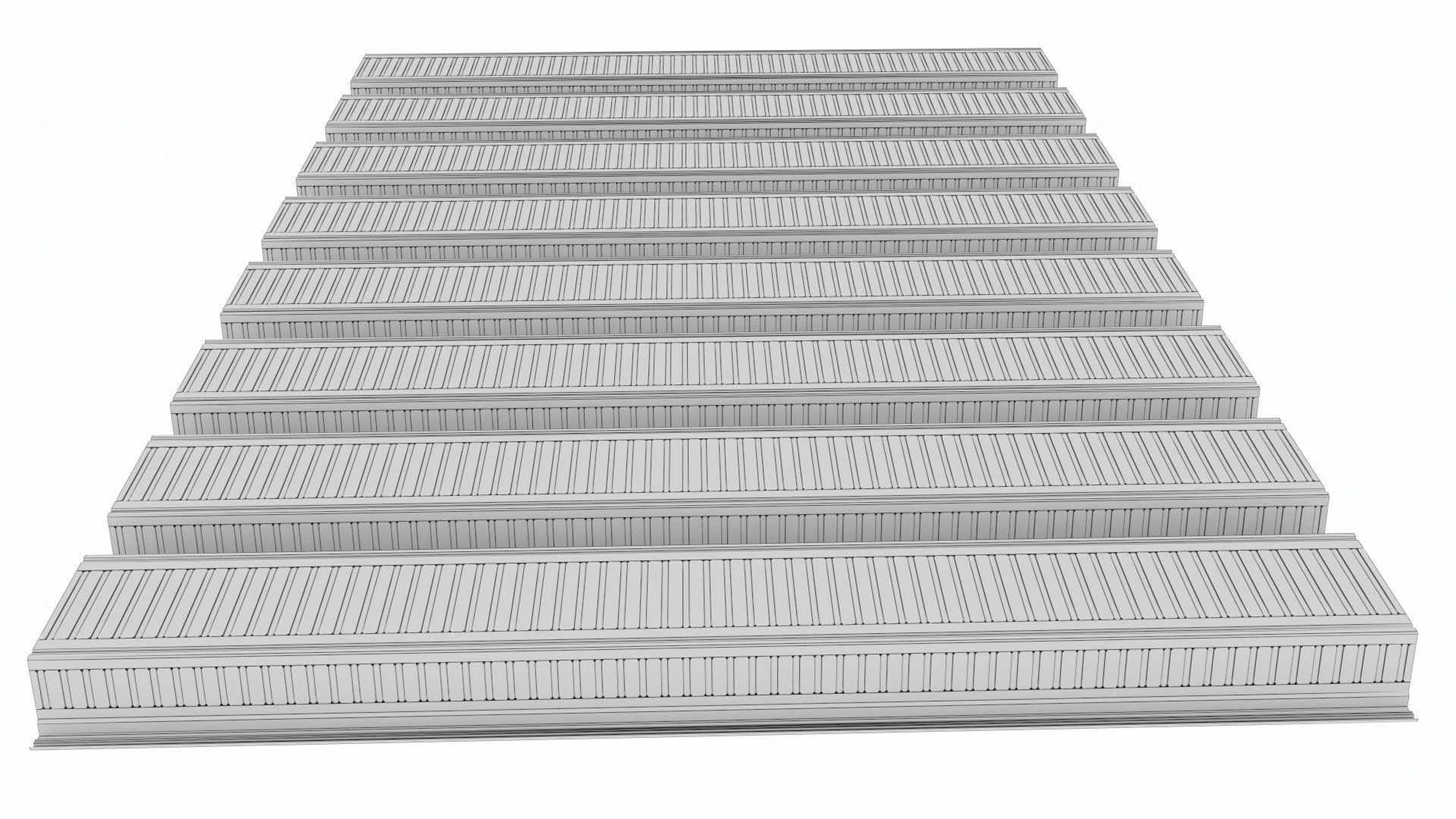

Entire set (as seen in the render images): Poly: 69992 Vert: 79520

Technical Specifications:

File Formats: MB, MA, OBJ, FBX, STL, VRSCENE

Other than Autodesk Maya, file types (OBJ, FBX, STL, VRSCENE) include only standard materials without advanced shaders or materials. All textures are included.

Whether you're a student, educator, or designer aiming for simplicity in your projects, this Composite Metal Deck Flooring model serves as an accessible and valuable resource.

For any enquiries or customisation requests, feel free to get in touch. Your satisfaction is important to us.

ENJOY!
