80 MW Solar Project Type 8 3D model
Description

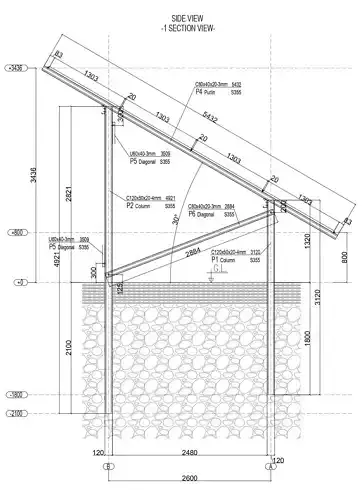

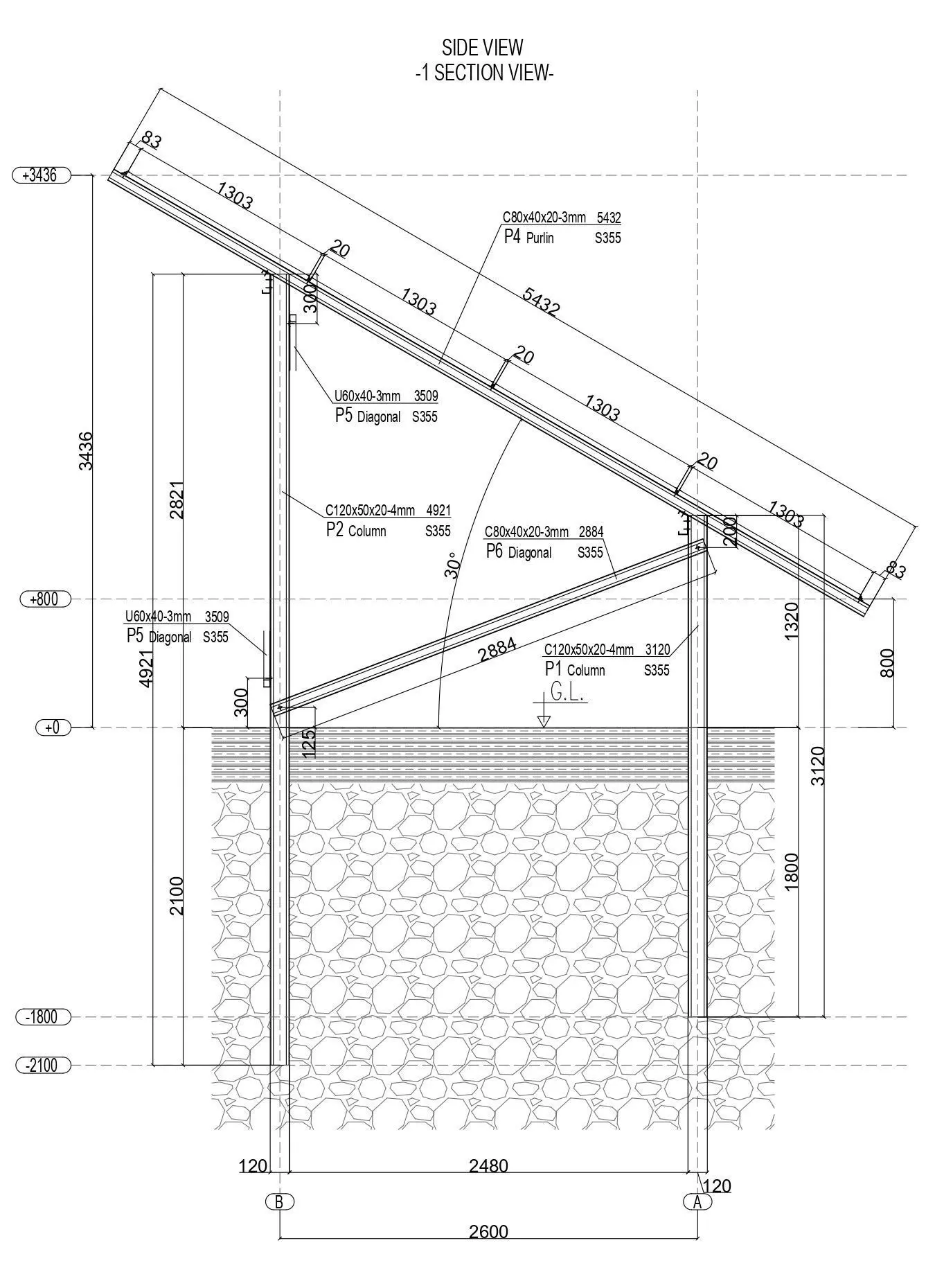

80 MW Solar Project Type 8
Static Steel Fabrication Project
4x7 Horizontal Panel Layout
Ground Connection Type; Steel Driven Column
Distance of Columns Below Ground 2100 mm. and 1800 mm.
Panel Dimensions : 2384 x 1303 x 33 mm
Panel Power : 665Wp
1 solar panel steel construction produces 18,62 kWp power in 1 hour
The system consists of 7 axles and the distance between each axle is 2600 mm.
Distance between two columns 2600 mm.
Horizantal angle of panel 30°
The closest distance of the panels to the floor 800 mm.
Prepared With AutoCAD Version 2021
80 MW Solar Project Type 8
Royalty Free License
80 MW Solar Project Type 8
Royalty Free License
3D Model formats
Format limitations
Native
- AutoCAD 2010 (.dwg)1.53 MB
Exchange
- DXF 2010 (.dxf)9.76 MB
- PDF (.pdf)1.07 MB
3D Model details
- Publish date2023-07-27
- Model ID#4666288
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
