4 Bedroom Family house plan Low-poly 3D model

It is a concept architectural project designed with Revit from start to finish. Worked with 2021 version of Revit.PLAN

DESCRIPTIONThis craftsman design floor plan is 3088 sq ft and has 4 bedrooms and has 3.5 bathrooms.

FULL SPECS & FEATURESBasic FeaturesBedrooms : 4Baths : 2.5Stories: 2Garages: 2

DimensionDepth : 69'Height : 28' 11Width : 76' 6

AreaTotal : 3166 sq/ftBasement : No, sq/ftGarage : 600 sq/ftMain Floor : 2254 sq/ftPatios : 422 sq/ftPorch : 277 sq/ftUpper Floor : 912 sq/ft

CeilingCeiling Details : Great Room vaulted ceilingLower Ceiling : 9'Main Ceiling : 9'Upper Ceiling Ft : 8'

RoofPrimary Pitch : 12:12Roof Framing : PlatSecondary Pitch : 5:12Exterior Wall FramingFraming : 2x6

Bedroom FeaturesMain Floor Master BedroomSplit BedroomsUpstairs BedroomsWalk In Closet

Kitchen FeaturesEating BarKitchen IslandKitchenette Wet BarWalk In Pantry Cabinet Pantry

WHAT'S INCLUDED IN THIS PLAN SET

All plans are drawn at ¼” scale or larger and include :

1. Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

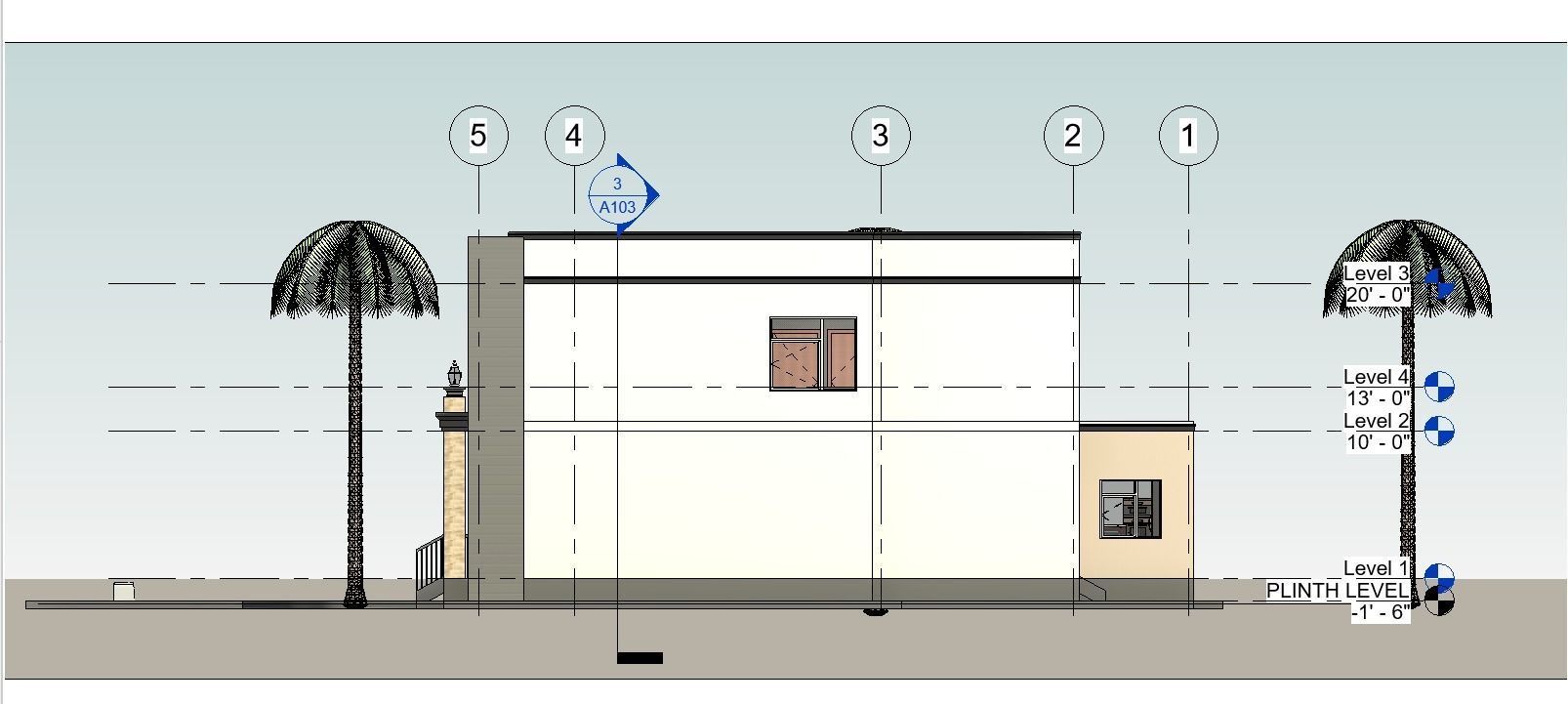

2. Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

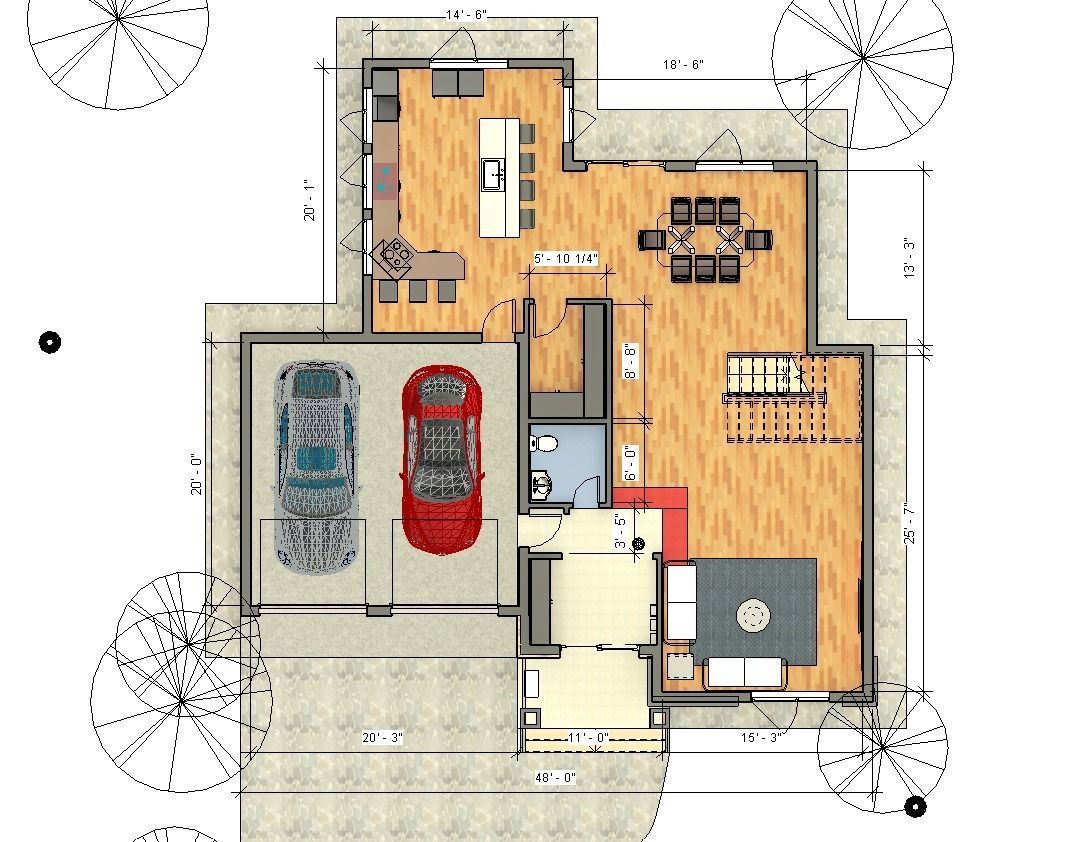

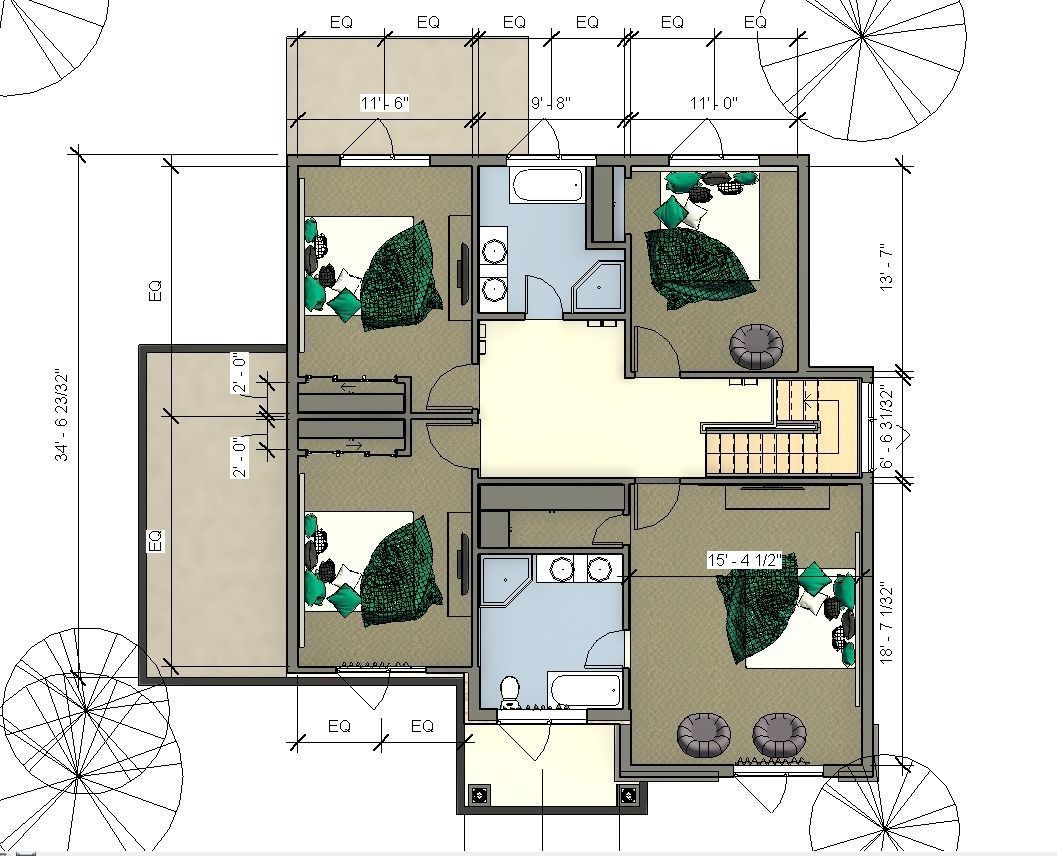

3. Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.

4. Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

5. Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required

Features:

Revit model is textured for realistic presentation.Lumion file has all materials, lighting and settings ready to render ( materials and textures are only available in Lumion ).The model is fully textured with all materials applied.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the Contact button to submit your request for pricing, or call Whatsapp +923129352254 ( https://wa.me/message/KB4ELYQH5X76P1 )
