1MW Solar Energy Project on Farmland Type-1 3D model
Description

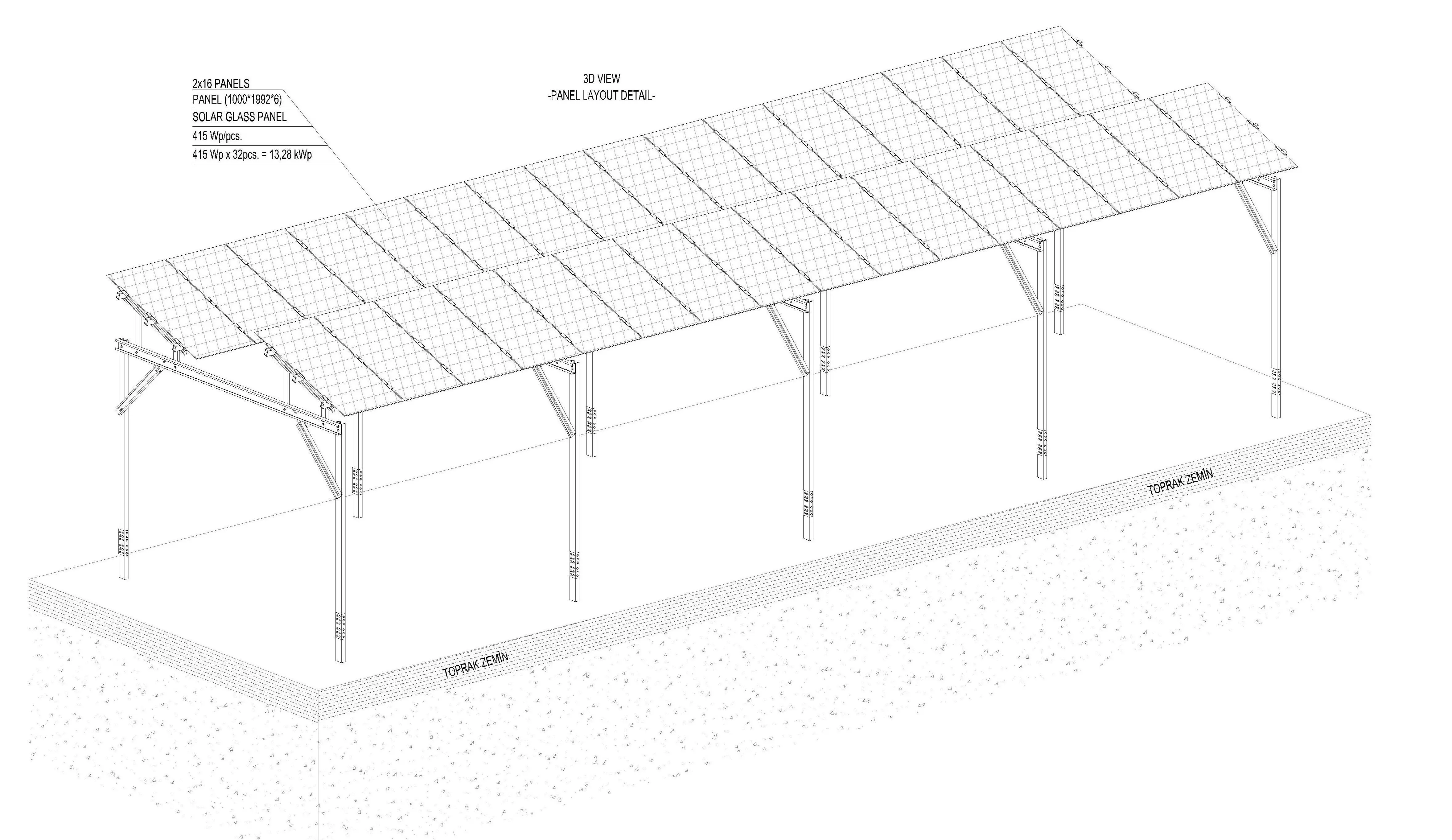

1MW Solar Energy Project on Farmland Type-1
Static Steel Fabrication Project
2x16 x 2 Vertical Panel Layout
Ground Connection Type; Steel Driven Column
Distance of Columns Below Ground 2000 mm.
Solar Glass Panel Dimensions : 1992 x 1000 x 6 mm
Panel Power : 415Wp
1 solar panel steel construction produces 13,28 kWp power in 1 hour
The system consists of 5 axles and the distance between each axle is 4000 mm.
Distance between two columns 4500 mm.
Horizantal angle of panel 20°
The closest distance of the panels to the floor 3500 mm.
Prepared With AutoCAD Version 2021
1MW Solar Energy Project on Farmland Type-1
Royalty Free License
1MW Solar Energy Project on Farmland Type-1
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- AutoCAD 2021 (.dwg)10.2 MB
Exchange
- PDF (.pdf)2.58 MB
- DXF 2021 (.dxf)145 MB
3D Model details
- Publish date2024-04-21
- Model ID#5235546
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Other
- Polygons 1
- Vertices 1
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
