132 kWp Solar Project Type 11 3D model
Description
132 kWp Solar Project Type 11

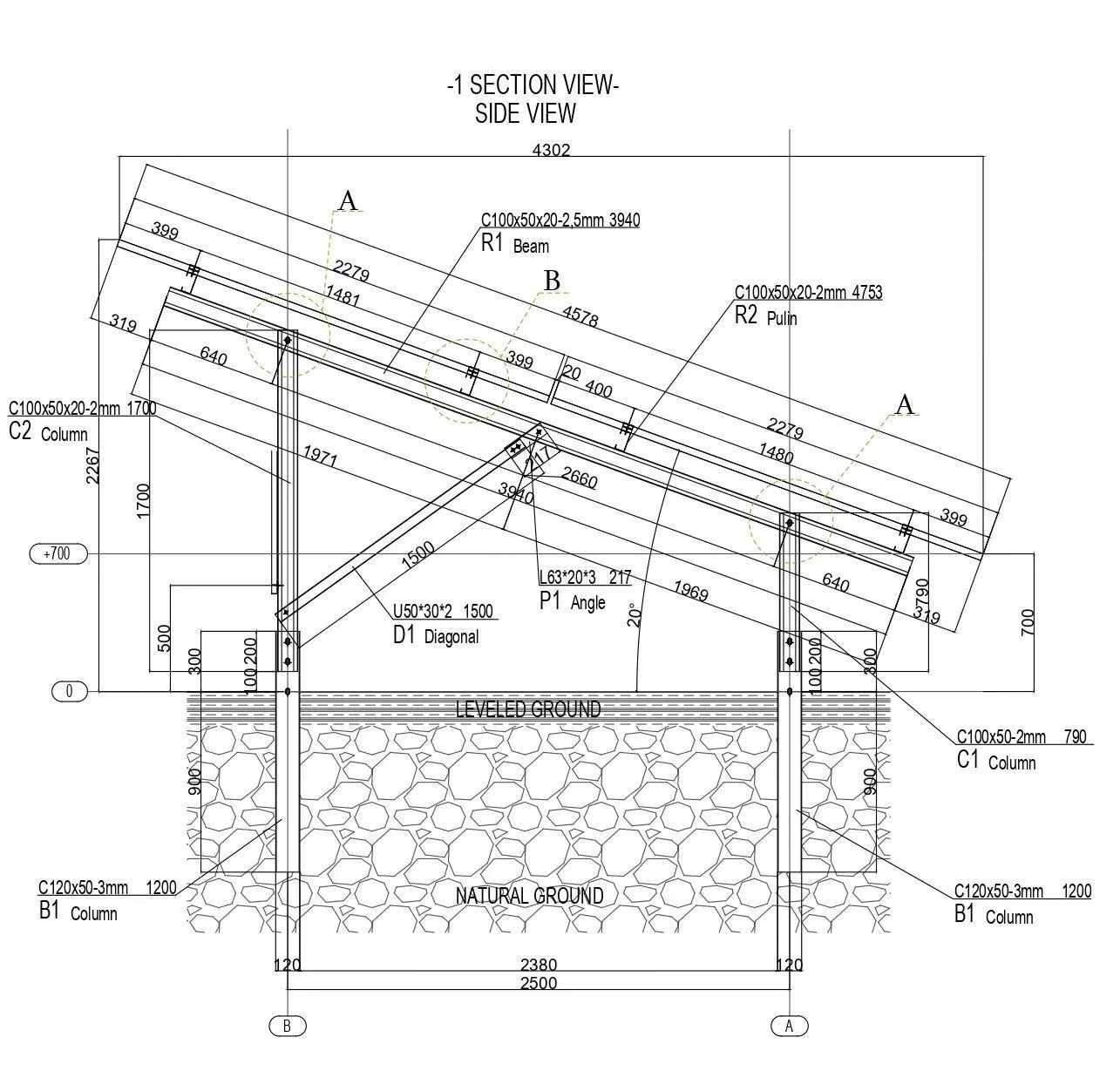

Static Steel Fabrication Project
2x4 Vertical Panel Layout
Ground Connection Type; Steel Driven Column
Distance of Columns Below Ground 900 mm.
Panel Dimensions : 2279 x 1134 x 35 mm
Panel Power : 550Wp
1 solar panel steel construction produces 4,4 kWp power in 1 hour
The system consists of 3 axles and the distance between each axle is 2000 mm.
Distance between two columns 2500 mm.
Horizantal angle of panel 20°
The closest distance of the panels to the floor 700 mm.
Prepared With AutoCAD Version 2021
132 kWp Solar Project Type 11
Royalty Free License
132 kWp Solar Project Type 11
Royalty Free License
3D Modeling
3D Model formats
Format limitations
Native
- AutoCAD (.dwg)770 KB
Exchange
- PDF (.pdf)580 KB
- DXF 2010 (.dxf)5.02 MB
3D Model details
- Publish date2023-07-27
- Model ID#4666303
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Ready for 3D Printing
