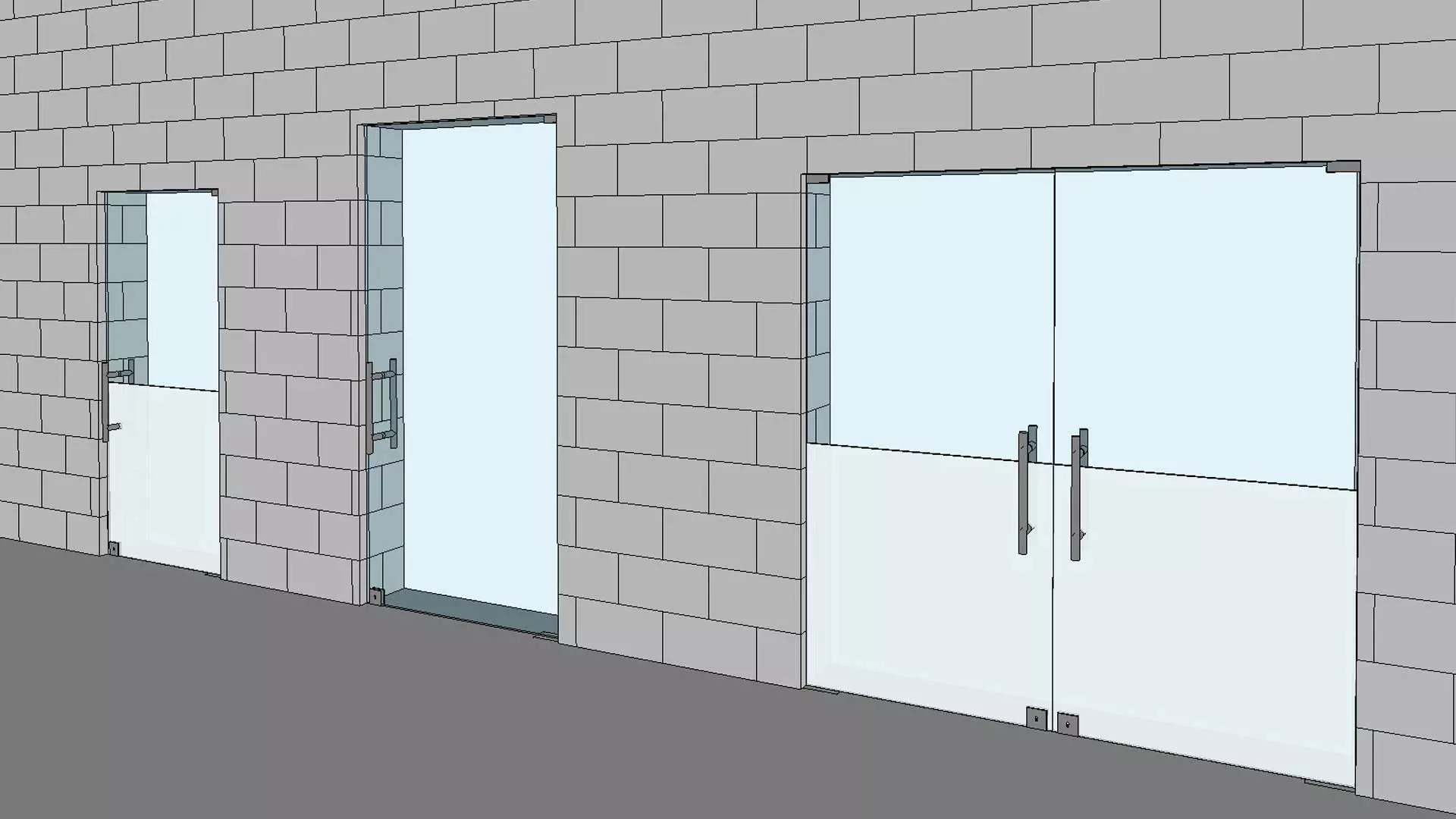

Frameless Glass Door 3D model

This is a fully parametric wall based frameless glass door revit family. Door can be placed on any wall and use it either as an internal or an external frameless glass door. Can be used both for single door and double leaf door simply by adding two doors next to each other. By using the flip buttons, user can change the door orientation ( left/right ) or interior/ exterior wall side. Width and height are adjustable, together with options to have frosted glass, key lock. Other parameters for this family are written below.

ATTRIBUTES:

• Revit Version 2022
• Family Type : Wall Based
• File Extension : .rfa

PARAMETERS:

• Door Width and Height
• Handle Elevation from floor
• Handle height
• Glass Thickness
• Frosted Glass ON/OFF
• Frosted Glass Height
• Key Lock ON/OFF
• Materials ( glass, frosted glass, door handle, floor spring, key lock, ceiling hinge )

User can create unlimited number of family types by changing the family parameters.
