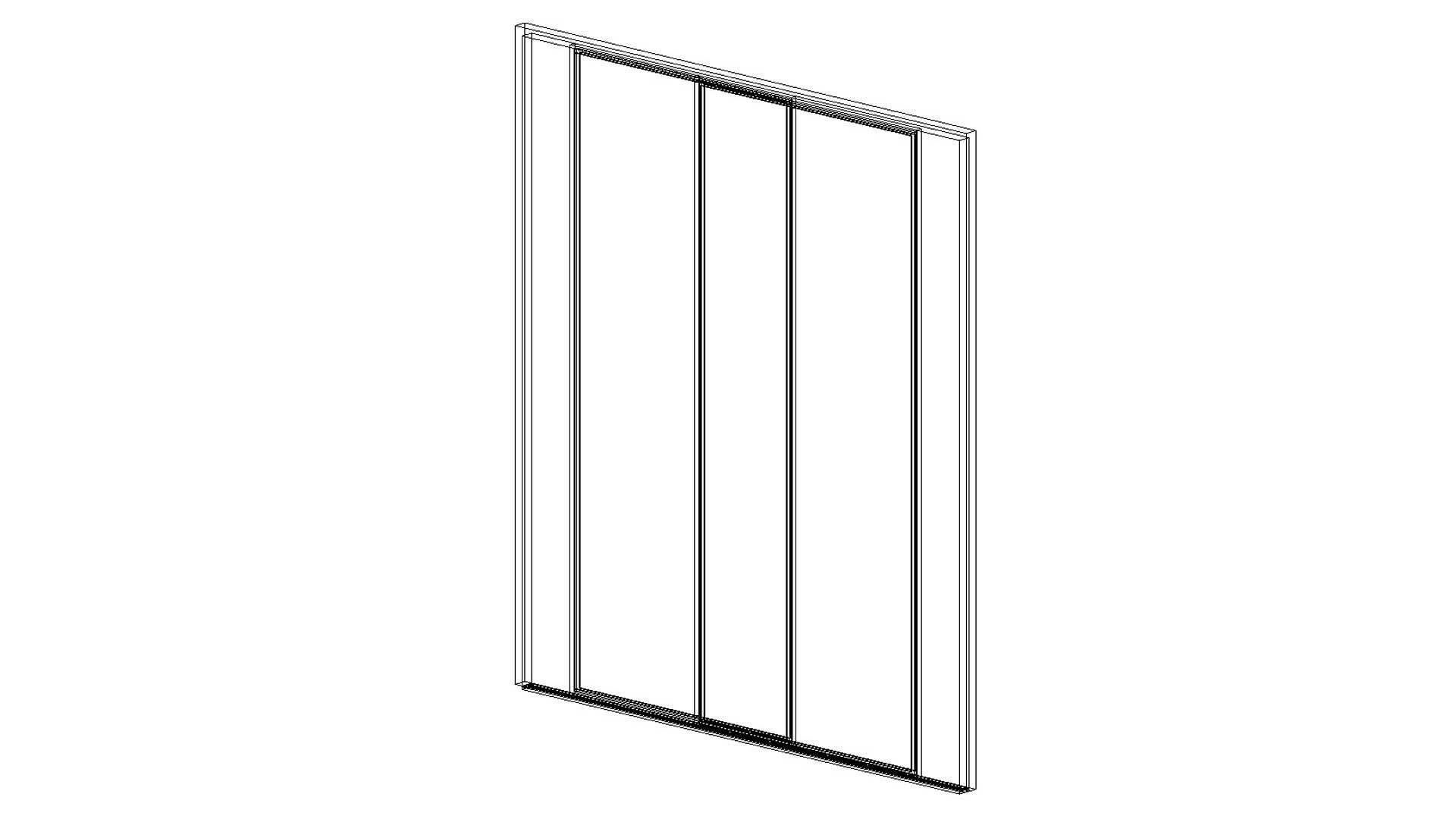

Double Sliding Door Curtain Wall Panel 3D model

This is a fully parametric curtain wall panel revit family model for a double sliding door. Family can be loaded into any revit project and replace any curtain wall panel with a double sliding door, making it very easy to install a double sliding door to any glass curtain wall facade.

The door’s width and height are automatically integrated and adjusted to the curtain wall’s panel size. The only parameters a user needs to change are the glass thickness, the sliding panels frame width and thickness and the guide frame width.

There are also 2 graphical representation parameters to open and close both sliding panels individually with a percentage parameter. 0% will completely close the panel and 100% will completely open the panel. There is a parameter for sliding percentage for each panel. Left and right. These are also instance parameters meaning you dont have to create another family for each door installed.

All materials are also parametric allowing the user to change to any material desired.

One of the most useful revit curtain wall families for projects with curtain wall glass facades.

ATTRIBUTES:

• Revit Version : 2022
• Family Type : Curtain Wall Panel
• File Extension : .rfa

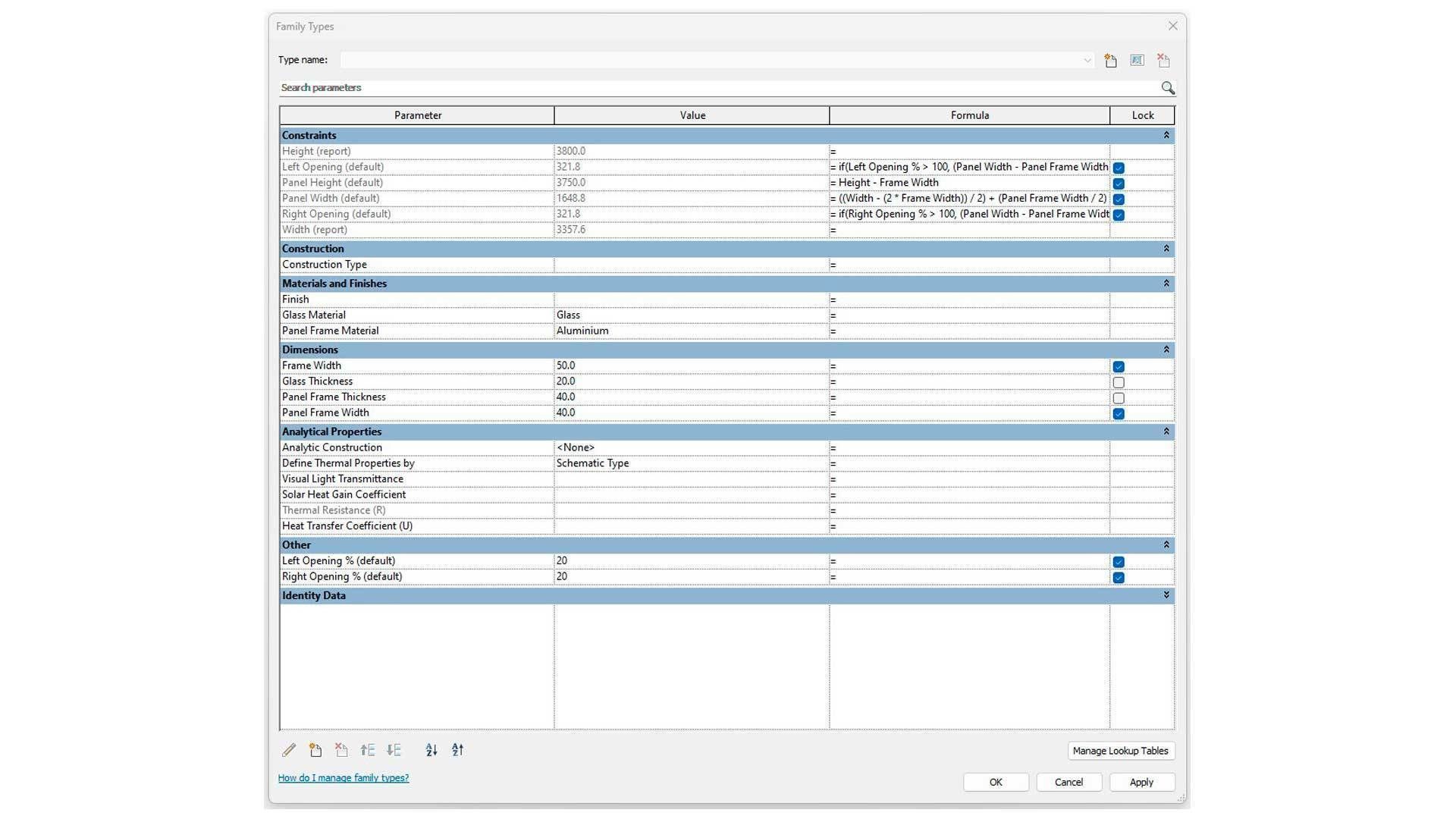

PARAMETERS:

• Guide Frame Width
• Glass Thickness
• Sliding Panel Frame Width
• Sliding Panel Frame Depth
• Left & Right Panel Opening Percentage
• All Materials ( glass, panel frame, guide frame )
