QRD Diffuser - recording studio wall panel 3D model

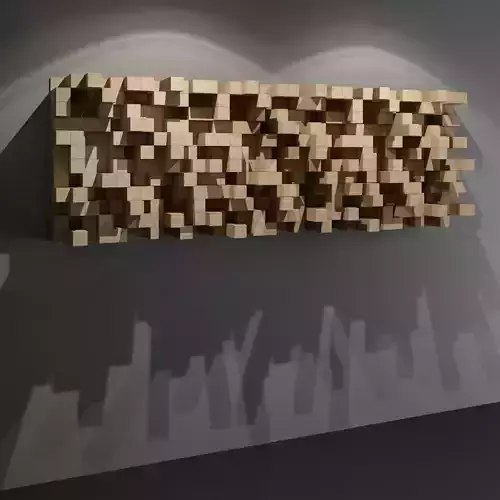

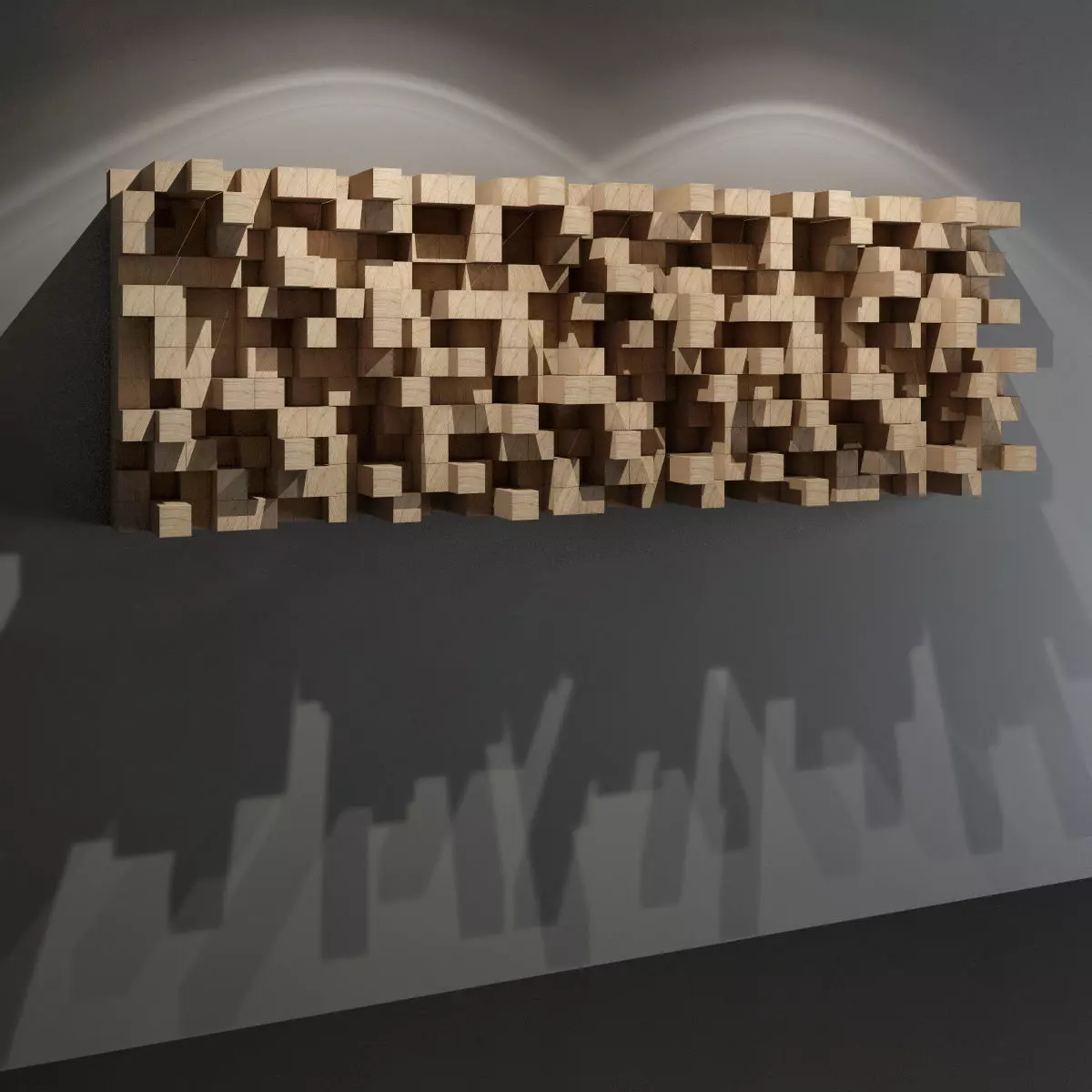

Wooden acoustic wall panel for treatment of music recording studios control rooms (skyline diffusor)

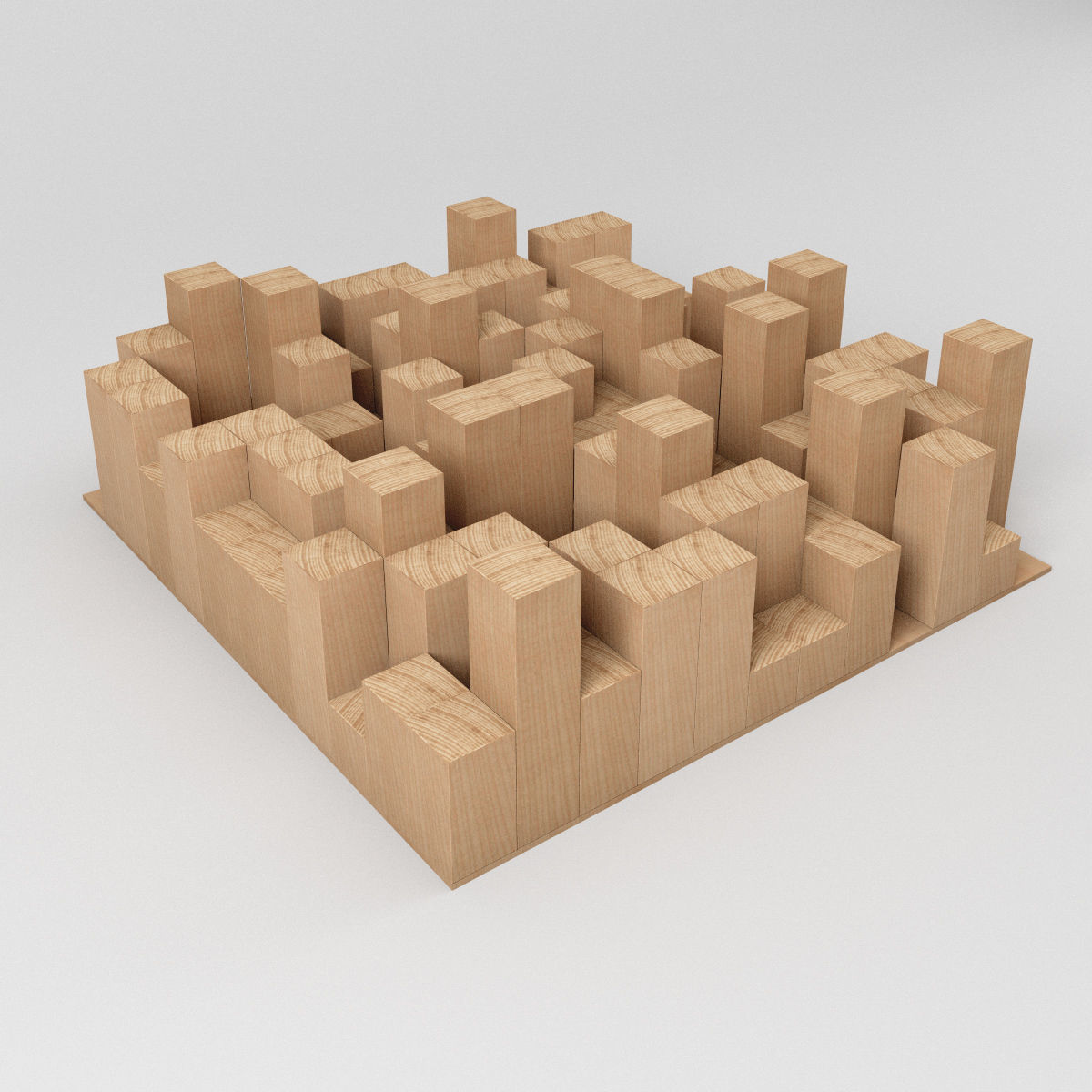

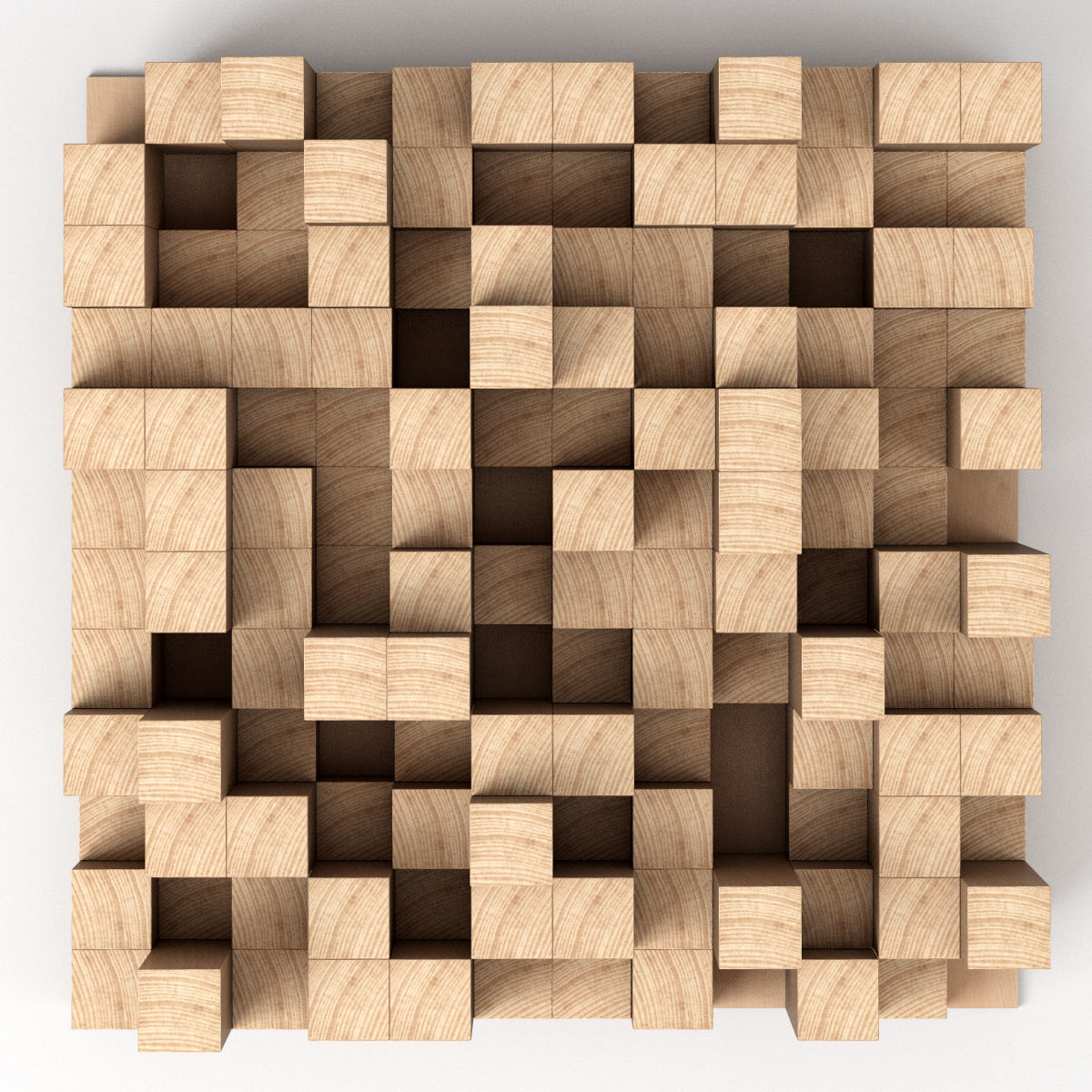

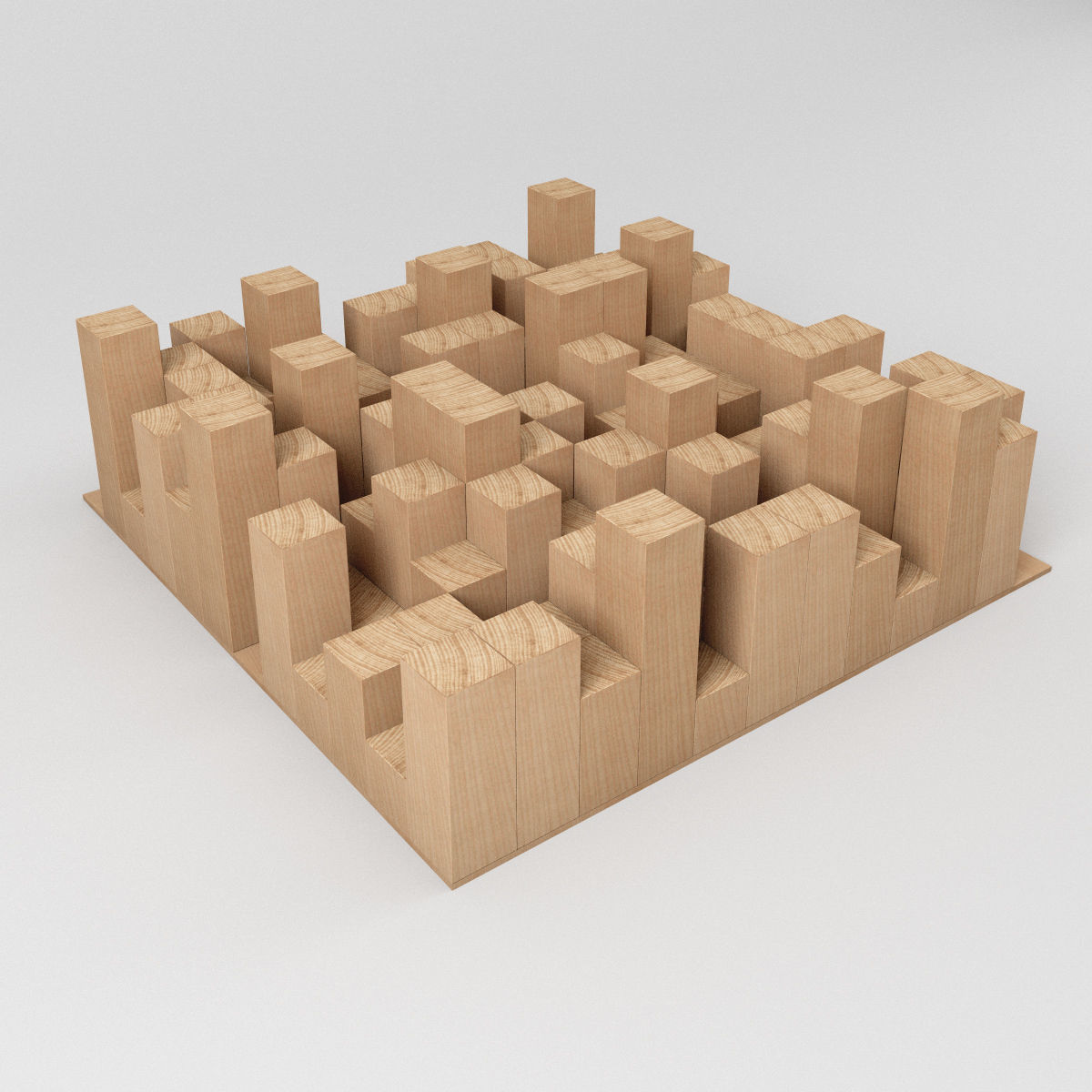

One acoustically correctly constructed panel (60 x 60 cm) for tiling.

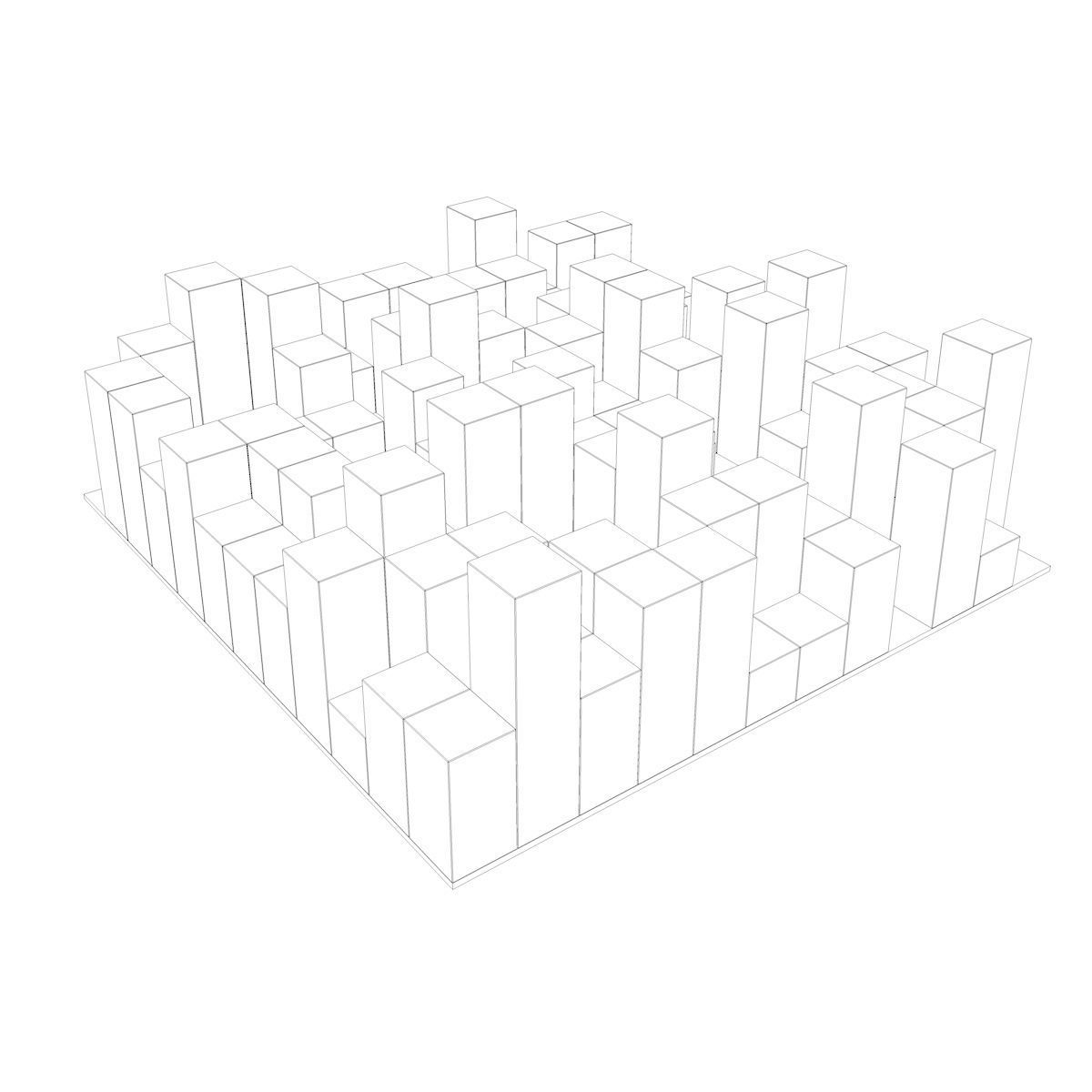

The model is for Cinema4D+VRay and standard Cinema4D but can of course be used in any other 3D software as well. It consists of a base plate and four different heigh blocks and instances of these. The heights correspond to an exact acoustic formula for QRD diffusors, but of course You can rearrange the blocks to Your own pattern. Since the blocks are separate objects You can give them Your own textures as well. Exchange files for other software and all textures are included.
