ClearVu Fence RailClone Preset 3D model

Based on Jagged-Pixel's ClearVu fence model, this is a fully prepared RailClone preset. ( https://www.cgtrader.com/3d-models/architectural/street/clearvu-metal-wire-fencing-system )

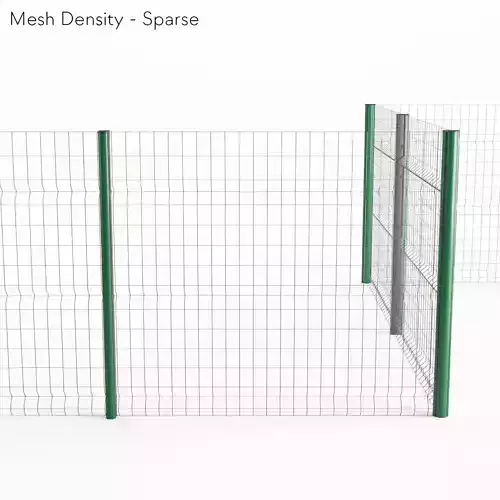

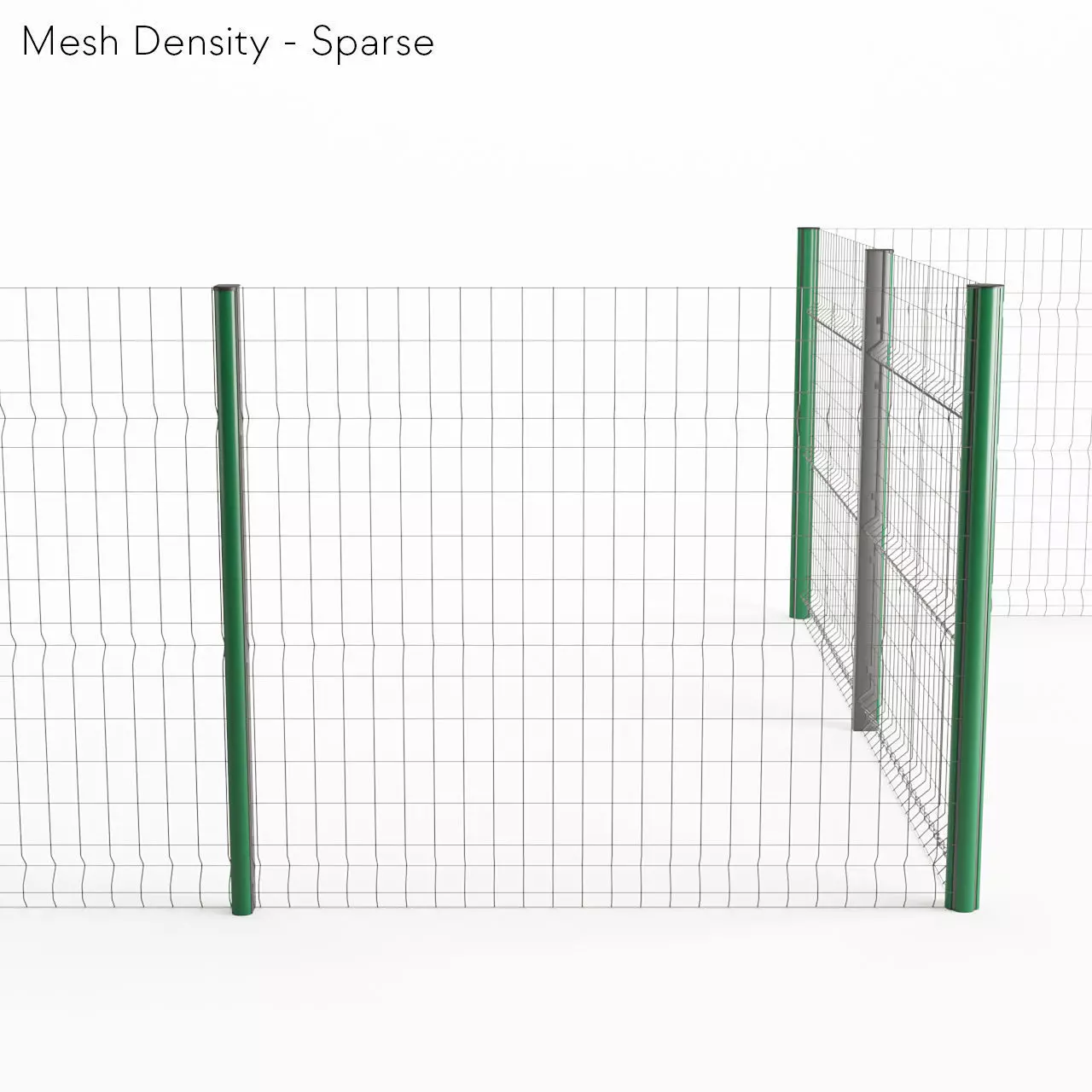

• 4 Mesh Densities: Sparse, Low, Medium, High
• 3 Post Types: Normal, Electric, Spike
• Post & Vertical Wire spacing adjustable
• 1.8m high; electric option adds 0.5m; spike option adds 0.1m

Materials are as follows:

• ID1 - Selector including IDs 2-4. post and wire mesh use this for consistency for selecting a family-wide material finish.
• ID2 - Metal Finish
• ID3 - Powder Coat Finish
• ID4 - Painted Finish - green in preview, black in files (front of post is always set to this unless changed manually)
• ID5 - Black Plastic (used on post caps)
• ID6 - Satin Metal (used for hardware, electric wires, and spikes)

Things to note:

• The corners aren't perfect when dealing with the Electric Wire option but I tried to make it work. Interior corners don't connect 100% so it may be worthwhile breaking those vertices into two. However, for RailClone, the solution I presented is good enough for rendering.
• Originally created in 3ds Max 2020 with Corona Renderer 7 & RailClone 4.1. A rough conversion to V-Ray Next 4.3 and Corona pre-v7 included.
• Extract the RC archive and copy the folder to [Drive:\User\Username]\Documents\RailClone\libs\ to add the preset to your RailClone library. [Drive:\User\Username] is dependant on your setup where mine is F:\Users\Tanner\
• Exported objects only contain the parts, not the RailClone object.
