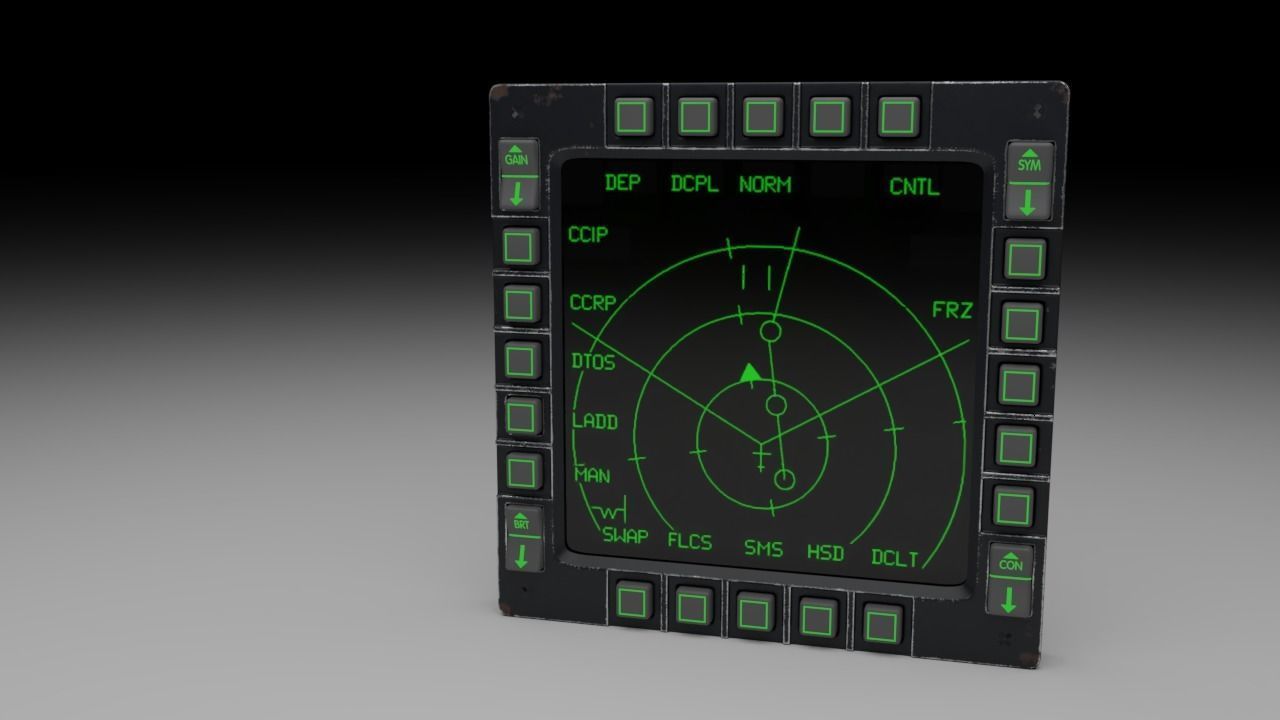

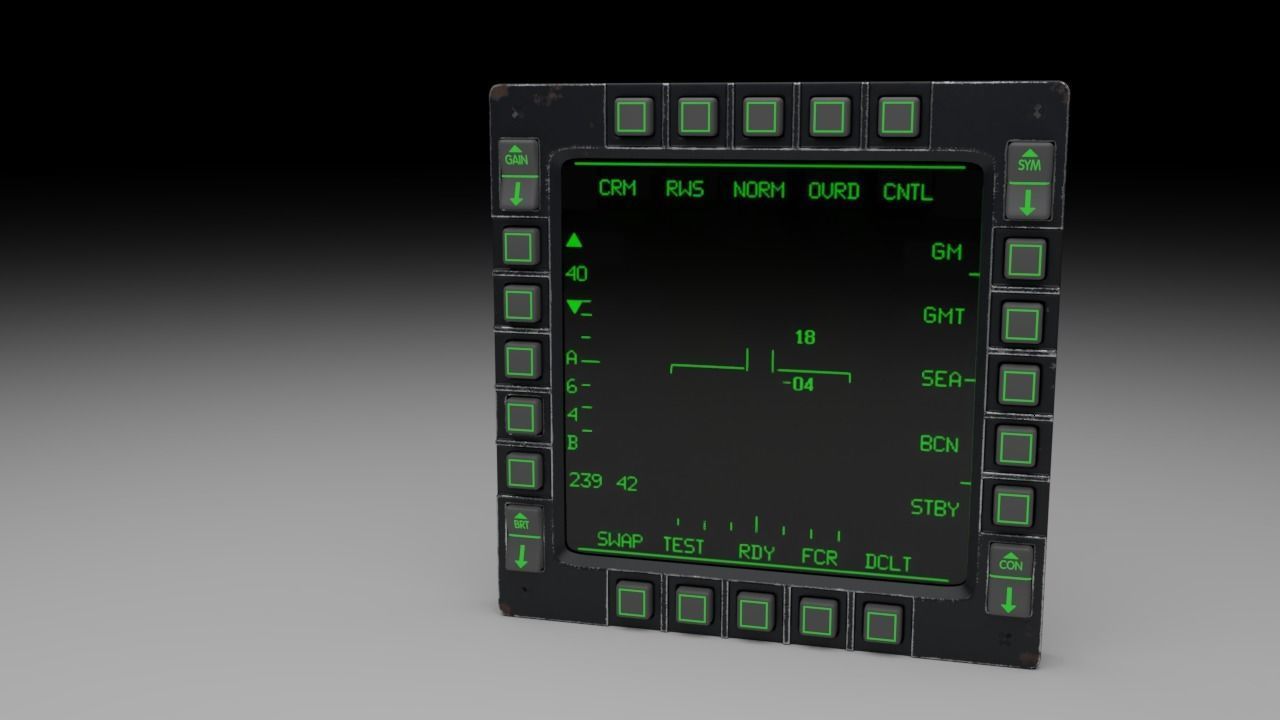

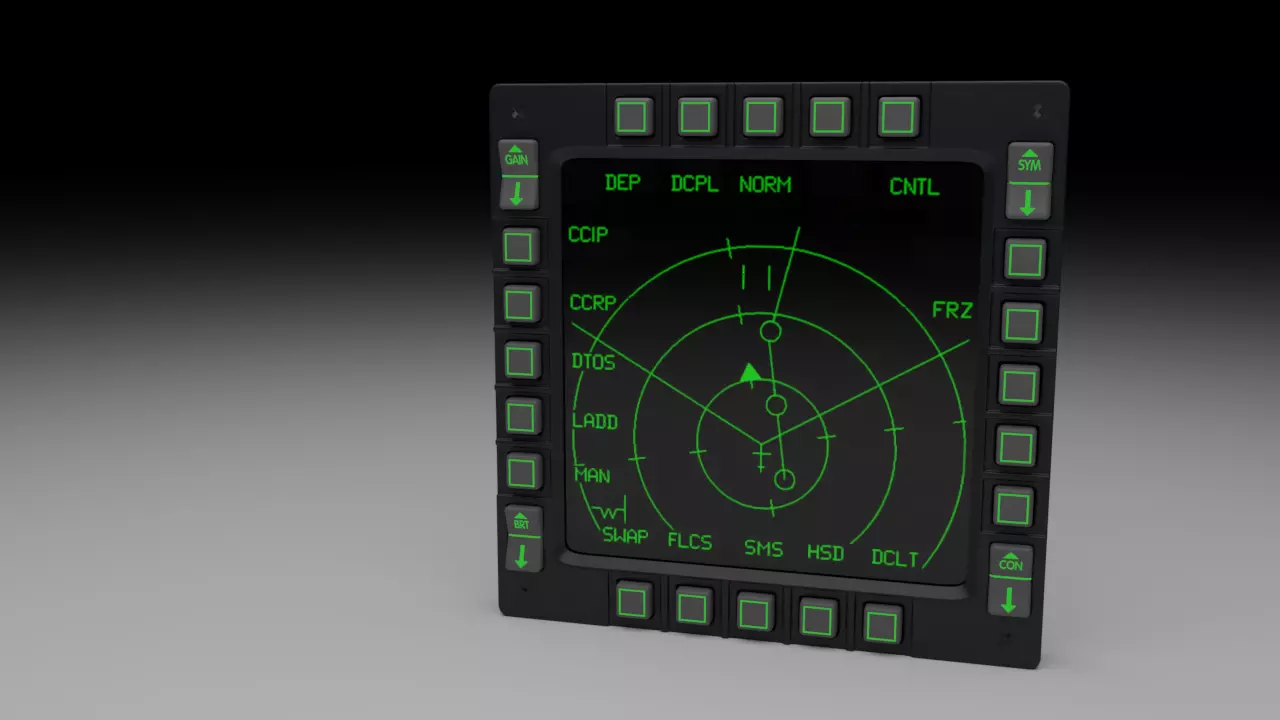

F16 Multi Function Display - MFD 3D model

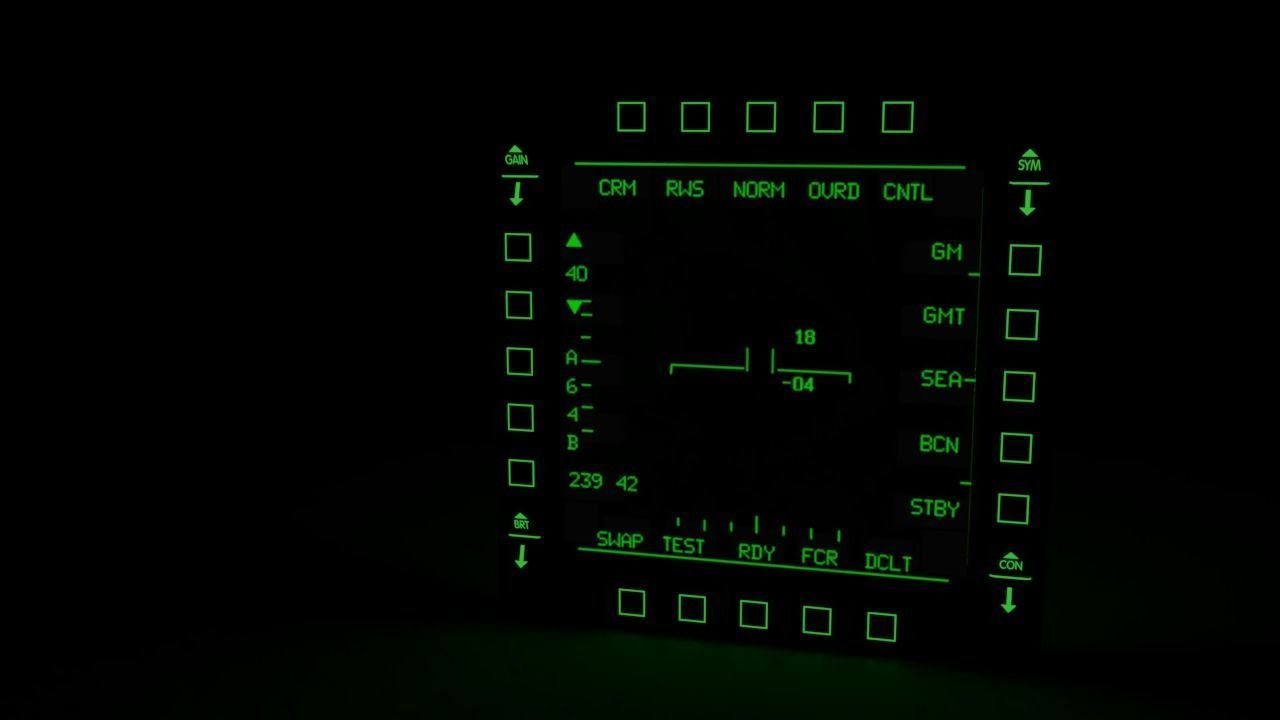

The Multi Function Displays or MFD's are two screens located in front center console. They are mainly used to operate the weapon systems, specially info about what weapons are available, radar data and optical displays about the weapon in use. Each MFD is surrounded by 20 OSBs (Option Selection Buttons). The function of each of these OSBs is displayed directly on the MFD, according to the selected function area. The MFDs are turned on/off via the MFD switch, located on the Avionics Power Panel located on the left console.

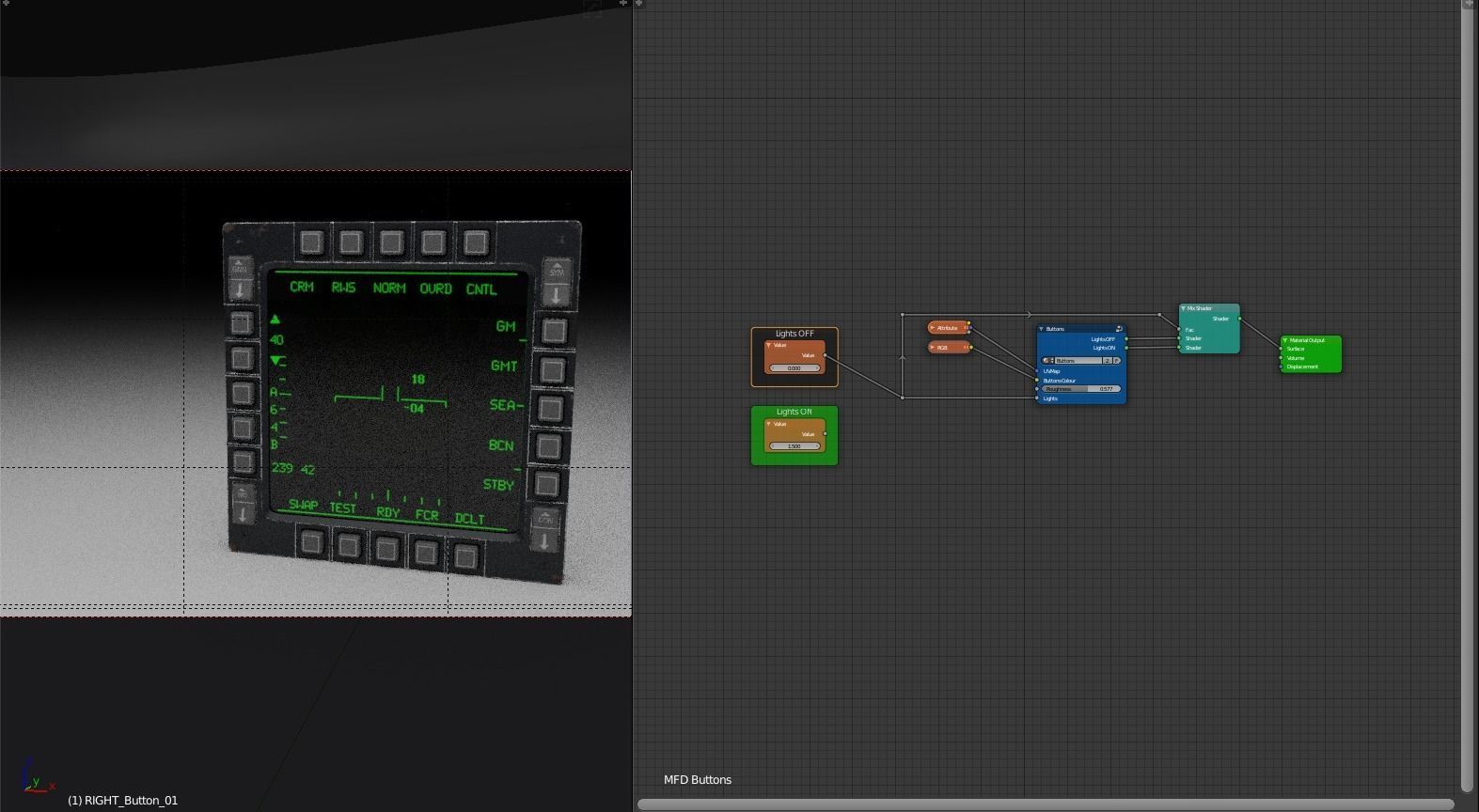

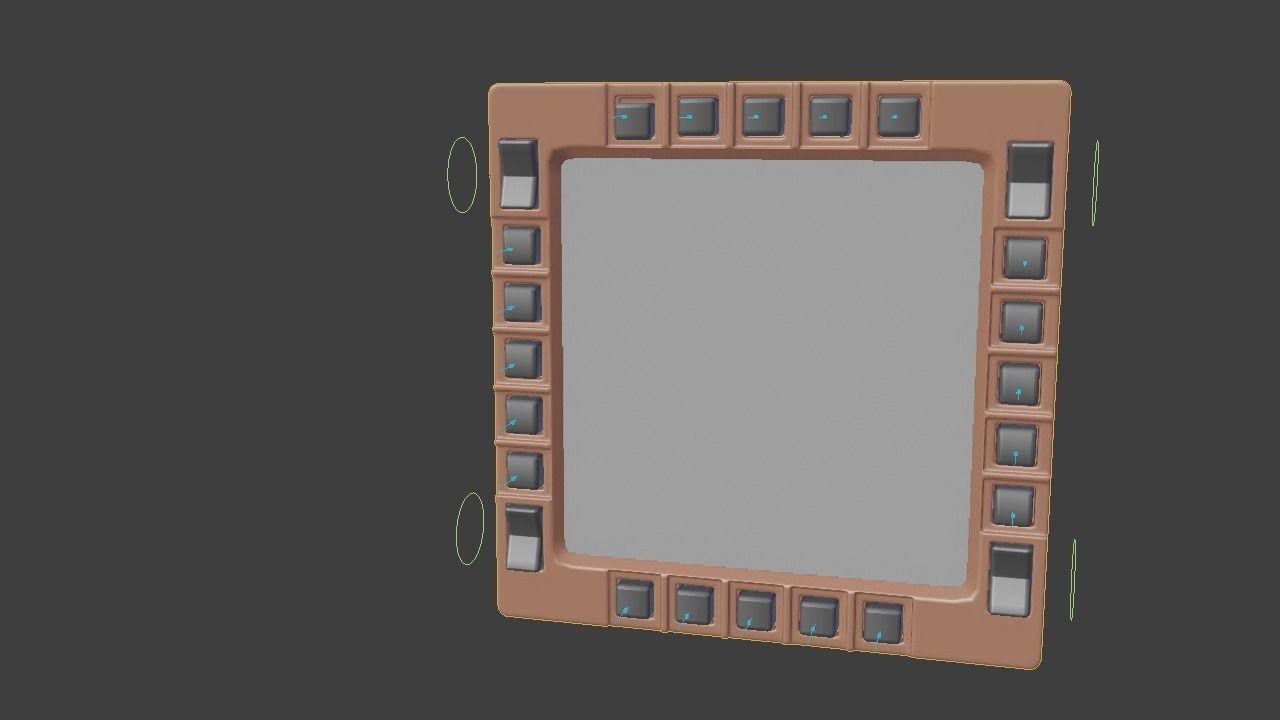

The model was created in Blender 2.79 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with simple Empties for easy animation.

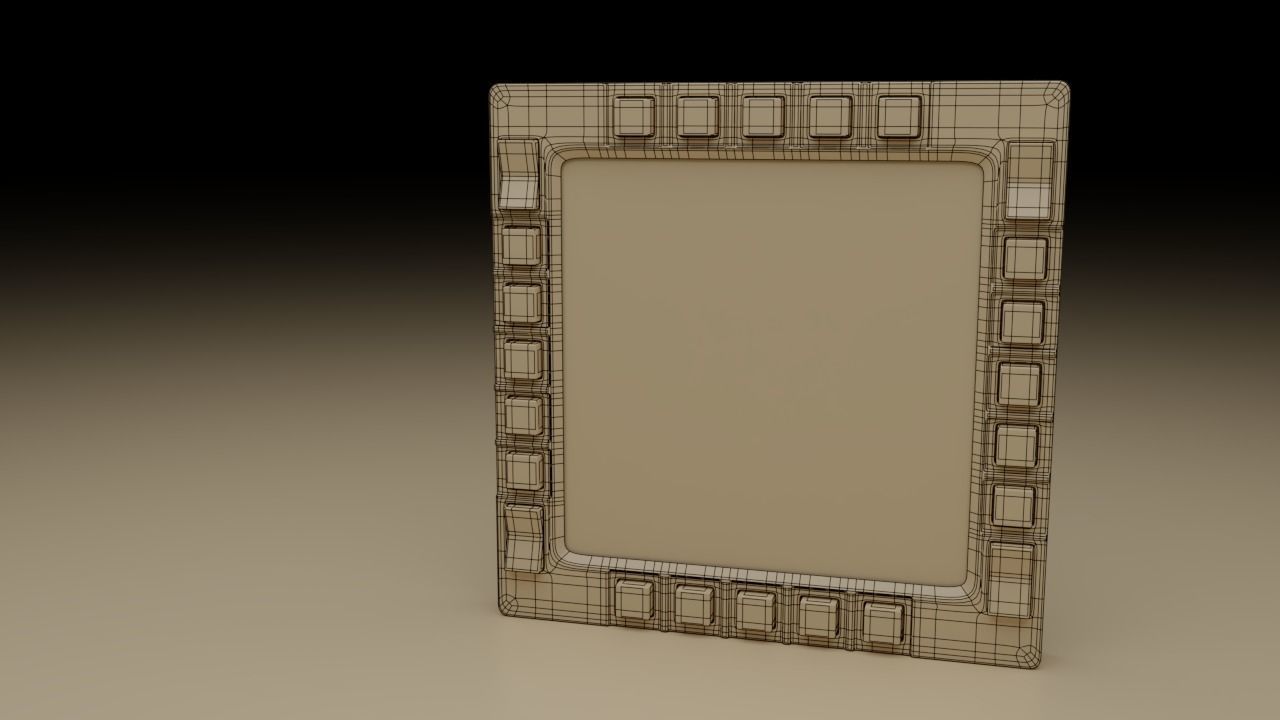

• Vertex Count: 29.216
• Poly Count: 28.206

I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.

NOTE: In the model there's a mesh called MFD_screen02 which is an imaged plane that is used to display the MFD's info, it could be used with a static image or a video depending the requirements and what is the MFD being used for.
