YF-23 naval NATF-23

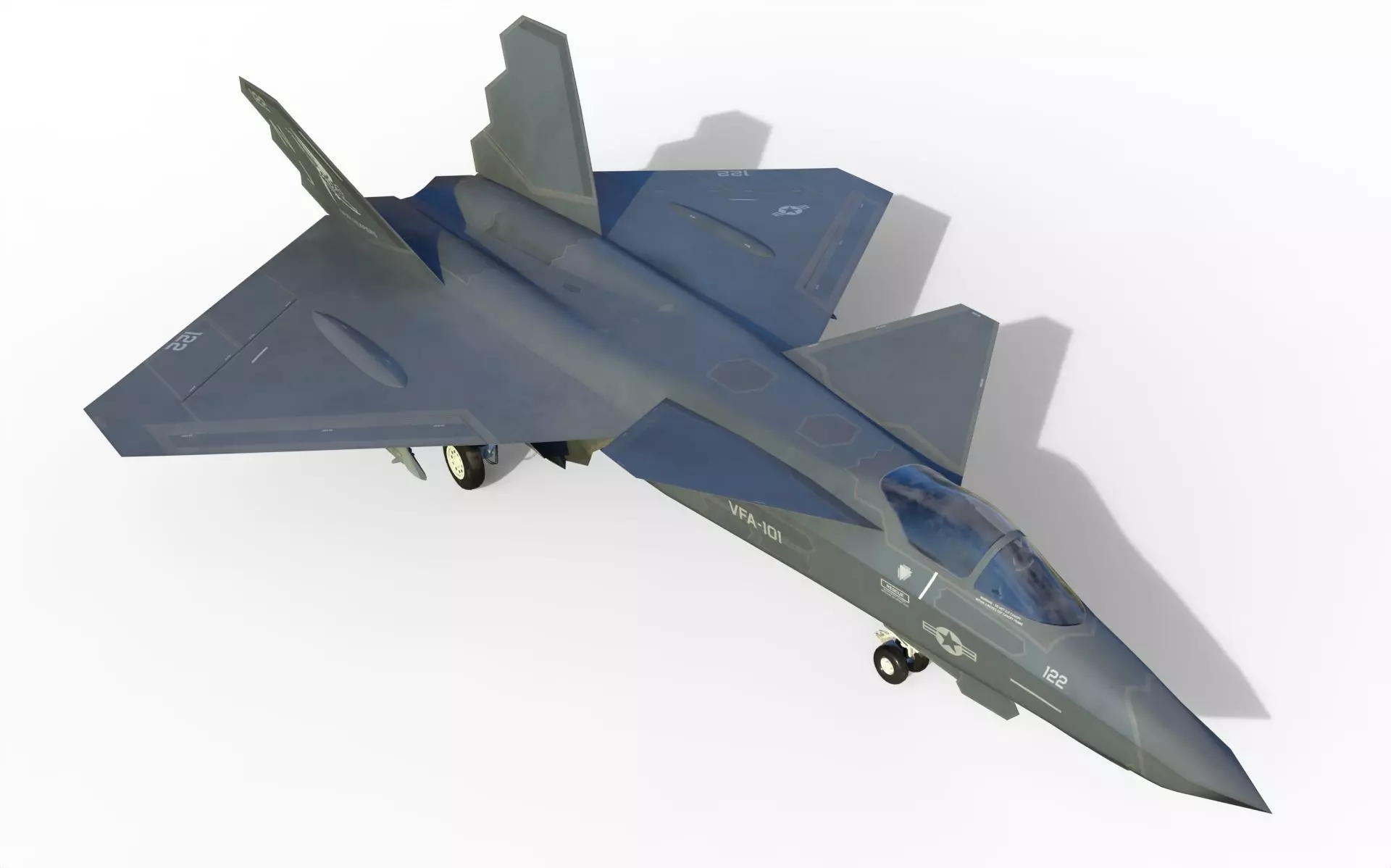

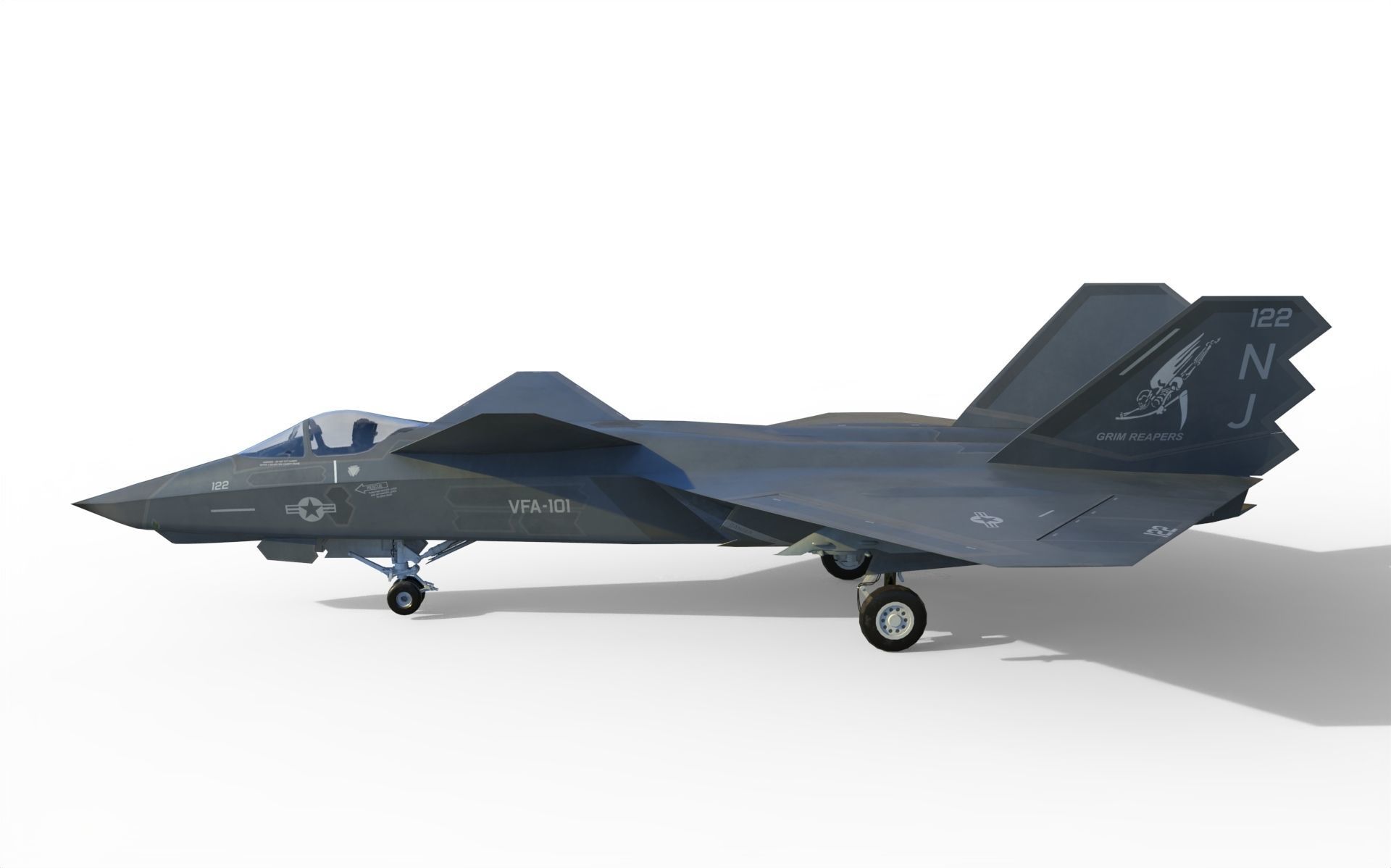

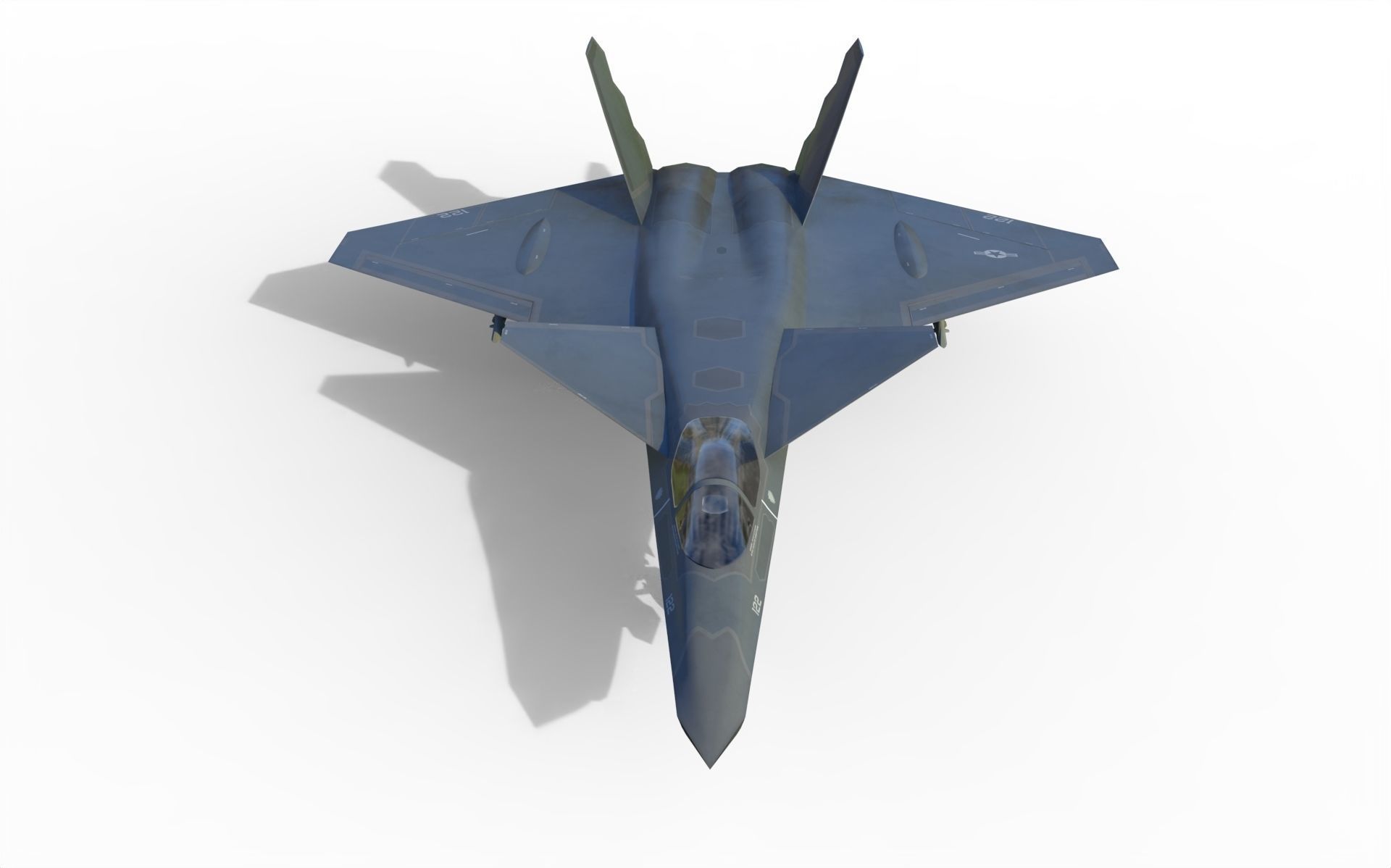

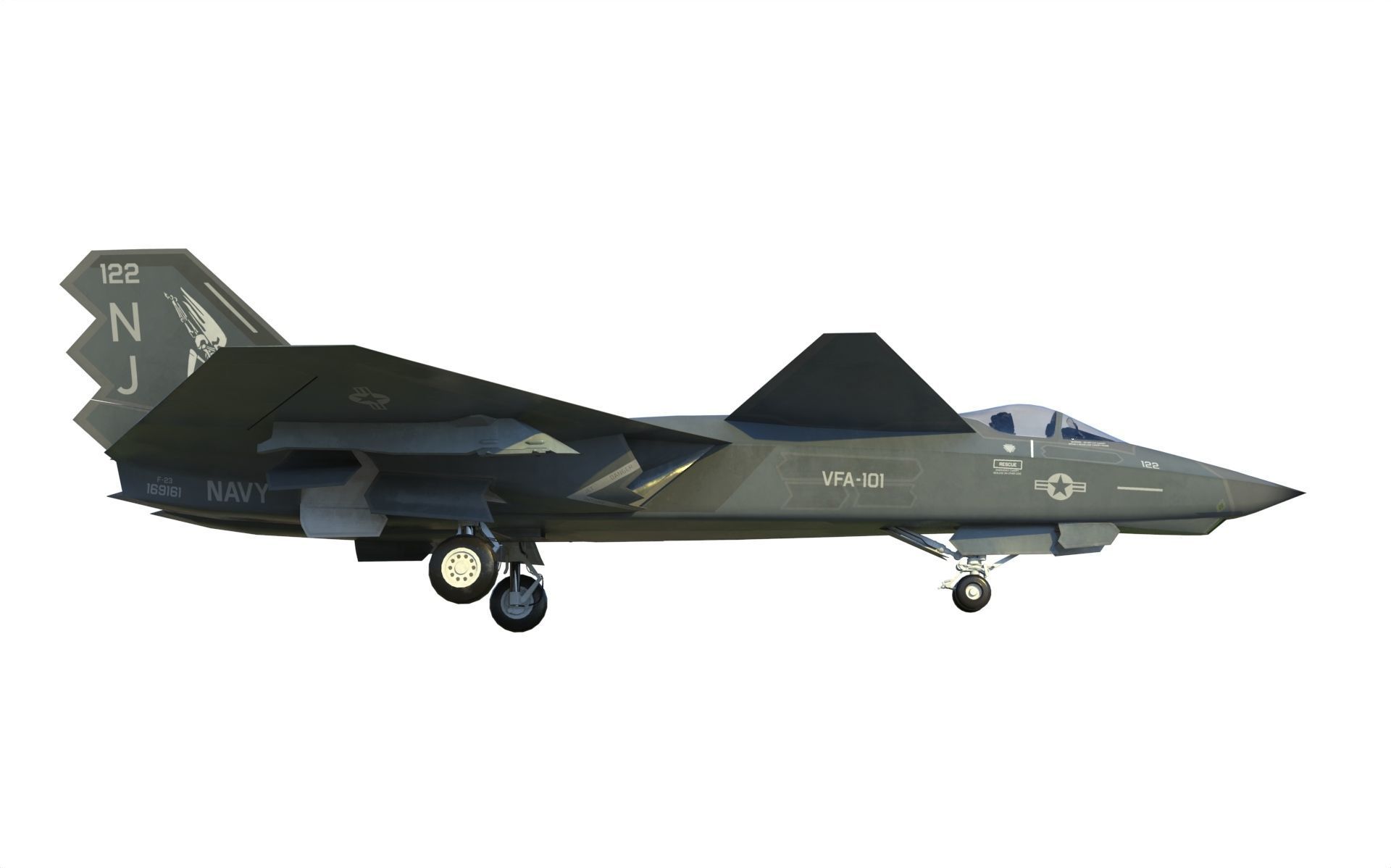

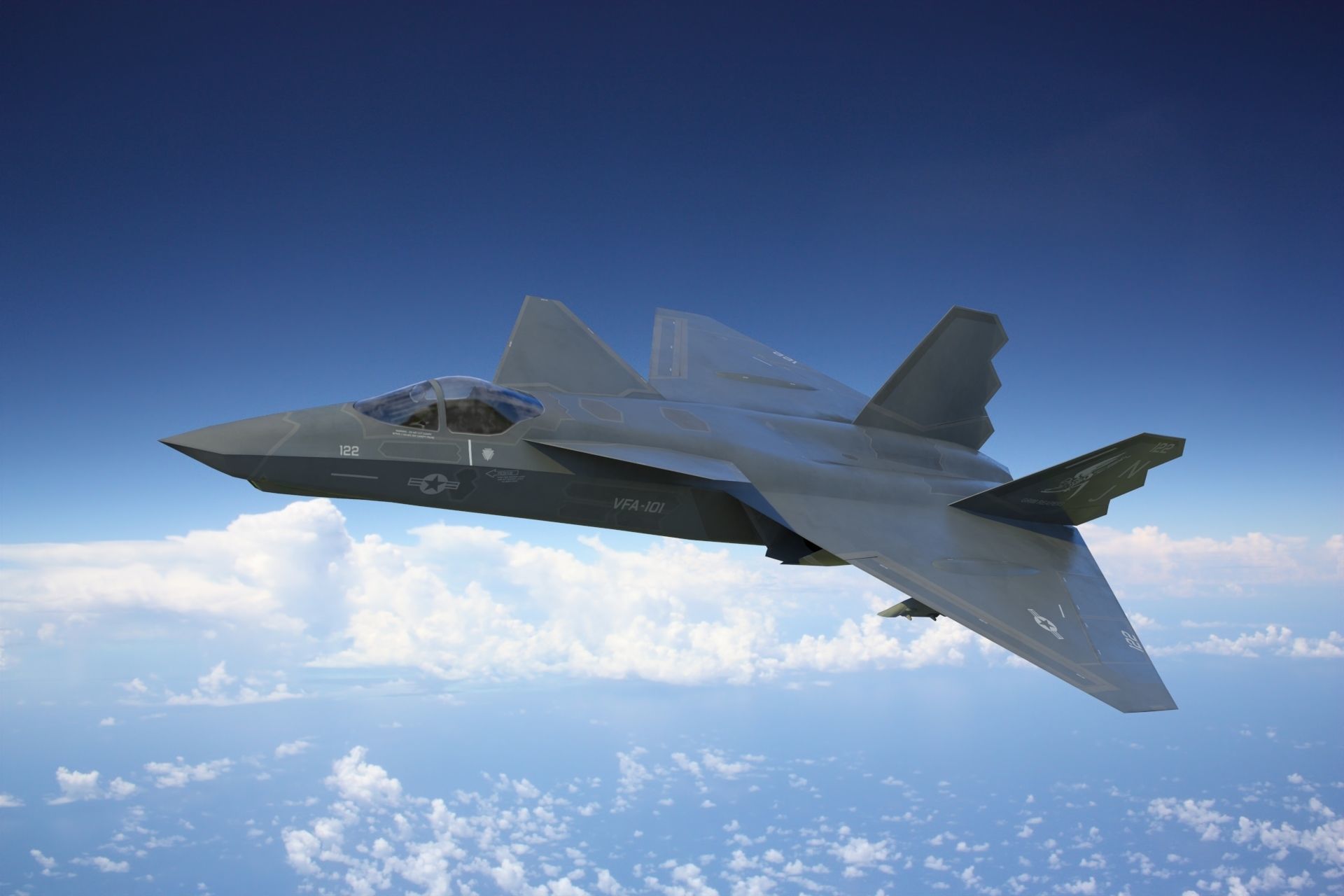

YF-23 naval NATF-23 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No Unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare TexturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

A proposed naval variant of the YF-23 known as the NATF-23 was considered as an F-14 Tomcat replacement. The original YF-23 design was first considered but would have had issues with flight deck space handling, storage, landing, and catapult launching reasons requiring a different design. A NATF-23 wind tunnel test model DP527, tested for 14,000 hours, was donated by Boeing in 2001 to the Bellefontaine Neighbors Klein Park Veterans Memorial

The NATF-23, the schematics of which surfaced in the 2010s, was different in many ways, the diamond wing was located as far back as possible, it has conventional twin tails instead of the ruddervator with serrations for low RCS and increased maneuverability at low speeds for aircraft carrier operations, folding wing capability for flight deck storage, reinforced landing gear, tailhook and canards for landing on aircraft carriers and thrust vectoring nozzles. The intakes were also different as they were a quarter circle with serrations and were to have an increased 48 ft wingspan and a 62 ft length

S
shigahayato830 2022-05-13 00:31:05 UTC
Какая замечательная 3д модель! я люблю этот самолет Вопрос в том, есть ли планы продажи или превью этой модели на скечфаде? Я хотел бы спросить, если можно
C
citizensnip 2022-05-13 05:14:08 UTC
На скетчфаб модель выкладываться не будет. Там недостаточная защита от воровства моделей.
Item rating
1 0
YF-23 naval NATF-23
$55.00

Royalty Free License
YF-23 naval NATF-23
$55.00

Royalty Free License
Response 72% in 6.1h
PBR modeling

3D Model formats

Format limitations
Native
  • Autodesk 3ds Max (.max) (2 files)7.63 MBVersion: 2015Renderer: Default (Scanline) Version: 2015Renderer: Default (Scanline)
Exchange
  • Autodesk 3ds Max (.max) (2 files)7.63 MBVersion: 2015Renderer: Default (Scanline) Version: 2015Renderer: Default (Scanline)
  • Blender 2.80 (.blend)4.05 MBVersion: 2.80Renderer: Cycles
  • OBJ (.obj, .mtl) (2 files)3.01 MBVersion: 2016
  • KeyShot 9 (.bip, .ksp)3.62 MB
  • Autodesk FBX (.fbx) (2 files)2.39 MBVersion: 2016Version: 2016
  • Cinema 4D 19 (.c4d)2.86 MBVersion: 19Renderer: Default
  • Textures 9.69 MB
  • Substance Painter 2021.1.1 (.spp, .sbsar, .spsm)826 MB

3D Model details

  • Publish date2022-05-04
  • Model ID#3738047
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 20,292
  • Vertices 21,270
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Non-overlapping
  • Plugins used
  • Ready for 3D Printing
