Lavochkin La-5

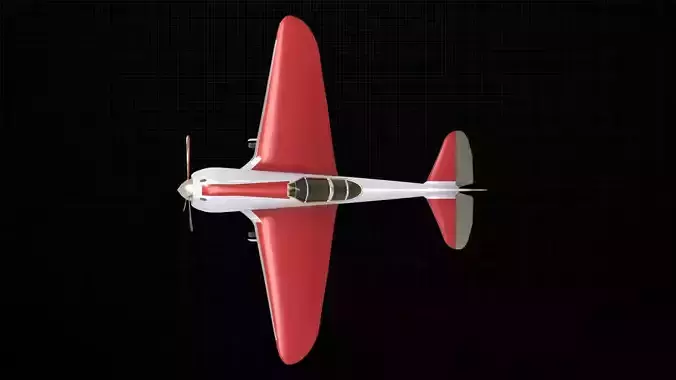

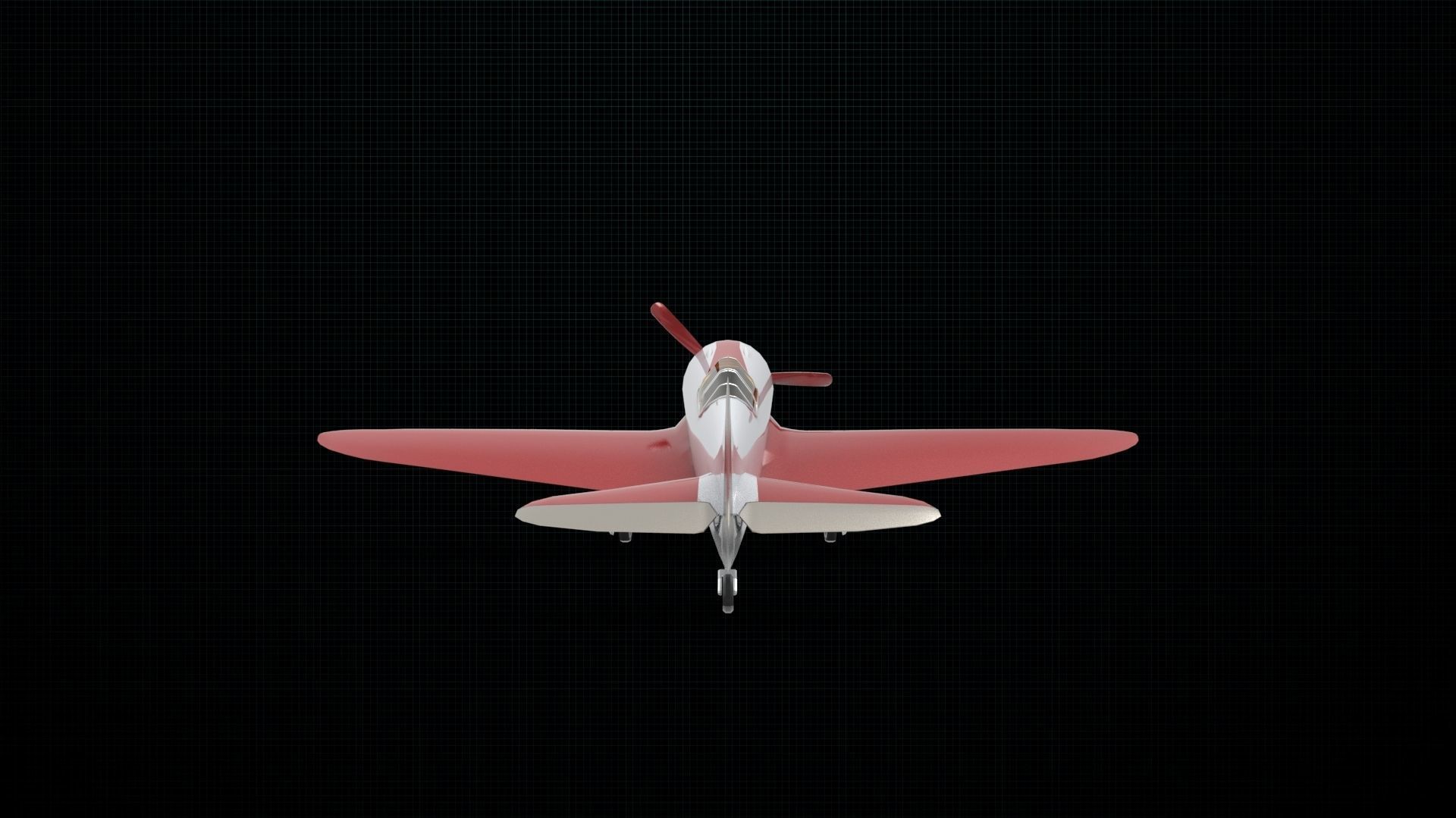

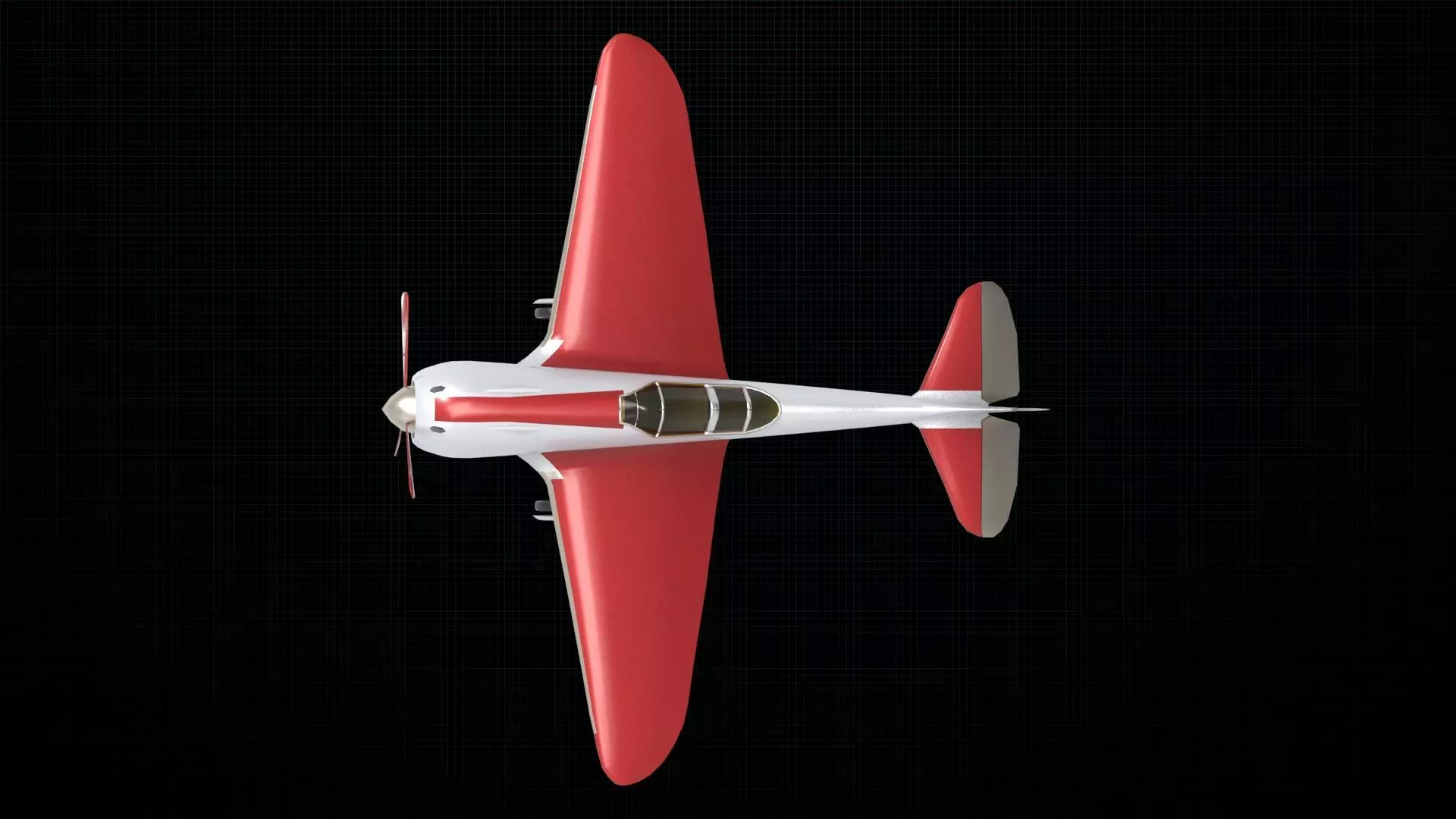

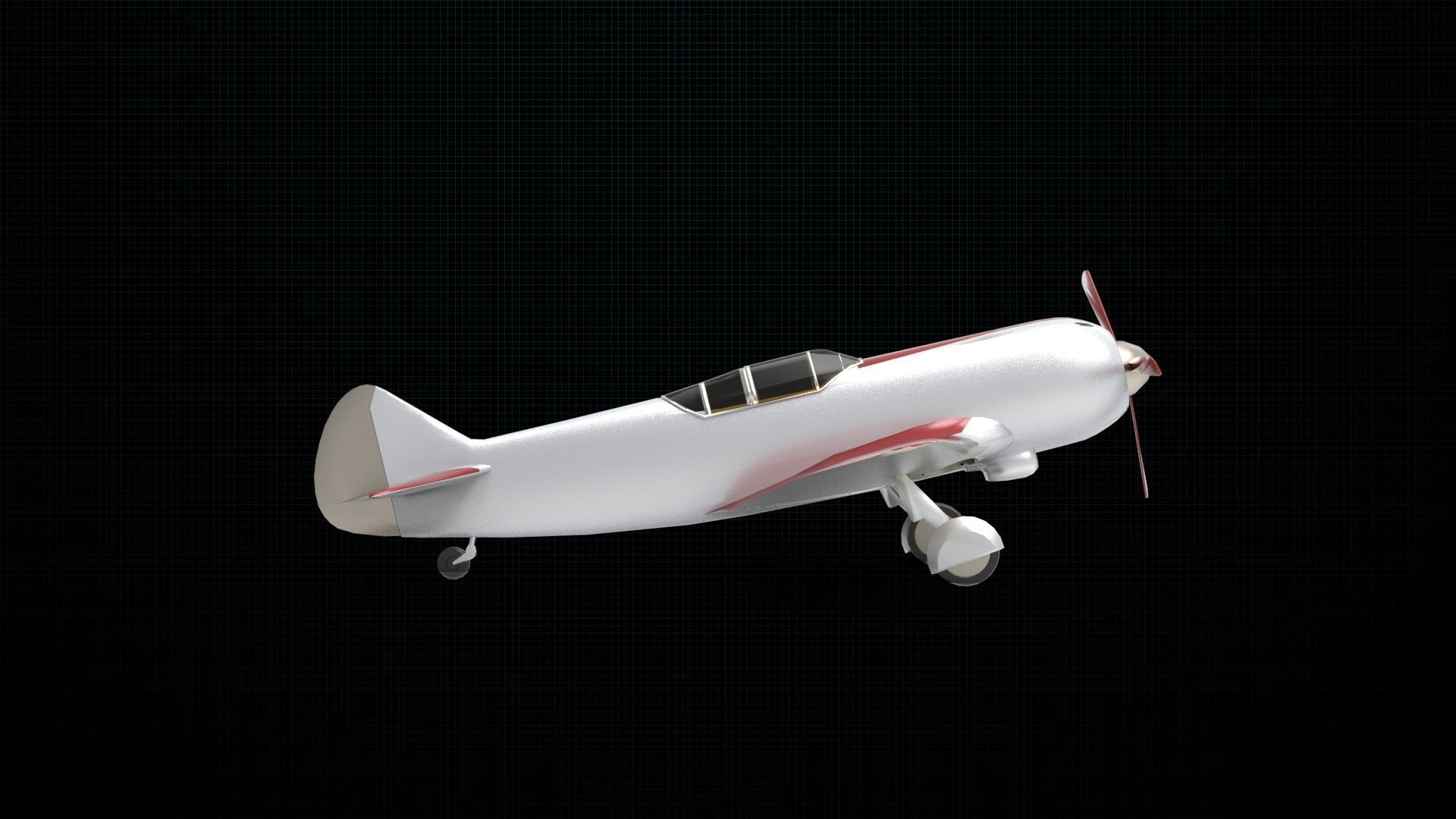

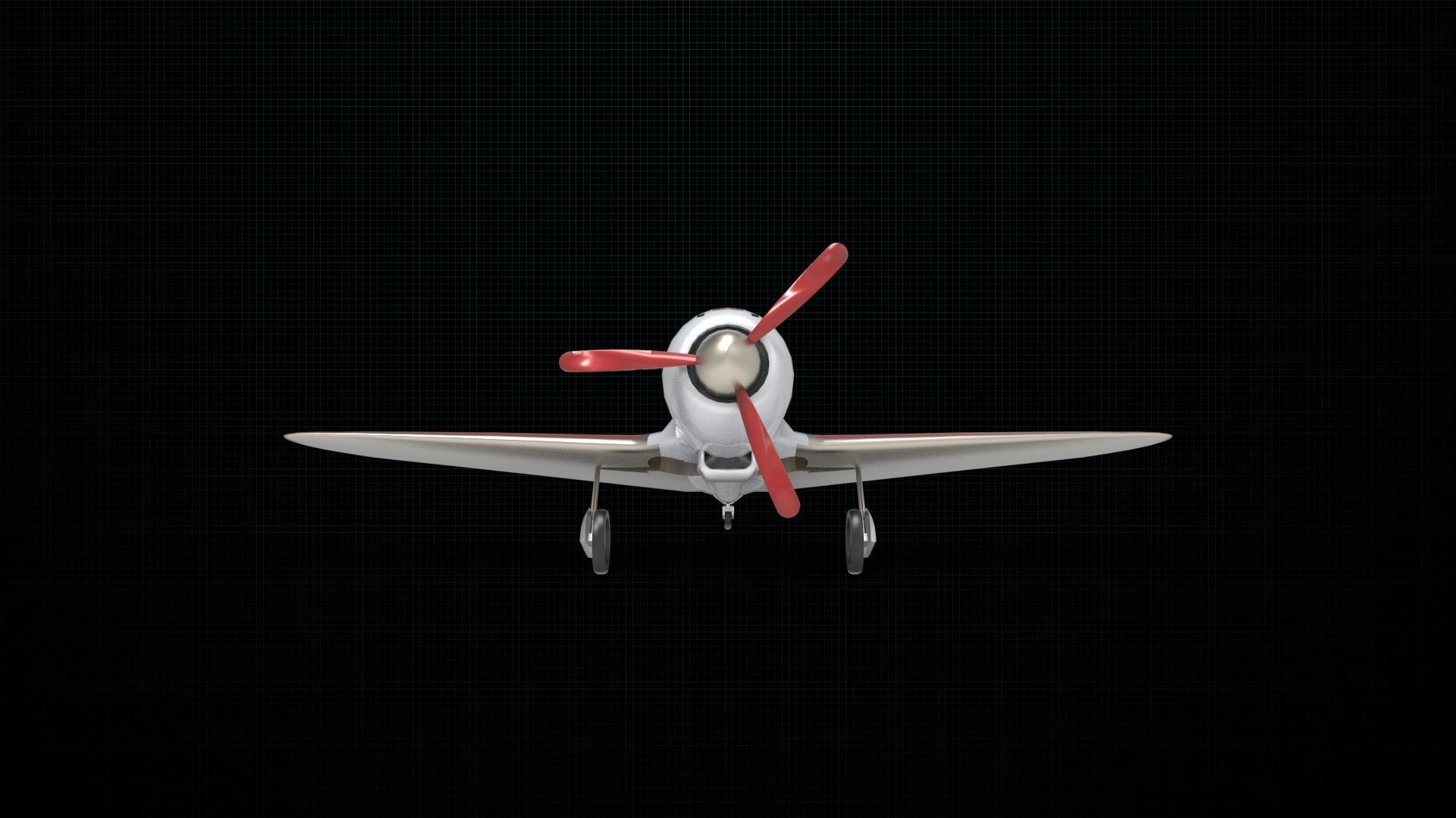

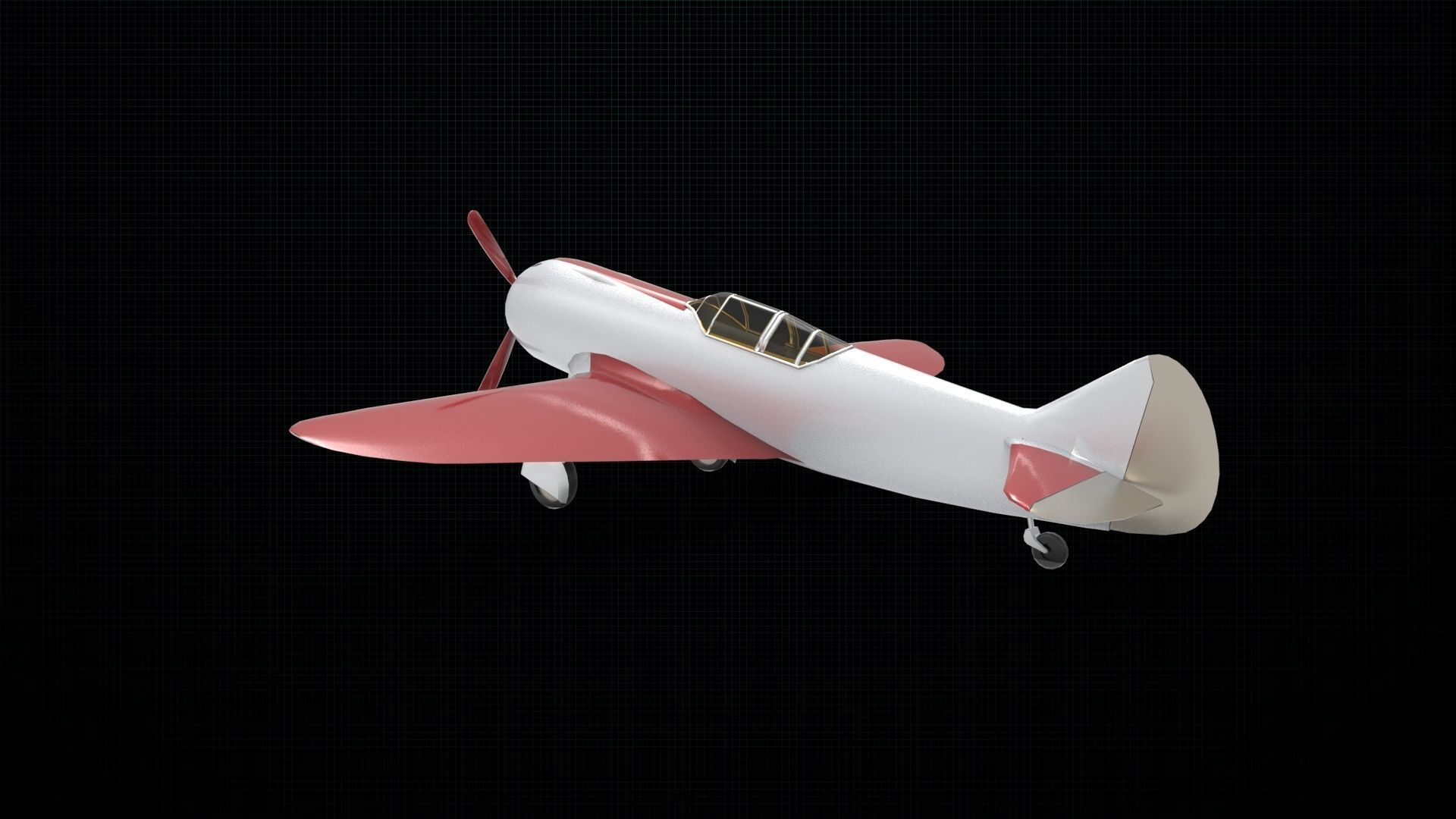

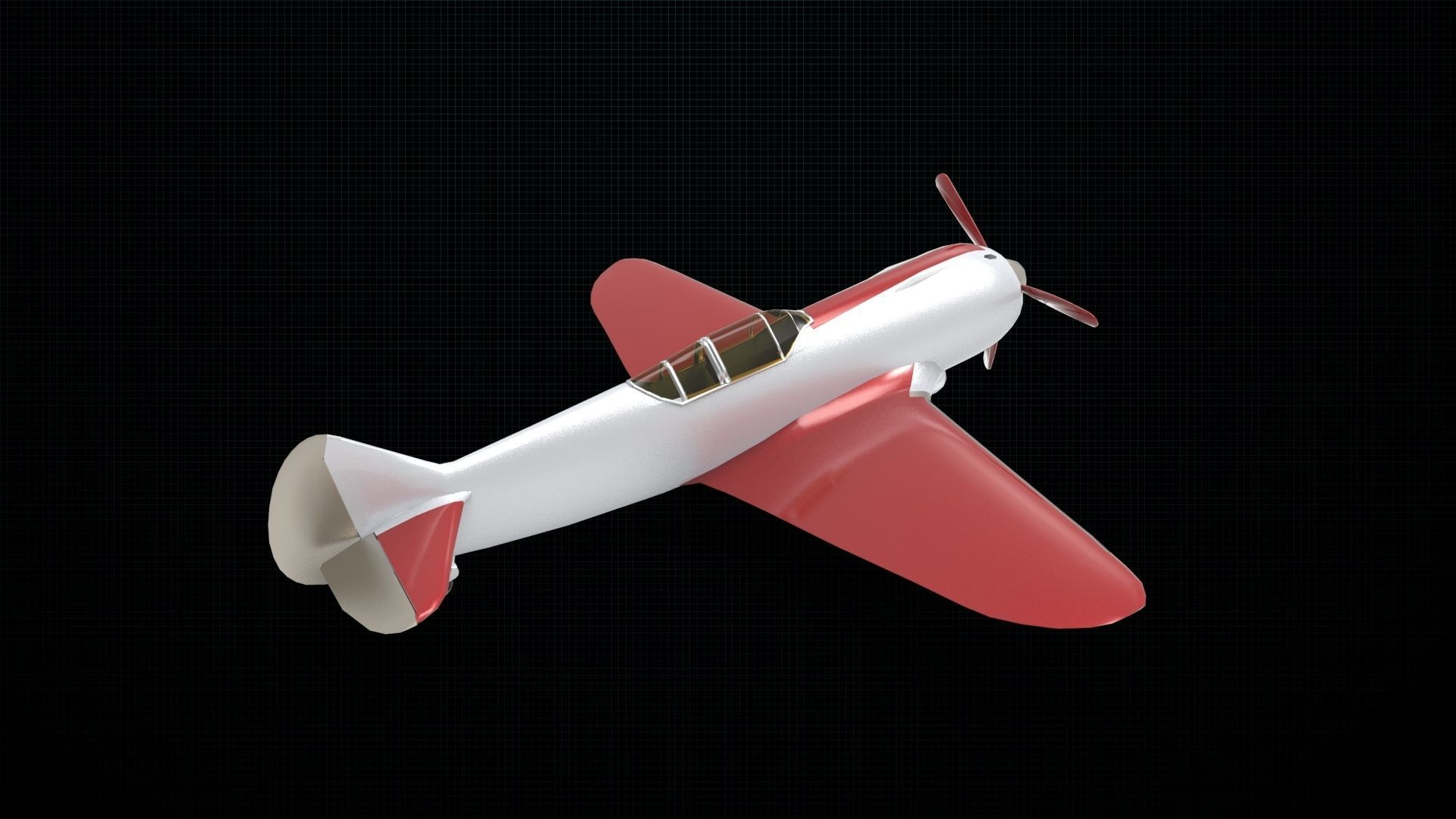

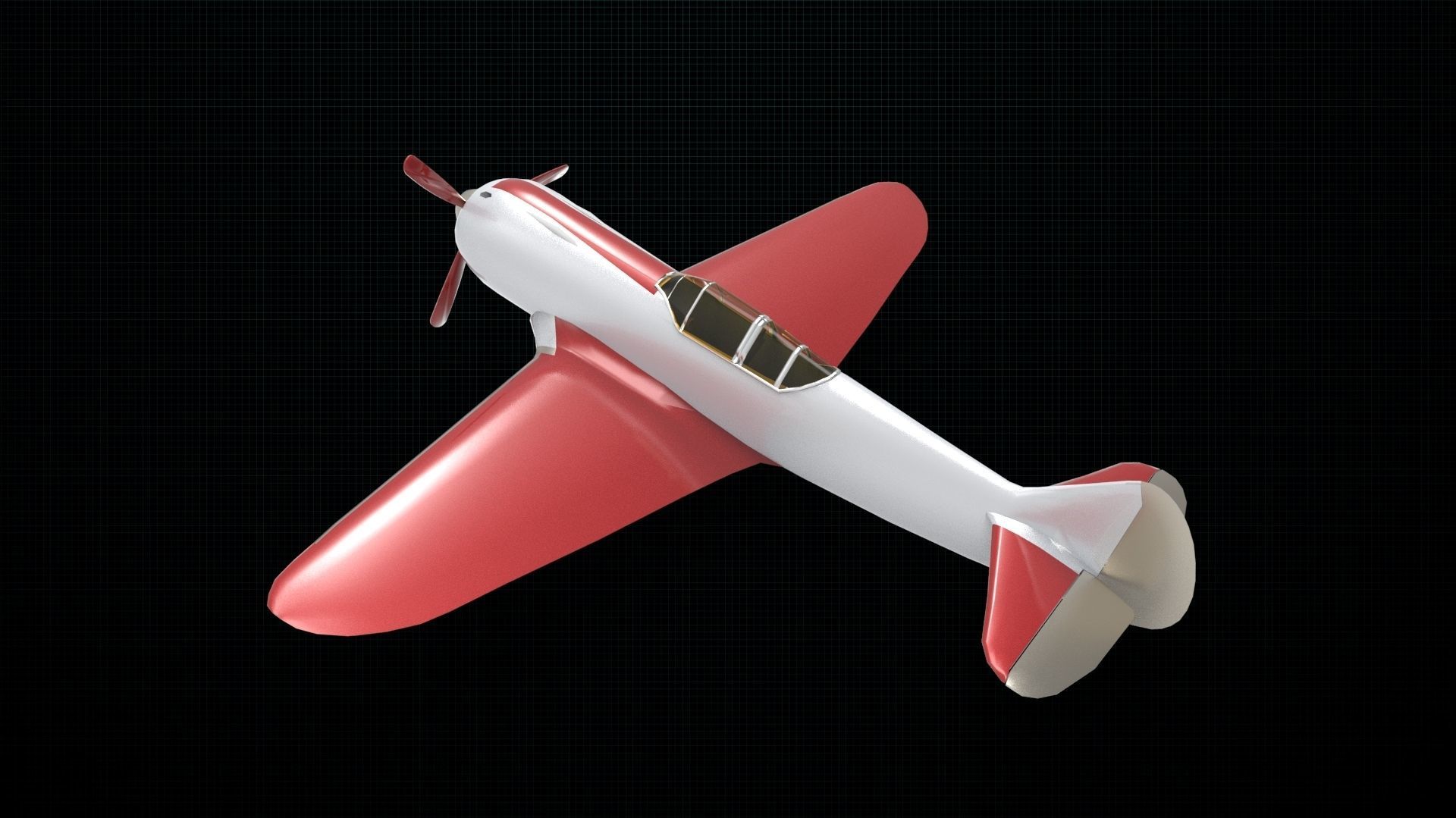

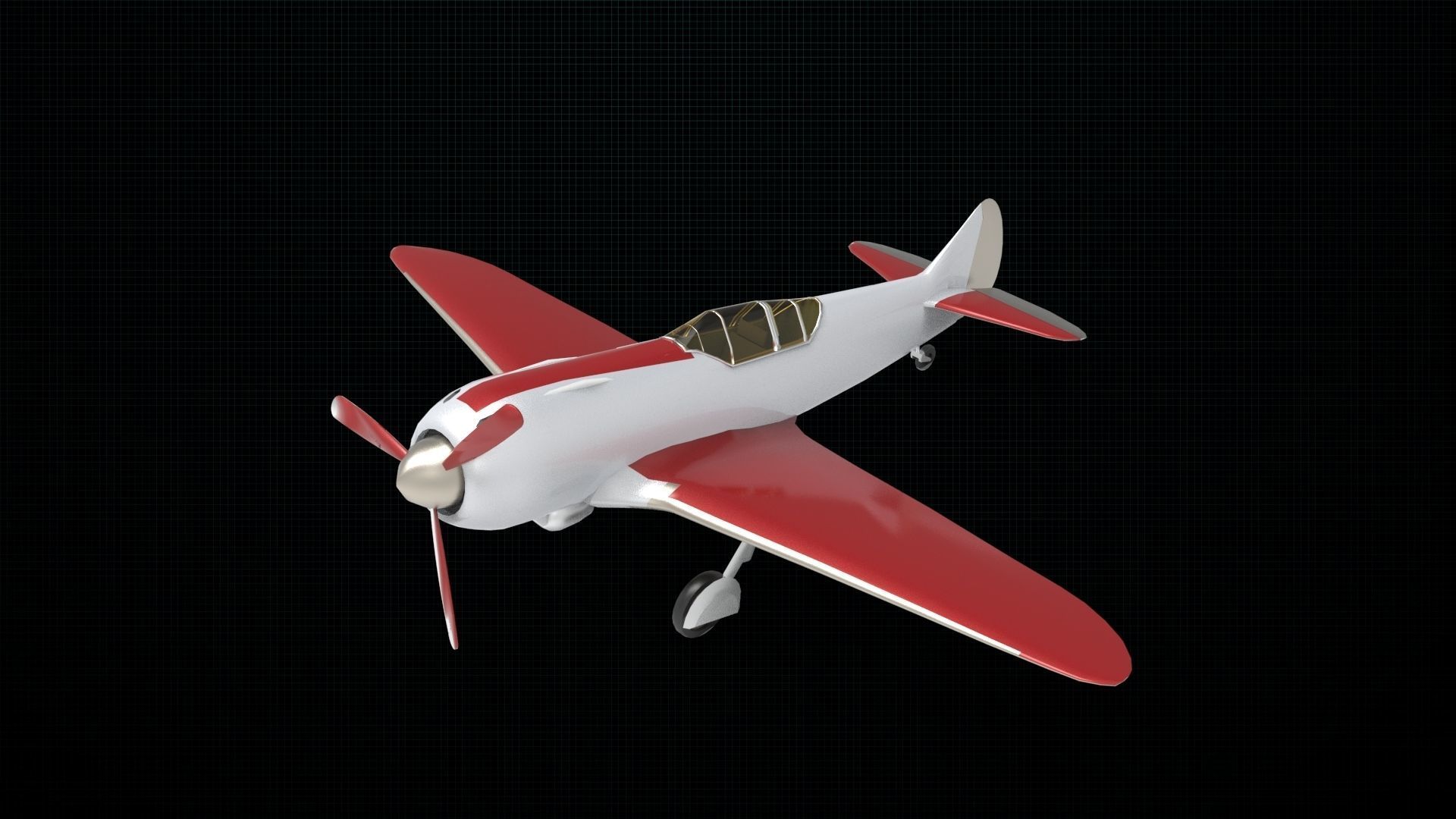

Lavochkin La-5 3D model

Description

The Lavochkin La-5 (Лавочкин Ла-5) was a Soviet fighter aircraft of World War II. It was a development and refinement of the LaGG-3, replacing the earlier model's inline engine with the much more powerful Shvetsov ASh-82 radial engine. During its time in service, it was one of the Soviet Air Force's most capable types of warplane, able to fight German designs on an equal footing.The La-5 descended from the LaGG-1 and LaGG-3, aircraft designed by Vladimir Gorbunov before the Second World War. The LaGG-1 was underpowered, and the LaGG-3 - with a lighter airframe and a stronger engine did not solve the problem. By early 1942, the LaGG-3's shortcomings led to Lavochkin falling out of Joseph Stalin's favour, and LaGG-3 factories converting to Yakovlev Yak-1 and Yak-7 production.

During the winter of 1941–1942, Lavochkin worked unofficially to improve the LaGG-3. Design work was conducted in a small hut beside an airfield. In early 1942, Gorbunov replaced a LaGG-3's inline engine with the stronger Shvetsov ASh-82 radial engine. The nose was replaced with the nose of the ASh-82-powered Sukhoi Su-2. The new engine required work to maintain the aircraft's balance. The prototype first flew in March, and demonstrated surprisingly acceptable performance; air force test pilots considered it to be superior to the Yak-7, and intensive flight tests began in April. The aircraft was named LaG-5; the change from LaGG was because Mikhail Gudkov, one of the original LaGG designers, was no longer with the programme. By July, it was called La-5, although Gorbunov was still involved.

By July, the La-5 was ordered into full production, including the conversion of incomplete LaGG-3 airframes. Production based on the prototype began almost immediately in factories in Moscow and the Yaroslav region. Changes to the main production model included slats to improve all-round performance. The La-5 was inferior to the best German fighters at higher altitudes, but equal at lower altitudes; it was suitable for air combat over the Eastern Front which typically took place at altitudes under 5,000 m (16,404 ft).

The aircraft received further modifications. The La-5F improved the pilot's exterior visibility with a cut down rear fuselage. The definitive La-5FN had a fuel-injected engine, a different engine air intake, and was further lightened. A full circle turn took 18–19 seconds. Very late-production La-5FN had two 20mm Berezin B-20 cannon installed in the cowling in place of the heavier two 20mm ShVAK; both were capable of a salvo weight of 3.4 kg/s.

9,920 La-5s of all variants were built, including dedicated trainer versions, designated La-5UTI.

The La-5 was the basis for the further improved Lavochkin La-7.

A number of La-5s continued in the service of Eastern Bloc nations after the end of the war, including Czechoslovakia.

Item rating
0 0
Lavochkin La-5
$21.99

Royalty Free License
Lavochkin La-5
$21.99

Royalty Free License
Response 24% in 48.0h

3D Model formats

Format limitations
  • Blender (.blend)11.9 MB
  • OBJ (.obj, .mtl)11.9 MB
  • Stereolithography (.stl)11.9 MB
  • Collada (.dae) (2 files)23.7 MB
  • Autodesk FBX (.fbx)11.9 MB
  • glTF (.gltf, .glb)11.9 MB
  • USDZ (.usdz)11.9 MB
  • 3D Manufacturing File (.3mf)11.9 MB
  • USD (.usd)11.9 MB
  • High-Res Renderings (.hrd)11.9 MB
  • KeyShot (.bip, .ksp)11.9 MB
  • Sketchup (.skp)11.9 MB

3D Model details

  • Ready for 3D Printing
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Publish date2022-01-04
  • Model ID#3488073
