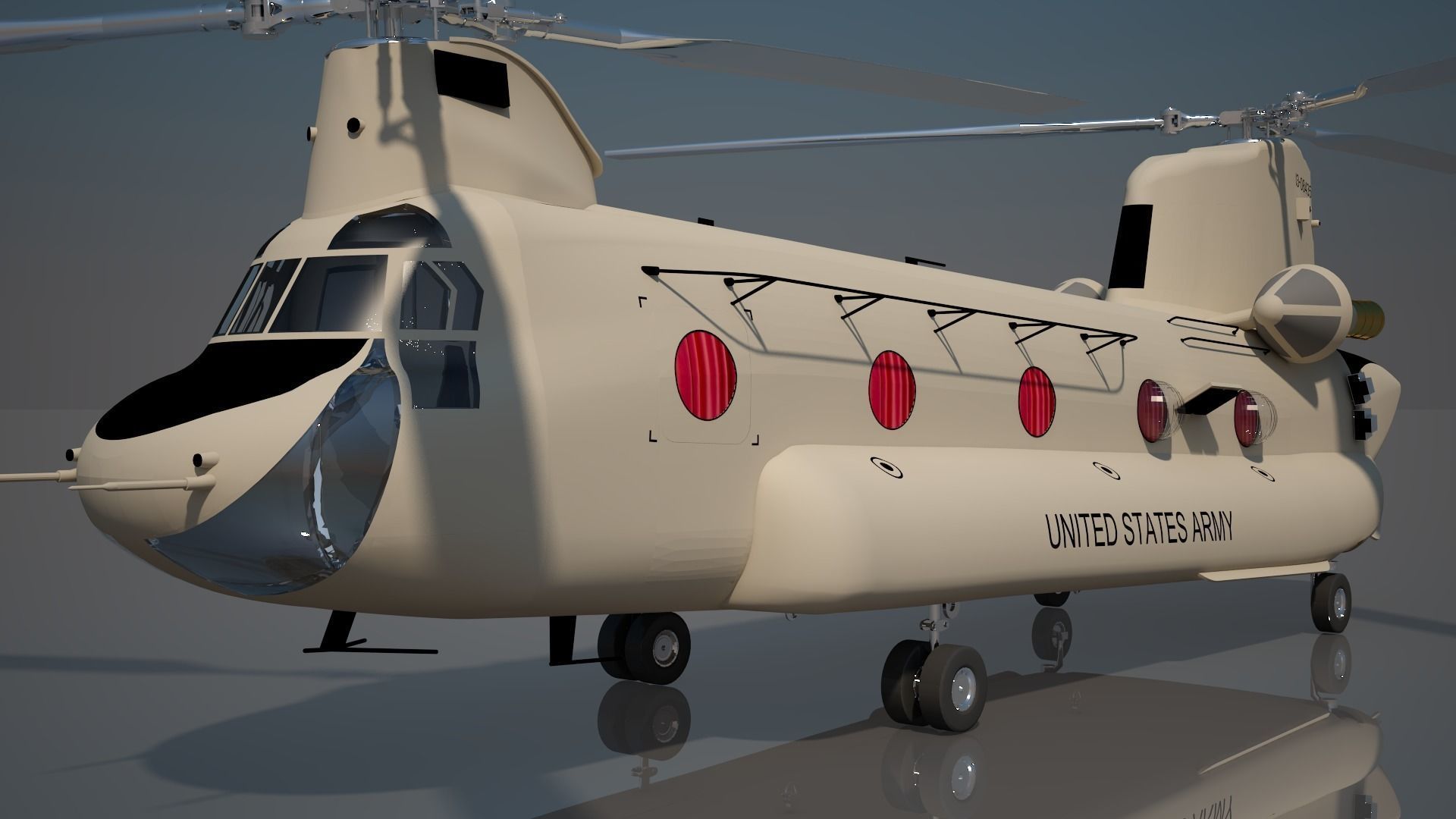

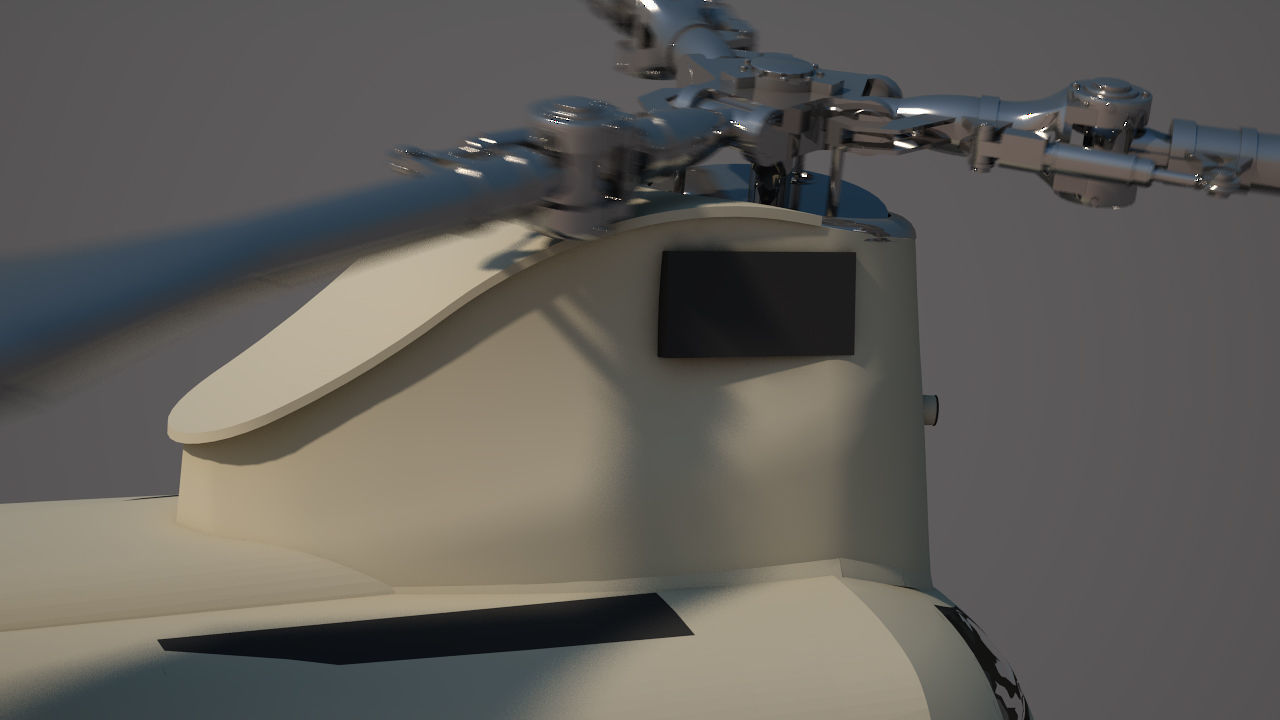

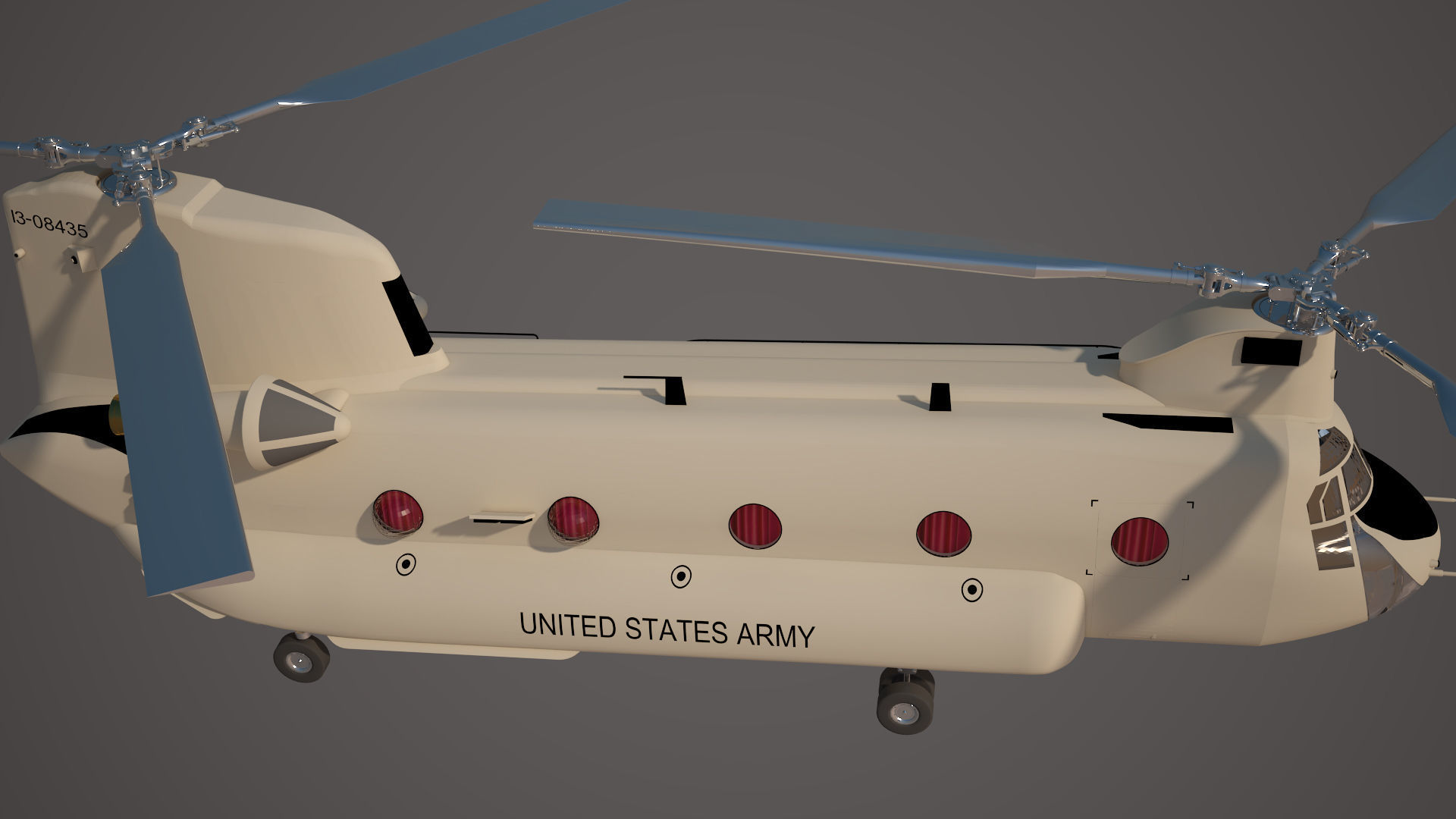

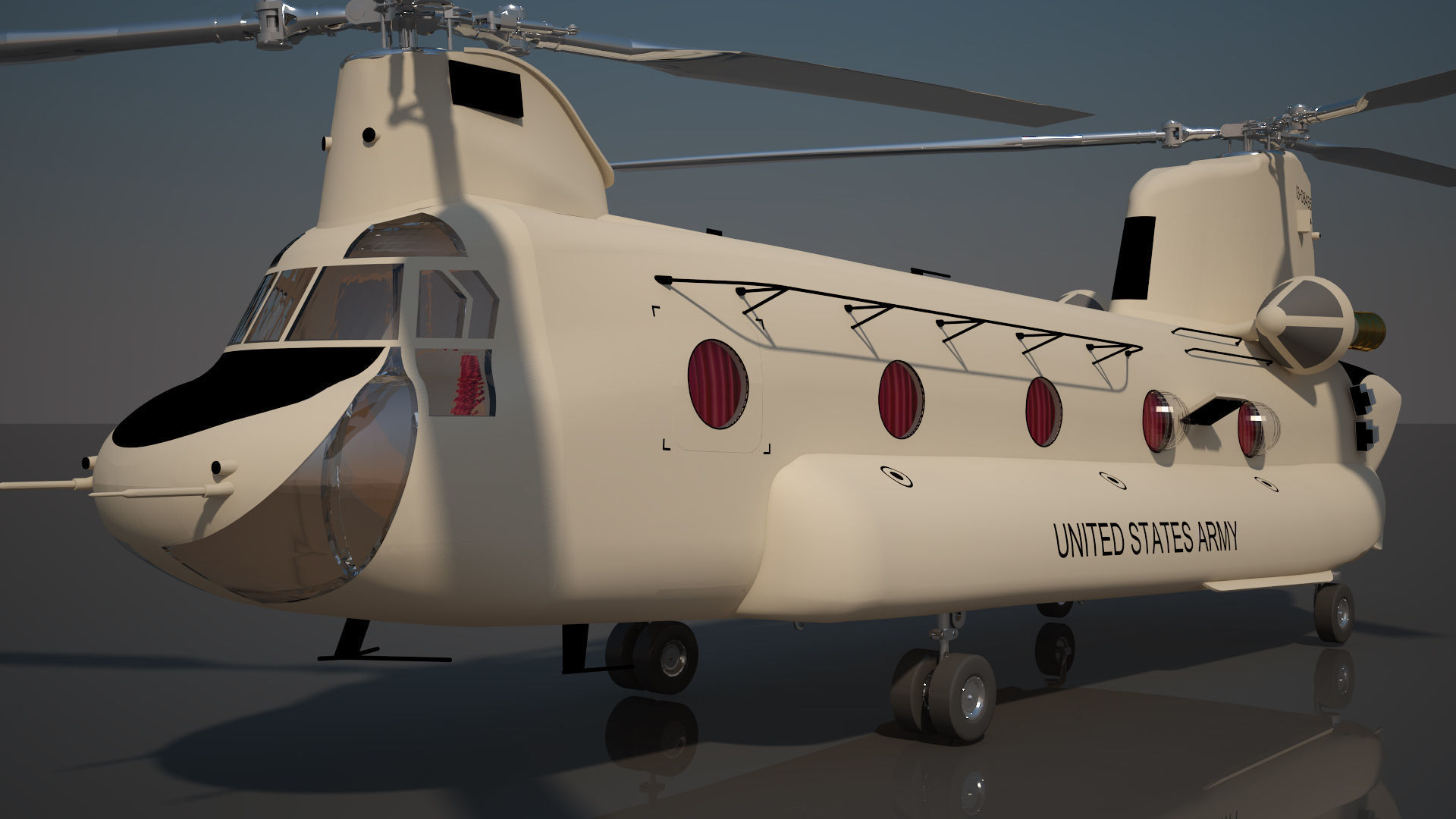

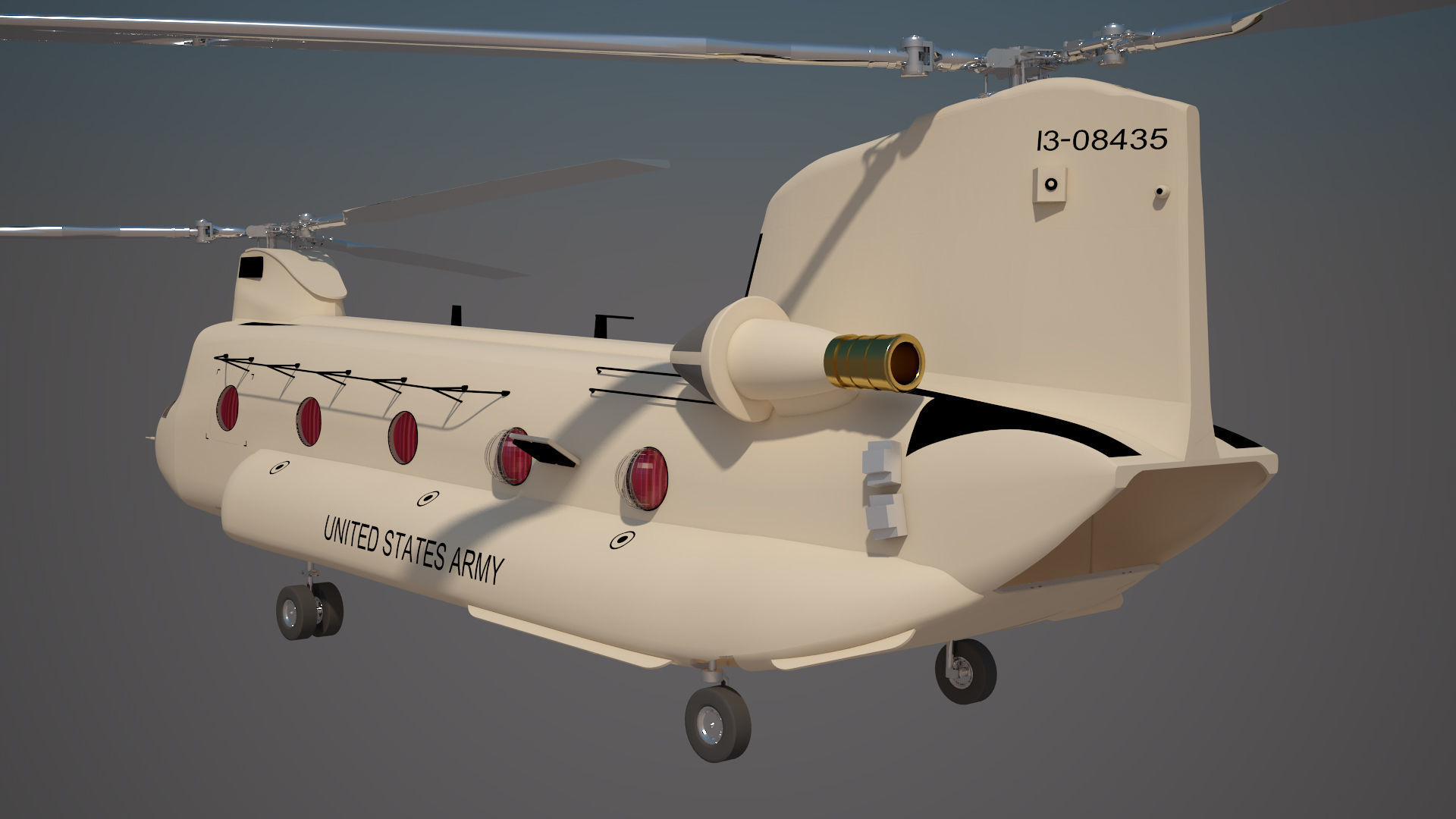

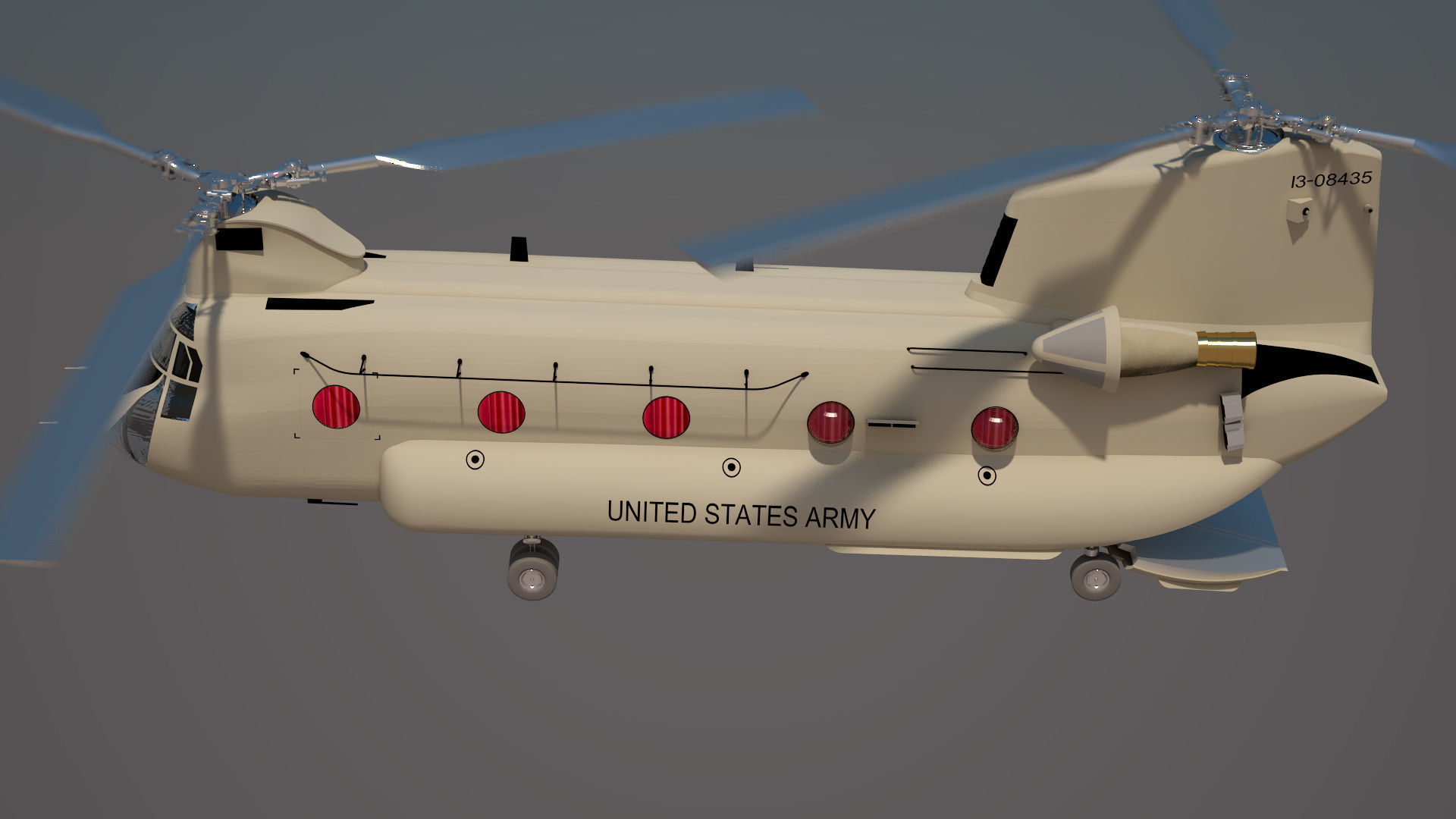

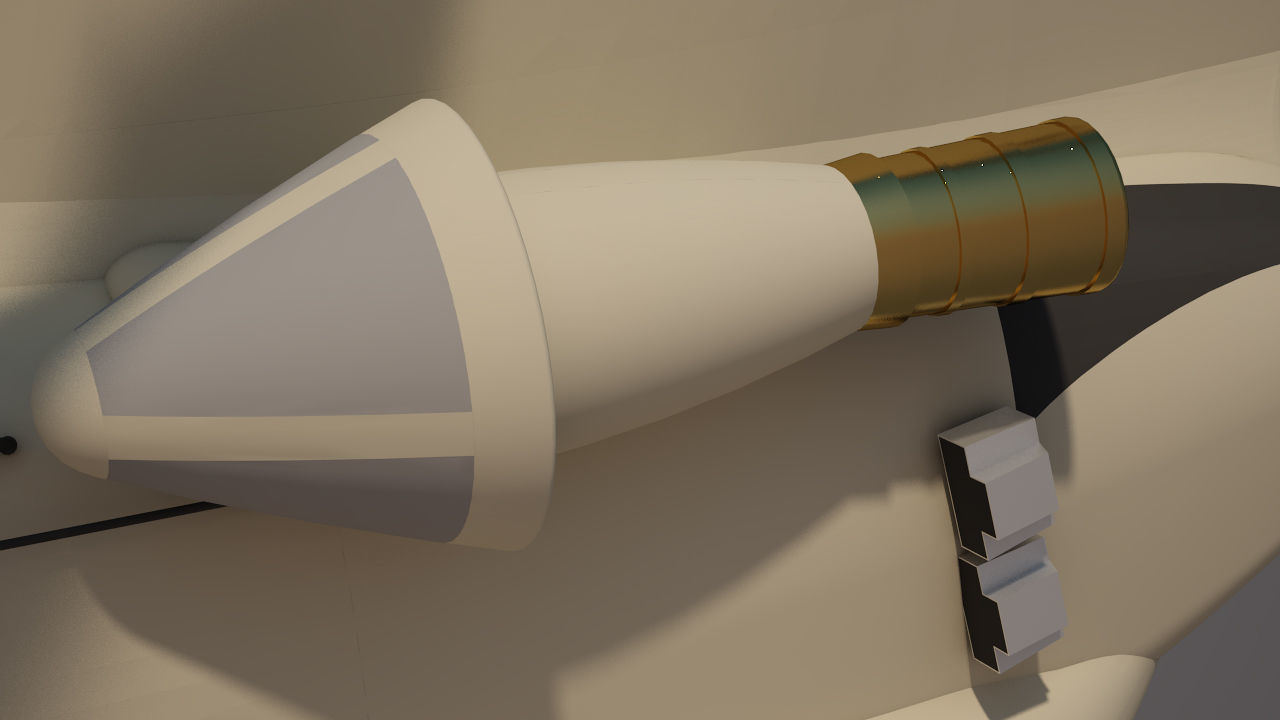

US Army Chinook CH 47 F

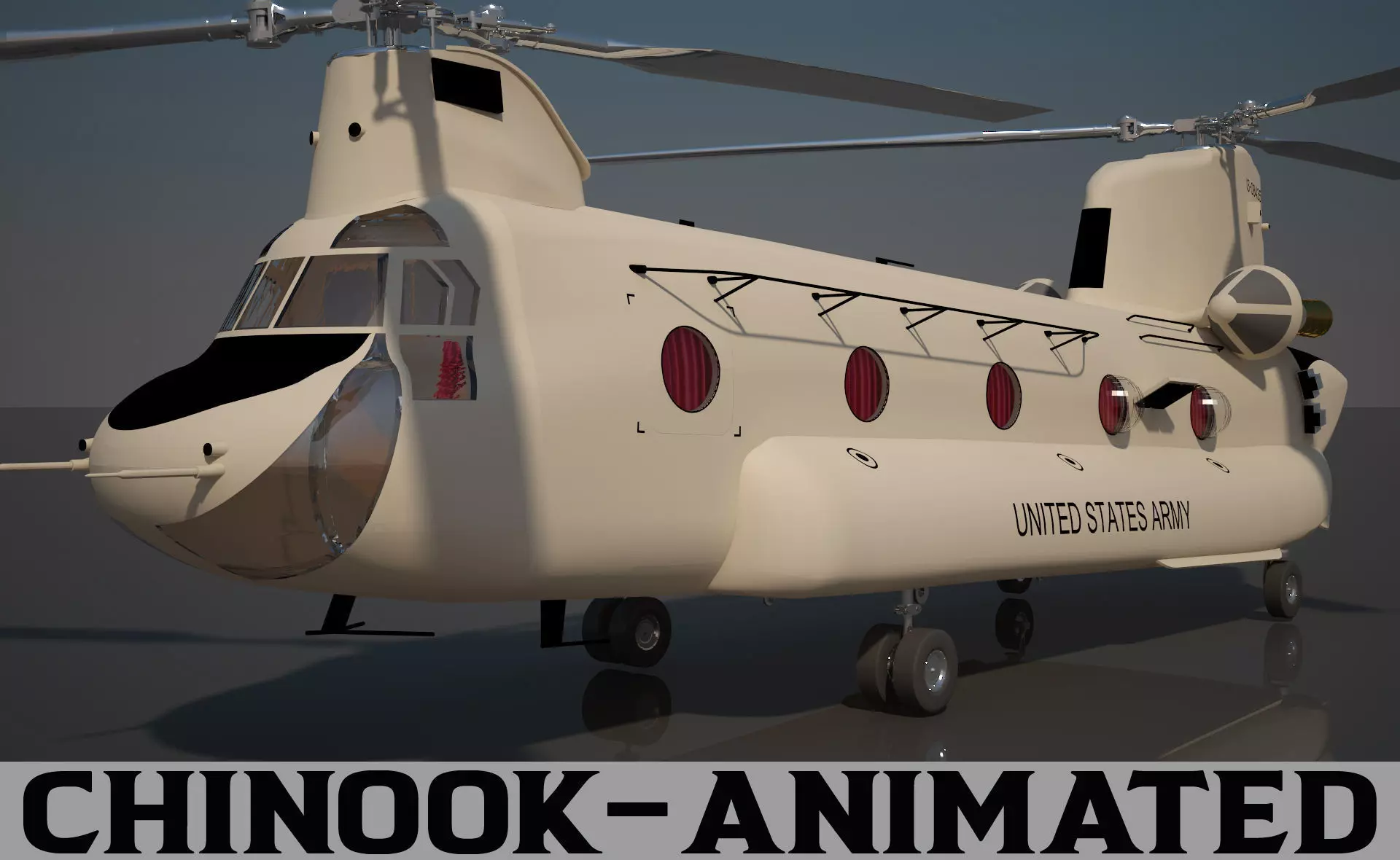

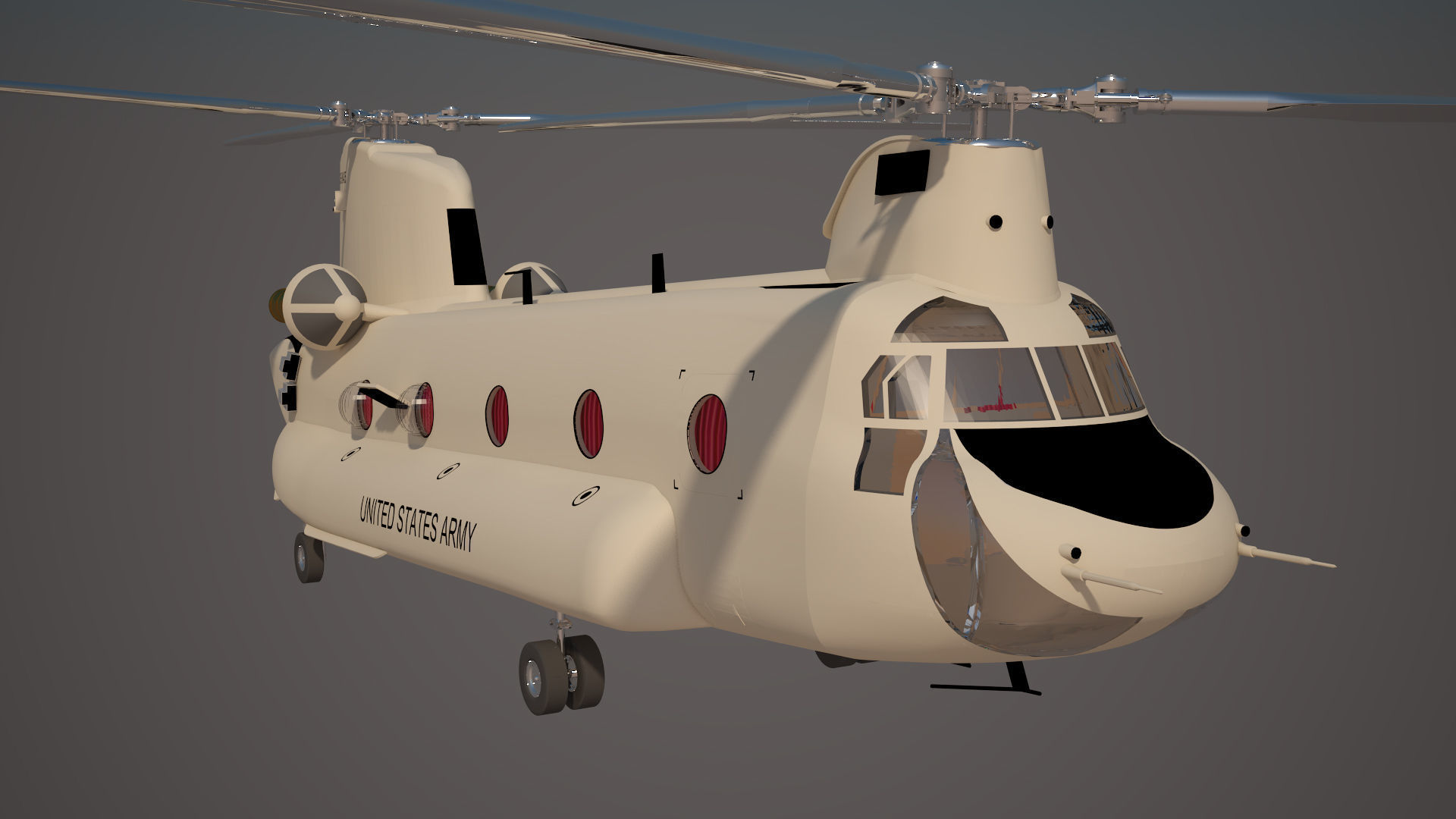

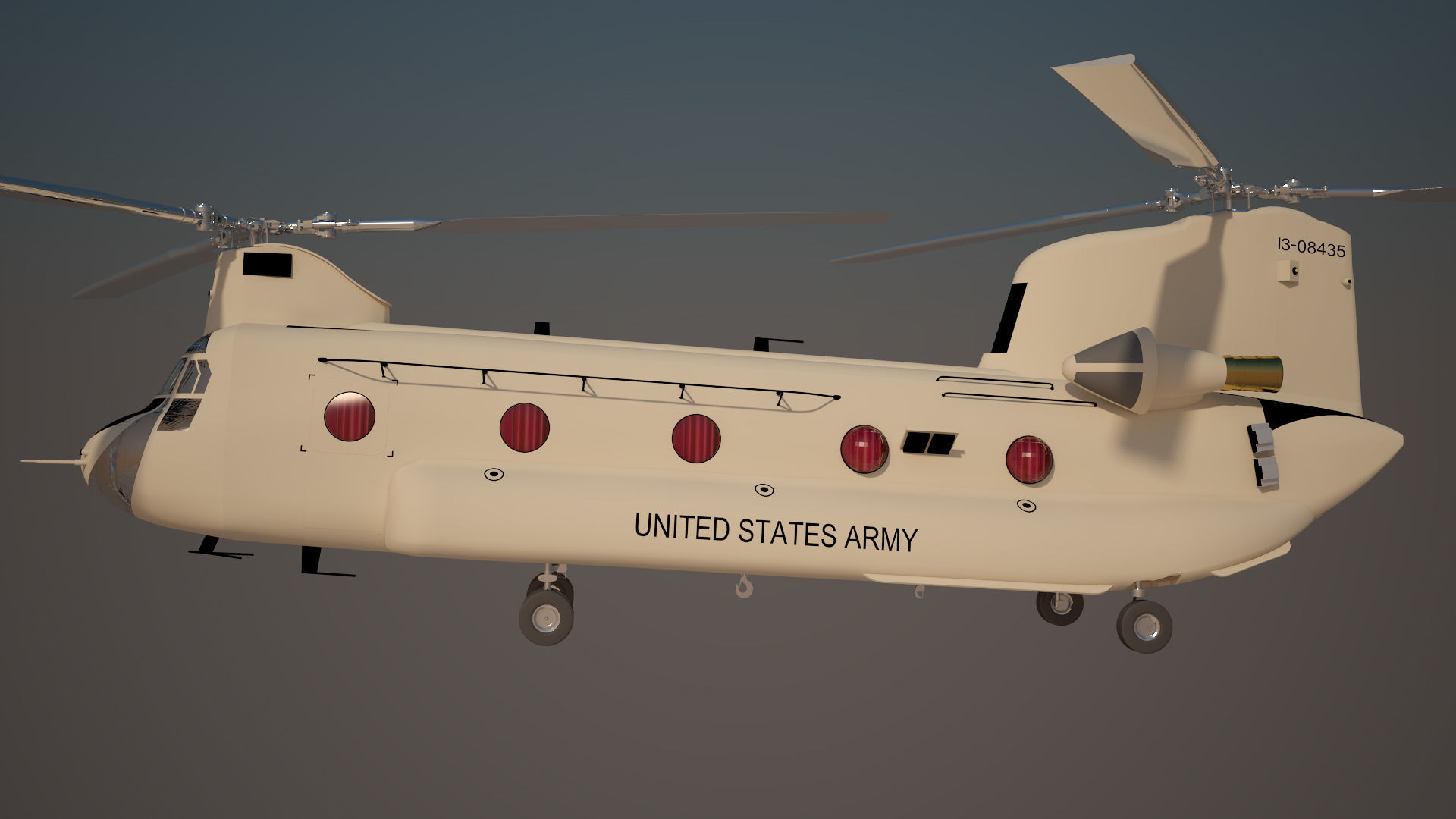

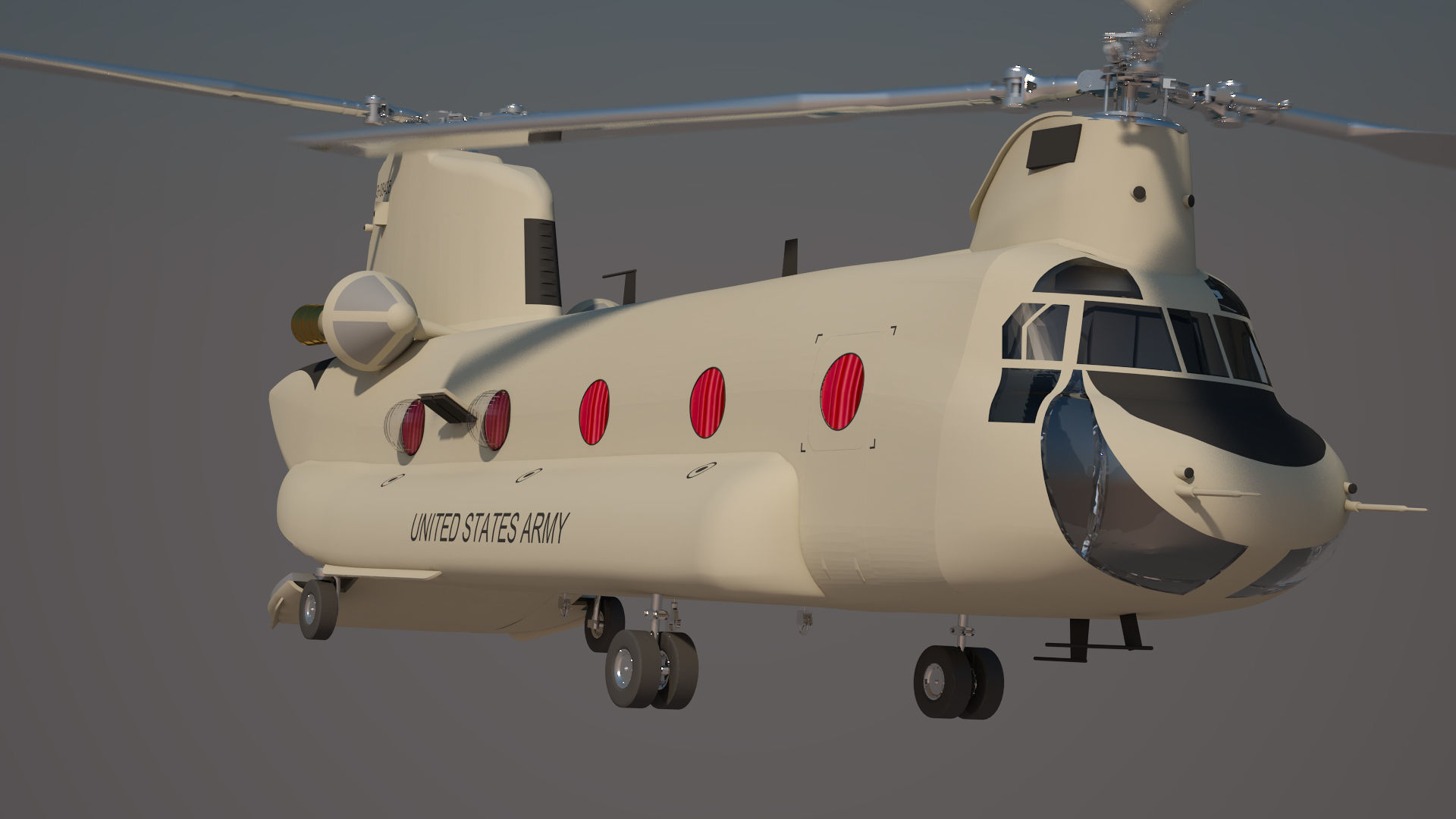

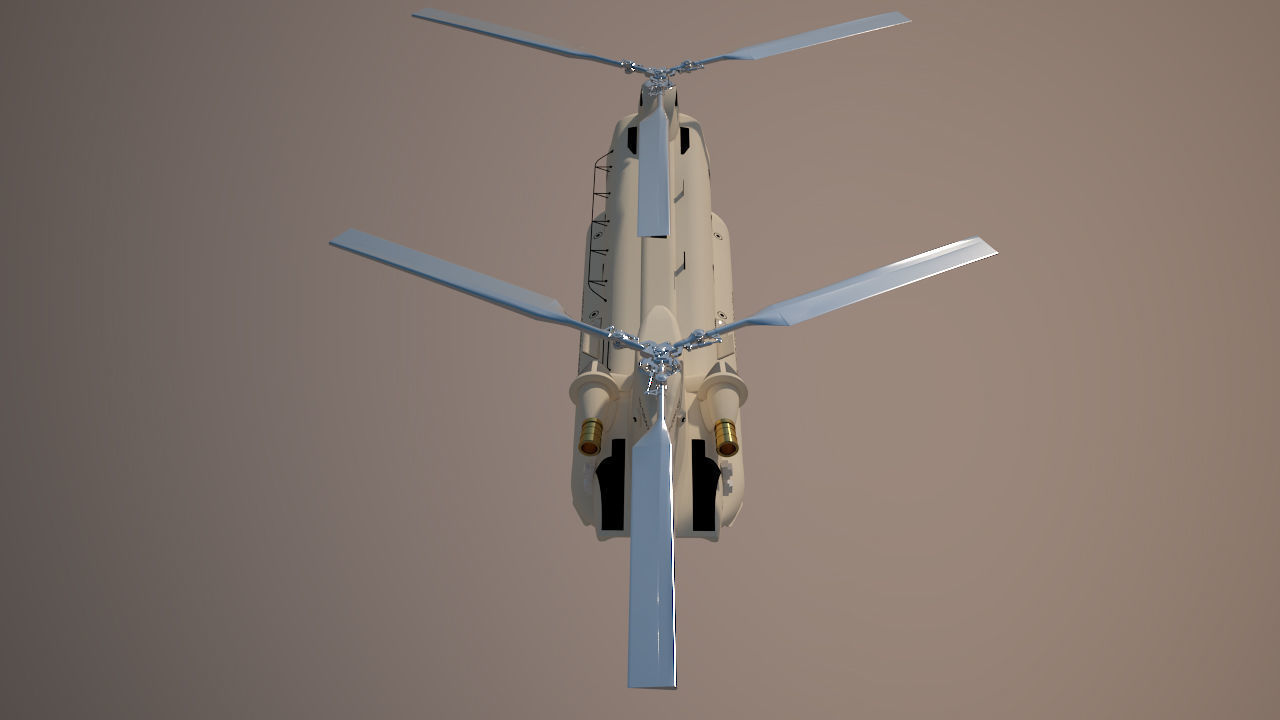

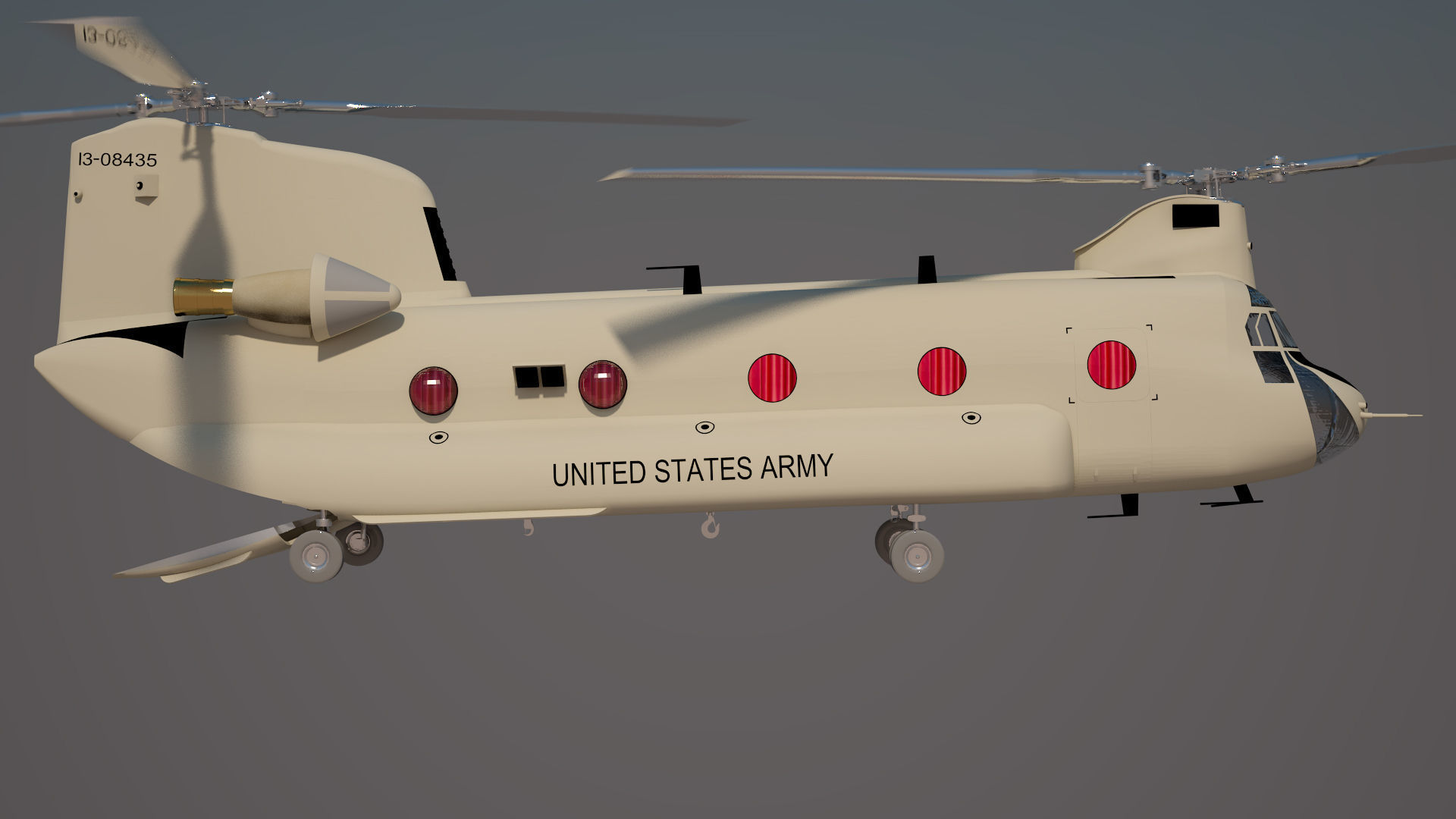

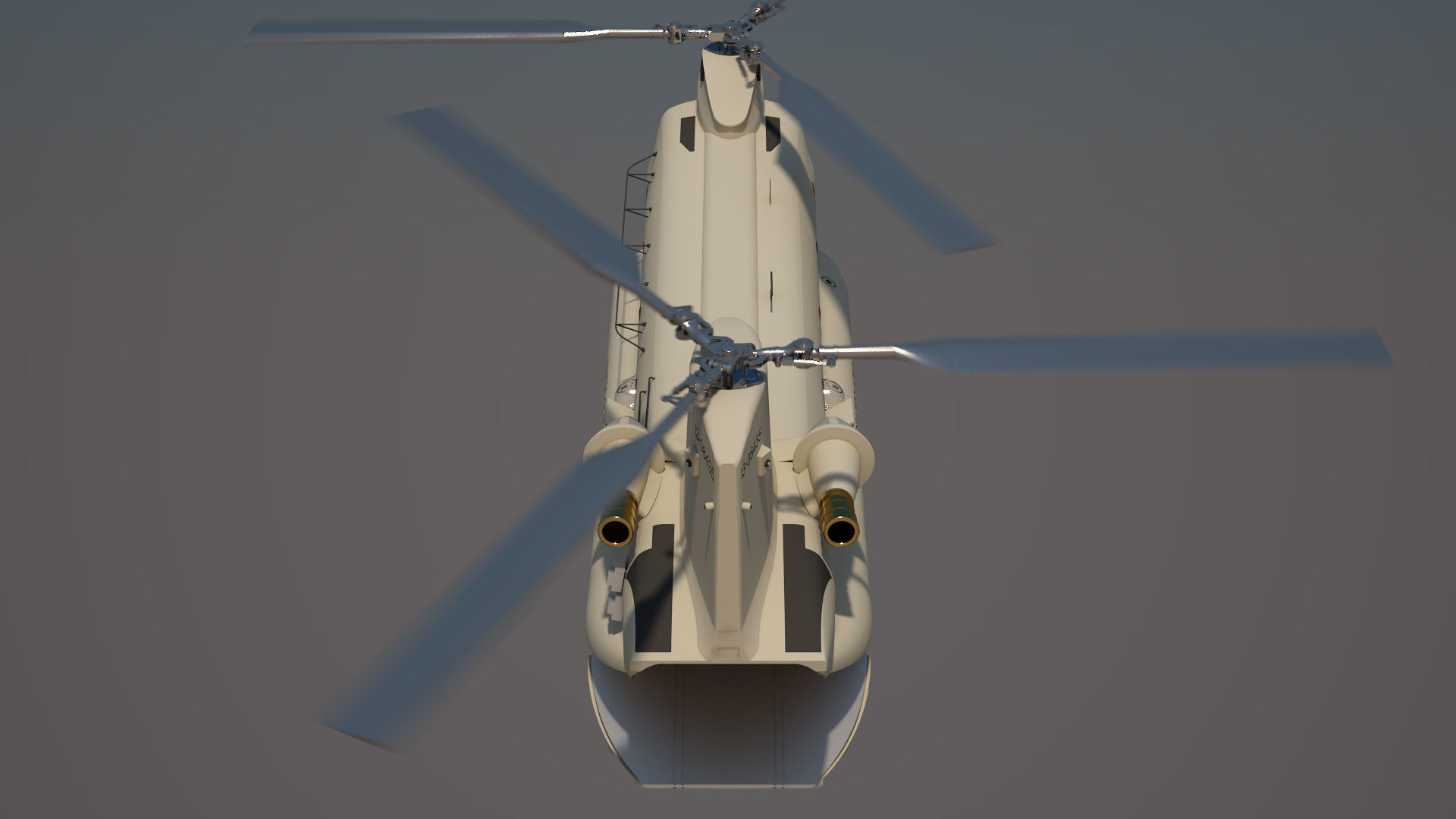

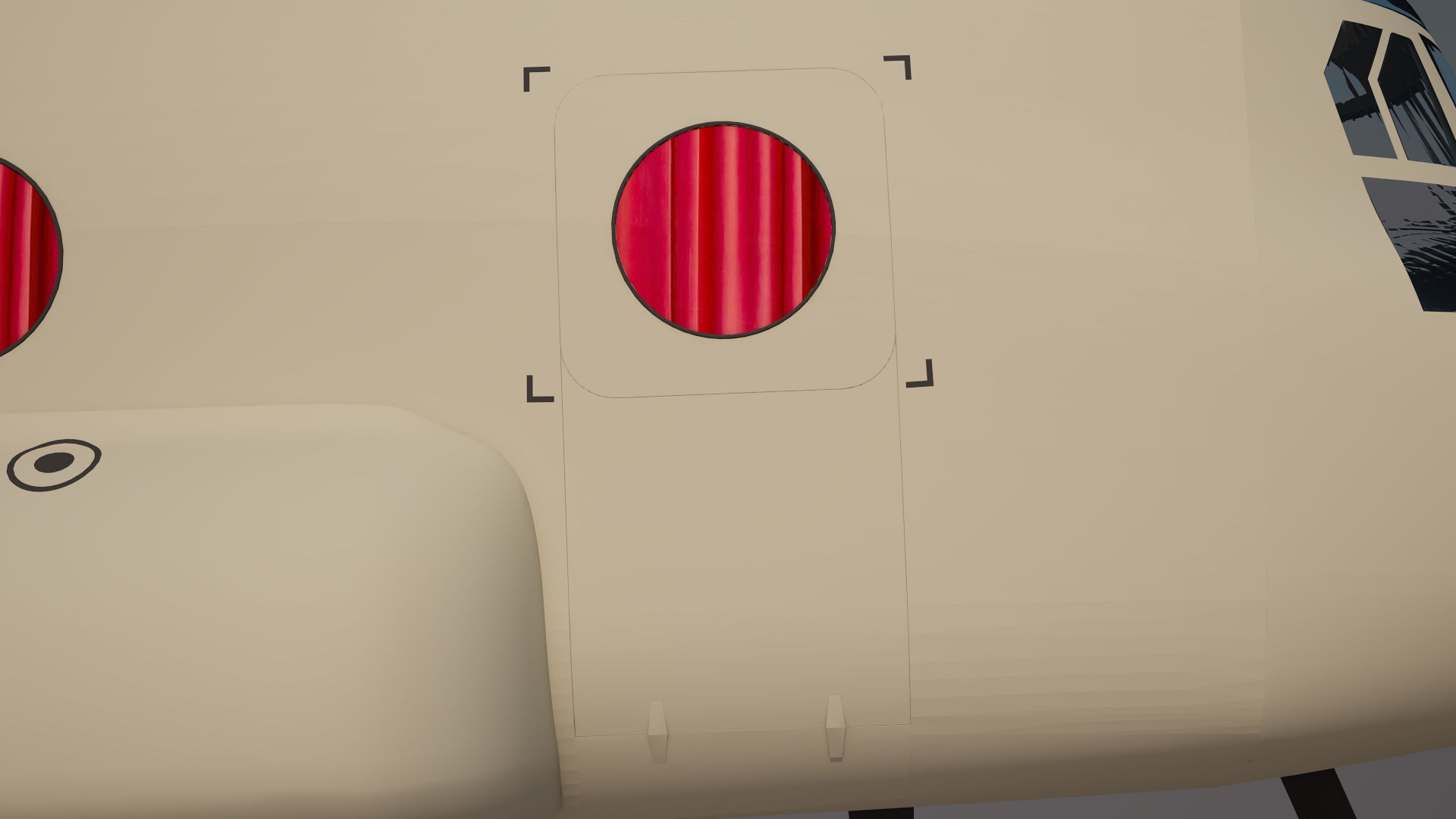

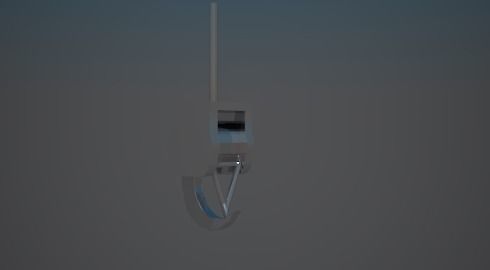

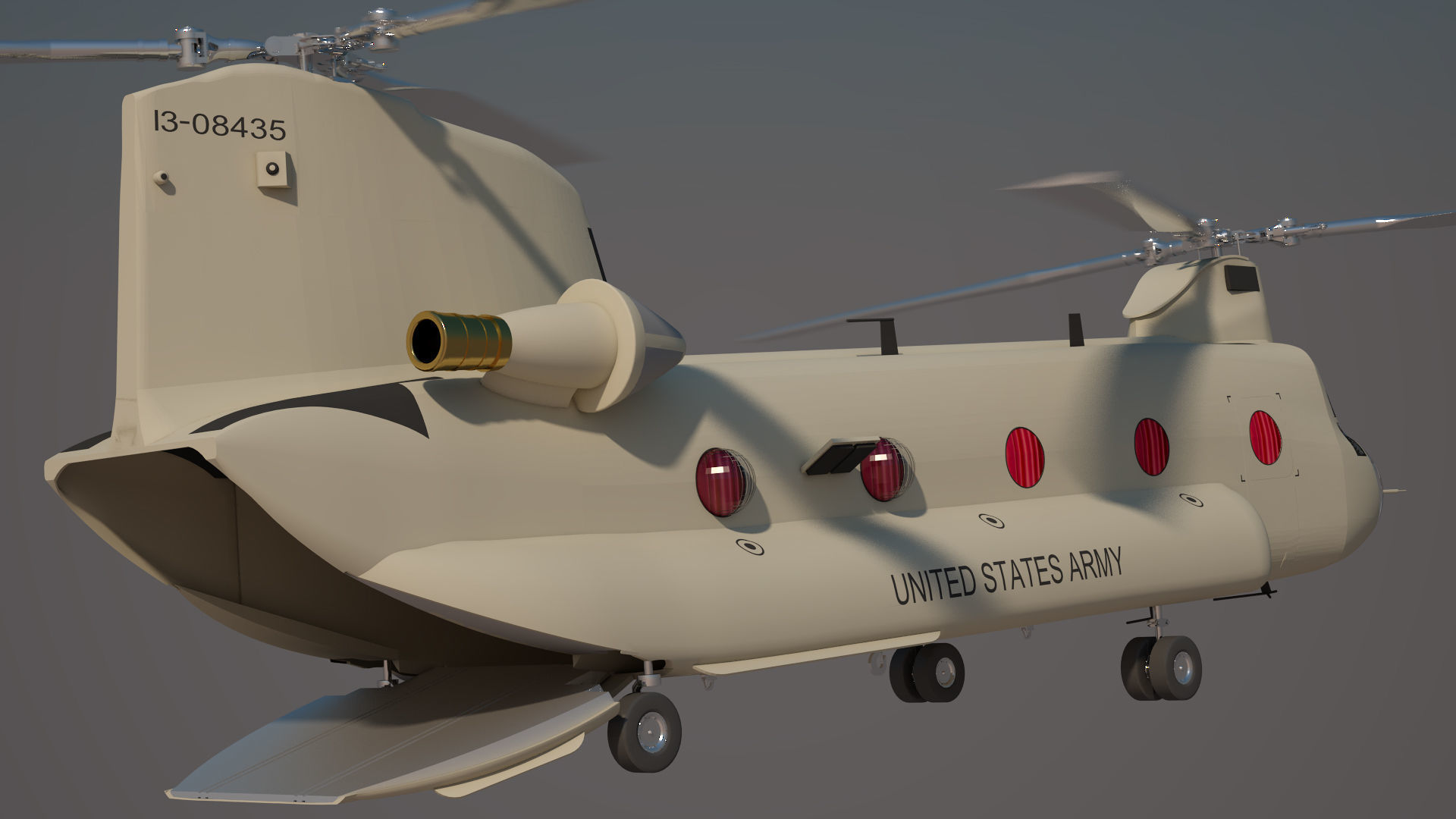

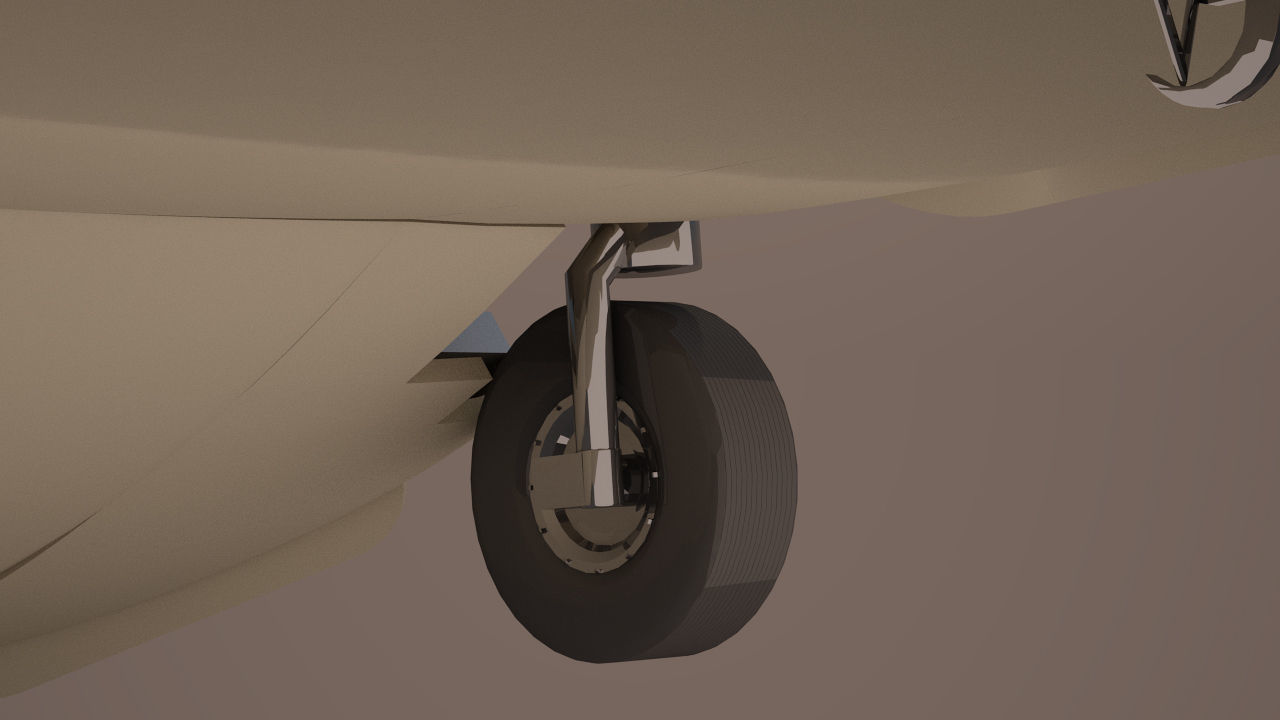

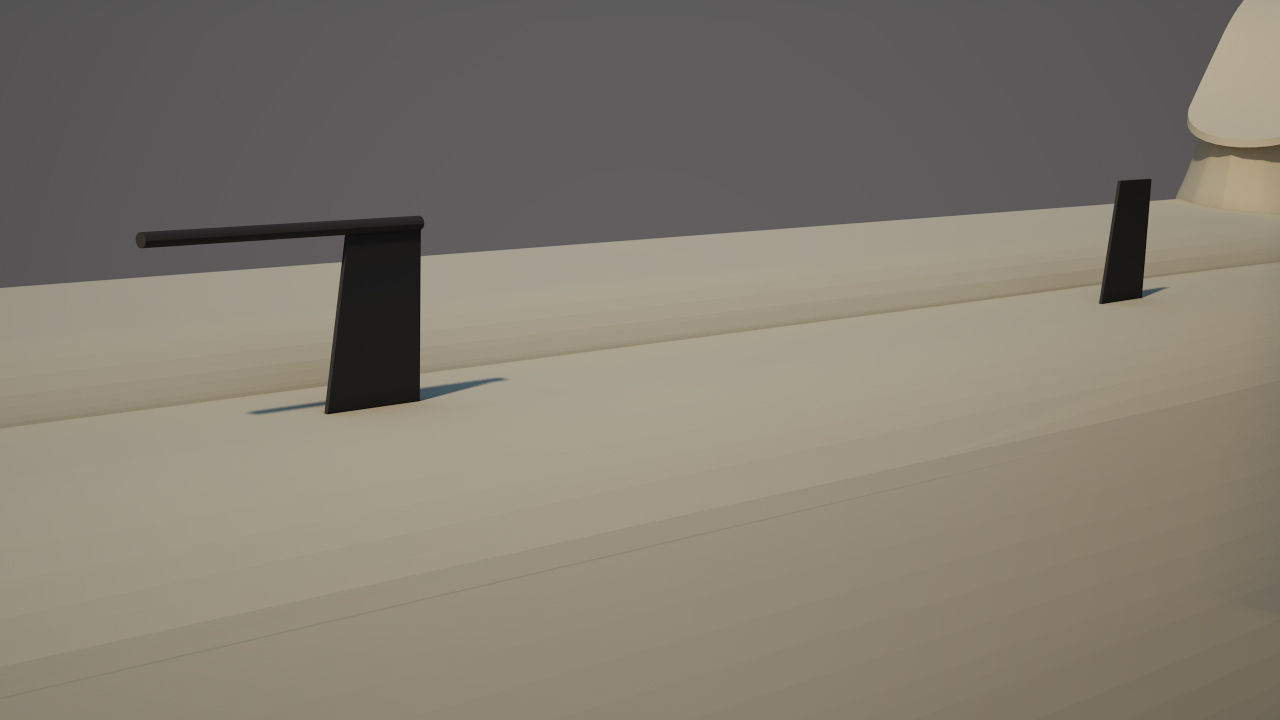

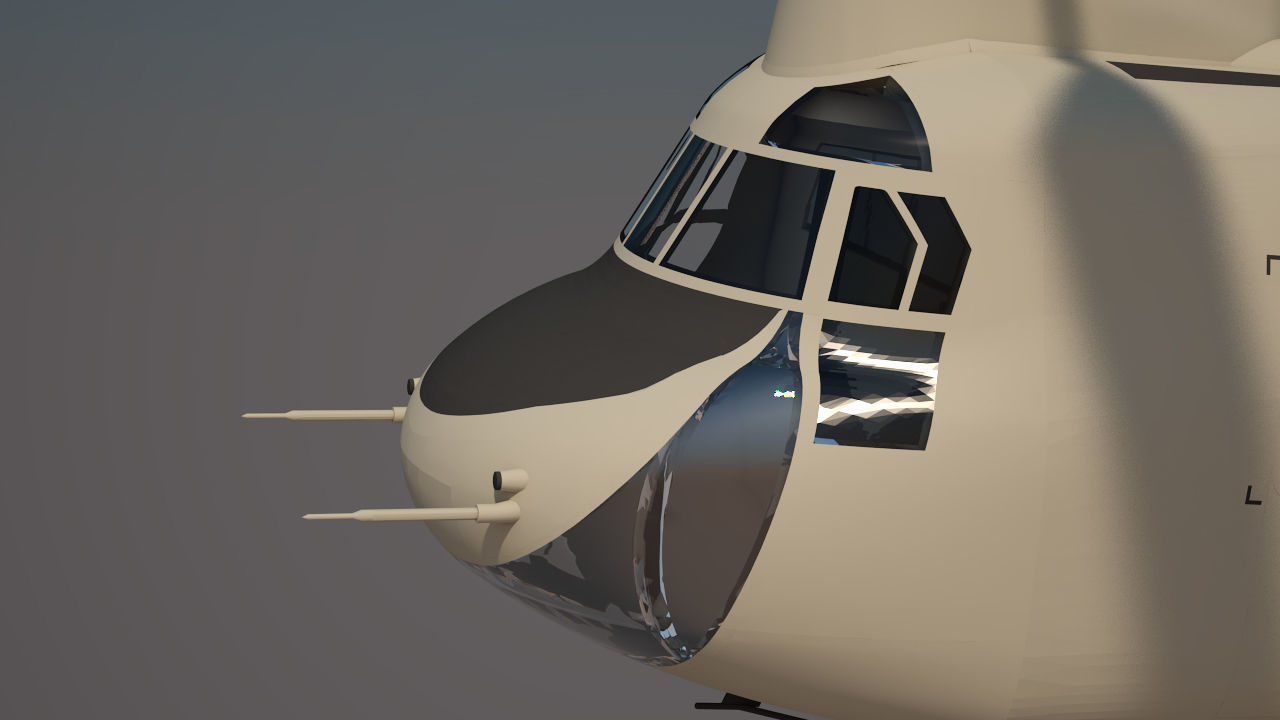

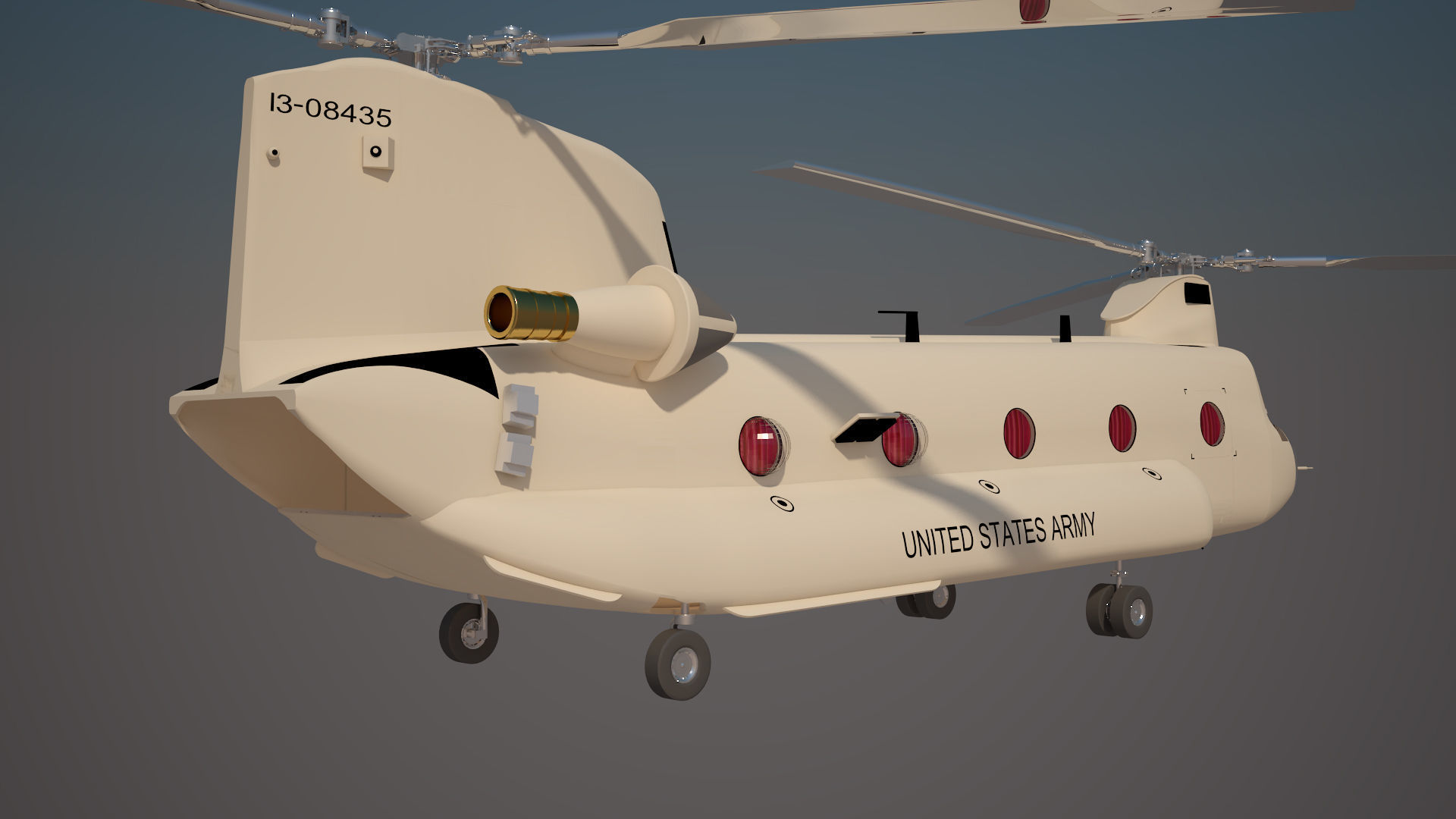

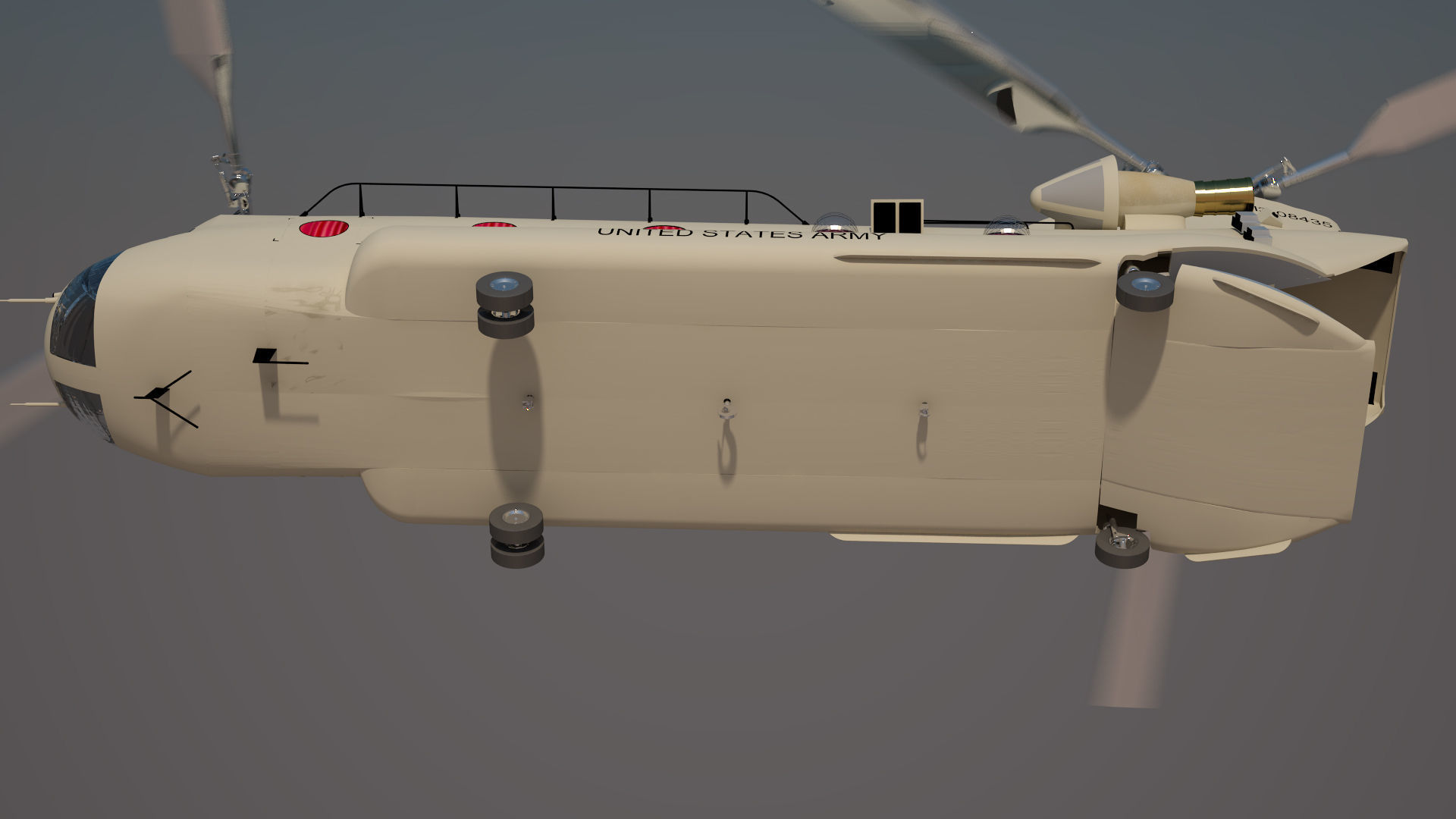

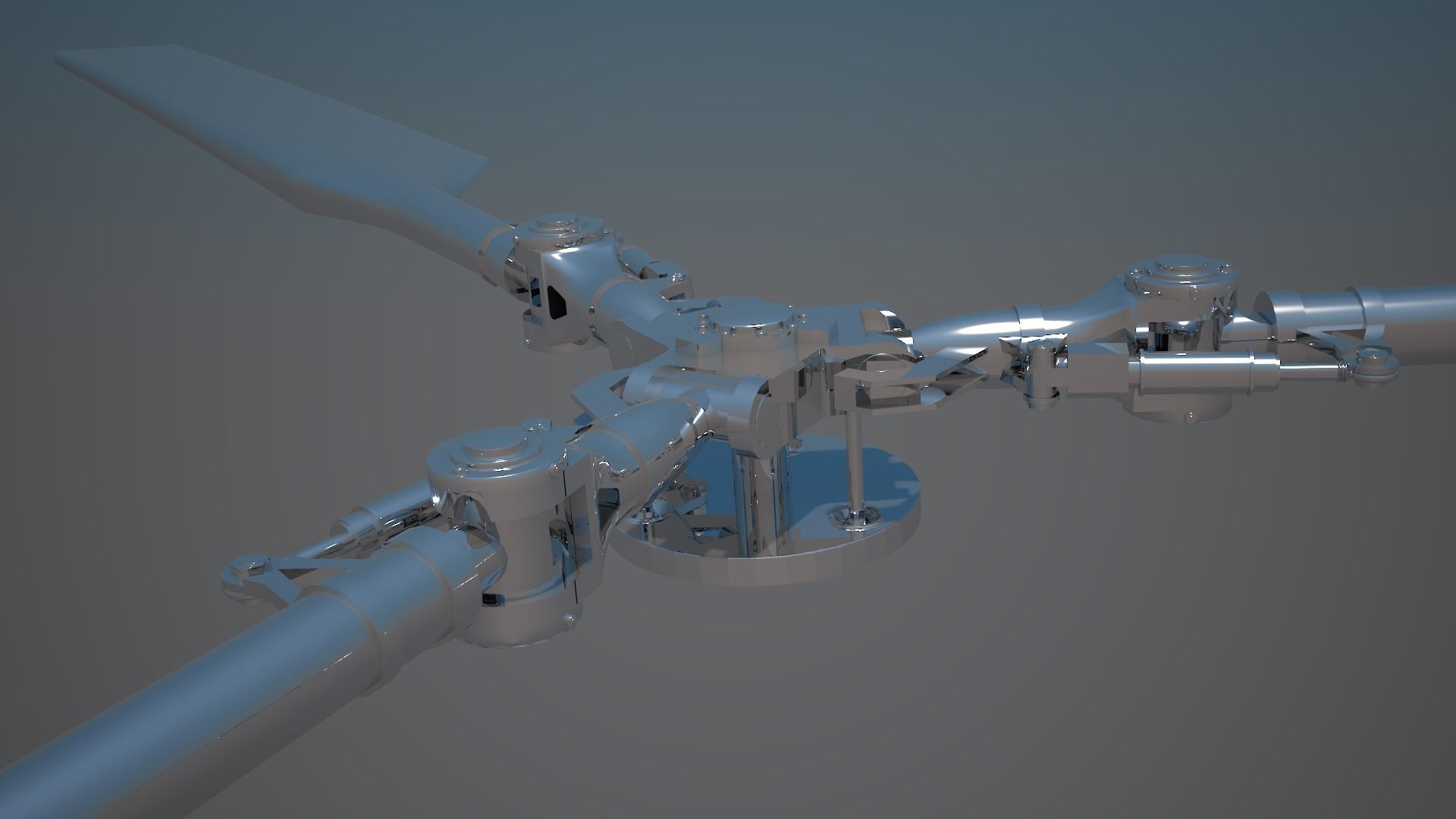

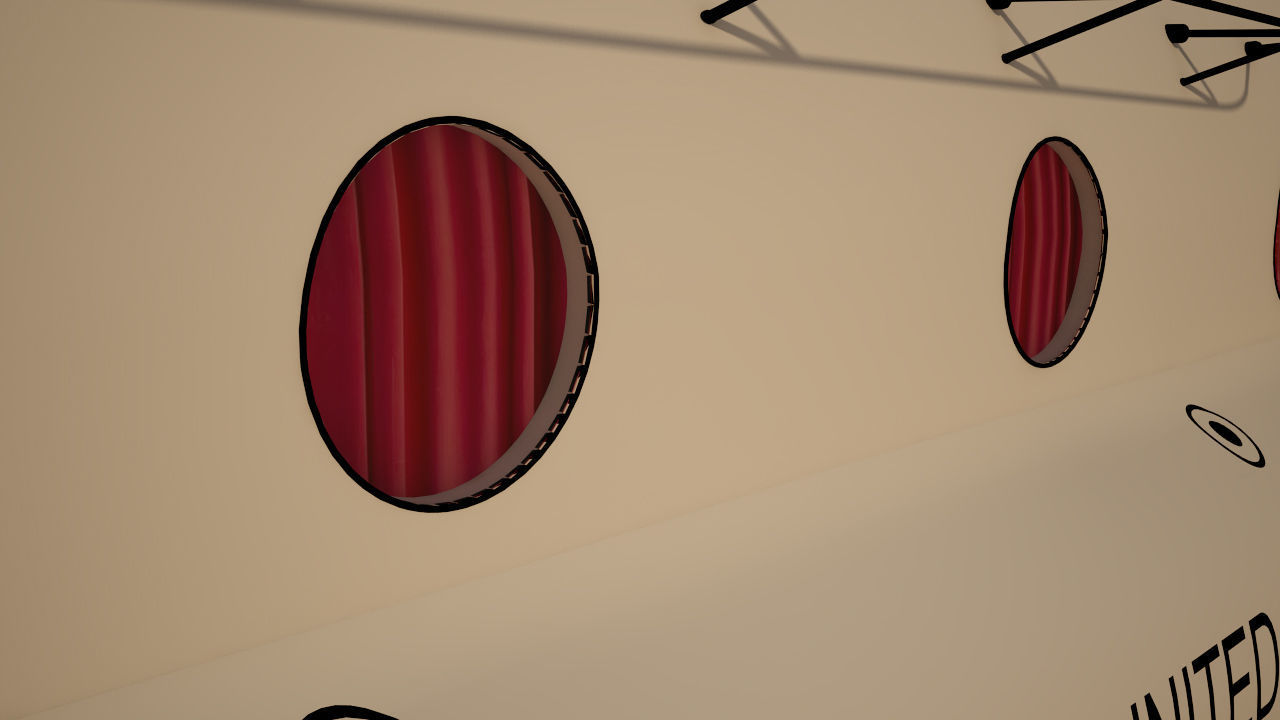

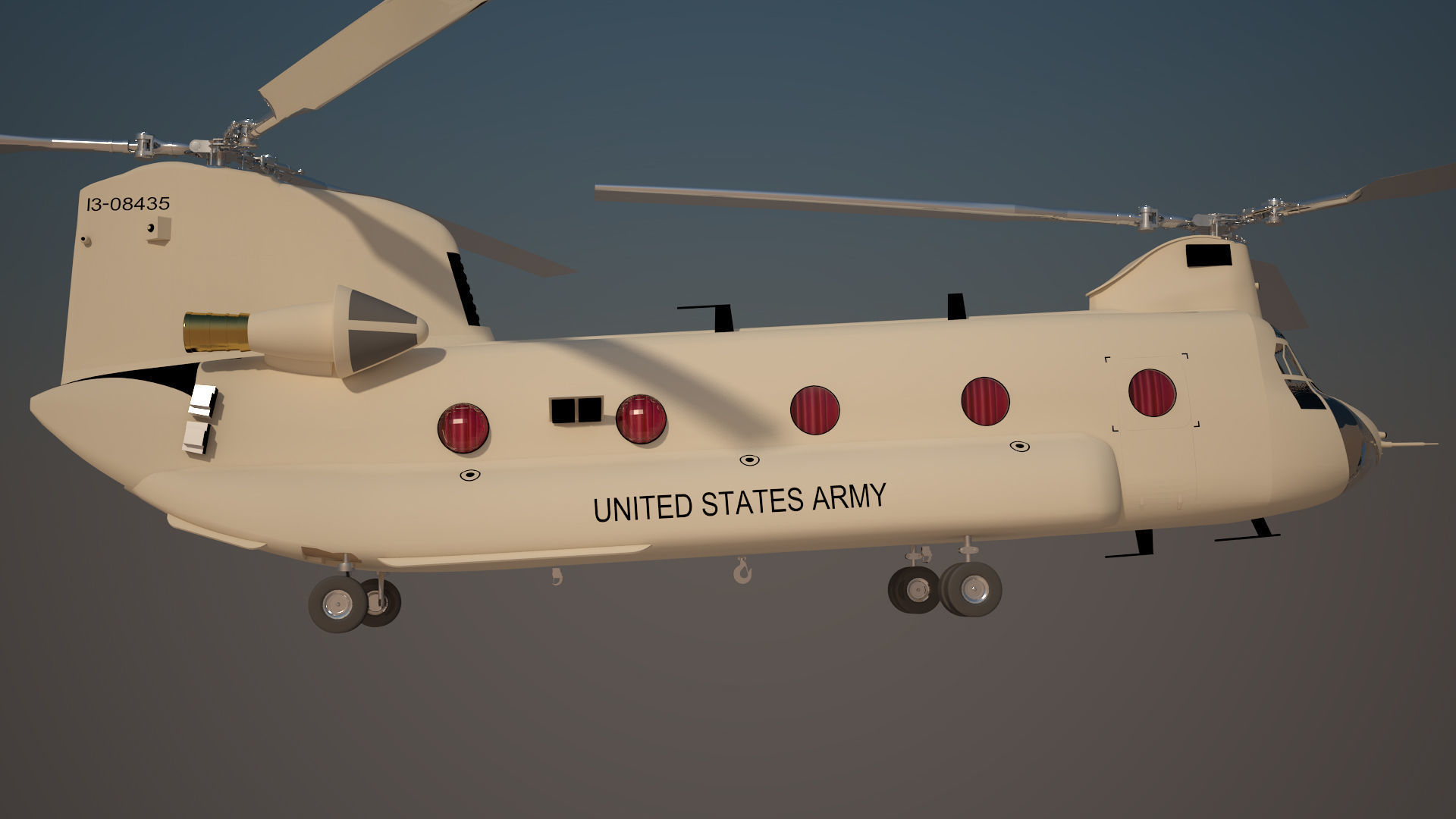

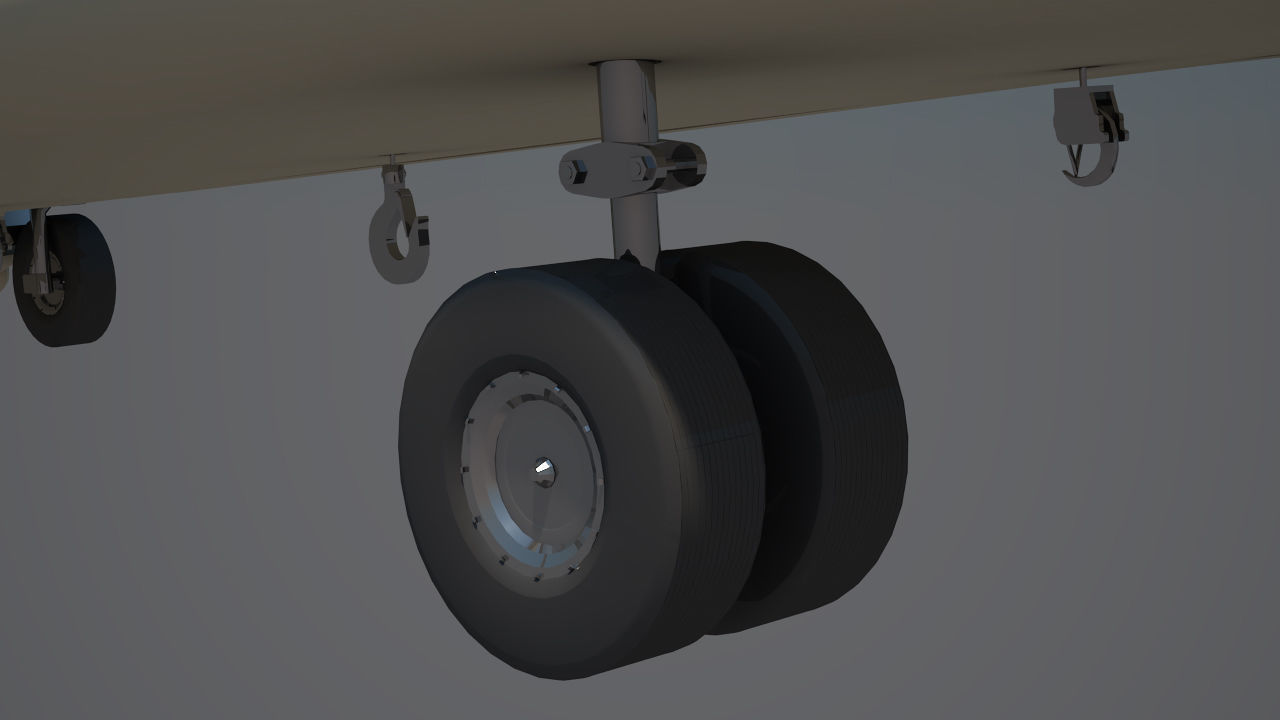

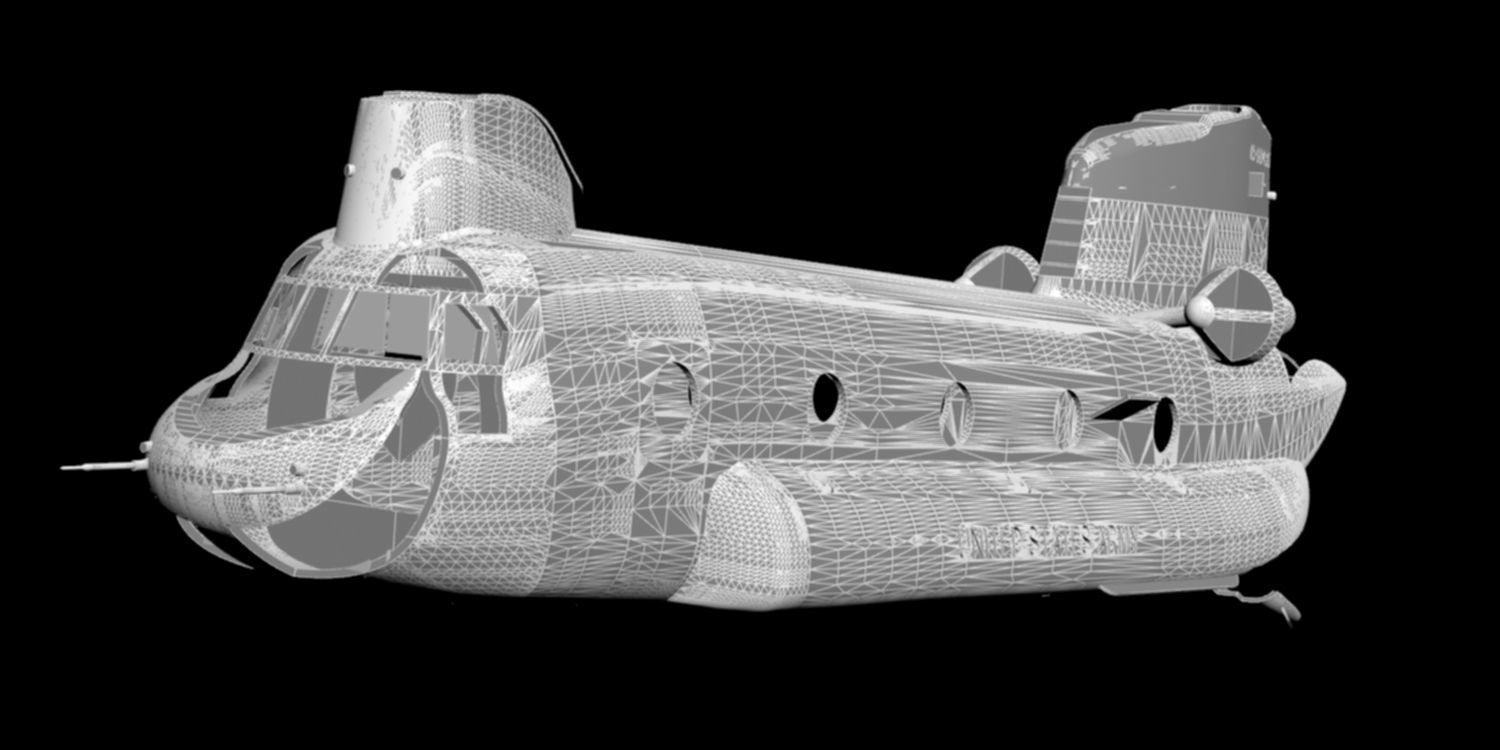

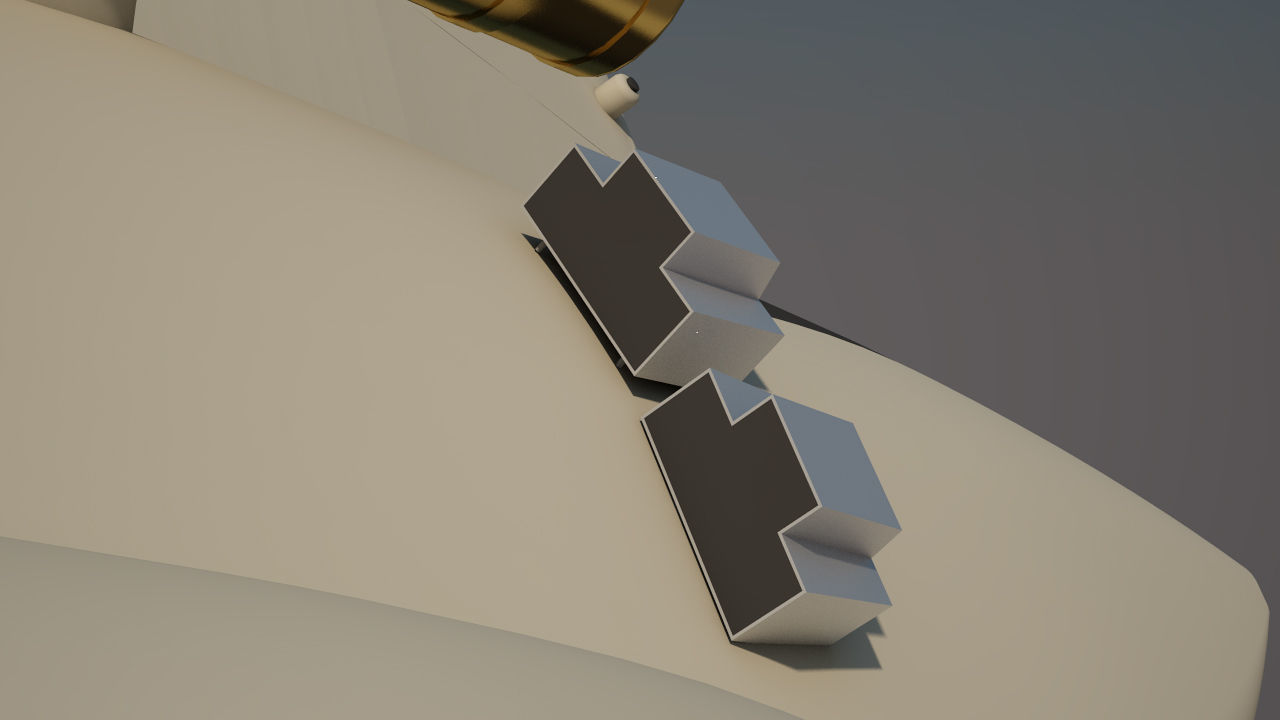

US Army Chinook CH 47 F 3D model

Description

US Army Chinook CH 47 FCAD + MAX + VRAYAll textures included.UV Mapped.

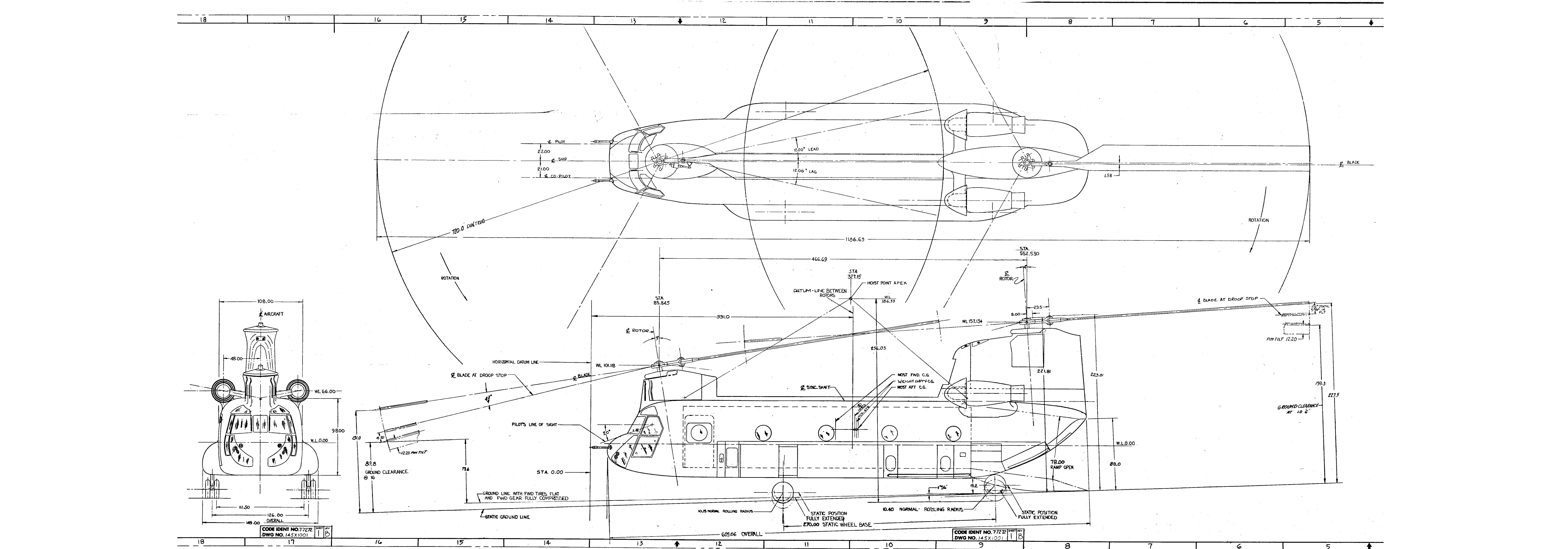

Modeled with General arragement reference drawings of boeing company.

Autocad 3d file attached, which can be imported toother softwares, aplly the material render / animation.

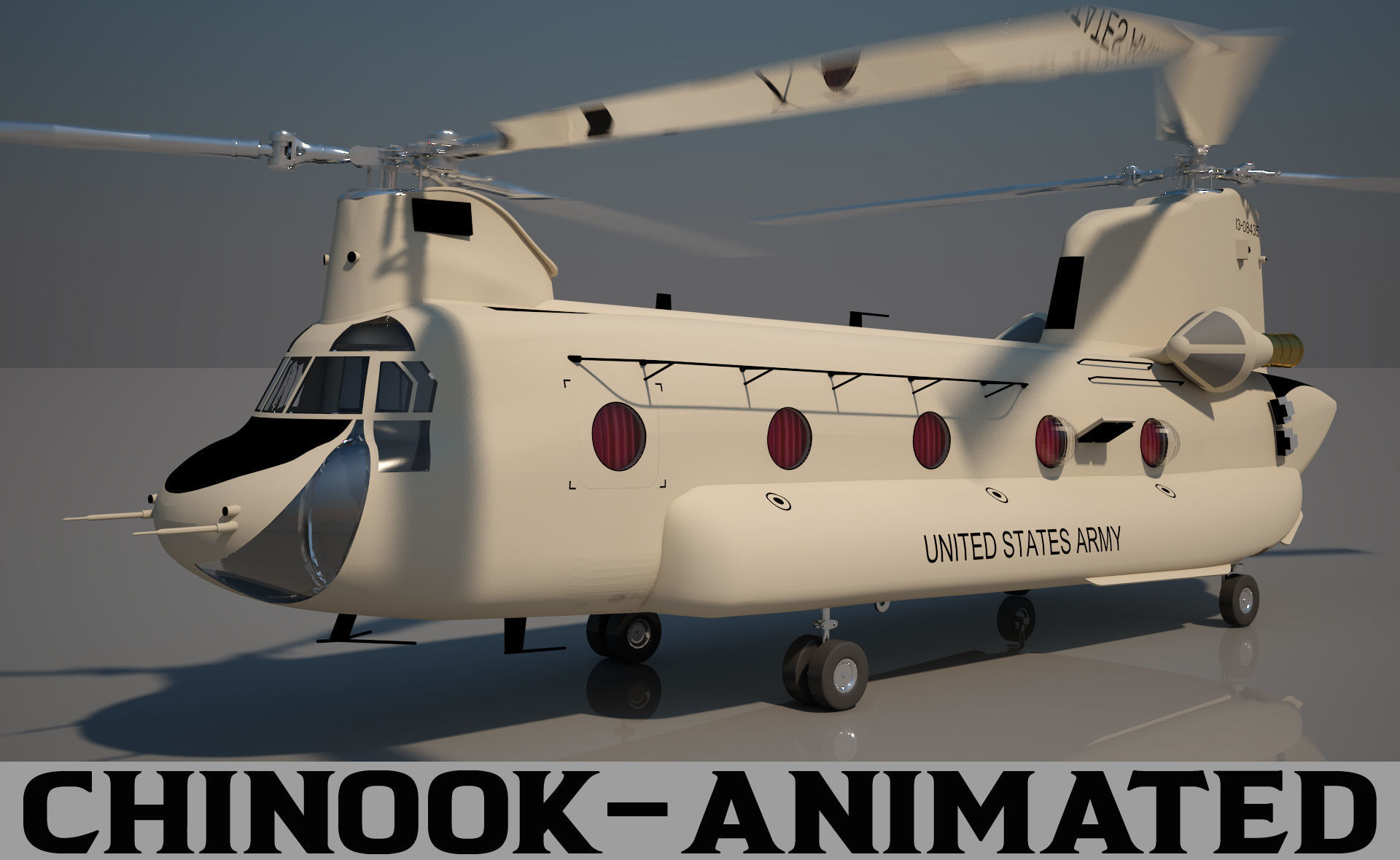

AnimationOnly max file is animated.Other formats are not animated

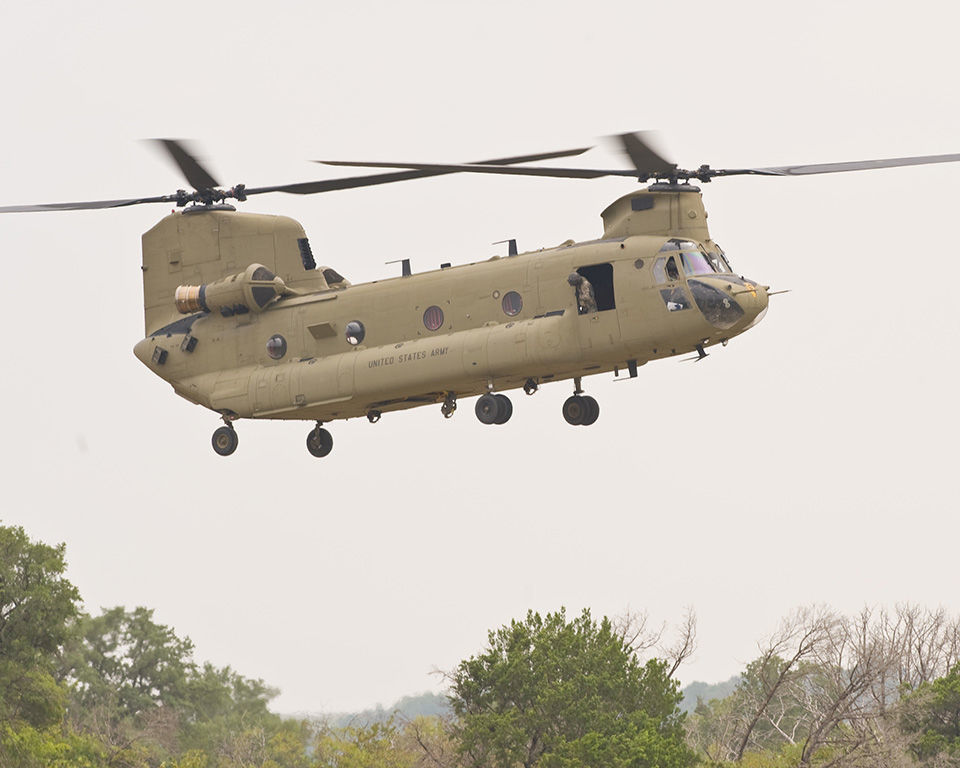

A Multi-role AircraftThe CH-47F is an advanced multi-mission helicopter for the U.S. Army and international defense forces. It contains a fully integrated, digital cockpit management system, Common Aviation Architecture Cockpit and advanced cargo-handling capabilities that complement the aircraft's mission performance and handling characteristics.

CH-47F Technical SpecificationsRotor Diameter 18.29 m (60 ft)Length with Rotors Operating 30.14 m (98 ft, 10.7 in)Fuselage 15.46 m (50 ft, 9 in)Height 5.68 m (18 ft, 7.8 in)Fuselage Width 3.78 m (12 ft, 5 in)Fuel Capacity 3914 liters (1034 gallons)Maximum Speed 302 km/h (170 KTAS)Cruise Speed 291 km/h (157 KTAS)Mission Radius 200 nm (370.4km)Service Ceiling 6,096 m (20,000 ft)Max Gross Weight 22,680 kg (50,000 lbs)Useful Load 24,000 lbs (10,886 kg)

Item rating
0 0
US Army Chinook CH 47 F
$150.00

Royalty Free License
US Army Chinook CH 47 F
$150.00

Royalty Free License
Response 67% in 5.9h

3D Model formats

Format limitations
Native

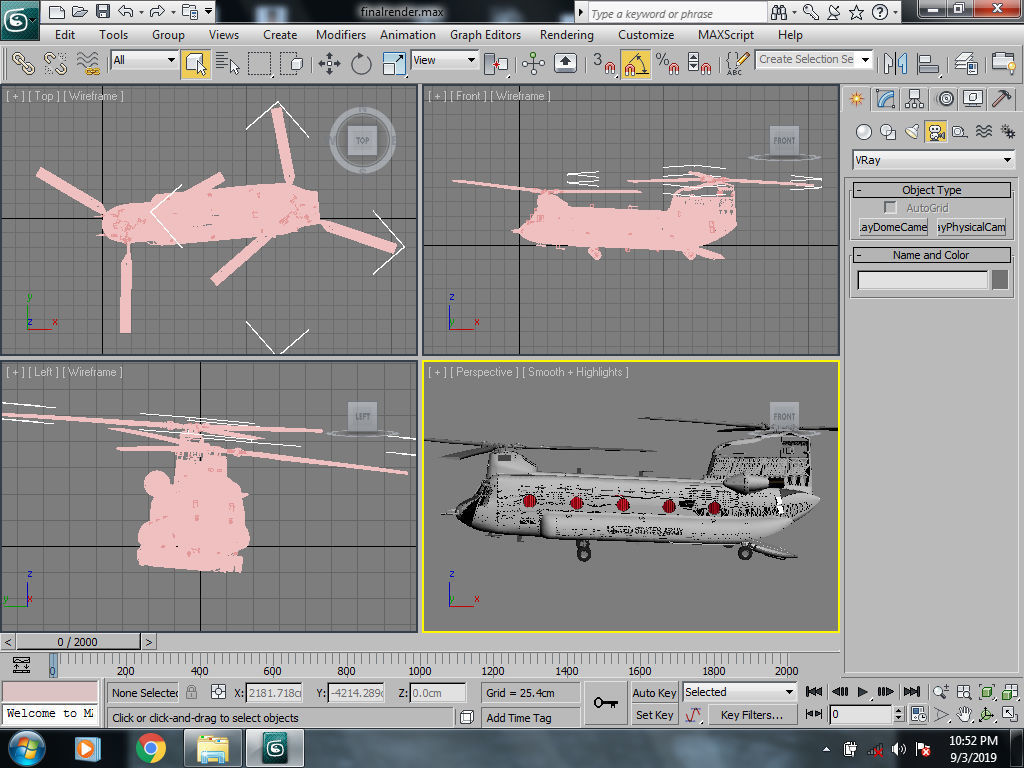

  • Autodesk 3ds Max (.max) (3 files)13.9 MBVersion: undefinedRenderer: V-Ray 2.40.03Version: 2010Renderer: V-Ray 2.40.03Version: 2010Renderer: V-Ray 2.40.03
Exchange
  • 3D Studio (.3ds) (2 files)7.28 MBVersion: 2010
  • mat (.mat) (9 files)69.9 MB
  • Collada (.dae) (2 files)16.7 MBVersion: 2010Version: 2010
  • Autodesk 3ds Max (.max) (3 files)13.9 MBVersion: undefinedRenderer: V-Ray 2.40.03Version: 2010Renderer: V-Ray 2.40.03Version: 2010Renderer: V-Ray 2.40.03
  • DXF 2010 (.dxf)25.8 MB
  • OBJ (.obj, .mtl)6.1 MB

3D Model details

  • Ready for 3D Printing
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR

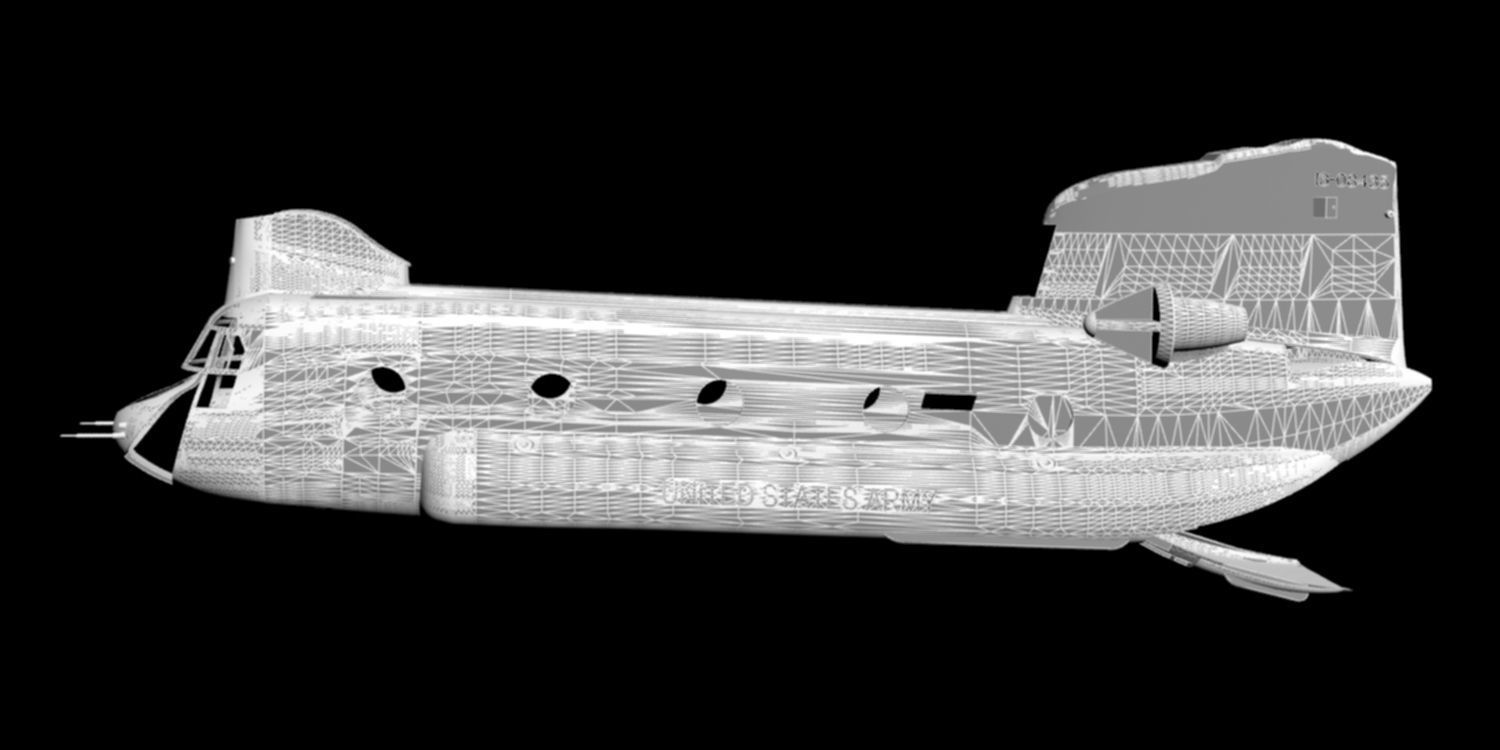

  • Geometry Polygon mesh
  • Polygons 294,656
  • Vertices 149,130
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Publish date2019-09-04
  • Model ID#2083448
