DRONE CHASSIS

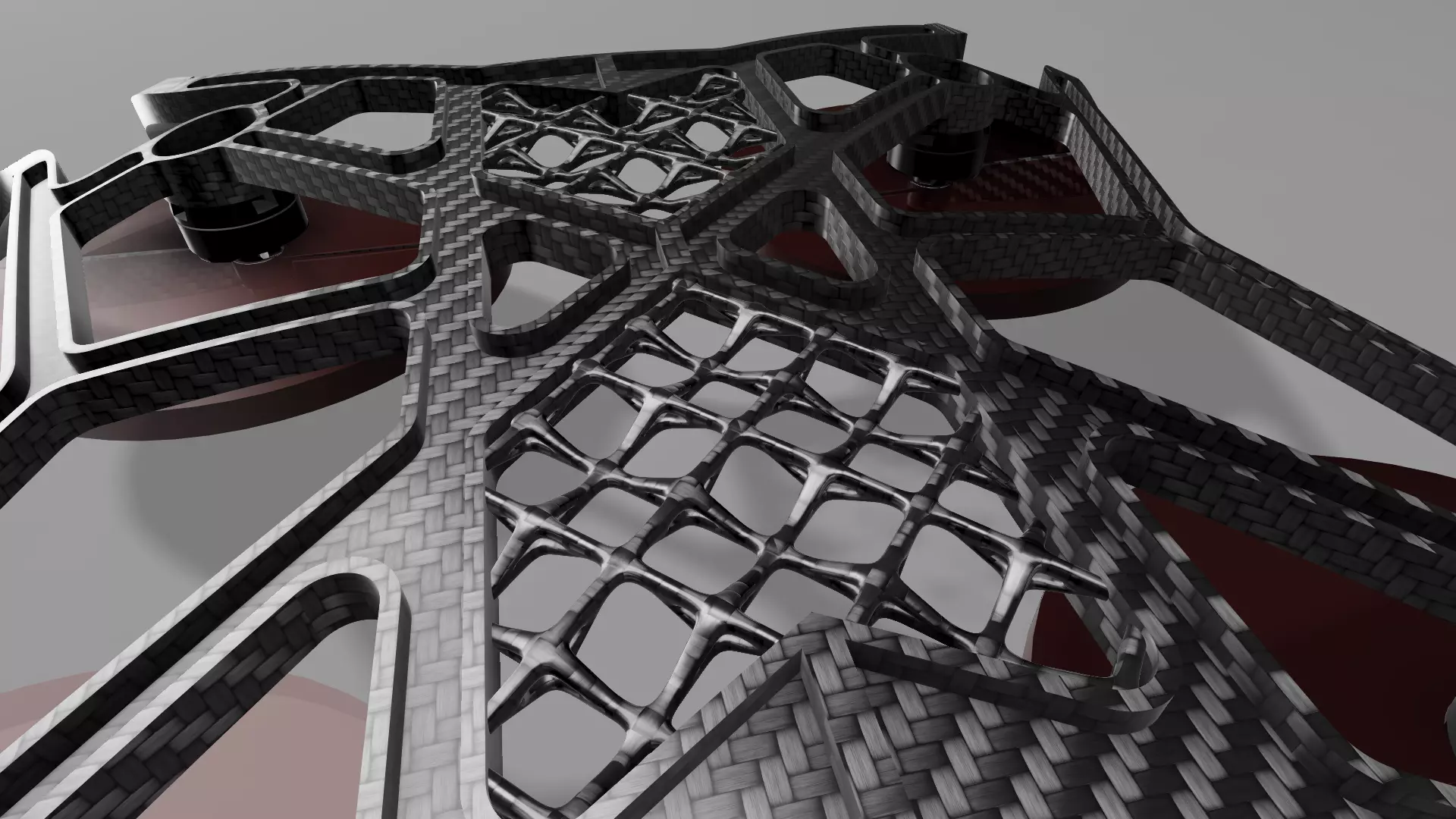

DRONE CHASSIS 3D model

Description

This model provides the fully functional and suitable industrial chassis required for drones. DRONE COMPONENT LIST: 4 motors (DYS 2250-2750 KV) 25 g/motors Flight controller 5 g (2) 4S 3.66 Ah LiPo batteries 105 g each ESC*4 15 g Controller RX Module/reciever 10 g FPV Camera/Servo 30 g Video TX Module 8 g ESTIMATED MASS: Drone Chassis mass>Equipment Weight ( Camera + FC+ FPV camera+ Video>AAD ( average amp draw ) The maximum discharge of the battery>Power to lift 1>Now by using the>Thrust ratio at 100 % throttle: As the total mass of the drone is 489 g From the DYS 2250-2750 KV data chart …. At 100% throttle for 4S battery at operated voltage of 14.8, Thrust for a 5*4*.5 STD propeller length by motor is 965.47 g Therefore for all four propeller thrust>Therefore the>

Item rating
0 0
DRONE CHASSIS
$45.00

Royalty Free License
DRONE CHASSIS
$45.00

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • Autodesk Fusion 360 (.f3d)33 MB

3D Model details

  • Publish date2021-03-03
  • Model ID#2902030
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Other
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
