CH-47J Chinook JASDF Complex Animation Low-poly 3D model

Realistic 3D model of Helicopter CH-47 Chinook Japan Air Self Defence Force

COMPLEX ANIMATION

Static and Basic Animation versions are not included and available as separate models (see my profile)

Included armament and/or equipment. Each available as separate models (see my profile):

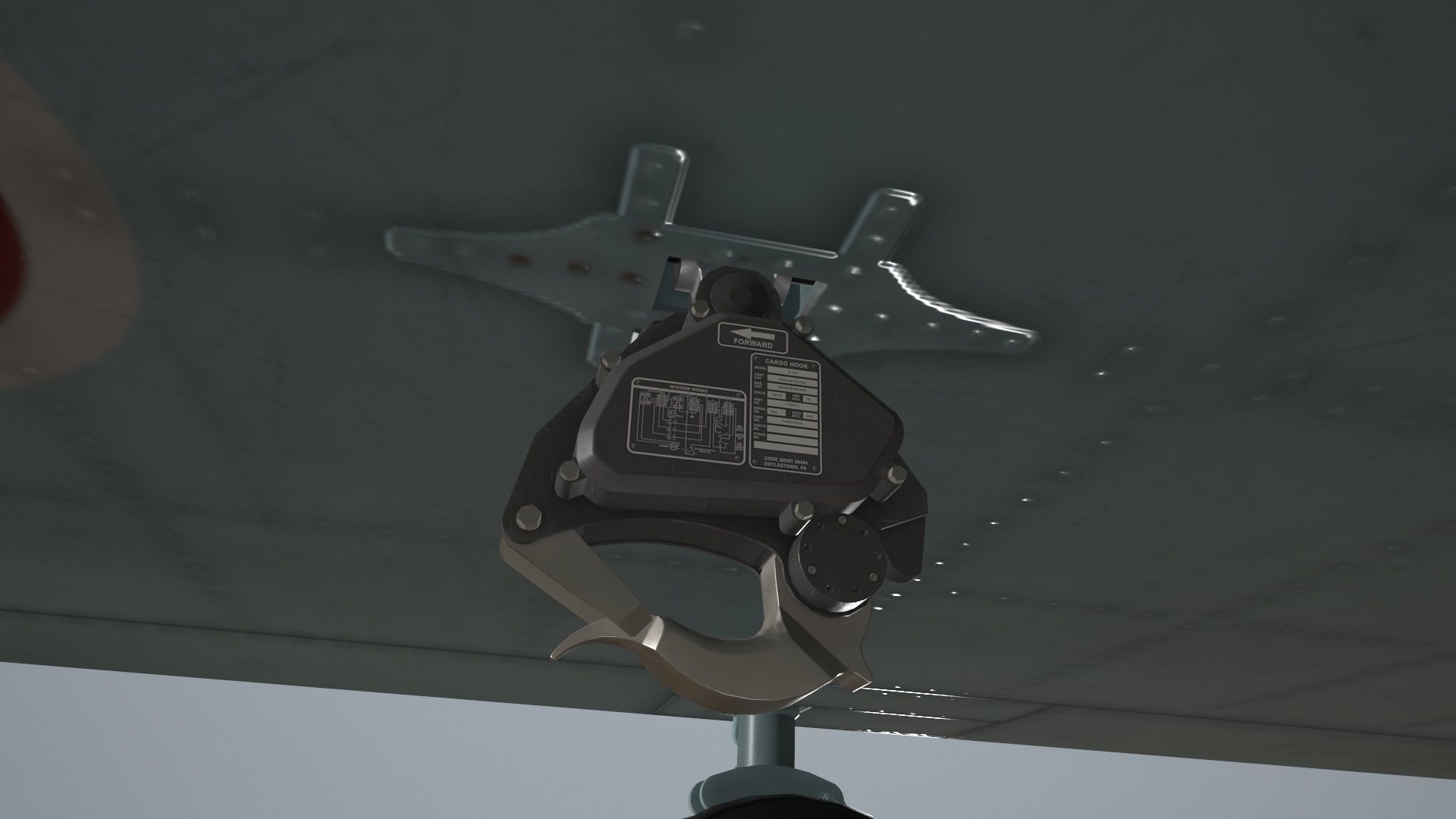

• Helicopter Cargo Hook
• Helicopter Cargo Hook C-160

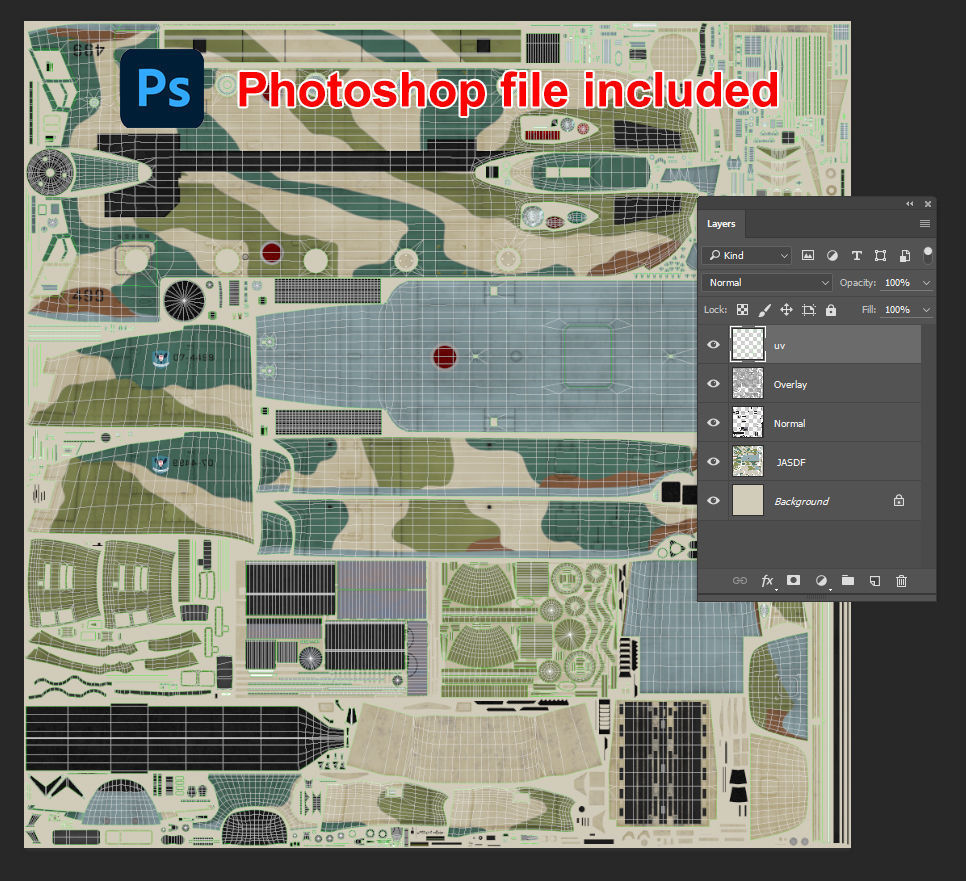

Photoshop file is available. You can easily create custom livery

File formats:

• 3ds Max 2021
• FBX
• Unity 2021.3.5f1

Poly count:

• 299.994 polys
• 564.186 tris
• 311.212 verts

Statistics:

• 233 meshes
• 9 materials
• 45 textures

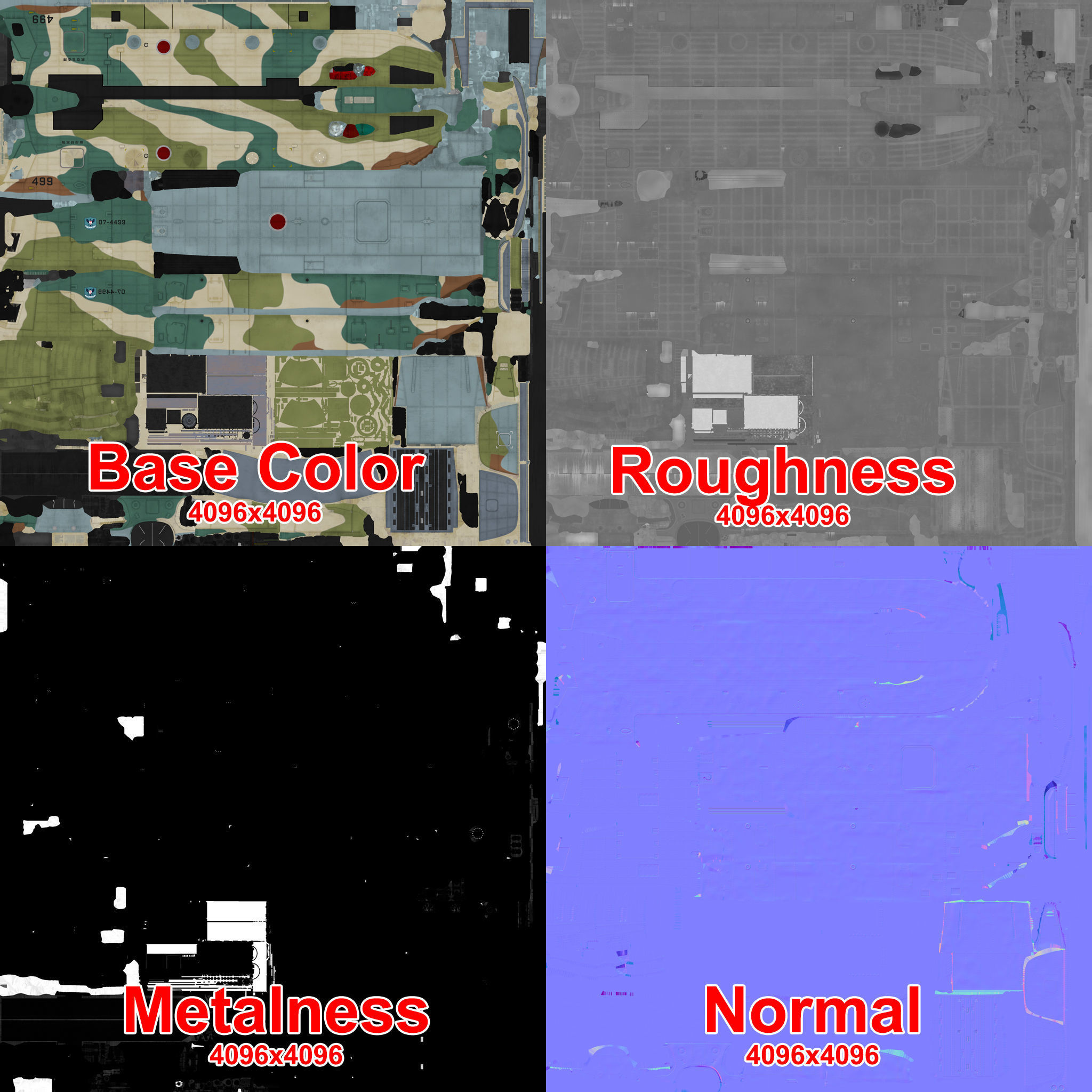

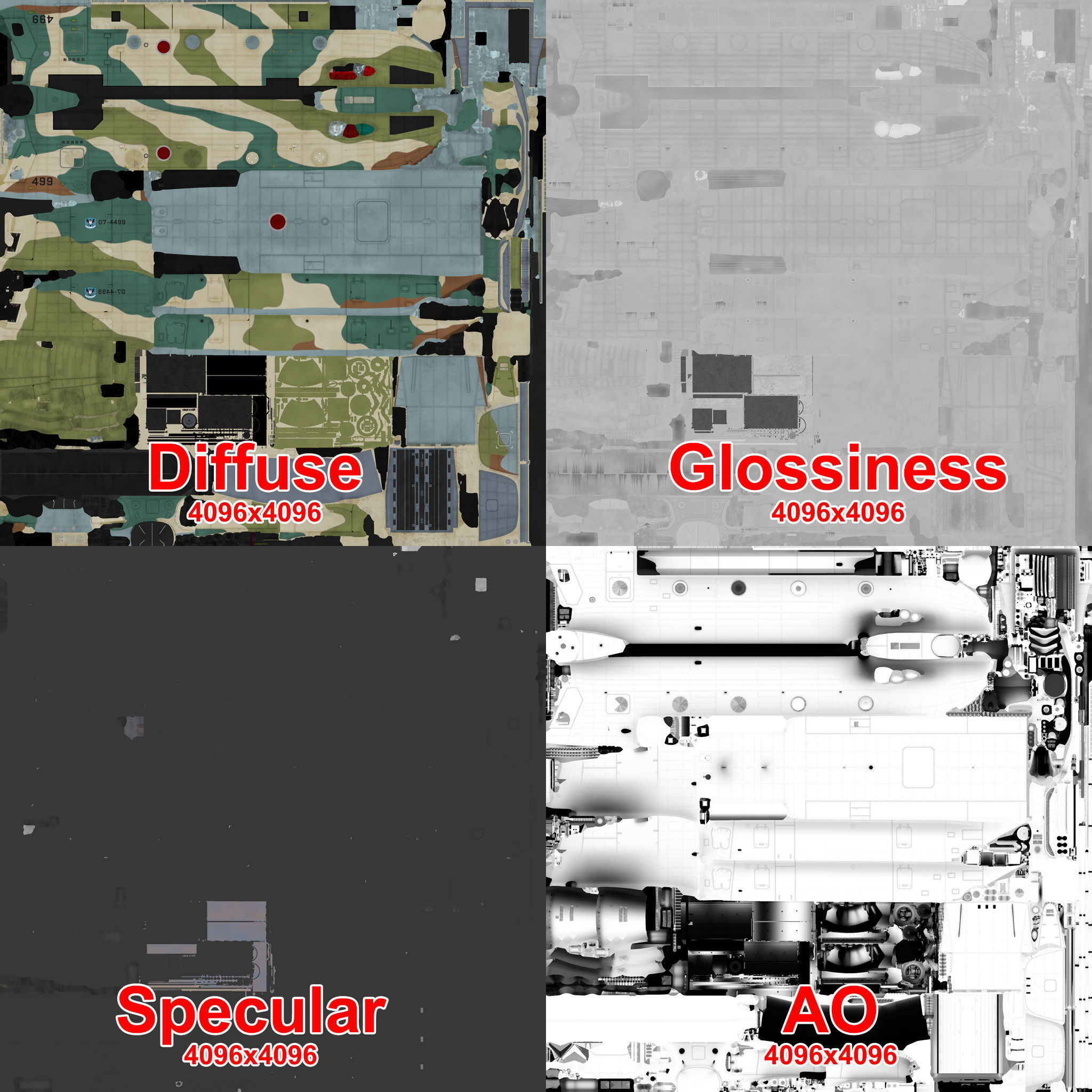

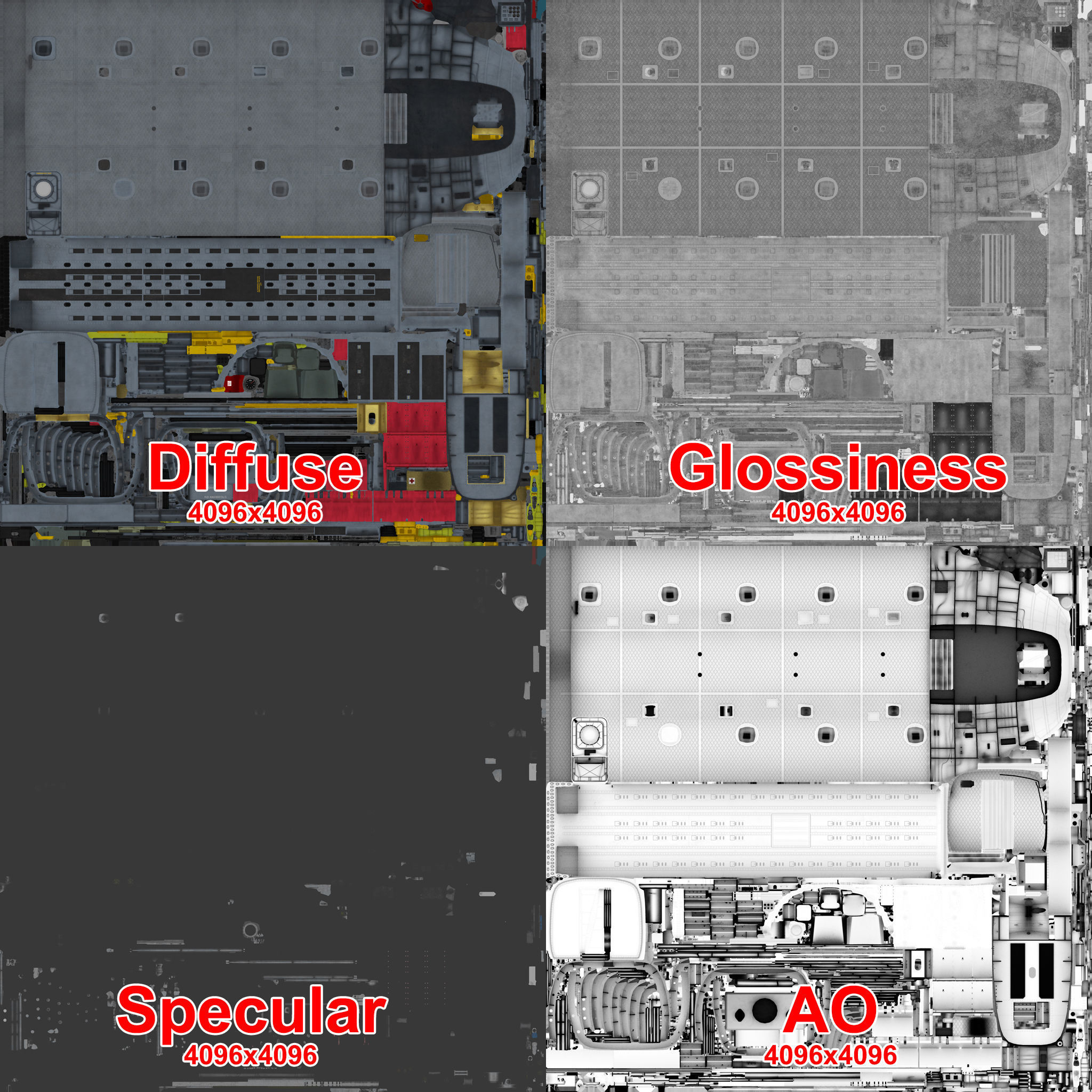

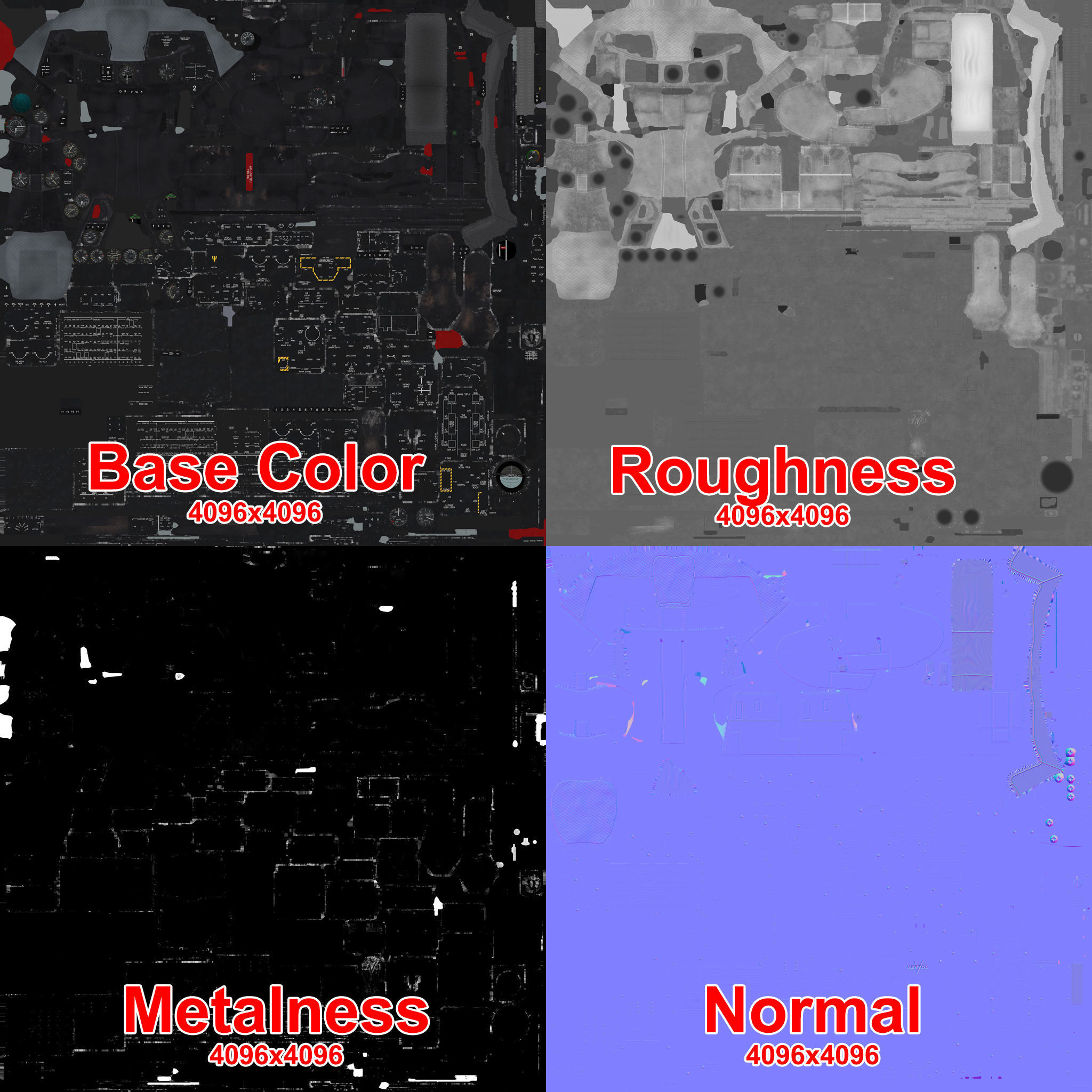

PBR textures are available for Specular-Glossiness and Metalness-Roughness workflows

Textures resolution:

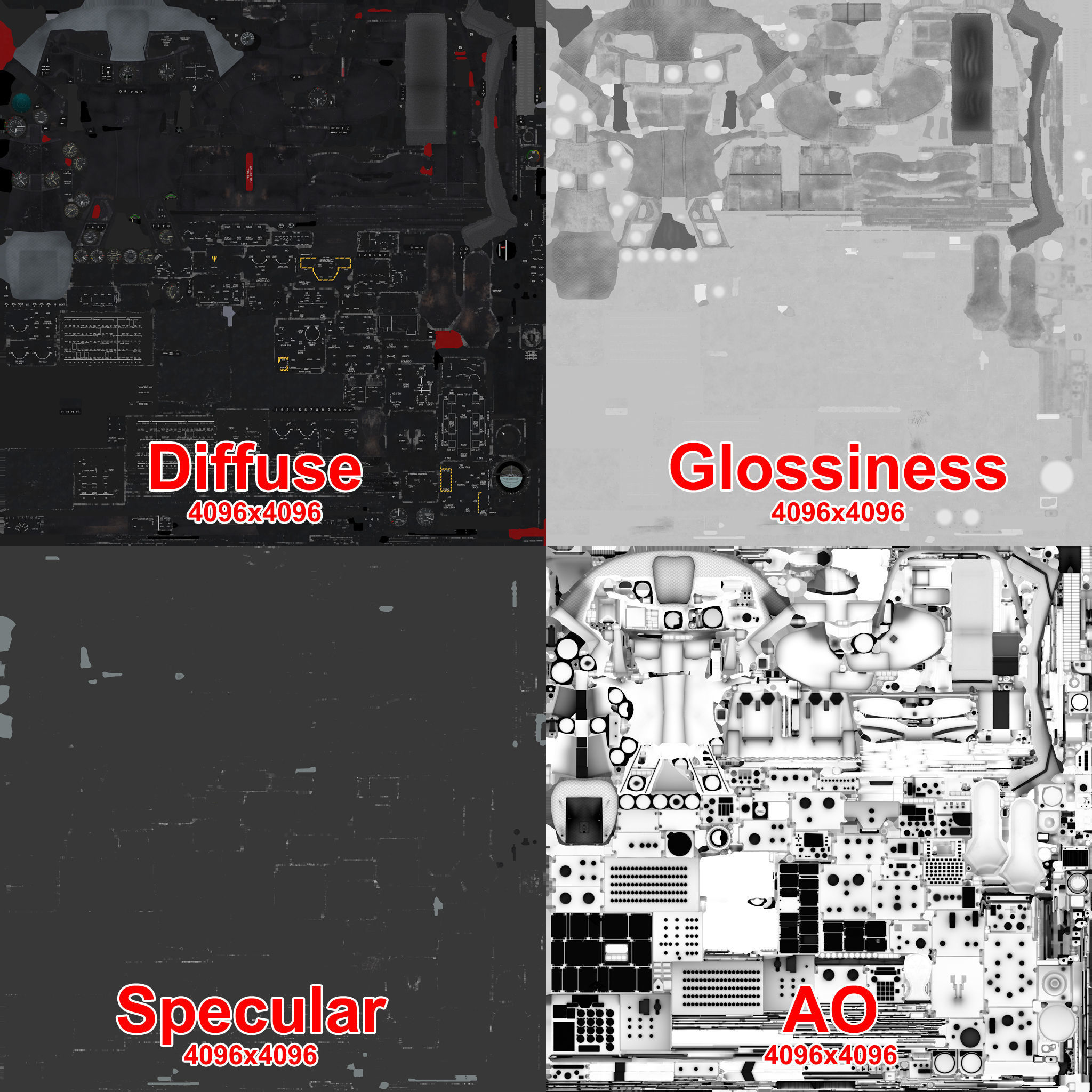

• 4096 x 4096 px for large objects (fuselage, cockpit, weapon)
• 256 x 256 px for small objects (cage, glass)

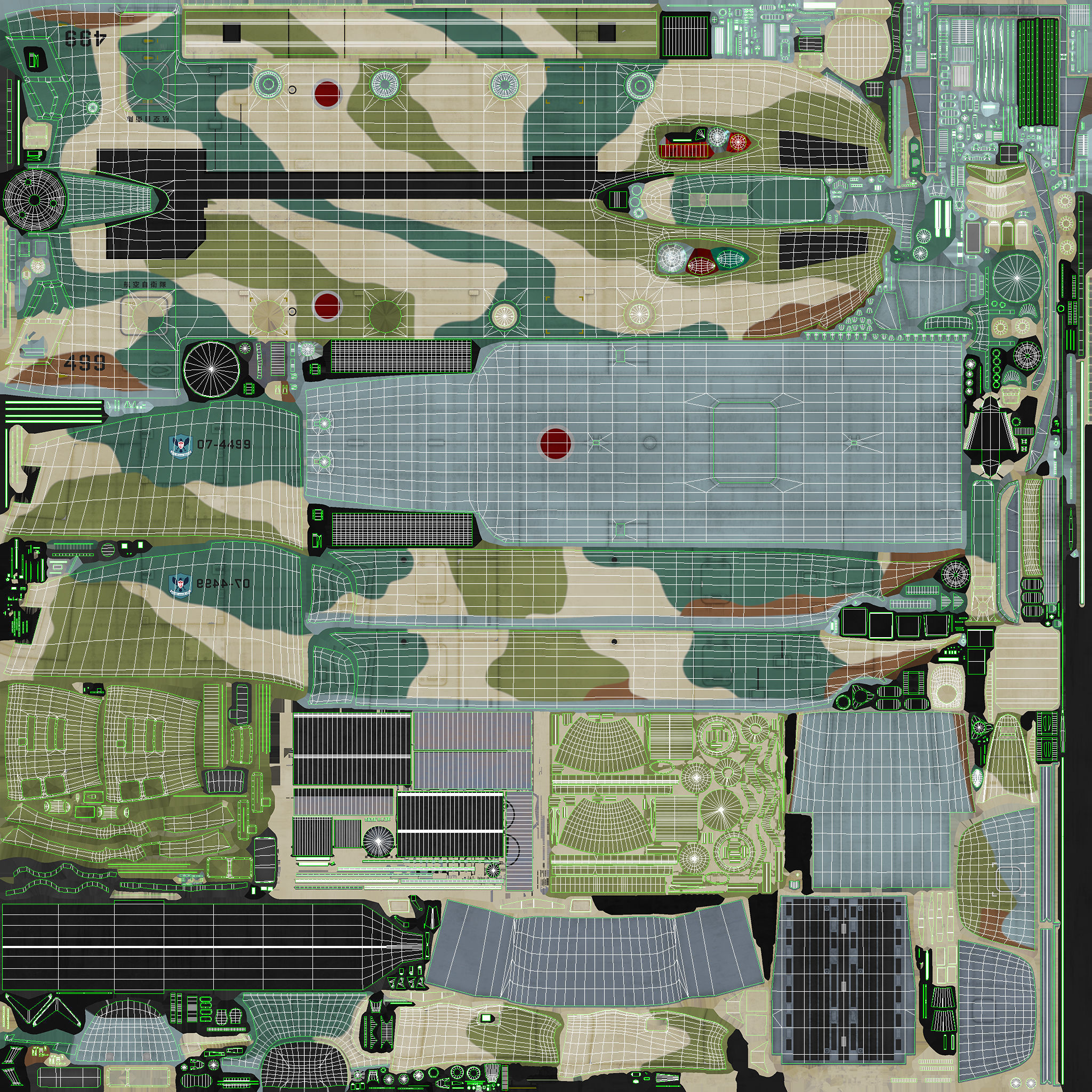

Textures list (*.PNG):

• Base Color
• Metallic
• Roughness
• Diffuse
• Specular
• Glossiness
• Normal
• Ambient Occlusion
• Opacity
• Emission

Animations count: 56

• Animation name : Frames
• Full_Animation : 0-200
• Rotor_Front_Rotate : 210-310
• Rotor_Front_Blurred_Rotate : 310-410
• Blades_Front_Bend : 420-470
• Blades_Front_Blurred_Bend : 480-530
• Rotor_Back_Rotate : 550-650
• Rotor_Back_Blurred_Rotate : 650-750
• Blades_Back_Bend : 760-810
• Blades_Back_Blurred_Bend : 820-870
• Door_Pilot_Left : 880-930
• Door_Pilot_Right : 940-990
• Door_Side_Top : 1000-1070
• Door_Side_Bottom : 1070-1140
• Door_Back_Top : 1150-1200
• Door_Back_Bottom : 1200-1300
• Back_Door_Ramp : 1300-1350
• Bottom_Hatch : 1360-1410
• Bottom_Hook_Rotate : 1410-1460
• Gear_Front_Left_Dump : 1470-1520
• Gear_Front_Right_Dump : 1530-1580
• Gear_Back_Left_Dump : 1590-1640
• Gear_Back_Right_Dump : 1650-1700
• Gears_Back_Turn_Left : 1710-1760
• Gears_Back_Turn_Right : 1770-1820
• Wheel_Front_Left_Rotate : 1830-1880
• Wheel_Front_Right_Rotate : 1880-1930
• Wheel_Back_Left : 1930-1980
• Wheel_Back_Right : 1980-2030
• Search_Light_Left : 2030-2080
• Search_Light_Right : 2090-2140
• Navi_Lights_On : 2150-2160
• Search_Light_Left_On : 2160-2170
• Search_Light_Right_On : 2170-2180
• Beacon_Bottom_On : 2180-2230
• Beacon_Top_On : 2230-2280
• Passenger_Seats_Fold : 2280-2290
• CoPilot_Pedal_Left : 2620-2670
• CoPilot_Pedal_Right : 2680-2730
• Pilot_Pedal_Left : 2740-2790
• Pilot_Pedal_Right : 2800-2850
• CoPilot_Cyclic_Forward : 2860-2910
• CoPilot_Cyclic_Backward : 2920-2970
• CoPilot_Cyclic_Left : 2980-3030
• CoPilot_Cyclic_Right : 3040-3090
• Pilot_Cyclic_Forward : 3100-3150
• Pilot_Cyclic_Backward : 3160-3210
• Pilot_Cyclic_Left : 3220-3270
• Pilot_Cyclic_Right : 3280-3330
• CoPilot_Head_Down : 3340-3390
• CoPilot_Head_Up : 3400-3450
• CoPilot_Head_Left : 3460-3510
• CoPilot_Head_Right : 3520-3570
• Pilot_Head_Down : 3580-3630
• Pilot_Head_Up : 3640-3690
• Pilot_Head_Left : 3700-3750
• Pilot_Head_Right : 3760-3810

More information:

• The model has 100% Scale, placed in 0,0,0 coordinates and doesn't have rotations

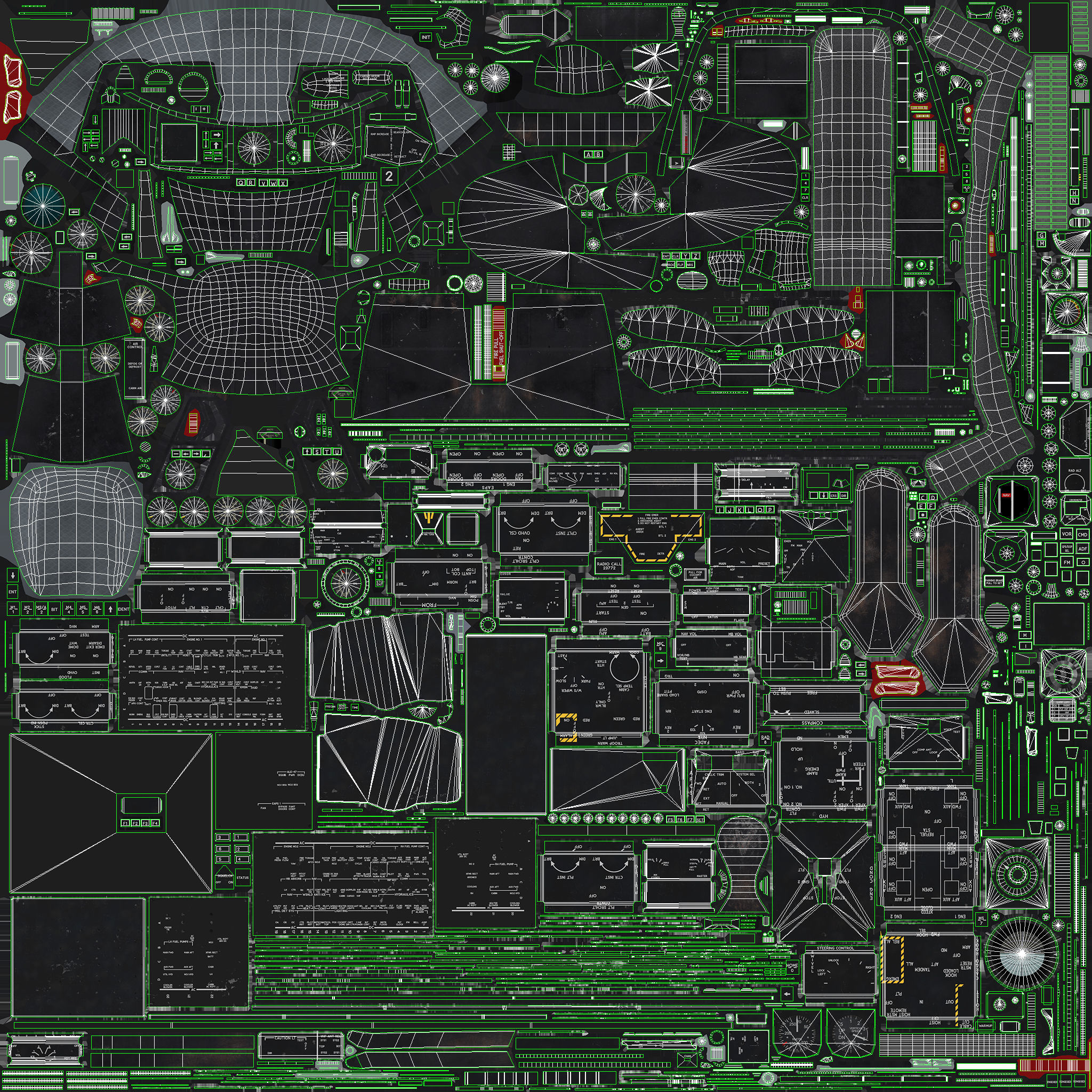

• All parts are fully UV unwraped. No multi-materials or color fills
• All parts and materials have logical names and ready for coding. (no names such as Object001 or Default - 01)
• Some identical parts have the same UV coordinates (overlapped). It saves textel resolution and does not affect on Ambient occlusion map (no black spots)

Originally created with 3ds Max 2021. No 3rd party plugins required.

Software used:

• 3ds Max 2021 for modeling
• RizomUV for unwrapping
• Photoshop and Substance Painter for texturing
• Marmoset Toolbag for rendering
