Apache AH-64D Japan Ground Self-Defense Force Complex Animation Low-poly 3D model

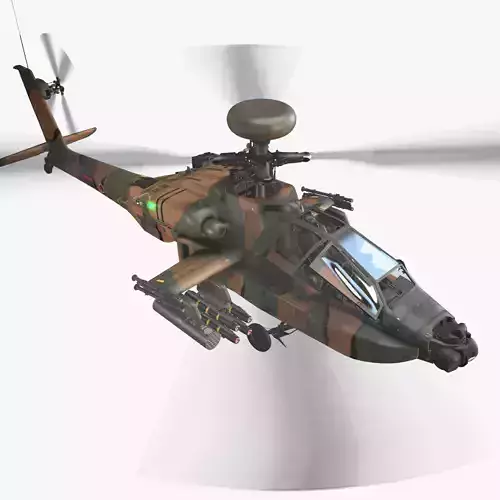

Realistic 3d model of Helicopter Apache AH-64D JGSDF livery

COMPLEX ANIMATION

Static and Basic Animation versions are not included and available as separate models (see my profile)

Included armament and/or equipment. Each available as separate models (see my profile):

• Helicopter Fuel Tank 120L
• Missile AGM-114 Hellfire X2
• Missile AGM-114 Hellfire X4
• Launcher M-260
• Launcher M-261
• AIM-9 Sidewinder Missile
• M230 Chain Gun
• AIM-92 Stinger Launcher
• Aircraft M130 Flares Dispenser

Photoshop file is available. You can easily create custom livery

File formats:

• 3ds Max 2021
• FBX
• Unity 2021.3.5f1

Poly count:

• 250.005 polys
• 462.013 tris
• 253.387 verts

Statistics:

• 329 meshes
• 8 materials
• 41 textures

PBR textures are available for Specular-Glossiness and Metalness-Roughness workflows

Textures resolution:

• 4096 x 4096 px for large objects (fuelage, cockpit)
• 256 x 256 px for small objects (cage)

Textures list (*.PNG):

• Base Color
• Metallic
• Roughness
• Diffuse
• Specular
• Glossiness
• Normal
• Ambient Occlusion
• Opacity
• Emission

Animations count: 46

• Animation name : Frames
• Full_Animation : 0-200
• Main_Rotor_Blades_Bend : 210-260
• Main_Rotor_Rotation : 270-370
• Main_Rotor_Blades_Blurred_Rotation : 380-480
• Tail_Rotor_Rotation : 490-590
• Tail_Rotor_Blurred_Rotation : 590-690
• Door_1_Open : 700-800
• Door_2_Open : 810-910
• Gear_Left_Dump : 920-970
• Gear_Right_Dump : 980-1030
• Gear_Back_Dump : 1040-1090
• Gear_Back_Rotation : 1100-1200
• Wheel_Left_Rotation : 1200-1250
• Wheel_Right_Rotation : 1250-1300
• Wheel_Back_Rotation : 1300-1350
• Stabilizer : 1350-1450
• Gun_Turn_Right : 1460-1510
• Gun_Turn_Left : 1520-1570
• Gun_Turn_Down : 1580-1630
• Gun_Turn_Up : 1640-1690
• Camera_Top_Turn_Right : 1700-1750
• Camera_Top_Turn_Left : 1760-1810
• Camera_Bottom_Turn_Right : 1820-1870
• Camera_Bottom_Turn_Left : 1880-1930
• Camera_Bottom_Turn_Down : 1940-1990
• Pilot_Cyclic_Forward : 2000-2050
• Pilot_Cyclic_Backward : 2060-2110
• Pilot_Cyclic_Left : 2120-2170
• Pilot_Cyclic_Right : 2180-2230
• Pilot_Collective_Up : 2240-2290
• Pilot_Pedal_Left : 2300-2350
• Pilot_Pedal_Right : 2360-2410
• Pilot_Head_Left : 2420-2470
• Pilot_Head_Right : 2480-2530
• Pilot_Head_Down : 2540-2590
• Pilot_Head_Up : 2600-2650
• Copilot_Handle_Left : 2660-2710
• Copilot_Handle_Right : 2720-2770
• Copilot_Head_Left : 2780-2830
• Copilot_Head_Right : 2840-2890
• Copilot_Head_Down : 2900-2950
• Copilot_Head_Up : 2960-3010
• Search_Light_Rotation : 3020-3070
• Search_Light_On : 3080-3090
• Navi_Lights_On : 3090-3100
• Screens_On : 3100-3110

More information:

• Game ready - perfectly fits for Unity and Unreal
• Low poly
• Real world scale
• Units used: meters
• The model has 100% Scale, placed in 0,0,0 coordinates and doesn't have rotations
• All parts are fully UV unwraped. No multi-materials or color fills
• All parts and materials have logical names and ready for coding. (no names such as Object001 or Default - 01)
• Some identical parts have the same UV coordinates (overlapped). It saves textel resolution and does not affect on Ambient occlusion map (no black spots)

Originally created with 3ds Max 2021. No 3rd party plugins required.

Software used:

• 3ds Max 2021 for modeling
• RizomUV for unwrapping
• Photoshop and Substance Painter for texturing
• Marmoset Toolbag for rendering
