Raptor Engine

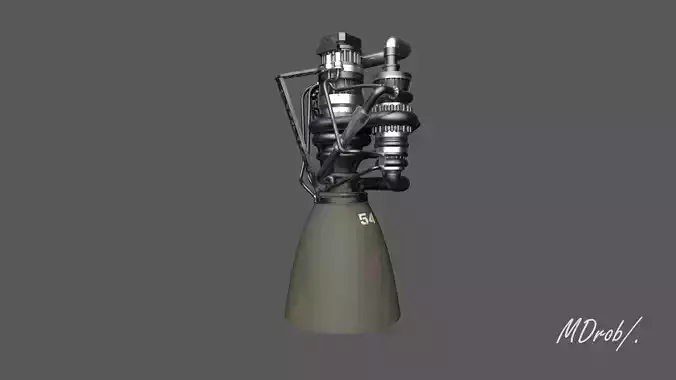

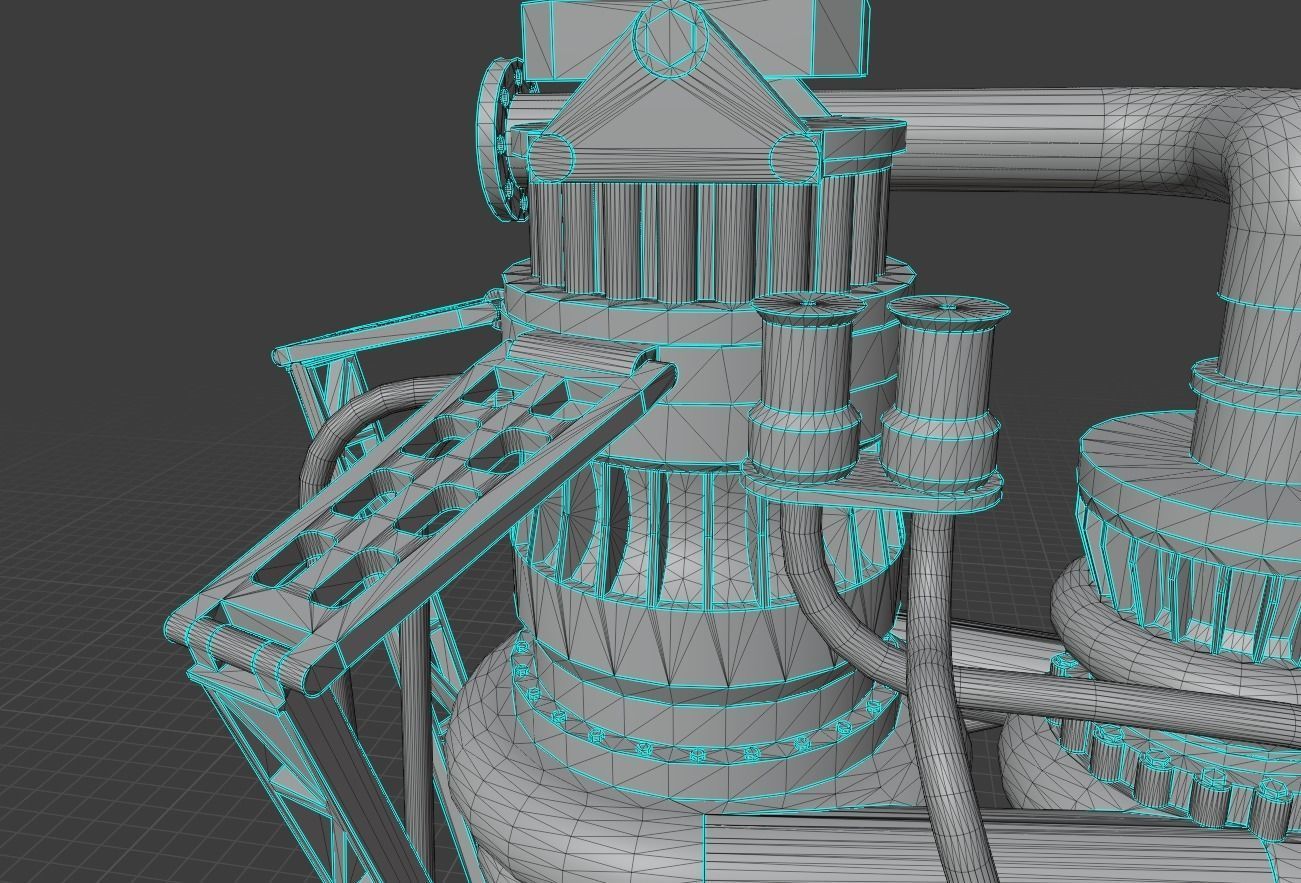

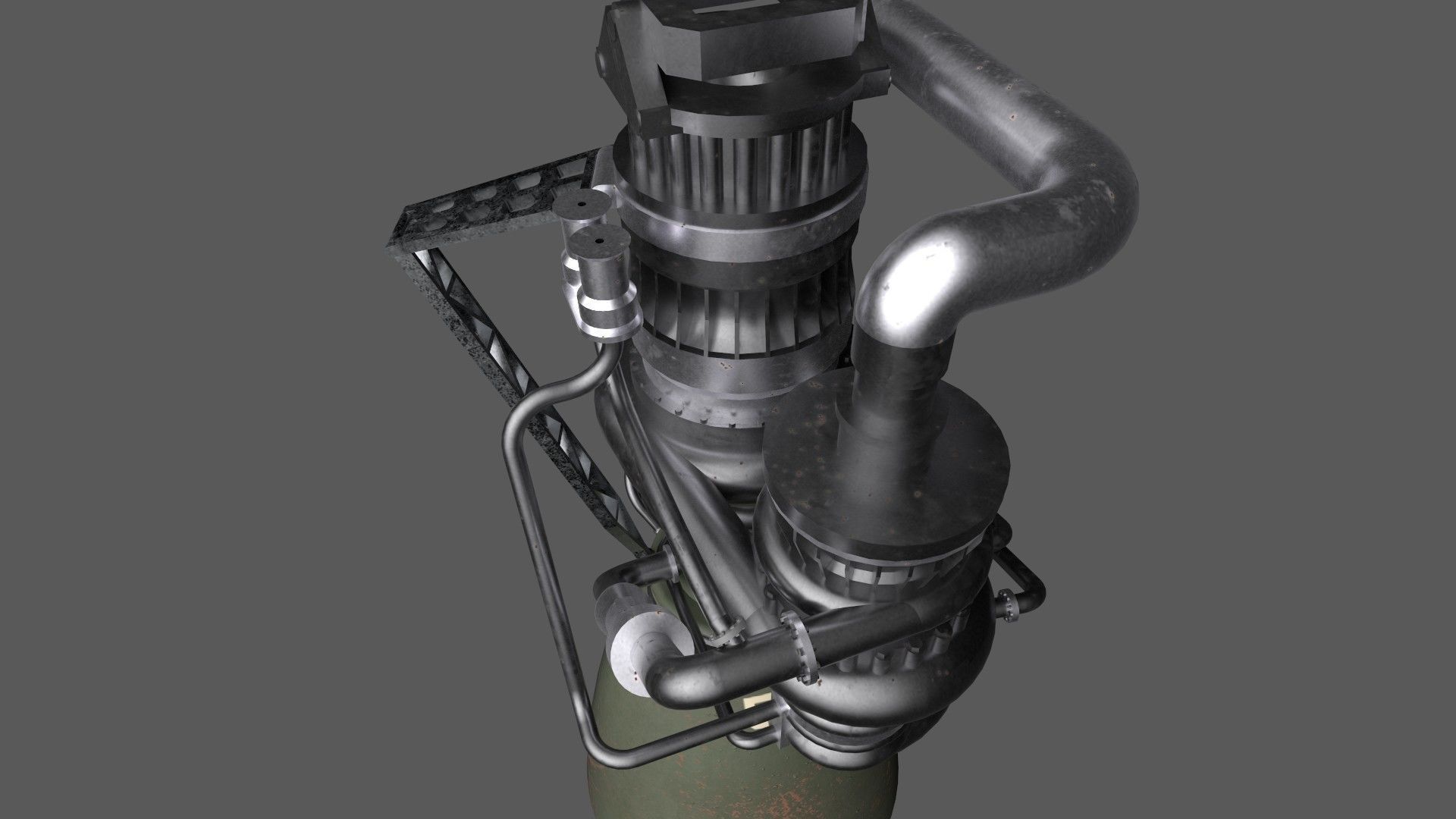

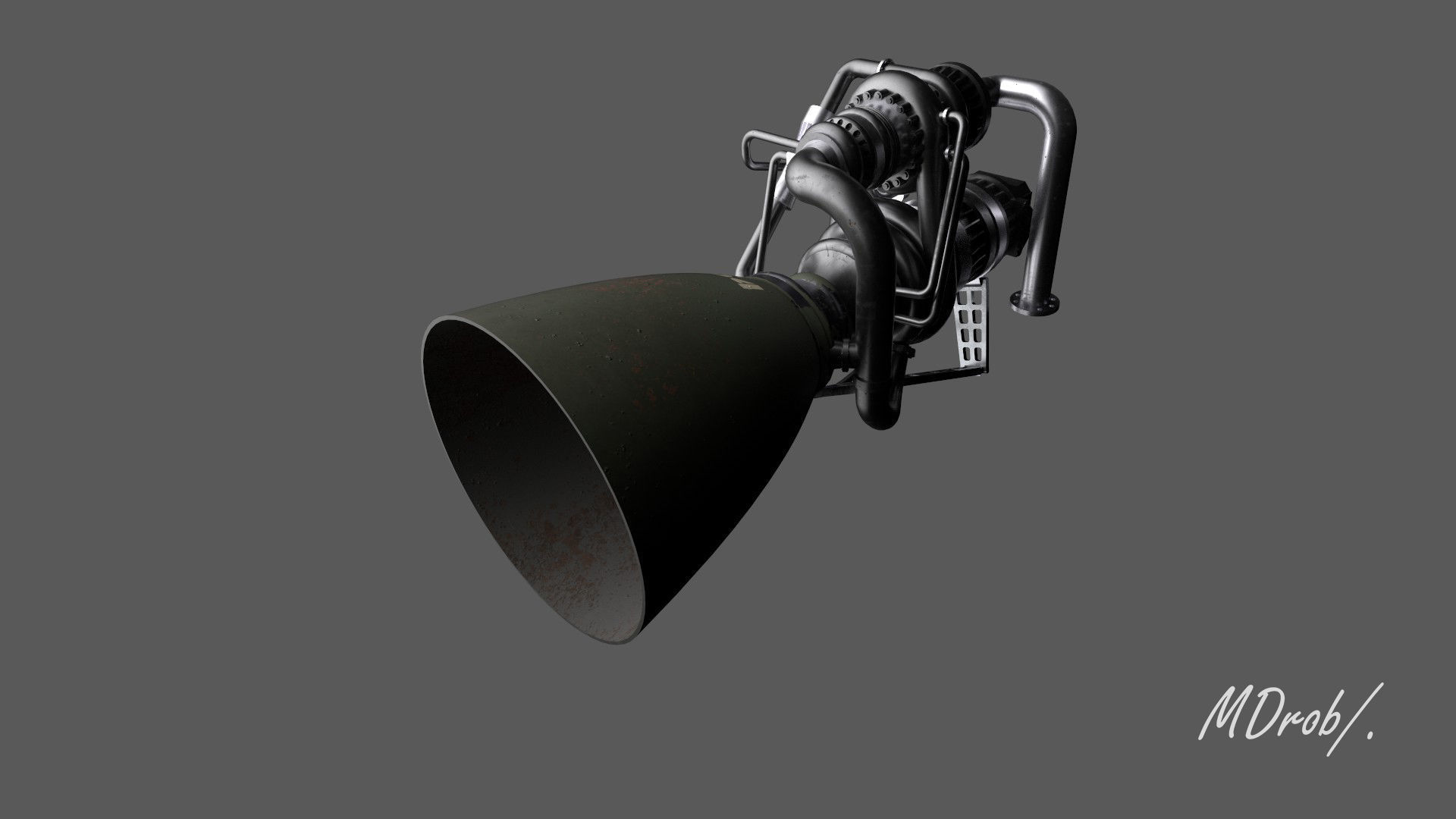

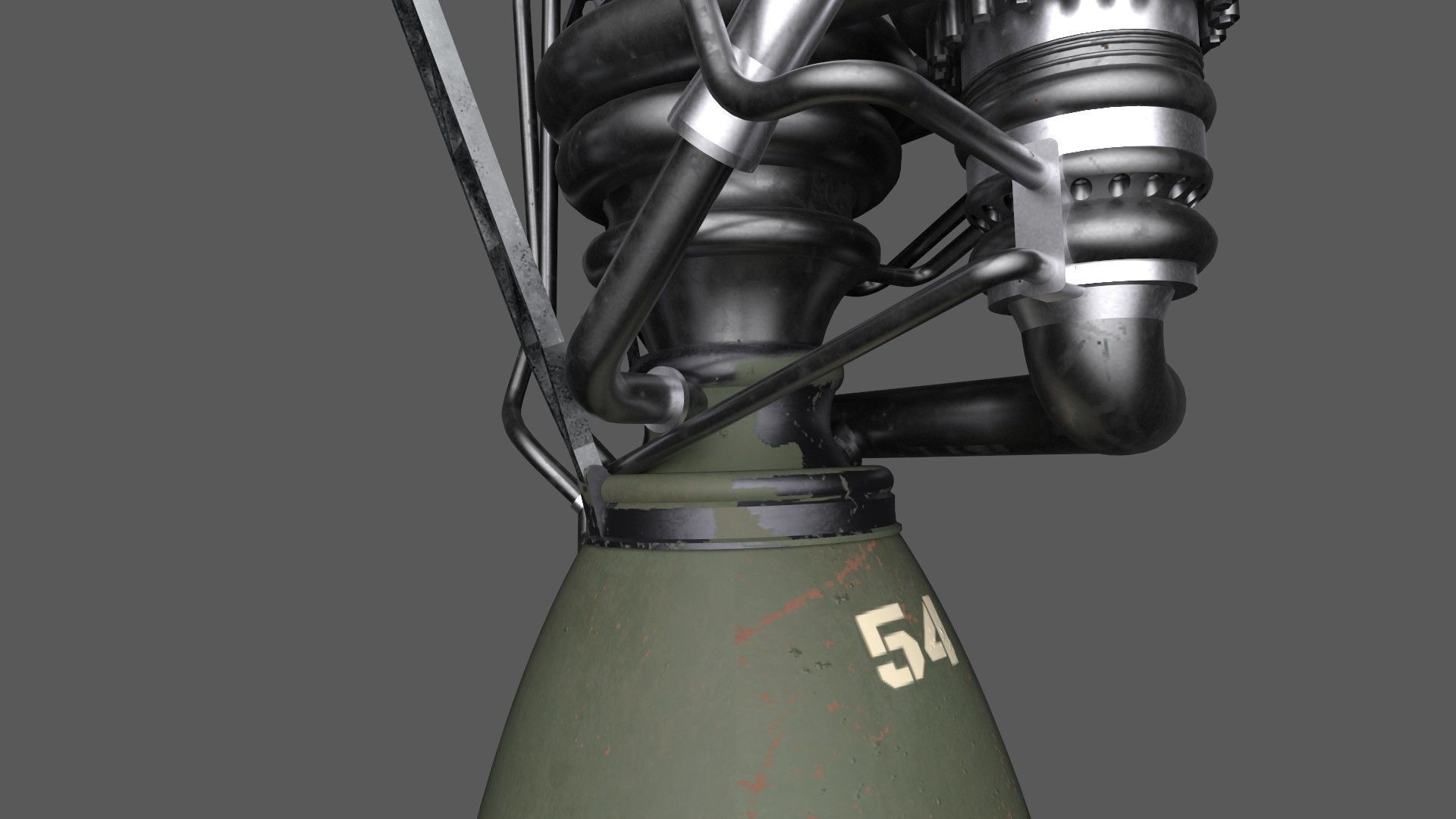

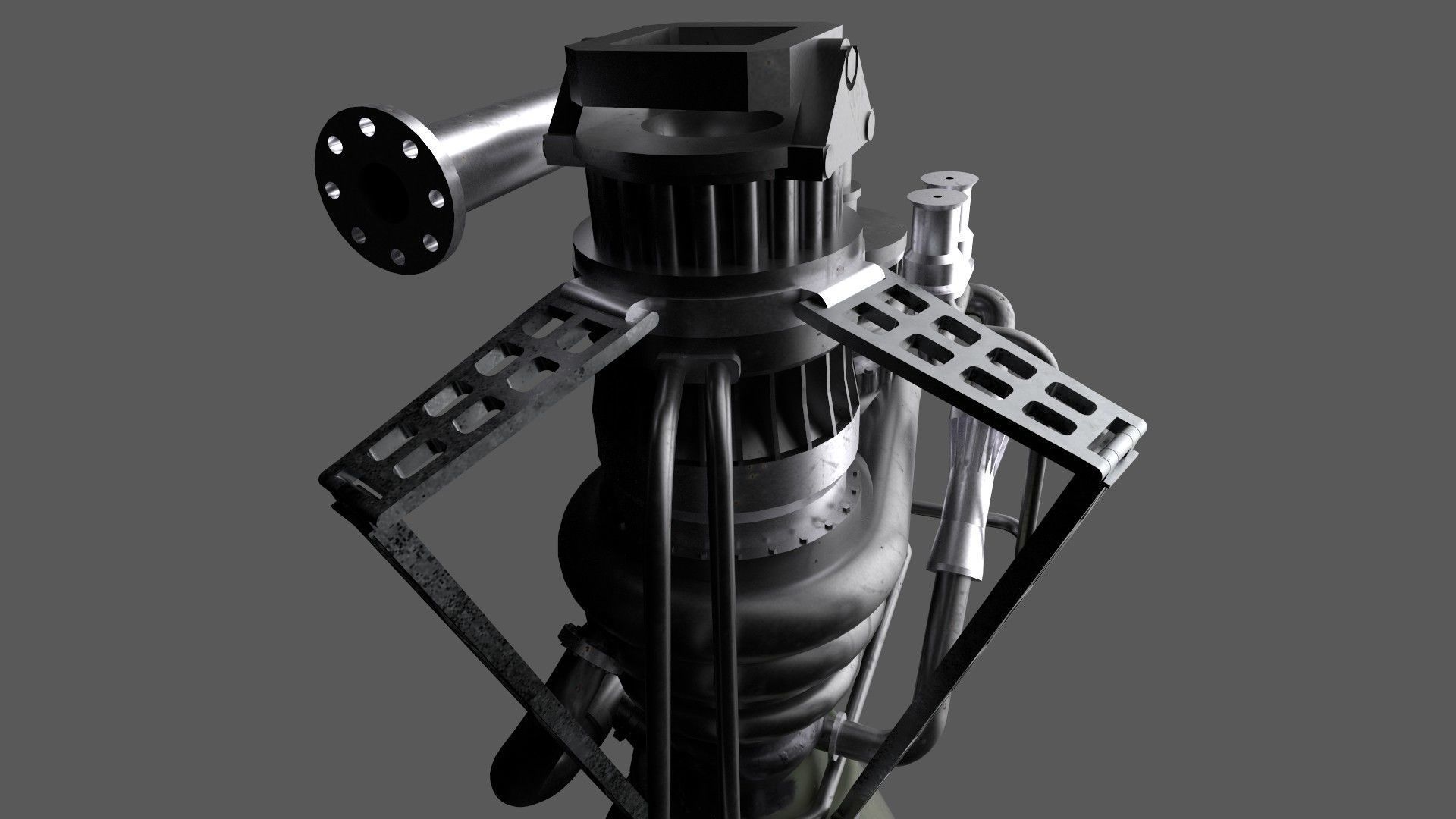

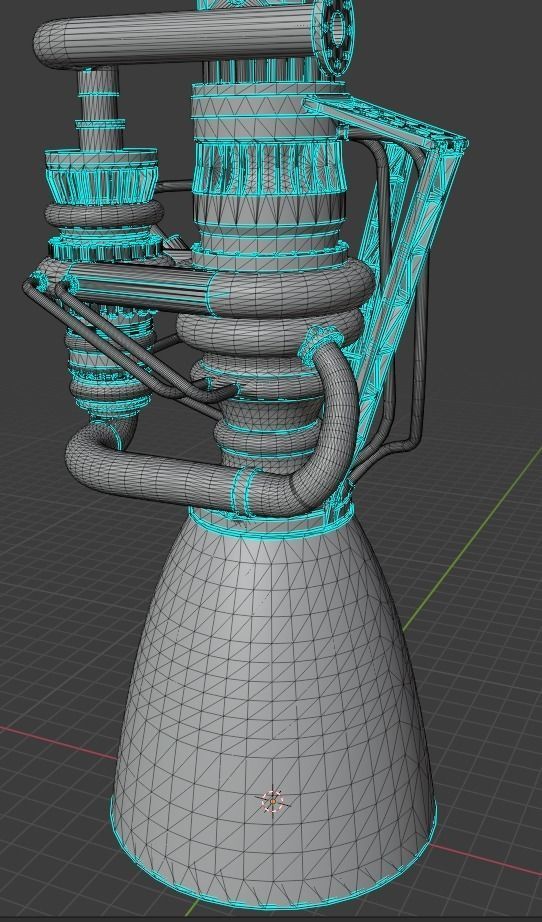

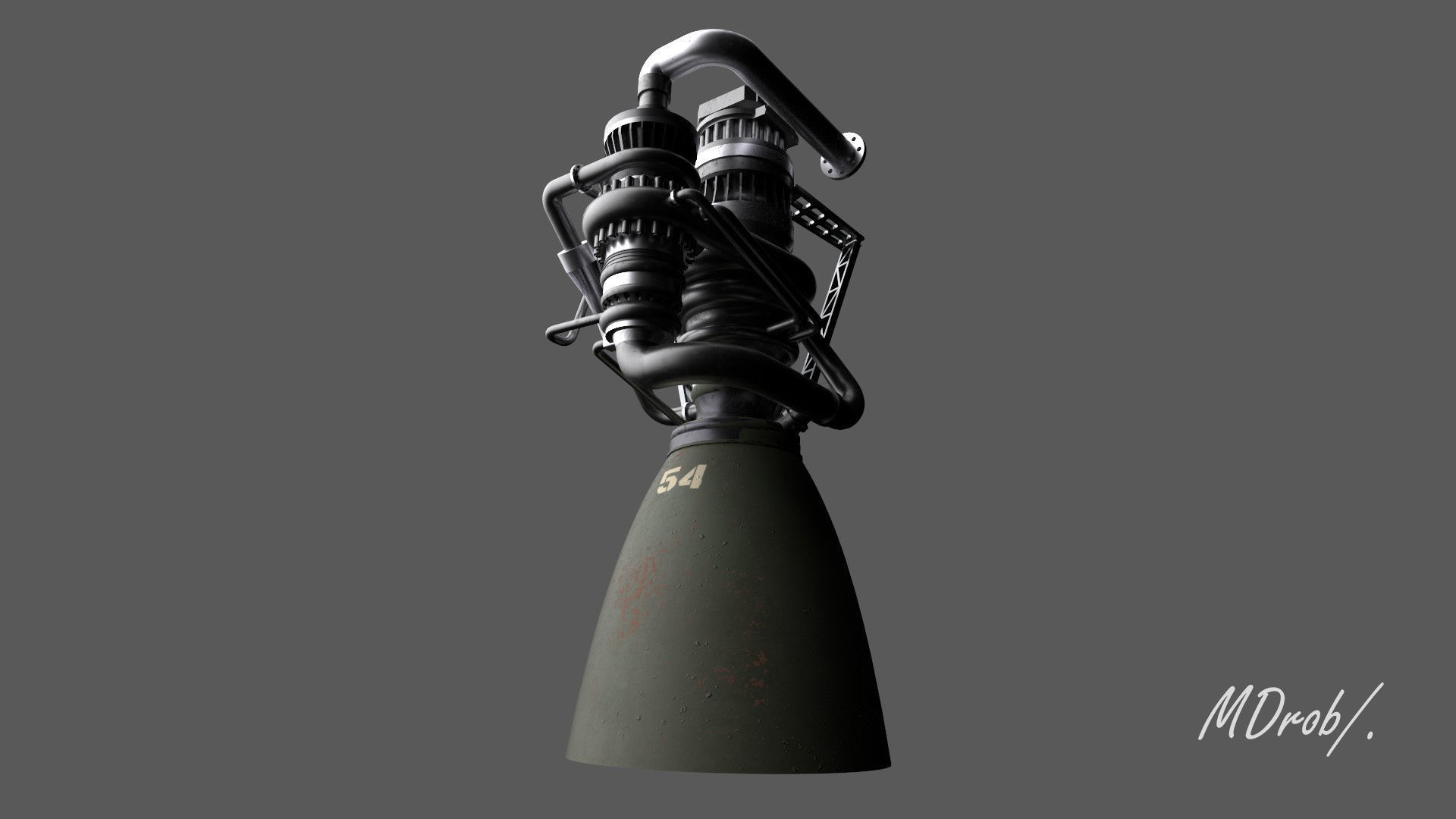

Raptor Engine 3D model

Description

Raptor is a family of full-flow staged combustion cycle rocket engines developed and manufactured by SpaceX, for use on the in-development Starship fully reusable launch vehicle. The engine is powered by cryogenic liquid methane and liquid oxygen (LOX).

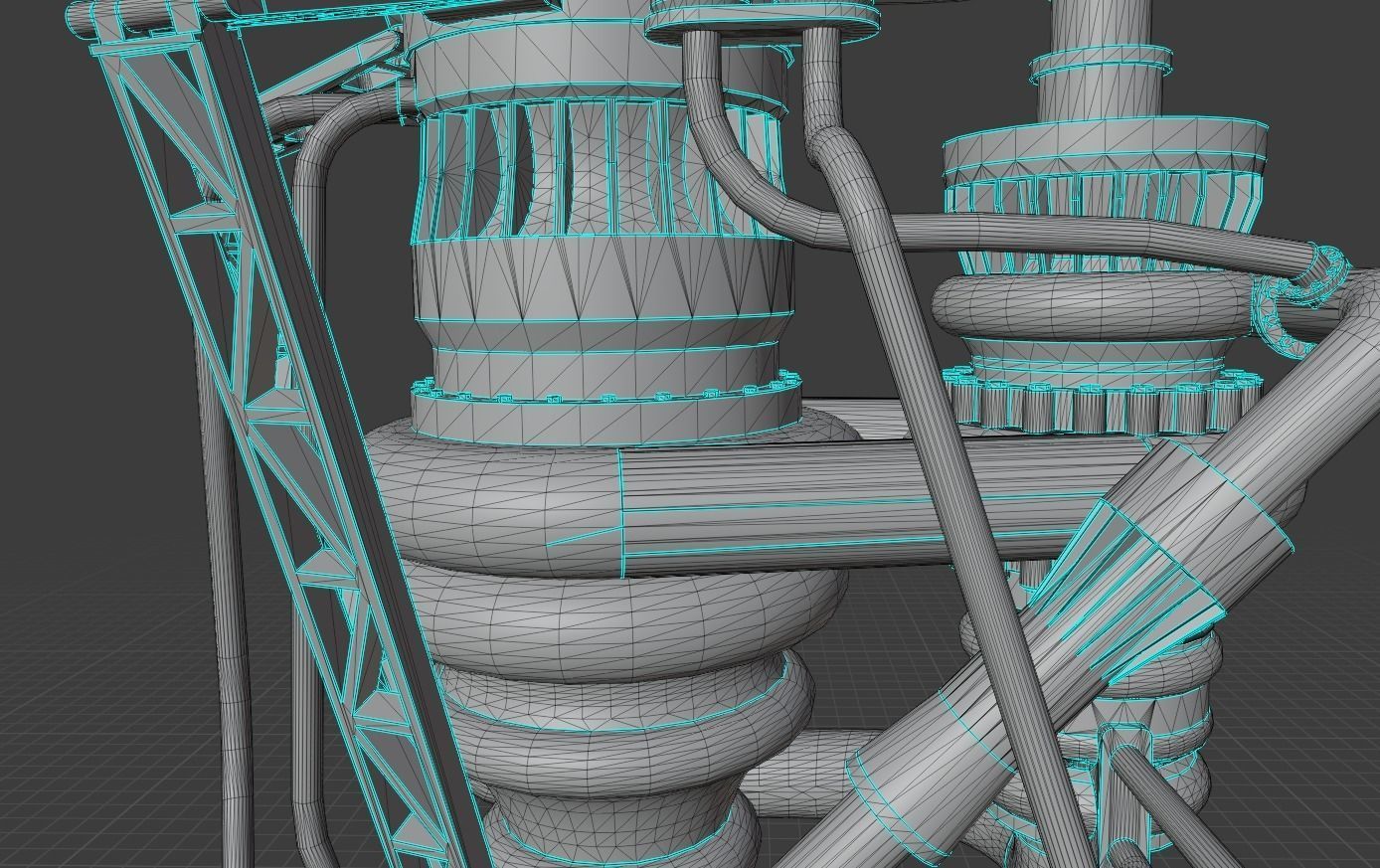

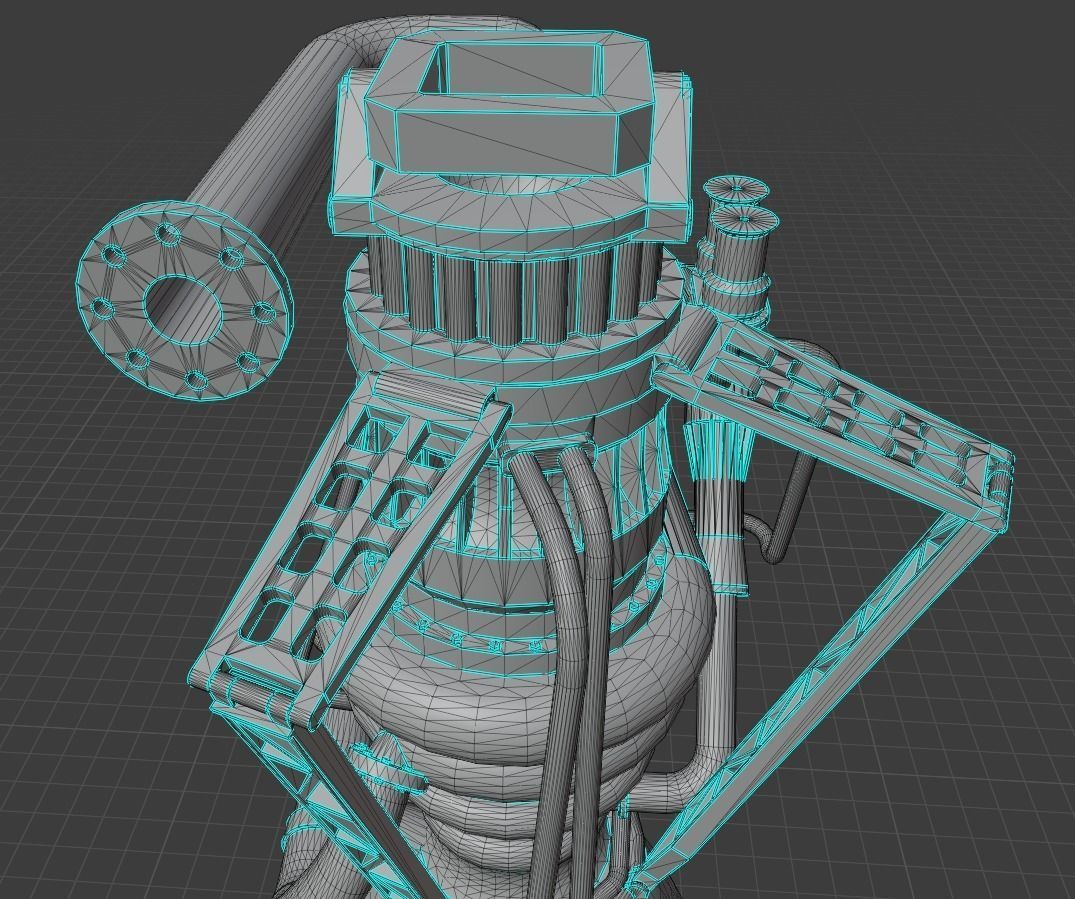

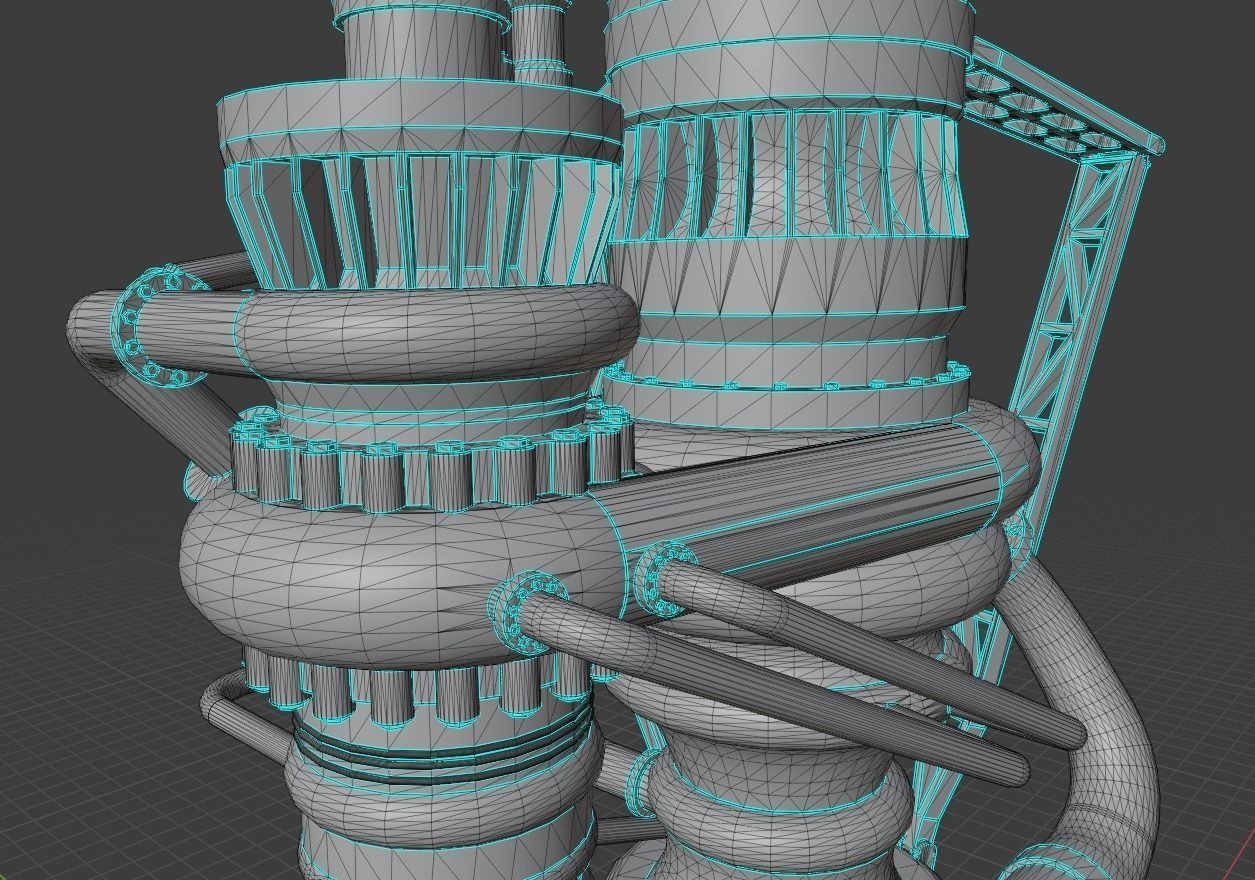

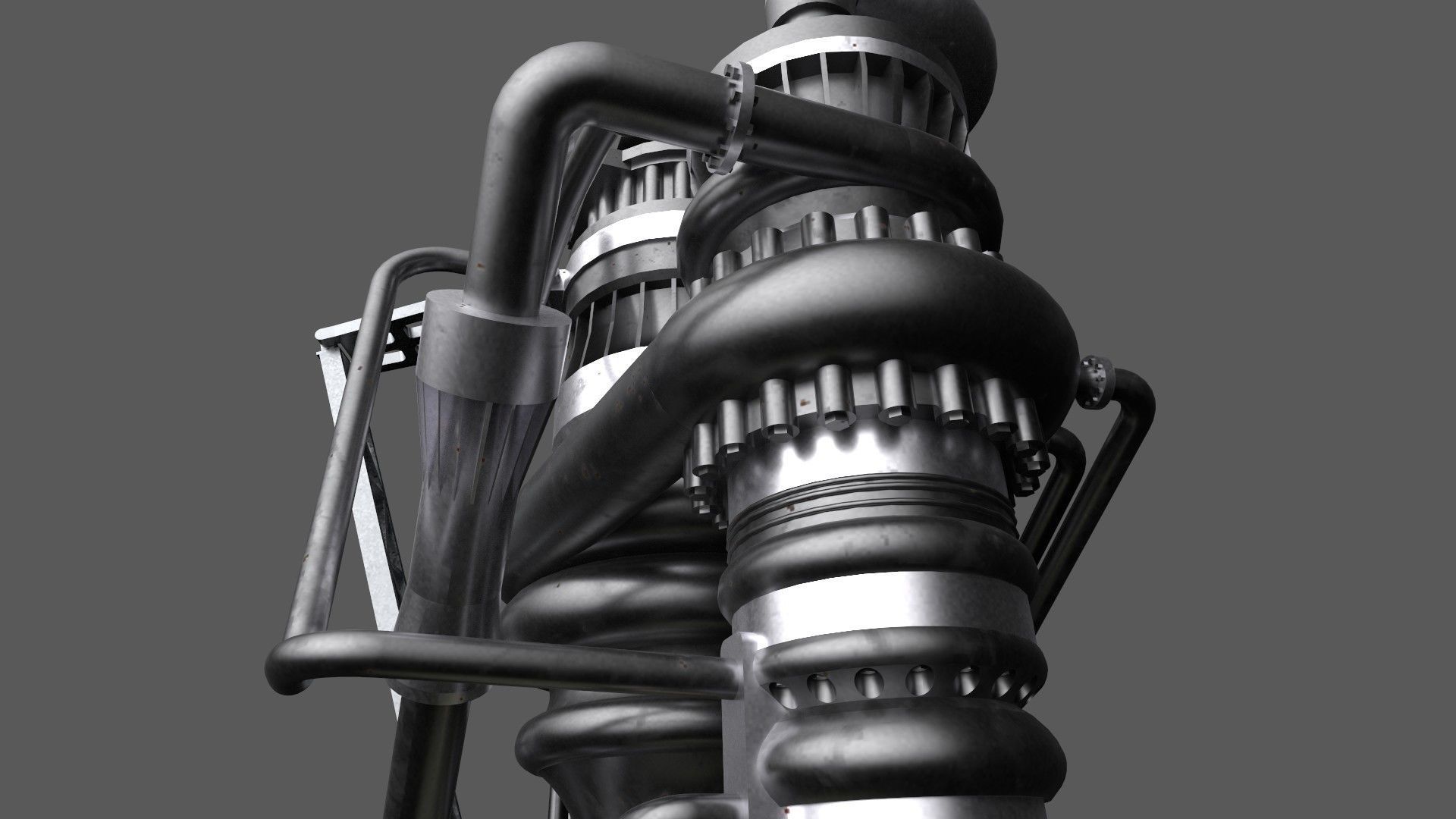

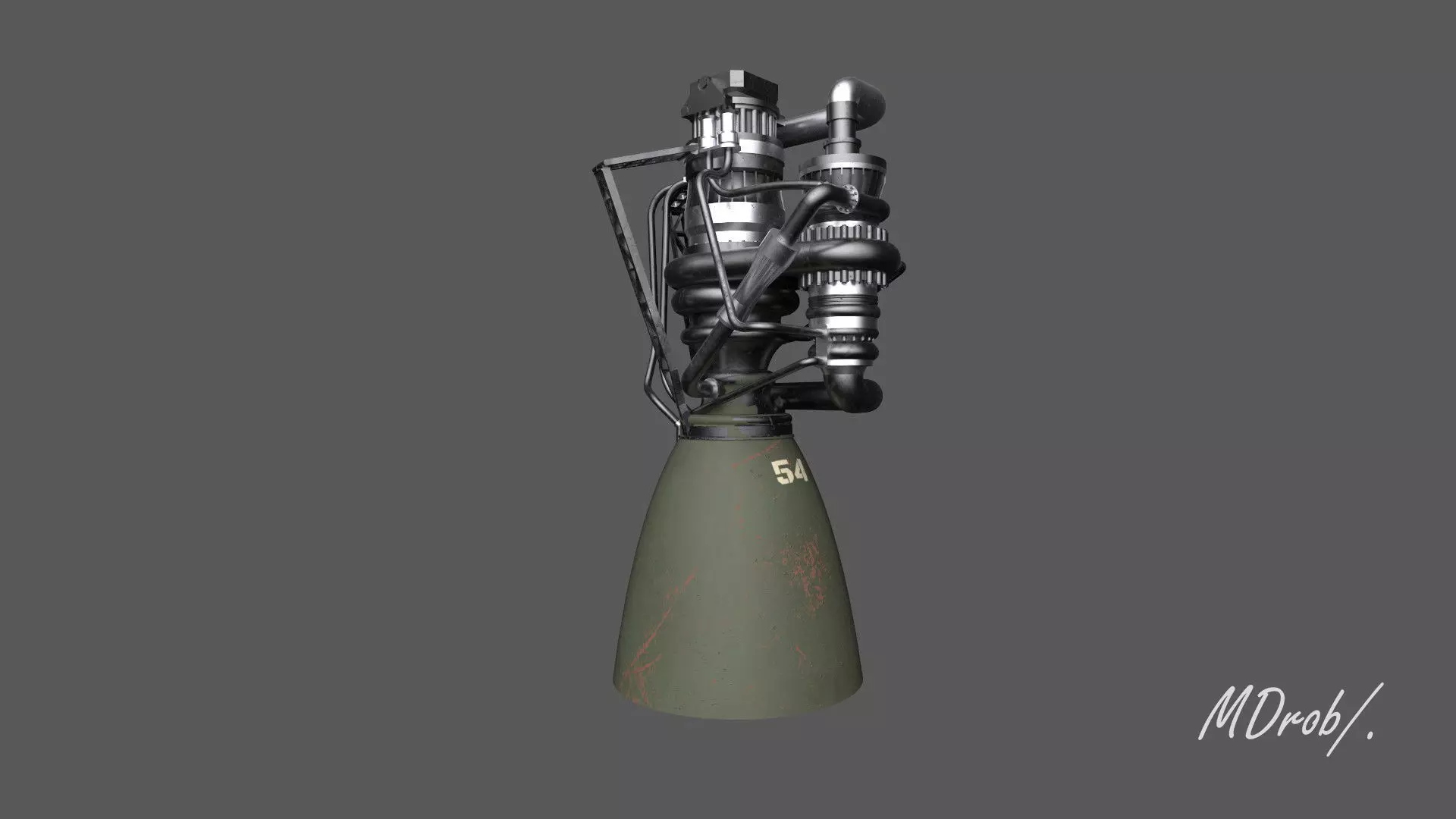

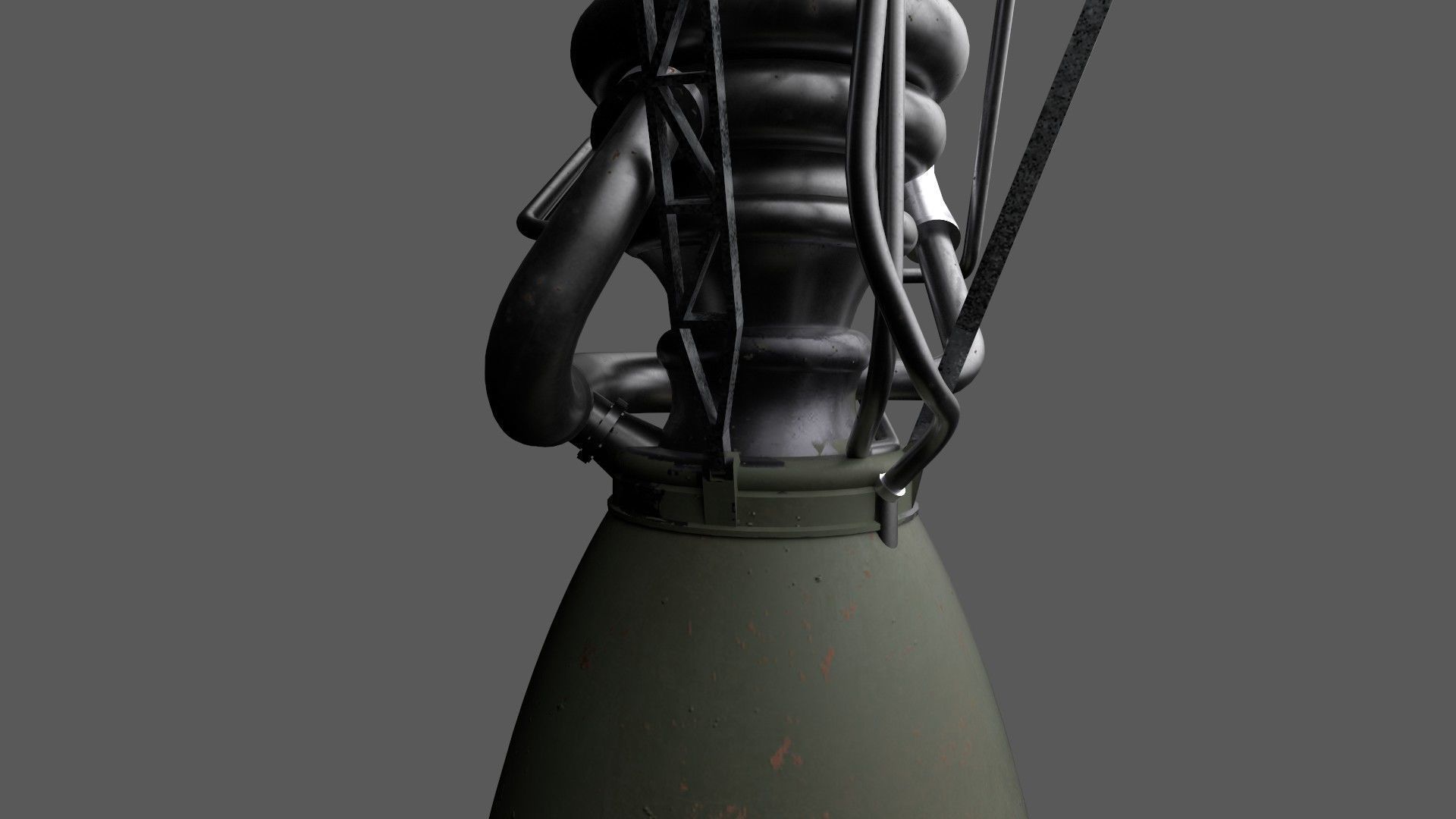

The general view of the model resembles an approximate description of the Raptor V2 engine by Elon Musk. This is a simplified model of the engine without a bunch of wiring, sensors and small pipes. The model was created in the Fusion 360 program. You can use it as part of your starship or superheavy model. Although no one limits your imagination, you can put the raptor on any rocket you like))

Item rating
1 0
B
bschoner56 2024-02-02 21:27:57 UTC
Recommended
Amazing detail. However I have tried at least 10 prints with a variety of resins including abs like, tough, water soluble, standard, etc. but have never had a single one not fail. There is something about the engine bell after the first 5 -15 mm that has always had a large tear or gap in it. Doesn't occur in the same place on the circumference of the bell. Maybe the scale of the bell results in a part that is just too thin. Would love any recommendations.
Raptor Engine
$5.00

Royalty Free License
Raptor Engine
$5.00

Royalty Free License
Response - % in - h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Autodesk Fusion 360 (.f3d)4.02 MB
Exchange
  • Autodesk FBX (.fbx)3.08 MB
  • OBJ (.obj, .mtl) (2 files)5.03 MB
  • Autodesk Inventor (.iam, .ipt)3 MB
  • Blender (.blend)10.5 MB
  • Substance Painter (.spp, .sbsar, .spsm)89.9 MB
  • 3D Manufacturing File (.3mf)829 KB

3D Model details

  • Publish date2022-02-08
  • Model ID#3570079
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 54,310
  • Vertices 26,989
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
