Radial Engine 3D model
thumbnail
play iconthumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

This model is mainly for educational purpose, It's based on a Sternmotor. The original parts and assembly were designed in SolidWorks, however this kit includes the SLDPRT , SLDASM files along with the .STL files corresponding to each component of the engine, ready for 3D printing.

The engine block was designed as a section view to show how the mechanism works. This may be an advantage if your goal is to print it, supports won't be necessary.

This kit includes the next components:

  1. Assembly
  2. Master Rod
  3. Rods
  4. Engine Block
  5. Piston Head
  6. Crank
  7. Valves
  8. Pins

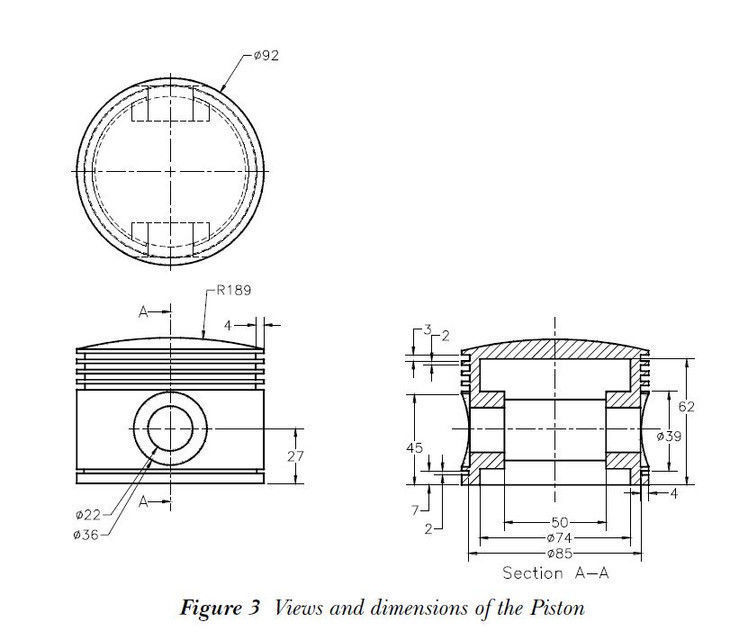

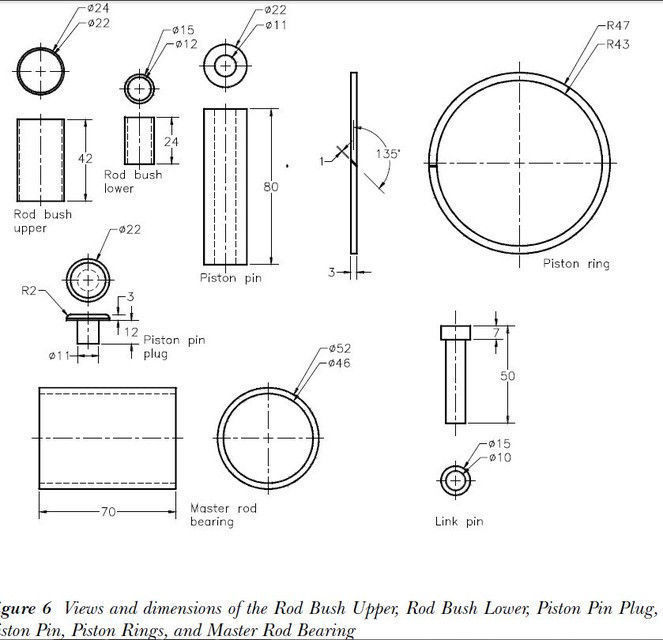

  9. Blueprints

It can be modified in case you need it for another purpose, feel free to contact me in that case!
