Heading indicator

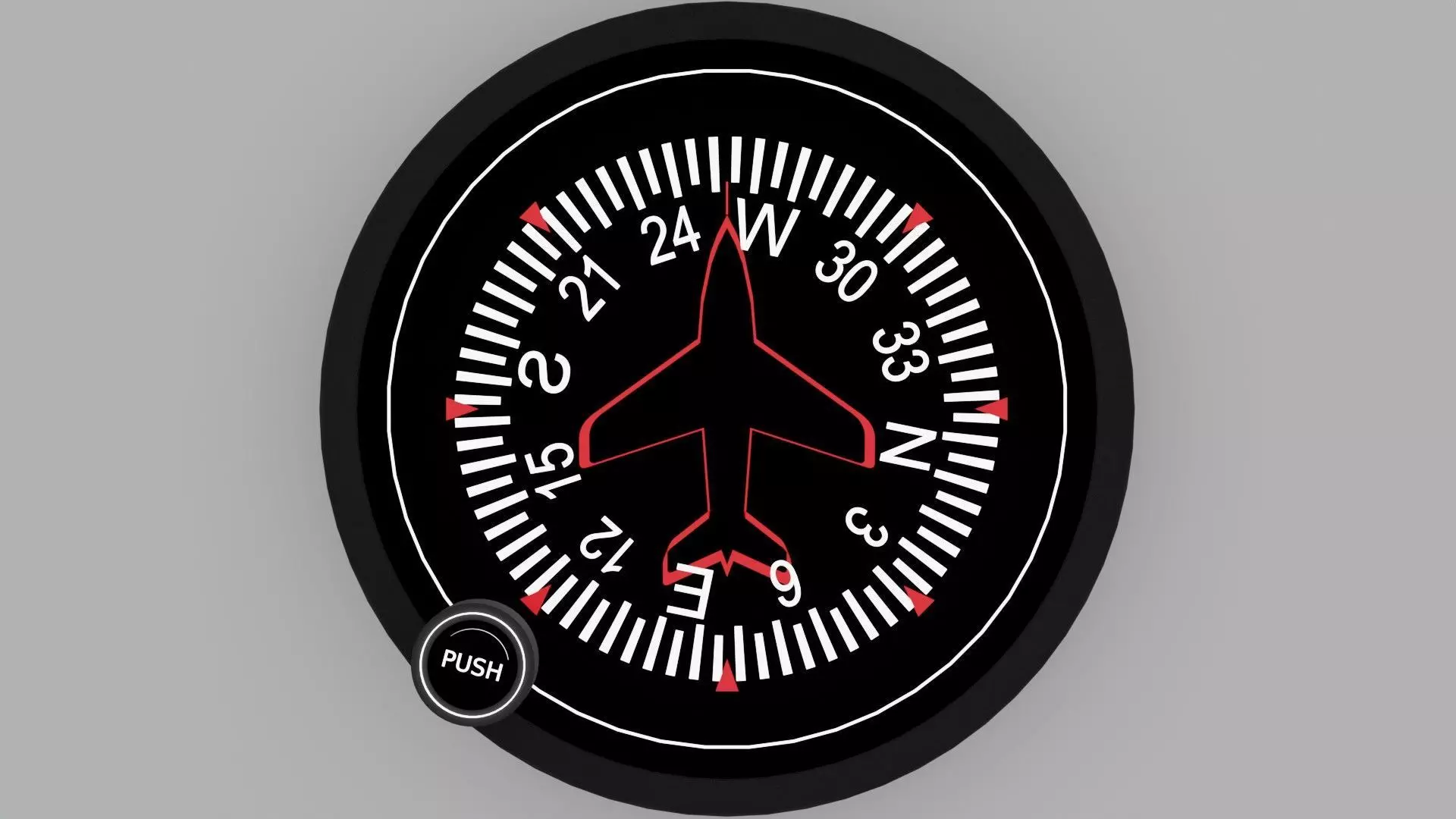

Heading indicator 3D model

Description

The heading indicator (HI), also known as a directional gyro (DG) or direction indicator (DI), is a flight instrument used in an aircraft to inform the pilot of the aircraft's heading.The primary means of establishing the heading in most small aircraft is the magnetic compass, which, however, suffers from several types of errors, including that created by the dip or downward slope of the Earth's magnetic field. Dip error causes the magnetic compass to read incorrectly whenever the aircraft is in a bank, or during acceleration or deceleration, making it difficult to use in any flight condition other than unaccelerated, perfectly straight and level. To remedy this, the pilot will typically maneuver the airplane with reference to the heading indicator, as the gyroscopic heading indicator is unaffected by dip and acceleration errors. The pilot will periodically reset the heading indicator to the heading shown on the magnetic compass.

Item rating
1 0
A
achoo22024-09-26 02:09:54 UTC
Recommended
Heading indicator
$5.00

Royalty Free License
Heading indicator
$5.00

Royalty Free License
Available in these collections
Response - % in - h
3D Modeling
Particles
Animating
Hire meView all Designer's Models

3D Model formats

Format limitations
  • OBJ (.obj, .mtl) (2 files)582 KB
  • Blender 3.6.1 (.blend)2.68 MBVersion: 3.6.1Renderer: Cycles

3D Model details

  • Publish date2023-09-08
  • Model ID#4764209
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 6,181
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
