F16 UHF Radio

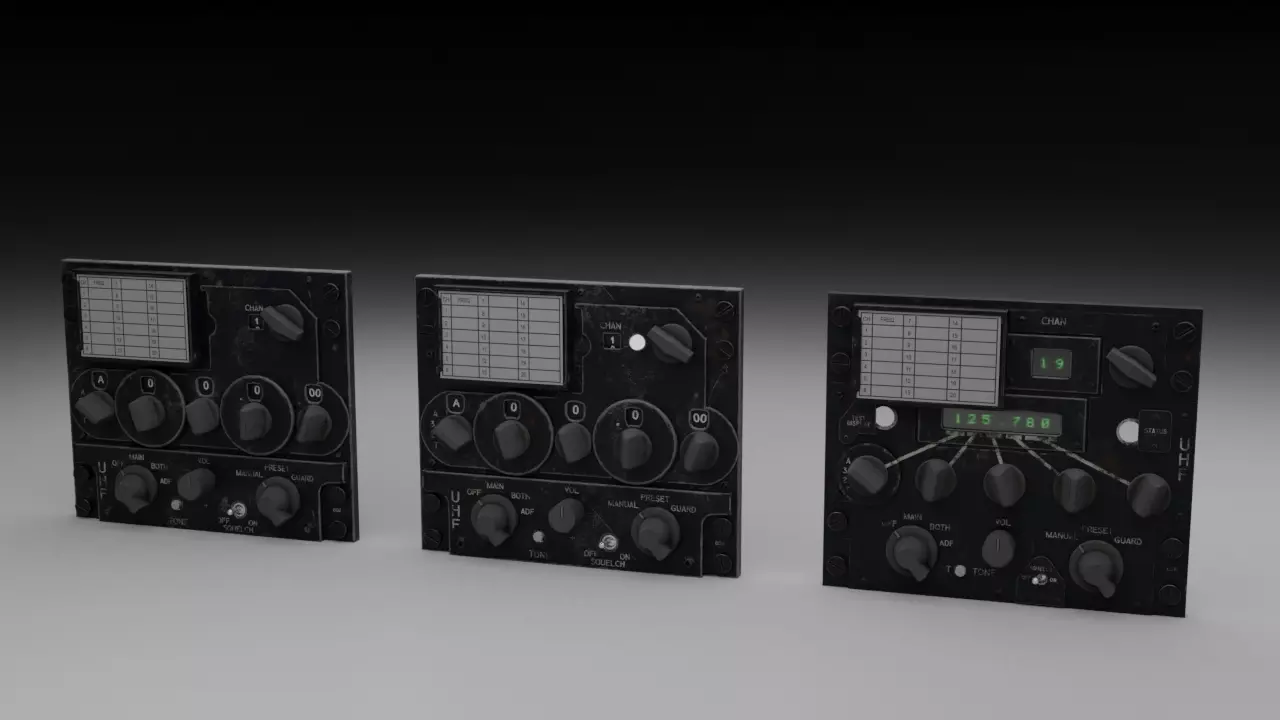

F16 UHF Radio 3D model

Description

The F16's communications system consists of an UHF radio, a VHF radio, a secure voice control panel and an intercom set. Using the UHF radio control the frequencies (225.00-399.975mHz) that are selected, if not done via the front panel's Integrated Control Panel (ICP) and Data Entry Display (DED). Many pre-selected frequencies can be selected through a channel selector, as well as the GD (Guard Frequency 243.00mHz). The panel is only active, if the Communication, Navigation, IFF (CNI) switch on the Aux Control Panel is at the BACKUP position. The UHF Radio Control Panel is located on the left console.

The models were created in Blender 2.92 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

Quick I

  • Vertex Count: 52.134
  • Poly Count: 50.621

Quick II

  • Vertex Count: 52.464
  • Poly Count: 50.937

Quick IIa

  • Vertex Count: 52.252
  • Poly Count: 51.023

NOTE: I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me. And to turn On/Off the LED display in the Quick IIa panel just select the display mesh and swap the On/Off nodes..if needed the brightness can also be adjusted through the nodes.

Item rating
1 0
G
gekido1903 2021-10-27 09:20:04 UTC
Recommended
Outstanding quality and good price/value ratio. Friendly author as well. :)
F16 UHF Radio
$29.98

Royalty Free License
F16 UHF Radio
$29.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)495 MBVersion: 2.92Renderer: Cycles Version: 2.92Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)334 MB
  • OBJ (.obj, .mtl)334 MB

3D Model details

  • Publish date2021-07-16
  • Model ID#3155820
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 50,937
  • Vertices 52,464
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
