F16 Threat Warning Auxiliary Panel

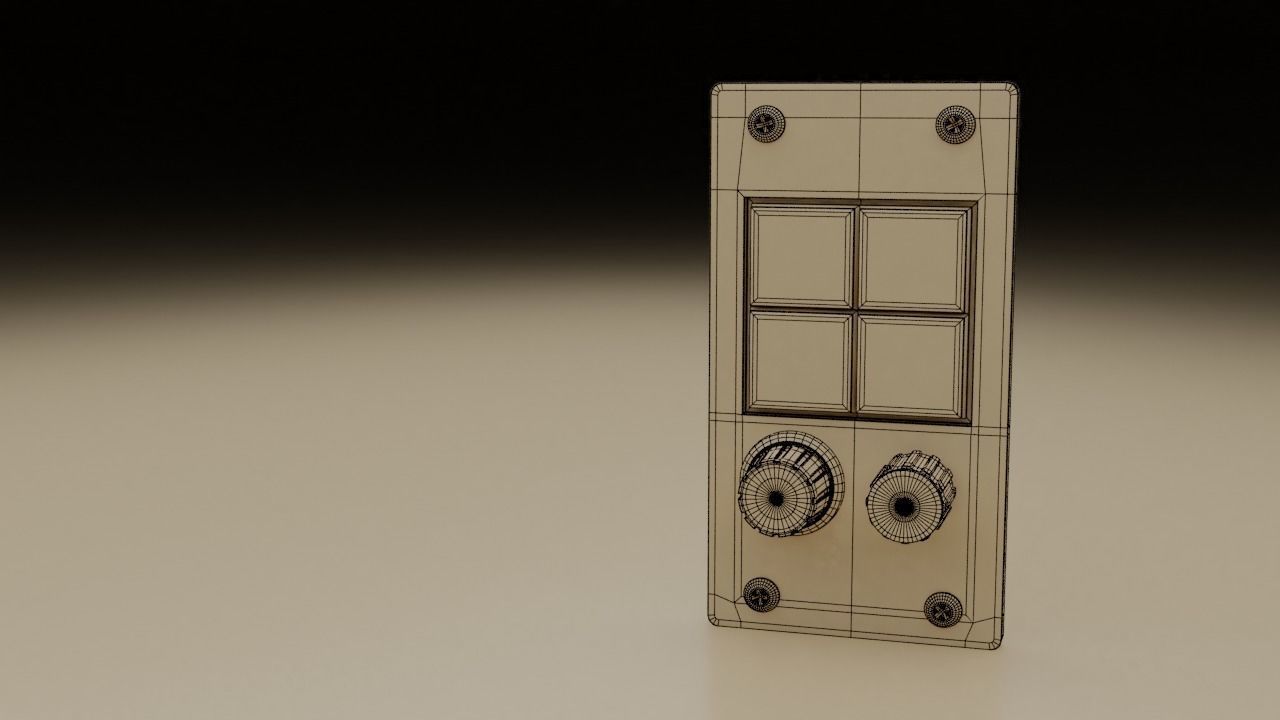

F16 Threat Warning Auxiliary Panel 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

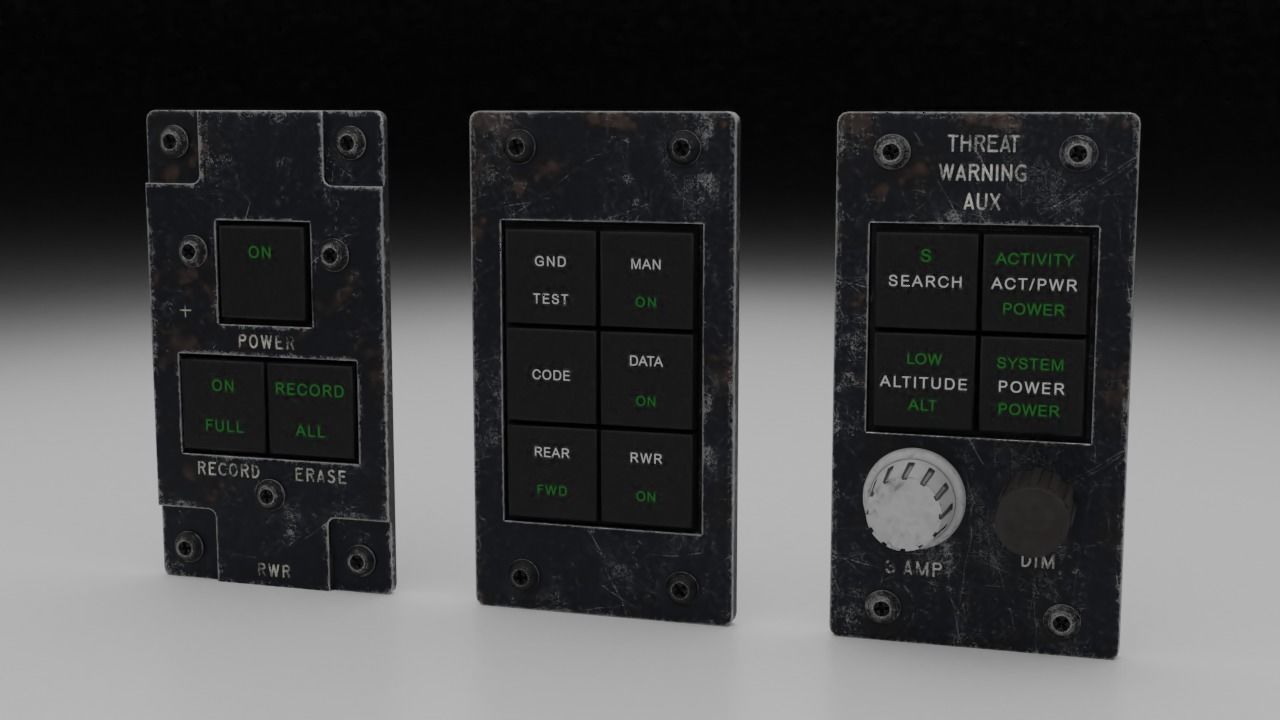

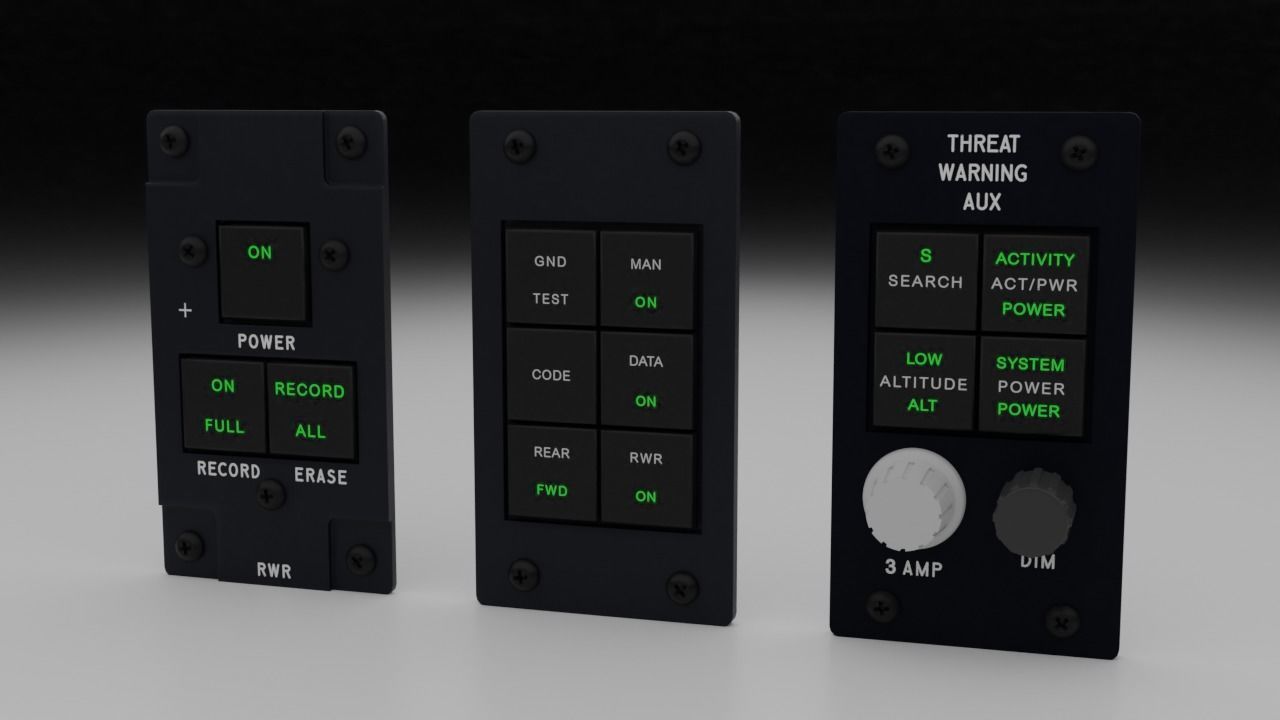

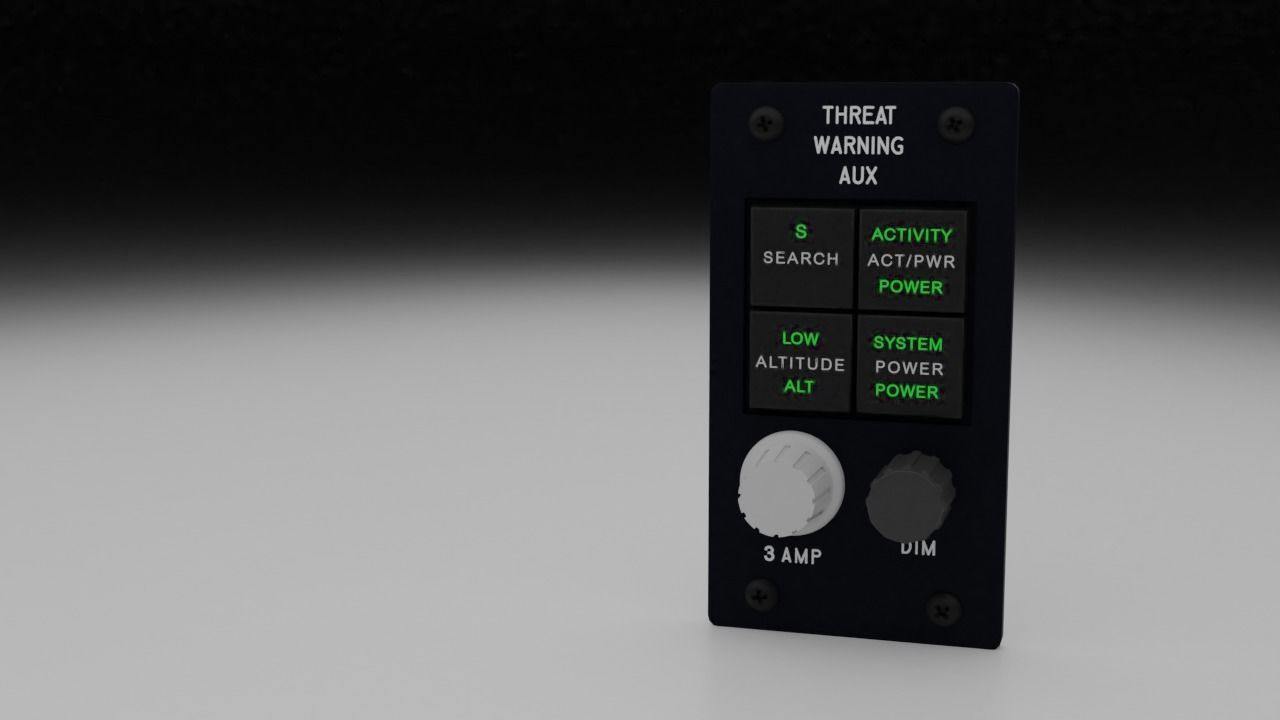

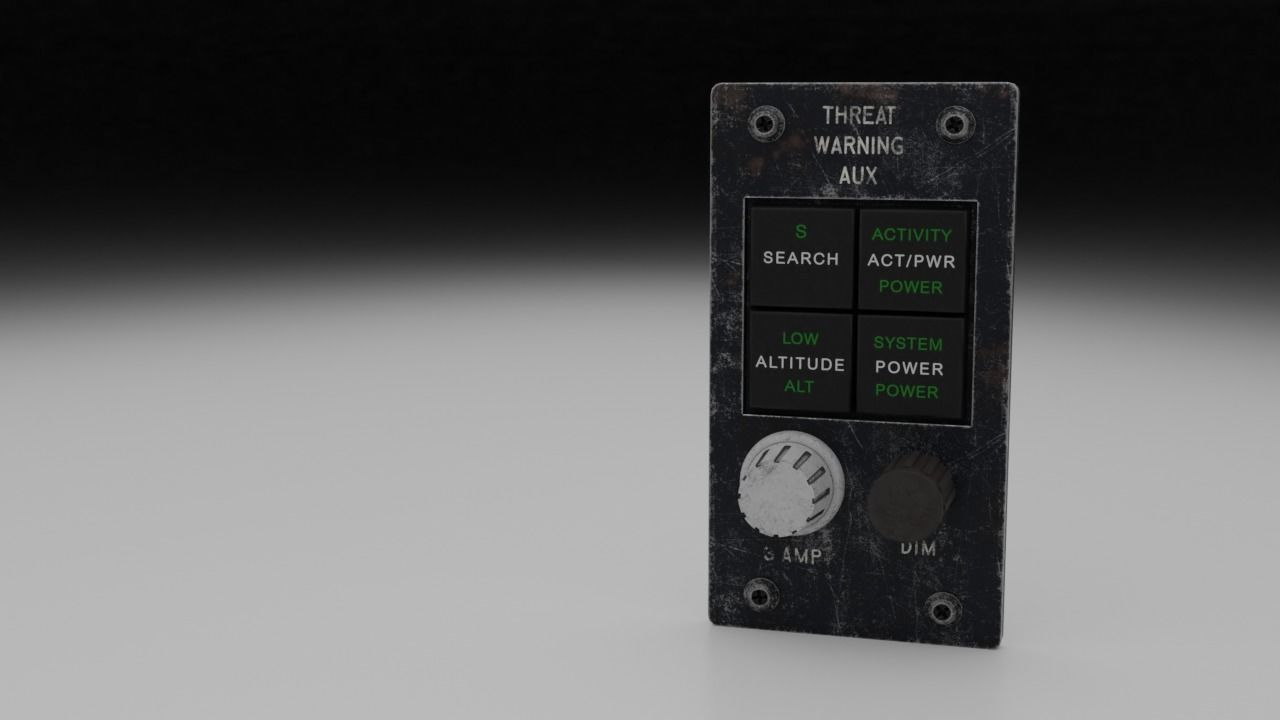

The Threat Warning Auxiliary Panel or TWA panel, in conjunction with the Threat Warning Prime or TWP, informs of the threats on the Radar Warning Receiver or RWR display. The Threat Warning Auxiliary, the Threat Warning Prime Panel, the RWR and Chaff/Flare-Panel belong to the EWS or Electronic Warfare System of the F-16. The Threat Warning Auxiliary is located on the left aux. console.

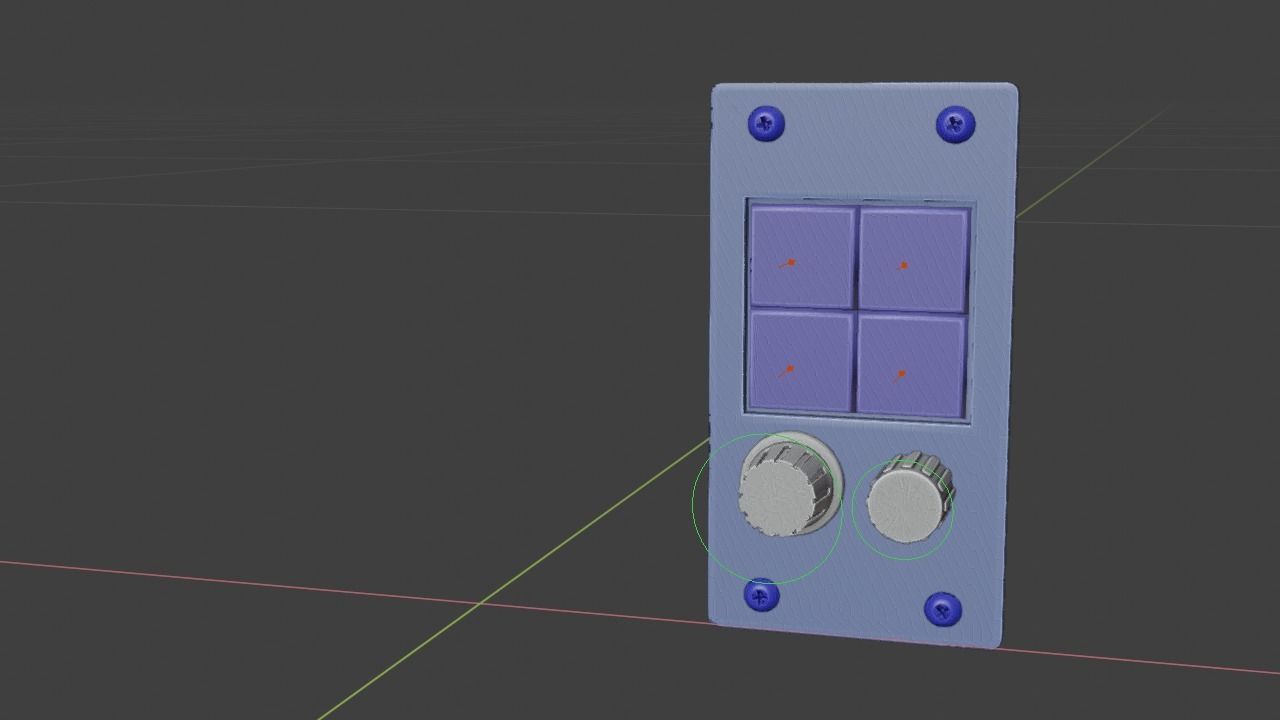

The models were created in Blender 2.81 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

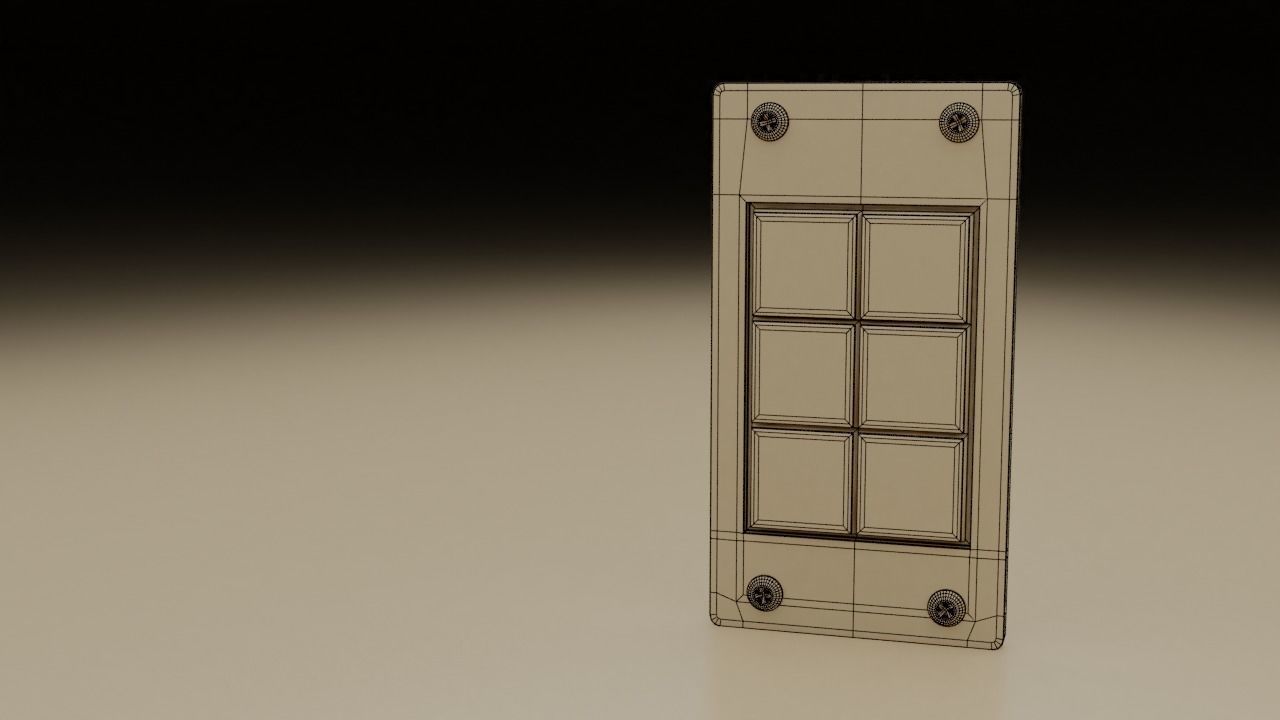

US TWA Panel

  • Vertex Count: 17.639
  • Poly Count: 17.466

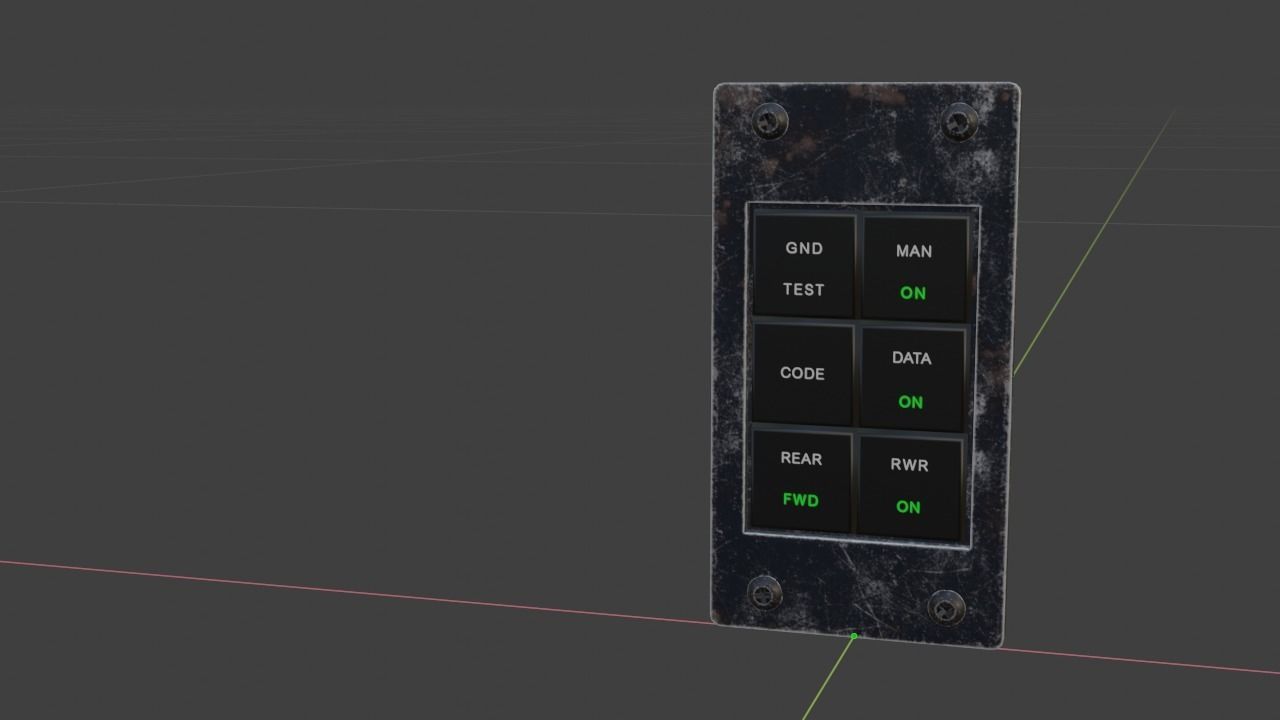

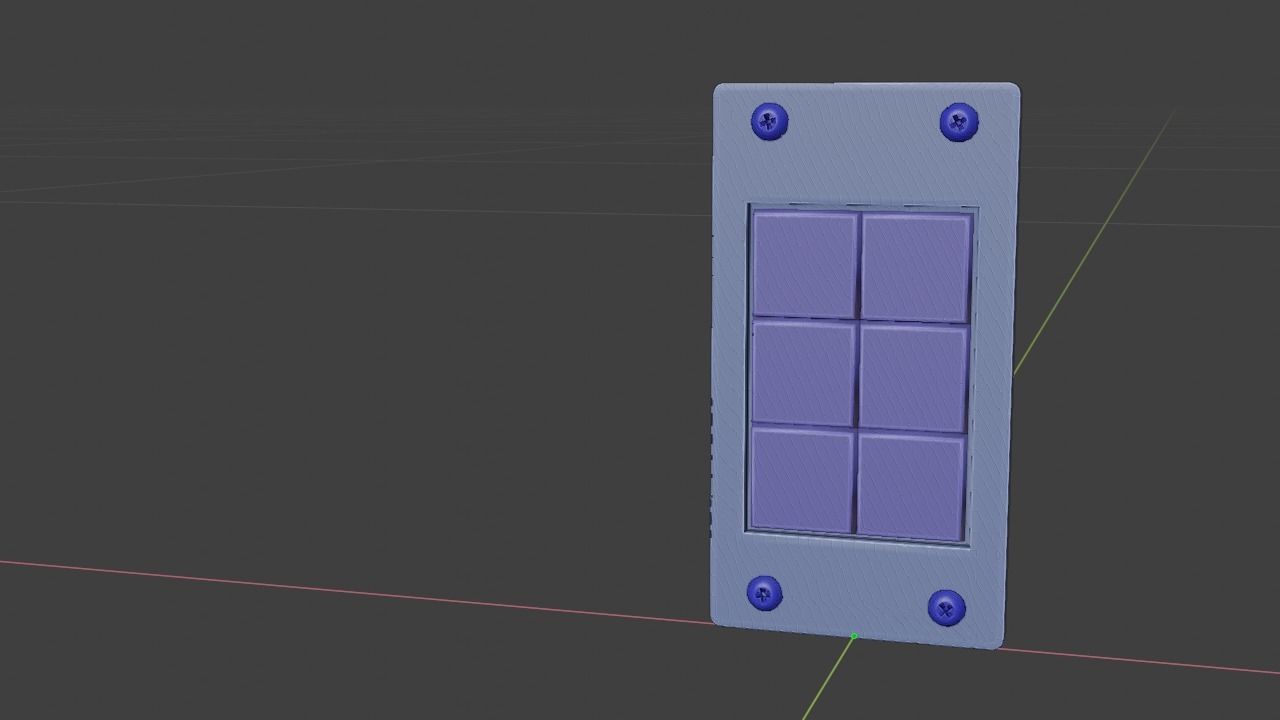

Greece TWA Panel

  • Vertex Count: 4.425
  • Poly Count: 4.471

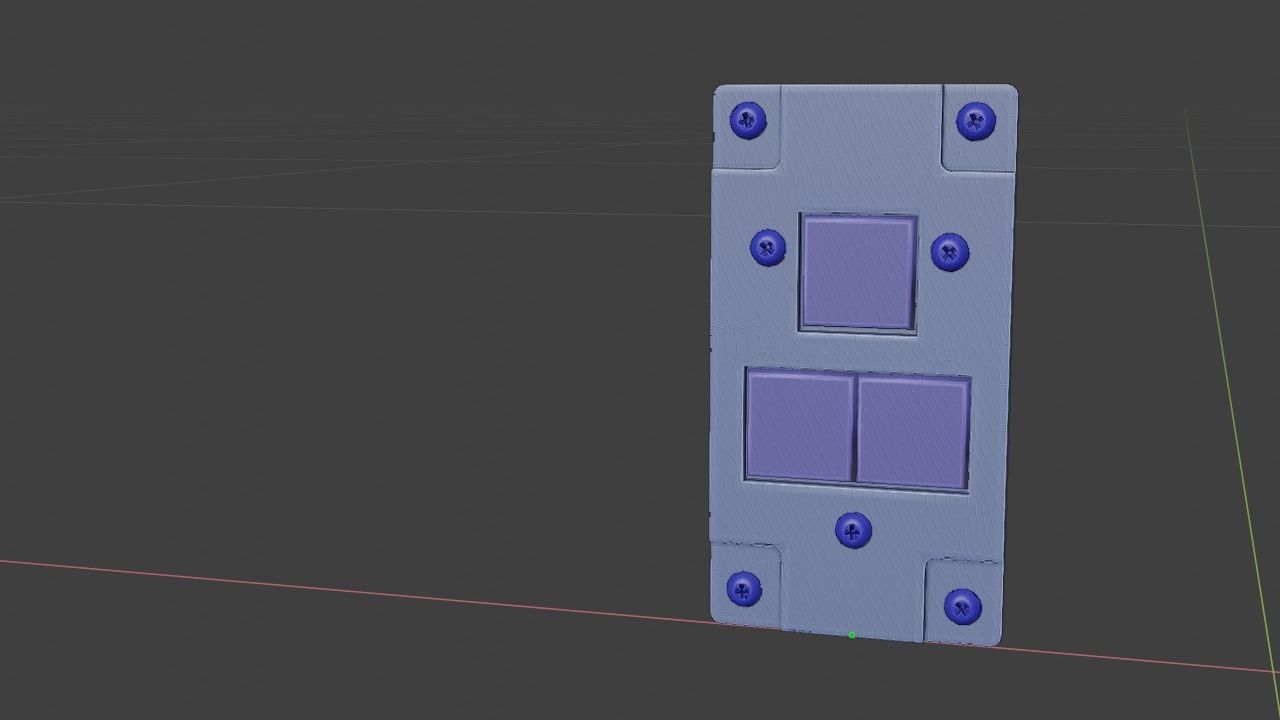

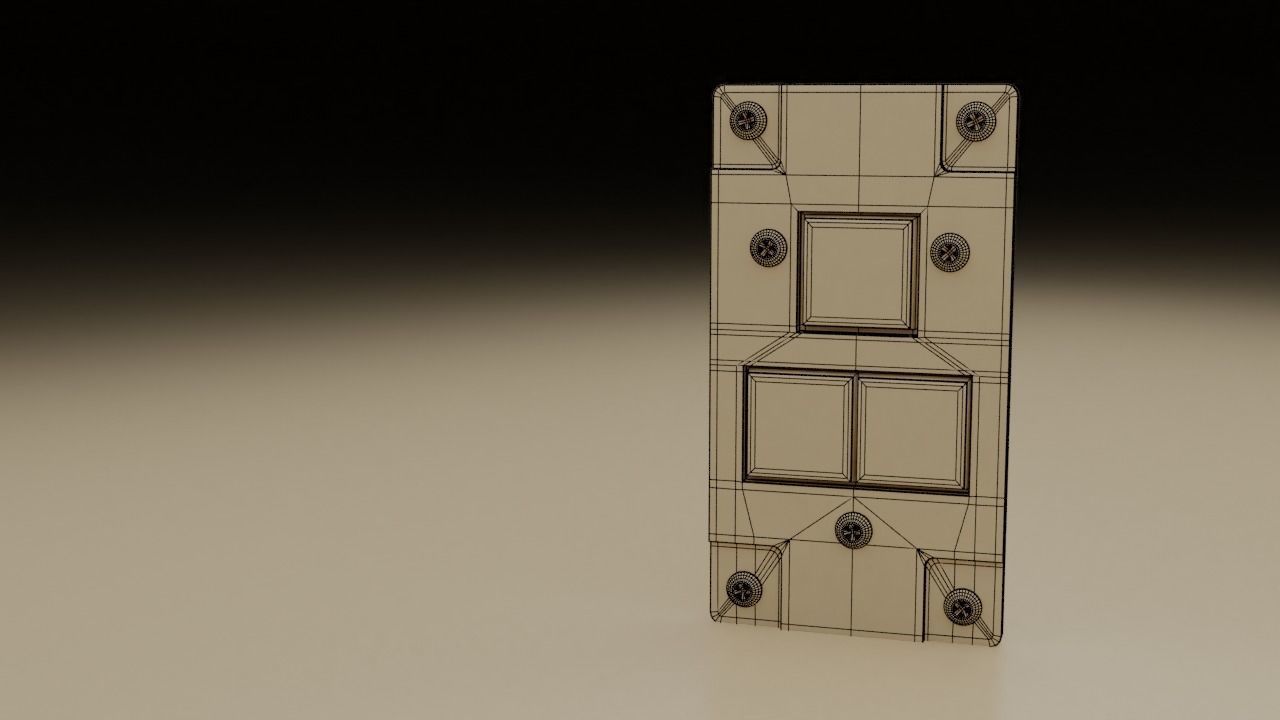

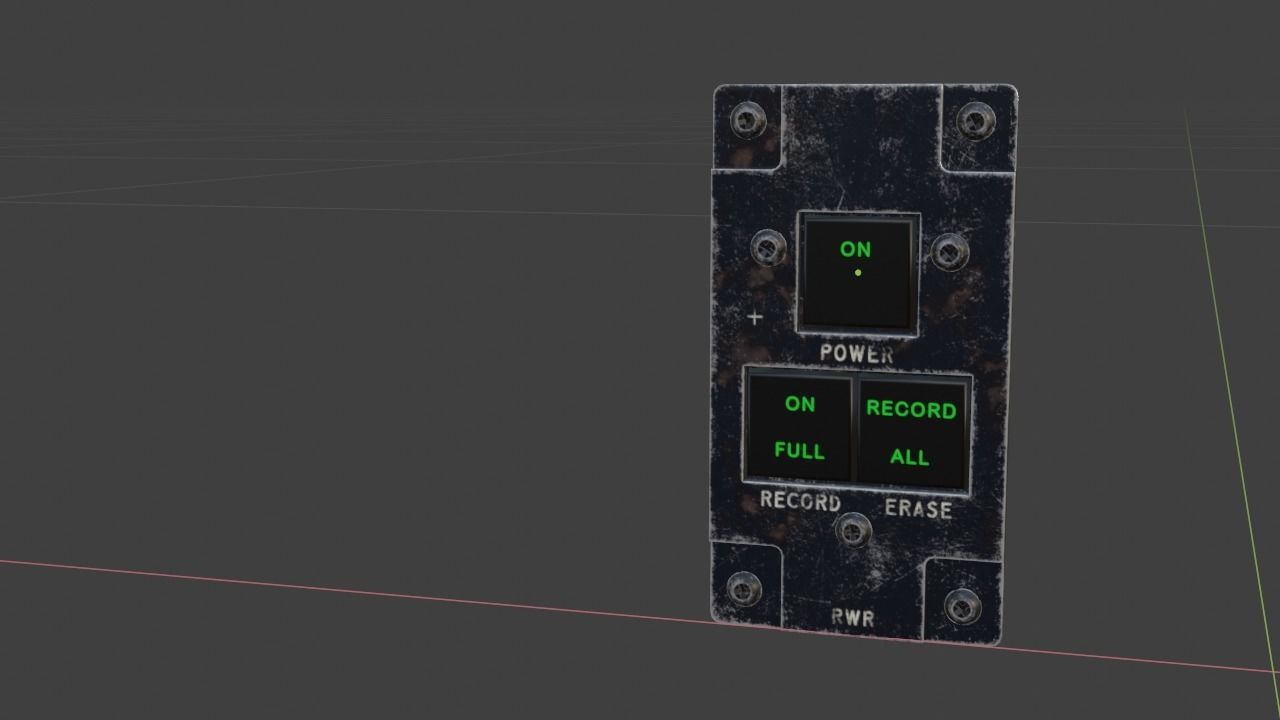

Belgium TWA Panel

  • Vertex Count: 2.261
  • Poly Count: 2.264

I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.

Is worth mentioning that the TWA Panels of Greece and Belgium there's very little to almost no info about them, but when researching for the TWA panel there were these models available as reference images, hence why I modelled them.

Item rating
0 0
F16 Threat Warning Auxiliary Panel
$19.98

Royalty Free License
F16 Threat Warning Auxiliary Panel
$19.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)250 MBVersion: 2.81Renderer: Cycles Version: 2.81Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)174 MB
  • OBJ (.obj, .mtl)174 MB

3D Model details

  • Publish date2021-04-13
  • Model ID#2947224
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 17,466
  • Vertices 17,639
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used

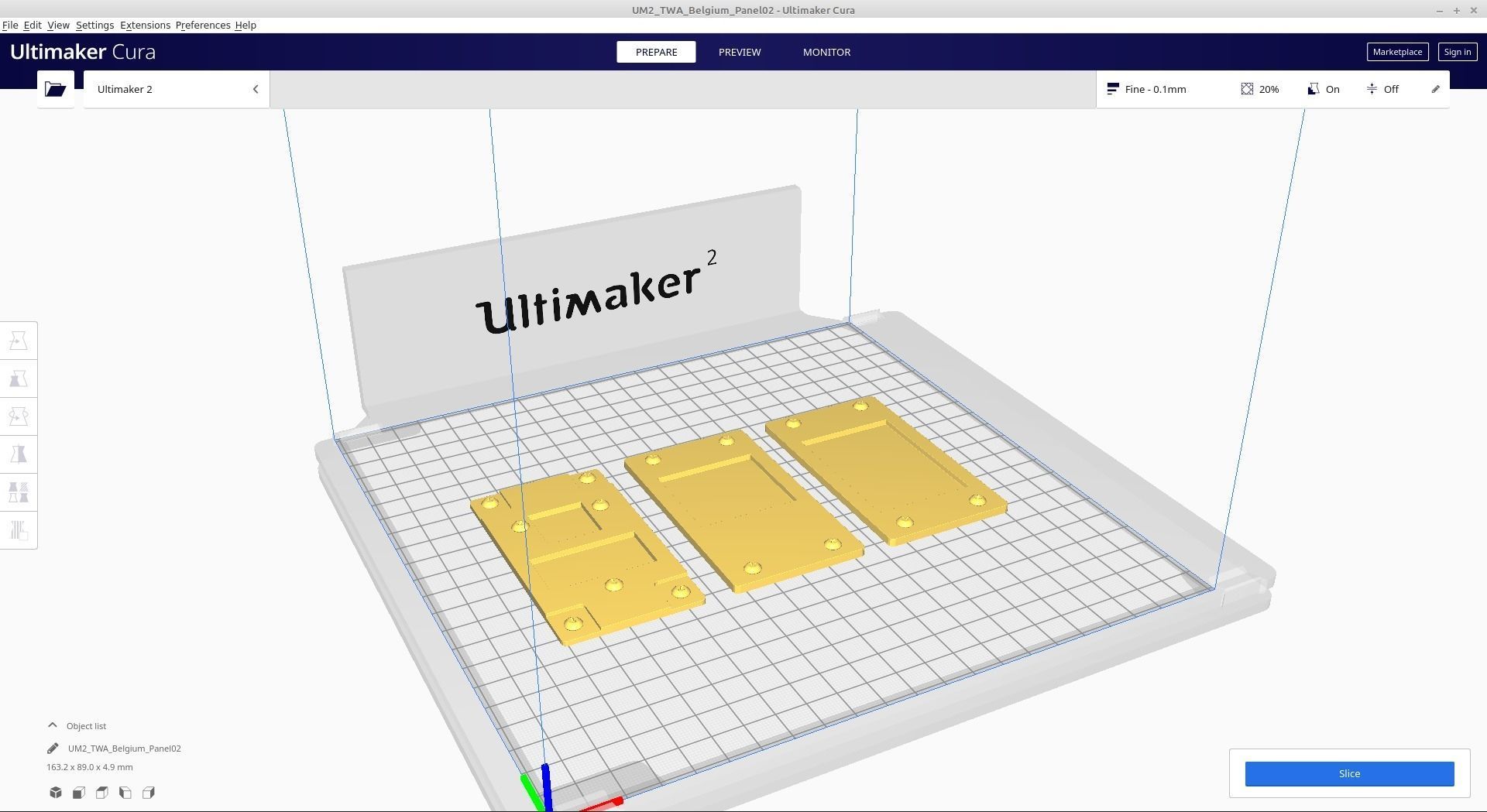

  • Ready for 3D Printing
