F16 Speed Brake Indicator

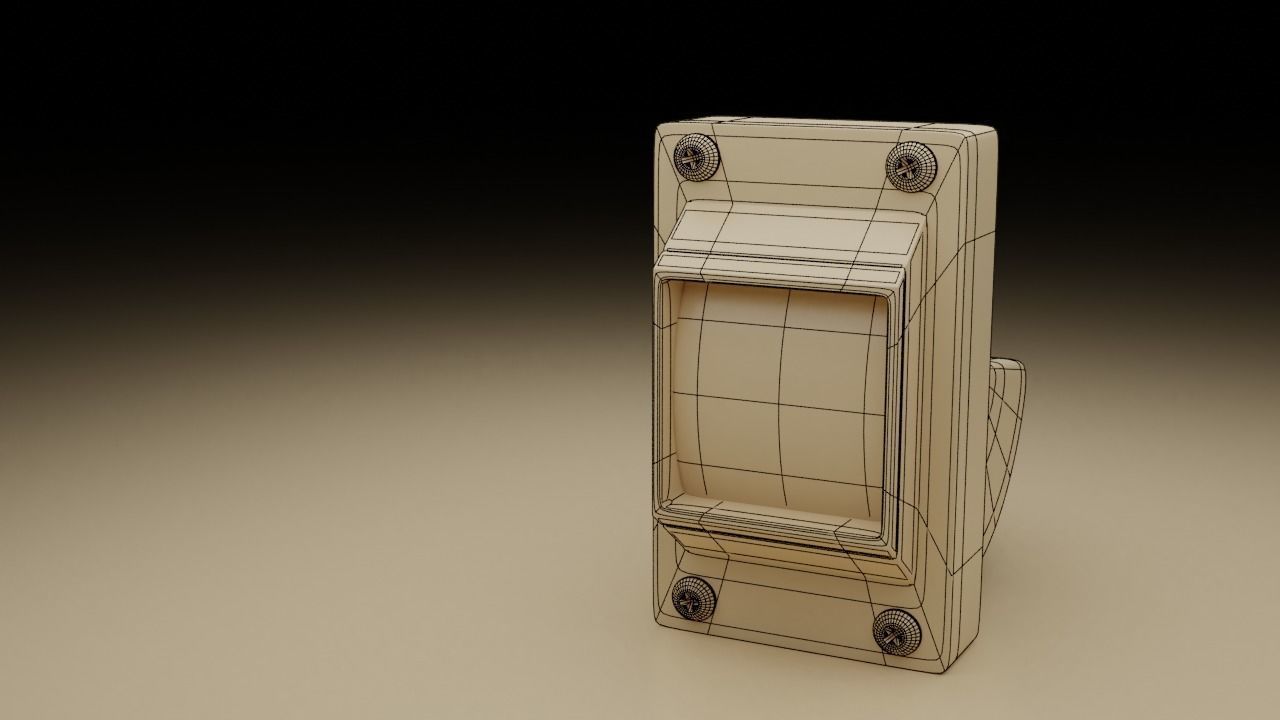

F16 Speed Brake Indicator 3D model

Description

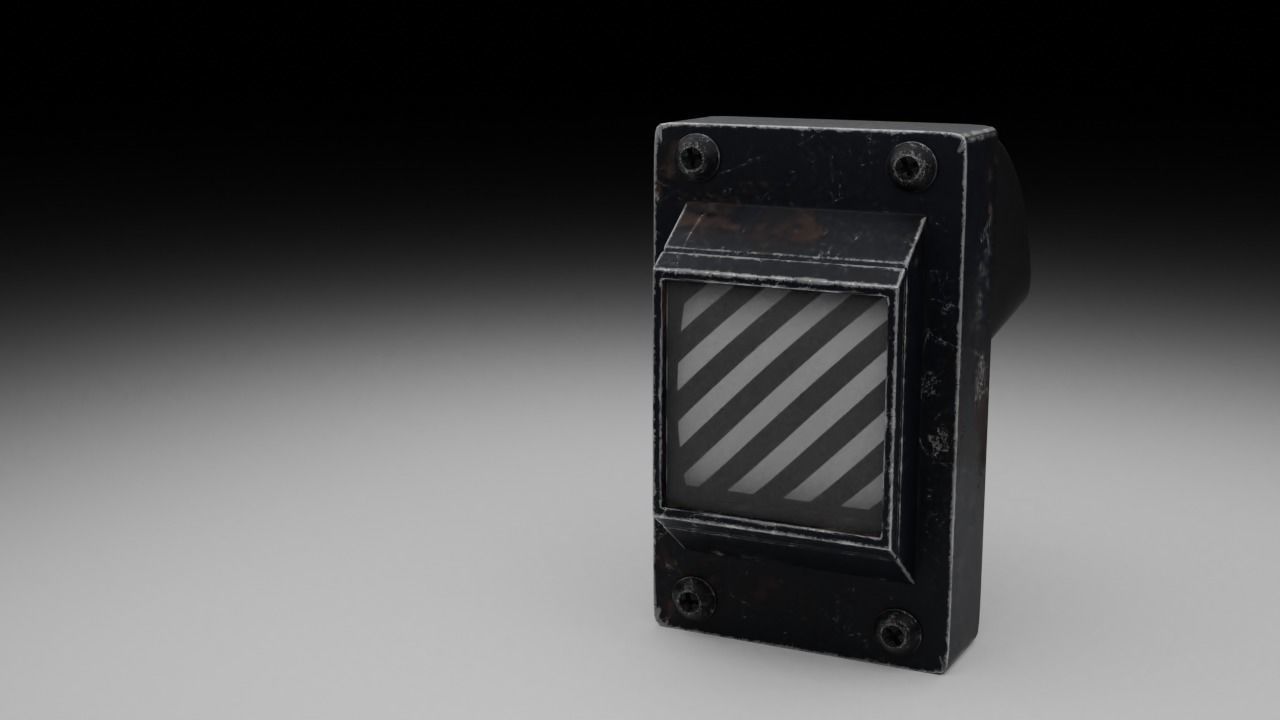

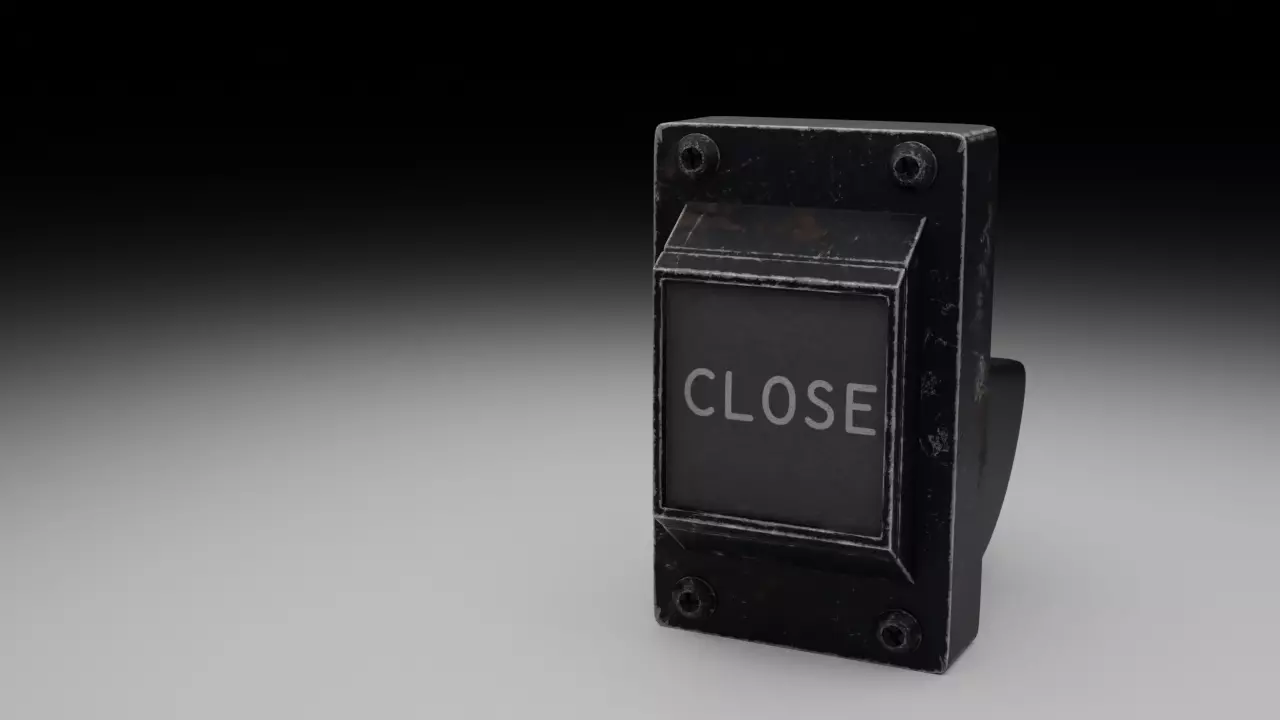

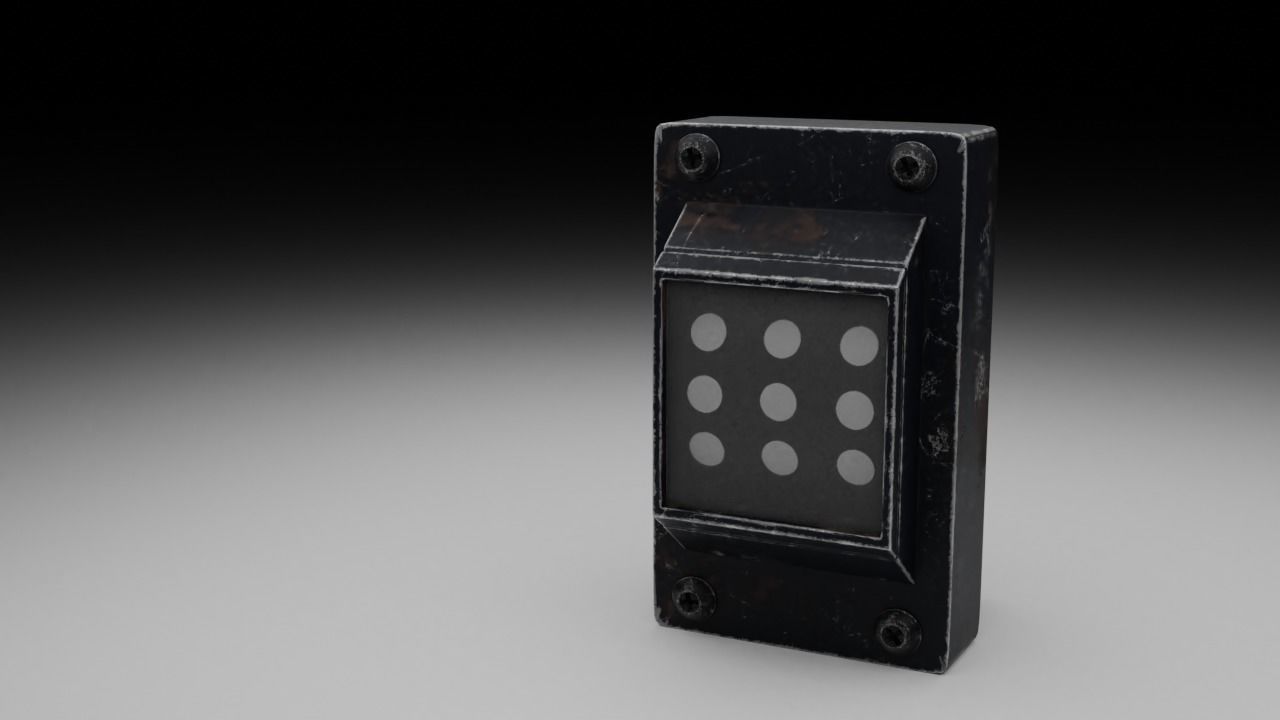

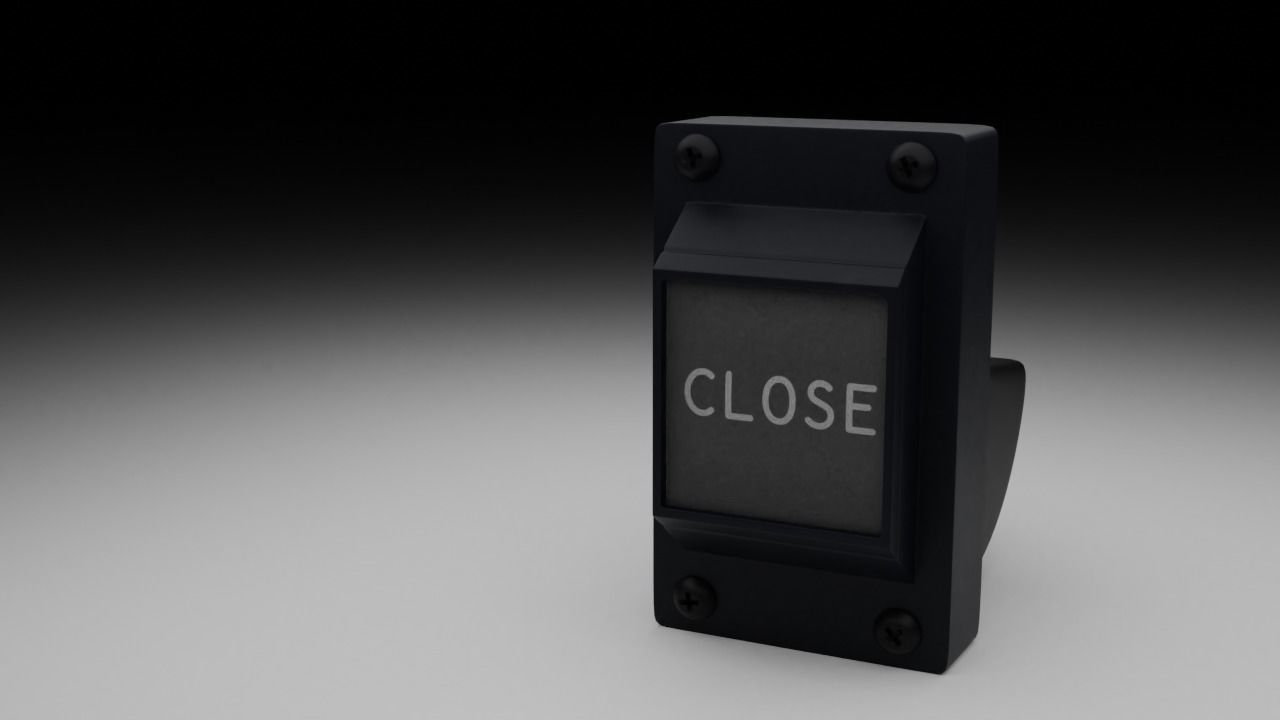

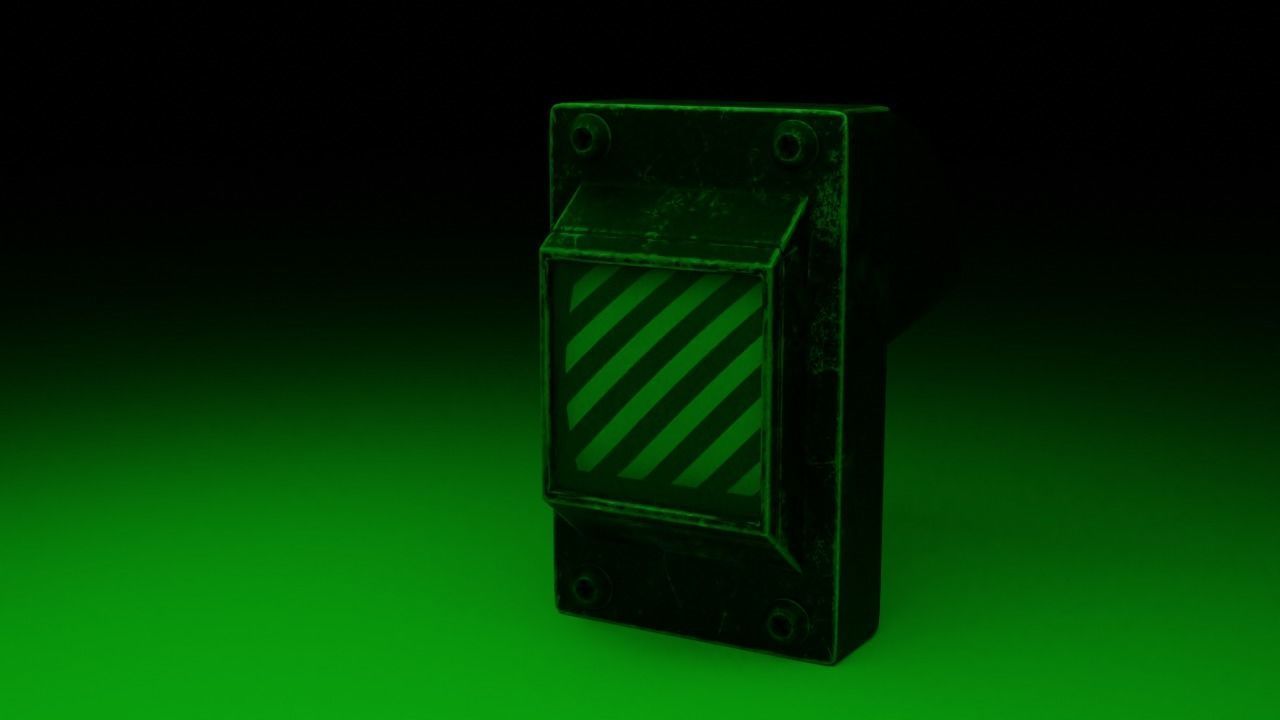

The Speed Brake Indicator indicates the current position of the external Speed Brake. There's three symbols that tells the pilot if they are closed (Word Close appears), Fully Opened (Series of 9 dots are displayed) or there's no electrical power or may also appear when in transit during switching (a series of Diagonal lines)

The model was created in Blender 2.91 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

  • Vertex Count: 9.102
  • Poly Count: 9.046

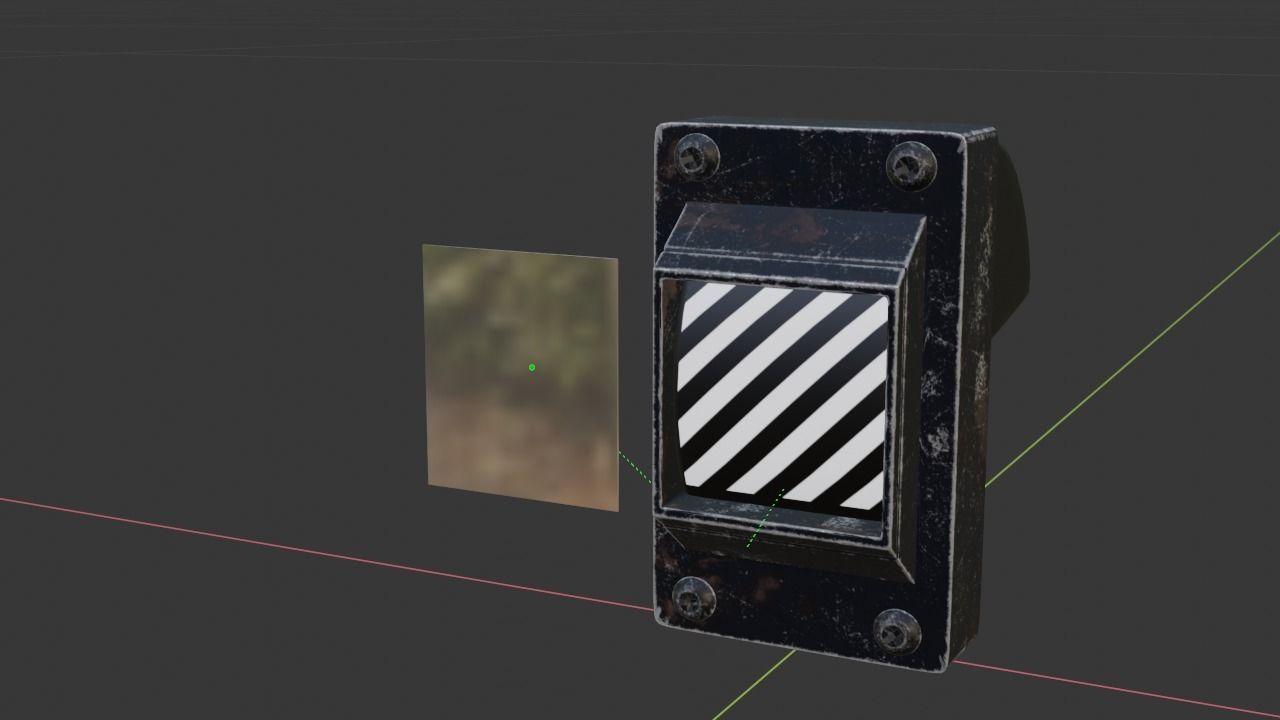

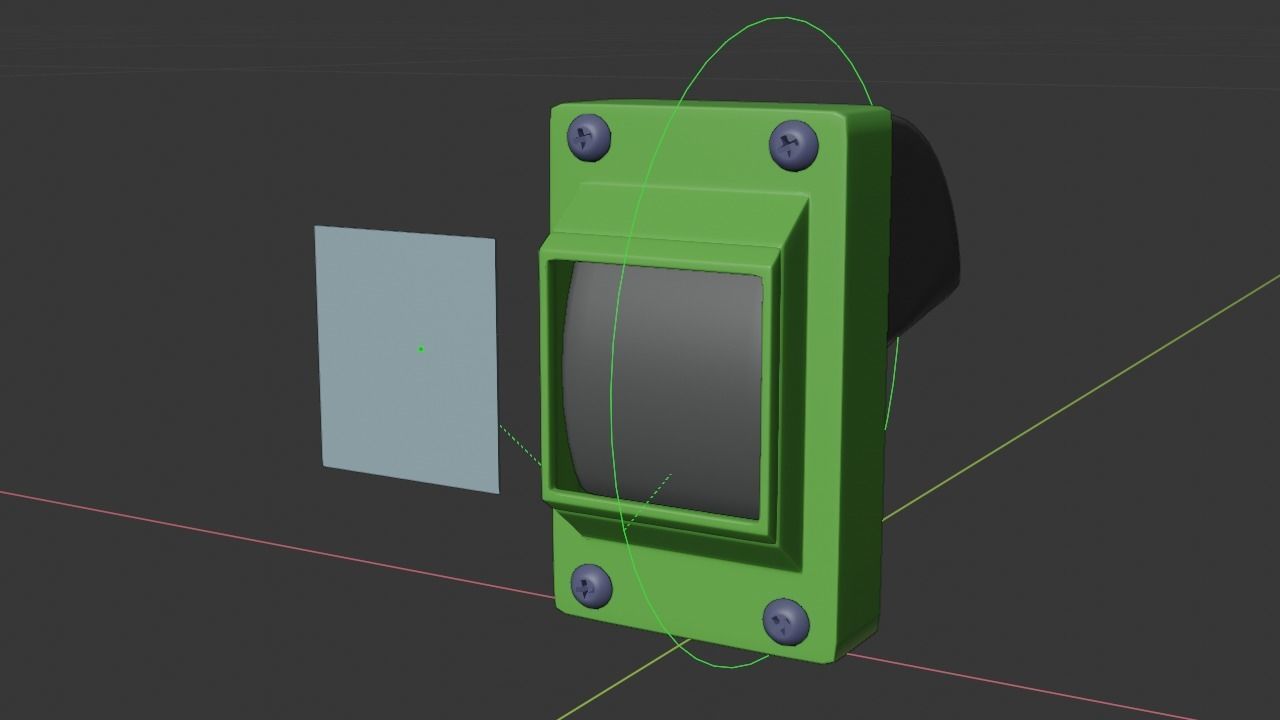

NOTE: The real life indicator has a plexiglass in it to protect the internal mechanism, it is shown on the thumbs as a separate mesh in all viewport renders (solid and material preview). I also tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.

Item rating
1 0
F16 Speed Brake Indicator
$13.98

Royalty Free License
F16 Speed Brake Indicator
$13.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)71 MBVersion: 2.91Renderer: Cycles Version: 2.91Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)49.5 MB
  • OBJ (.obj, .mtl)49.5 MB

3D Model details

  • Publish date2021-04-30
  • Model ID#3013866
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 9,046
  • Vertices 9,102
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used

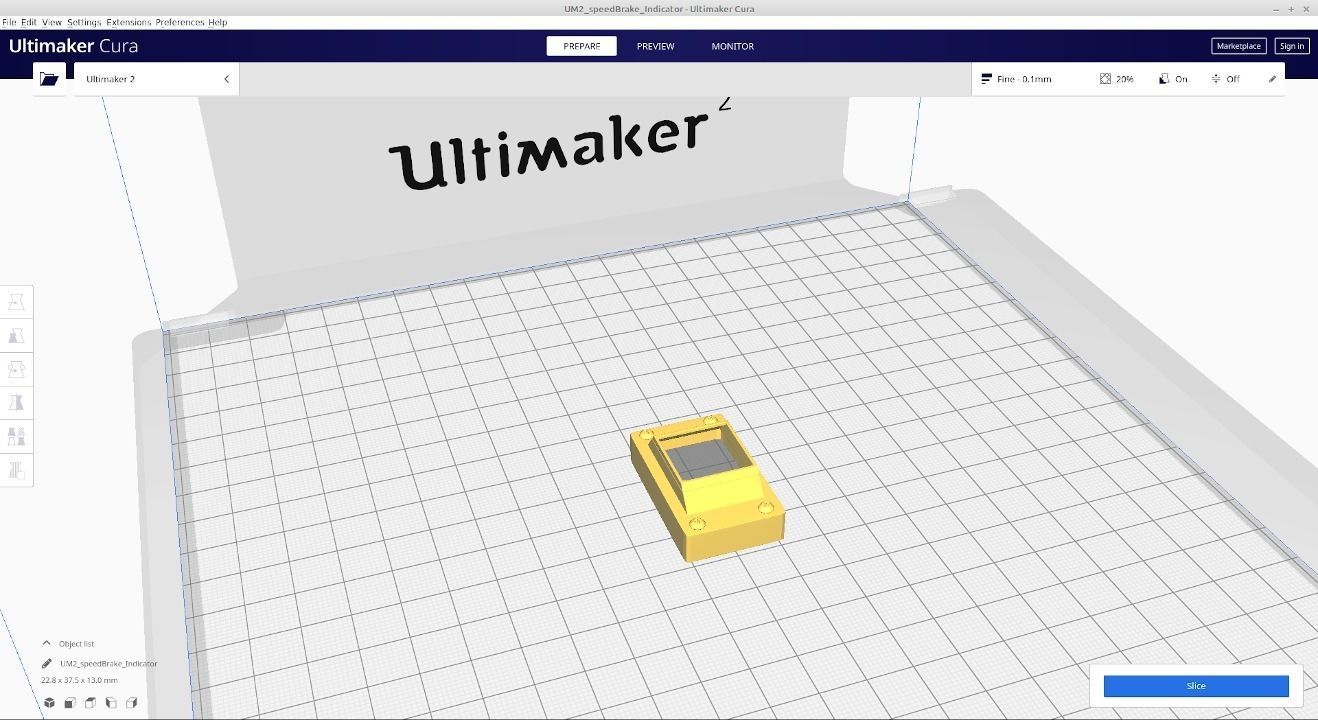

  • Ready for 3D Printing
