F16 Sensor Power Management Panel - SNSR PWR

F16 Sensor Power Management Panel - SNSR PWR 3D model

Description

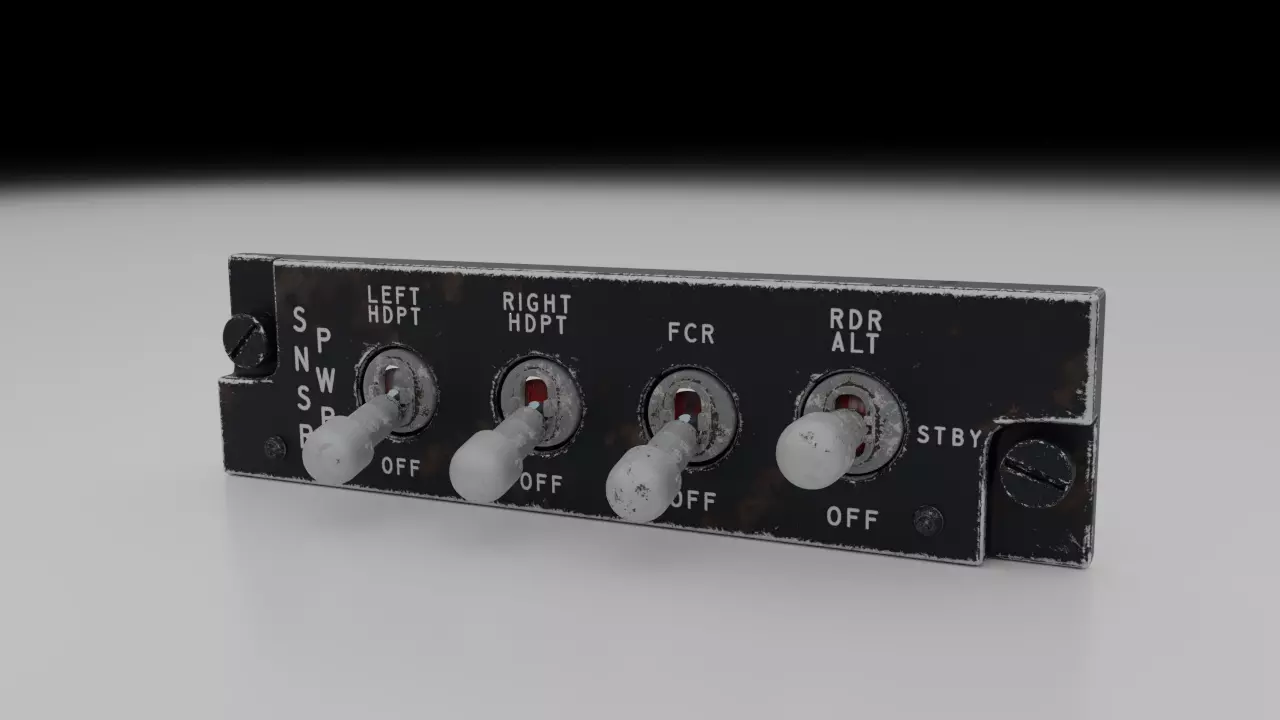

The Sensor Power Management Panel or SNSR PWR panel is where the electric power is turned on/off on sensors as well as on the weapon pods. Radar altimeter's power is also controlled by this panel. The SNSR PWR panel is located on the right console.

The panel is comprised of 4 toggle switches, 3 of them are a 2-way switch and one 3-way switch. Their function is to power On/Off the left and right fuselage hardpoints (normally targetung or navigation pods), also to power the Fire Control Radar System (FCR) and lastly the radar altimeter (RDR ALT).

The model was created in Blender 2.81 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

  • Vertex Count: 28,029
  • Poly Count: 26,606

I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.

Item rating
0 0
F16 Sensor Power Management Panel - SNSR PWR
$19.98

Royalty Free License
F16 Sensor Power Management Panel - SNSR PWR
$19.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)129 MBVersion: 2.81Renderer: Cycles Version: 2.81Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)90.1 MB
  • OBJ (.obj, .mtl)90.1 MB

3D Model details

  • Publish date2020-05-11
  • Model ID#2415310
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 26,606
  • Vertices 28,029
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
