F16 LIGHTNING Panel

F16 LIGHTNING Panel 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

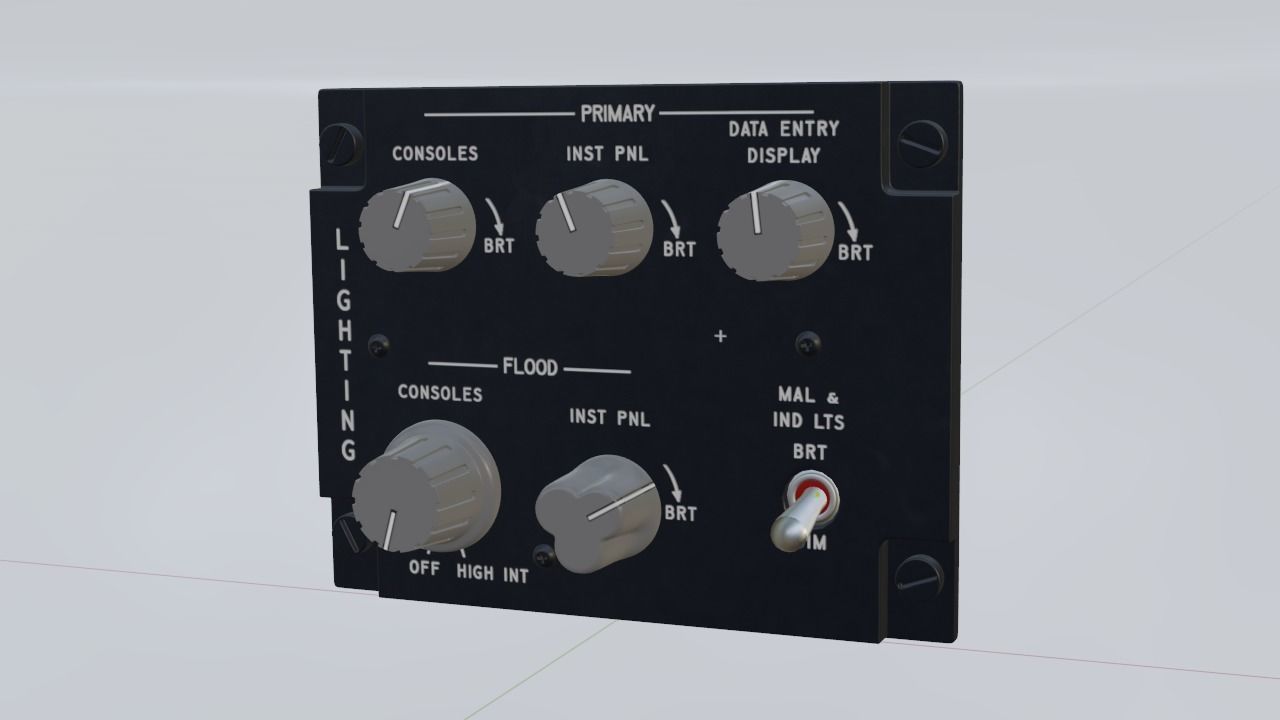

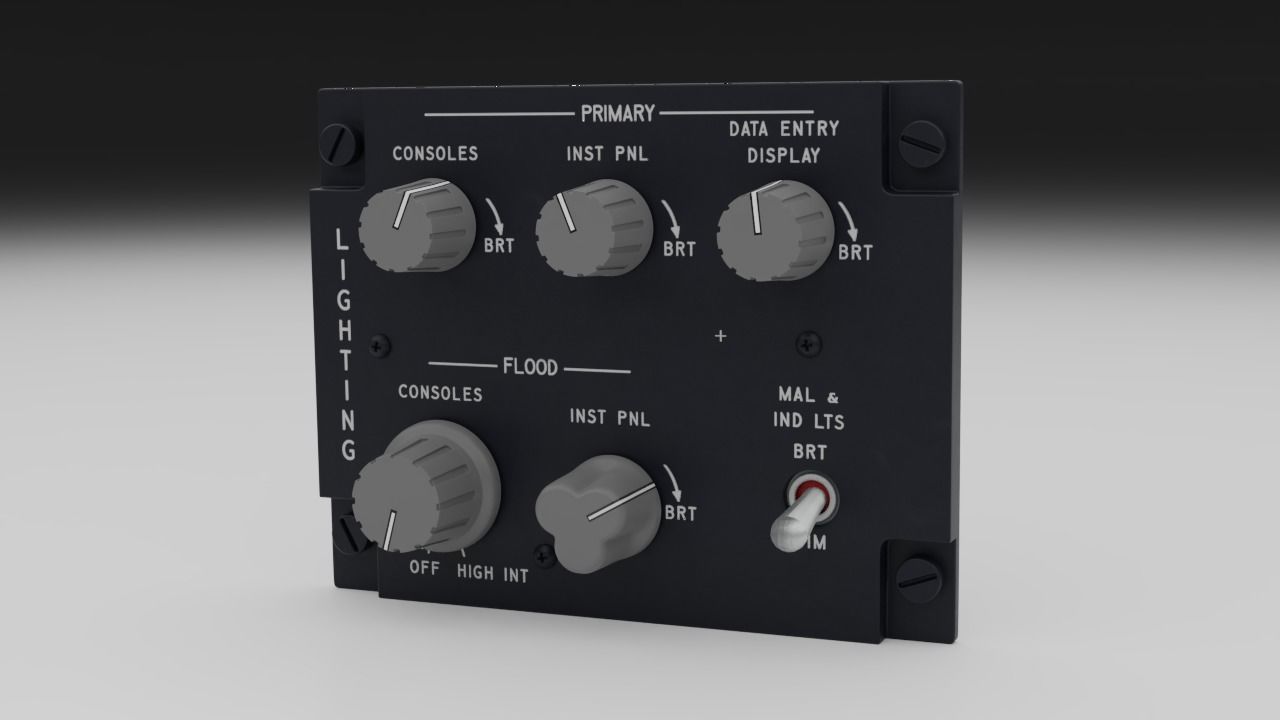

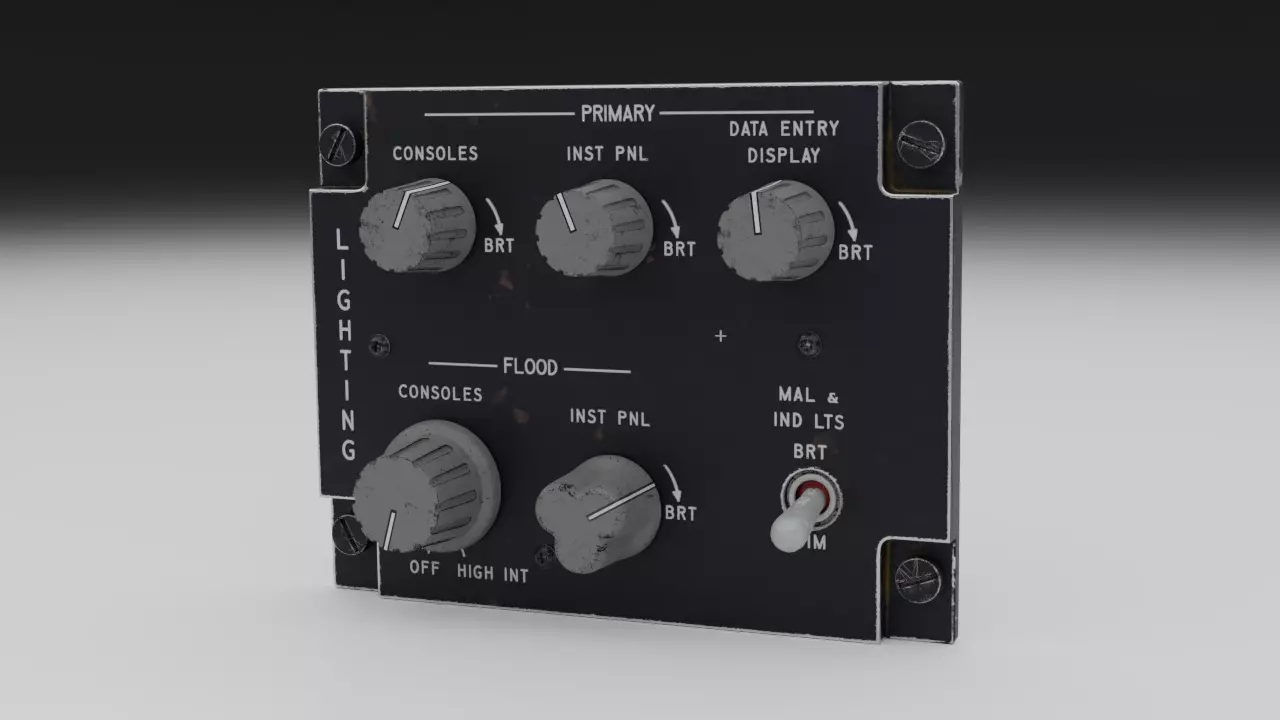

With this panel, the illumination of the cockpit can be selected by the pilot, it is located at the right console below the HUD Remote Control Panel.

The three top dials are rotary dials that dim the brightness of the console, instrument panels and the Data Entry Display (DED).

The next pair of dials from left to right are an OFF-HIGH INT dimmer of the floodlight and a dimmer control for brightness of the instrument panels over the floodlights.

The only toggle switch on the panel is a 3-Way switch, it toggles between the Malfunction and indexer lights to maximum brightness or a dimmer light. The centre position is not used.

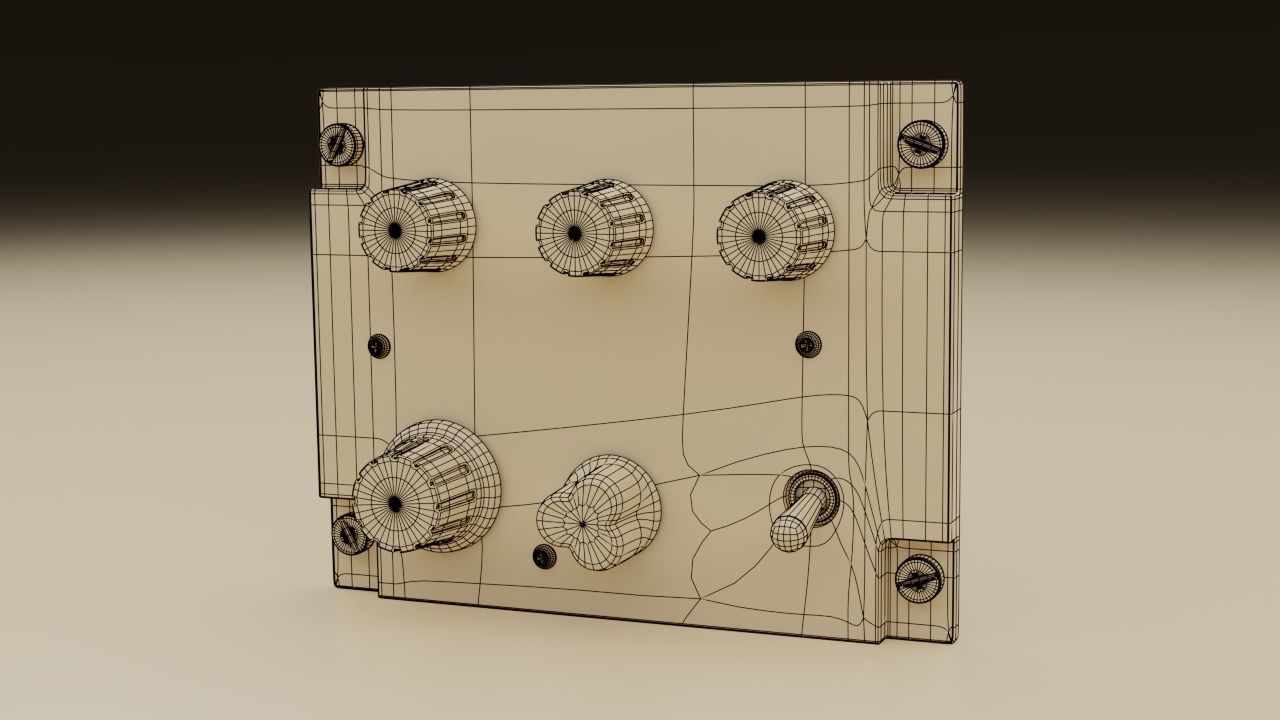

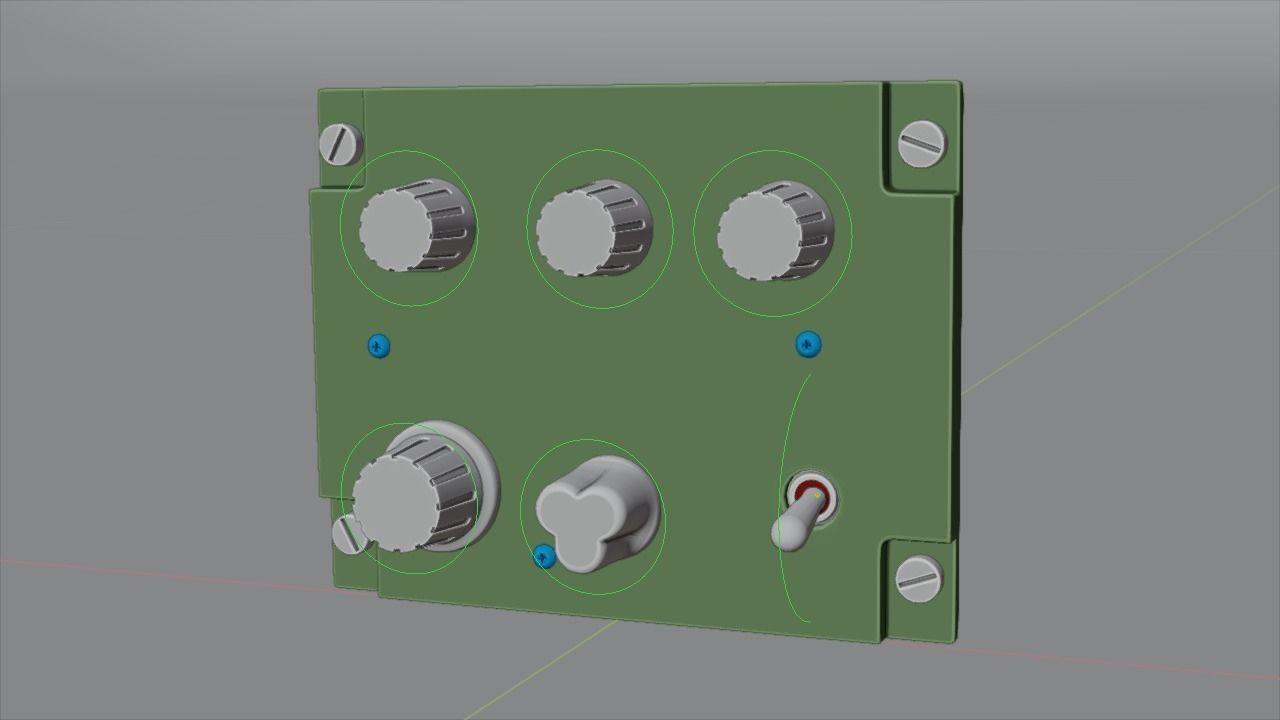

The model was created in Blender 2.81 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

  • Vertex Count: 35,734
  • Poly Count: 34,960

I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.

Item rating
0 0
F16 LIGHTNING Panel
$19.98

Royalty Free License
F16 LIGHTNING Panel
$19.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)190 MBVersion: 2.81Renderer: Cycles Version: 2.81Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)130 MB
  • OBJ (.obj, .mtl)130 MB

3D Model details

  • Publish date2020-05-21
  • Model ID#2432702
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 34,961
  • Vertices 35,734
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
