Description

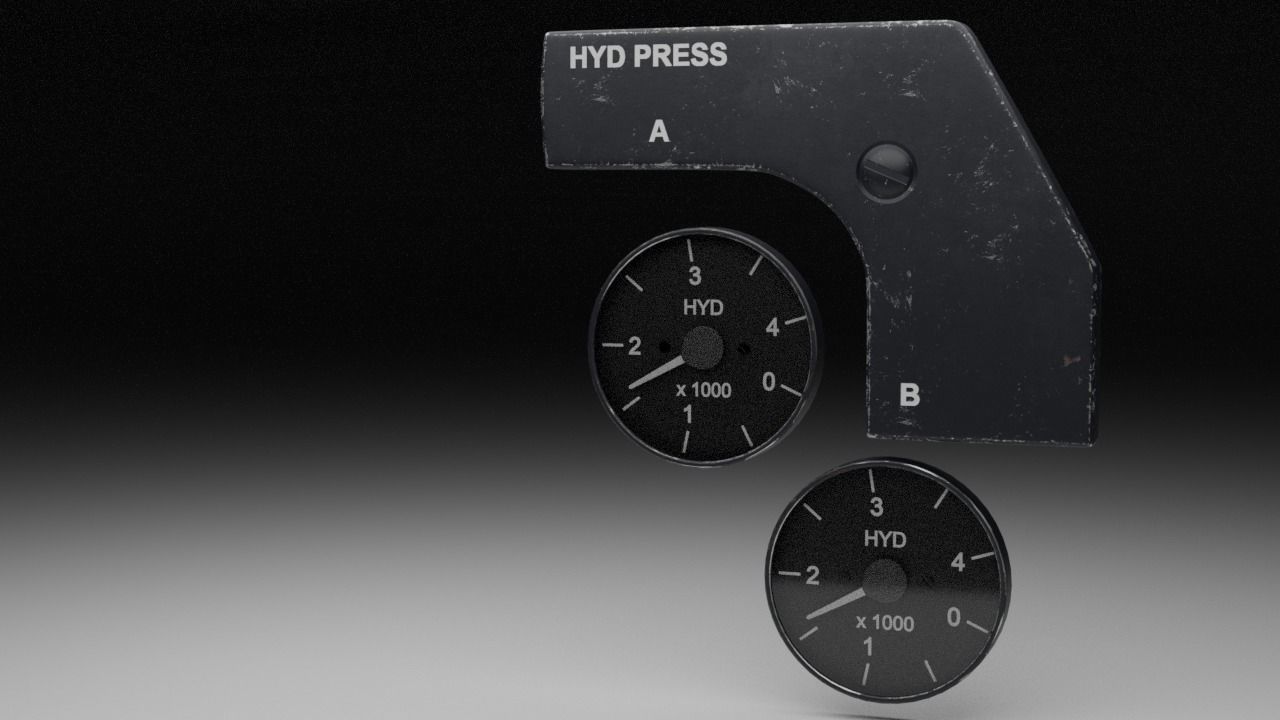

The F-16 has two independent engine-driven hydraulic systems, A and B. Both systems are used by the FLCS (Flight Control System) simultaneously to power the flight controls and LEFs (Leading Edge Flaps). The A system also powers the speedbrakes. The B system powers everything else: gun, air refueling, landing gear, brakes, and nosewheel steering. These gauges are located on the right AUX Console.

This model has been modelled in Blender 2.79 as close to the real life counterpart.

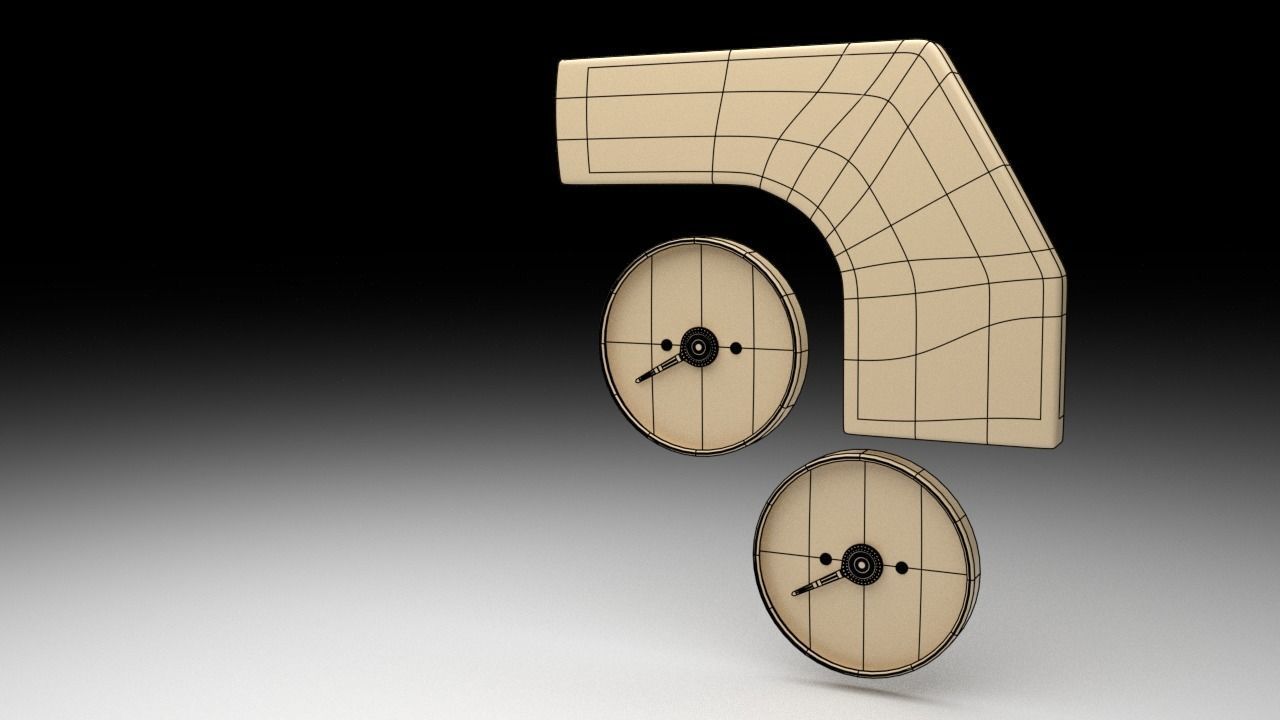

  • Vertex count: 47.191
  • Poly count: 46.624

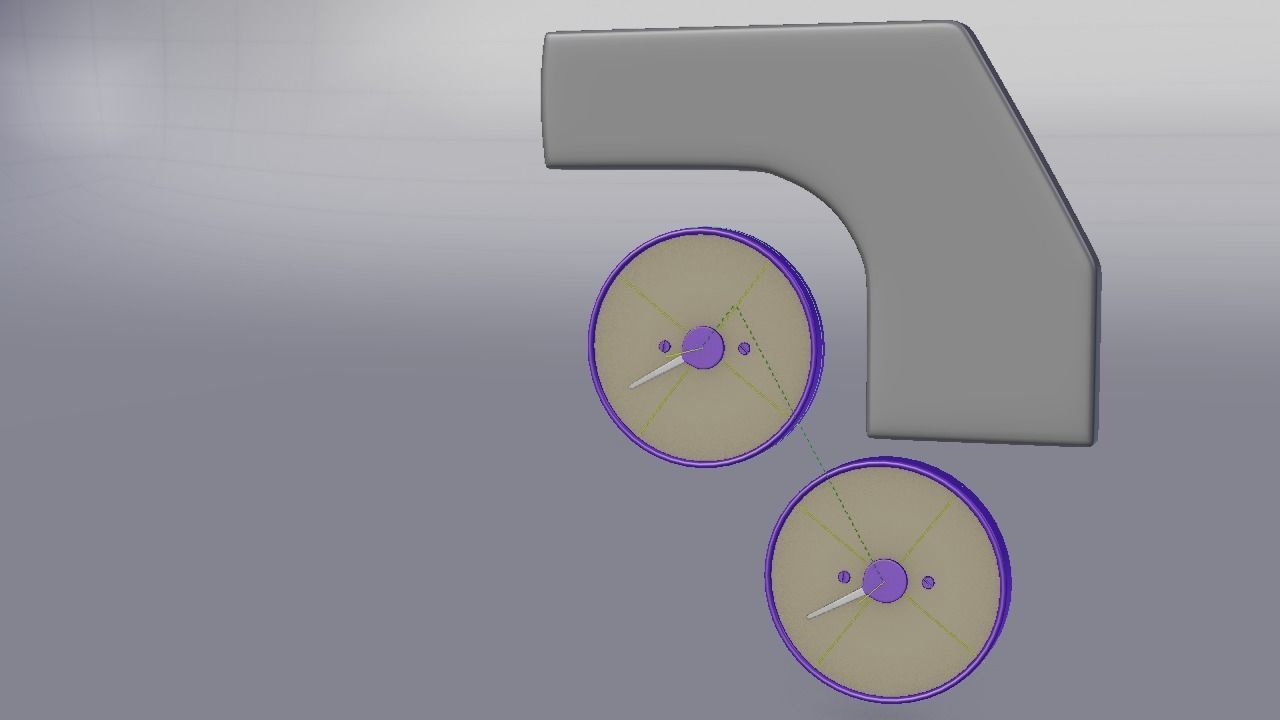

All dials and indicator hand has been rigged for easy animation.

NOTE: All textures have been packed inside the .blend file but can also be found in the .zip file in the Texture folder, also inside the folder you can find the 1k and 2k textures for the outer bezel in both clean and dirty versions of the panel
