F16 HUD Remote Control Panel

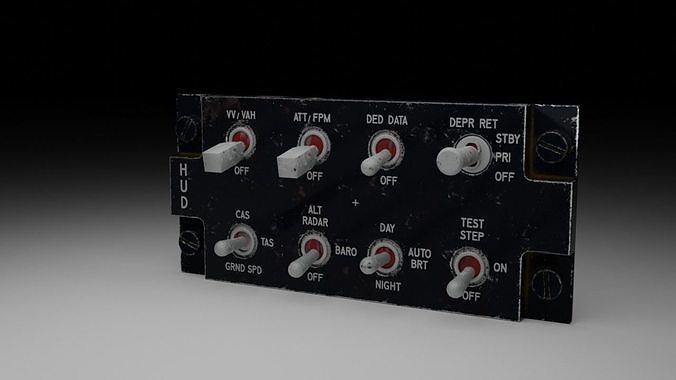

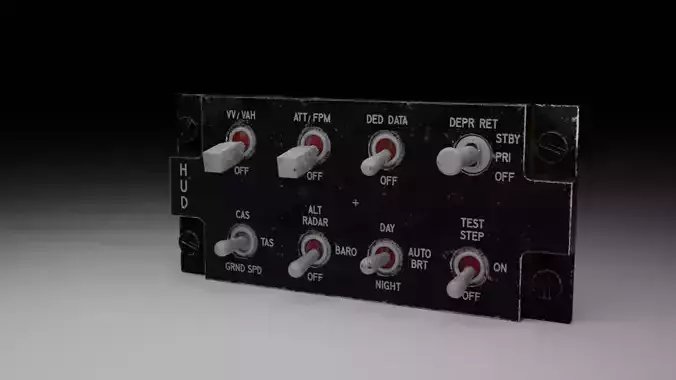

F16 HUD Remote Control Panel 3D model

Description

Via HUD Remote Control Panel the pilot chooses different parameters for flight and navigation the can later be can be selected on the HUD. The Remote Control Panel is located on the right console.

The panel is comprised of x6 3-way toggle switches. They switch On/Off different Modes shown on the HUD ranging from displaying the Vertical Velocity, Velocity, Altitude, Heading and Bank Angle Indicator, all the way to switching from radar altitude to barometric altitude. Also it can test the HUD's display with a stepped pattern or a four test pattern.

The model done is for the F16 Blocks 40/42 current and the 50/52. If needed for Blocks 25, 30/32, 40/42 old and MLU versions please contact me for the necessary textures.

The model was created in Blender 2.81 for the Cycles engine on a 1:1 scale to the real one, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

  • Vertex Count: 30,477
  • Poly Count: 28,856

I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.

Item rating
0 0
F16 HUD Remote Control Panel
$19.98

Royalty Free License
F16 HUD Remote Control Panel
$19.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)152 MBVersion: 2.81Renderer: Cycles Version: 2.81Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)107 MB
  • OBJ (.obj, .mtl)107 MB

3D Model details

  • Publish date2020-05-16
  • Model ID#2423442
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 28,857
  • Vertices 30,477
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
