F16 Horizontal Situation Indicator - HSI

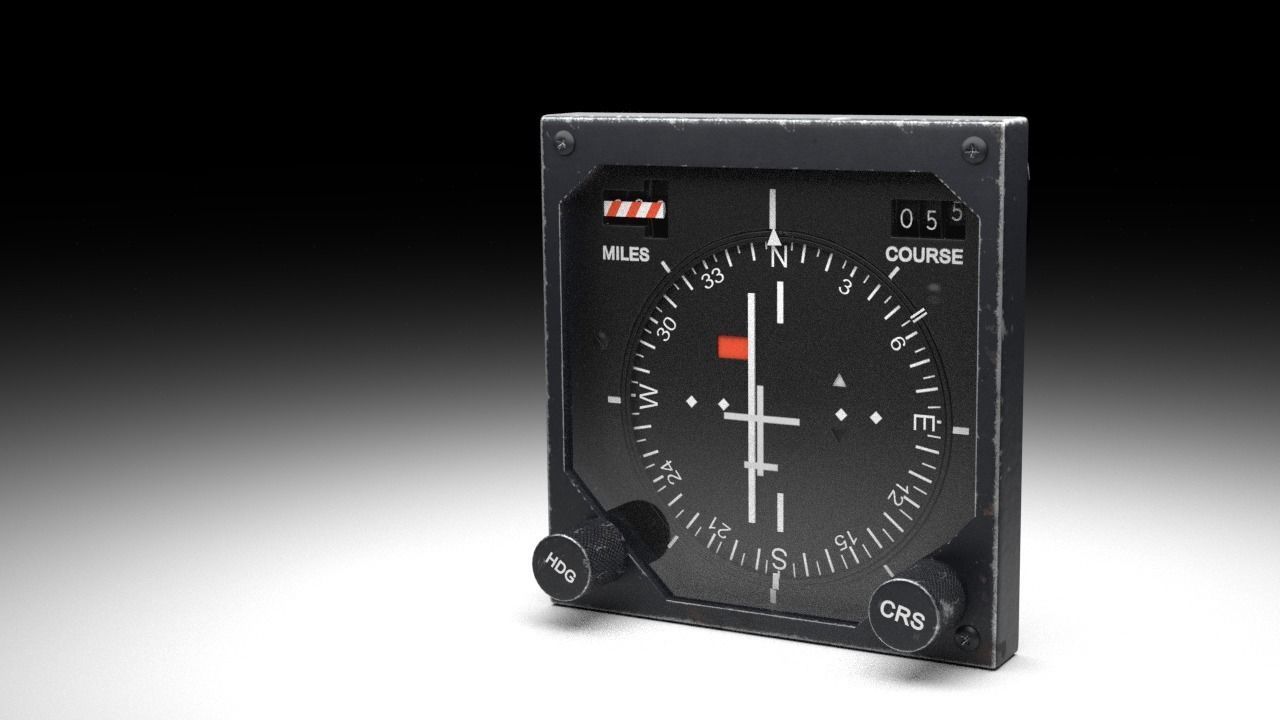

F16 Horizontal Situation Indicator - HSI 3D model

Description

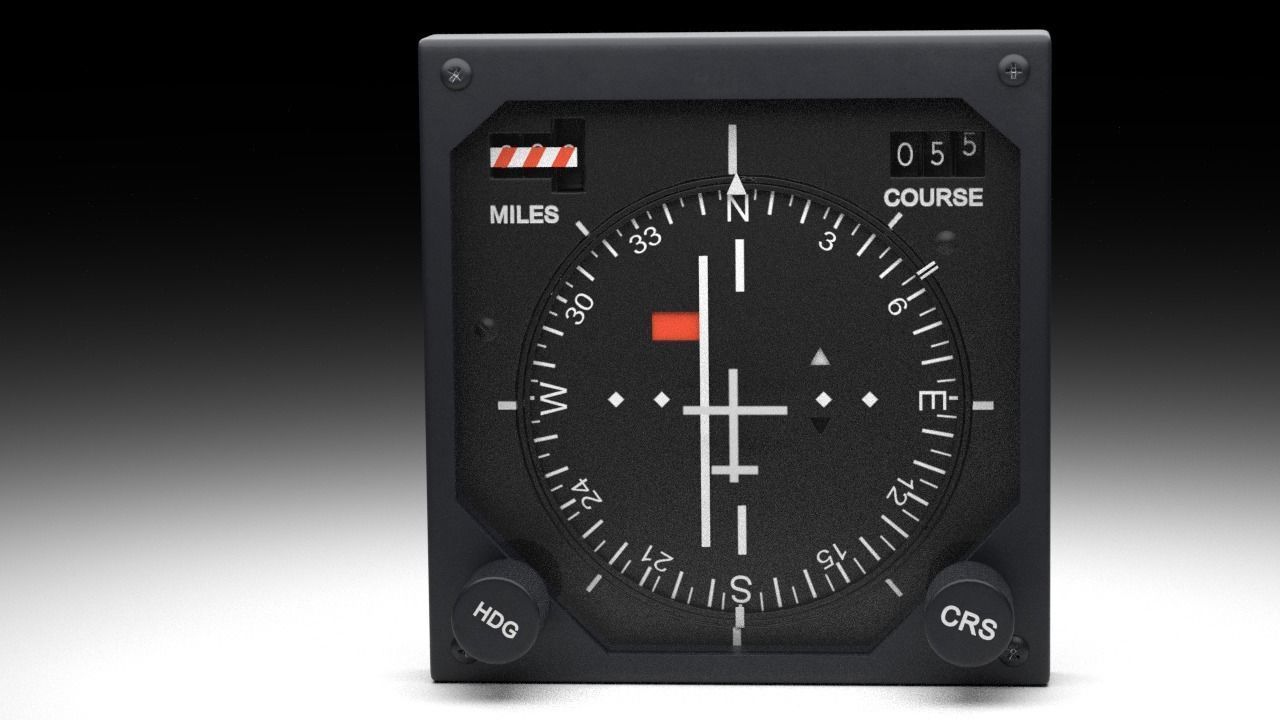

The HSI provides a basic horizontal view of the aircraft's navigation picture by displaying bearing and distance to a navigation aid, magnetic heading, track/ track deviation and course/course deviation.

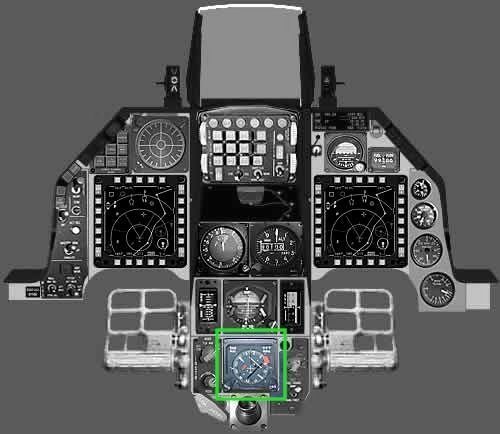

This gauge it's located in the Forward Centre Console.

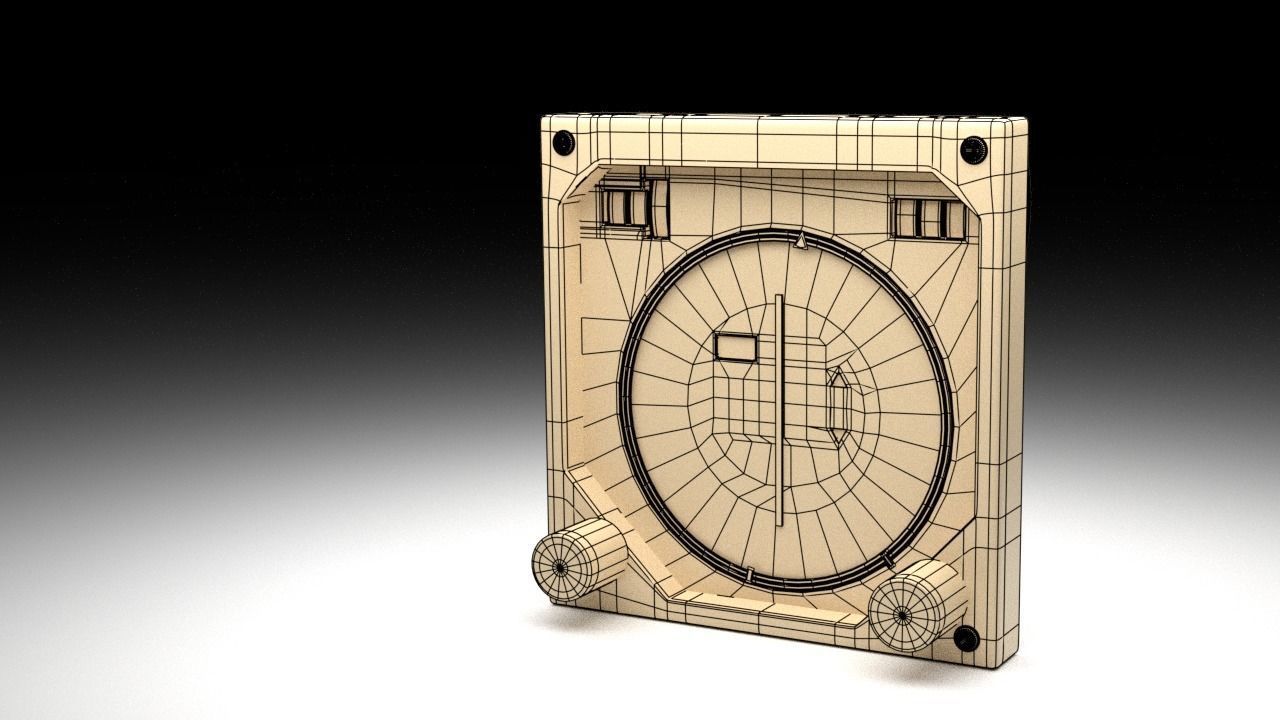

  • Vertex Count: 56.879
  • Poly Count: 55.885

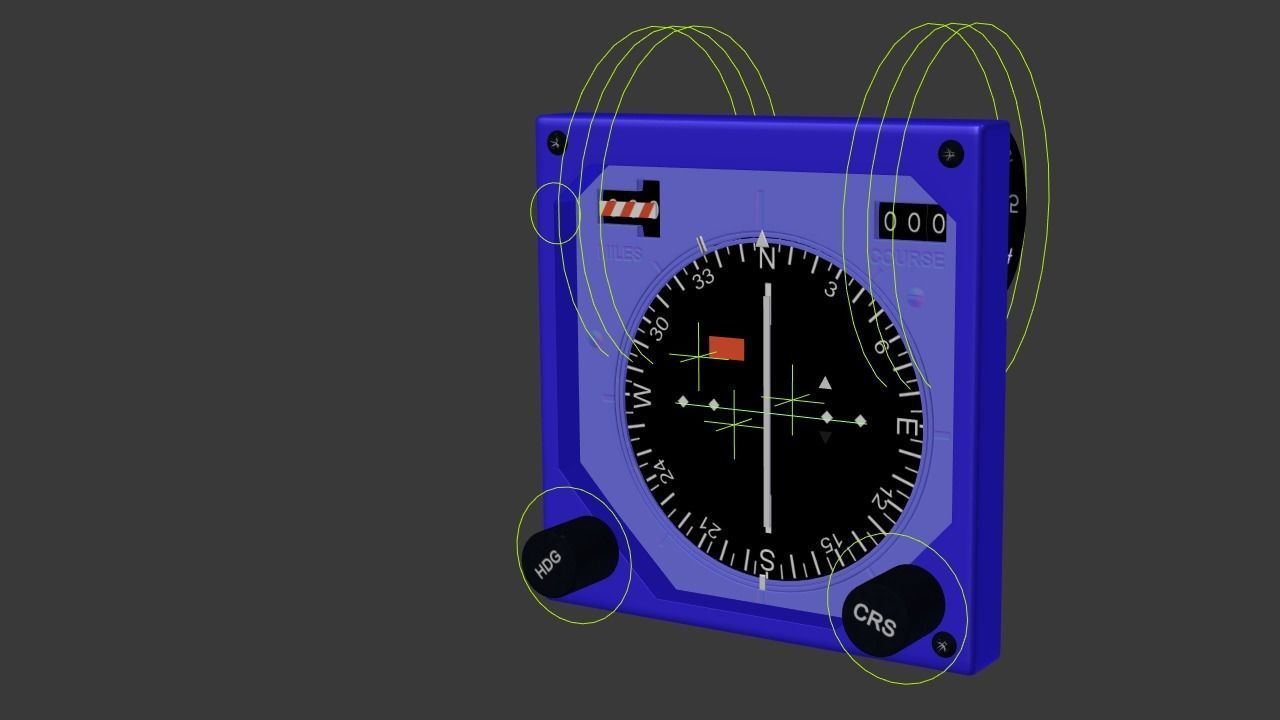

The model was made, textured, rigged and animated in Blender 2.79

Note: because of the instrument's complexity, it has a high level of poly counts. It's worth noting that I have tried to keep it as low as possible but yet mantaining all it's features, components and indicator's fidelity and realism.

Also ALL the textures can be found in the .zip file and if you require a different file format, do not hesitate in contacting me with your request.

Item rating
2 0
G
gekido1903 2021-10-27 09:20:20 UTC
Recommended
Outstanding quality and good price/value ratio. Friendly author as well. :)
F16 Horizontal Situation Indicator - HSI
$19.98

Royalty Free License
F16 Horizontal Situation Indicator - HSI
$19.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)36 MBVersion: 2.79Renderer: Cycles Version: 2.79Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)25.5 MB
  • OBJ (.obj, .mtl)25.5 MB

3D Model details

  • Publish date2019-09-15
  • Model ID#2094698
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 55,885
  • Vertices 56,879
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
