F16 HMD Panel

F16 HMD Panel 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No Unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare TexturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

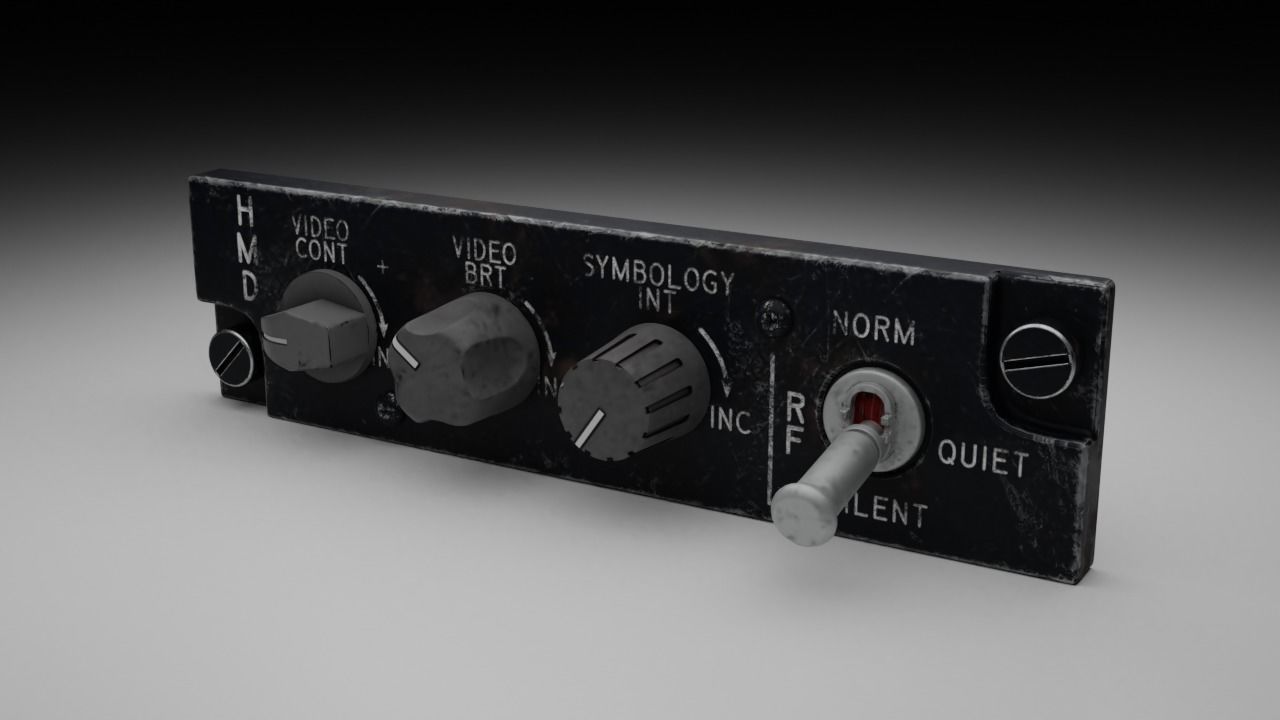

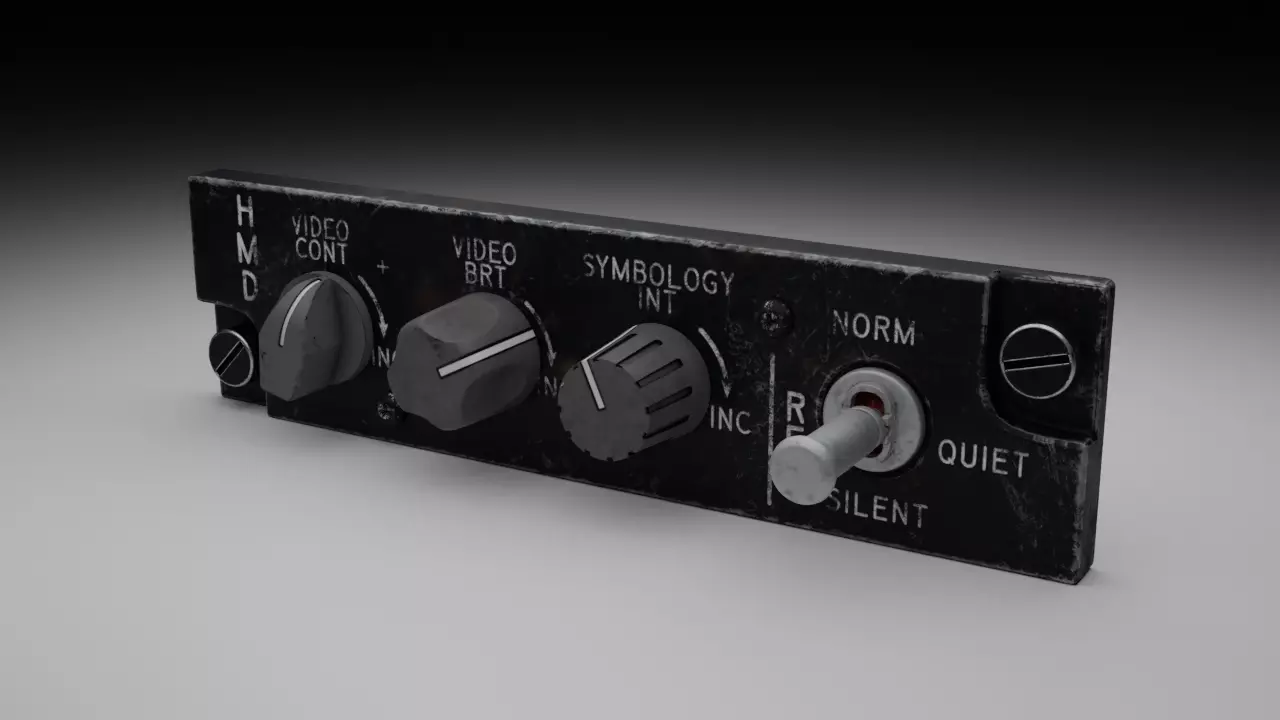

The HMD panel controls the Helm Mount Dispay System and is used only in the MLU version of the F16. The HMD System is a night vision camera on the top of the pilot helmet controlling the Brightness and Contrast of the Video displayed, also the visor's symbology intensity and radio transmission. The HMD panel is located in the lower part of the Left Auxiliary console.

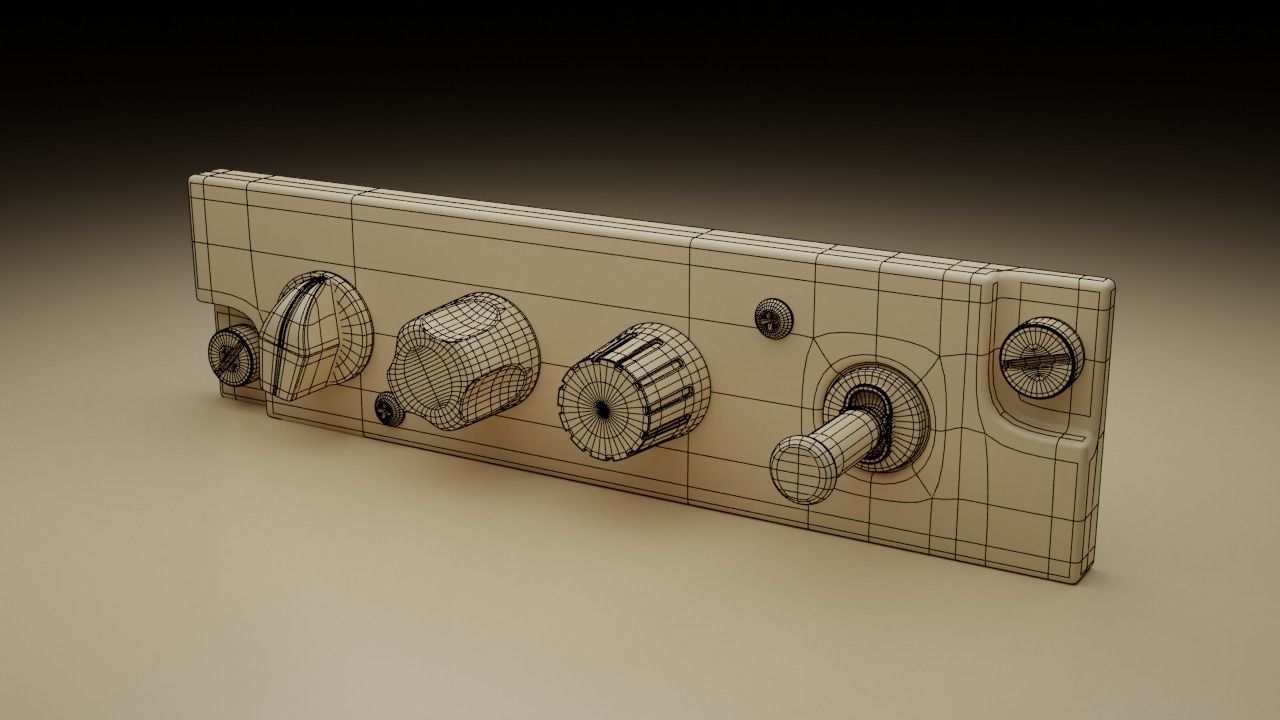

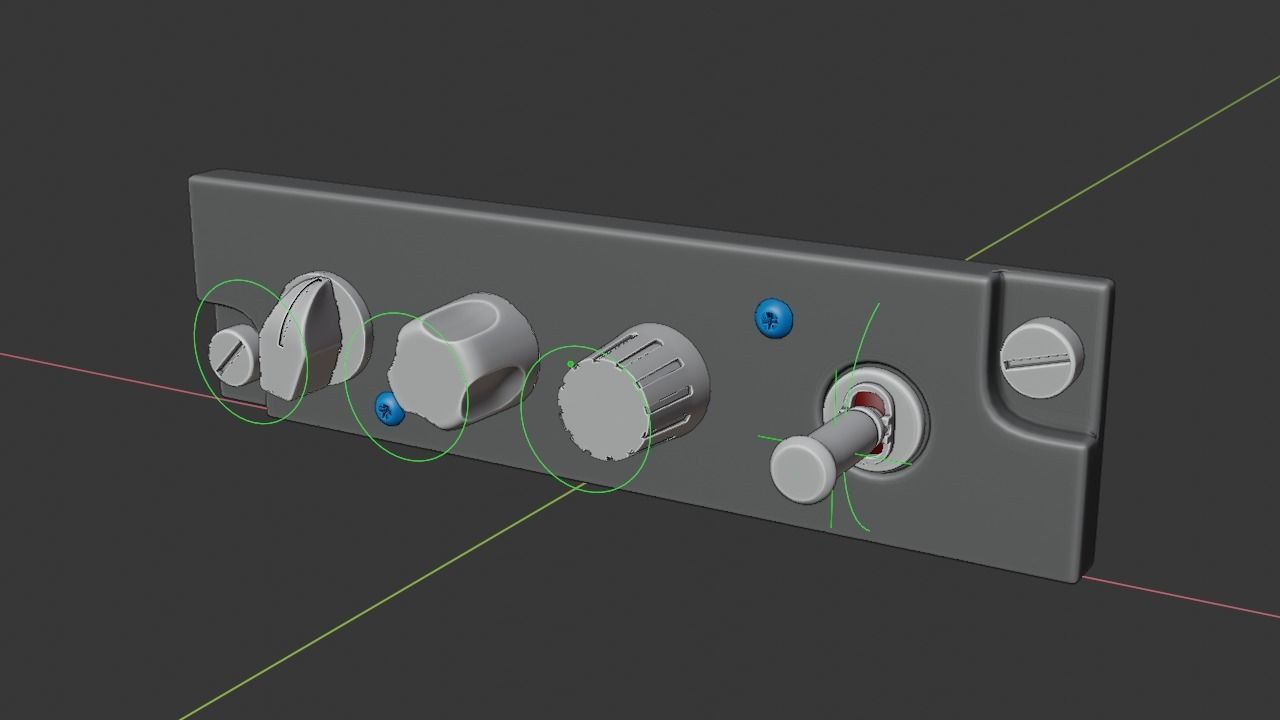

The model was created in Blender 2.81 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

  • Vertex Count: 38.389
  • Poly Count: 37.472

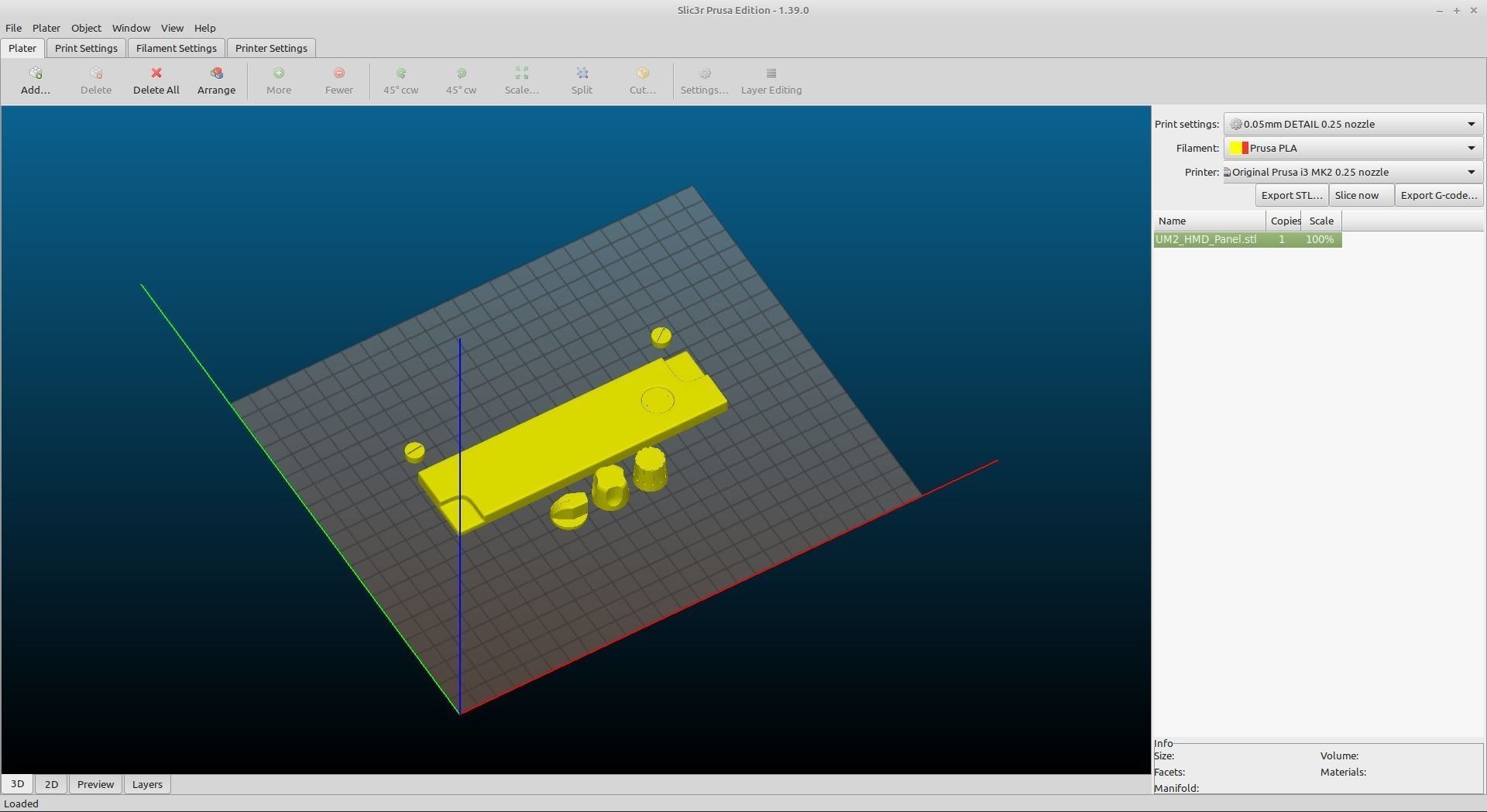

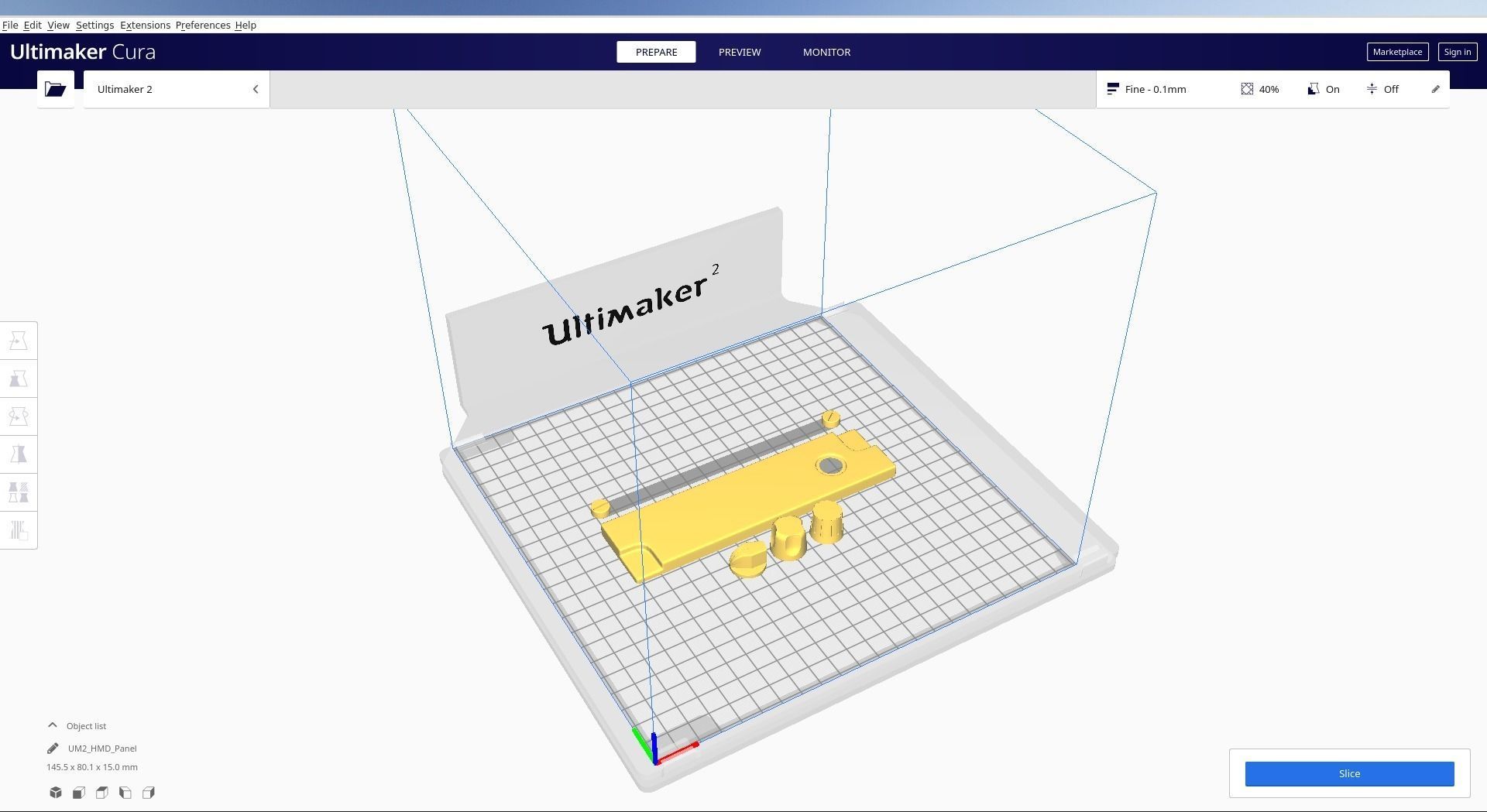

NOTE: I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me. Also as you can see in the thumbs it can be printed as separate parts for your sim, it's as close to the real one so scale is close to 1:1

Item rating
0 0
F16 HMD Panel
$19.98

Royalty Free License
F16 HMD Panel
$19.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire me

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)140 MBVersion: 2.81Renderer: Cycles Version: 2.81Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)98.5 MB
  • OBJ (.obj, .mtl)98.5 MB

3D Model details

  • Publish date2021-01-16
  • Model ID#2809160
  • Animated
  • Rigged approved
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 37,472
  • Vertices 38,389
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
