Description

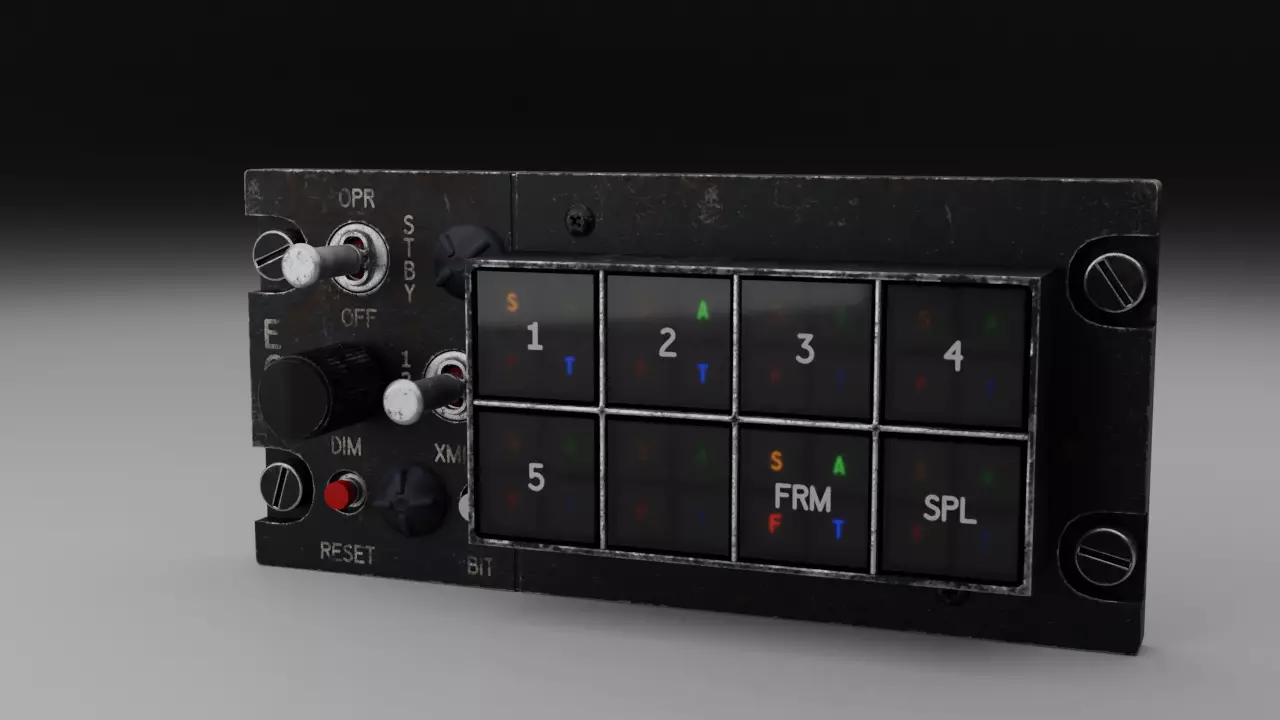

The Electronic Countermeasures Stowage Panel or ECM Panel is used to activate and set the Countermeasures in the jet. This can be achieved only, if an ECM Device (AN/ALQ-131, f.e.) is mounted on one of the external wing pods. When the ECM (also called Jammer) is active, an indicator light (ECM) is lit on the Misc Panel. More precise information about the ECM is not available at the moment, as most of it it's still CLASSIFIED. This panel is located on the left console.

The model was created in Blender 2.93 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

ECM Panel (Block 25, 30/32)

  • Vertex Count: 36.586
  • Poly Count: 36.089

ECM Panel (Block 40/52, 50/52, MLU)

  • Vertex Count: 47.788
  • Poly Count: 46.281

NOTE: I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.
