F16 Data Transfer Unit

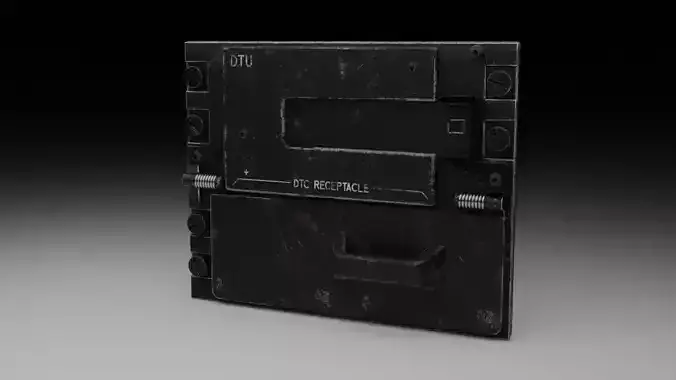

F16 Data Transfer Unit 3D model

Verification details of the FBX file
Files
Binary FBX
Scene
No unsupported objects
Geometry
No N-gonsNo faceted geometryManifold geometry
Textures and Materials
PBR texturesNo embed texturesSquare texturesPower of 2 texture sizesAssigned materials
UVs
No UV overlapsUV unwrapped model
Naming
Allowed characters
Description

The DTU contain the Data Transfer Cartridge, which is installed prior to the flight. It contains all the necessary navigation data for the planned mission. The DTU is recorded by the AFMSS (Air Force Mission Support Station). When the DTC is placed inside the DTU, the pilot can upload the data over a special page on MFD to the internal avionics subsystem of the aircraft. The DTU is located on the right console.

The model was created in Blender 2.81 for the Cycles engine, the textures and materials are PBR based.

  • Vertex Count: 25,051
  • Poly Count: 24,532

I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.

NOTE: Due to the lack of more detailed information regarding this panel (presumably because it is of sensitive nature) it hasn't been modelled to be animated or even rigged.

Item rating
0 0
F16 Data Transfer Unit
$19.98

Royalty Free License
F16 Data Transfer Unit
$19.98

Royalty Free License
Available in these collections
Response 87% in 0.9h
3D Modeling
Lighting
UV mapping
Shaders
PBR modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • Blender (.blend) (2 files)256 MBVersion: 2.81Renderer: Cycles Version: 2.81Renderer: Cycles
Exchange
  • Autodesk FBX (.fbx)178 MB
  • OBJ (.obj, .mtl)178 MB

3D Model details

  • Publish date2020-10-07
  • Model ID#2643676
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR approved
  • Geometry Polygon mesh
  • Polygons 24,532
  • Vertices 25,051
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Mixed
  • Plugins used
  • Ready for 3D Printing
