Description

The Chaff/Flare panel belong together with the Threat Warning Prime, the Threat Warning Aux and the RWR to the EWS (Electronic Warfare System) of the F-16. Depending on the threat, heat seeking missiles or radar guided missiles Flares or Chaff are expelled either automatically or manually. The chaffs are used as countermeasure for heat-seeking missiles, while chaffs are useful, if the missile is radar guided. An F-16 carries 60 Chaffs and 30 Flares.

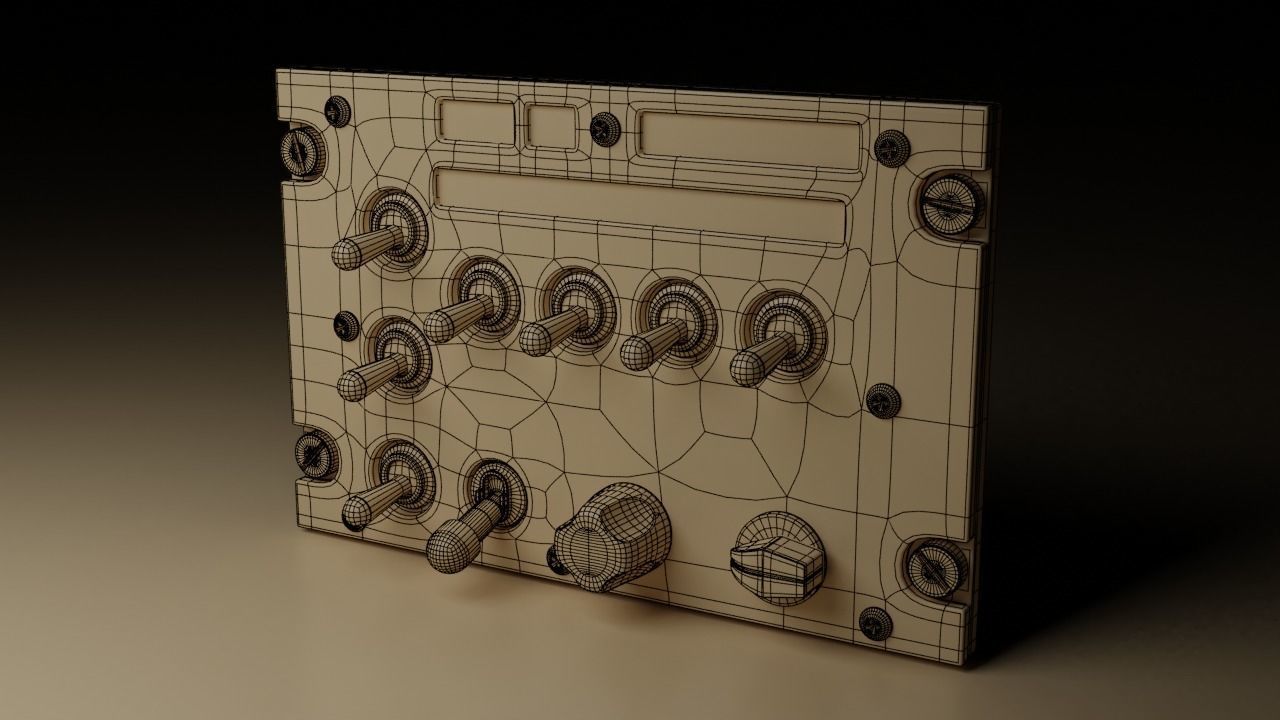

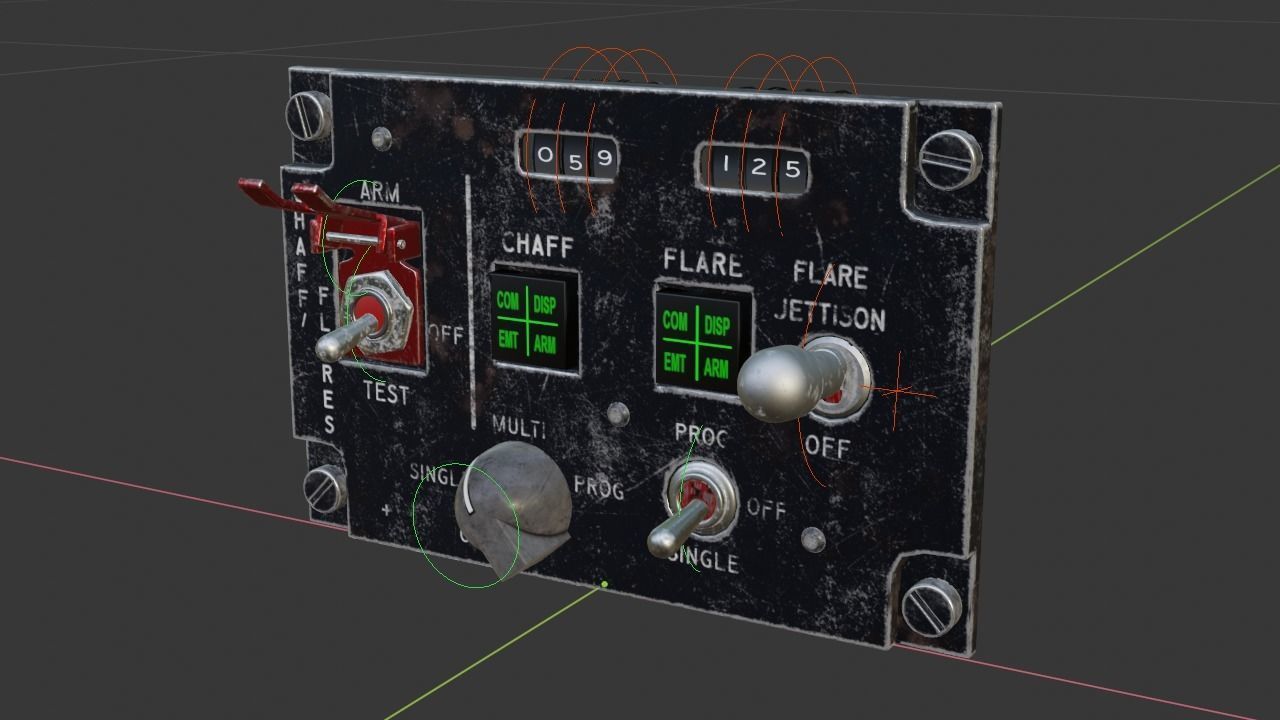

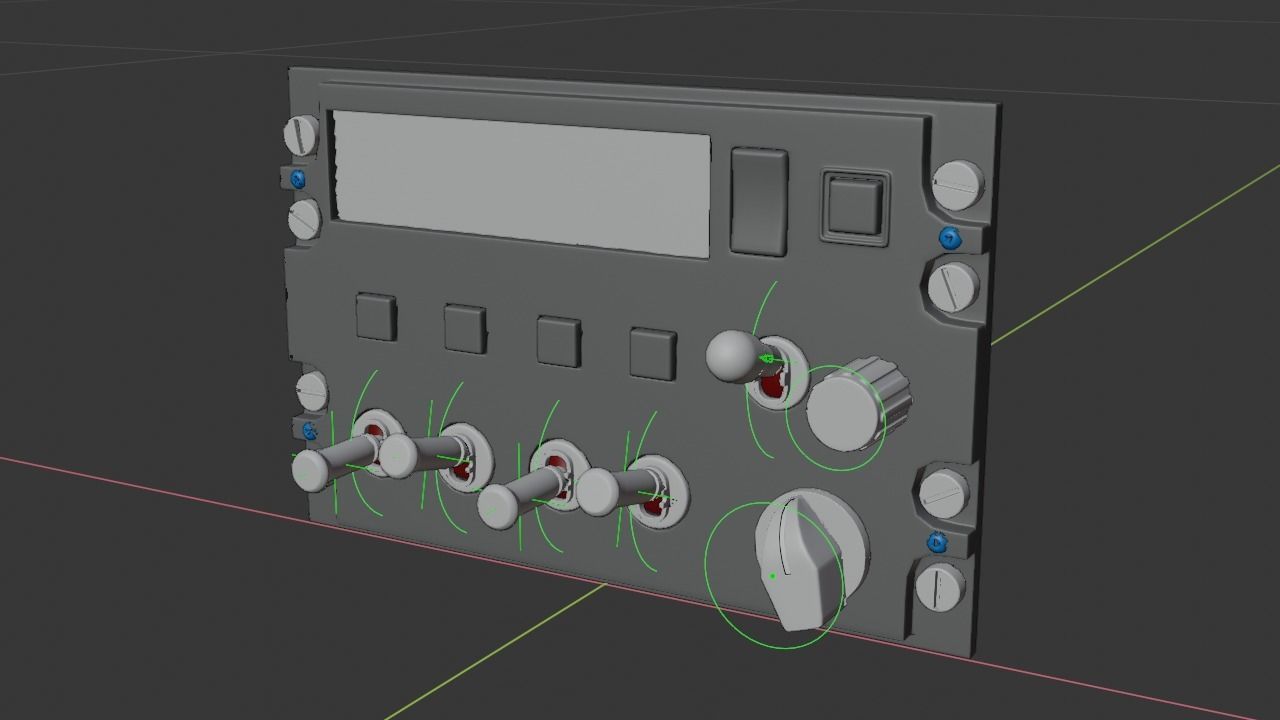

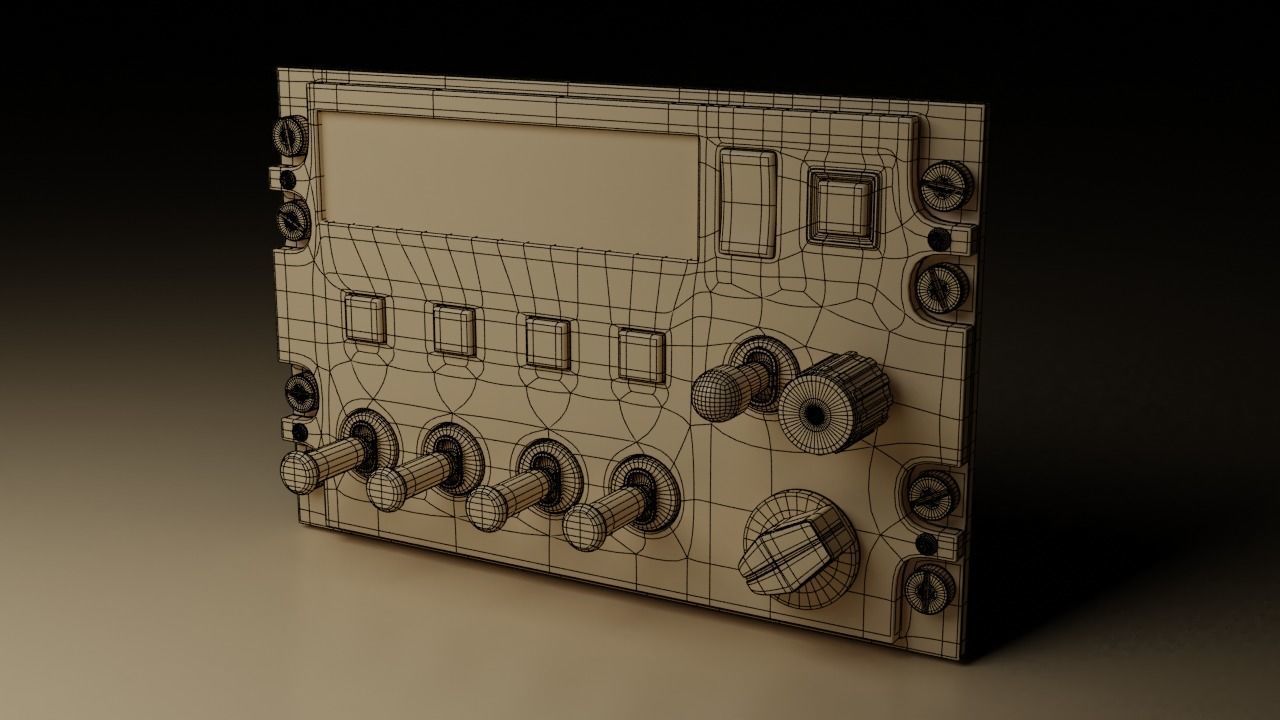

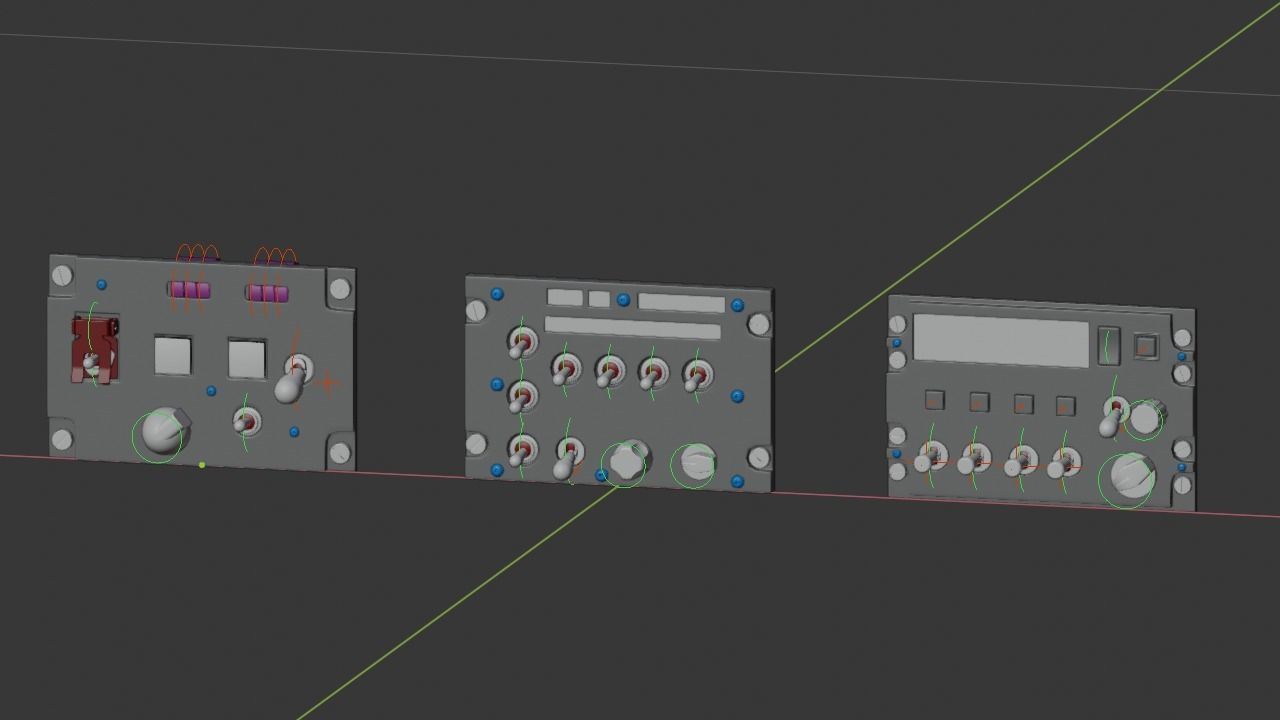

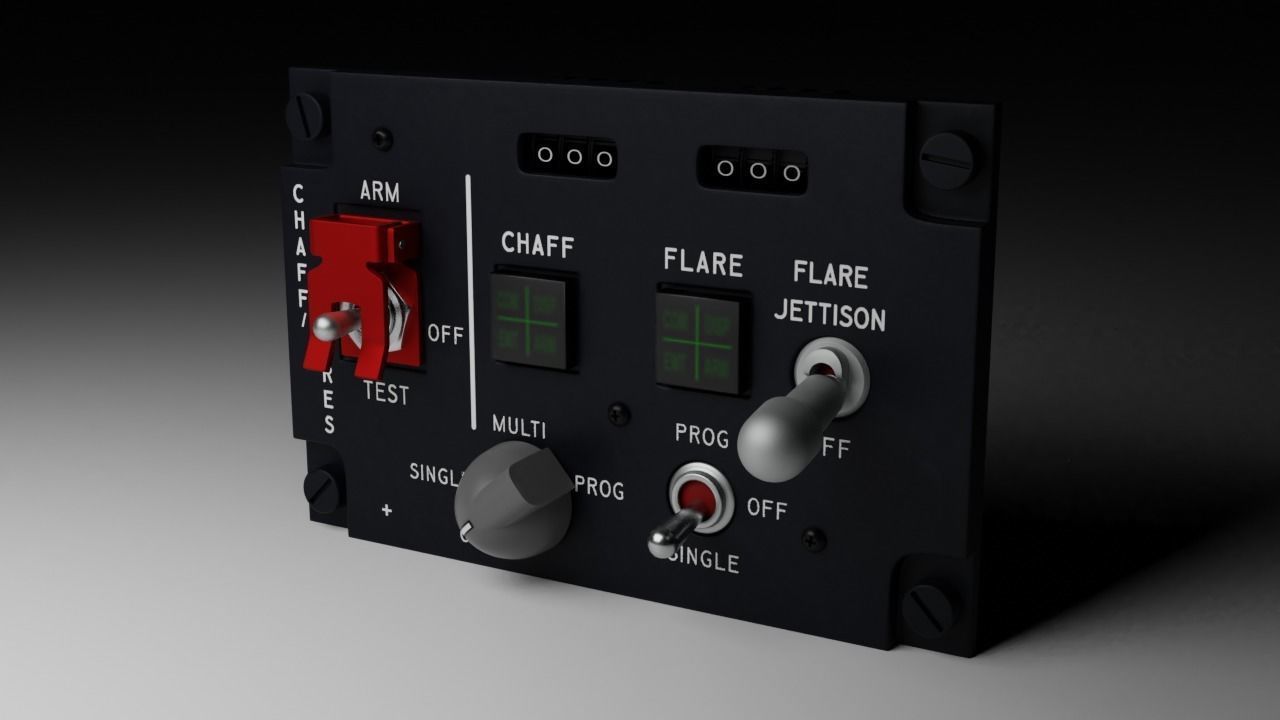

The models were created in Blender 2.81 for the Cycles engine, the textures and materials are PBR based. The models hava been rigged with a simple Empty for easy animation.

ALE-40

  • Vertex Count: 42.030
  • Poly Count: 40.934

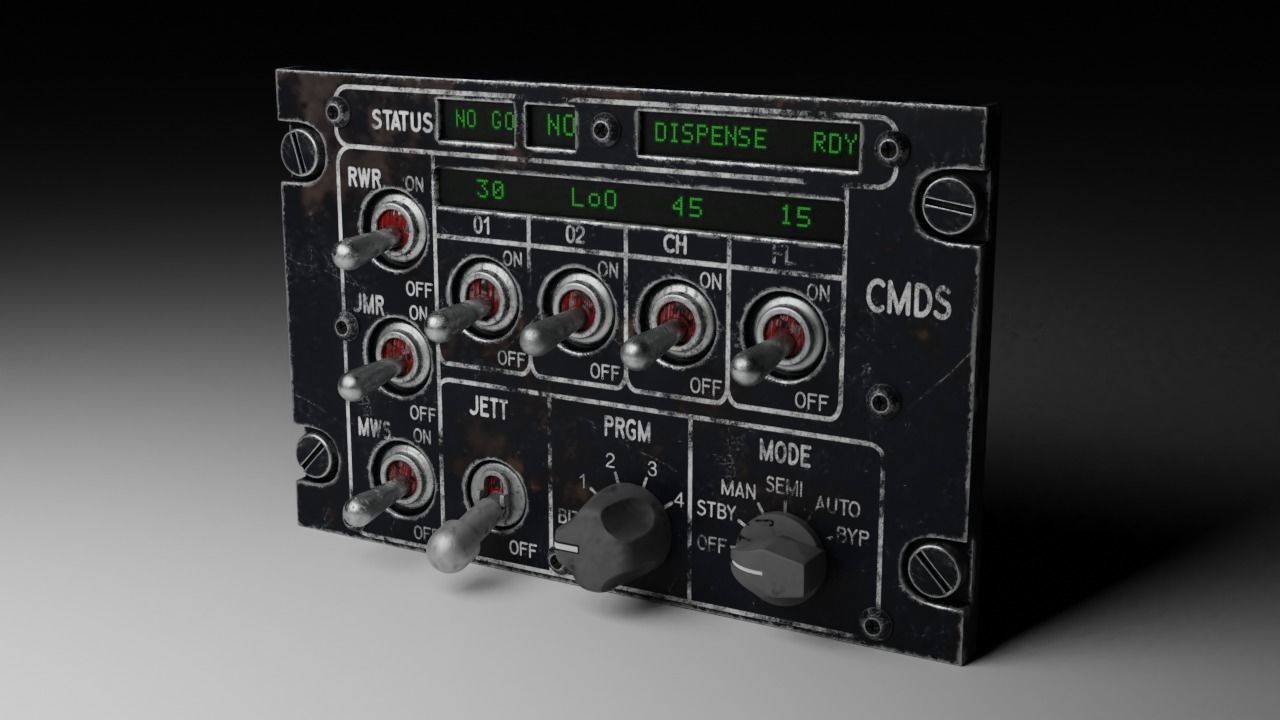

CMDS

  • Vertex Count: 46.980
  • Poly Count: 45.037

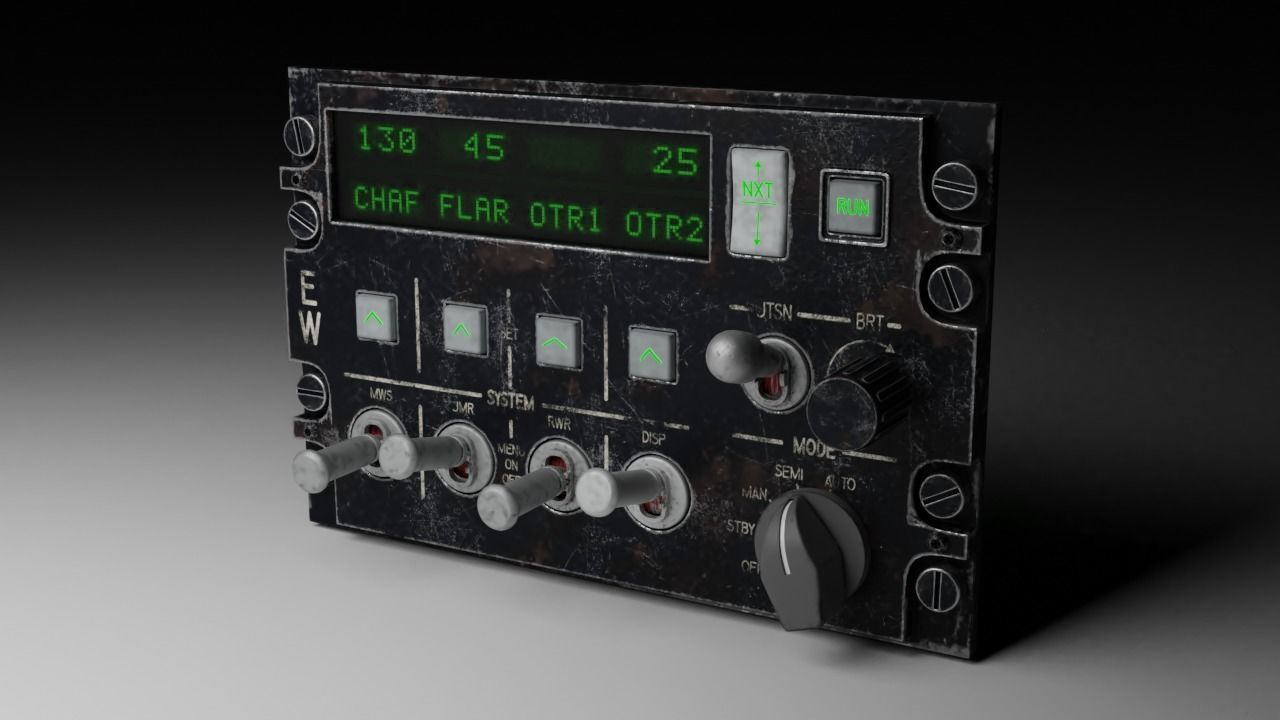

MLU (due to complexity and amount of screws and bolts)

  • Vertex Count: 73.141
  • Poly Count: 70.730

NOTE: Although these models where made for rendering they are modelled to a 1:1 scale and the panel's fascia can be printed (just request for the .stl files). I also, tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.
