The Caution Panel is a display with 32 warning lights that show dangerous conditions or difficulties about the different systems. As soon as one of these warning lights is lit, the Master Caution indicator on the Eyebrow Lights is also active. The Caution Panel is located on the right aux. console.

This model is for the Block 40/42 and 50/52 but I've included the texture needed to recreate the Caution Panel for blocks 25, 30/32 and MLU.

The model was created in Blender 2.81 for the Cycles engine, the textures and materials are PBR based. The model has been rigged with a simple Empty for easy animation.

  • Vertex Count: 37.225
  • Poly Count: 36.200

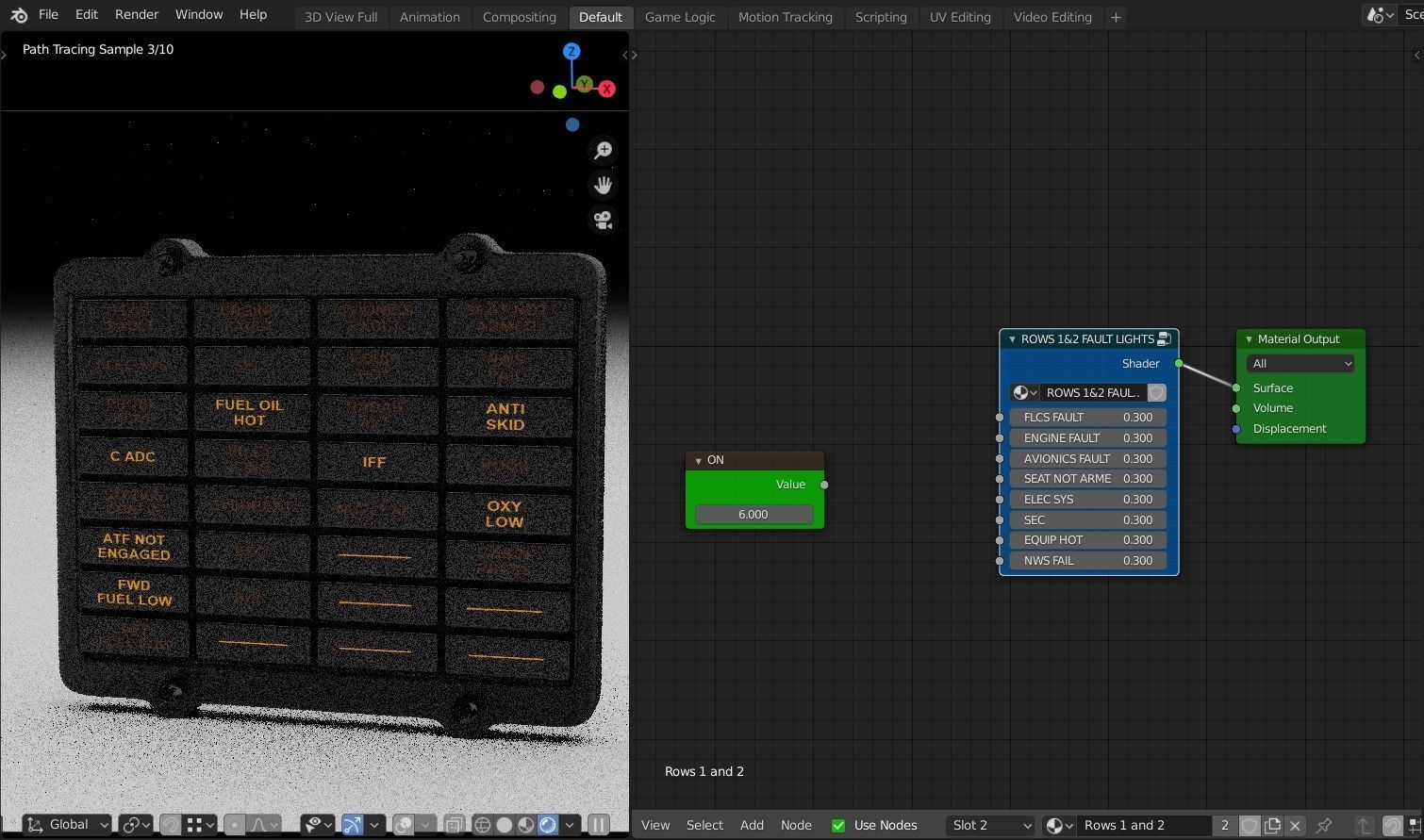

The node setup for turning the lights On/Off is quite simple as shown in the previews. All that is needed is to connect/disconnect the required warning to the emition node.

I tried to keep all the materials packed within the .blend but if for some reason it is not here, you can find them on the Texture folder in the .zip file that accompanies this panel or if you still require it, don't hesitate in contacting me.
