Verification details of the FBX file
No N-gonsNo faceted geometryManifold geometry
Required PBR texturesNo embed texturesTexture aspect ratioPower of 2 texture sizesAssigned materials
No overlapped UVs per UV islandUV unwrapped model
Description

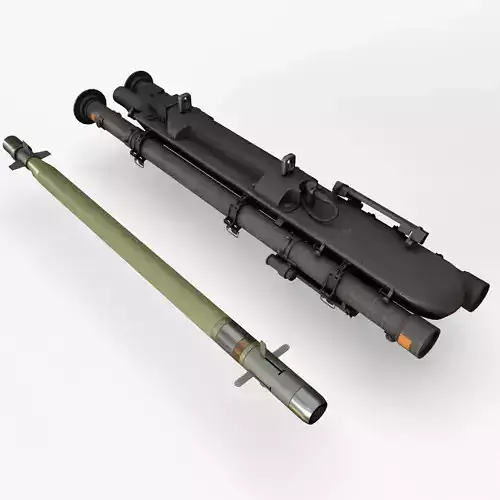

The AIM-92 Stinger or ATAS (Air To Air Stinger) is an air-to-air missile
Contains launcher and missile
File formats: 3ds Max 2021, FBX, Unity 2021.3.14f1
Game ready - perfectly fits for Unity and Unreal
Low poly
Real world scale
Units used: meters
Launcher:
11.641 polys
21.086 tris
11.634 verts
Missile
896 polys
1.752 tris
946 verts
- All parts are fully UV unwraped. No multi-materials or color fills.
- All parts and materials have logical names and ready for coding. (no names such as Object001 or Default - 01)
- Some identical parts have the same UV coordinates (overlapped). It saves textel resolution and does not influence on Ambient occlusion map (no black spots)
- PBR textures are available for Specular-Glossiness and Metalness-Roughness workflows
Textures (*.PNG) 4096x4096
- Diffuse
- Specular
- Glossiness
- Base color
- Metallic
- Roughness
- Normal
- Ambient Occlusion
Originally created with 3ds Max 2021. No 3rd party plugins required.
Software used:
- 3ds Max 2021 for modeling
- UV Layout for unwrapping
- Photoshop and Substance Painter for texturing
- Marmoset Toolbag and V-Ray for rendering
NOT included with the file:
- Light rig/HDRI
- Helicopter
