Single-Phase Electrical Sockets and Plugs Type A - Type O 3D Model Collection

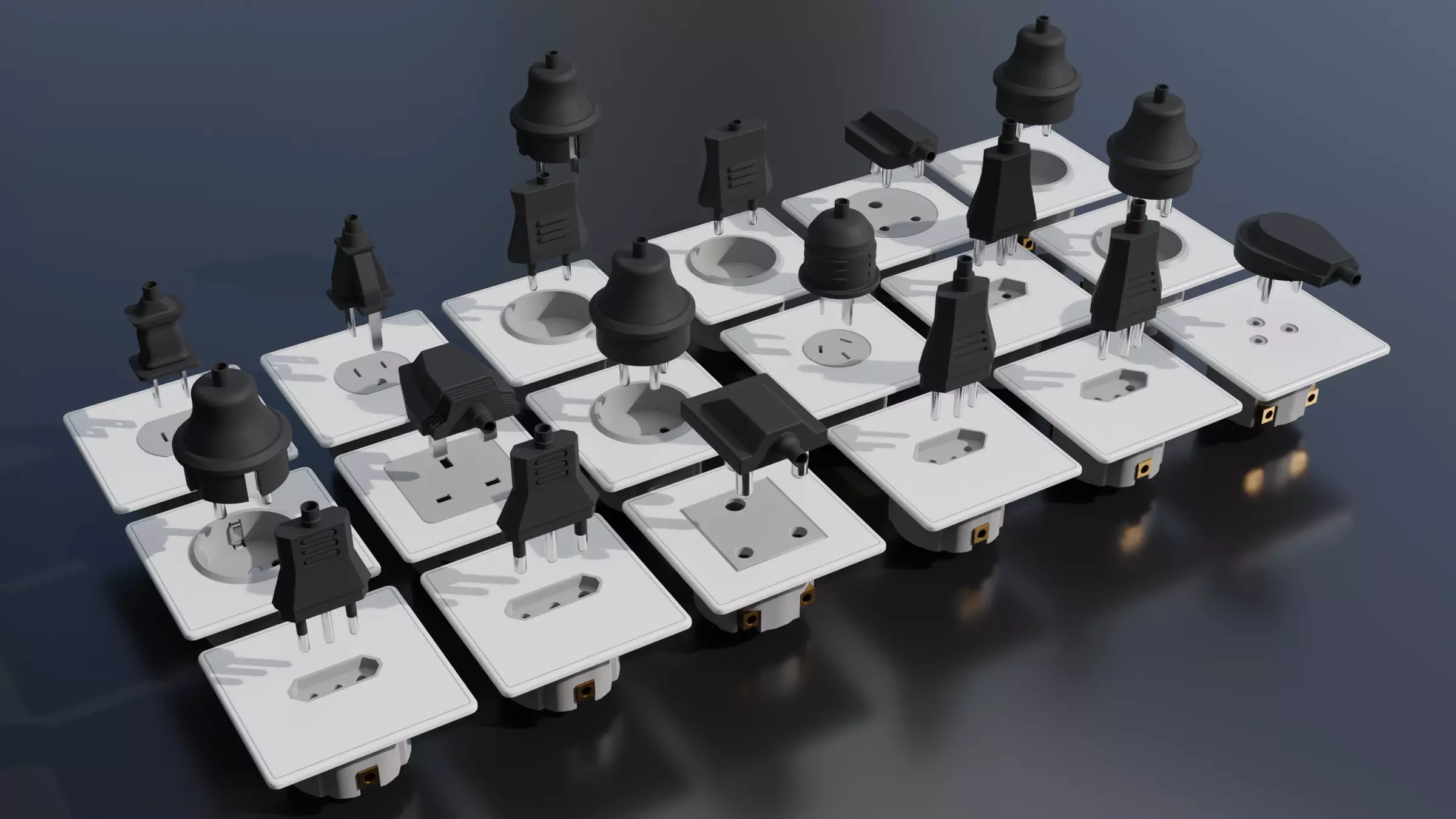

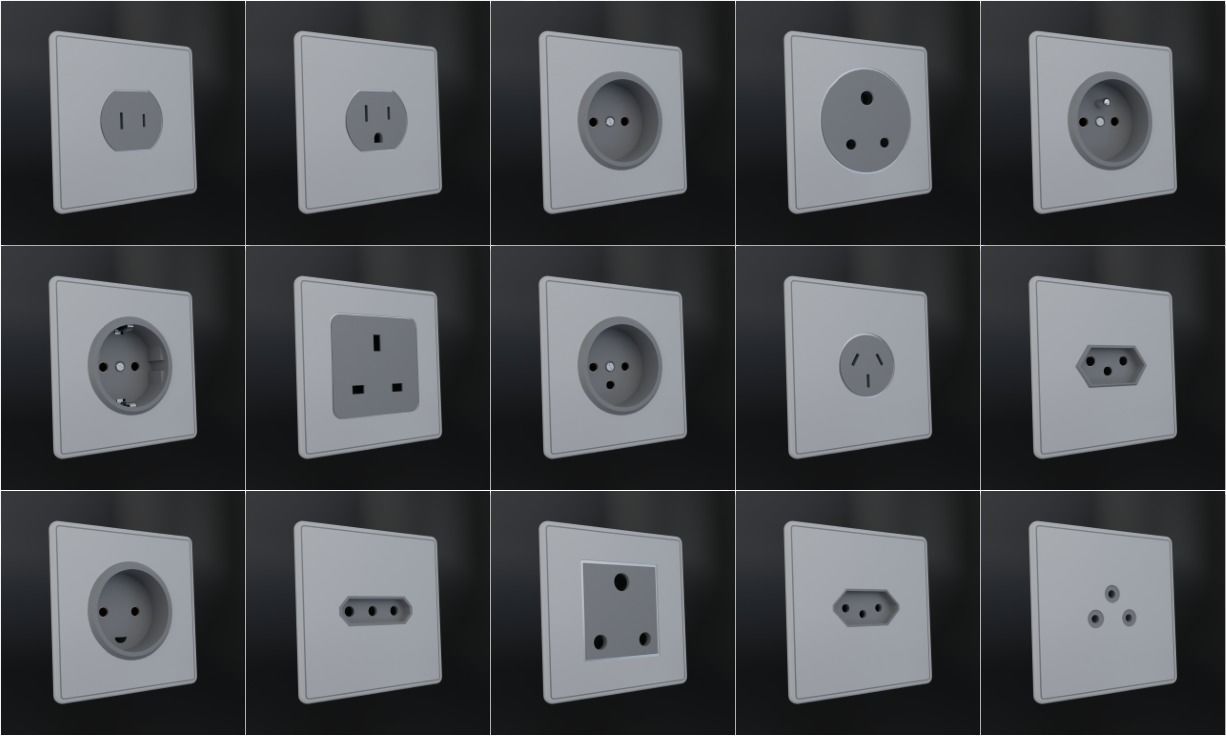

This collection contains all standardized electrical single-phase sockets (outlets) and plugs used worldwide (15 different types with some variations – Type A to Type O).

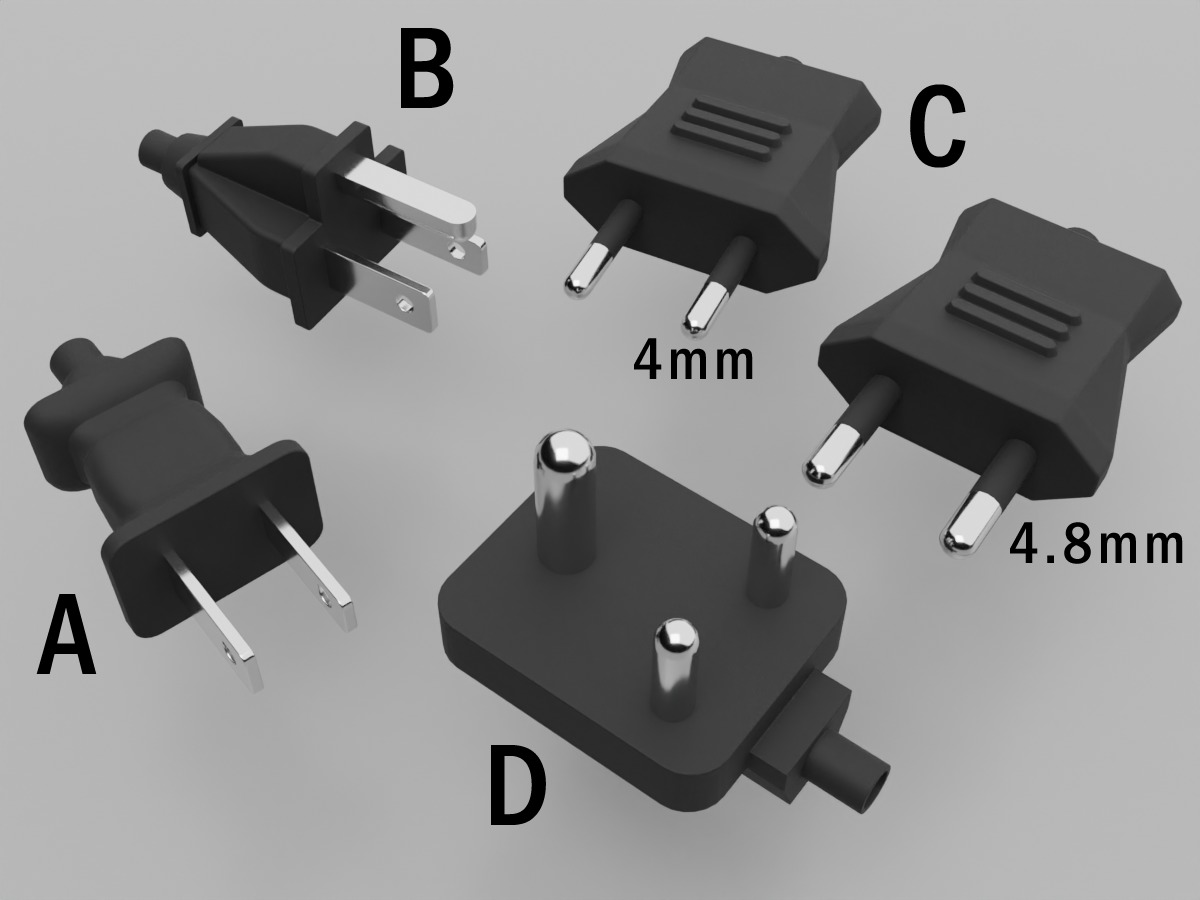

• Type A: 15A/100-127V -GND (USA, Canada, Mexico and Japan)
• Type B: 15A/100-127V +GND (USA, Canada, Mexico and Japan)

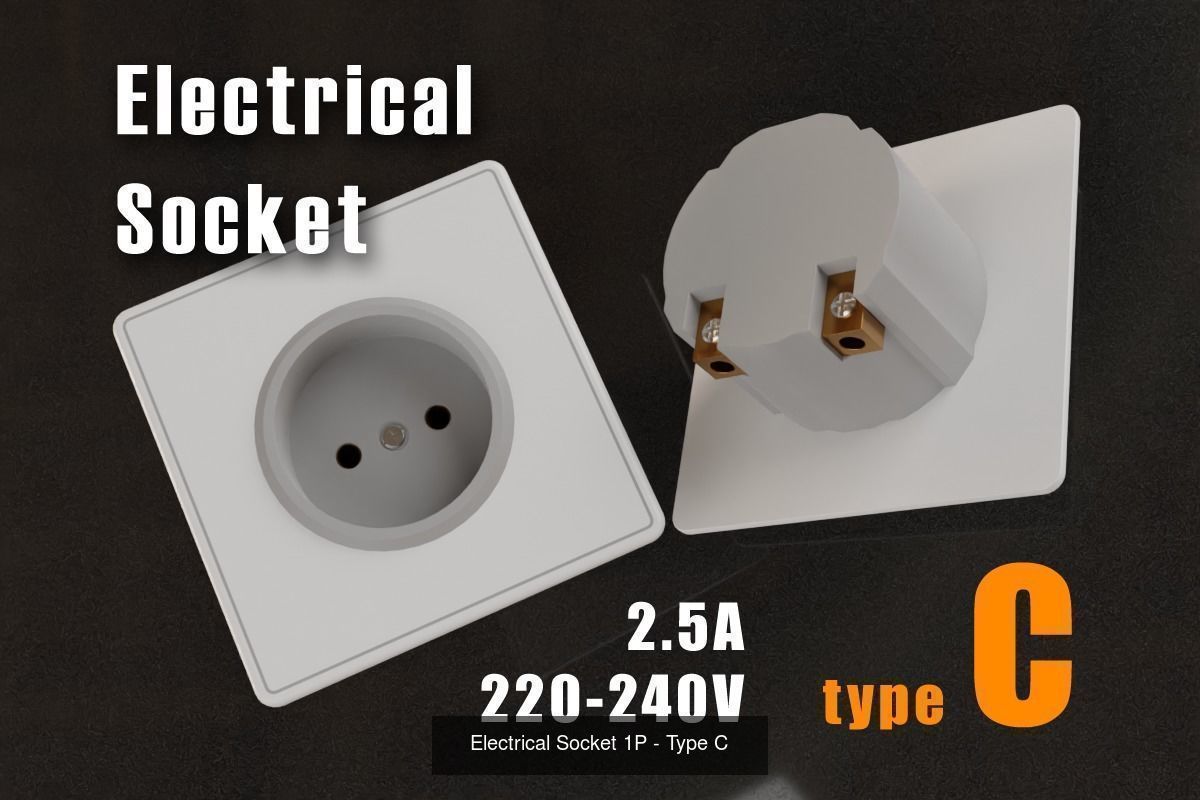

• Type C: 2.5A/220-240V -GND (Europe, South America and Asia) - 2 variations
• Type D: 5A/220-240V +GND (India)
• Type E: 16A/220-240V +GND (France, Belgium, Poland, Slovakia, Czechia)
• Type F: 16A/220-240V +GND (All Europe but UK and Ireland)
• Type G: 13A/220-240V +GND (UK, Ireland, Malta, Malaysia and Singapore)
• Type H: 16A/220-240V +GND (Israel and Palestine)

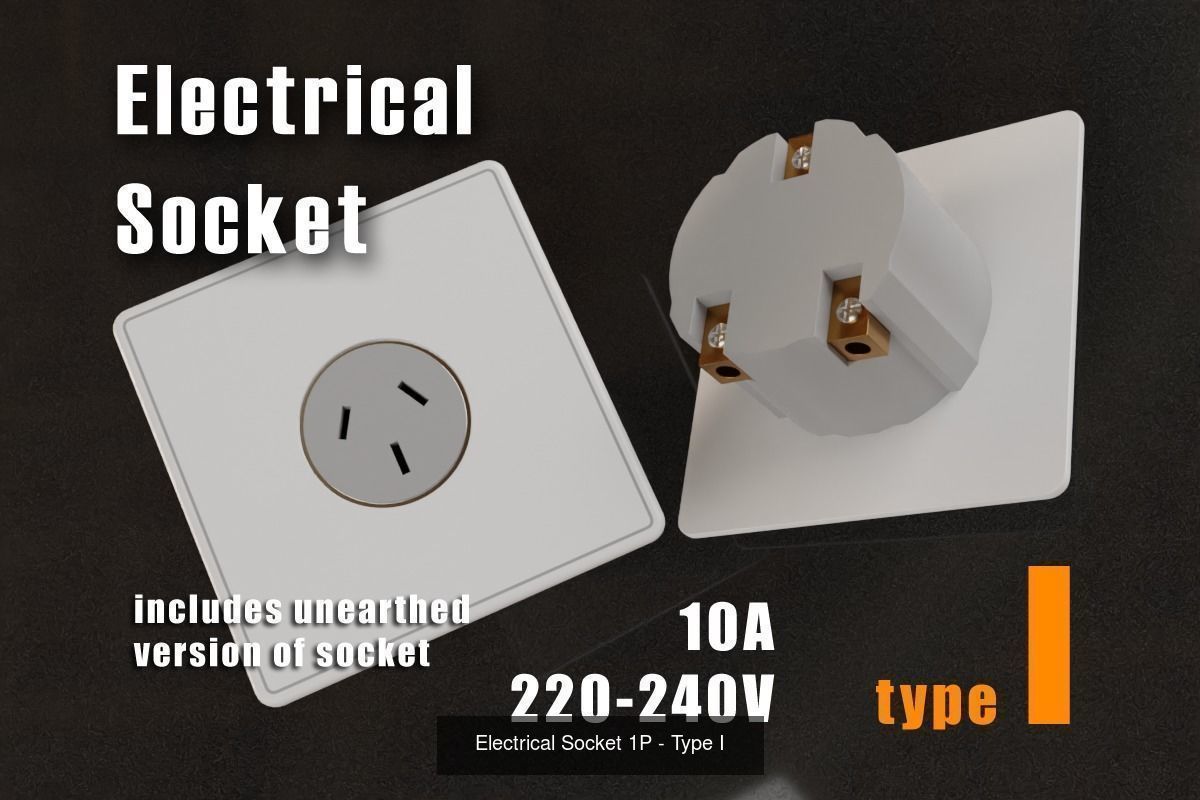

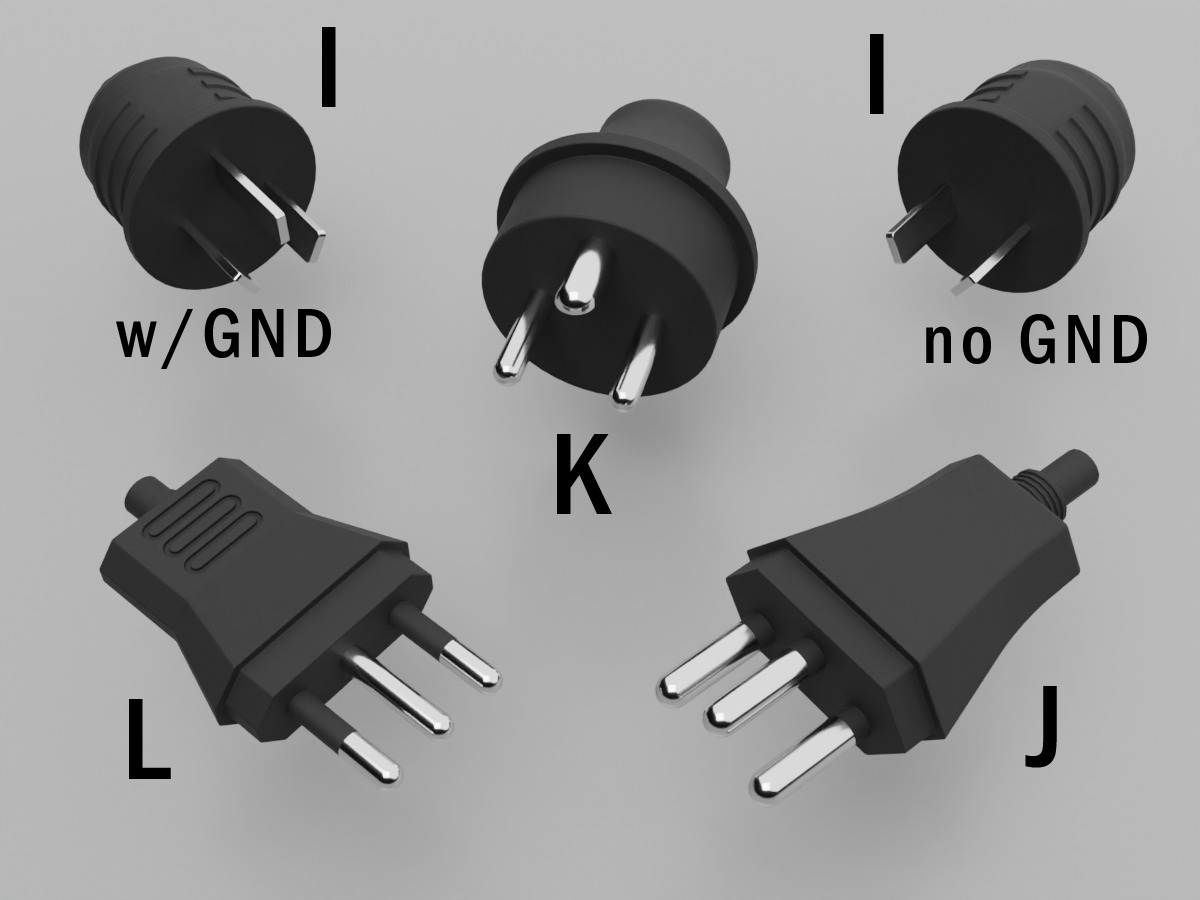

• Type I: 10A/220-240V +/- GND (Australia, New Zealand, China, and Argentina) - 2 variations

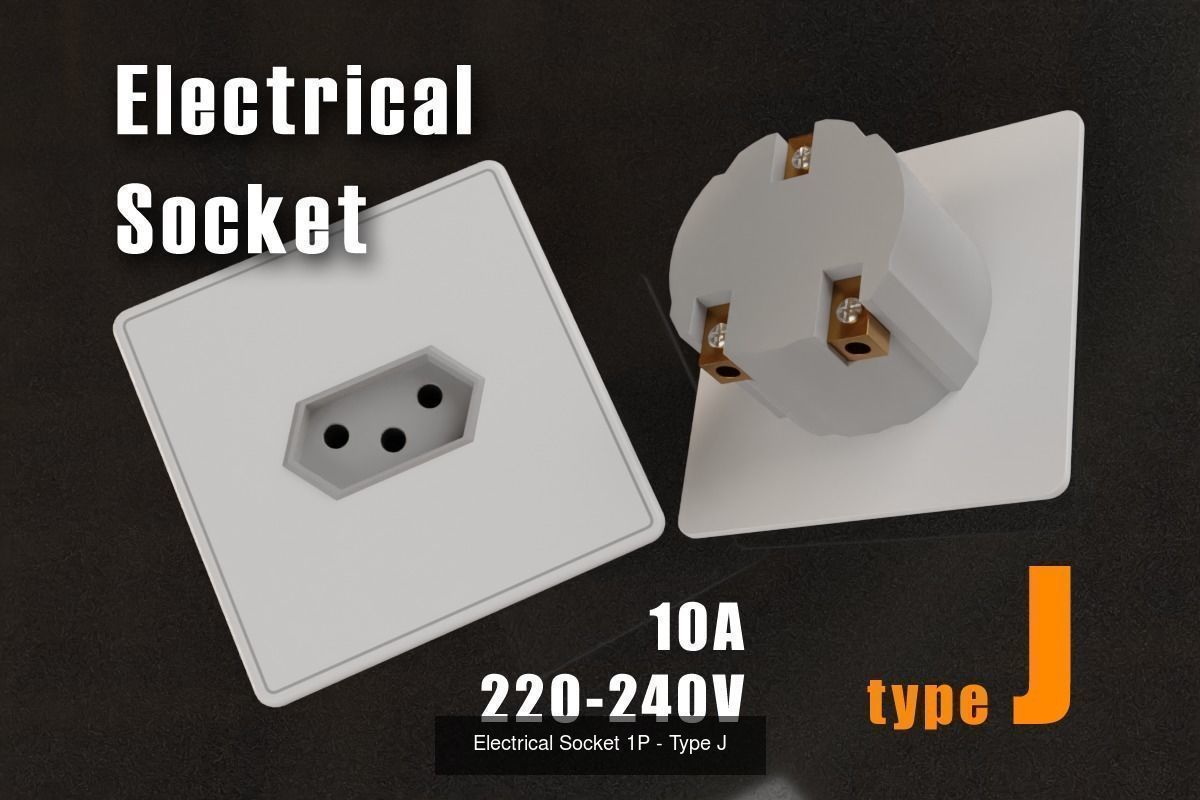

• Type J: 10A/220-240V +GND (Switzerland and Liechtenstein)
• Type K: 16A/220-240V +GND (Denmark with Greenland)

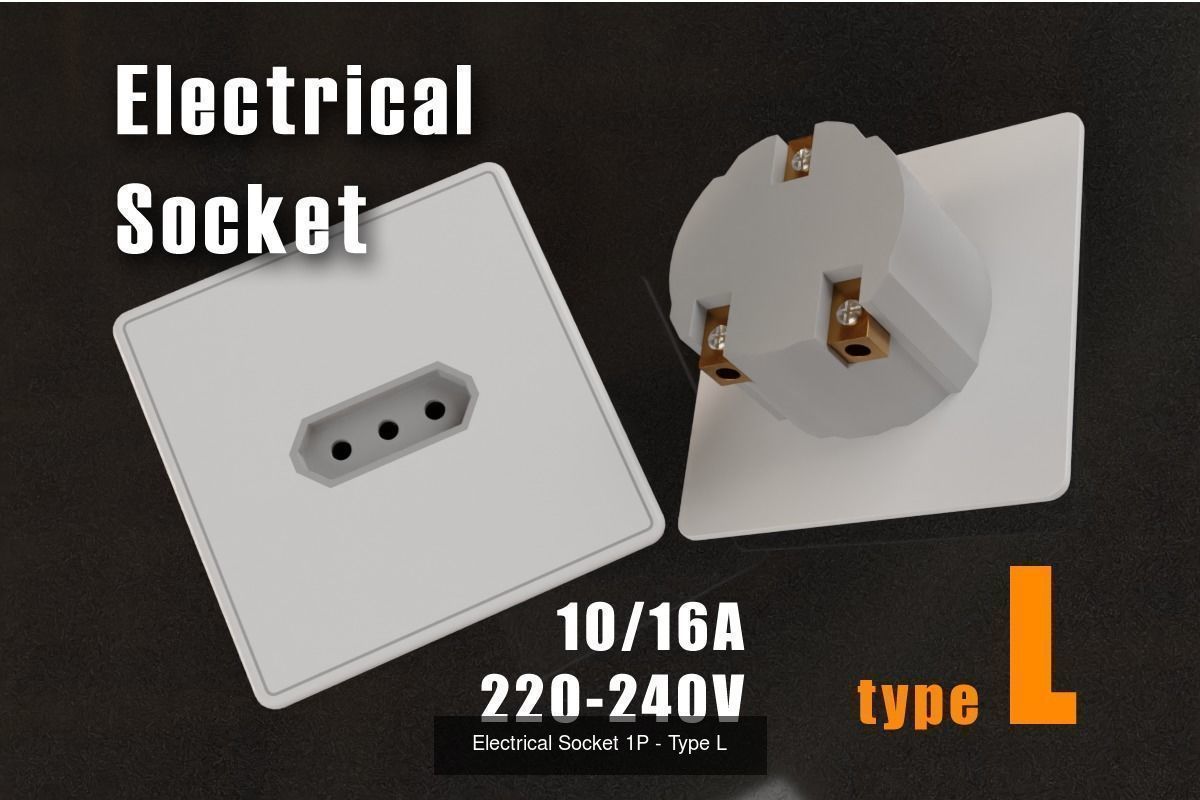

• Type L: 10A or 16A/220-240V +GND (Italy and Chile) - 2 variations

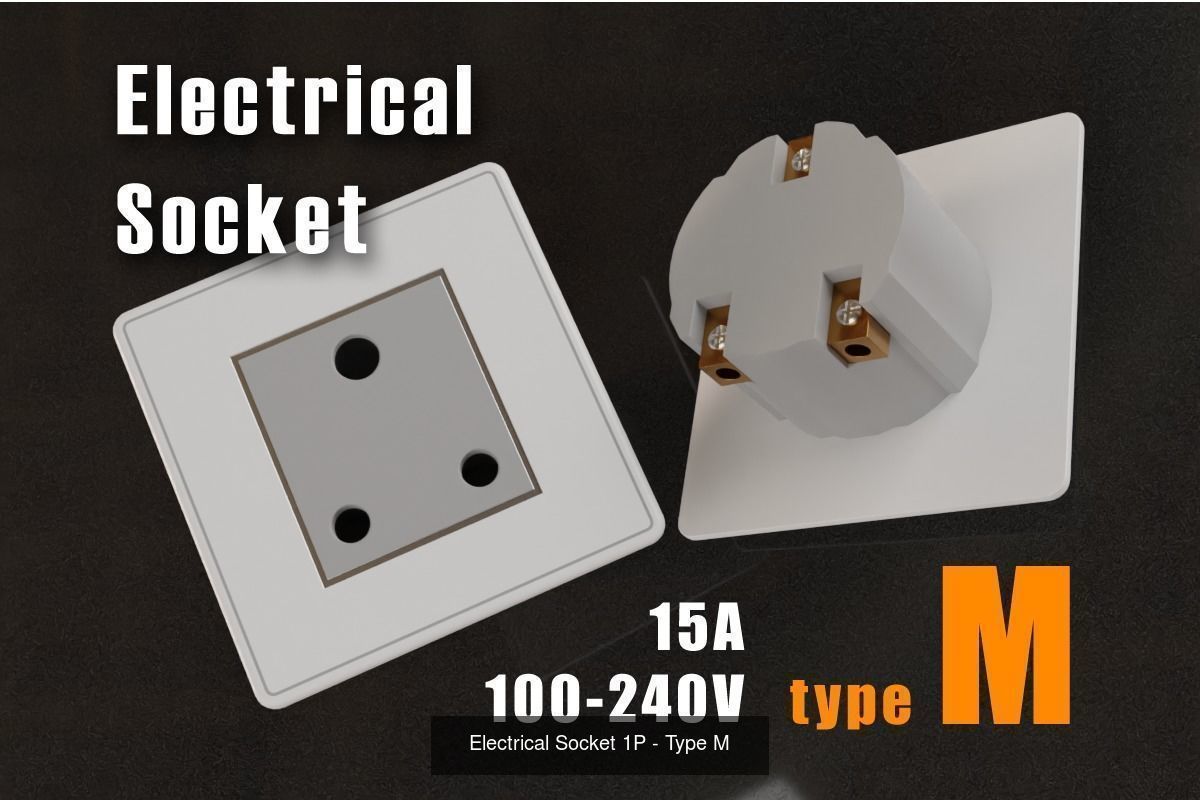

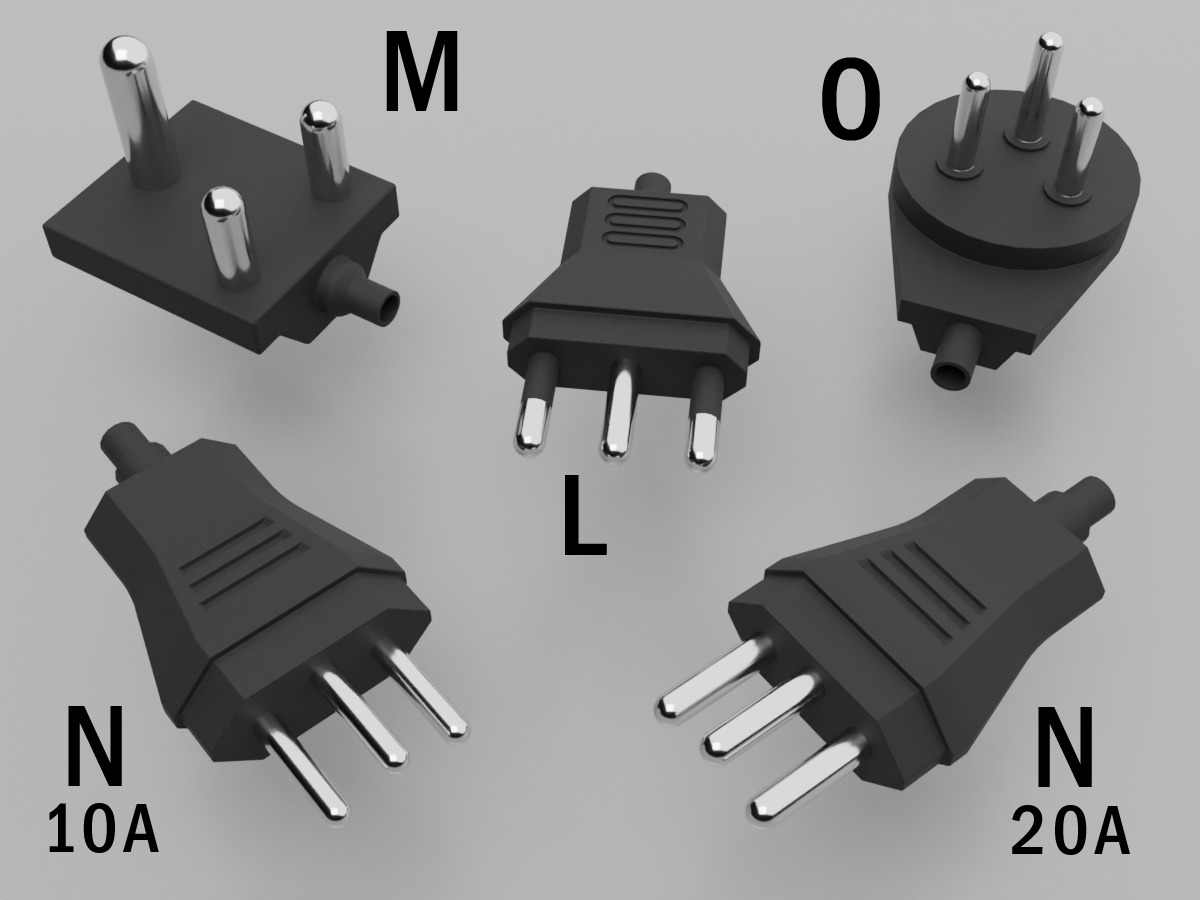

• Type M: 15A/100-240V +GND (South Africa)

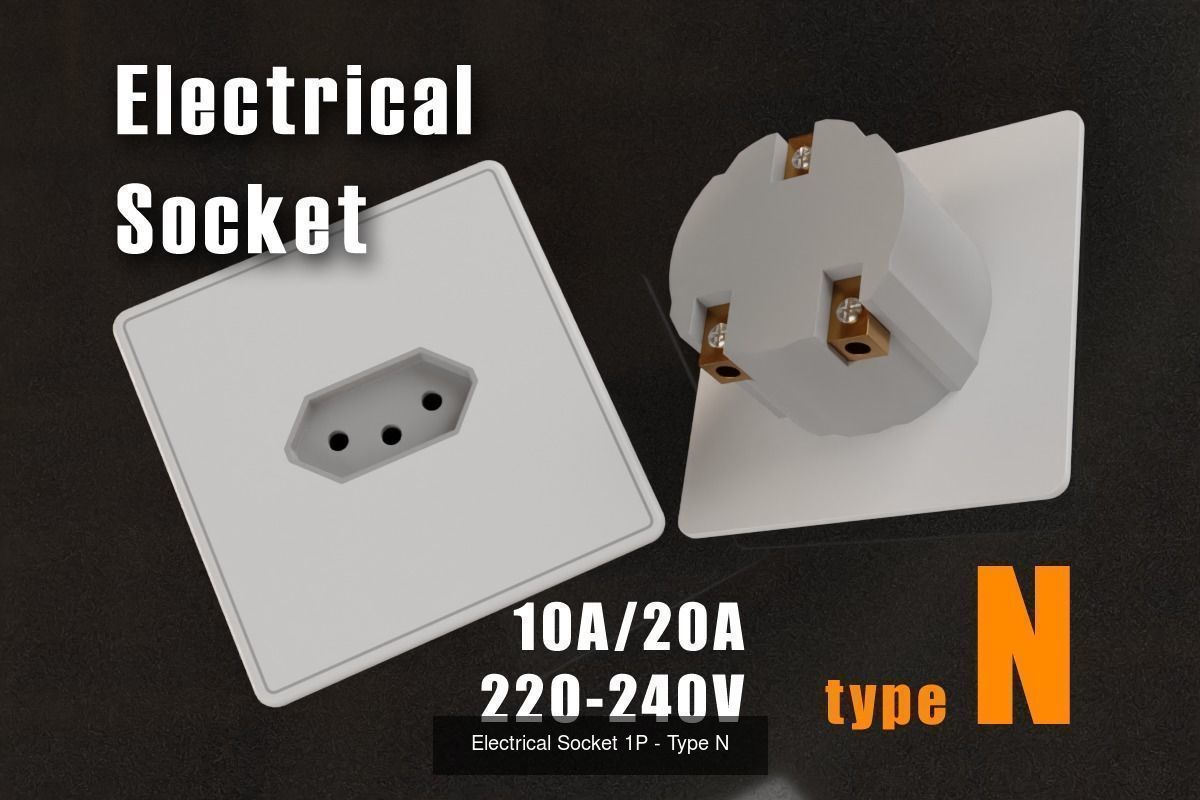

• Type N: 10A or 20A/220-240V +GND (Brazil and South Africa) - 2 variations
• Type O: 16A/220-240V +GND (Thailand)

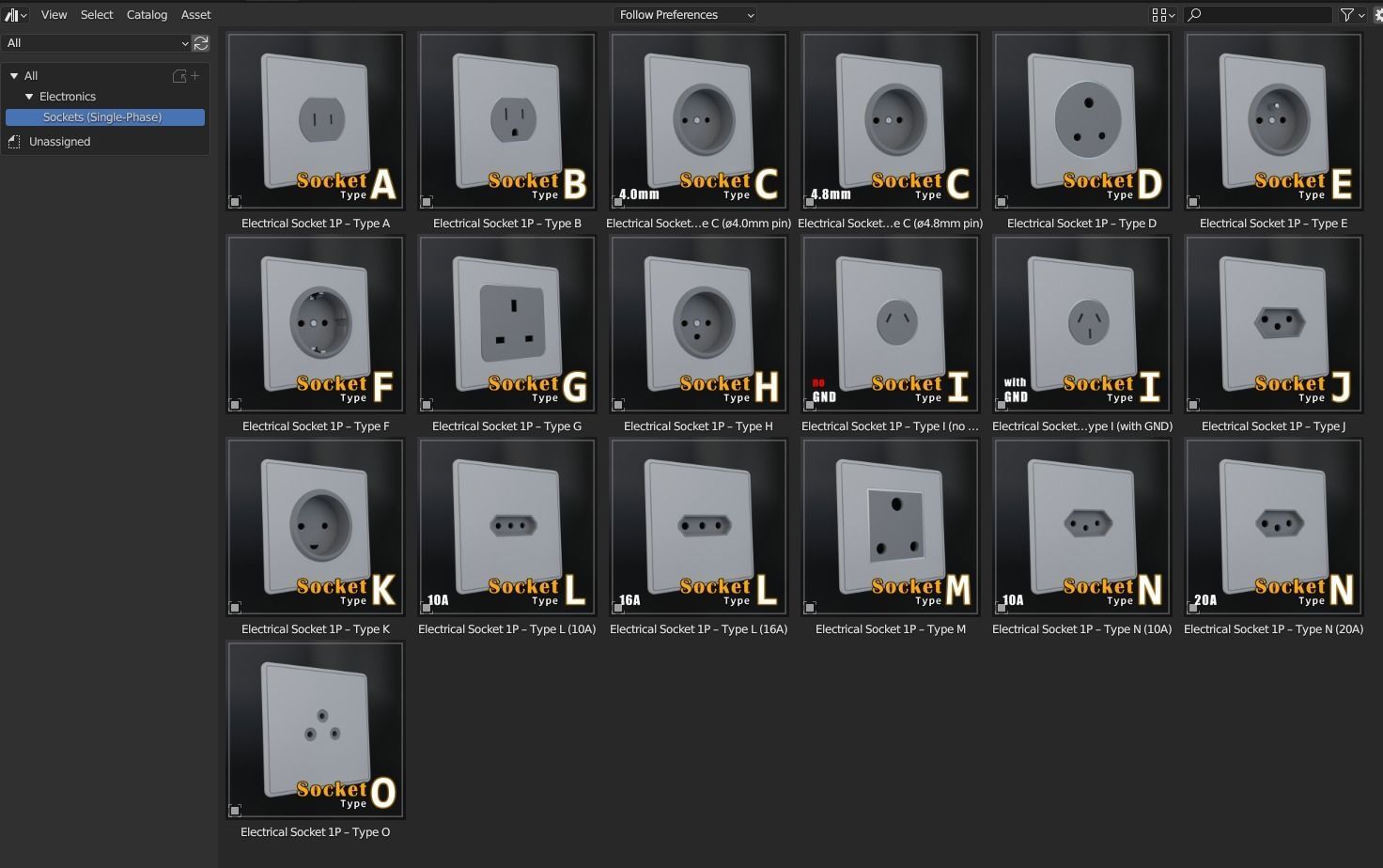

This collection of outlets has been originally created to be used with Blender’s Asset Browser. All models have been made for rendering purpose only, contain ngons and not suitable to be used with game-engines. Course, all ngones are protected with additional safety edges to eliminate shading issues with bevels and flat surfaces. All models have thumbnail image rendered if needed for asset browser (png, 1200x1200 pixels).

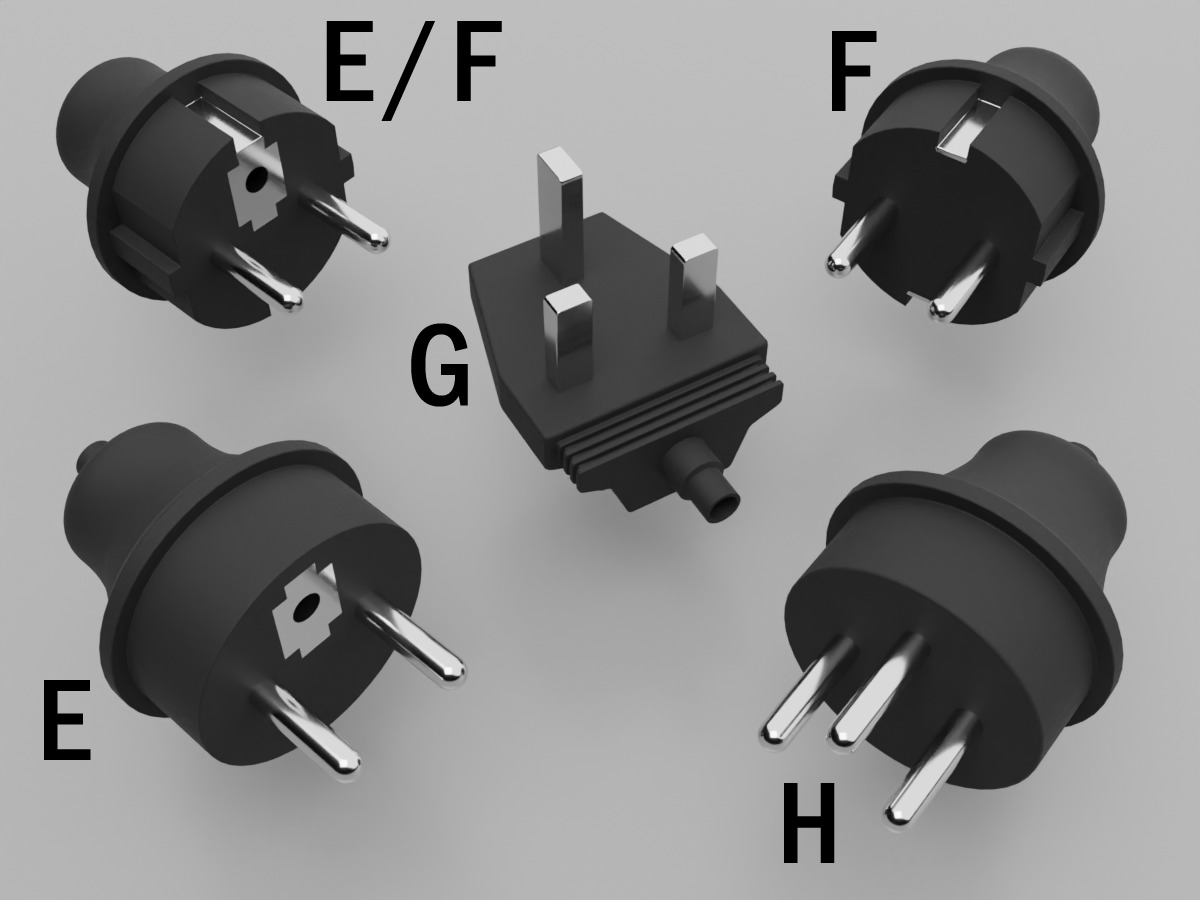

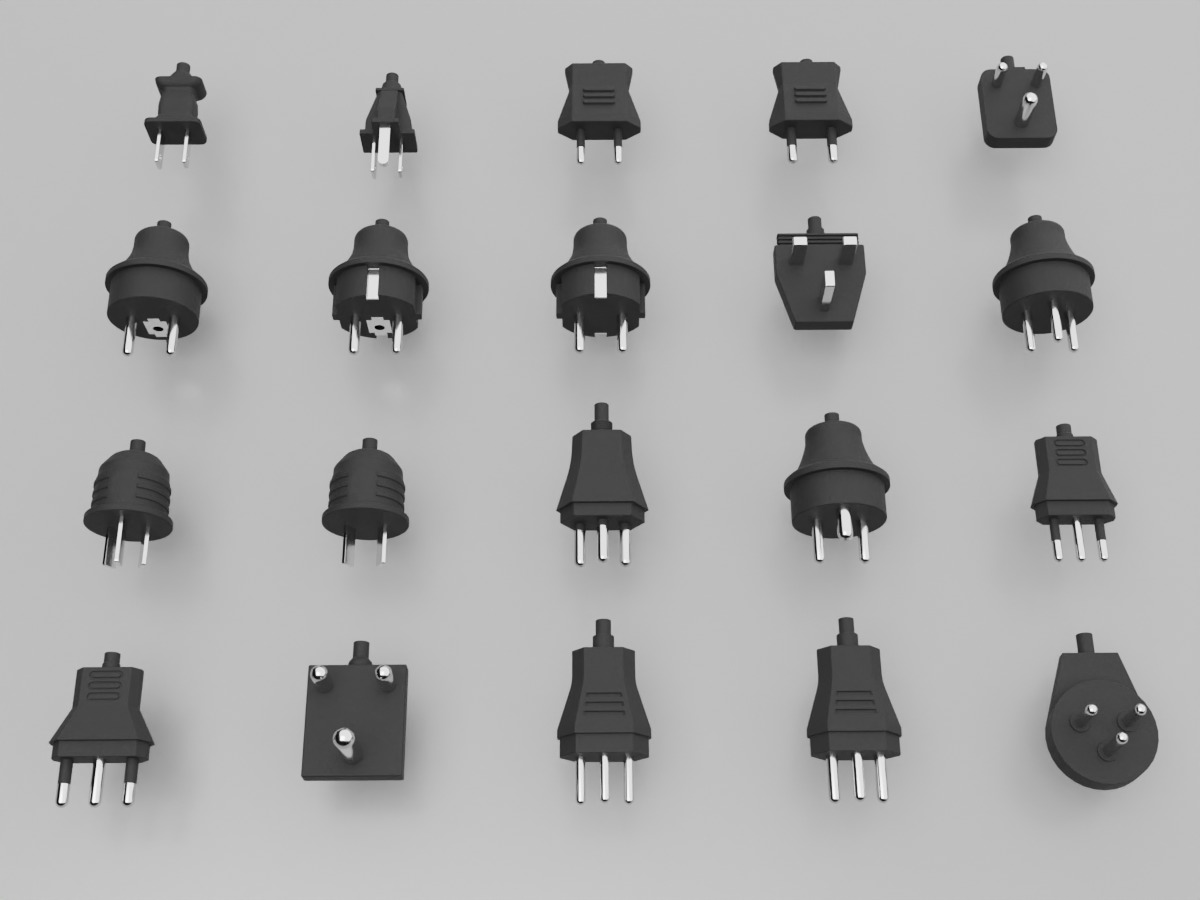

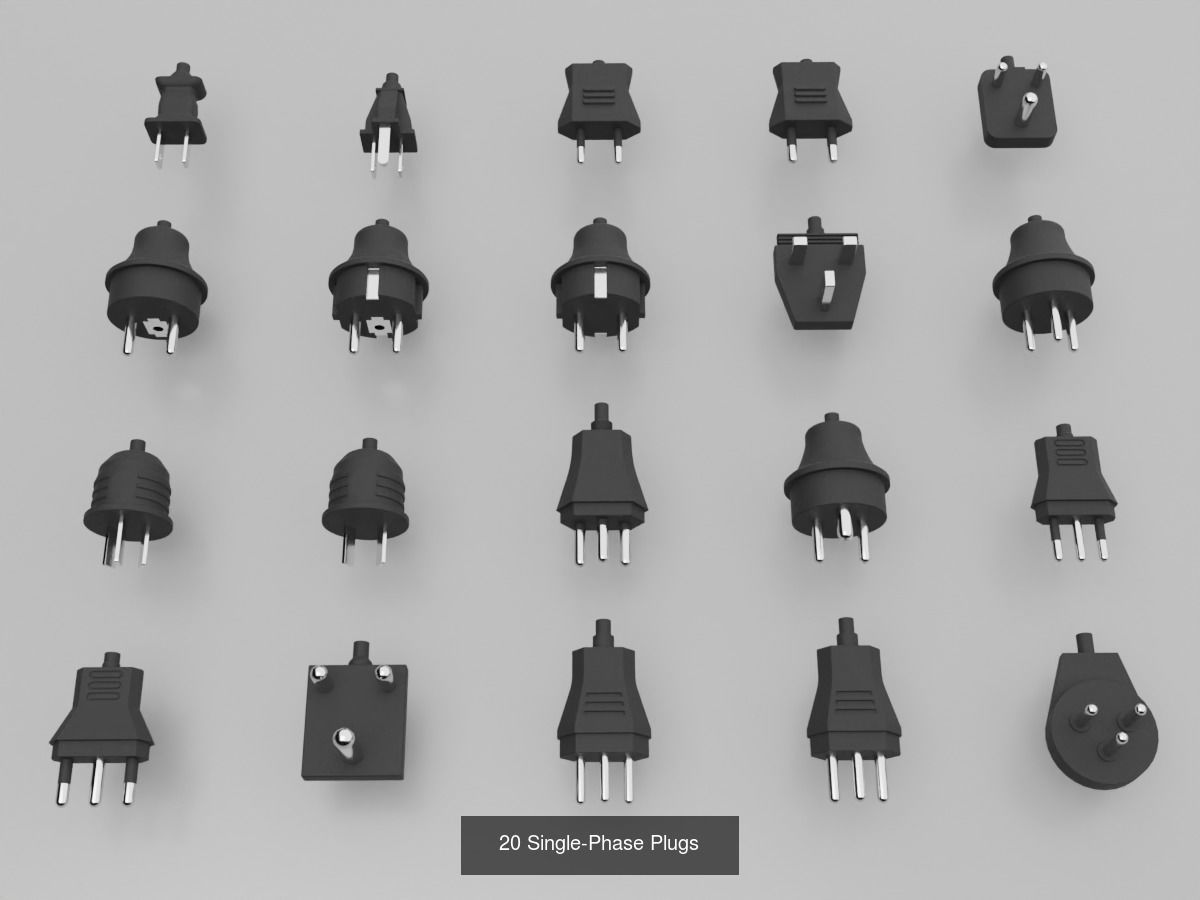

Plugs are added later and they don't have thumbnail image for assets. Other than standard types here's also combo E/F plug that fits into both - type E and type F sockets (most common earthed single-phase plug in continental Europe)
